Sinotruk HOWO T5G Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis

Export reference
From $37,986
MSRP ¥27.35M CNY
Horsepower: 280
Emission: China IV
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Sinotruk
Curb Weight:: 8.8ton
seating capacity: 3Personnel
Rated payload: 11.17ton
Drive 6X2 (8 wheels)
Cargo box type: Chassis

Overview

The Sinotruk HOWO T5G Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis is a Heavy-duty cargo trucks featuring 7.8m cargo length, Chassis cargo body, 3Personnel volume and 11.17t payload. On the powertrain side, it comes with a SinotrukMAN7L engine, 280 hp, 6X2 (8 wheels) drive and China IV emissions.

China IV 280 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1207N56CGD1
Type: Chassis
Drive type: 6X2
Wheelbase: 1800+4800mm
engine: SinotrukMC07.28-40
transmission: SinotrukHW13710DC
Rear Axle Ratio: 3.909
Cab length: 10.33m
Cab width: 2.496m
Cab height: 3.105m
Front track width: 2015/2015mm
rear track: 1860mm
Curb Weight: 8.8ton
Rated payload: 11.17ton
GVWR: 20.1ton
Max. speed: 110km/h
Origin: Jinan, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 19°
departure angle: 13°
Front/rear suspension: 1.43/2.9m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.28-40
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China IV
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW13710DC
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 7.8m
Cargo box width: 2.4m
Cargo box height: 0.55m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 5000/5000kg
rear axle allowable load: 10100kg
Axle ratio: 3.909
Leaf spring count: 3/3/3+2
Tire
Tire Size: 275/70R22.5
Number of tires: 8pcs
Control configuration
ABS:

Photos

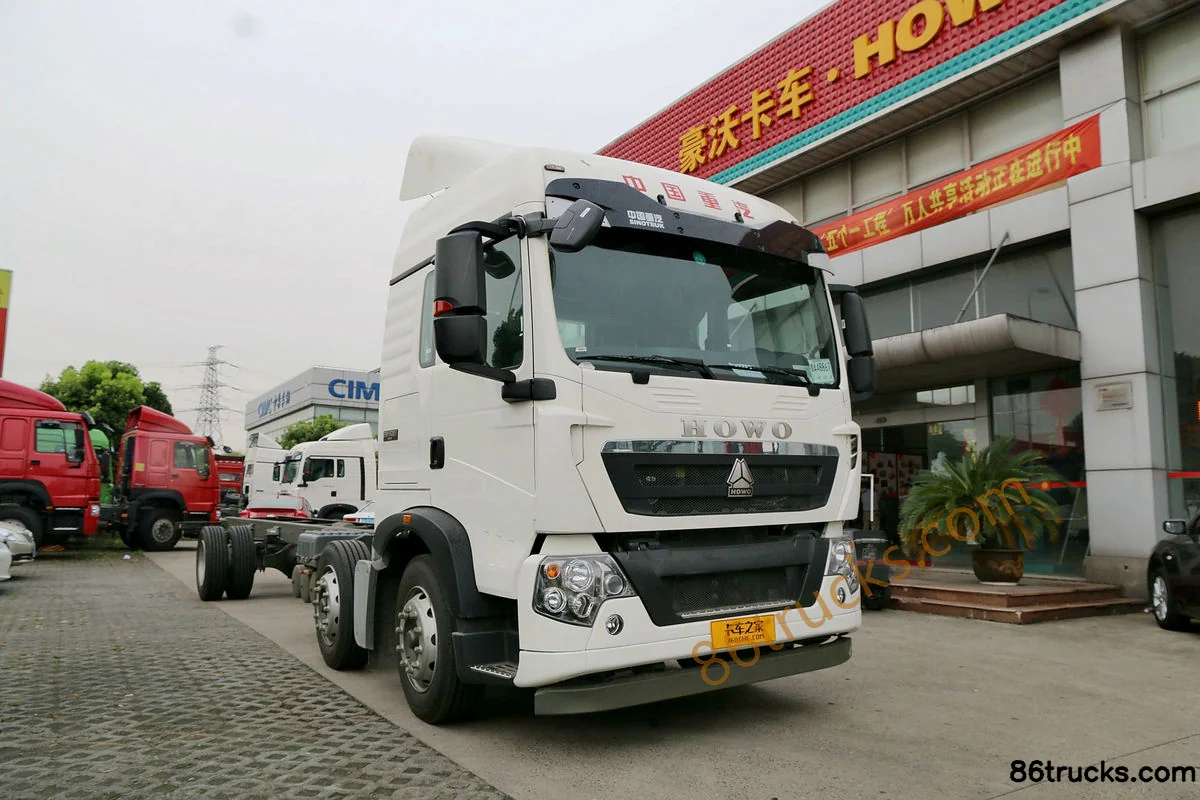

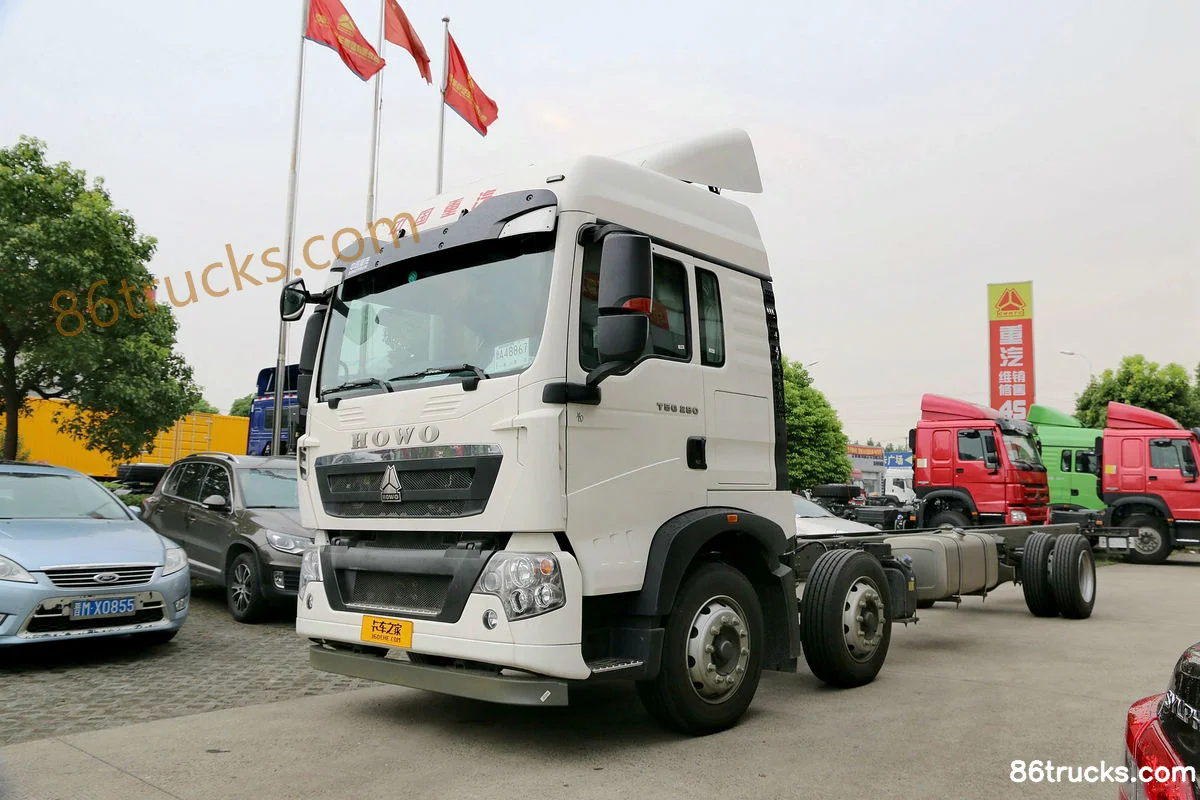

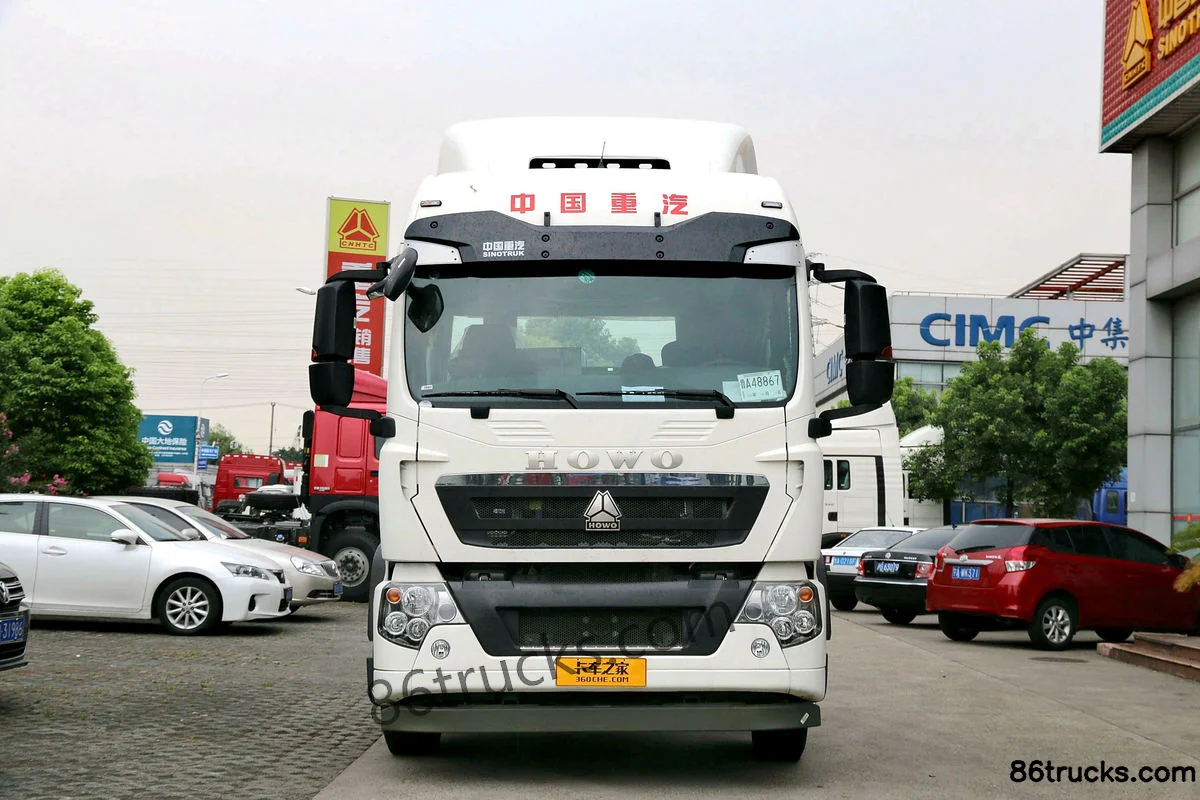

Exterior3

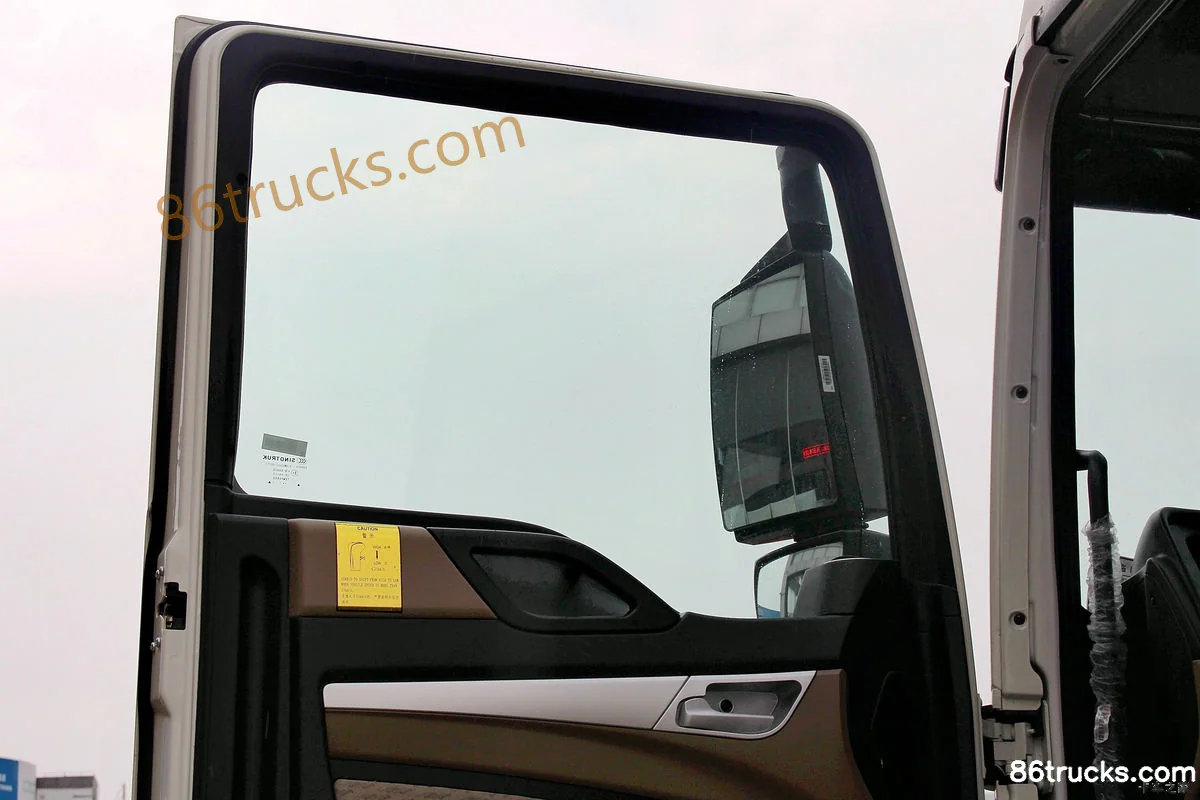

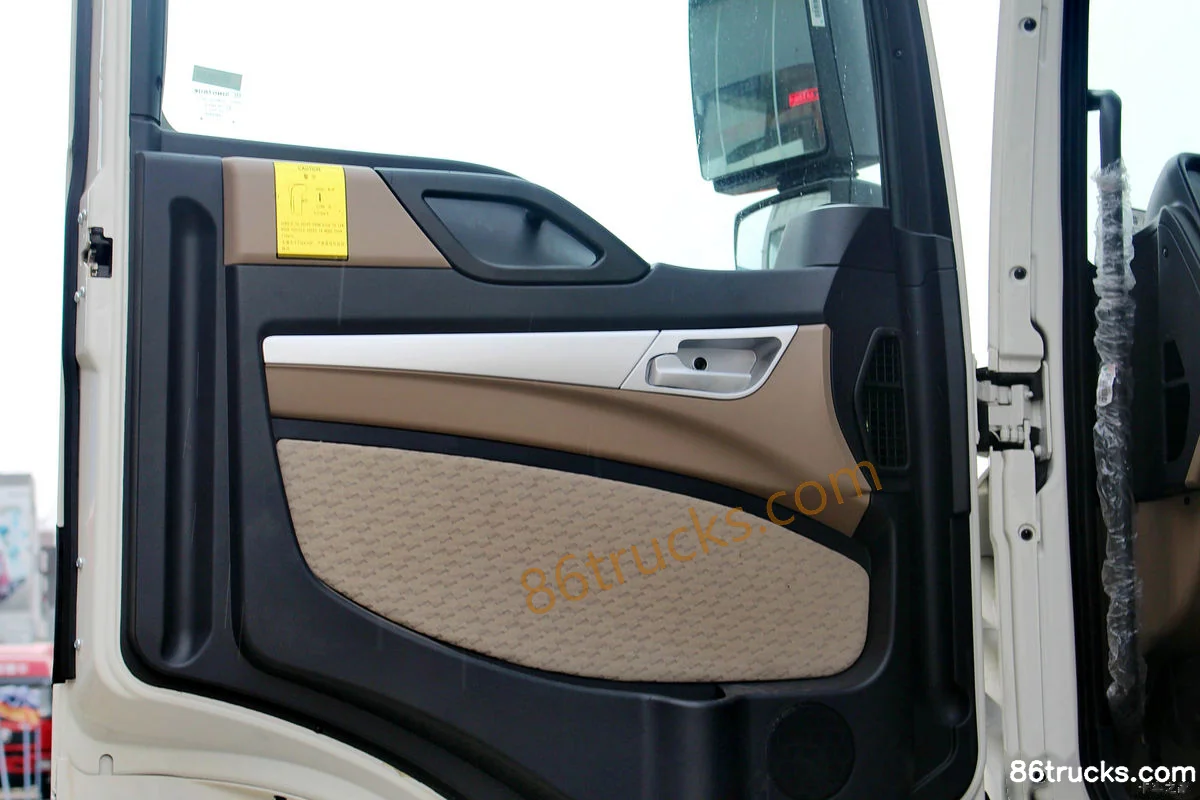

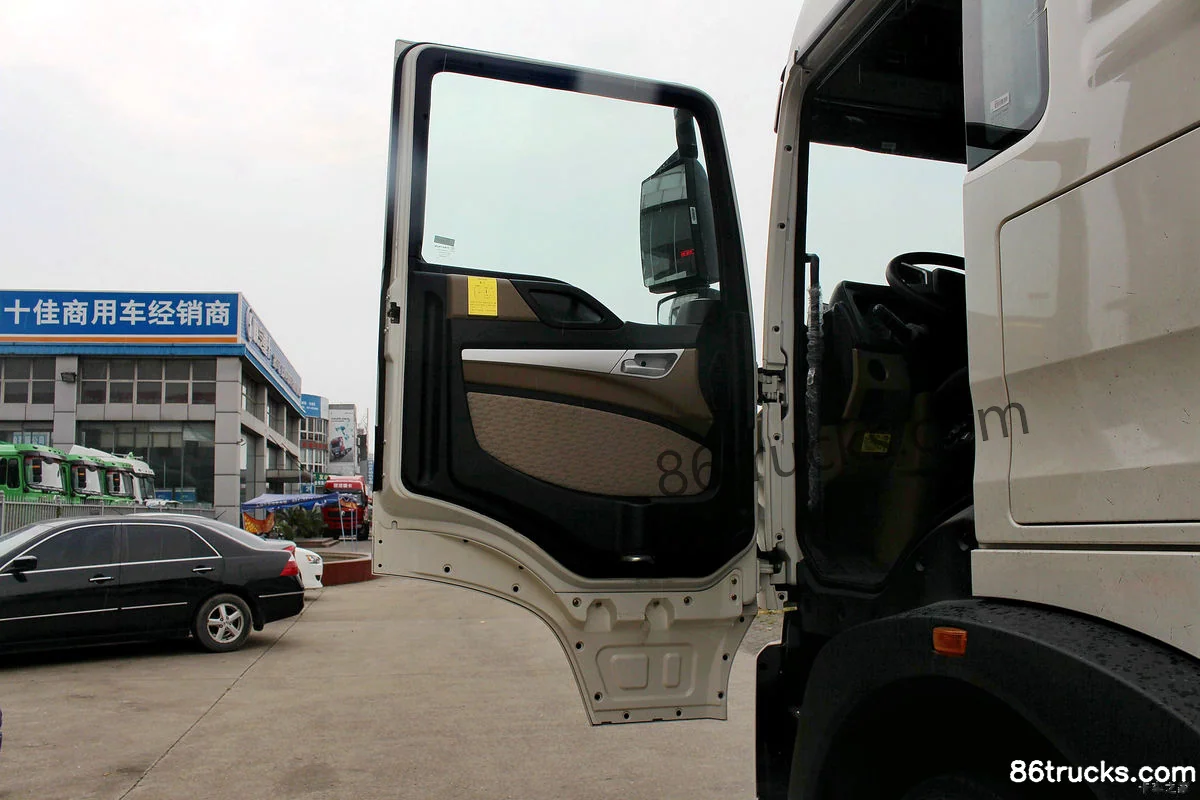

Cab3

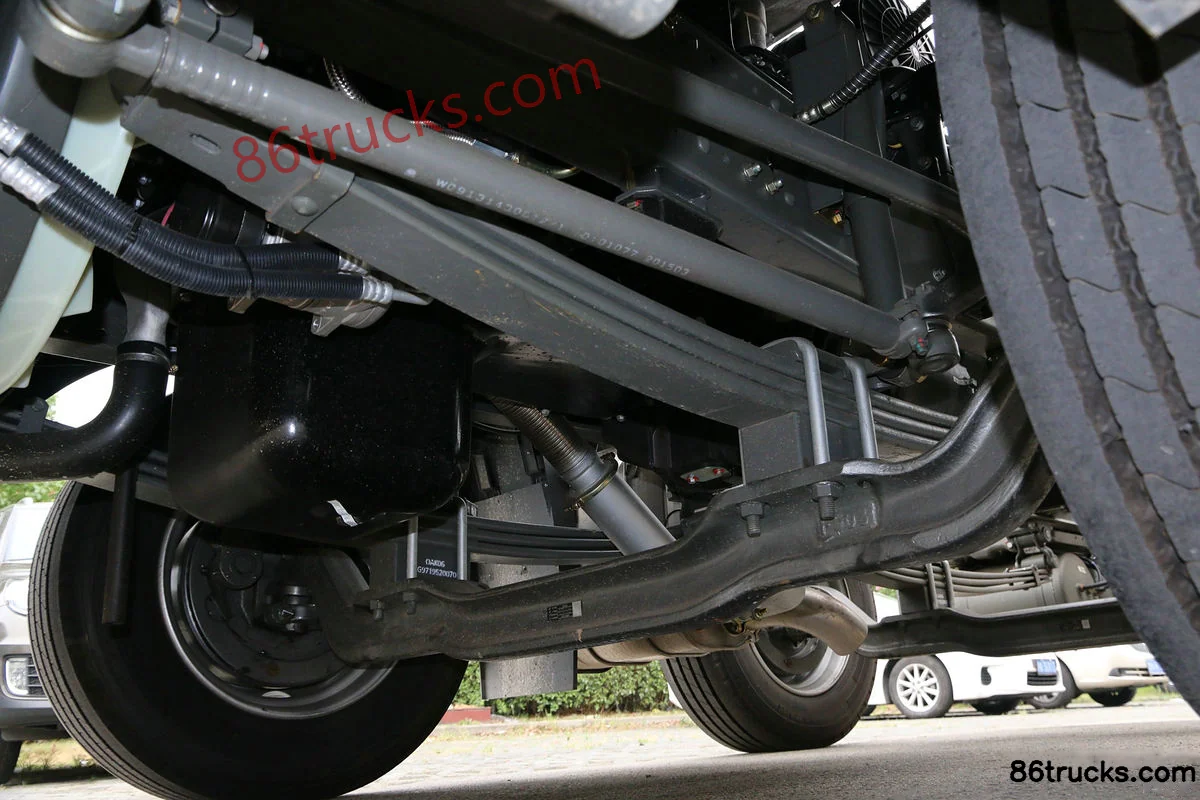

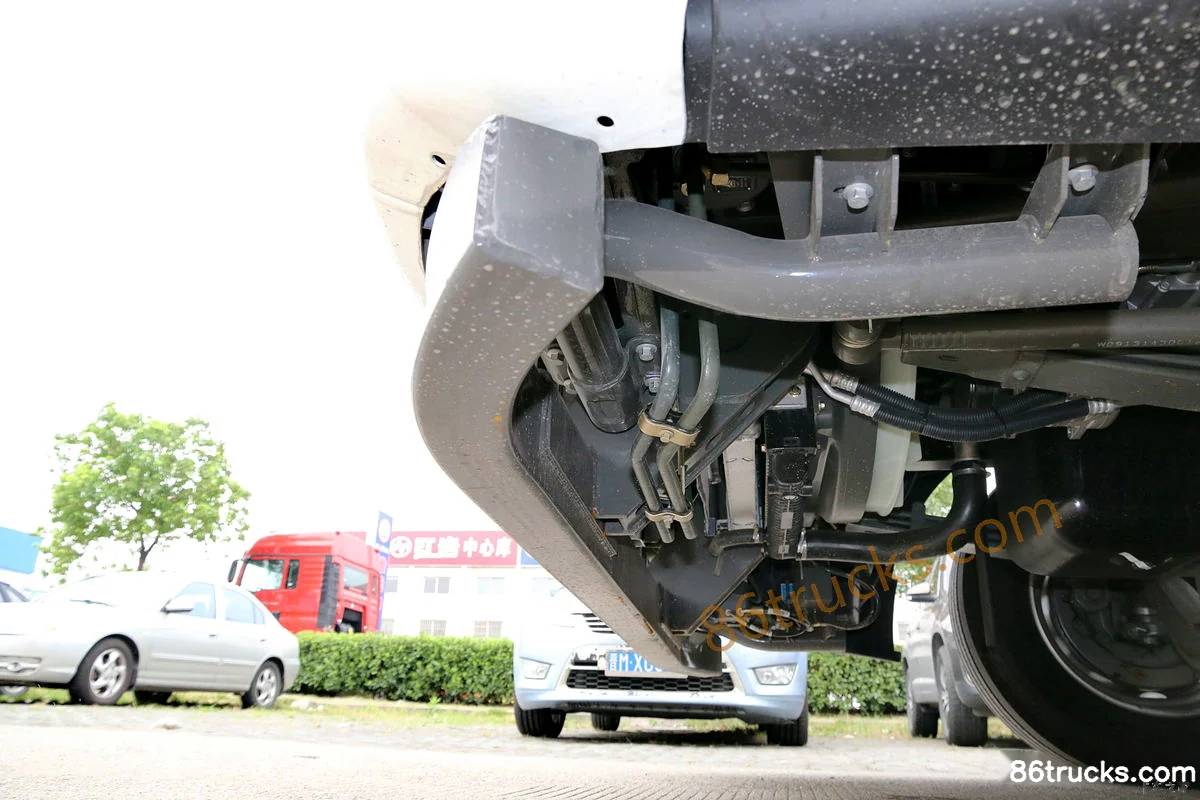

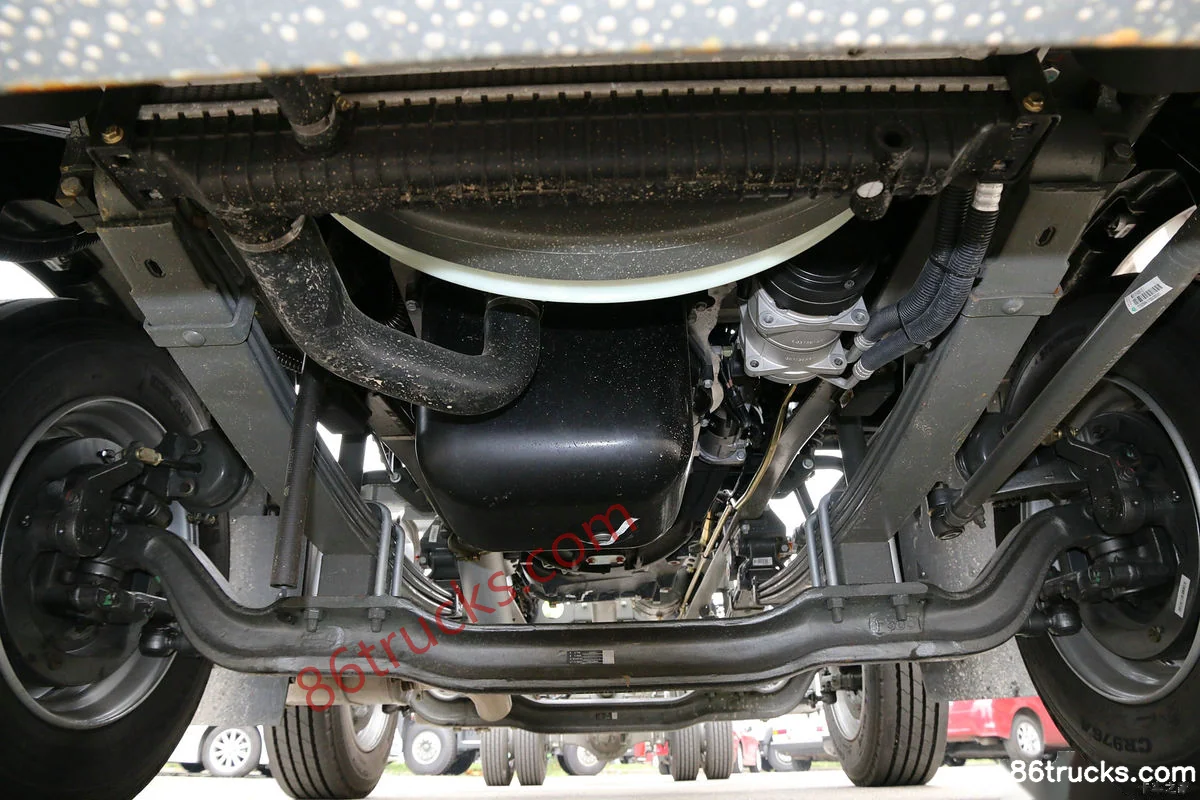

Chassis3

9 photos

FAQ

What is the export price of Sinotruk HOWO T5G Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis, and what does it include?

Sinotruk HOWO T5G Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis export reference is about From $37,986; MSRP is ¥27.35M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO T5G Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T5G Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis?

Key specs of Sinotruk HOWO T5G Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis: Drive: 6x2; Horsepower: 280 hp; Emission: China IV; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T5G Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis suited for?

Sinotruk HOWO T5G Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO T5G Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis differ from other variants in the same series?

Sinotruk HOWO T5G Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis belongs to Sinotruk HOWO T5G medium-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T5G Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T5G Heavy Truck 280 hp 6X2(8 wheels) Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
