FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle)

Export reference
MSRP N/A
Horsepower: 160
Emission: China IV
Fuel: Diesel
Engine: Yuchai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 7.61ton

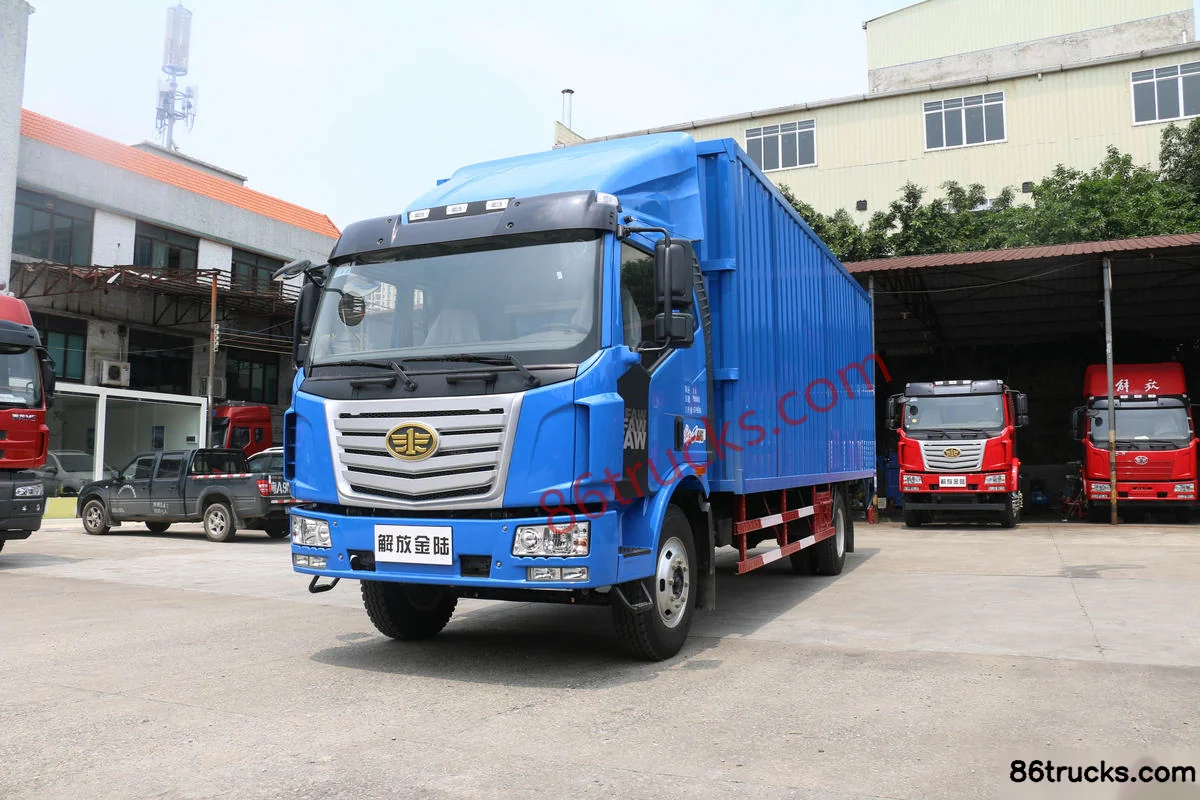

FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) exterior
View more photos (12)
seating capacity: 3Personnel
Rated payload: 7.99ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang Qingdao FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) is a Medium-duty truck featuring 7.7m cargo length, Van body cargo body, 3Personnel volume and 7.99t payload. Its segment focus covers Express delivery, agricultural by-product transport and cold chain transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai 4-cylinder engine, 160 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 160 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LZT5161XXYPK2E4L5A95
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5800mm
Box length class: 7.7m
engine: YuchaiYC4E160-45
transmission: Fast Gear8JS75C
Rear Axle Ratio: 4.875
Cab length: 10m
Cab width: 2.495m
Cab height: 3.51m
Front track width: 1830mm
rear track: 1800mm
Curb Weight: 7.61ton
Rated payload: 7.99ton
GVWR: 15.795ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
market segment: Express delivery, agricultural by-product transport, cold chain transport, LTL transport
Remarks: Cab color: Uros Red; automatic air conditioning; mechanical semi-floating device; suspension seat; manual windows; external sun visor; manual hydraulic tilting mechanism; aluminum radiator; high-efficiency single-stage air filter; power steering; exhaust brake; air handbrake; air dryer; cold start; air-to-air intercooler; full-length constant-width straight frame rail; 160L iron fuel tank; distribution box (with master power switch); air horn; ABS
Front/rear suspension: 1.4/2.8m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-45
Engine info: Yuchai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.26L
Emission standard: China IV
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 550N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.7m
Cargo box width: 2.3m
Cargo box height: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 160L
Chassis Specs
Front axle description: 1800 single front axle
Front axle allowable load: 5800kg
Frame Dimensions: Single-layer, full-length straight beam 237*75*7mm
rear axle description: 378 cast single rear axle
rear axle allowable load: 9995kg
Axle ratio: 4.875
Leaf spring count: 7/7+6
clutch: Φ395
Tire
Tire Size: 9.00R20 16-ply rating
Number of tires: 6pcs
Control configuration
ABS:

Photos

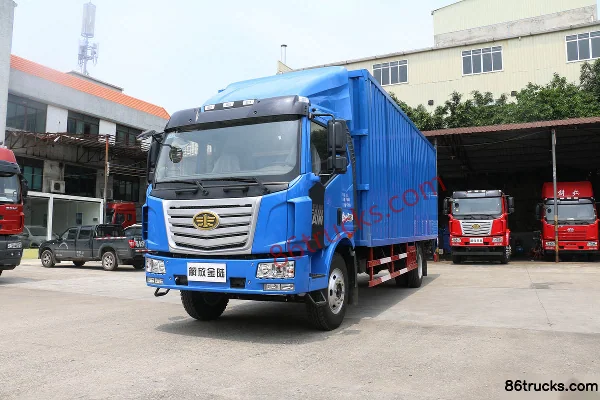

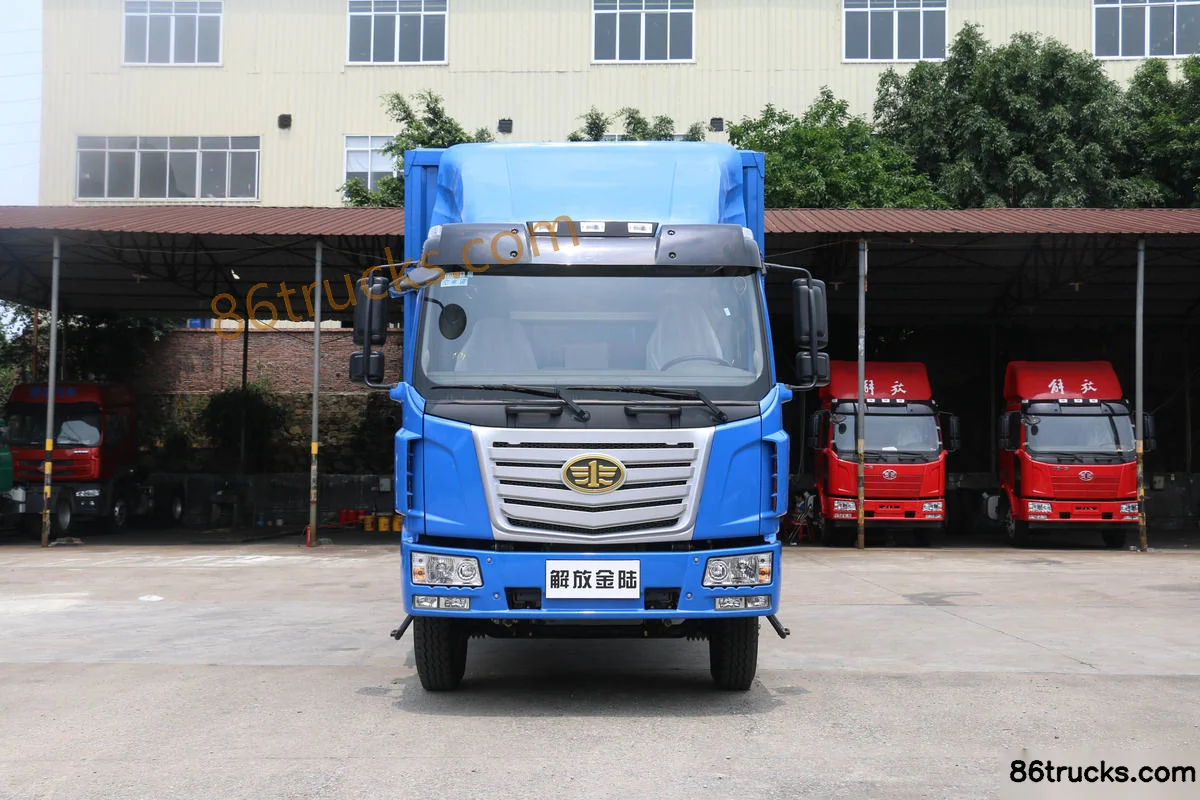

Exterior3

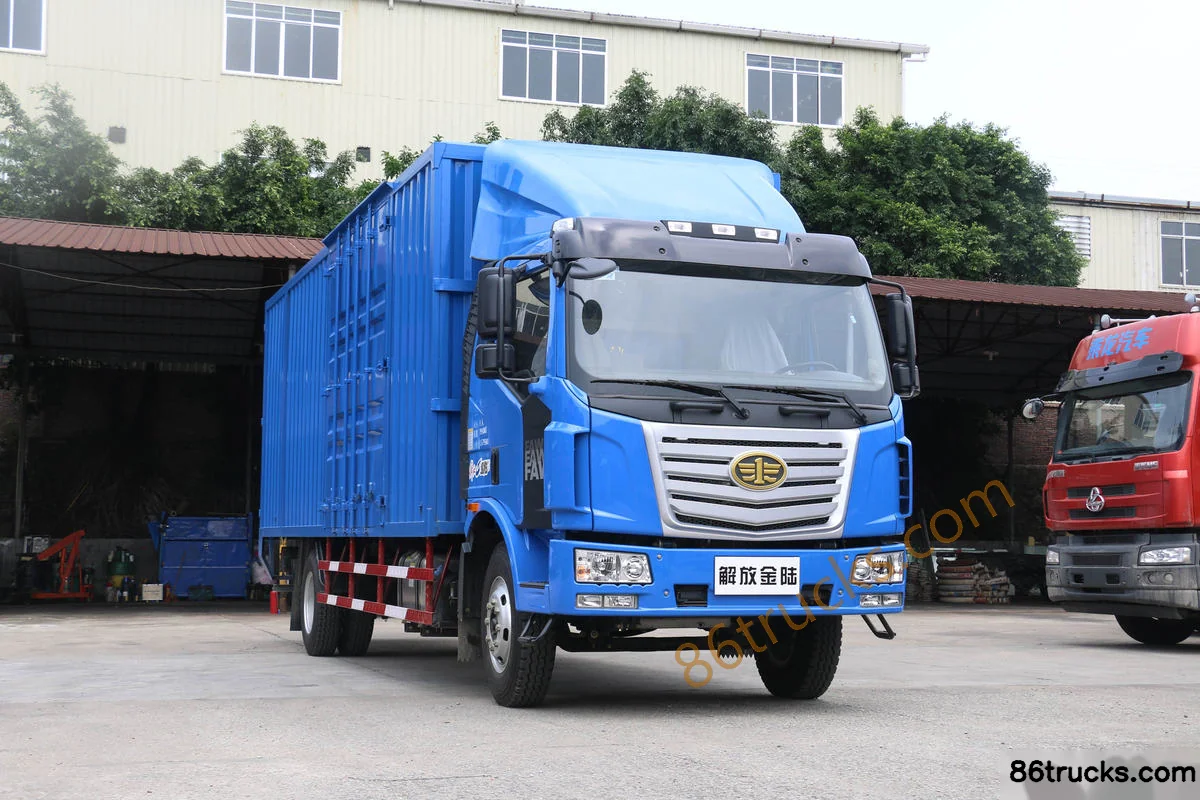

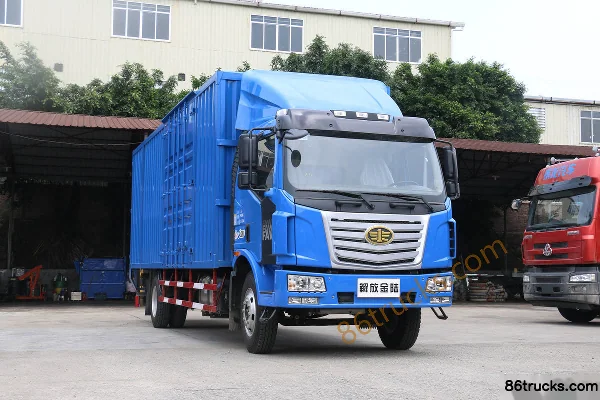

FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) Exterior (1) | 86Trucks FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) Exterior (2) | 86Trucks FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) Exterior (3) | 86Trucks

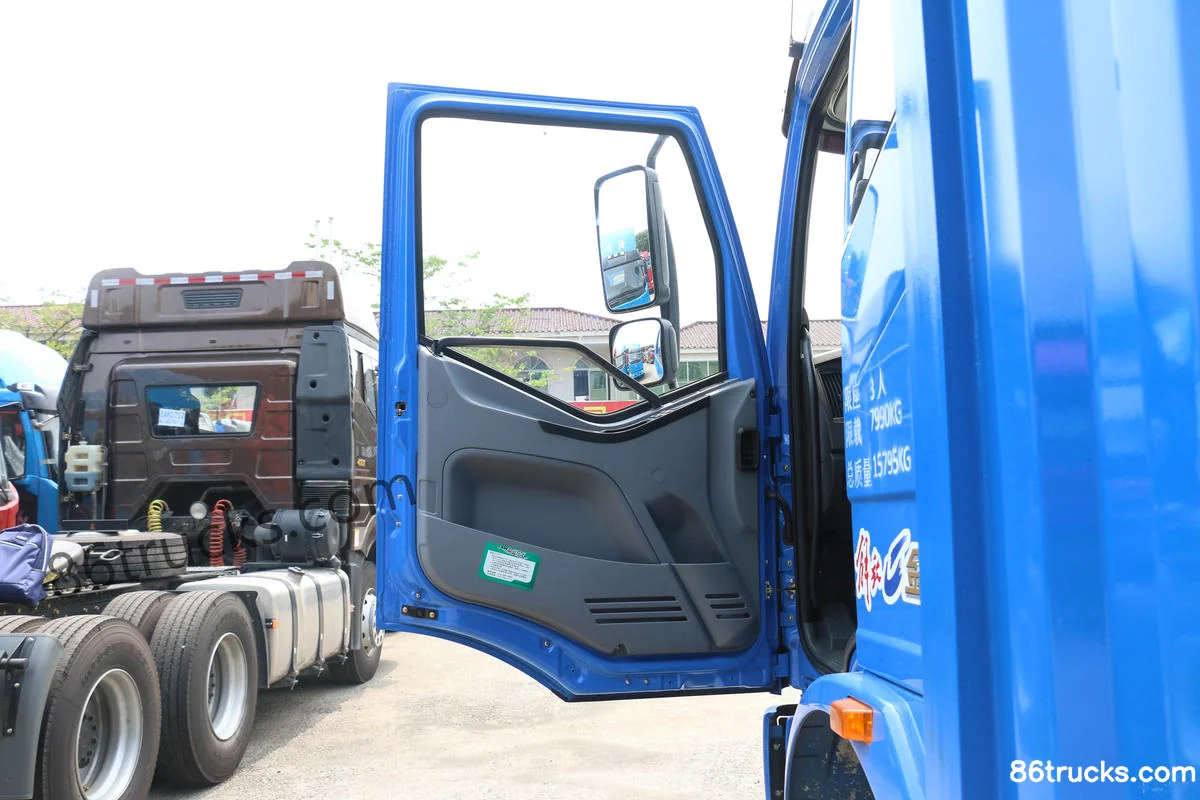

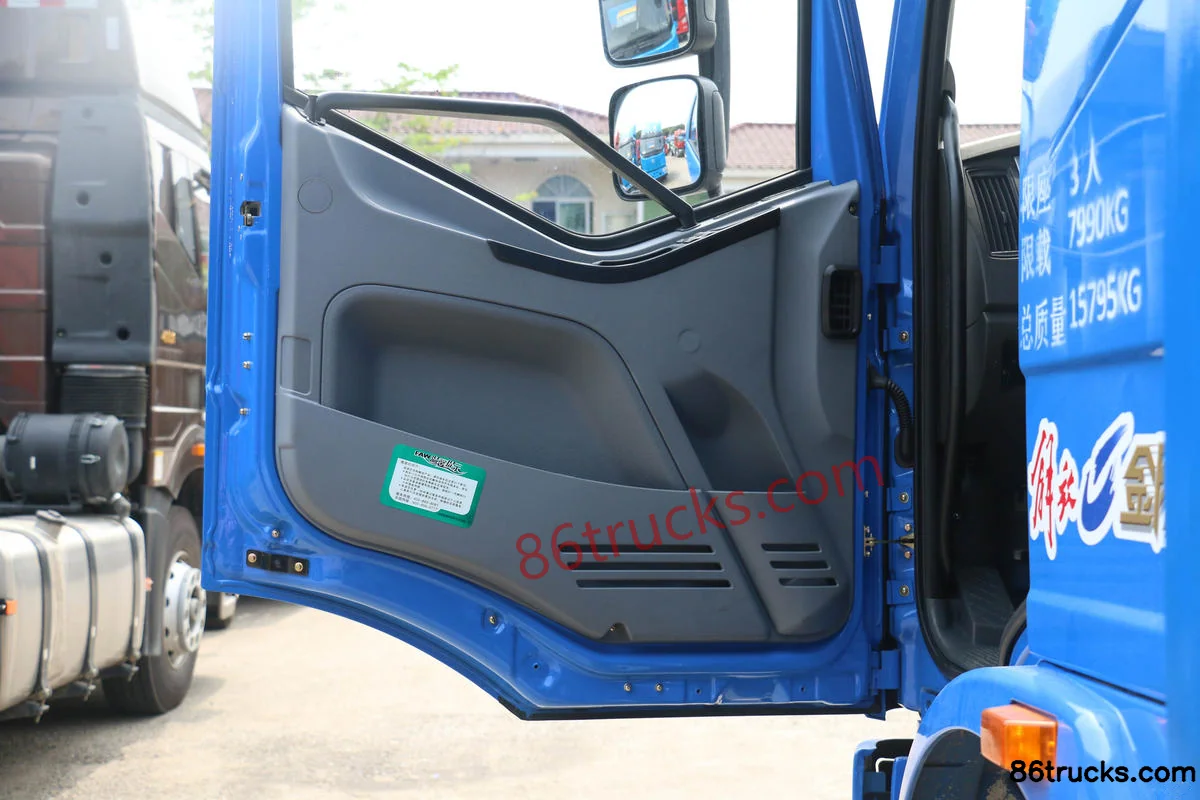

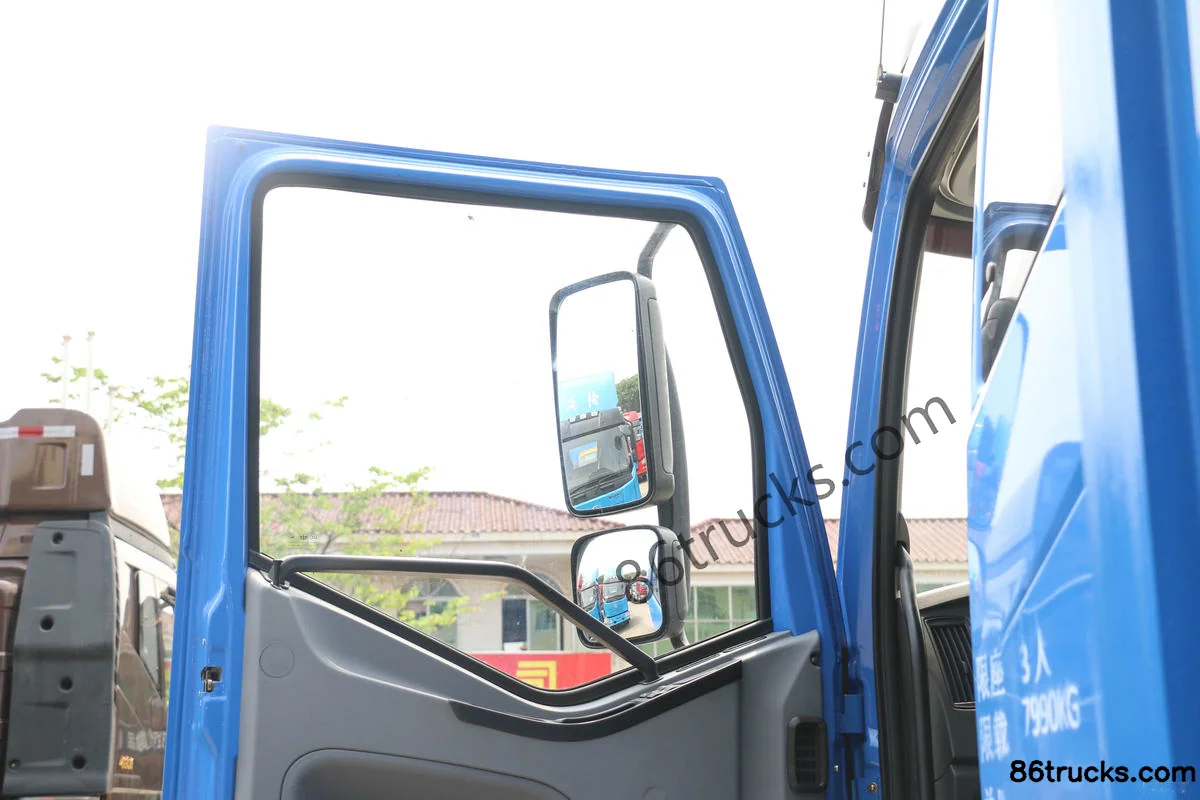

Cab3

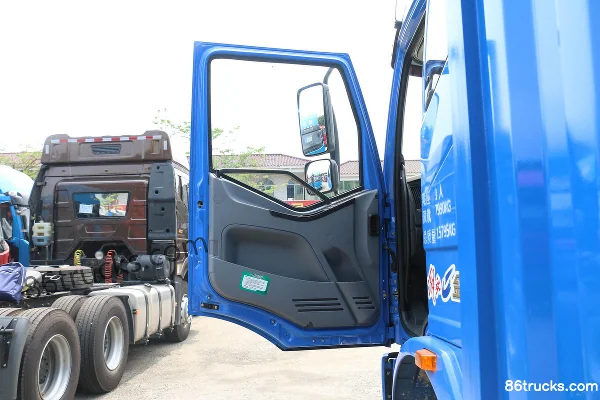

FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) Cab (1) | 86Trucks FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) Cab (2) | 86Trucks FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) Cab (3) | 86Trucks

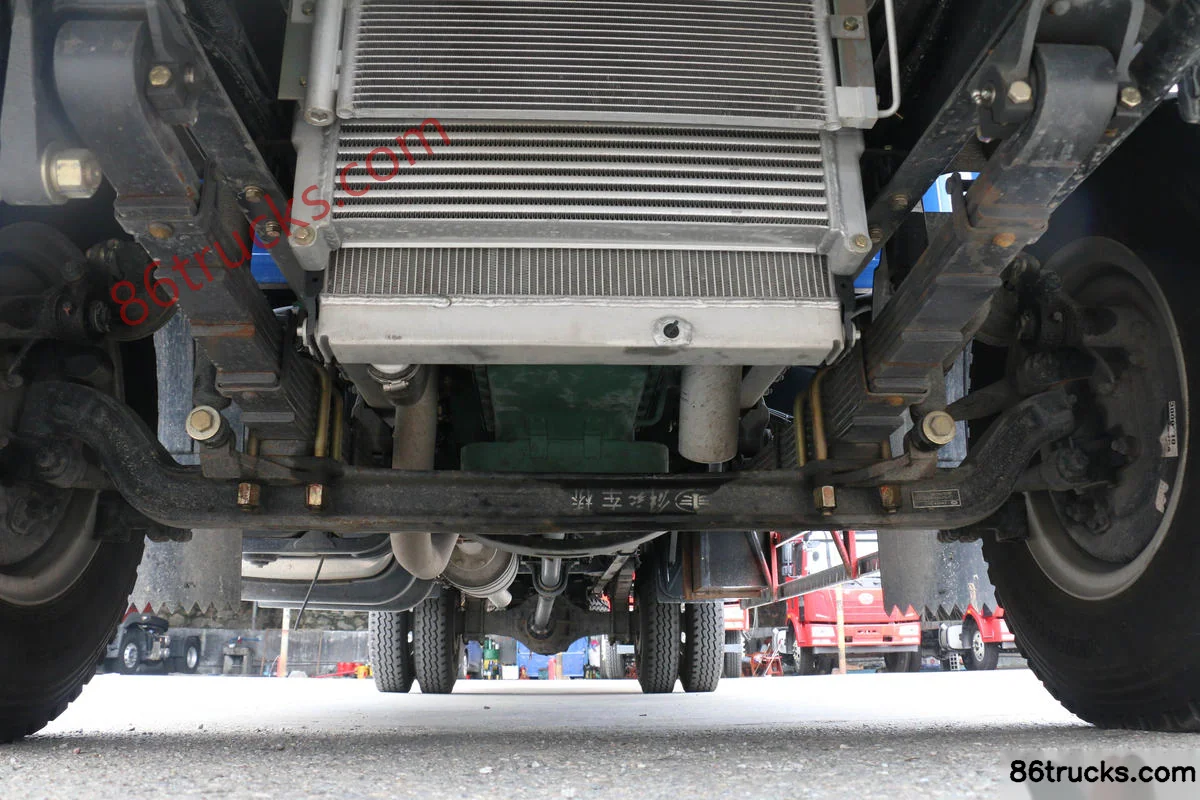

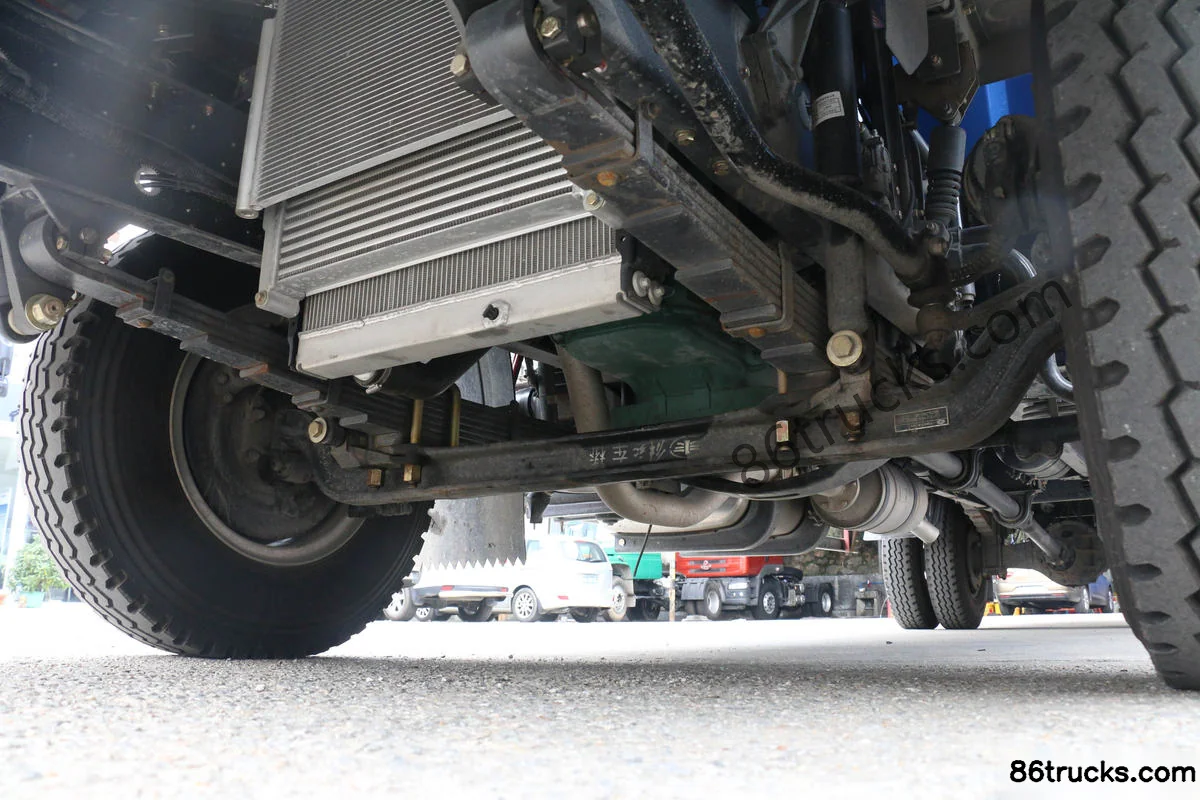

Chassis3

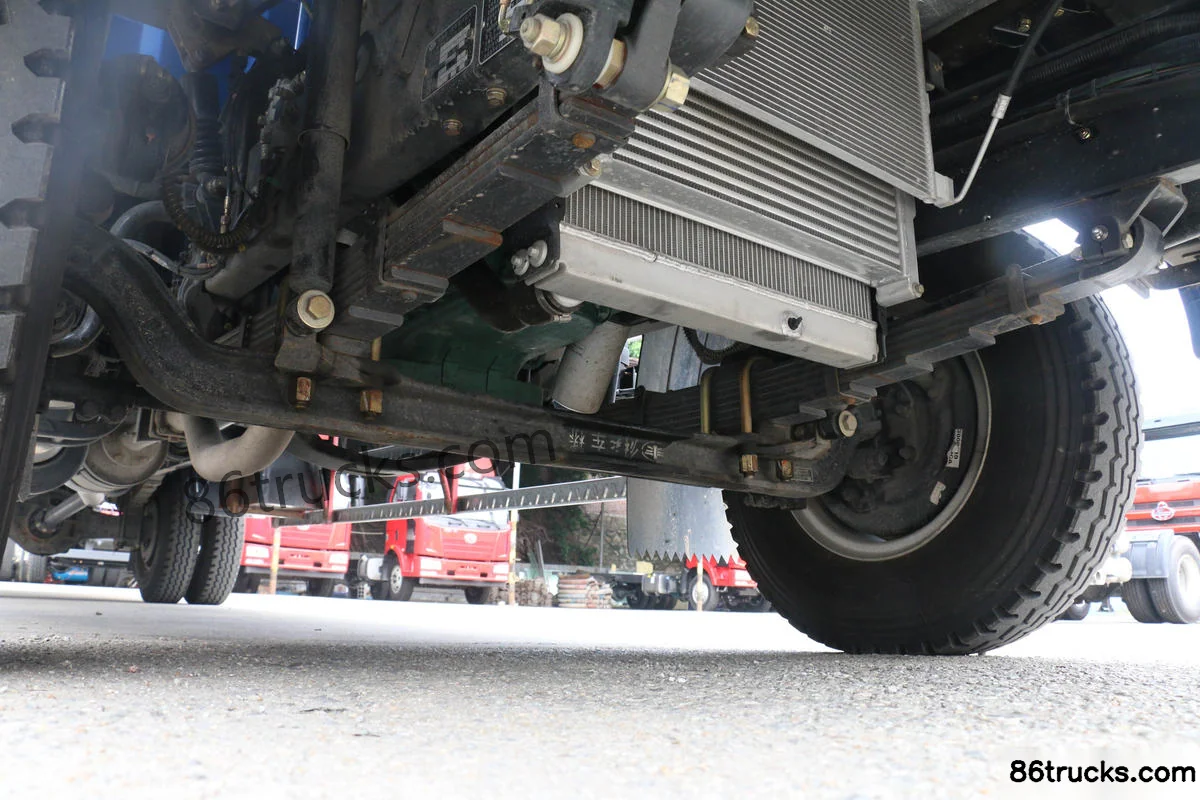

FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) Chassis (1) | 86Trucks FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) Chassis (2) | 86Trucks FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) Chassis (3) | 86Trucks

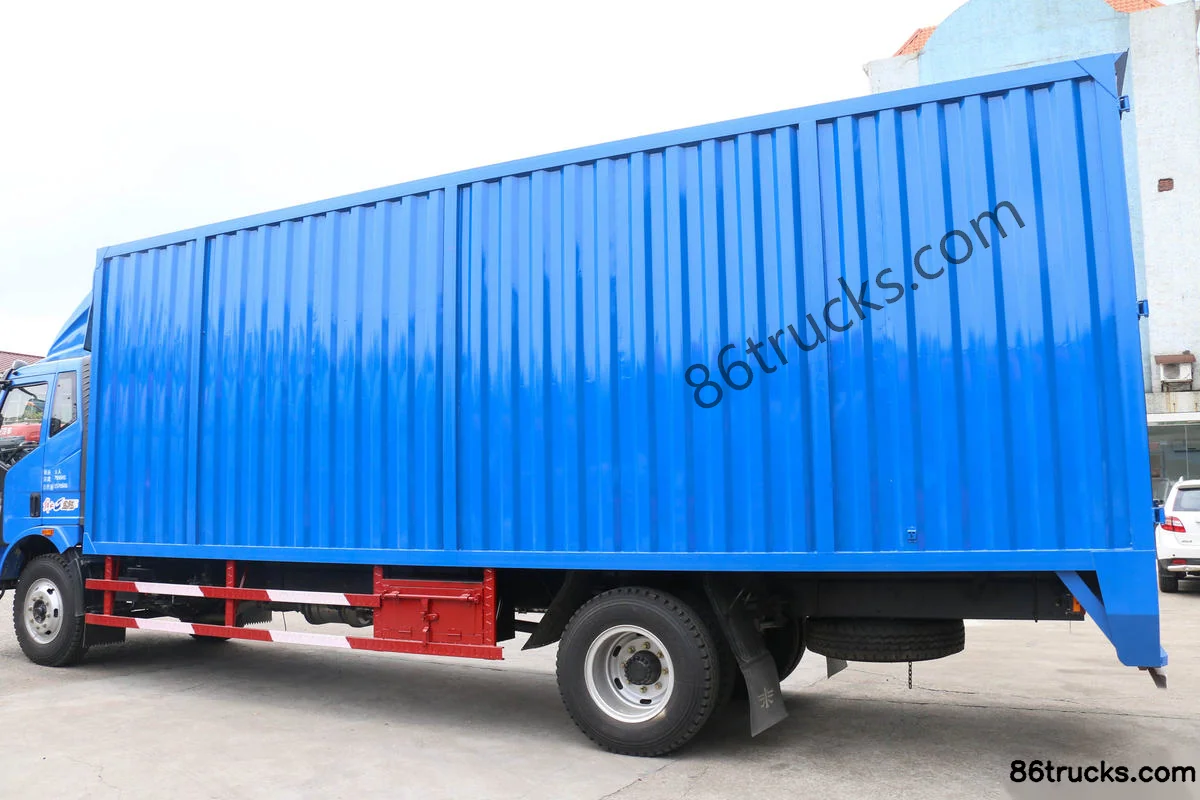

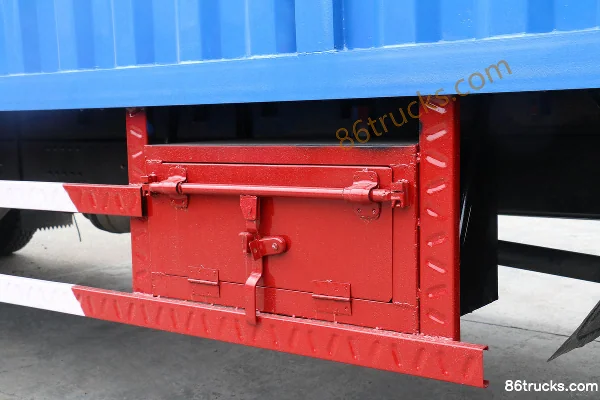

Body3

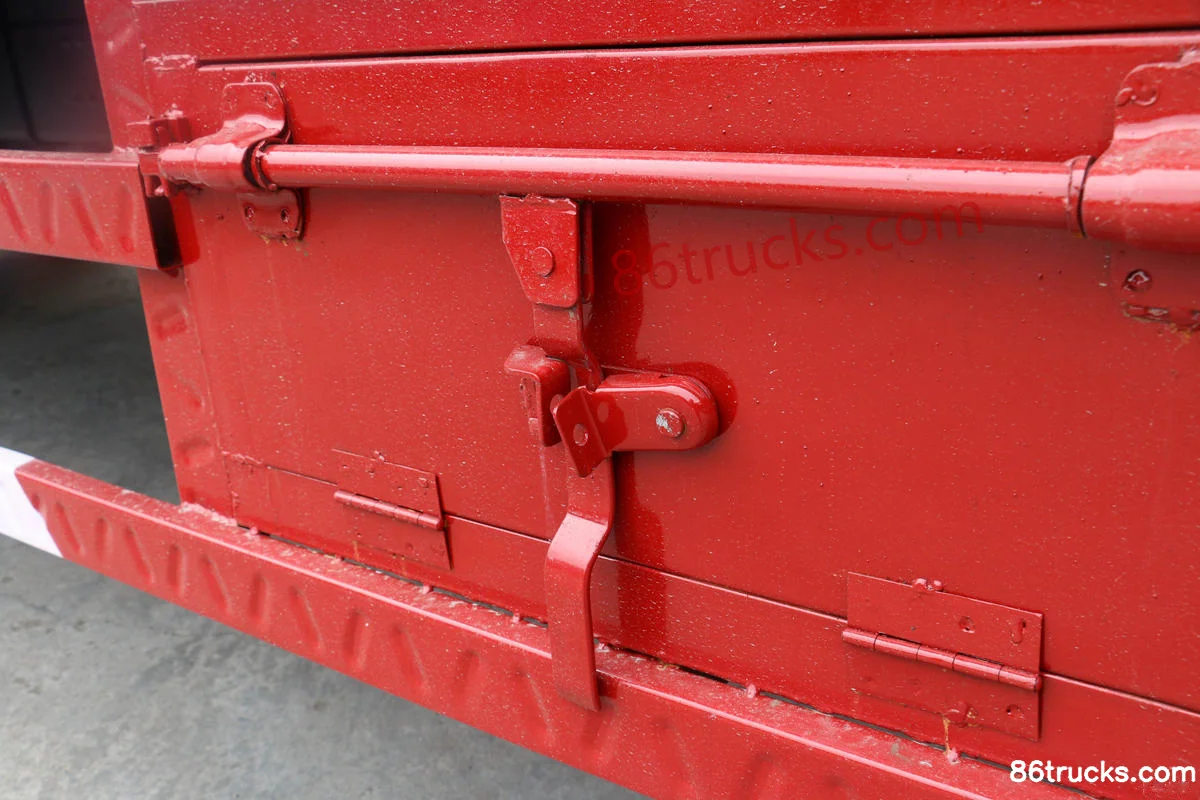

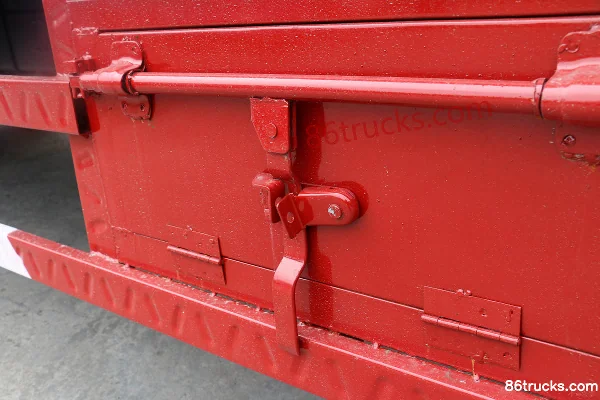

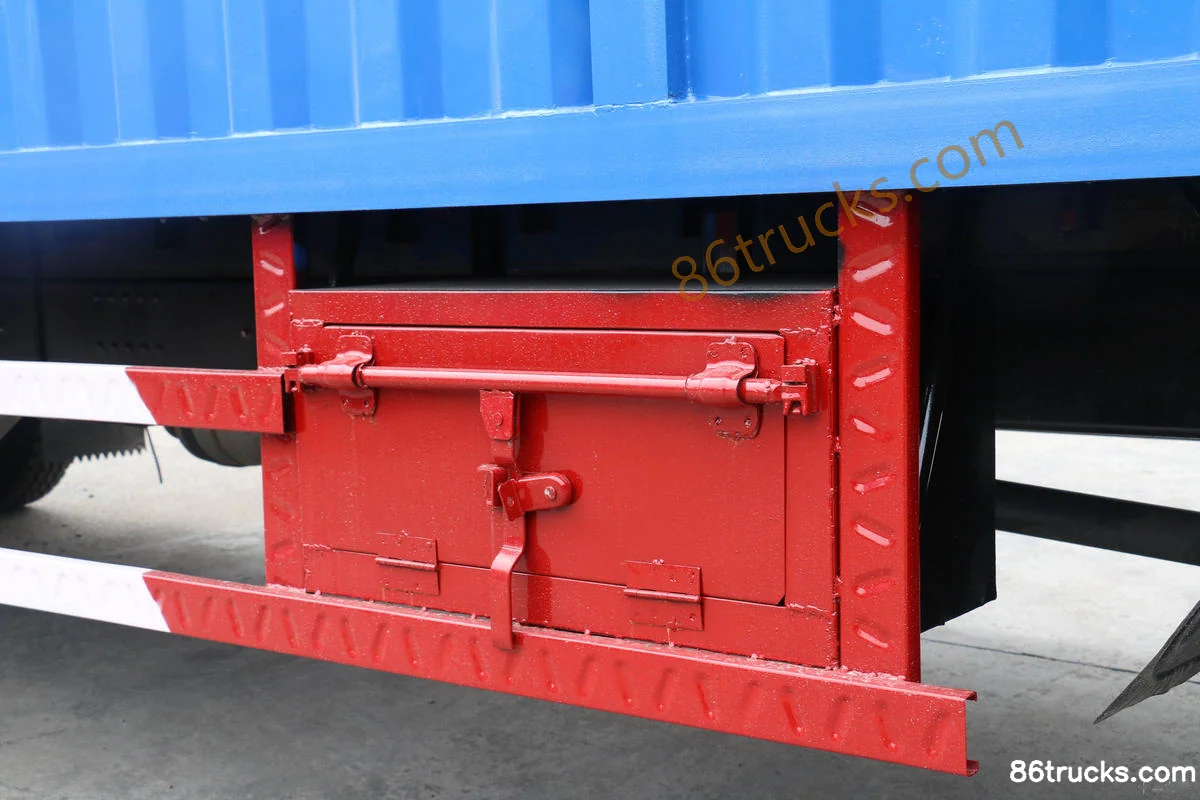

FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) Body (1) | 86Trucks FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) Body (2) | 86Trucks FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) Body (3) | 86Trucks

12 photos

FAQ

What emission standard does FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle)?

Key specs of FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle): Drive: 4x2; Horsepower: 160 hp; Emission: China IV; Fuel: Diesel; Engine: Yuchai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) suited for?

FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) differ from other variants in the same series?

FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle) belongs to FAW Jiefang Qingdao Jinlu Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Liute Jinlu Medium Truck 160 hp 4X2(6 wheels) 7.7m Van Cargo Truck (378 axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
