JAC Shuailing H330 152 hp 4X2(6 wheels) 4.12 m single-row van light truck

Export reference
From $22,917
MSRP ¥16.5M CNY
Horsepower: 152
Emission: China V
Fuel: Diesel
Engine: Ruijete 2.7
Transmission: Xingrui
Curb Weight:: 2.805ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Shuailing H330 152 hp 4X2(6 wheels) 4.12 m single-row van light truck is a Light Truck featuring 4.12m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Ruijete 2.7 engine, 152 hp, 4X2 (6 wheels) drive and China V emissions.

China V 152 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5043XXYP71K3C2V
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.2m
engine: JACHFC4DE1-1D
transmission: Xingrui ML642A
Cab length: 5.995m
Cab width: 2.55m
Cab height: 3.27m
Front track width: 1720mm
rear track: 1785mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 21°
departure angle: 11.6°
market segment: Urban Distribution
Front/rear suspension: 1.11/1.577m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DE1-1D
Engine info: Ruijete 2.7
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.746L
Emission standard: China V
Max output power: 112kW
Max hp: 152Horsepower
Max torque: 355N·m
Max torque speed: 1800-2600rpm
Rated speed: 3200rpm
Engine Type: Inline 4-cylinder, high-pressure common rail, turbocharged, SCR aftertreatment
Transmission Parameters
Transmission Model: Xingrui ML642A
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Housing Material: aluminum alloy
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.12m
Cargo box width: 2.42m
Cargo box height: 2.22m
*Cargo box interior width: 2.4200000762939
Cab parameters
Cab: H330
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 130L
Chassis Specs
Front axle allowable load: 1620kg
rear axle allowable load: 2875kg
Leaf spring count: 11/9+7
Tire
Tire Size: 7.50R16,8.25R16
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Power Windows:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
Service brake
Brake Type: Air brake
smart configuration
Cruise control (CCS):

Photos

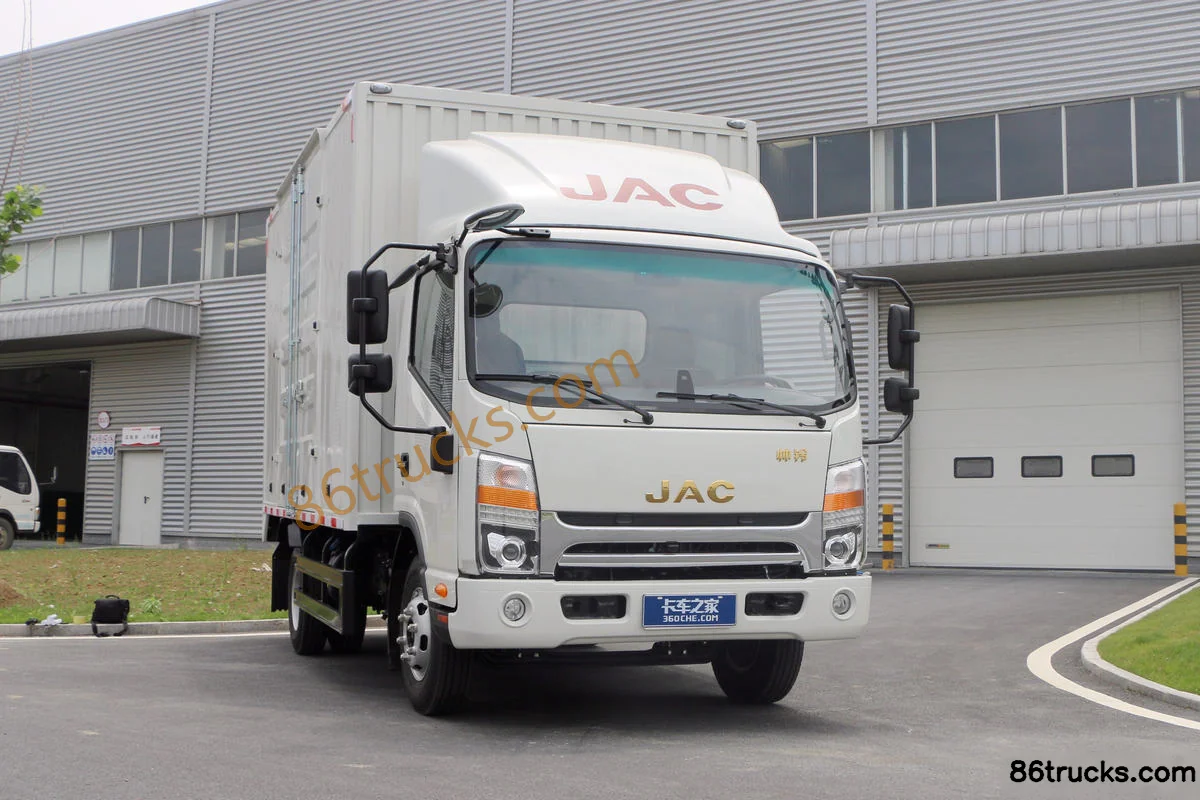

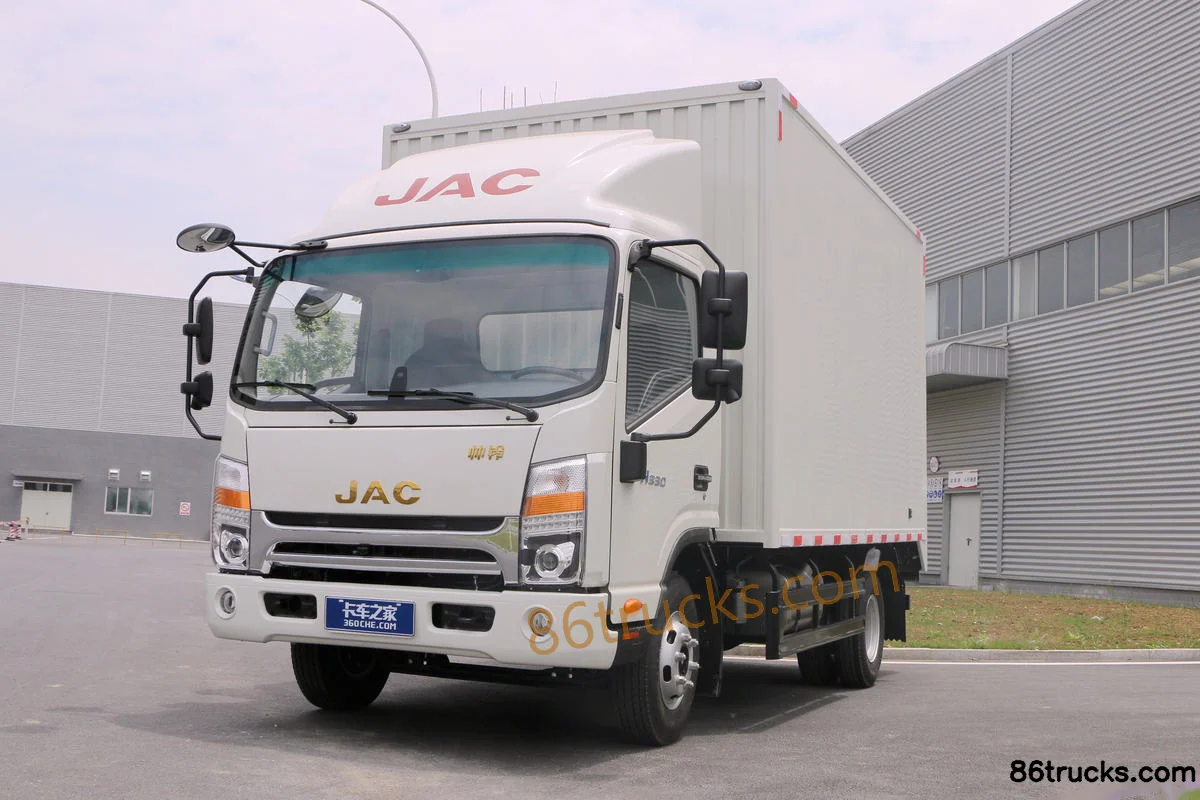

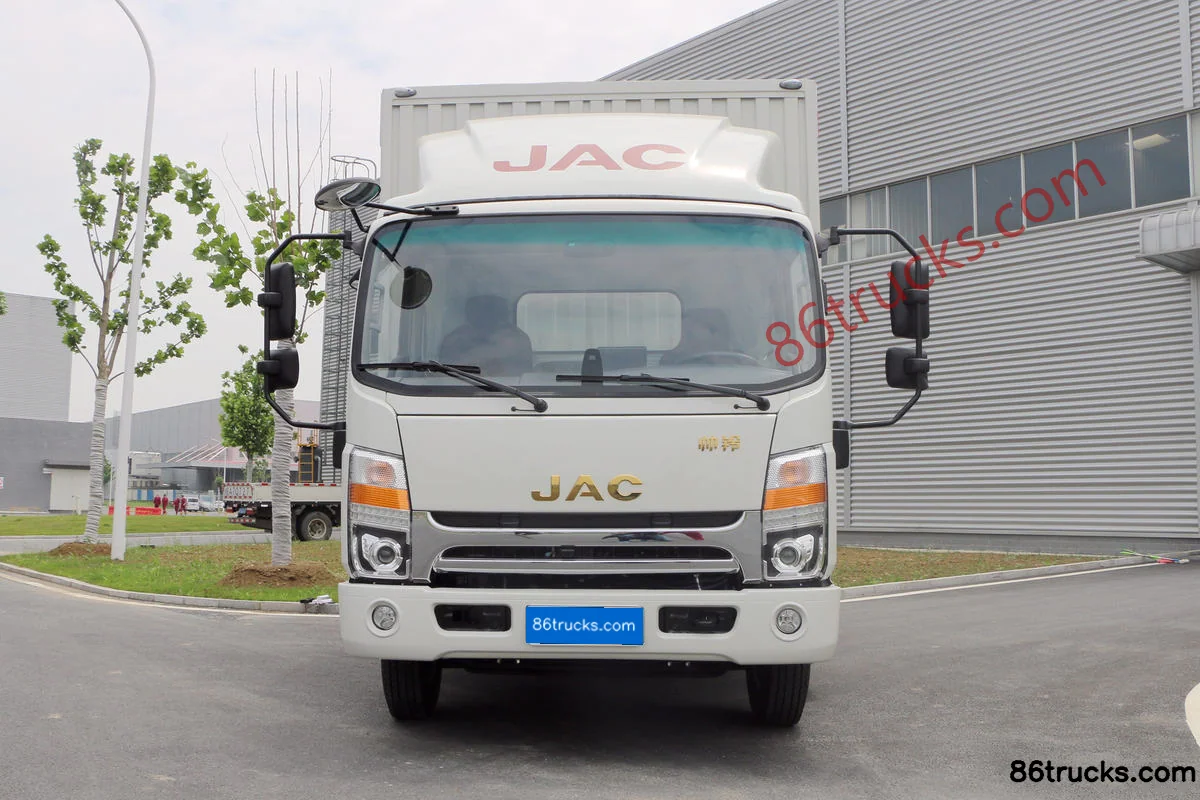

Exterior3

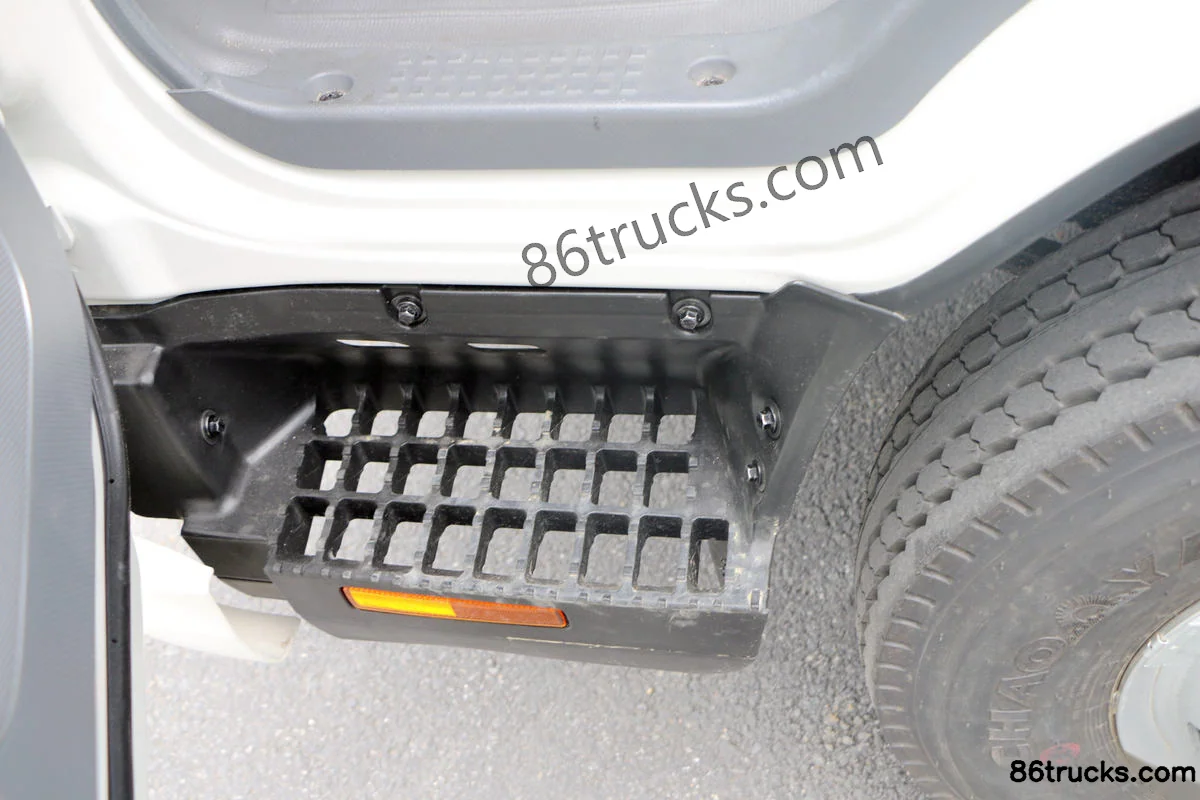

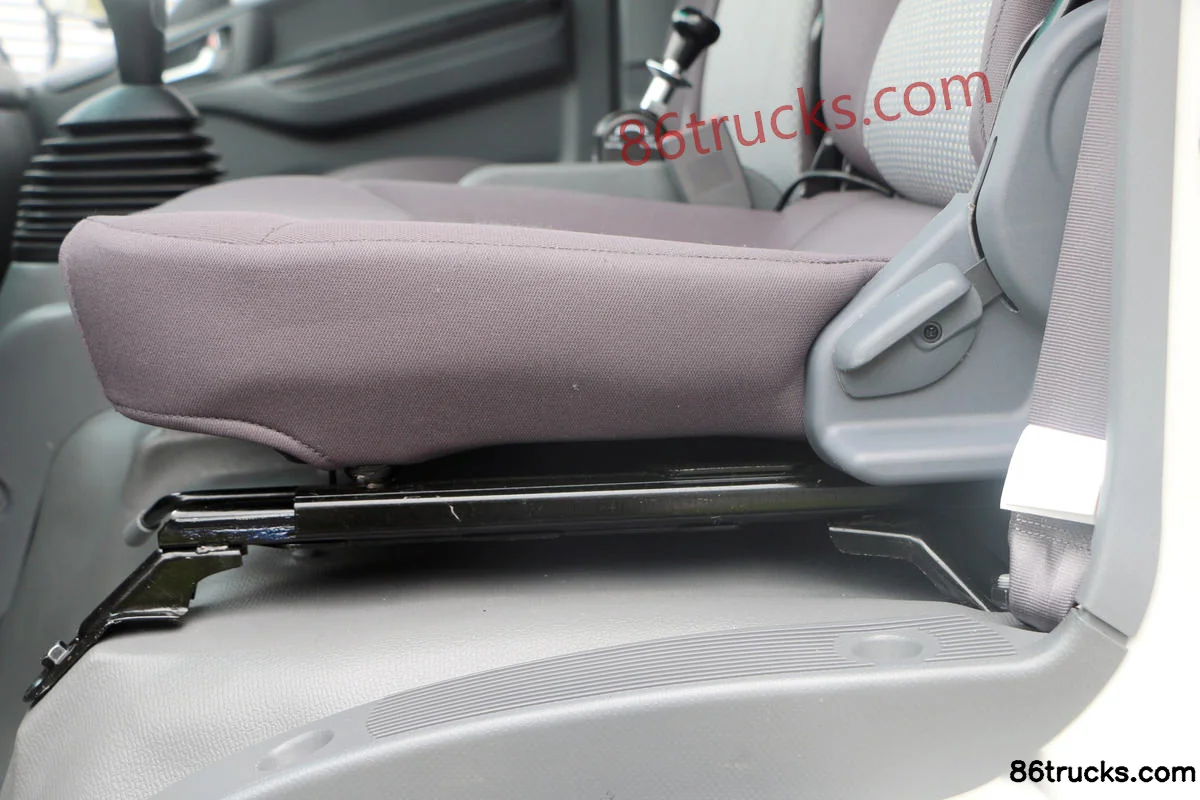

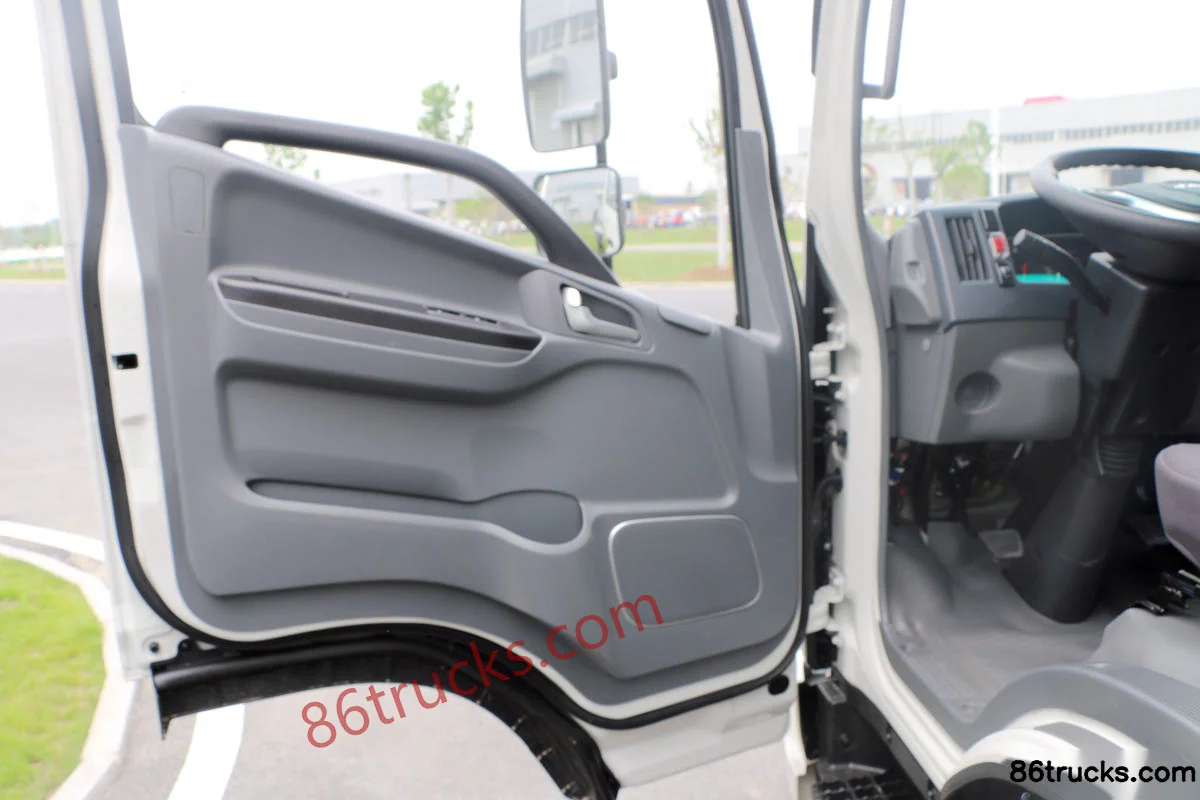

Cab3

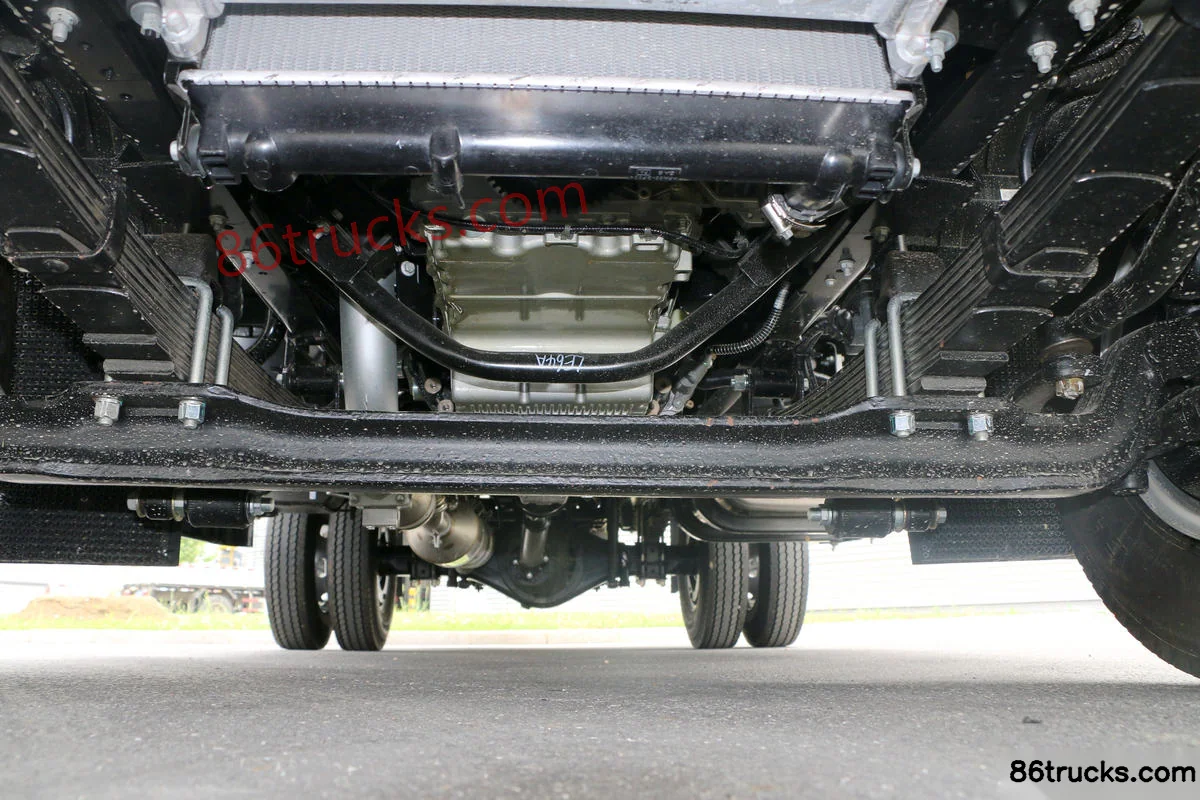

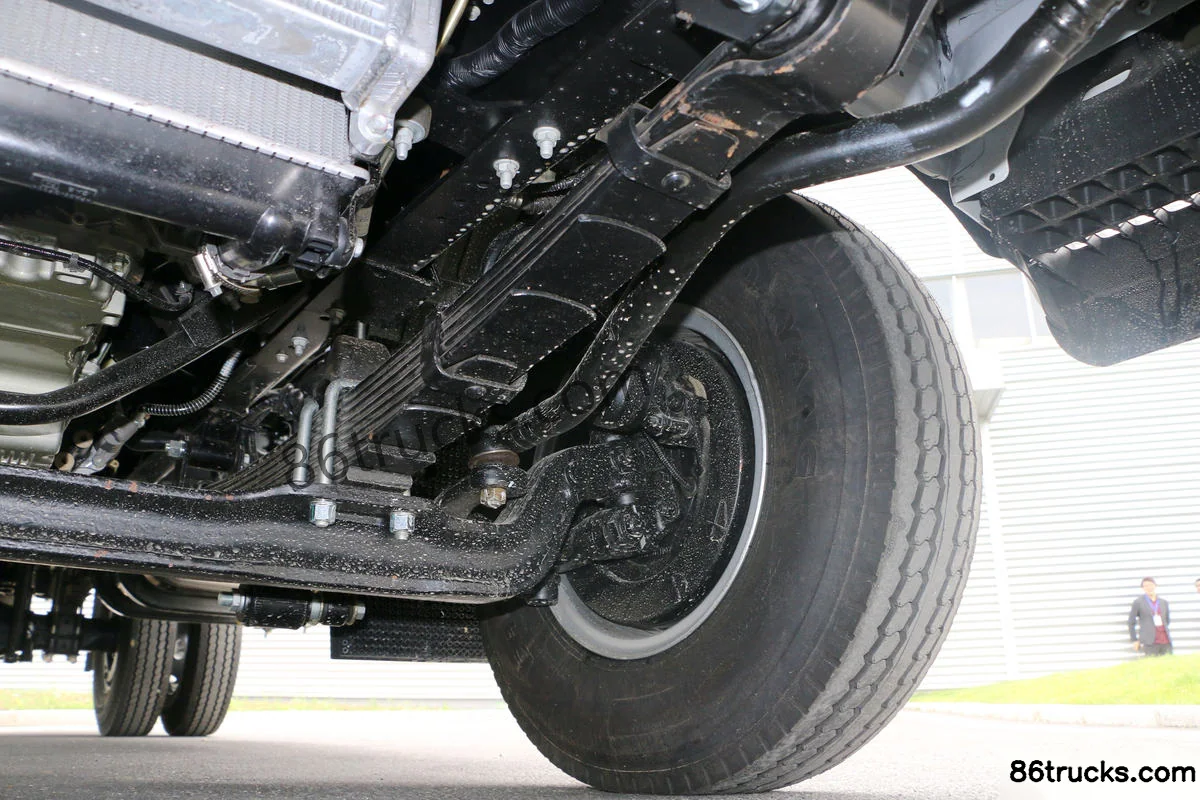

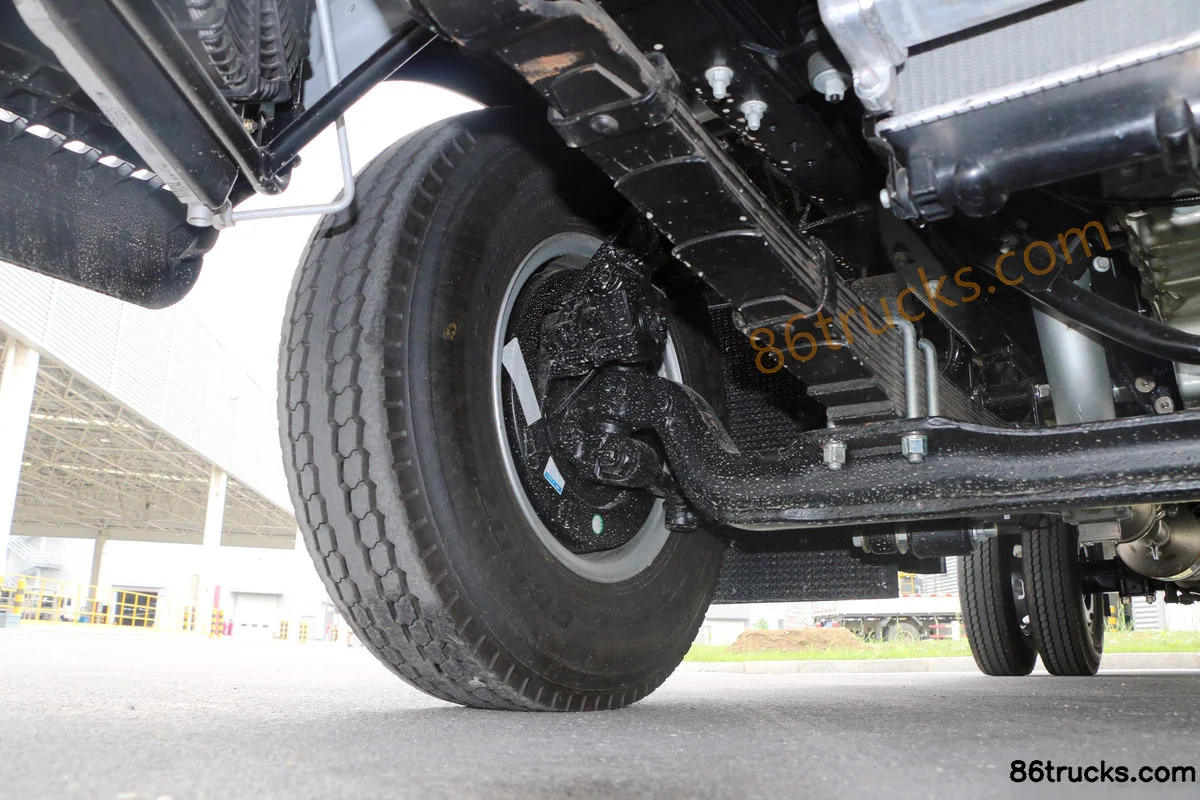

Chassis3

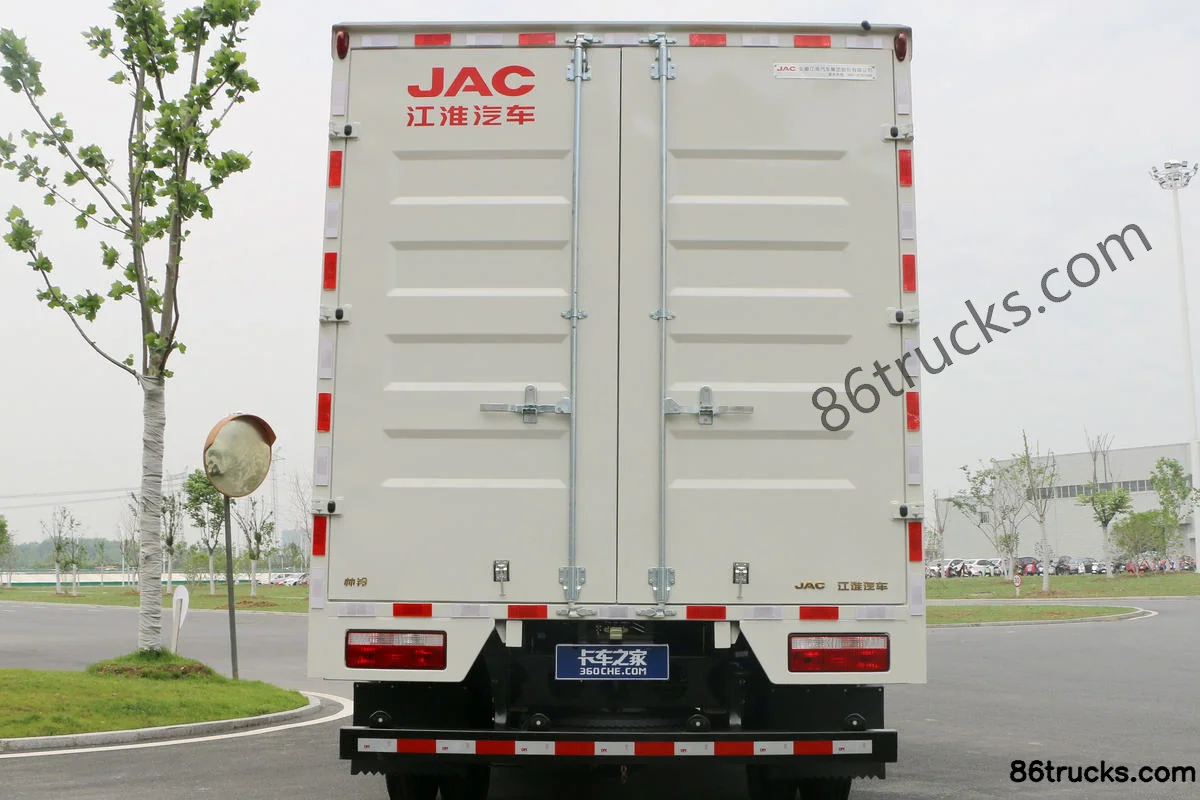

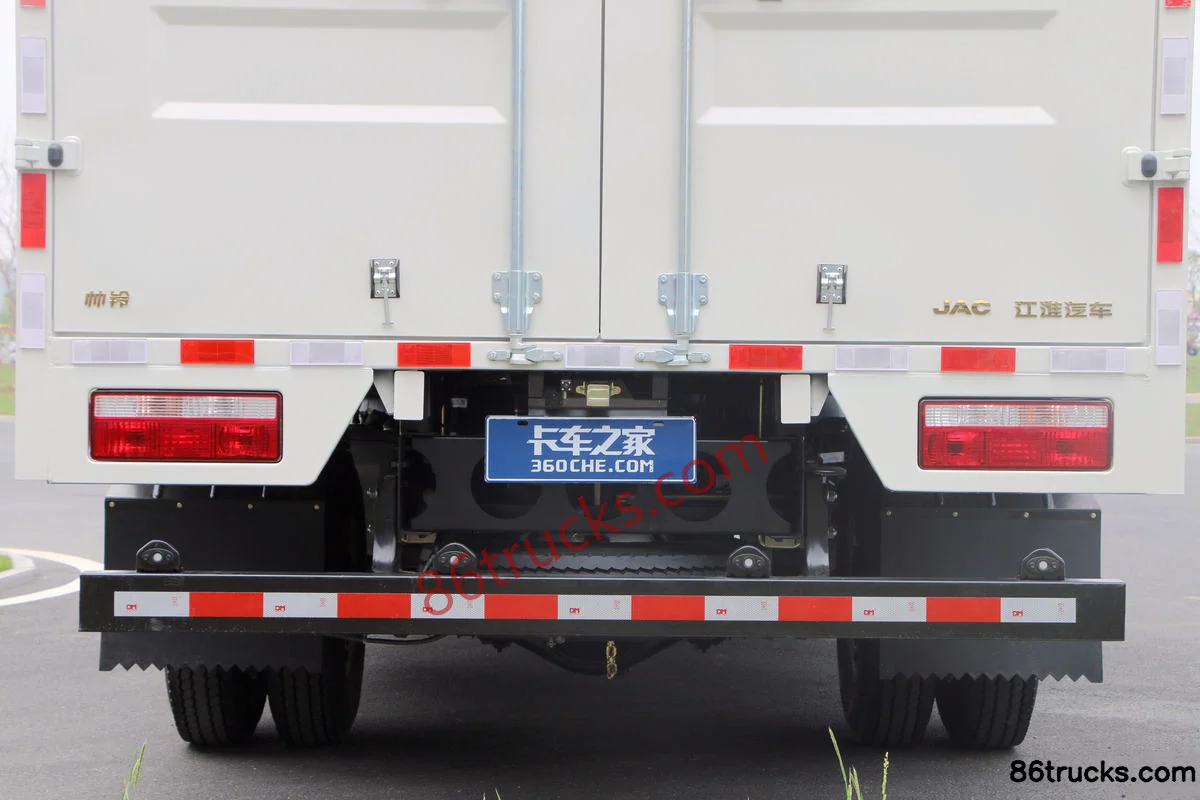

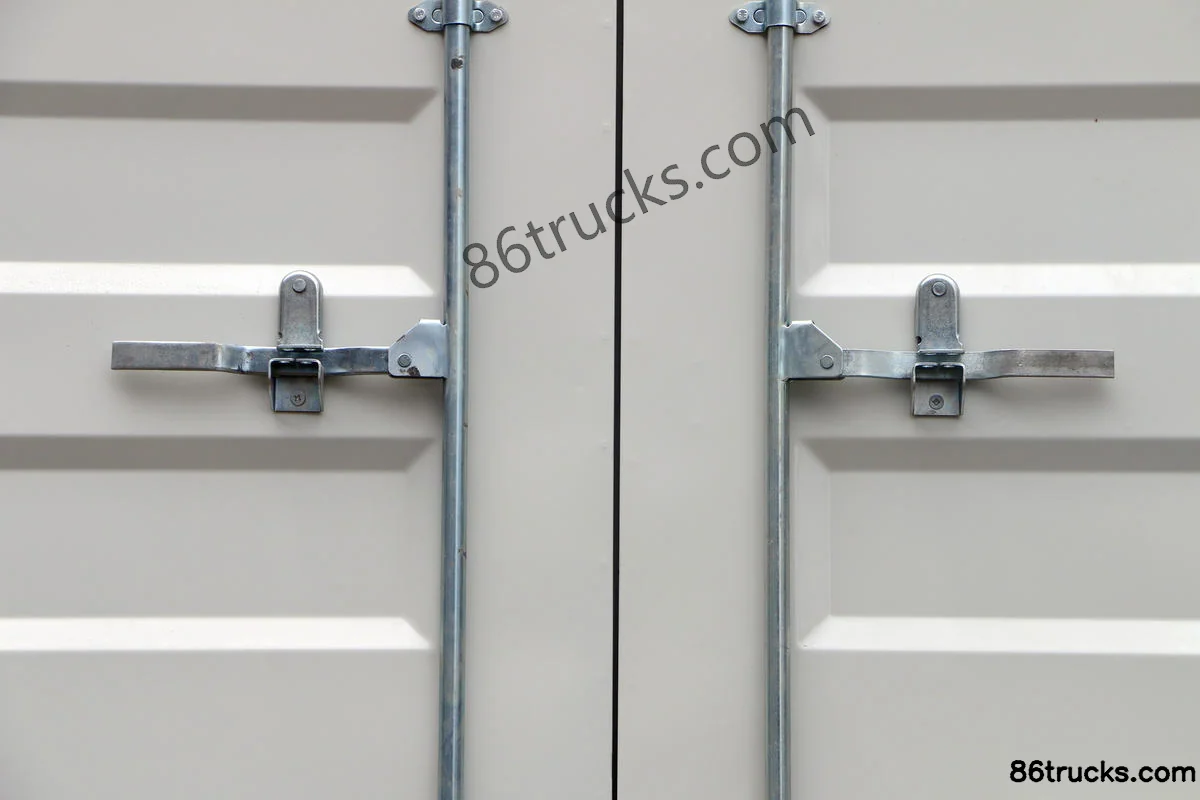

Body3

12 photos

FAQ

What is the export price of JAC Shuailing H330 152 hp 4X2(6 wheels) 4.12 m single-row van light truck, and what does it include?

JAC Shuailing H330 152 hp 4X2(6 wheels) 4.12 m single-row van light truck export reference is about From $22,917; MSRP is ¥16.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Shuailing H330 152 hp 4X2(6 wheels) 4.12 m single-row van light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing H330 152 hp 4X2(6 wheels) 4.12 m single-row van light truck?

Key specs of JAC Shuailing H330 152 hp 4X2(6 wheels) 4.12 m single-row van light truck: Drive: 4x2; Horsepower: 152 hp; Emission: China V; Fuel: Diesel; Engine: Ruijete 2.7; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing H330 152 hp 4X2(6 wheels) 4.12 m single-row van light truck suited for?

JAC Shuailing H330 152 hp 4X2(6 wheels) 4.12 m single-row van light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Shuailing H330 152 hp 4X2(6 wheels) 4.12 m single-row van light truck differ from other variants in the same series?

JAC Shuailing H330 152 hp 4X2(6 wheels) 4.12 m single-row van light truck belongs to JAC H light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing H330 152 hp 4X2(6 wheels) 4.12 m single-row van light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing H330 152 hp 4X2(6 wheels) 4.12 m single-row van light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
