FAW Liute Xin'anjie (L5R) Heavy Truck 390 hp 6X2(8 wheels) Dangerous Goods Cabover Tractor Truck

Export reference
From $39,750
MSRP ¥28.62M CNY
Fuel: Diesel
Gross Trailer Weight:: 38.3ton
Wheelbase:: 2600+2500mm
Tire Size:: 12R22.5 Tubeless
rear axle allowable load:: 11450kg
Displacement:: 11.04L
Drive 6X2 (8 wheels)
Horsepower 390
Emission China IV
Transmission Fast Gear

Overview

The FAW Jiefang Qingdao FAW Liute Xin'anjie (L5R) Heavy Truck 390 hp 6X2(8 wheels) Dangerous Goods Cabover Tractor Truck is a Heavy truck featuring 6X2 (8 wheels) drive, 390 hp, 23.45t GVW and China IV emissions. Its segment focus covers dangerous goods transport, matching those duty cycles. On the powertrain side, it comes with a XichaiCA6DM2-39E4 engine, Fast Gear transmission and Diesel fuel.

China IV 390 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4235K2E4R5T3A90
Drive type: 6X2
Wheelbase: 2600+2500mm
engine: XichaiCA6DM2-39E4
transmission: Fast Gear12JS180TA
Rear Axle Ratio: 4.11
Cab length: 7.42m
Cab width: 2.5m
Cab height: 2.87m
Front track width: 1930/1930mm
Gross Trailer Weight: 38.3ton
rear track: 1860mm
Curb Weight: 7.255ton
GVWR: 23.45ton
Max. speed: 80km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
market segment: dangerous goods transport
Remarks: Highway/urban road; Cab color: Rich Gold Orange; Air-suspended semi-floating cab; Driver air-suspension shock-absorbing seat; Double bunk; External sun visor; Power windows; Electric AC; Cable control; 90# fifth wheel with fixed base plate; 7-core cable; Spiral air hose; Rear work light; Front 1st & 2nd axle parabolic leaf springs, rear multi-leaf springs; 4-hole face gear φ108 driveshaft; Aluminum radiator; Heavy-duty power steering; Exhaust brake; Air handbrake; Air dryer; Air-to-air intercooler; Full-length constant-width straight frame rails; 350L aluminum fuel tank; Catwalk; Split rear fender (with upper splash guard); ABS; Front disc brakes; Spark arrestor; Fire extinguisher; Hazard warning light; Static discharge strap.
Version: hazardous material version
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DM2-39E4
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.04L
Emission standard: China IV
Max output power: 290kW
Max hp: 390Horsepower
Max torque: 1750N·m
Max torque speed: 1100-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear12JS180TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
upper bunk width: 600mm
Lower Bunk Width: 740mm
Chassis Specs
Suspension type: Leaf spring
Frame Dimensions: Single-layer high-strength plate 300(8)mm
rear axle description: 498 stamped-welded single rear axle
rear axle allowable load: 11450kg
Axle ratio: 4.11
Leaf spring count: 4/4
clutch: Φ430
Tire
Tire Size: 12R22.5 Tubeless
Number of tires: 10pcs

Photos

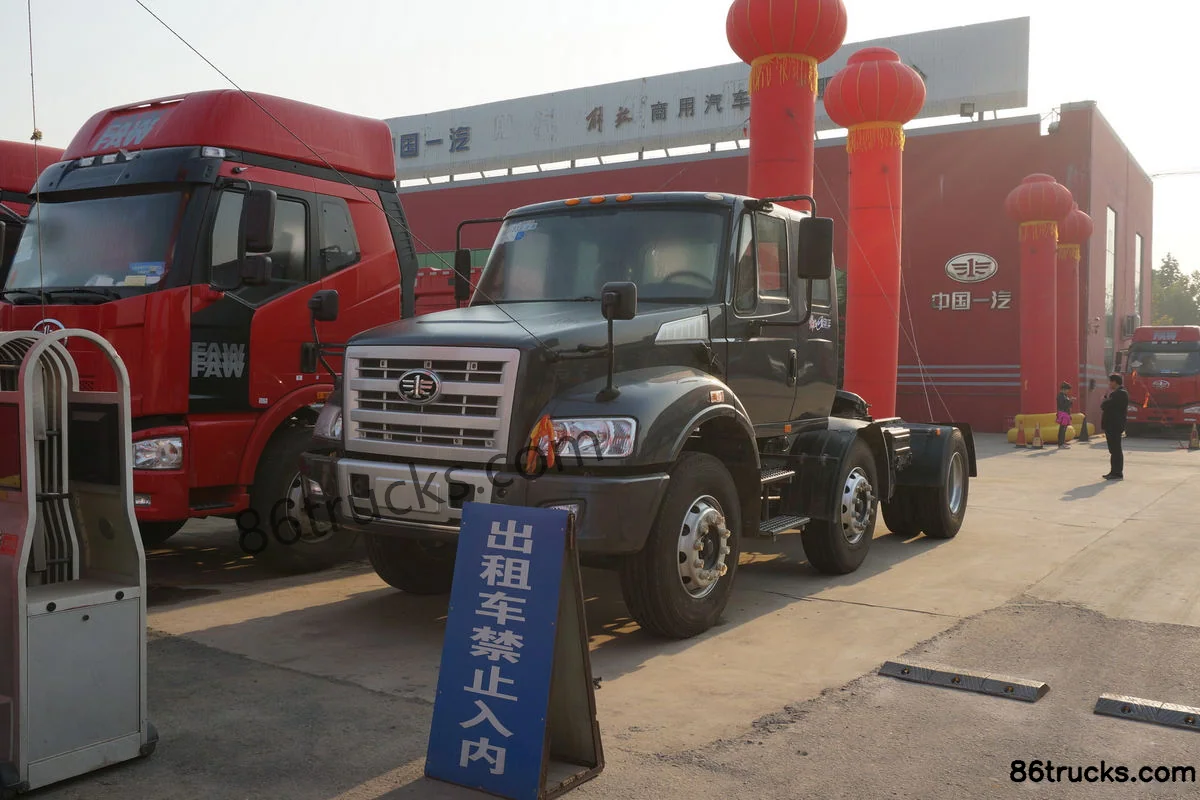

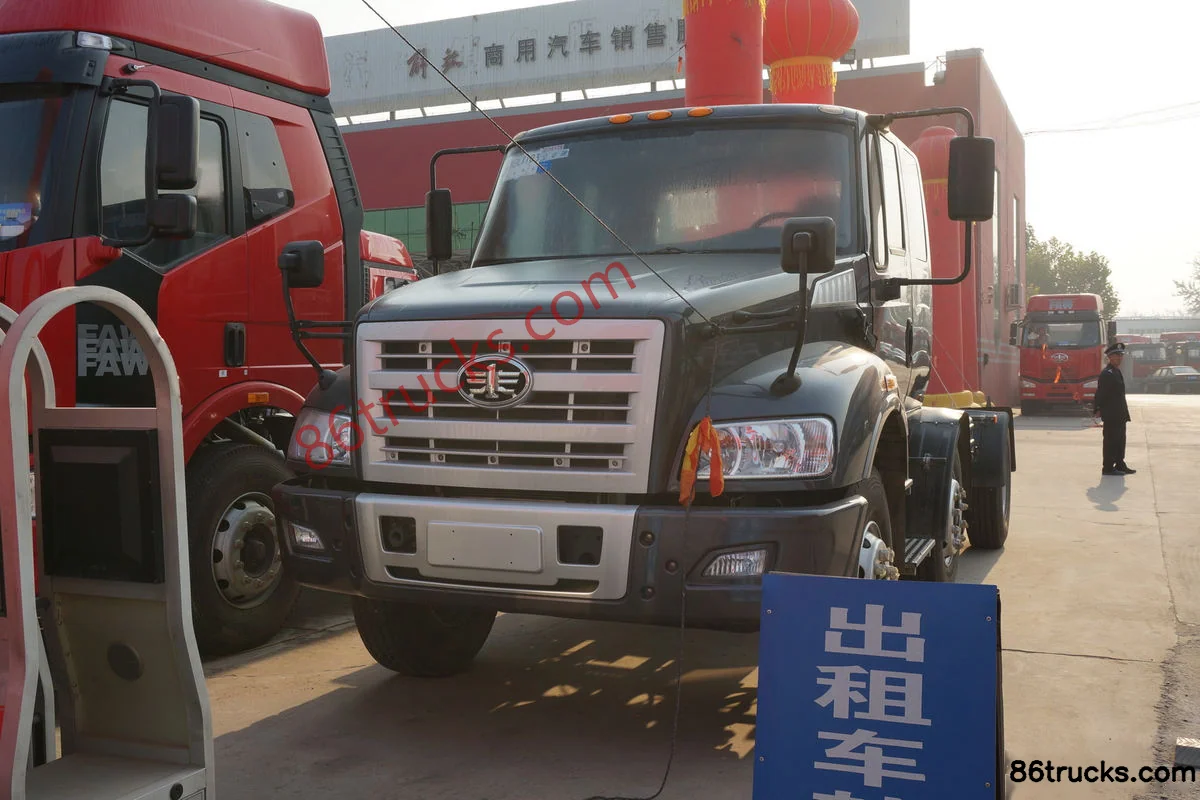

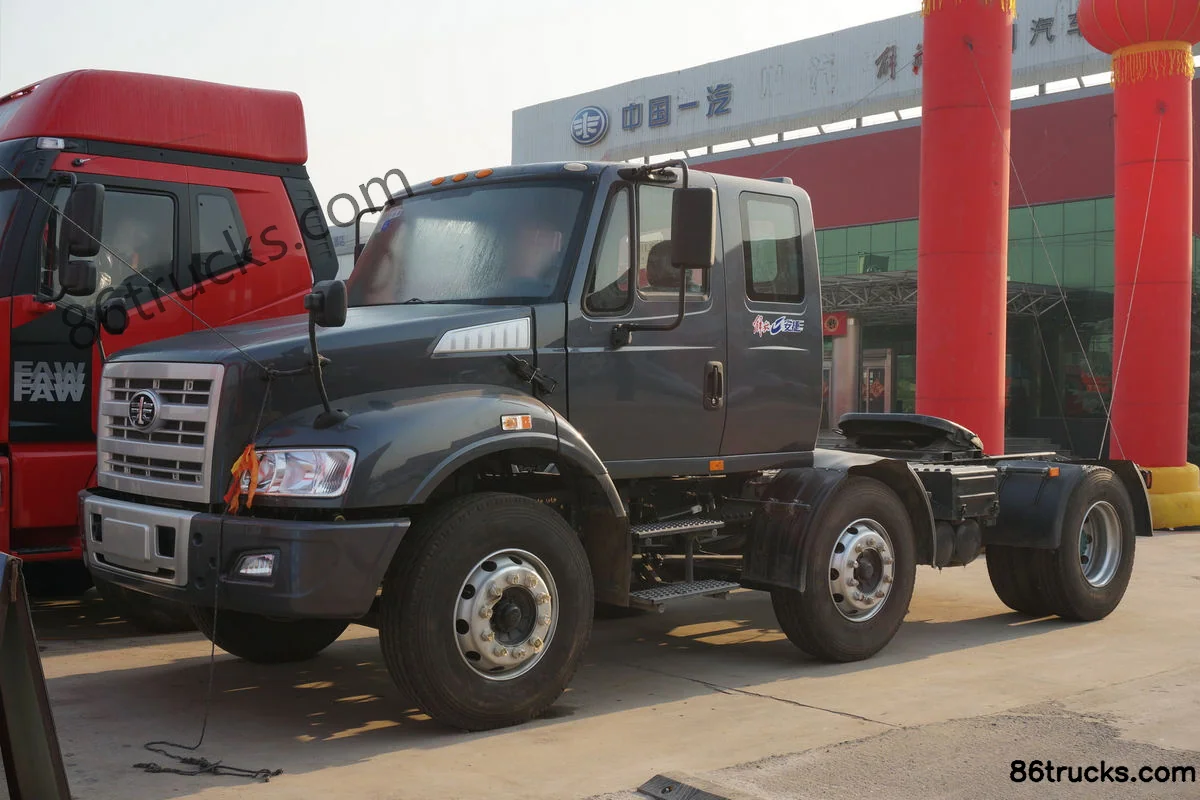

Exterior3

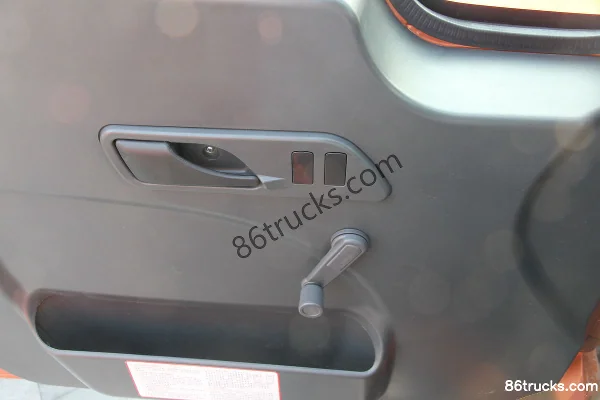

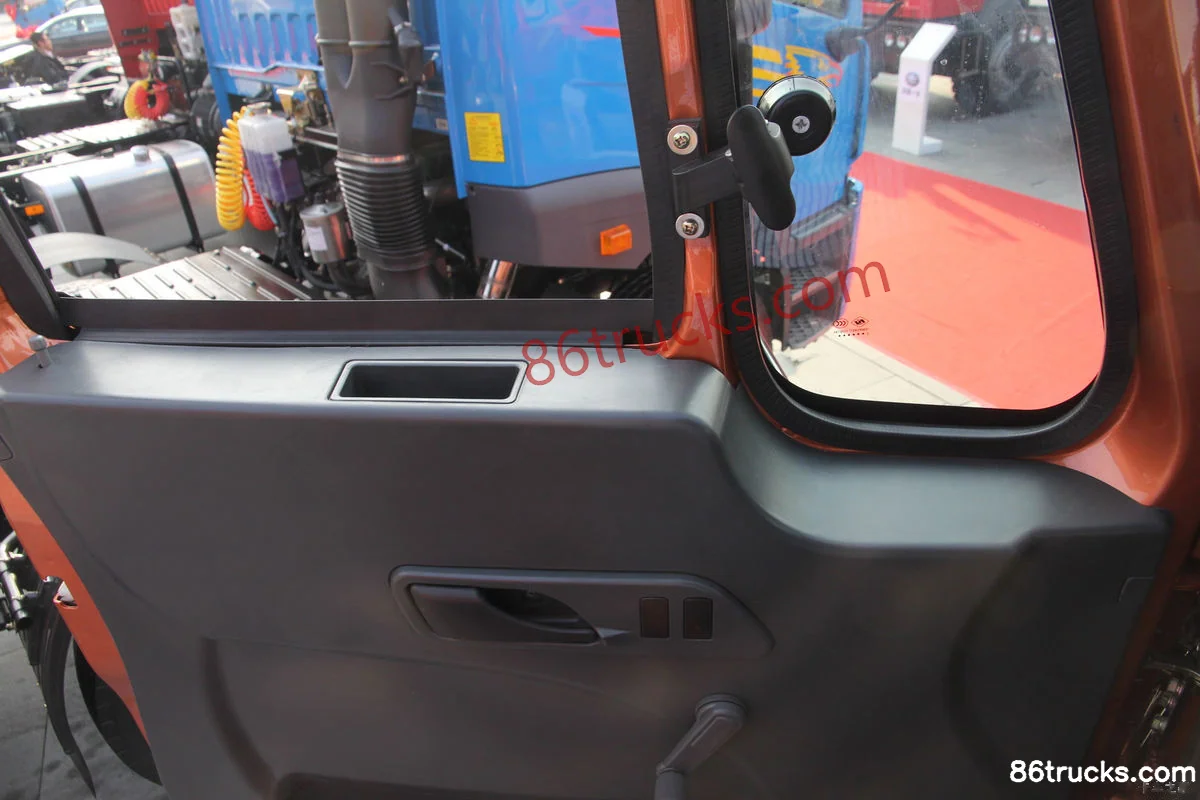

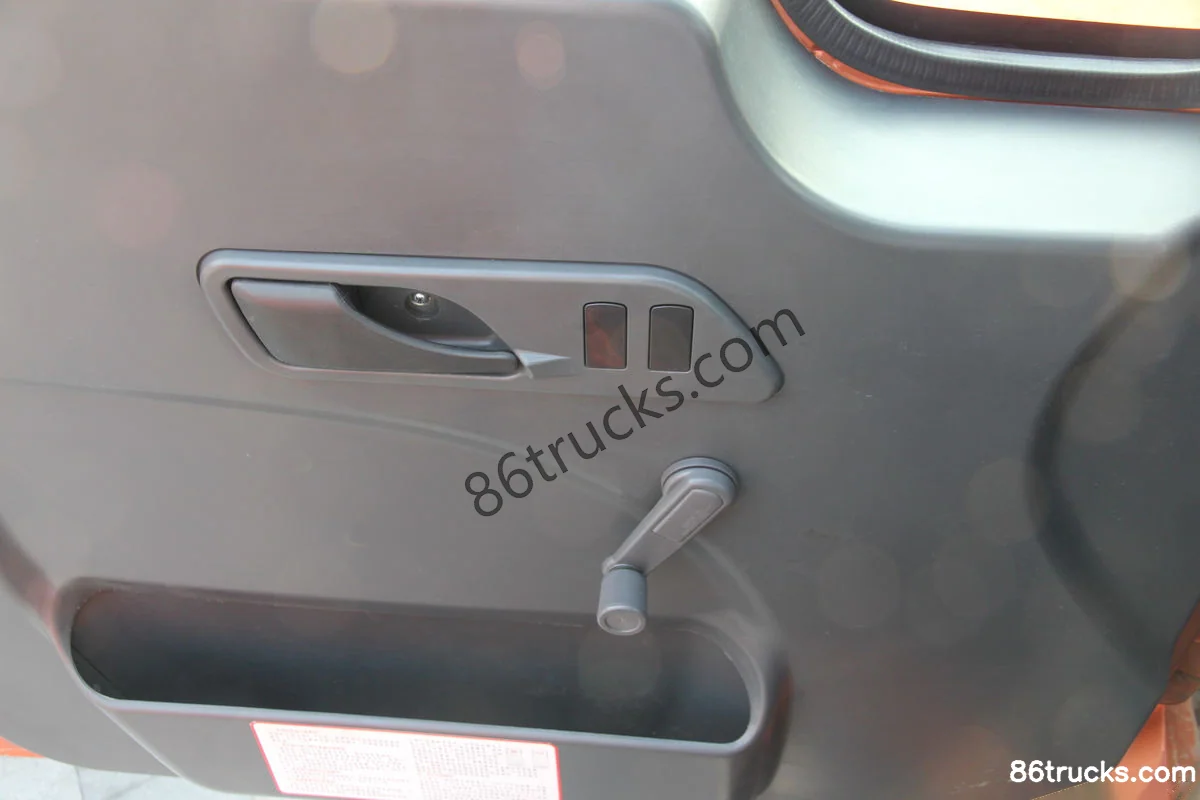

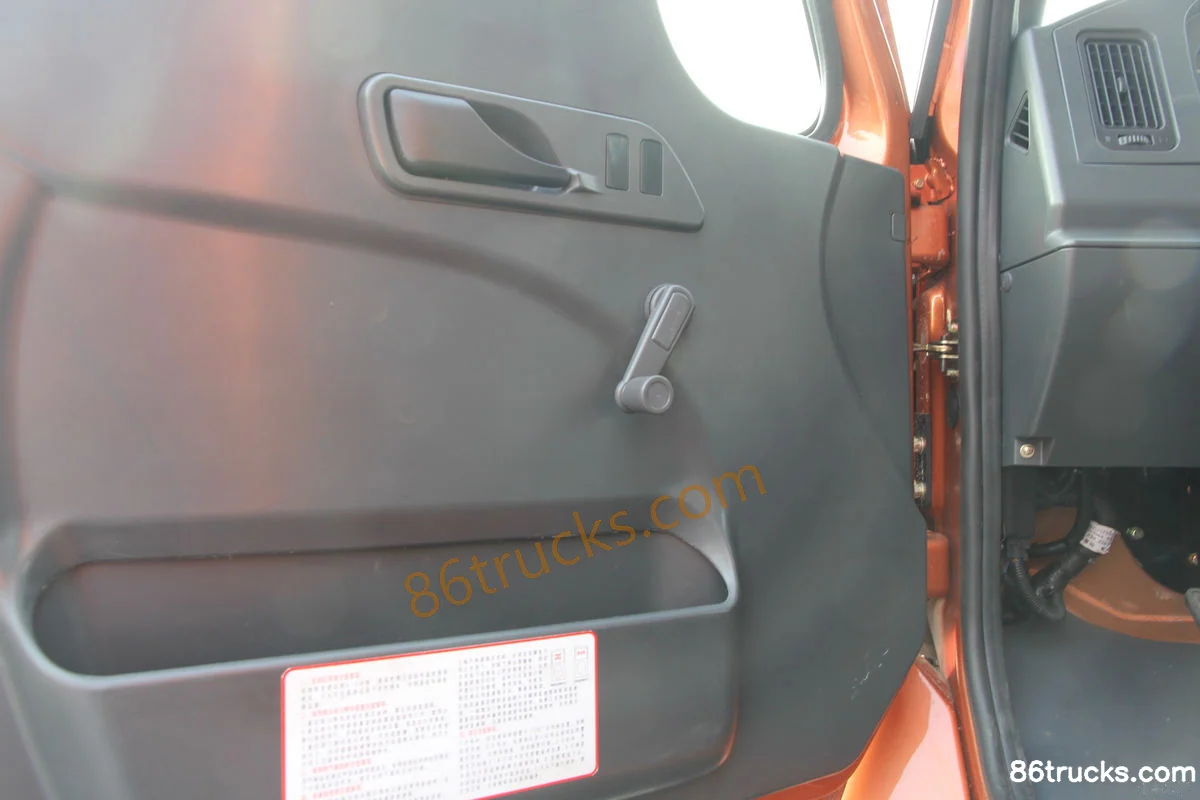

Cab3

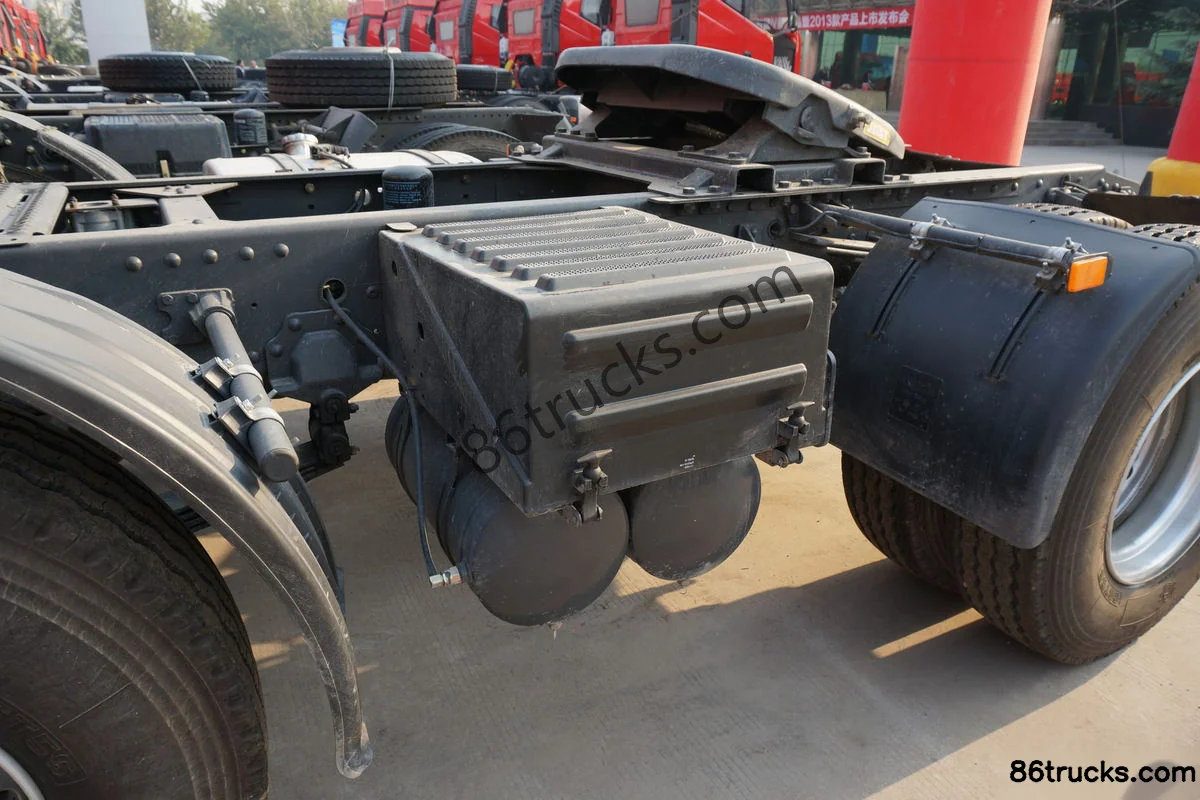

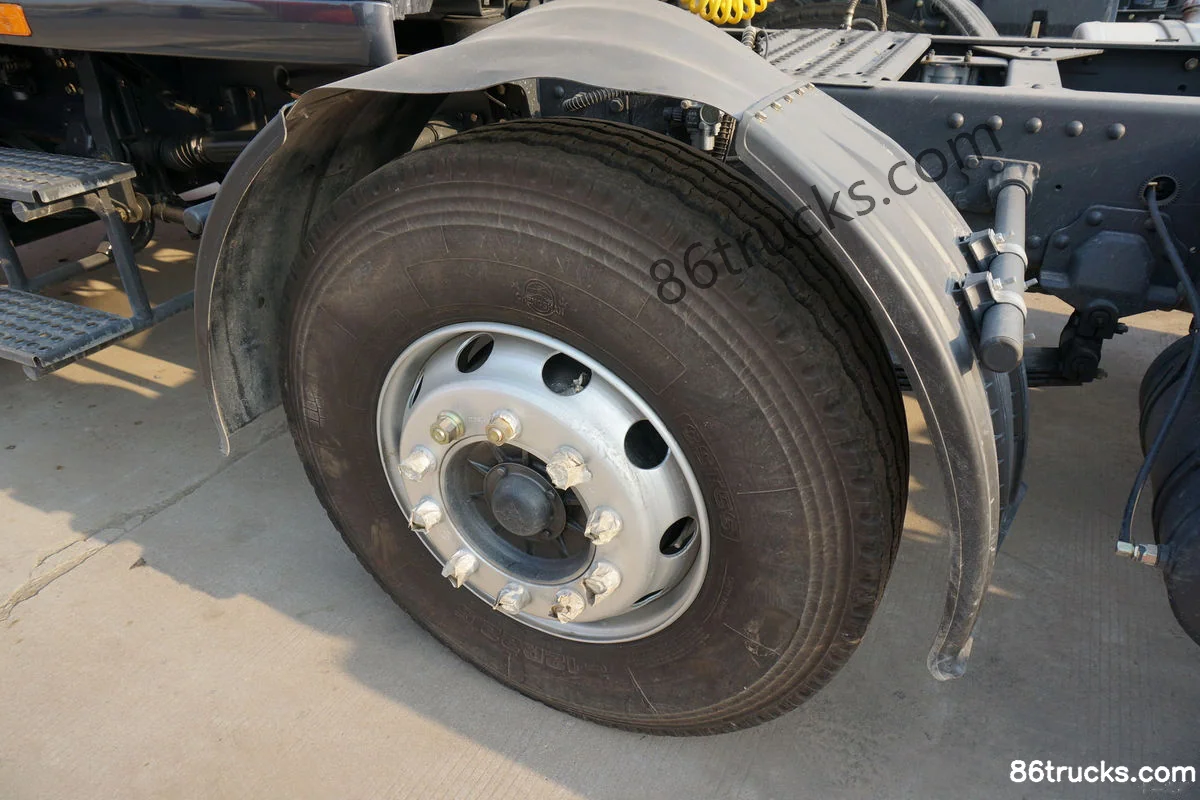

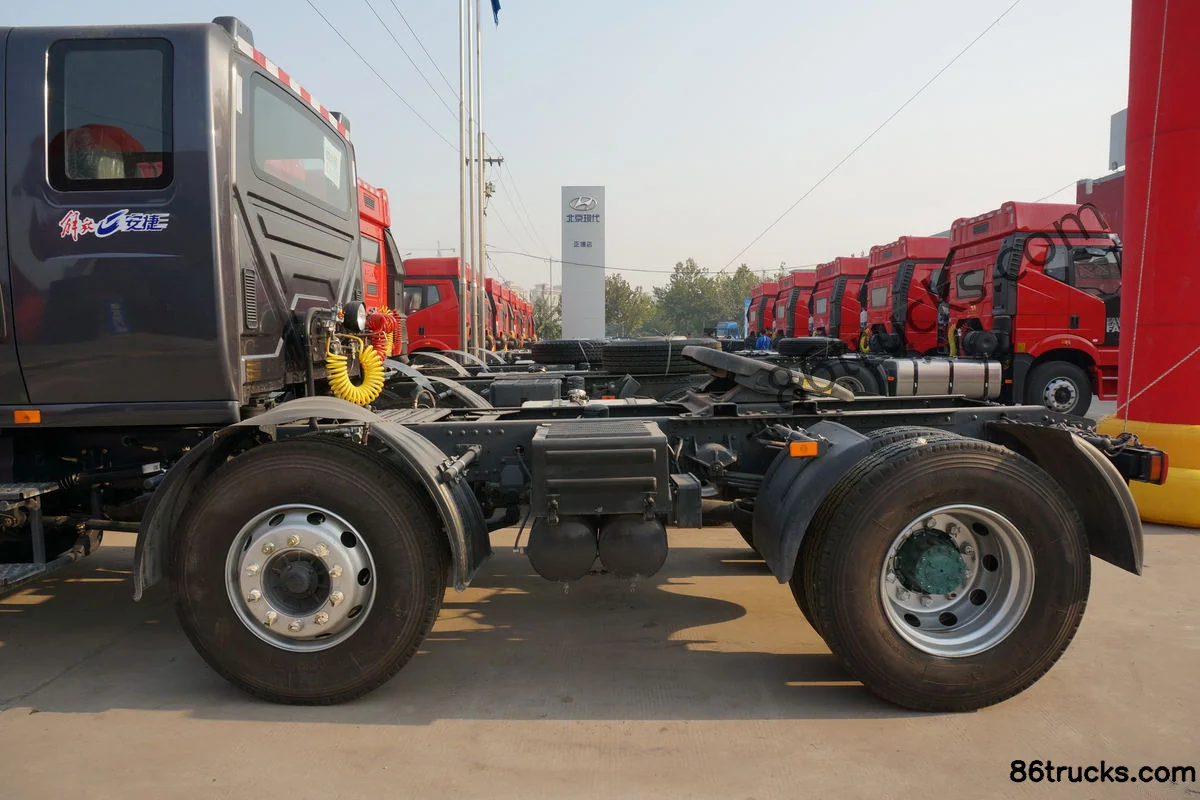

Chassis3

9 photos

FAQ

What is the export price of FAW Liute Xin'anjie (L5R) Heavy Truck 390 hp 6X2(8 wheels) Dangerous Goods Cabover Tractor Truck, and what does it include?

FAW Liute Xin'anjie (L5R) Heavy Truck 390 hp 6X2(8 wheels) Dangerous Goods Cabover Tractor Truck export reference is about From $39,750; MSRP is ¥28.62M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Liute Xin'anjie (L5R) Heavy Truck 390 hp 6X2(8 wheels) Dangerous Goods Cabover Tractor Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Liute Xin'anjie (L5R) Heavy Truck 390 hp 6X2(8 wheels) Dangerous Goods Cabover Tractor Truck?

Key specs of FAW Liute Xin'anjie (L5R) Heavy Truck 390 hp 6X2(8 wheels) Dangerous Goods Cabover Tractor Truck: Drive: 6x2; Horsepower: 390 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Liute Xin'anjie (L5R) Heavy Truck 390 hp 6X2(8 wheels) Dangerous Goods Cabover Tractor Truck suited for?

FAW Liute Xin'anjie (L5R) Heavy Truck 390 hp 6X2(8 wheels) Dangerous Goods Cabover Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Liute Xin'anjie (L5R) Heavy Truck 390 hp 6X2(8 wheels) Dangerous Goods Cabover Tractor Truck differ from other variants in the same series?

FAW Liute Xin'anjie (L5R) Heavy Truck 390 hp 6X2(8 wheels) Dangerous Goods Cabover Tractor Truck belongs to FAW Jiefang Qingdao Anjie L5R Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Liute Xin'anjie (L5R) Heavy Truck 390 hp 6X2(8 wheels) Dangerous Goods Cabover Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Liute Xin'anjie (L5R) Heavy Truck 390 hp 6X2(8 wheels) Dangerous Goods Cabover Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
