Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck

Export reference
MSRP N/A
Horsepower: 103
Emission: China IV
Fuel: gasoline
Engine: Foton Gas 2.2L
Transmission: WLY
Curb Weight:: 2.55ton
Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck exterior
View more photos (6)
seating capacity: 3Personnel
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck is a Light Truck featuring 3.8m cargo length, stake body cargo body, 3Personnel volume and 1.8t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Foton Gas 2.2L engine, 103 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 103 gasoline 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ1049V9PW6-AA
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.8m
engine: Foton4Y22M1
transmission: WLYWLY520
Rear Axle Ratio: 5.833
Cab length: 5.995m
Cab width: 2m
Cab height: 2.32m
Front track width: 1530mm
rear track: 1485mm
Curb Weight: 2.55ton
Rated payload: 1.8ton
GVWR: 4.48ton
Max. speed: 110km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
market segment: Building materials, agricultural products
Remarks: NPR integral type
Front/rear suspension: 1.12/1.515m
Version: Value Edition
Energy Type: gasoline
Engine parameters
Engine Brand: Foton
Engine Model: Foton4Y22M1
Engine info: Foton Gas 2.2L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 2.237L
Emission standard: China IV
Max output power: 76kW
Max hp: 103Horsepower
Max torque: 177N·m
Max torque speed: 2000-2600rpm
Rated speed: 4600rpm
Transmission Parameters
Transmission Model: WLYWLY520
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.8m
Cargo box width: 1.9m
Cargo box height: 0.4m
*Cargo box interior width: 1.8999999761581
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1790kg
rear axle description: 2690
rear axle allowable load: 2690kg
Axle ratio: 5.833
Leaf spring count: 3+1/6+7
Tire
Tire Size: 6.50R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

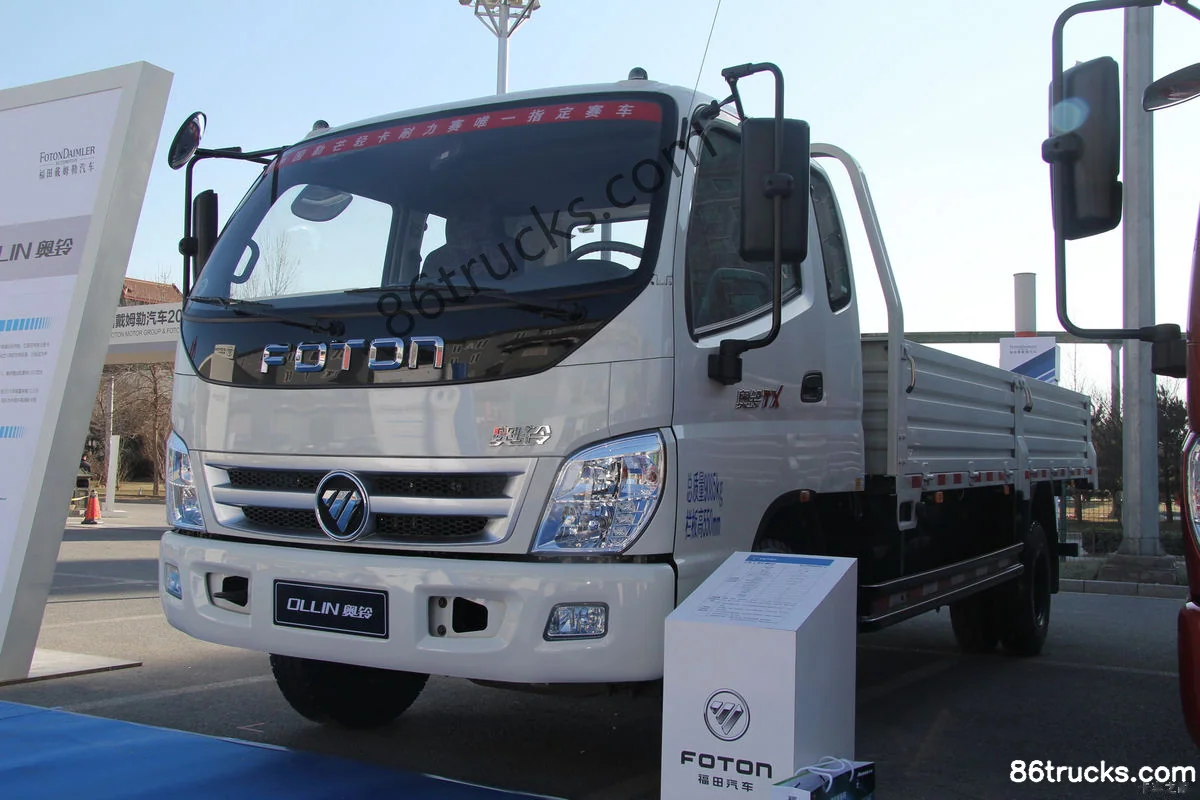

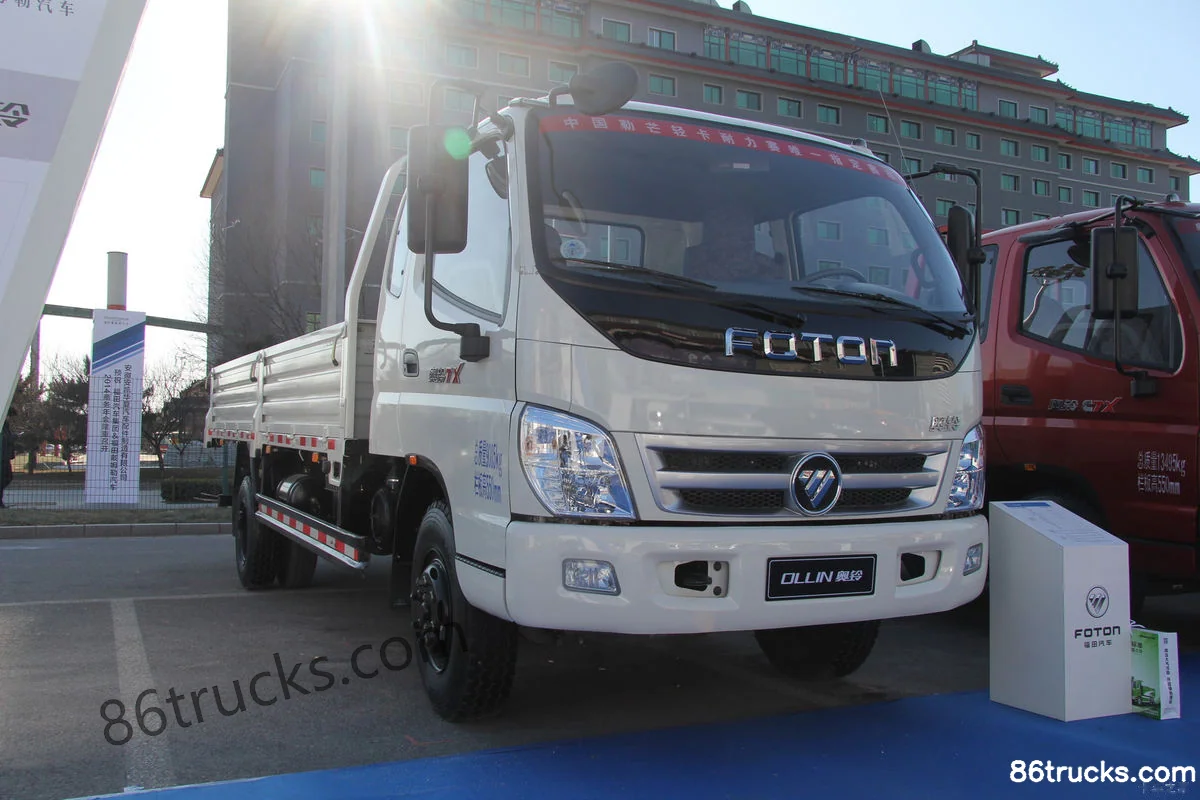

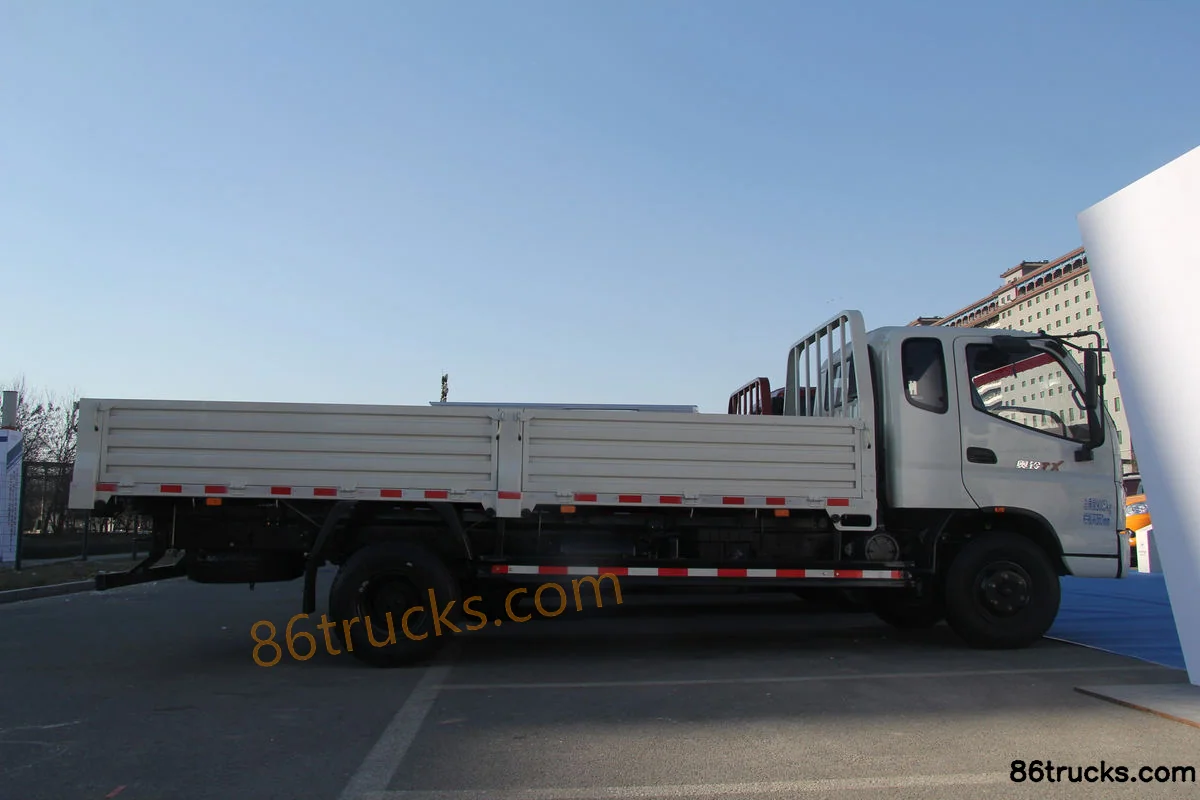

Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck Exterior (1) | 86Trucks Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck Exterior (2) | 86Trucks Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck Exterior (3) | 86Trucks

Chassis3

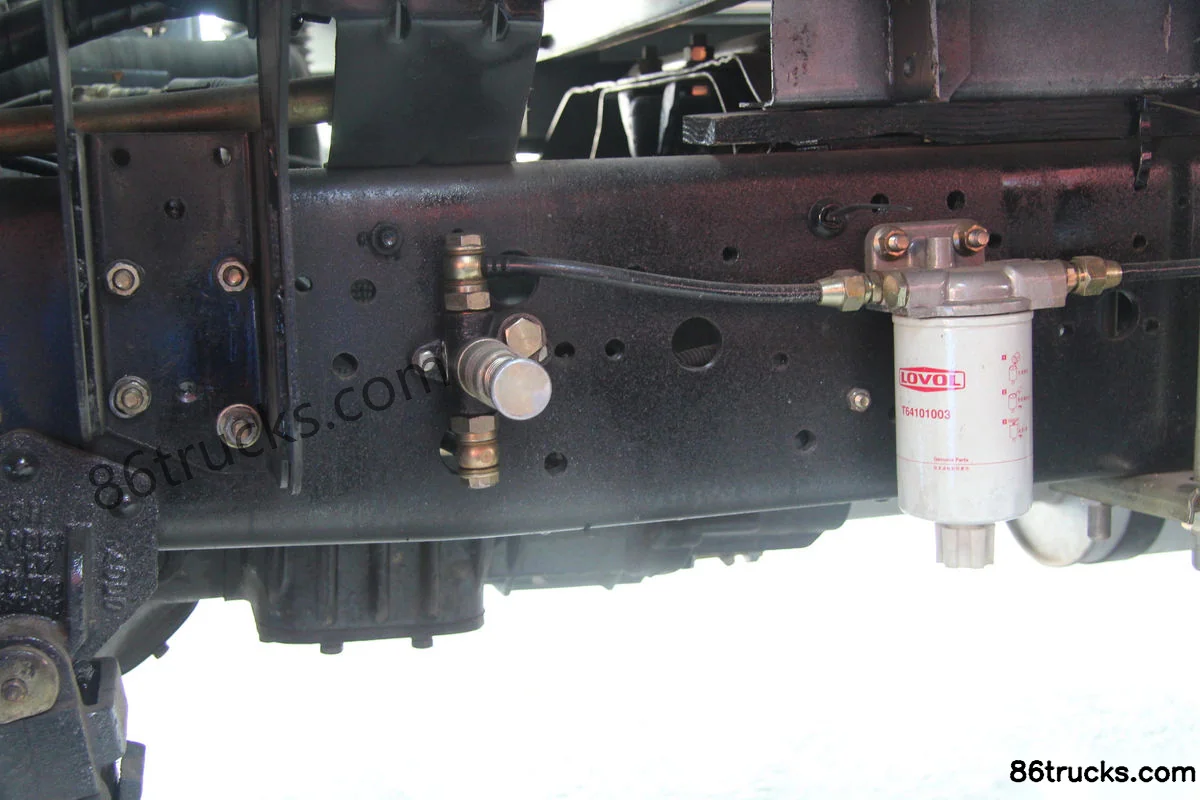

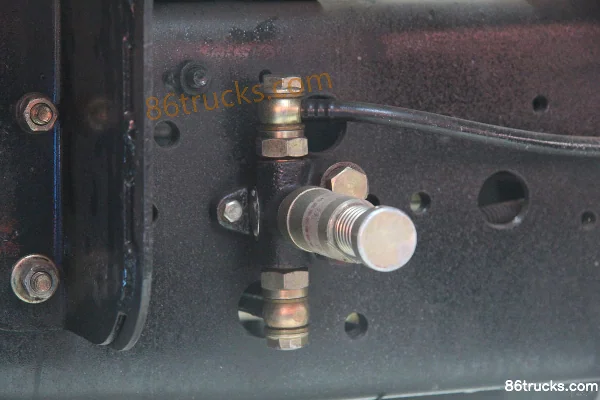

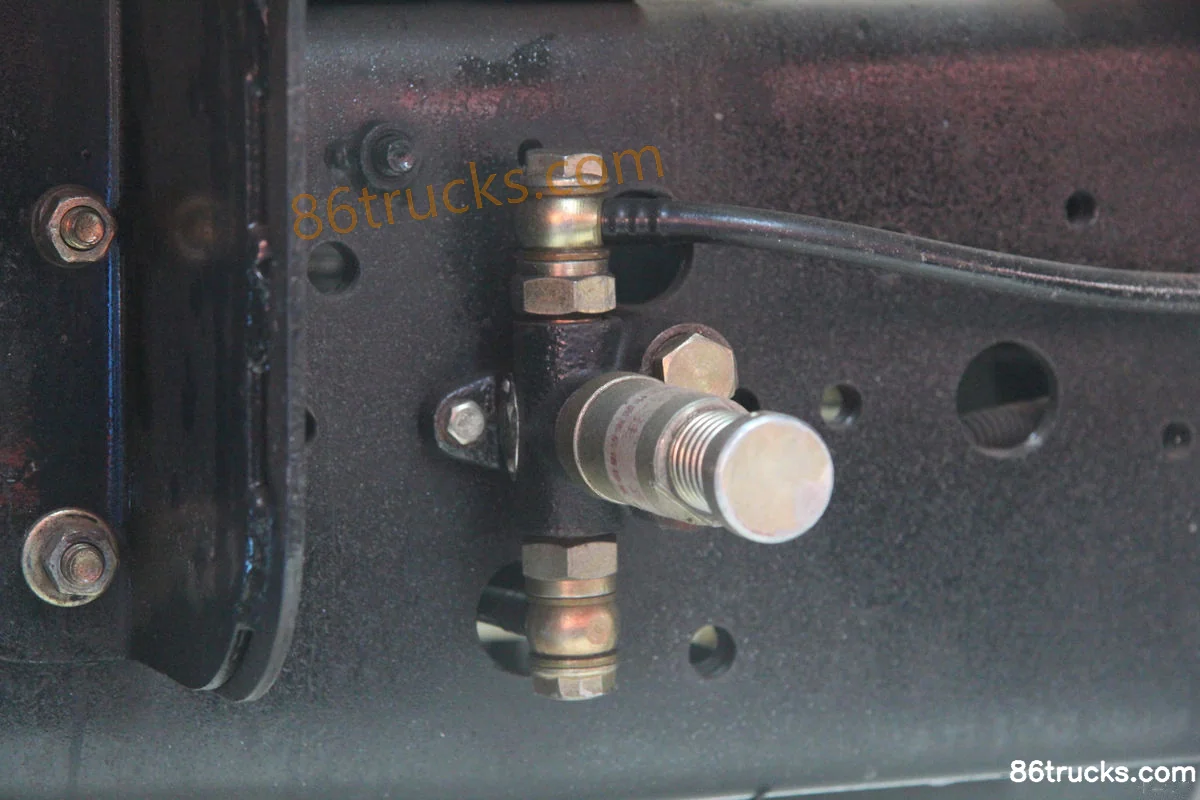

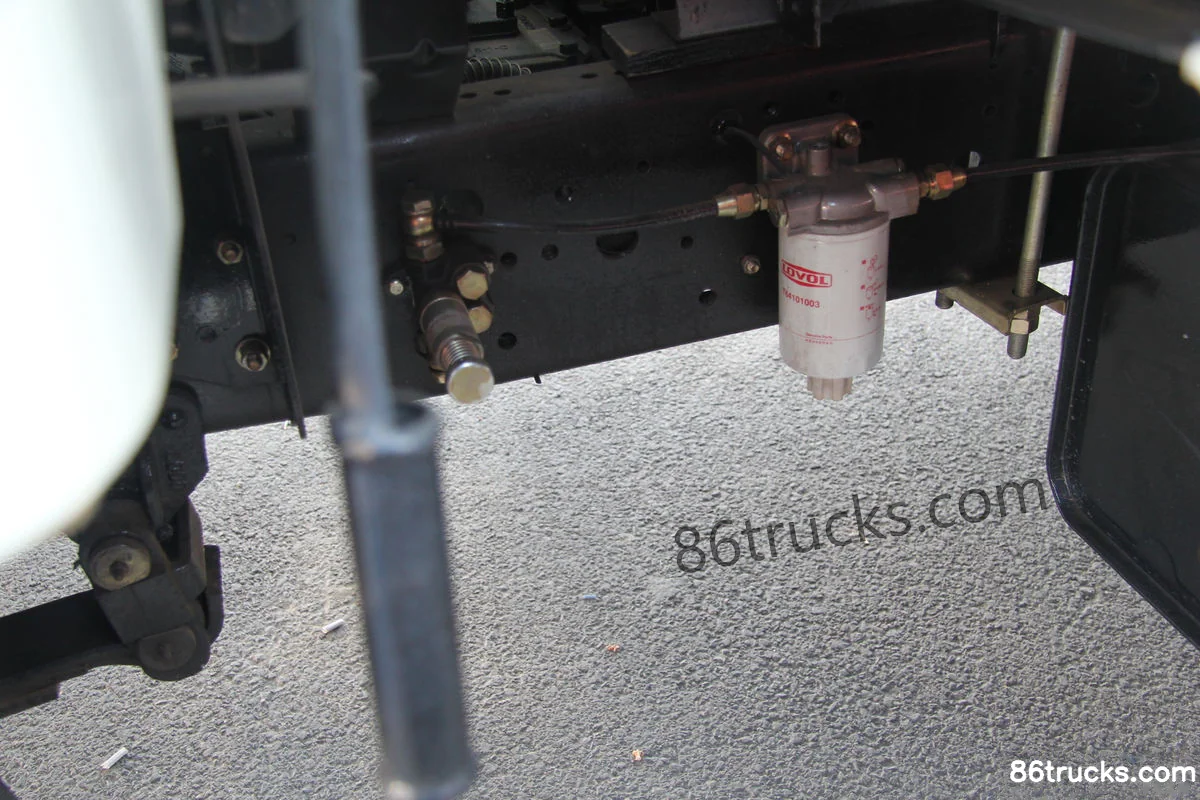

Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck Chassis (1) | 86Trucks Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck Chassis (2) | 86Trucks Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck Chassis (3) | 86Trucks

6 photos

FAQ

What emission standard does Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck?

Key specs of Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck: Drive: 4x2; Horsepower: 103 hp; Emission: China IV; Fuel: gasoline; Engine: Foton Gas 2.2L; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck suited for?

Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck differ from other variants in the same series?

Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck belongs to Foton TX Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ollin TX Super Value Edition 103 hp 4X2(6 wheels) 3.8m semi-row flatbed truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
