FAW Jiabao V80 AT80 4.21m pure electric enclosed van 42.5kWh

Export reference
From $19,000
MSRP ¥13.68M CNY
Model code (announced):: CA6420EVK3
Cab length:: 4.205m
GVWR:: 1.99ton
Max. speed:: 120km/h
Energy Type:: Electric
Max torque:: 220N·m
CLTC range: 301km
Motor 1 Brand: Chuangqu
Curb Weight: 1.54ton
Wheelbase: 2700mm

Overview

The FAW Jilin FAW Jiabao V80 AT80 4.21m pure electric enclosed van 42.5kWh is a Electric Panel Van featuring 301km battery/range, Chuangqu motor and 1.99t GVW.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA6420EVK3
Wheelbase: 2700mm
Cab length: 4.205m
Cab width: 1.68m
Cab height: 1.91m
CLTC range: 301km
Curb Weight: 1.54ton
GVWR: 1.99ton
Max. speed: 120km/h
Energy Type: Electric
electric motor
Motor 1 Brand: Chuangqu
Motor 1 Model: TZ186XSM02
Max torque: 220N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 30kW
Peak power: 55kW
total peak torque: 220N·m
Electronic Control
ECU Brand: Chuangqu (Shanghai)
Battery/Charging
Battery Brand: Jiangxi Anchi
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 42.5kWh
Energy Density: 141.7
Battery Model: TZ186XSM02
Chassis Specs
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 6Seats
Wheel brake
Front brake type: Disc brake
rear brake type: Disc brake
Front tire specification: 175/75R14C
Rear Wheel Specification: 175/75R14C
Safety features
Central door lock:
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.):
interior configuration
Power-Adjustable Rearview Mirror:
AC control type: Manual
Power Windows:
Seat material: Fabric
Reverse Camera:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
lighting configuration
Front fog lamp:

Photos

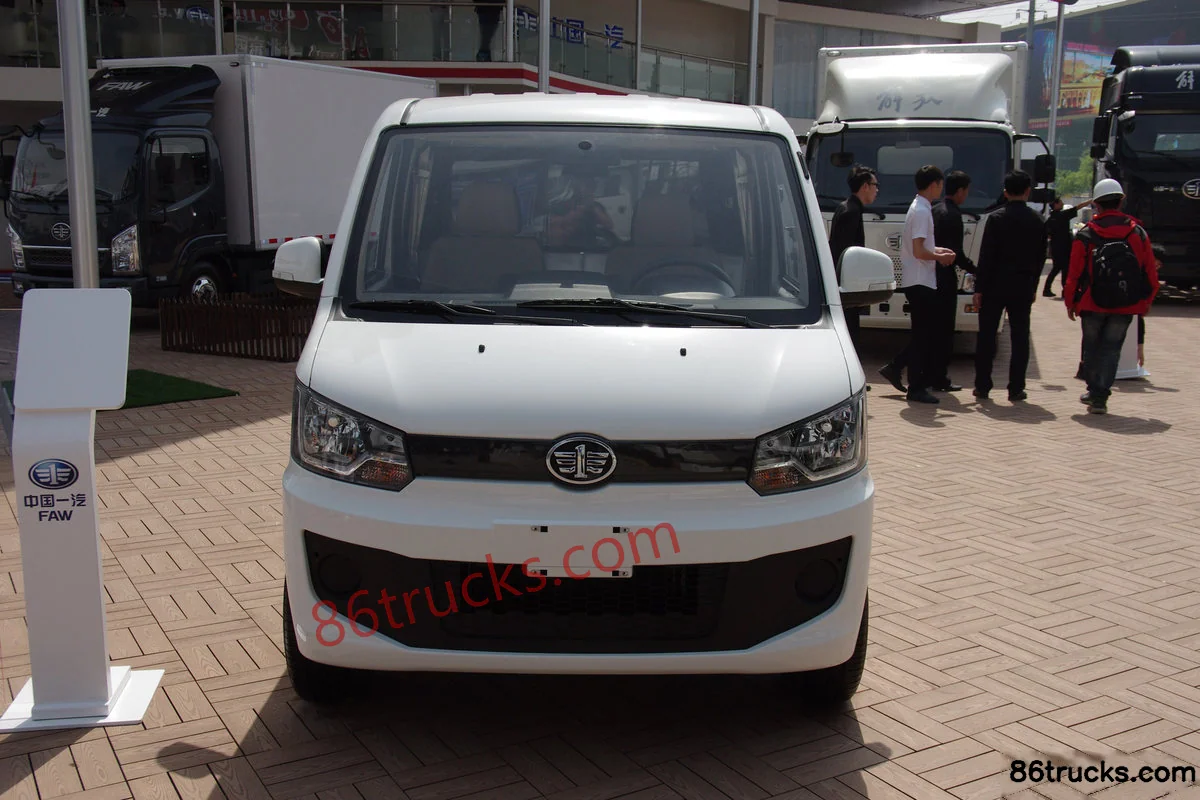

Exterior1

1 photos

FAQ

What is the export price of FAW Jiabao V80 AT80 4.21m pure electric enclosed van 42.5kWh, and what does it include?

FAW Jiabao V80 AT80 4.21m pure electric enclosed van 42.5kWh export reference is about From $19,000; MSRP is ¥13.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is FAW Jiabao V80 AT80 4.21m pure electric enclosed van 42.5kWh suited for?

FAW Jiabao V80 AT80 4.21m pure electric enclosed van 42.5kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does FAW Jiabao V80 AT80 4.21m pure electric enclosed van 42.5kWh differ from other variants in the same series?

FAW Jiabao V80 AT80 4.21m pure electric enclosed van 42.5kWh belongs to FAW Jilin Jiabao V (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiabao V80 AT80 4.21m pure electric enclosed van 42.5kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiabao V80 AT80 4.21m pure electric enclosed van 42.5kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
