SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 143hp 4X2(6 wheels) 4.1m Single Row Van Light Truck (Fast Gear)

Export reference
From $17,361
MSRP ¥12.5M CNY
Horsepower: 143
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D25
Transmission: Fast Gear
Curb Weight:: 2.805ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 143hp 4X2(6 wheels) 4.1m Single Row Van Light Truck (Fast Gear) is a Light Truck featuring 4.1m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D25 engine, 143 hp, 4X2 (6 wheels) drive and China V emissions.

China V 143 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX5040XXYGP5
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.1m
engine: Yunnei PowerD25TCIE1
transmission: Fast GearC6J45TB
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.1m
Cab height: 3.2m
Front track width: 1670mm
rear track: 1525mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Xi'an
tonnage class: Light Truck
Approach angle: 17°
departure angle: 14°
market segment: Urban Distribution
Remarks: Optional ratio 4.33, 5.286
Front/rear suspension: 1.2/1.495m
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD25TCIE1
Engine info: Yunnei Dewei D25
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.499L
Emission standard: China V
Max output power: 105kW
Max hp: 143Horsepower
Max torque: 360N·m
Max torque speed: 1600-2800rpm
Rated speed: 3600rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Fast GearC6J45TB
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.1m
Cargo box width: 2.1m
Cargo box height: 2.2m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab: Xuande X9
Cab width: 1995mm
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: Mechanical suspension seat
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 120L
Chassis Specs
Front axle description: 2.2T
Front axle allowable load: 1500kg
Frame Dimensions: 800×(132-192)/5 single-layermm
rear axle description: 3.5T
rear axle allowable load: 2995kg
Axle ratio: 4.875
Leaf spring count: 2/2+1
Tire
Tire Size: 7.00R16LT 8PR
Tire Type: tubeless tire
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
AC control type: Manual

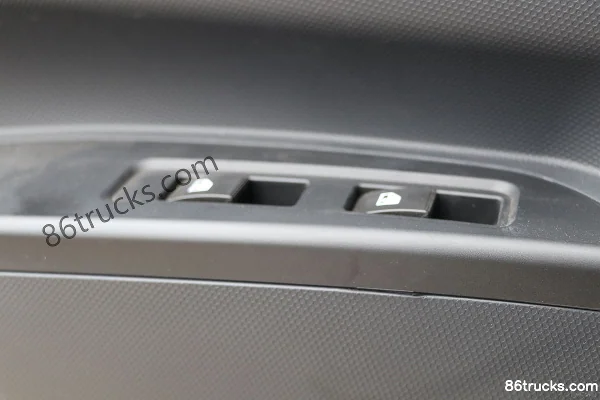

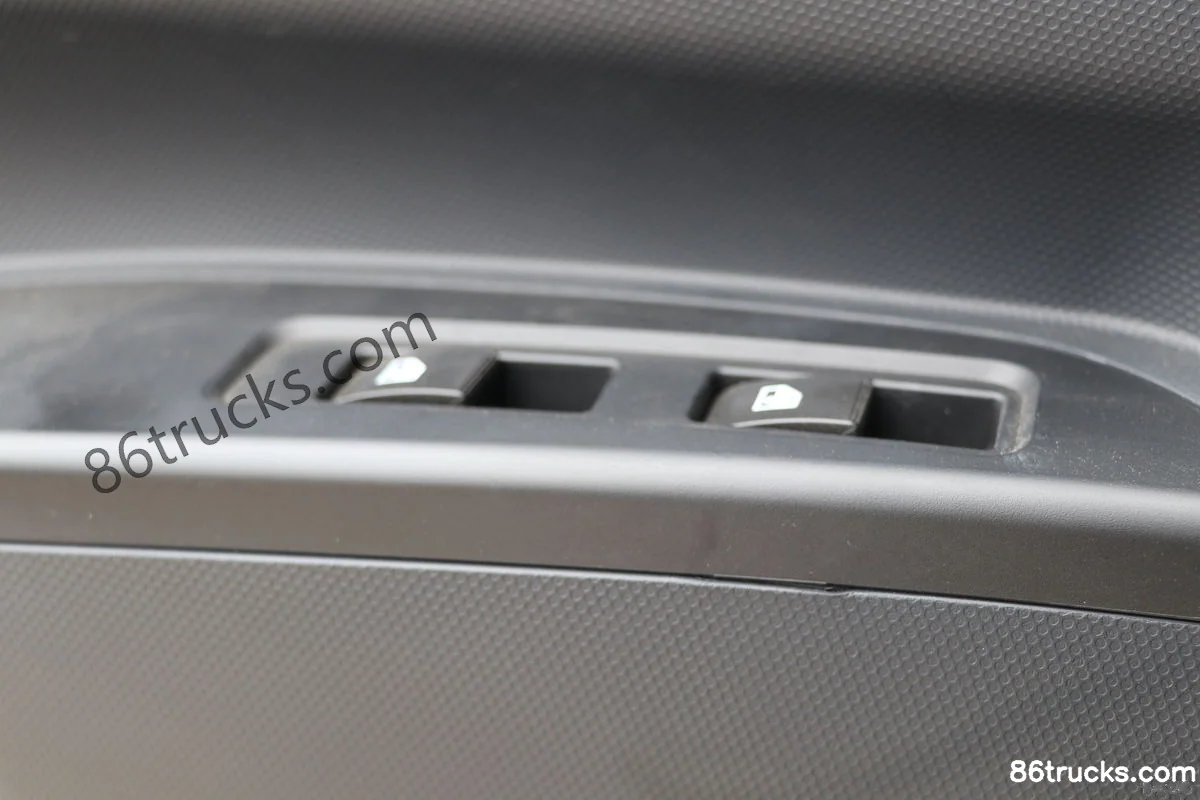

Power Windows:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Service brake
Parking brake: Spring brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

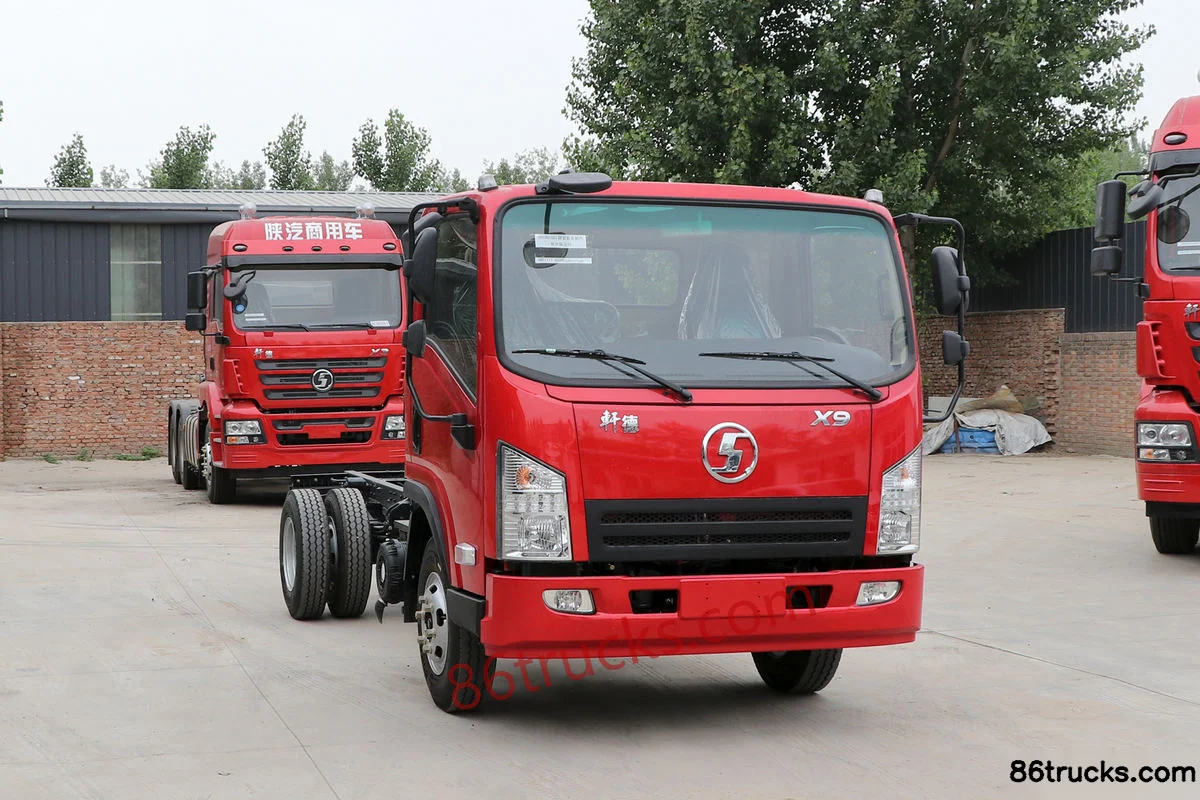

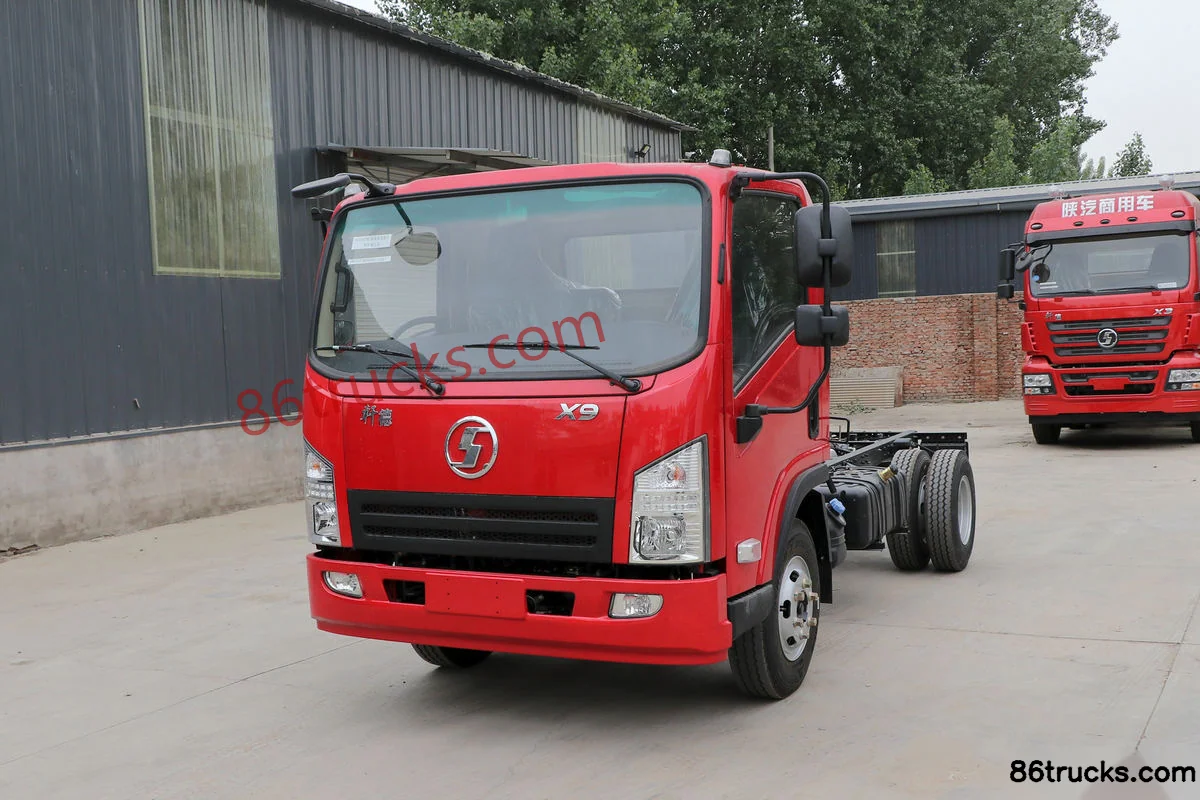

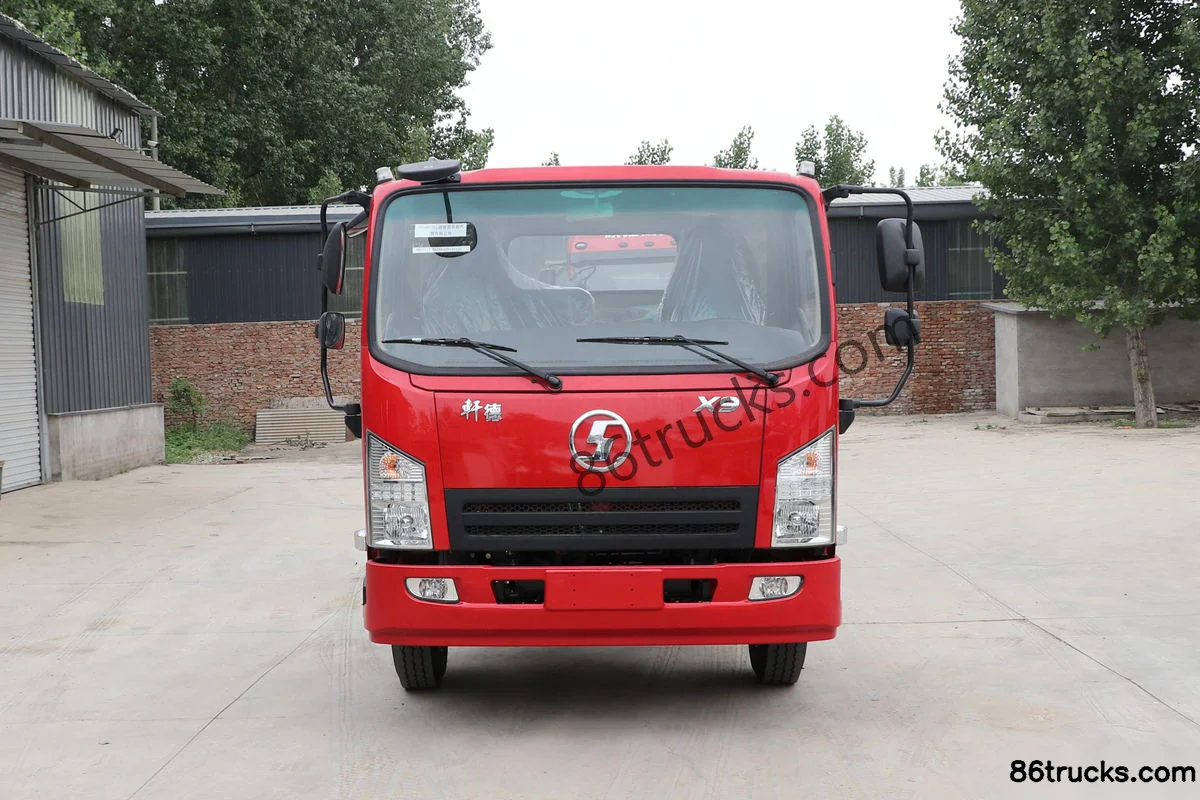

Exterior3

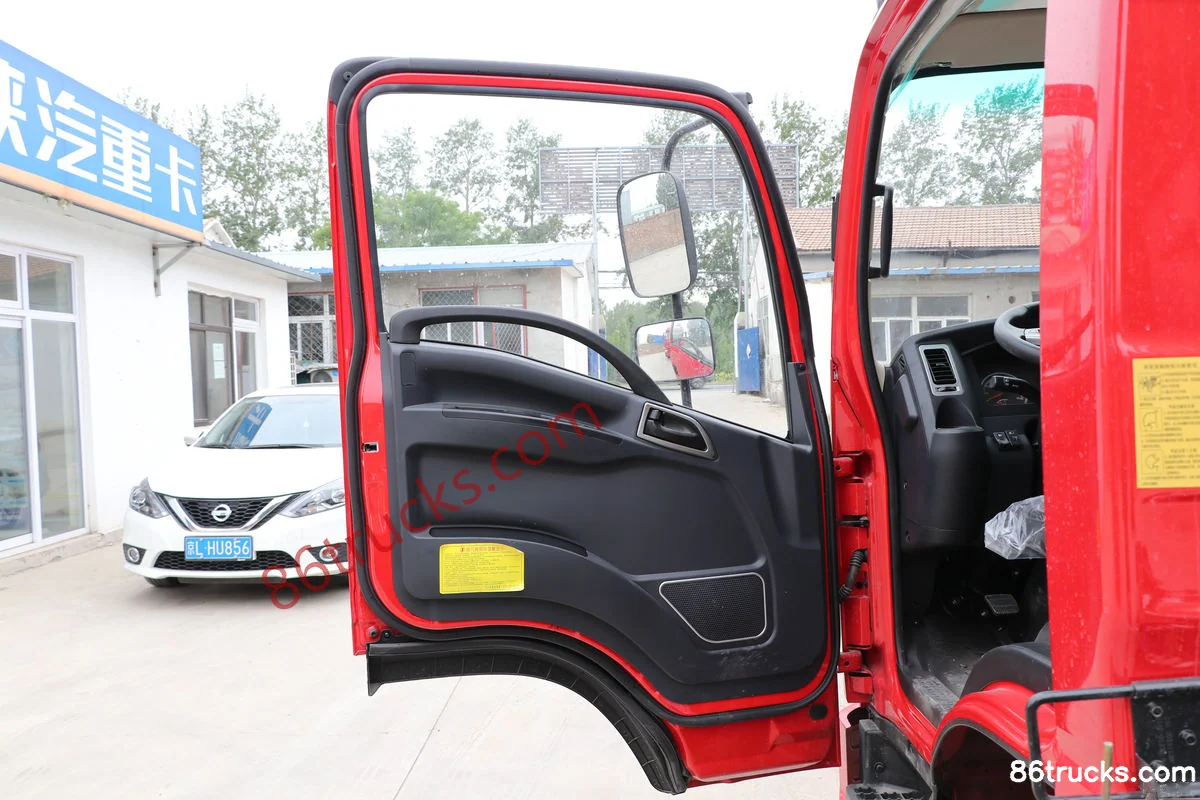

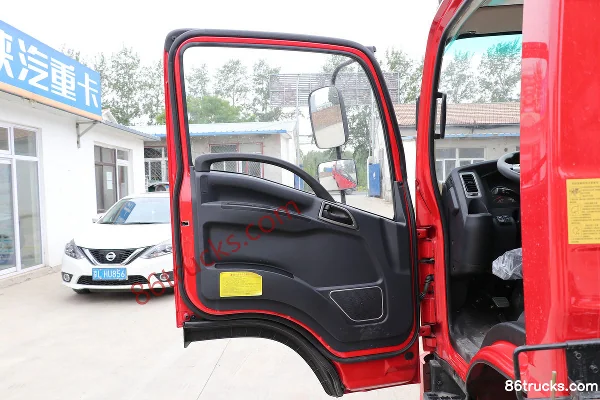

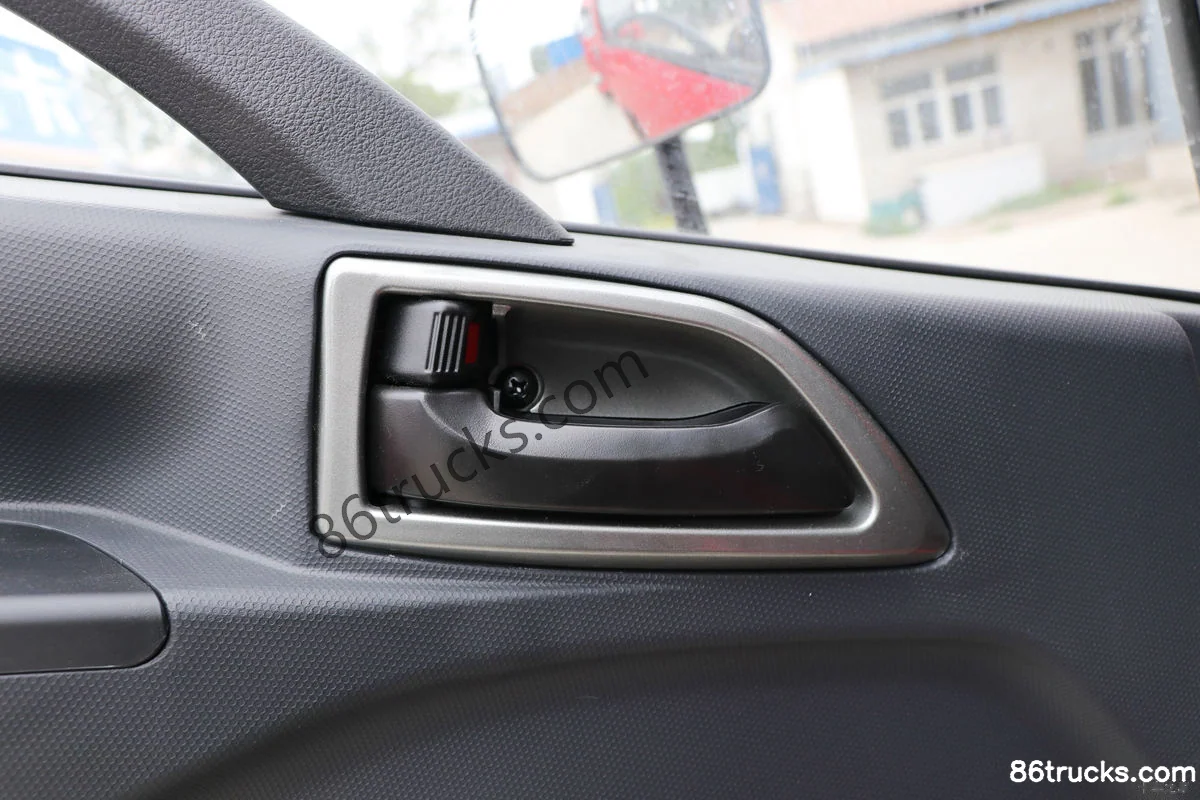

Cab3

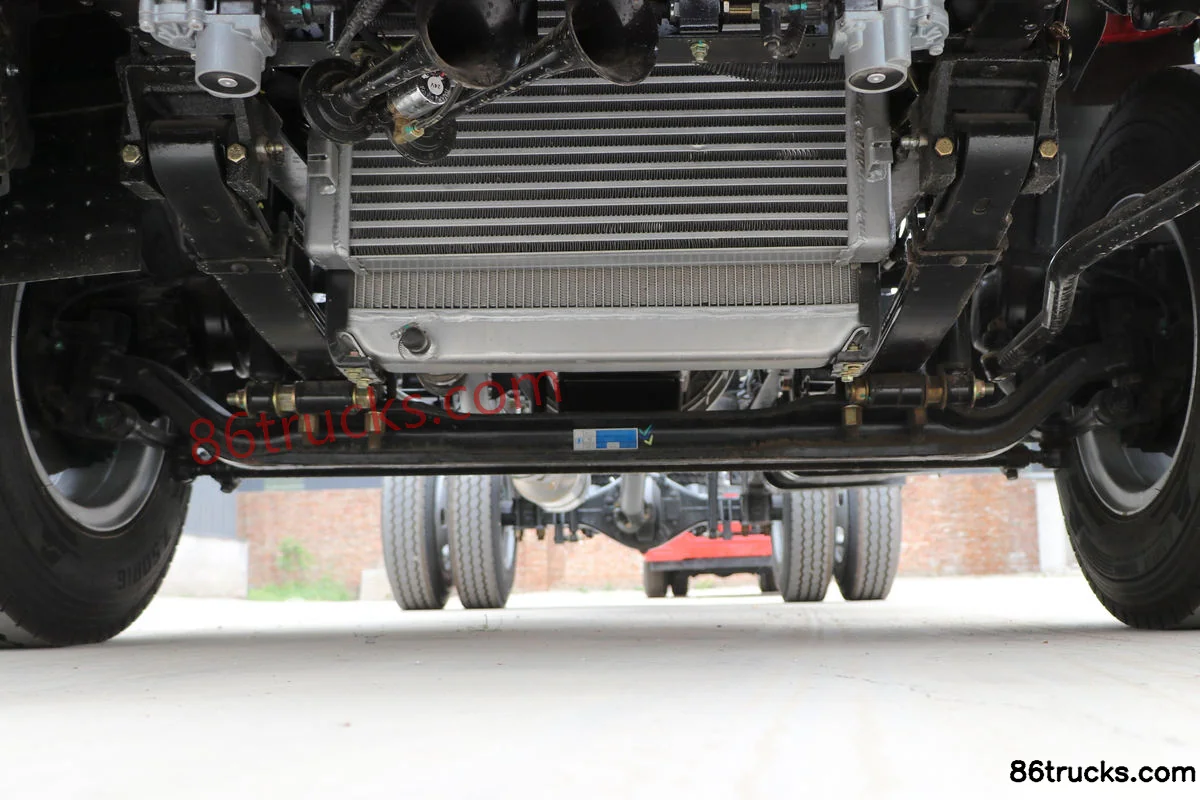

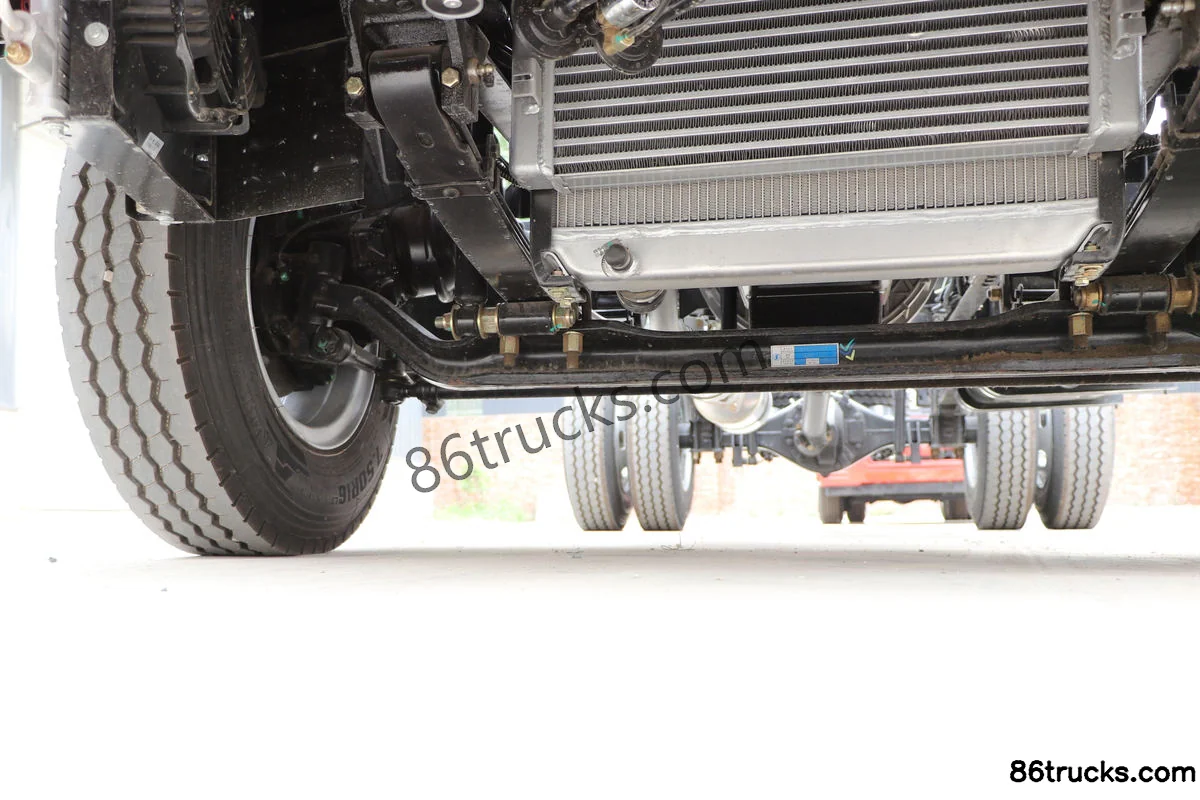

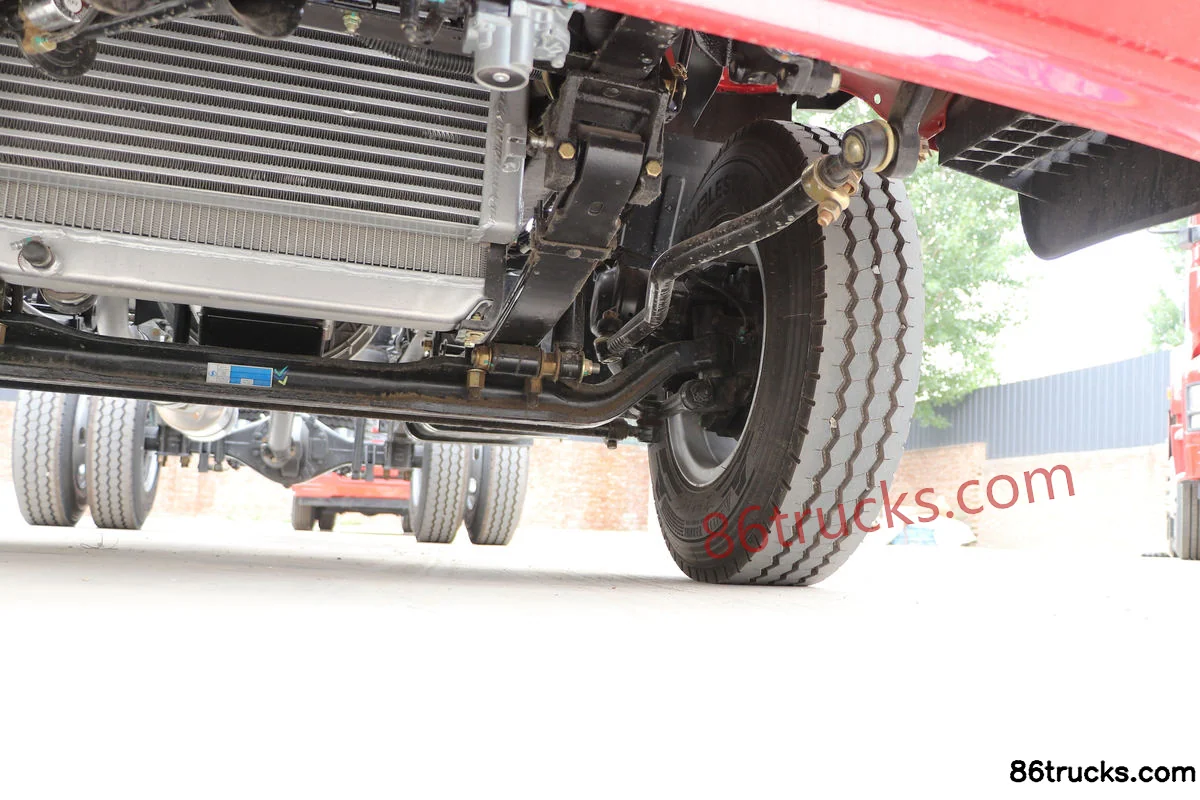

Chassis3

9 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 143hp 4X2(6 wheels) 4.1m Single Row Van Light Truck (Fast Gear), and what does it include?

SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 143hp 4X2(6 wheels) 4.1m Single Row Van Light Truck (Fast Gear) export reference is about From $17,361; MSRP is ¥12.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 143hp 4X2(6 wheels) 4.1m Single Row Van Light Truck (Fast Gear) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 143hp 4X2(6 wheels) 4.1m Single Row Van Light Truck (Fast Gear)?

Key specs of SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 143hp 4X2(6 wheels) 4.1m Single Row Van Light Truck (Fast Gear): Drive: 4x2; Horsepower: 143 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D25; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 143hp 4X2(6 wheels) 4.1m Single Row Van Light Truck (Fast Gear) suited for?

SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 143hp 4X2(6 wheels) 4.1m Single Row Van Light Truck (Fast Gear) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 143hp 4X2(6 wheels) 4.1m Single Row Van Light Truck (Fast Gear) differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 143hp 4X2(6 wheels) 4.1m Single Row Van Light Truck (Fast Gear) belongs to SHACMAN Xuande X9 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 143hp 4X2(6 wheels) 4.1m Single Row Van Light Truck (Fast Gear)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande X9 Standard Load Edition 143hp 4X2(6 wheels) 4.1m Single Row Van Light Truck (Fast Gear)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
