SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.08m Electric Refrigerated Truck (Air Brake) 120.27kWh 4X2(6 wheels)

Export reference
From $44,583
MSRP ¥32.1M CNY
Rated payload:: 1.1ton
Wheelbase:: 3400mm
Cargo box width:: 2.1m
Model code (announced):: SX5048XLCBEV341N
Cab length:: 5.995m
GVWR:: 4.495ton
Drive 4x2 (6 wheels)
CLTC range: 390km
Motor 1 Brand: Hande
Curb Weight: 3.2ton

Overview

The SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.08m Electric Refrigerated Truck (Air Brake) 120.27kWh 4X2(6 wheels) is a Electric Refrigerated Truck featuring 390km battery/range, Hande motor, 4x2 (6 wheels) drive and 1.1t payload.

4x2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX5048XLCBEV341N
Drive type: 4x2
Wheelbase: 3400mm
Cab length: 5.995m
Cab width: 2.26m
Cab height: 3.25m
CLTC range: 390km
Curb Weight: 3.2ton
Rated payload: 1.1ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Baoji, Shaanxi
Energy Type: Electric
electric motor
Motor 1 Brand: Hande
Motor 1 Model: TZ220XS-HD002
Motor Type: Permanent magnet synchronous motor
total rated power: 65kW
Peak power: 120kW
total rated torque: 160N·m
Electronic Control
ECU Brand: Inovance
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 120.27kWh
fast charge time: 0.5h
Battery rated voltage: 592.48V
Energy Density: 150
Chassis Specs
Chassis Series: Zhiyun S300
Chassis Model: SX1048EV341N
Leaf spring count: 3/5+2
Cargo box parameters
Cargo box width: 2.1m
Cargo box height: 2.1m
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

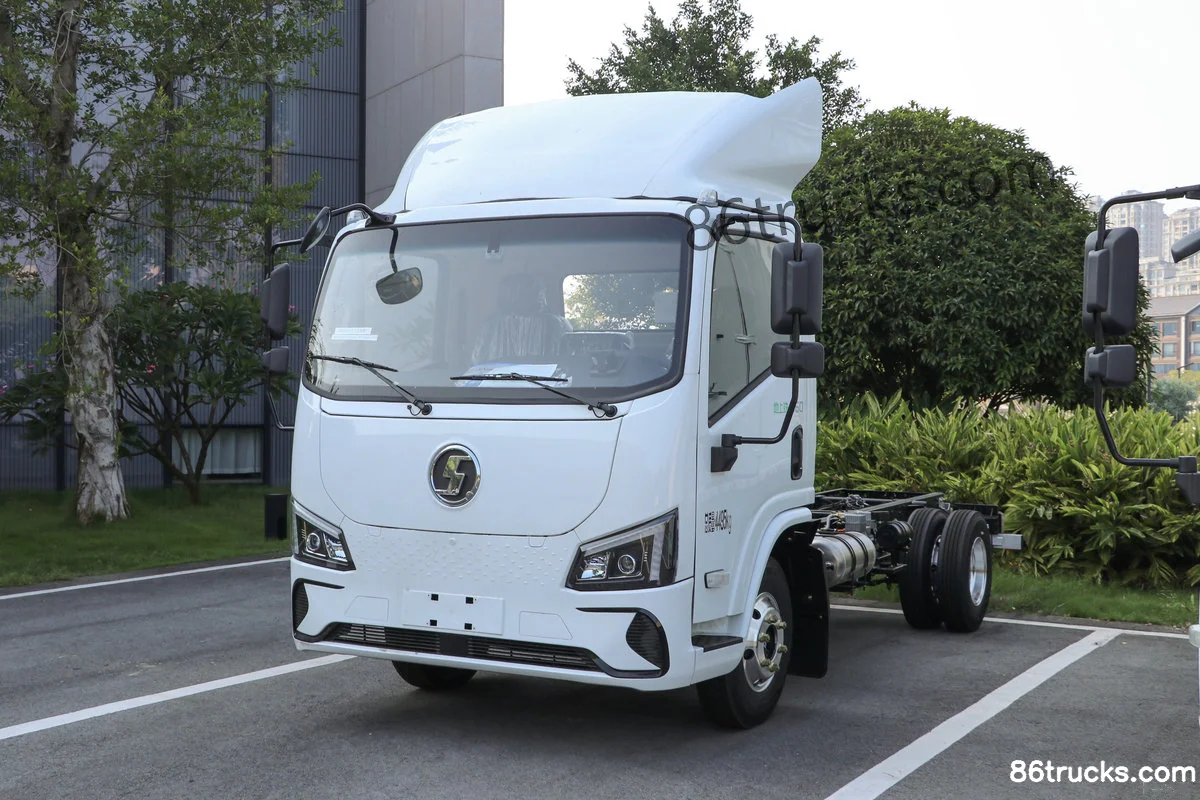

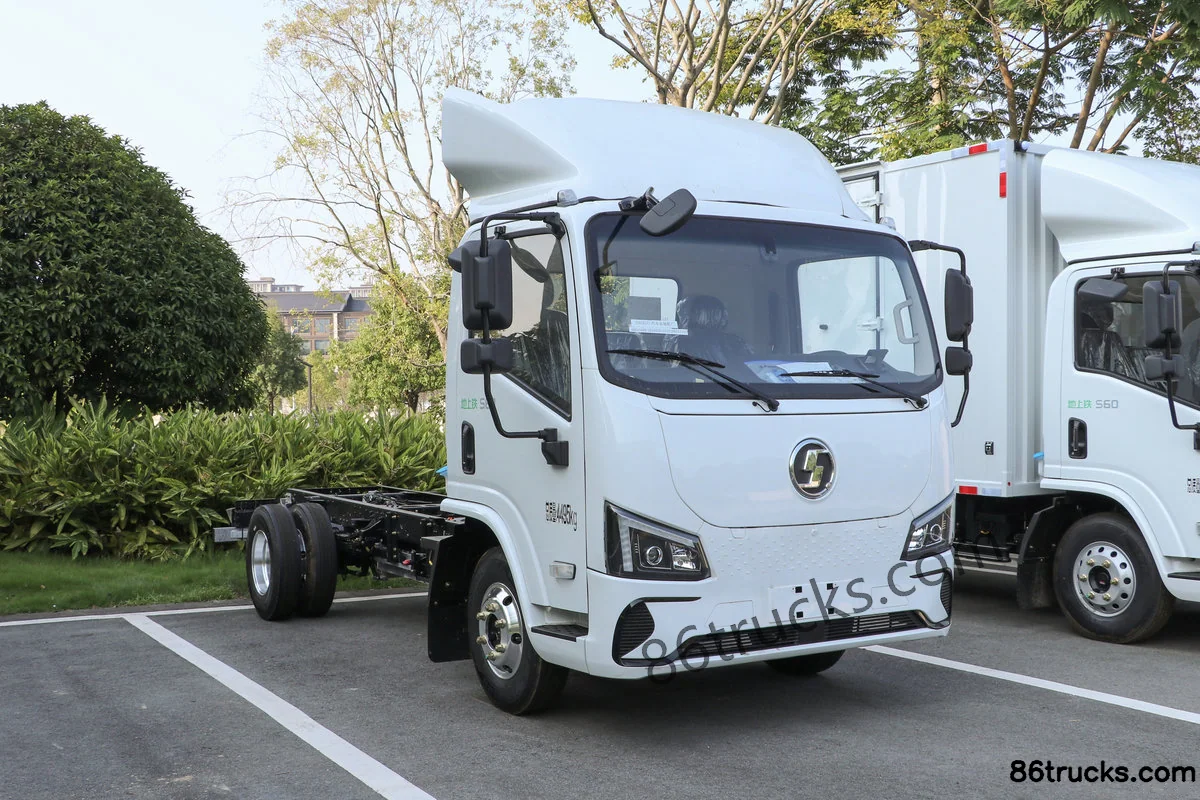

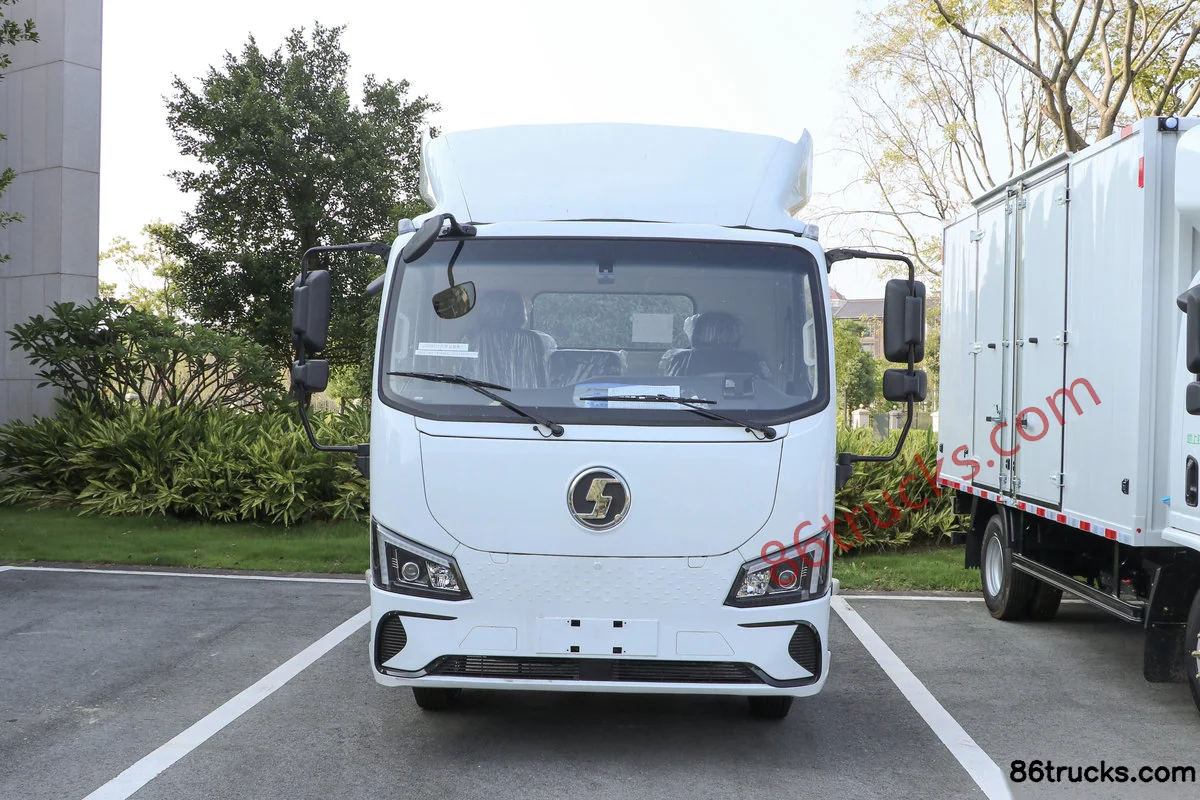

Exterior3

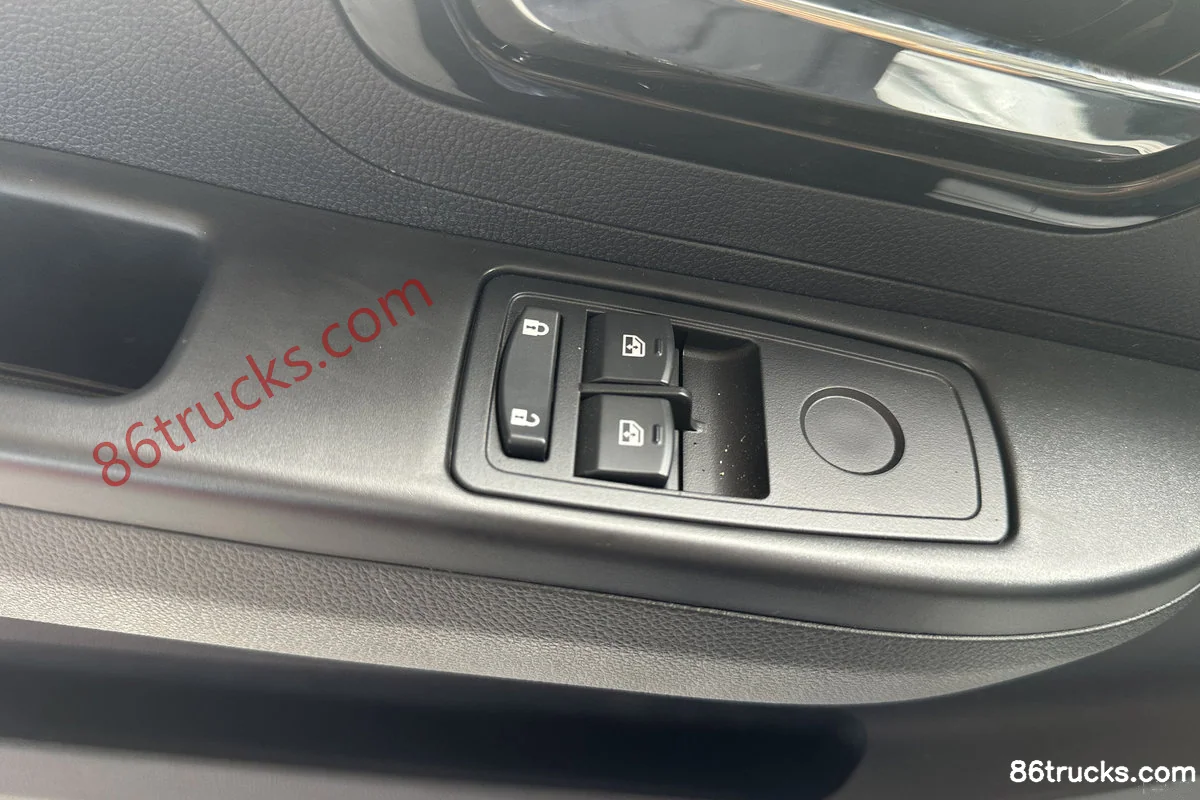

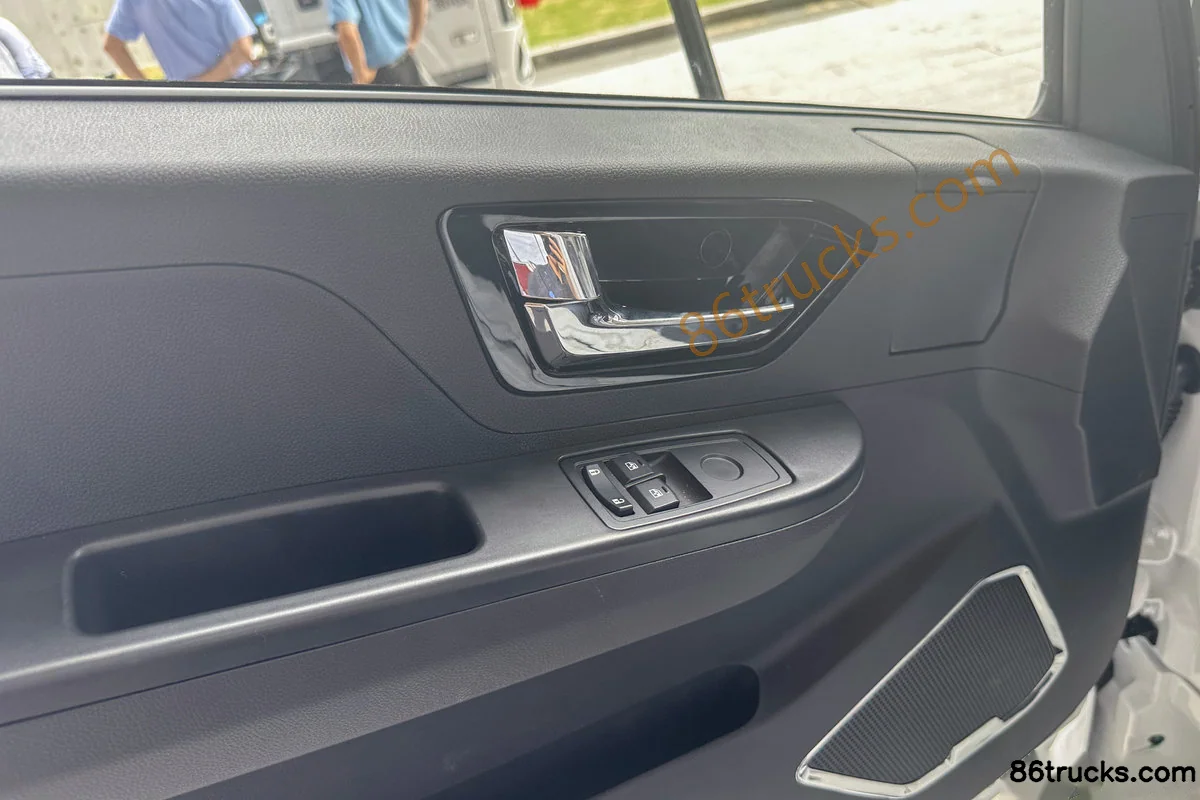

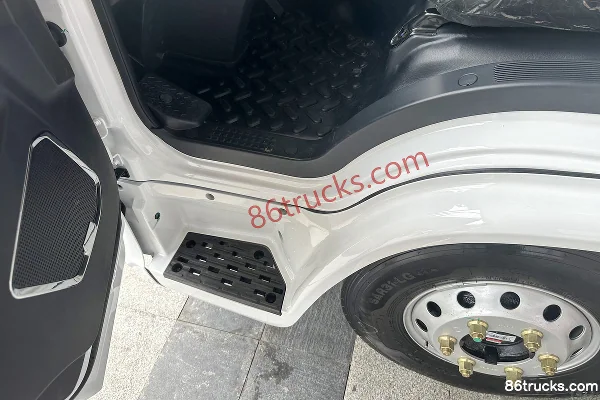

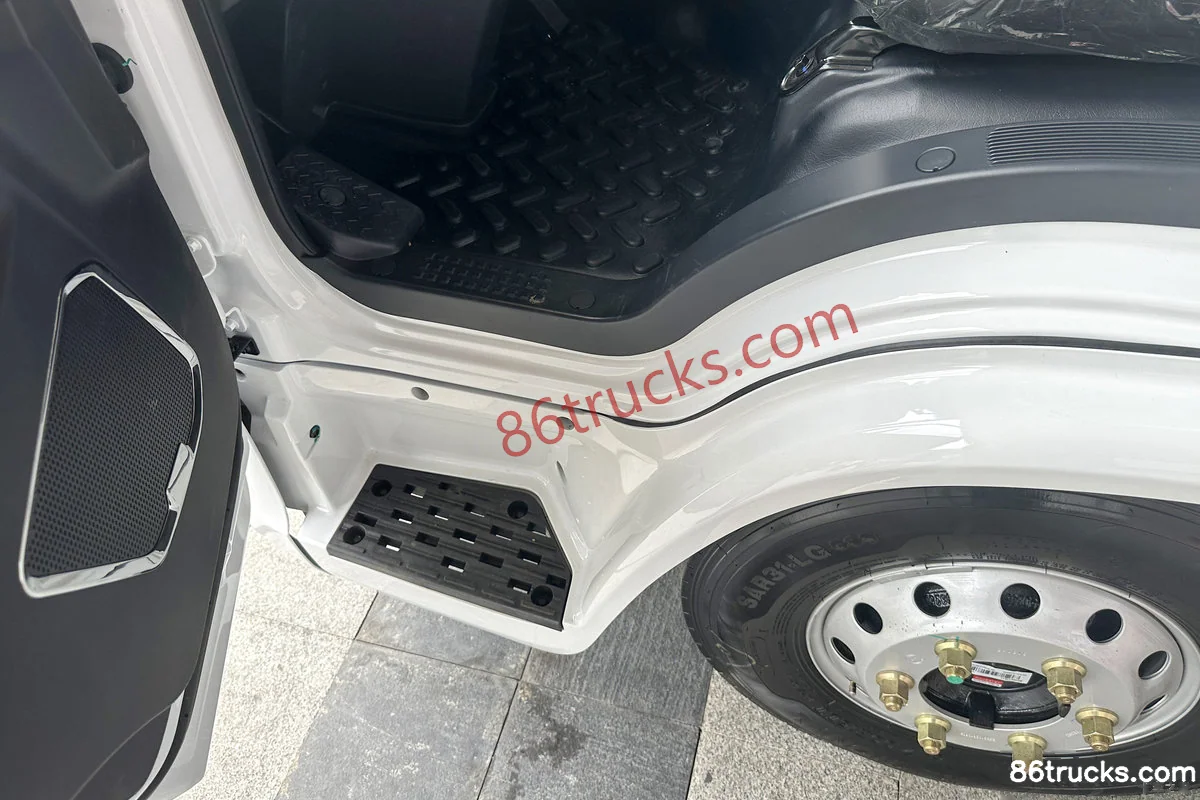

Cab3

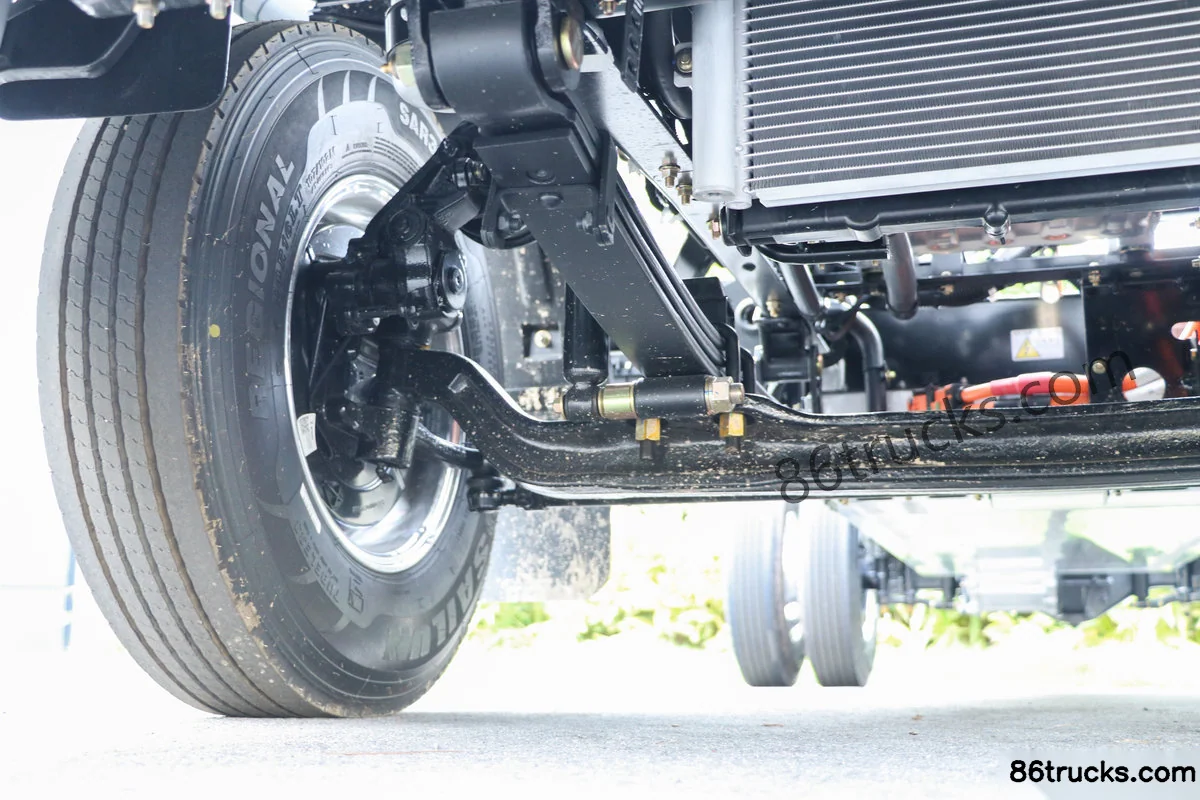

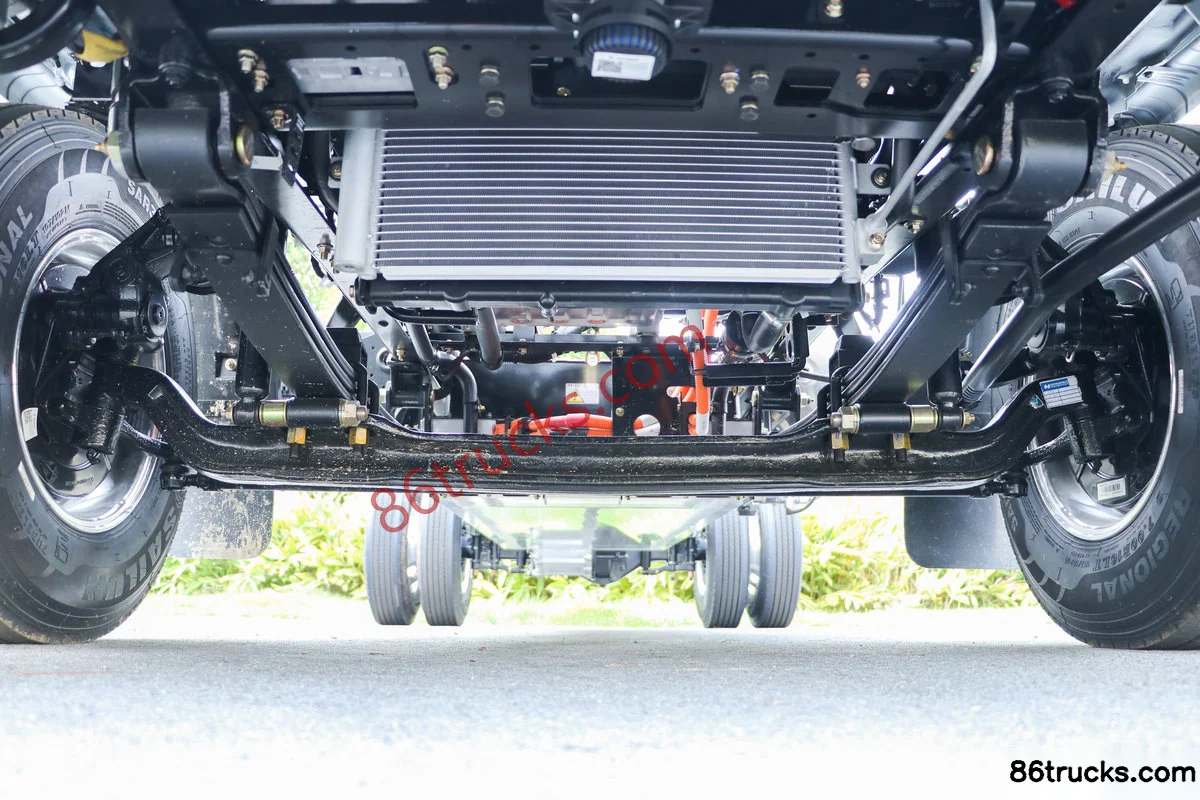

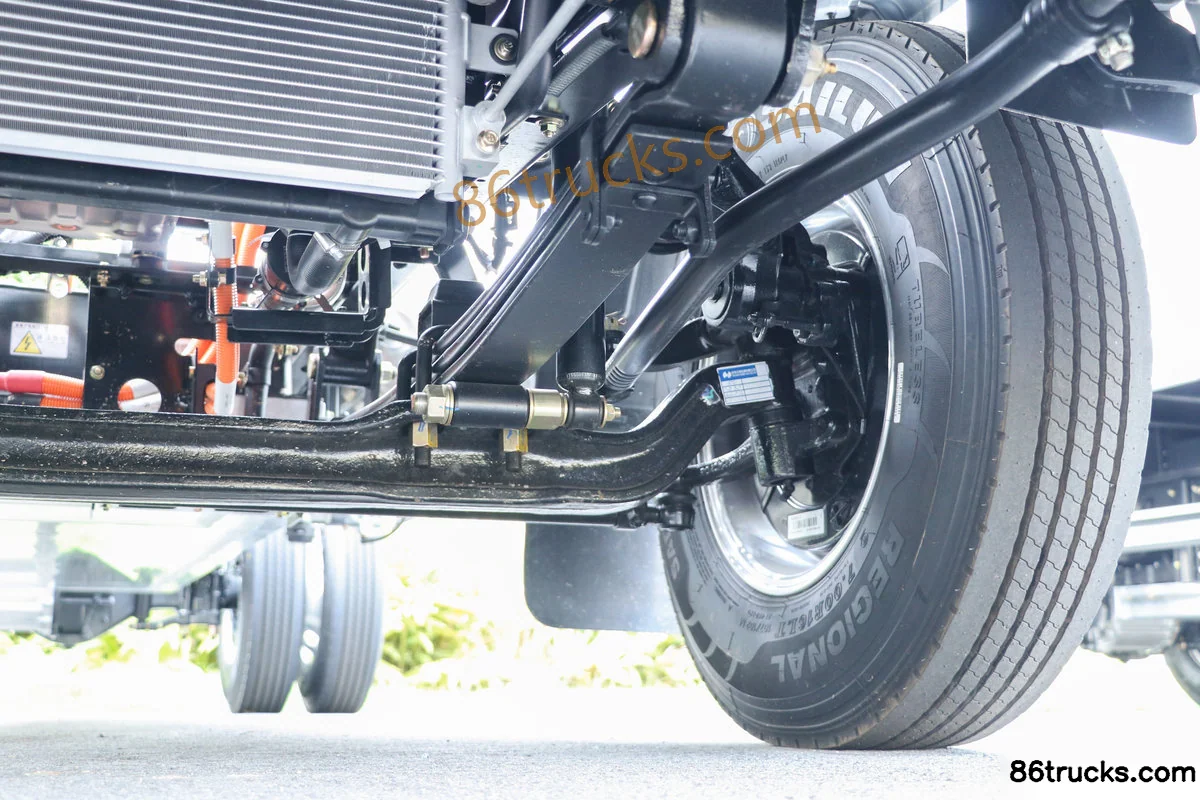

Chassis3

9 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.08m Electric Refrigerated Truck (Air Brake) 120.27kWh 4X2(6 wheels), and what does it include?

SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.08m Electric Refrigerated Truck (Air Brake) 120.27kWh 4X2(6 wheels) export reference is about From $44,583; MSRP is ¥32.1M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.08m Electric Refrigerated Truck (Air Brake) 120.27kWh 4X2(6 wheels)?

Key specs of SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.08m Electric Refrigerated Truck (Air Brake) 120.27kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.08m Electric Refrigerated Truck (Air Brake) 120.27kWh 4X2(6 wheels) suited for?

SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.08m Electric Refrigerated Truck (Air Brake) 120.27kWh 4X2(6 wheels) is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.08m Electric Refrigerated Truck (Air Brake) 120.27kWh 4X2(6 wheels) differ from other variants in the same series?

SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.08m Electric Refrigerated Truck (Air Brake) 120.27kWh 4X2(6 wheels) belongs to SHACMAN Commercial Vehicle Zhiyun S300 (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.08m Electric Refrigerated Truck (Air Brake) 120.27kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Zhiyun S300 Tianxing Edition 4.5T 4.08m Electric Refrigerated Truck (Air Brake) 120.27kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
