JMC Kaiyun 143 hp 4X2(6 wheels) 4.2 m single-row van light truck (China VI) (air brake)

Export reference
MSRP N/A
Horsepower: 143
Emission: China VI
Fuel: Diesel
Engine: JMC2.5L
Curb Weight:: 2.805ton
Wheelbase:: 3360mm
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JMC Kaiyun 143 hp 4X2(6 wheels) 4.2 m single-row van light truck (China VI) (air brake) is a Light Truck featuring 4.2m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. On the powertrain side, it comes with a JMC2.5L engine, 143 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 143 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX5045XXYTG26
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: JMCJX4D25A6H
transmission: 5-speed transmission
Rear Axle Ratio: 5.571
Cab length: 5.995m
Cab width: 2.18m
Cab height: 3.2m
Front track width: 1680mm
rear track: 1605mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Nanchang
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
Remarks: Driver seat fore/aft adjustment, frame-type rearview mirror, telematics.
Front/rear suspension: 1.15/1.485m
Version: reinforced version
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX4D25A6H
Engine info: JMC2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.478L
Emission standard: China VI
Max output power: 105kW
Max hp: 143Horsepower
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.2m
Cargo box width: 2.1m
Cargo box height: 2.1m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab width: 2050mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1840kg
rear axle allowable load: 2655kg
Axle ratio: 5.571
Leaf spring count: 7/5+6
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera: ○/●
Exterior features
Aluminum air tank:
Multimedia features
Radio:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
smart configuration
Cruise control (CCS):

Photos

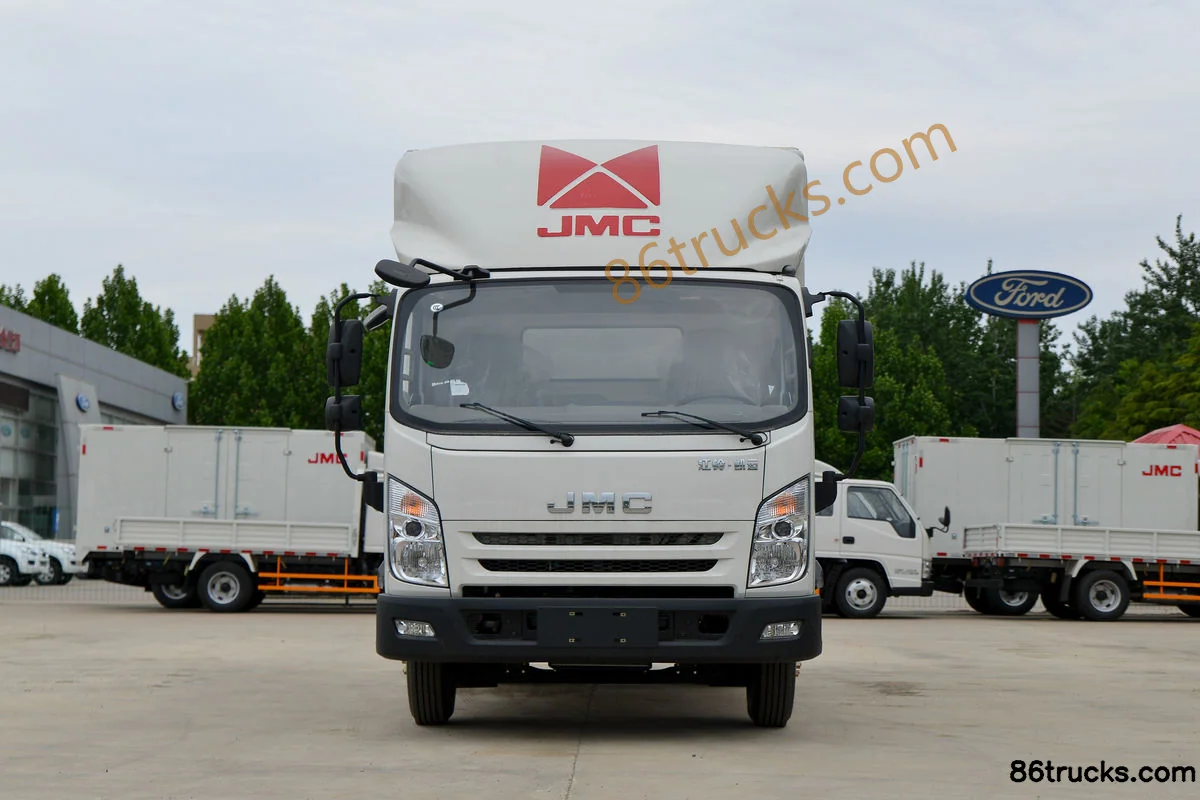

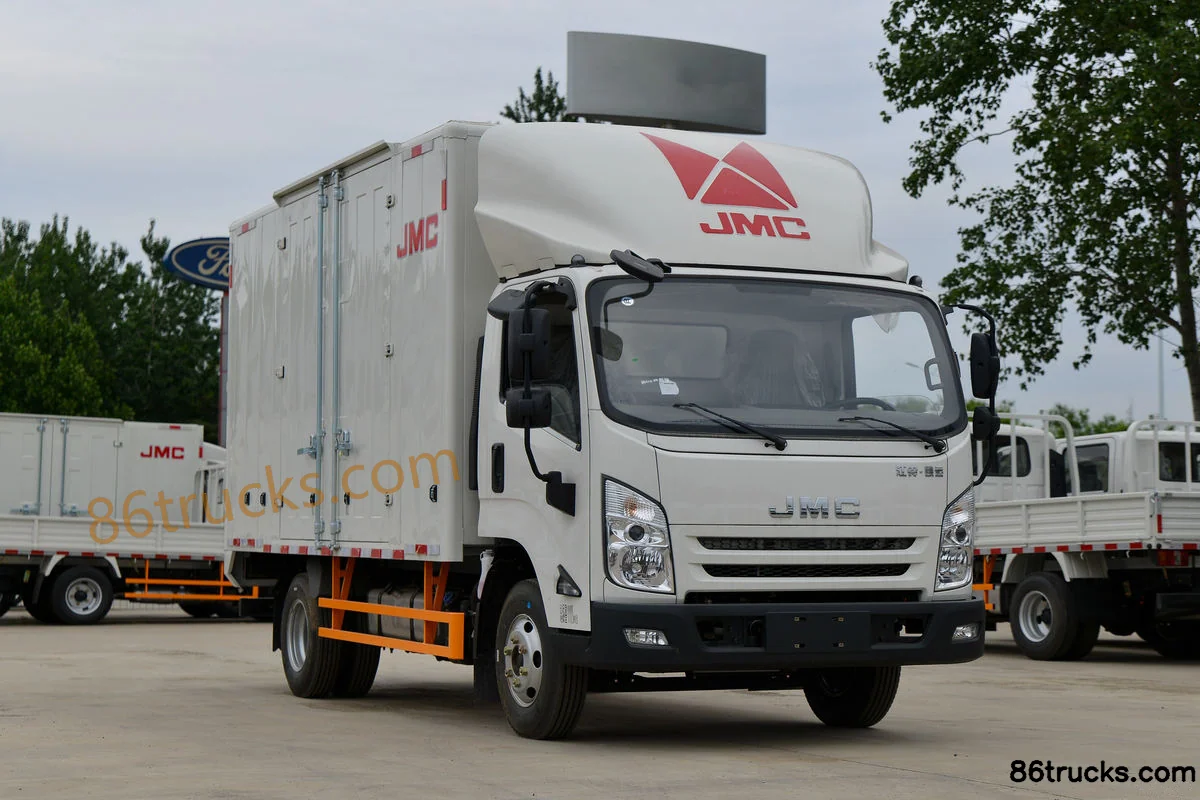

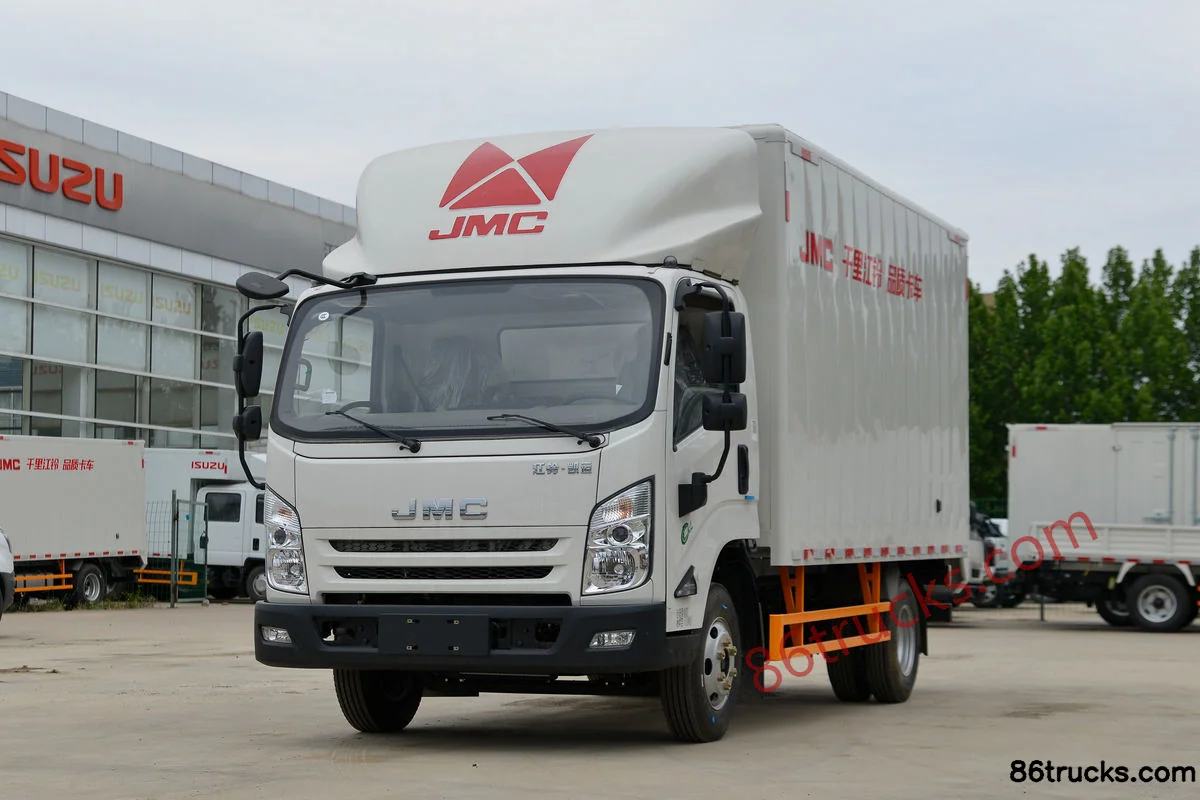

Exterior3

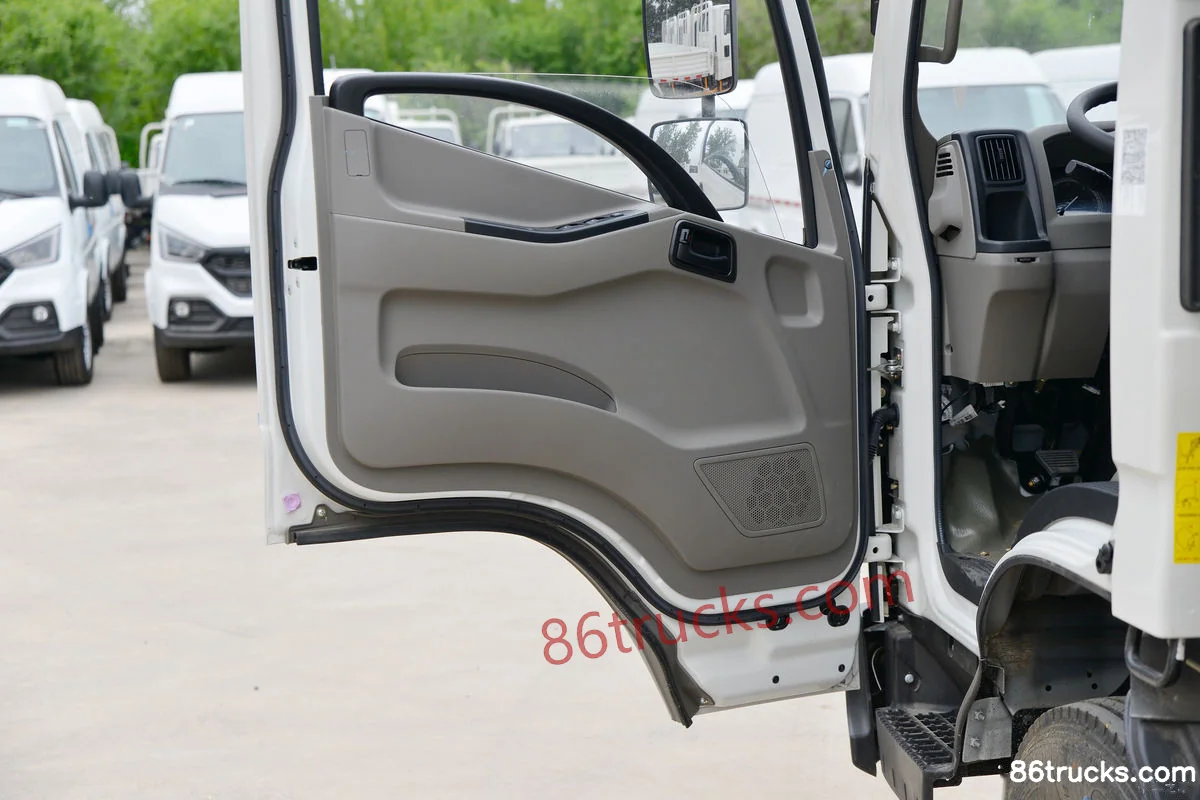

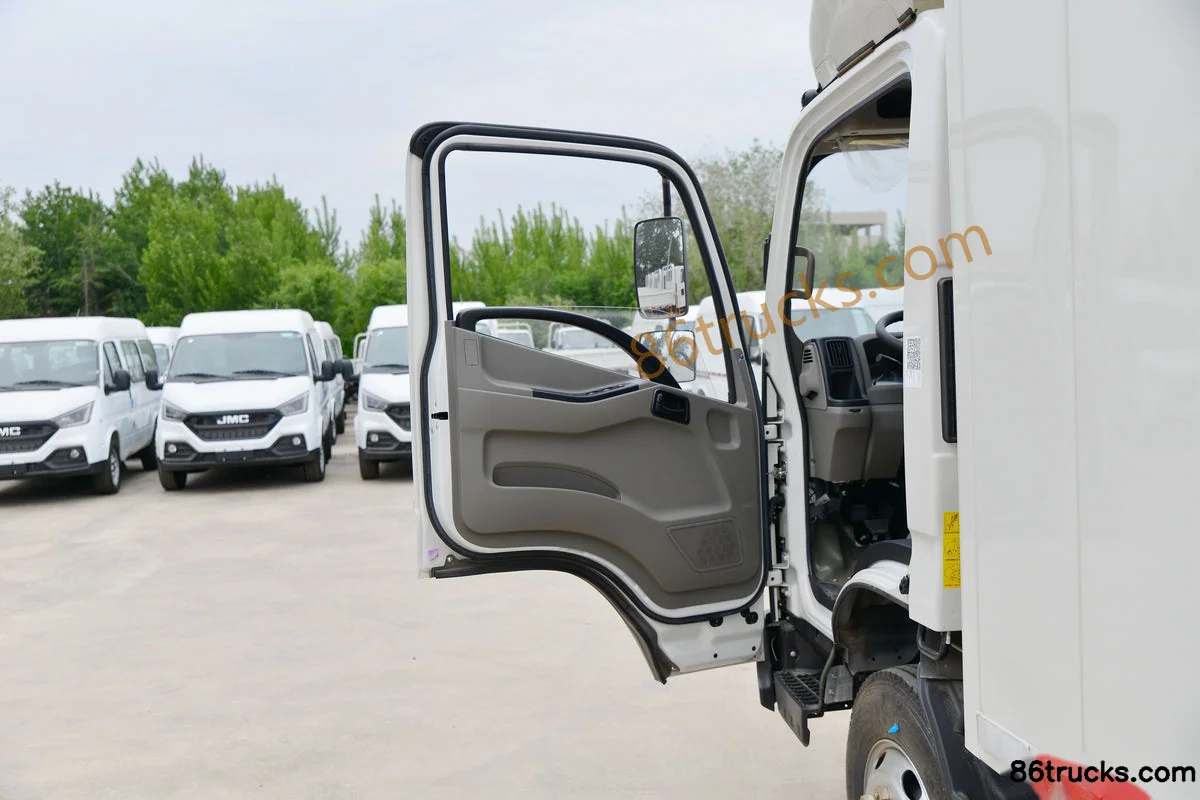

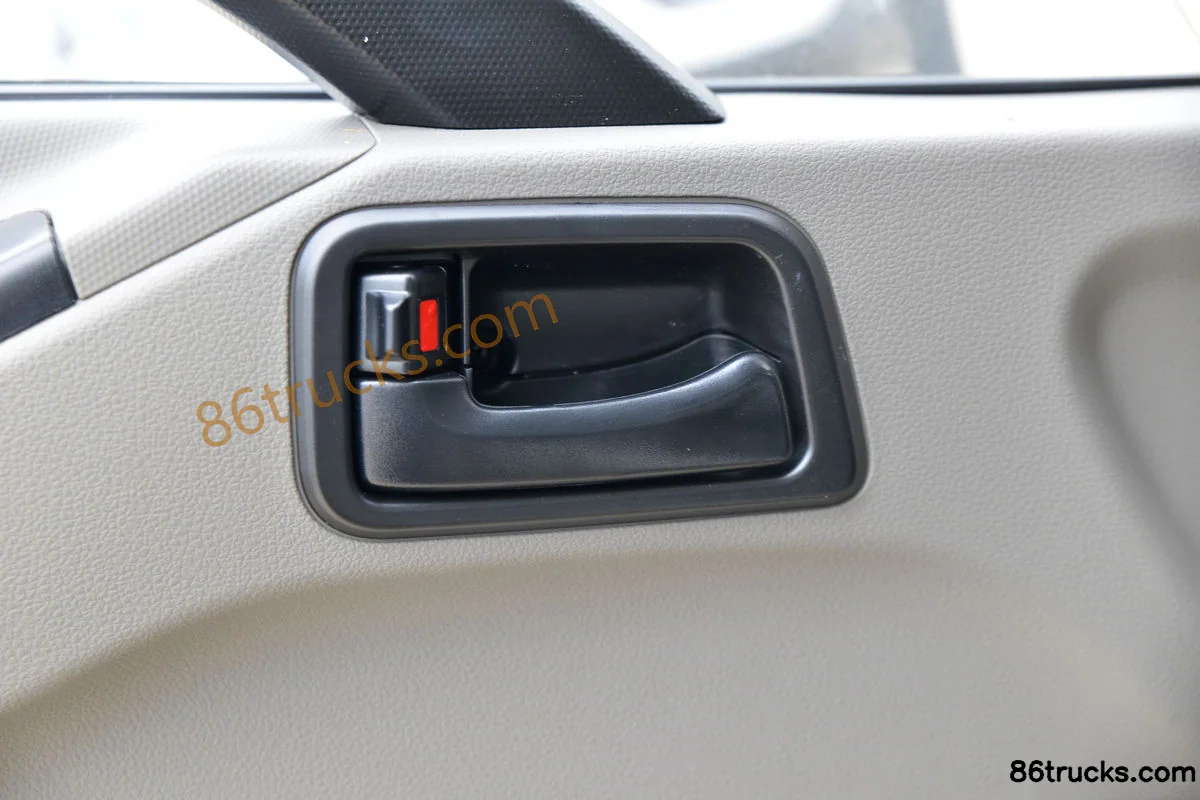

Cab3

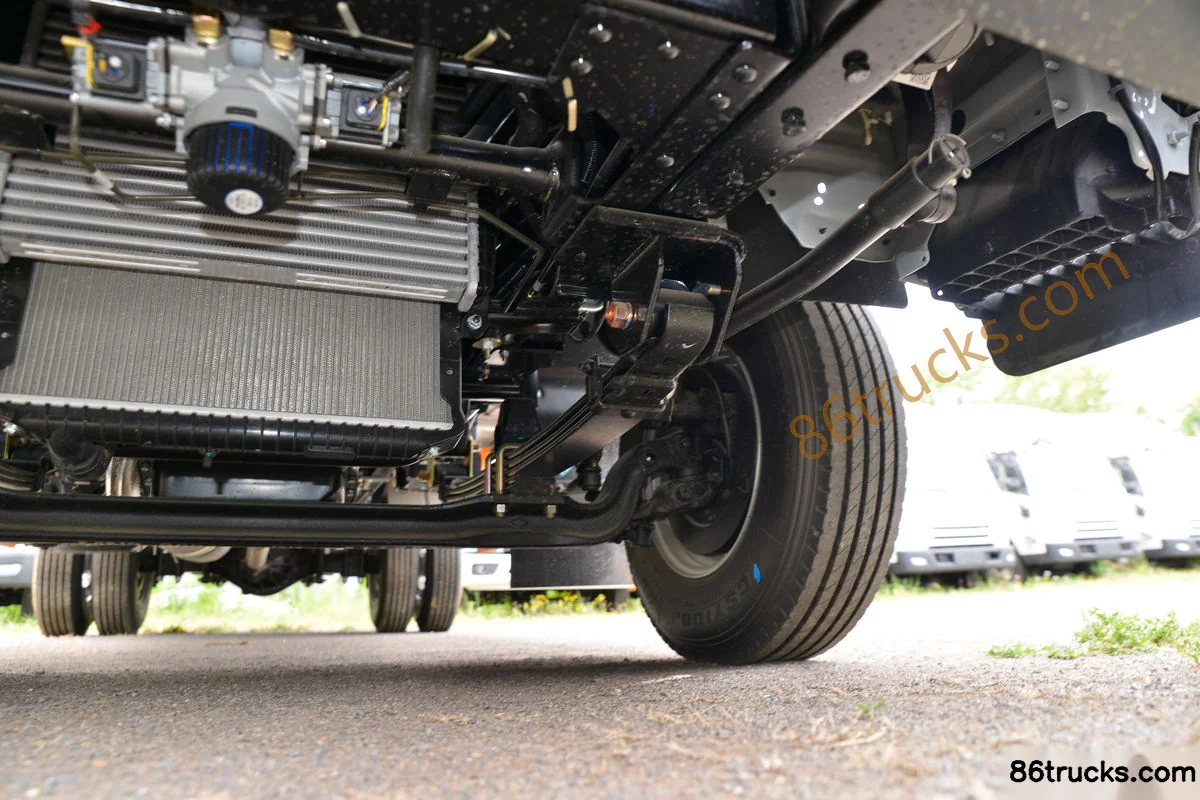

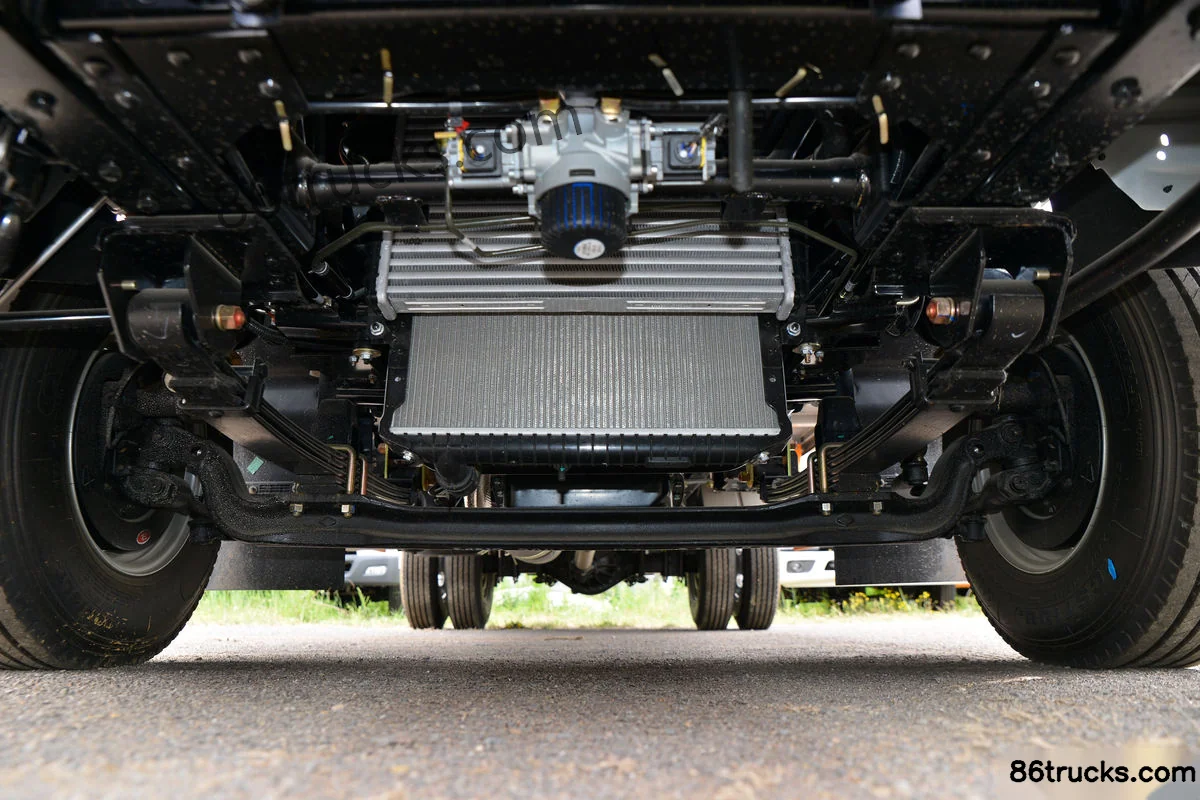

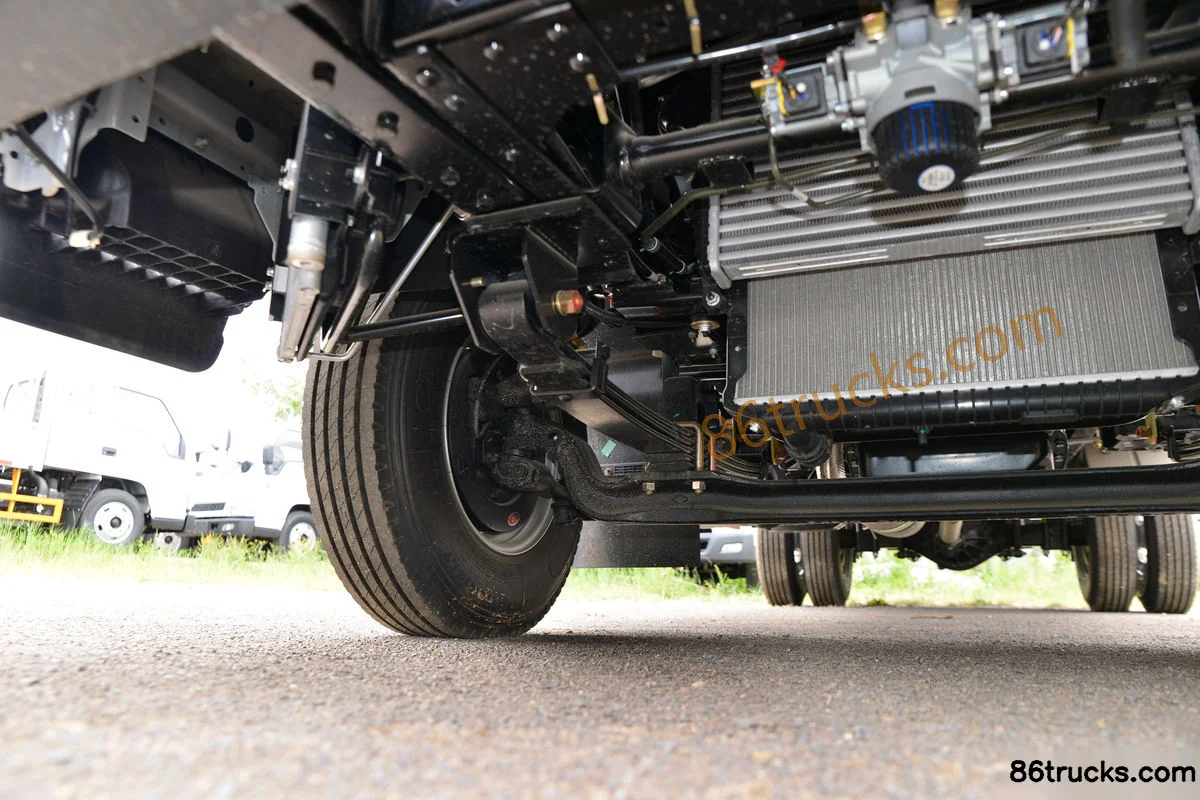

Chassis3

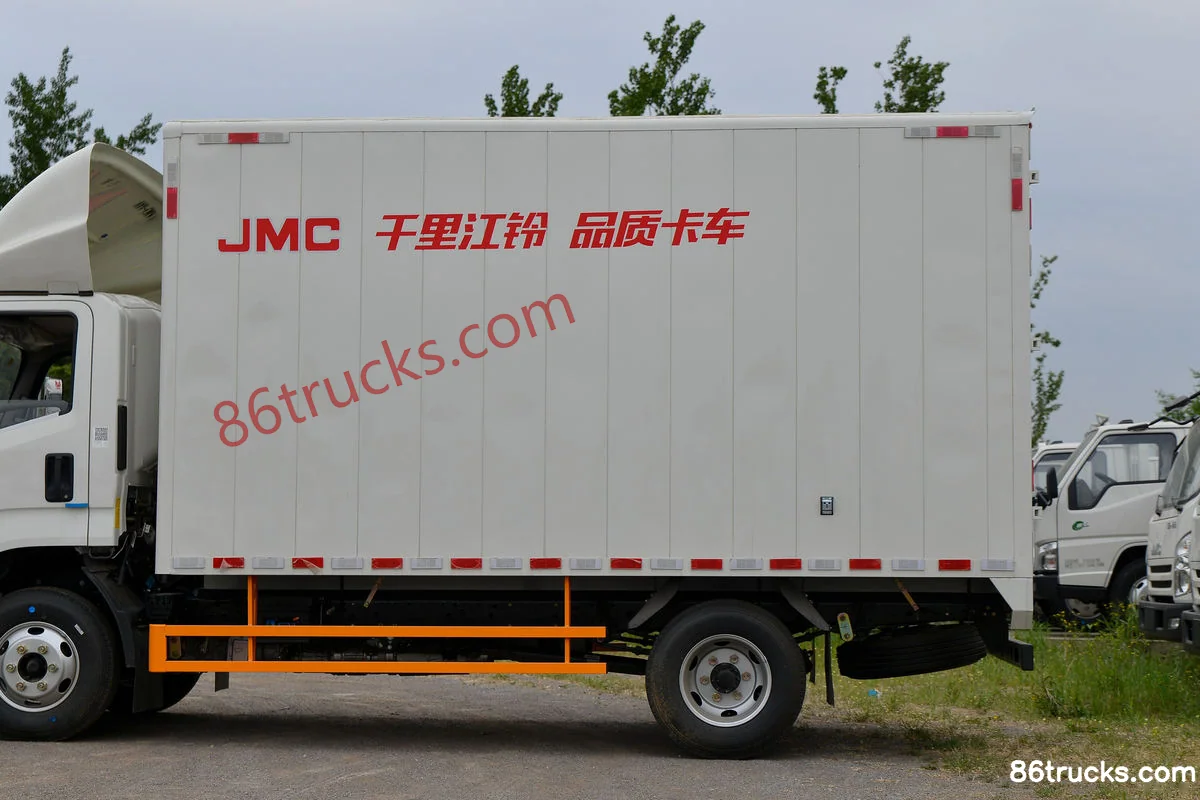

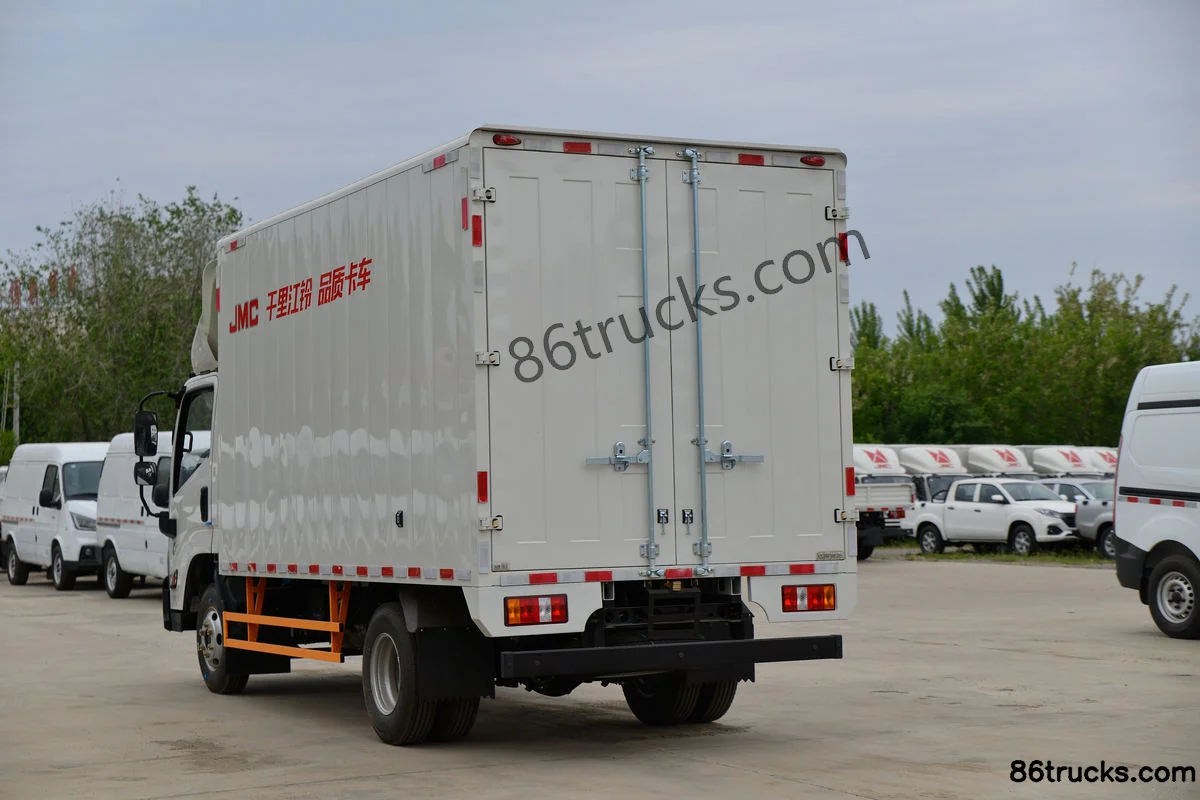

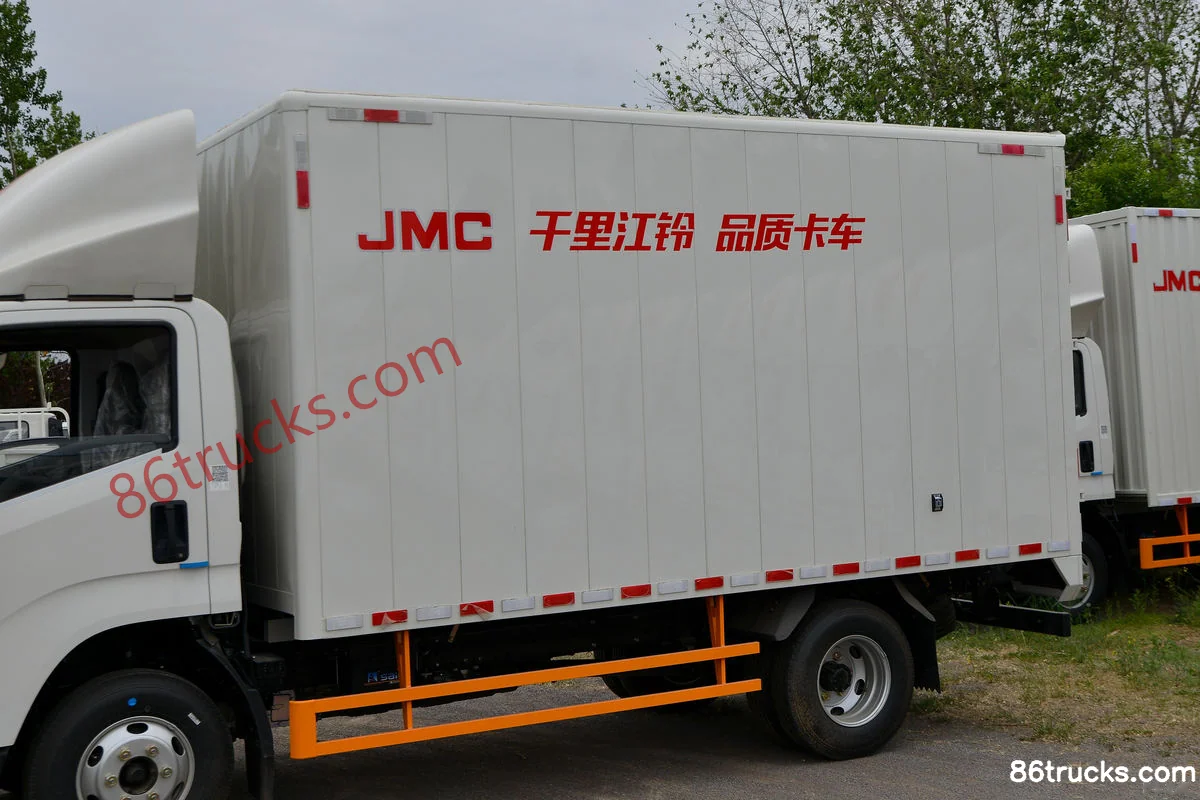

Body3

12 photos

FAQ

What emission standard does JMC Kaiyun 143 hp 4X2(6 wheels) 4.2 m single-row van light truck (China VI) (air brake) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Kaiyun 143 hp 4X2(6 wheels) 4.2 m single-row van light truck (China VI) (air brake)?

Key specs of JMC Kaiyun 143 hp 4X2(6 wheels) 4.2 m single-row van light truck (China VI) (air brake): Drive: 4x2; Horsepower: 143 hp; Emission: China VI; Fuel: Diesel; Engine: JMC2.5L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Kaiyun 143 hp 4X2(6 wheels) 4.2 m single-row van light truck (China VI) (air brake) suited for?

JMC Kaiyun 143 hp 4X2(6 wheels) 4.2 m single-row van light truck (China VI) (air brake) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Kaiyun 143 hp 4X2(6 wheels) 4.2 m single-row van light truck (China VI) (air brake) differ from other variants in the same series?

JMC Kaiyun 143 hp 4X2(6 wheels) 4.2 m single-row van light truck (China VI) (air brake) belongs to JMC Kaiyun Upgraded Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Kaiyun 143 hp 4X2(6 wheels) 4.2 m single-row van light truck (China VI) (air brake)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Kaiyun 143 hp 4X2(6 wheels) 4.2 m single-row van light truck (China VI) (air brake)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
