SHACMAN Tongli 420hp 6X4(10 wheels) off-road dump truck

Export reference
MSRP N/A
Drive: 6X4 (10 wheels)
Wheelbase:: 3850+1560mm
Model:: STL3801PJ394C
Cab dimensions:: 8.97×3.504×4.38m
Front/rear track width:: Front 2370, Rear 2198mm
Min turning radius:: 13m
Curb Weight: 28ton
Horsepower 420
Max output power: 309kW
Emission China III / Euro III

Overview

The SHACMAN Tongli 420hp 6X4(10 wheels) off-road dump truck is a off-highway mining dump truck featuring 80t GVW, 420 hp, 309kW power and 6X4 (10 wheels) drive. On the powertrain side, it comes with China III / Euro III emissions.

China III / Euro III 420 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: STL3801PJ394C
Cab dimensions: 8.97×3.504×4.38m
Drive type: 6X4
Wheelbase: 3850+1560mm
Front/rear track width: Front 2370, Rear 2198mm
Min turning radius: 13m
Max climbing ability: 40%
Approach/departure angle: 35/52°
Min ground clearance: 330cm
Curb Weight: 28ton
Rated payload: 52ton
GVWR: 80ton
Max. speed: 40km/h
Body Parameters
Truck Brand: SHACMAN Tongli
Max dump angle: 51°
Lifting type: Hyva multi-stage front lift
Chassis Specs
Front/rear axle load: Pengxiang PX19T/Pengxiang PX35Tx2, ratio: 10.84ton
Engine parameters
Engine Model: CumminsISME420 30
Displacement: 10.8L
Emission standard: China III / Euro III
Max output power: 309kW
Max hp: 420Horsepower
Max torque speed: 2010/1200rpm
Cargo box parameters
Cargo box dimensions: 5.8×3.2×1.8m
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD220
Tire
Tire Size: 14.00-25 36PR
Number of tires: 10pcs

Photos

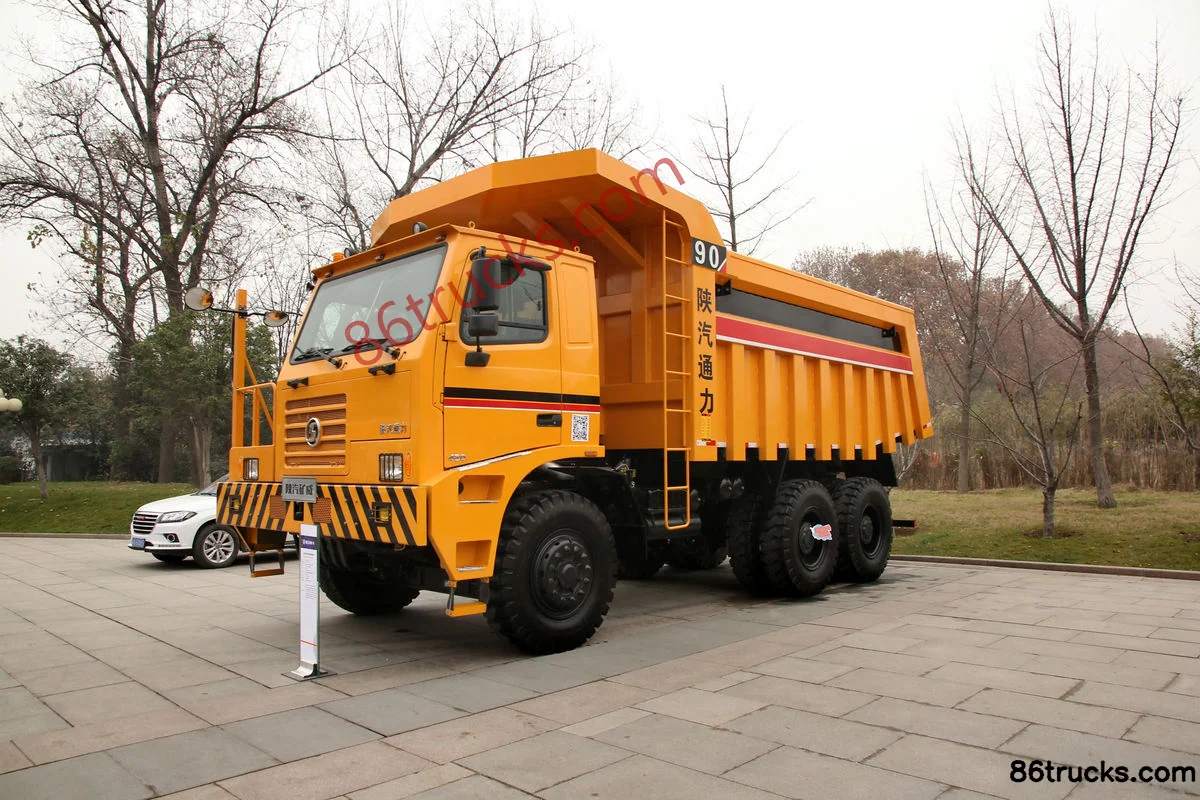

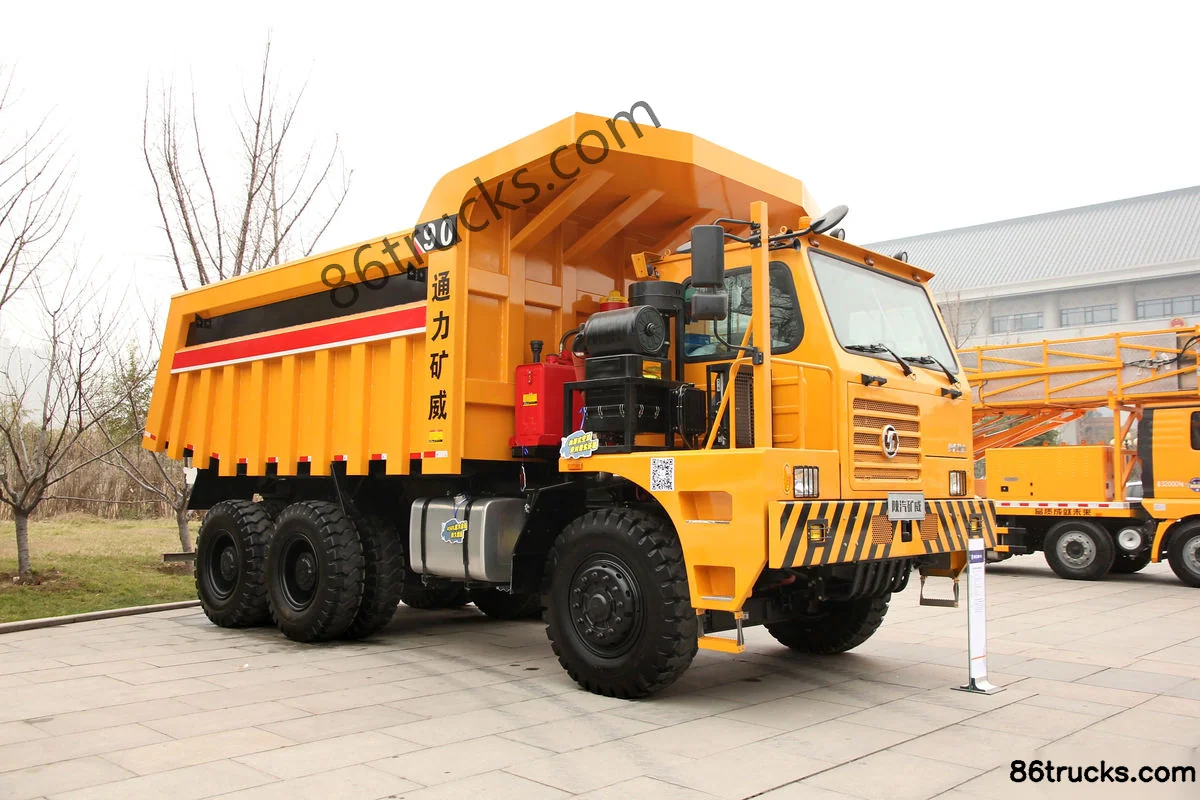

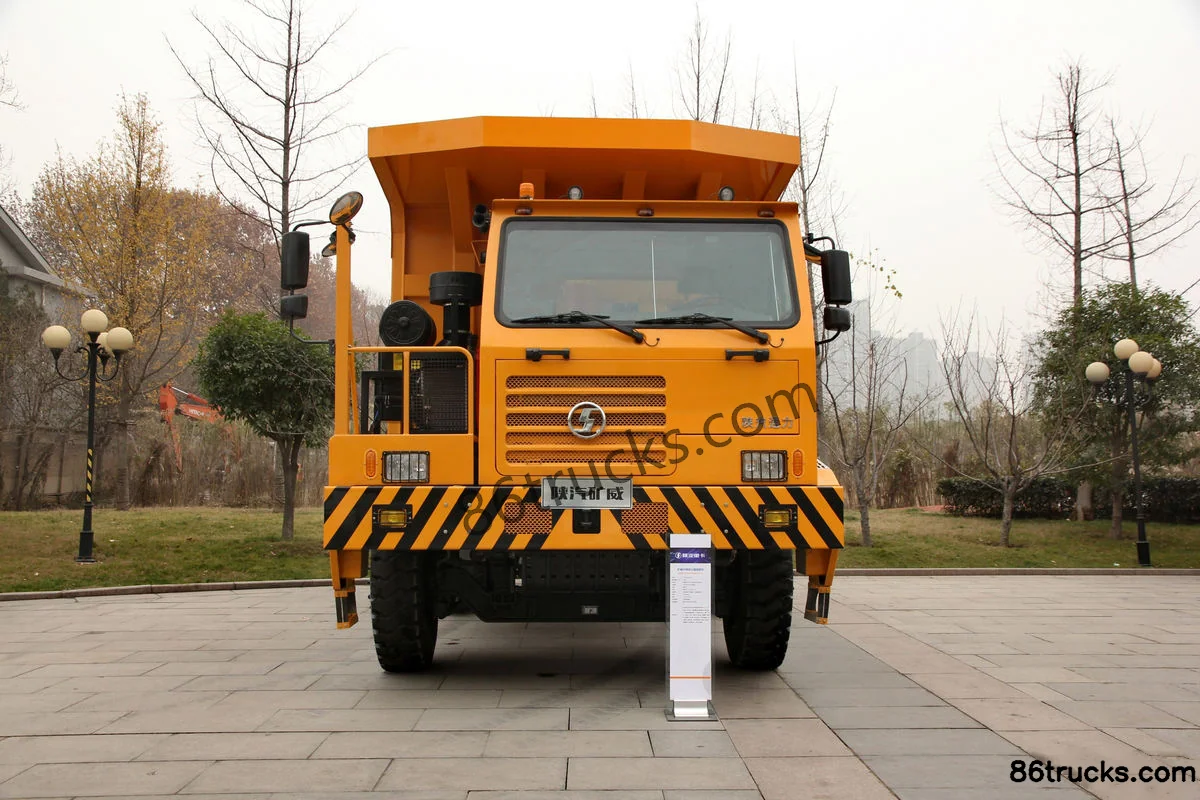

Exterior3

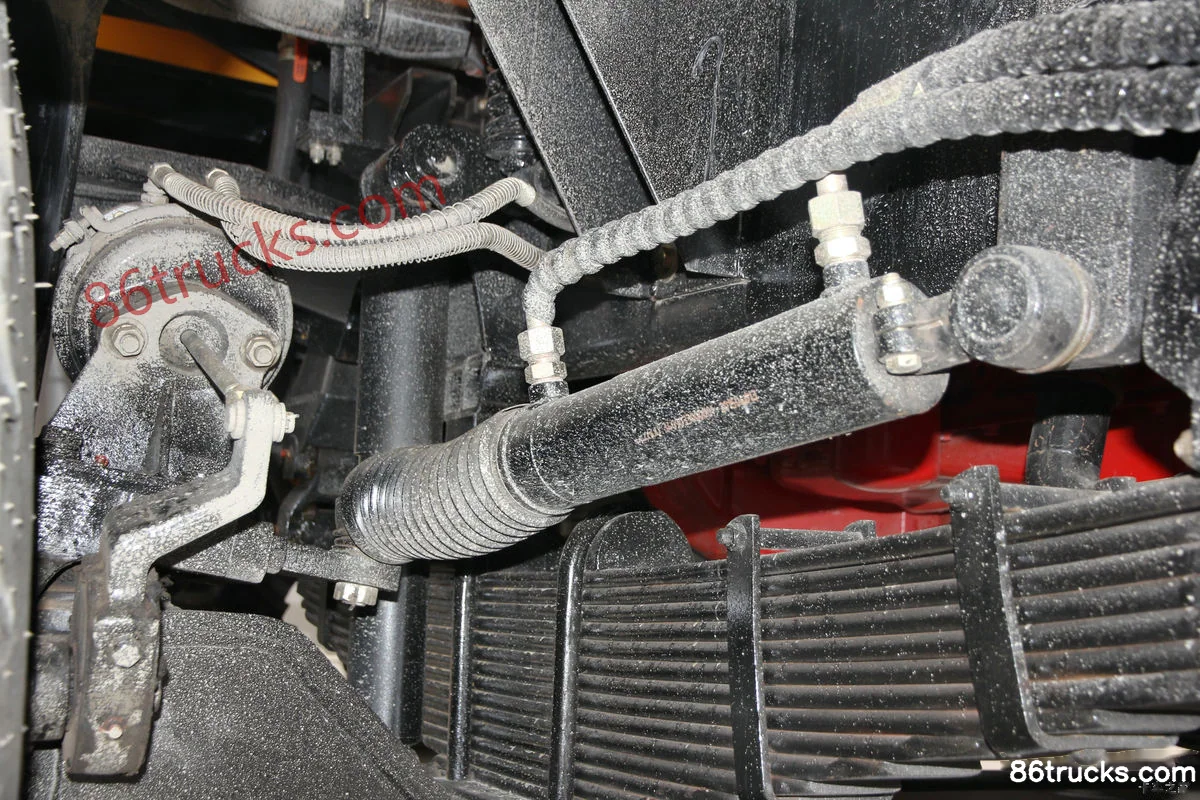

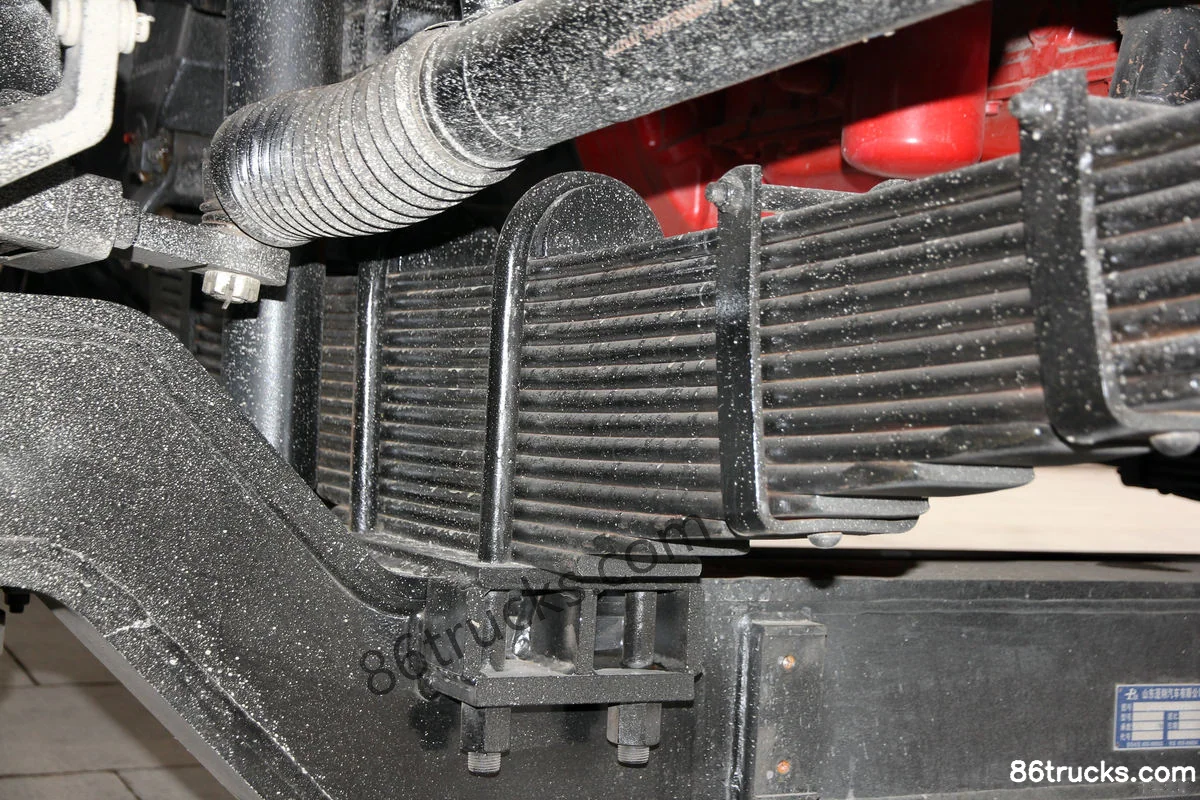

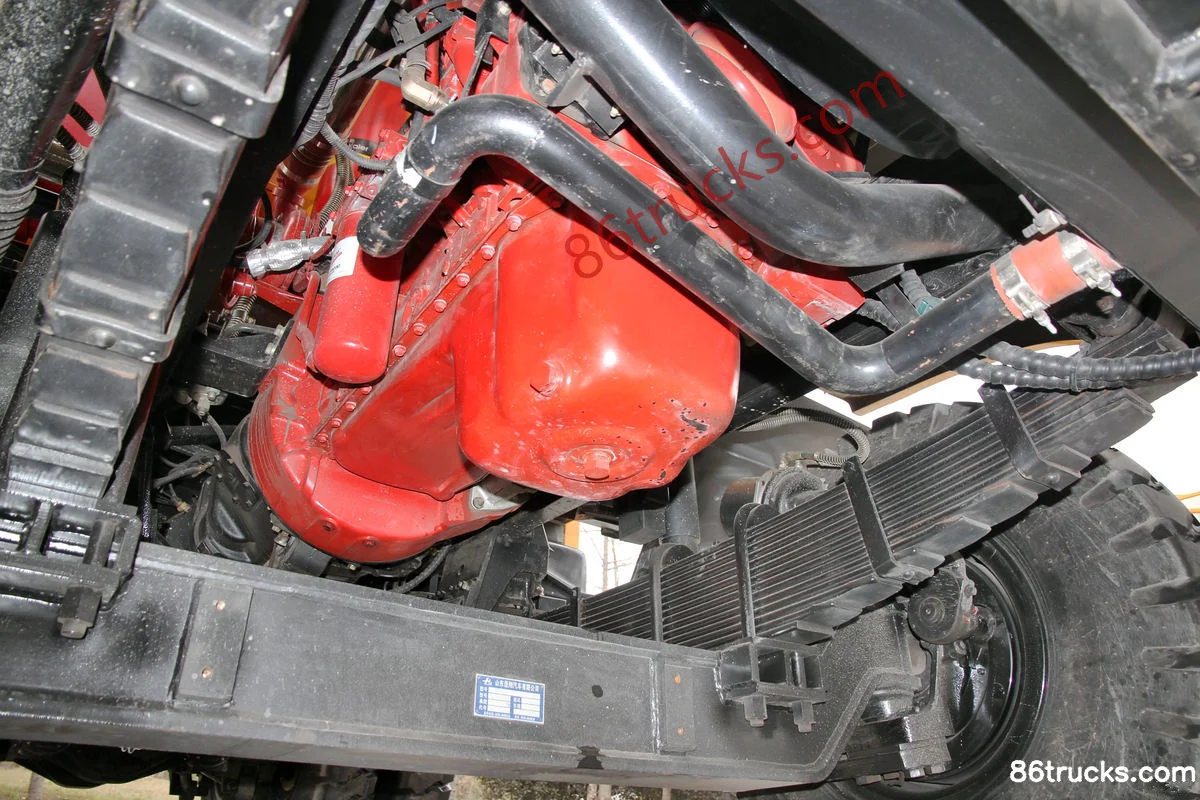

Chassis3

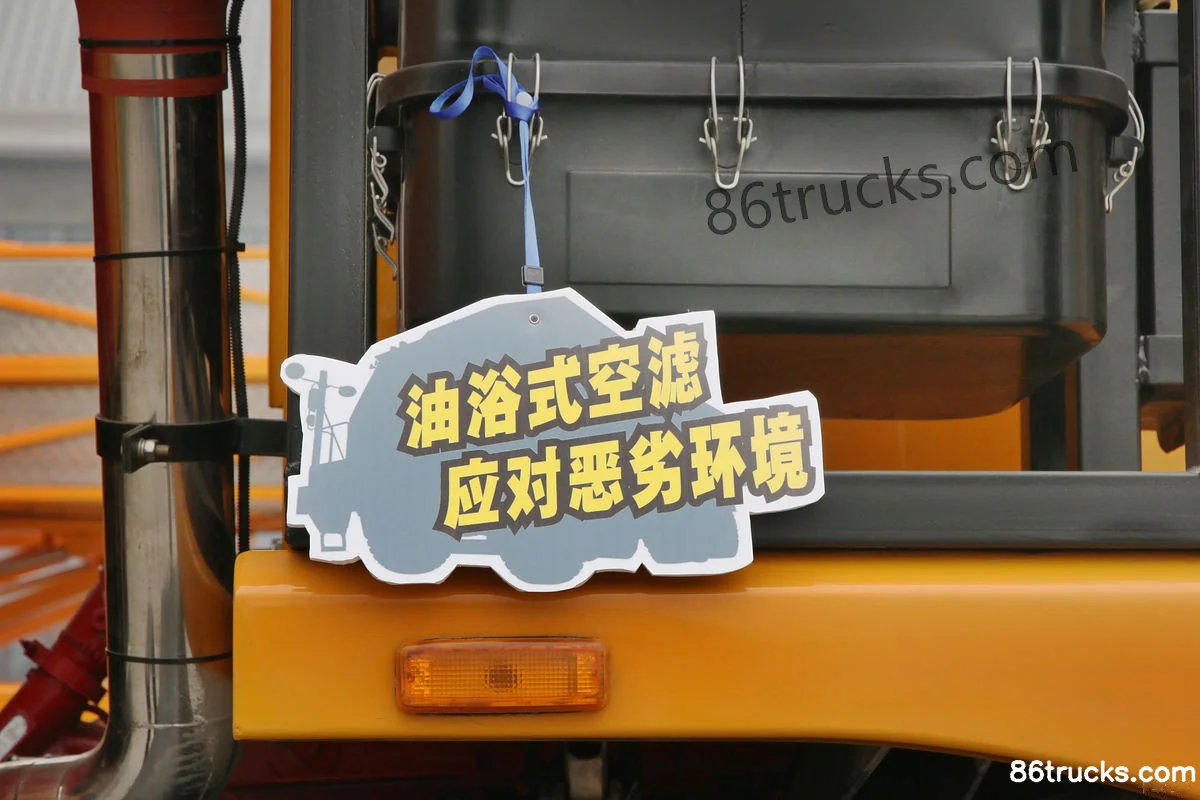

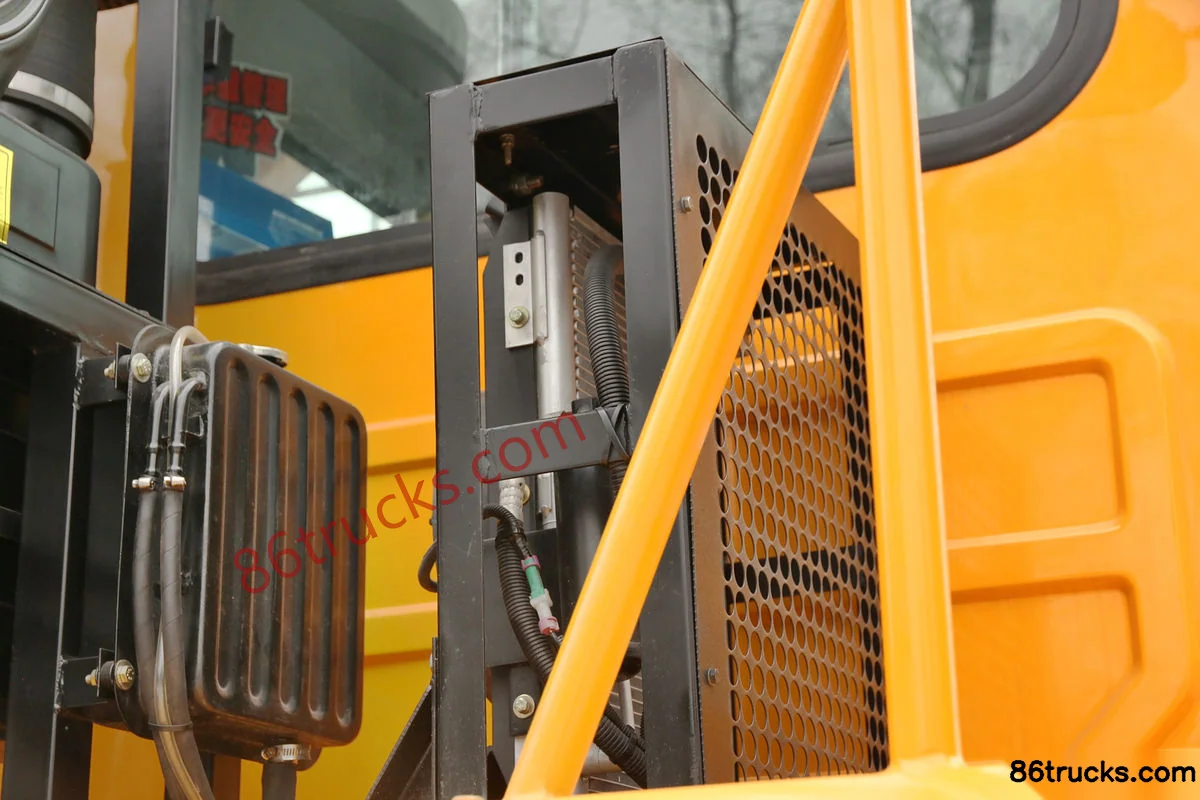

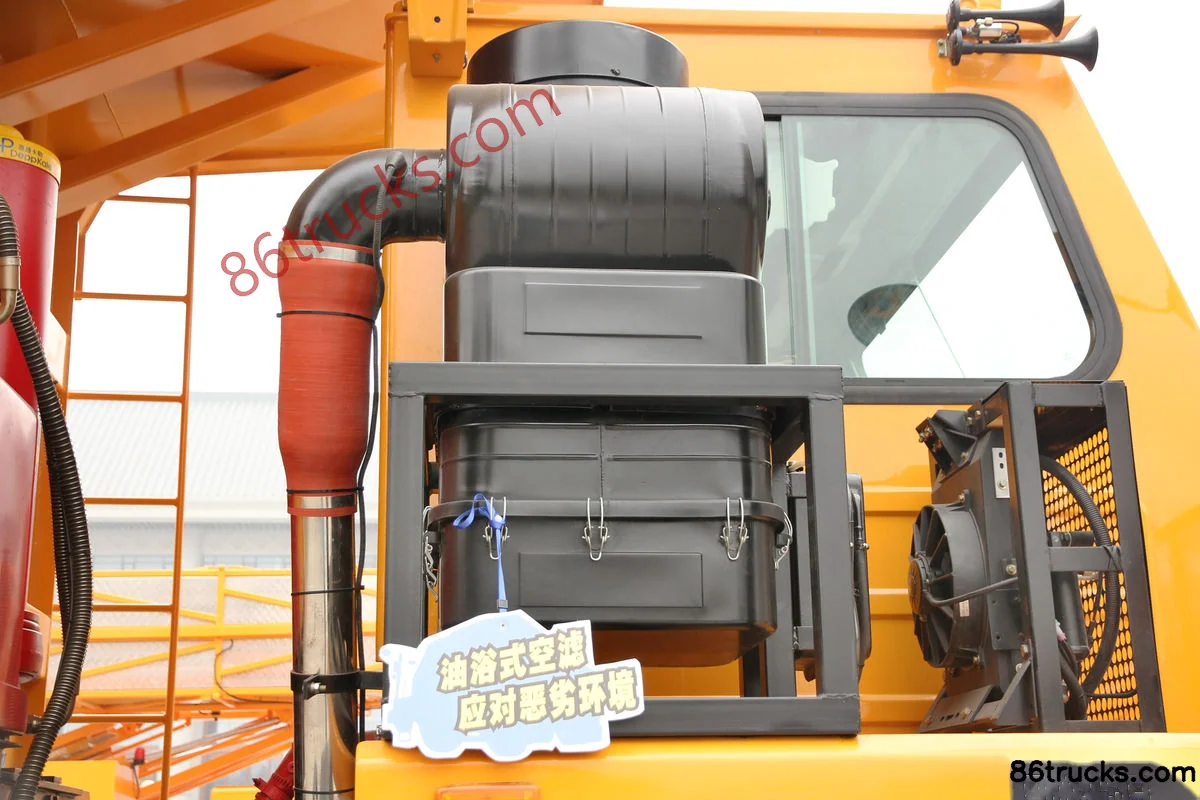

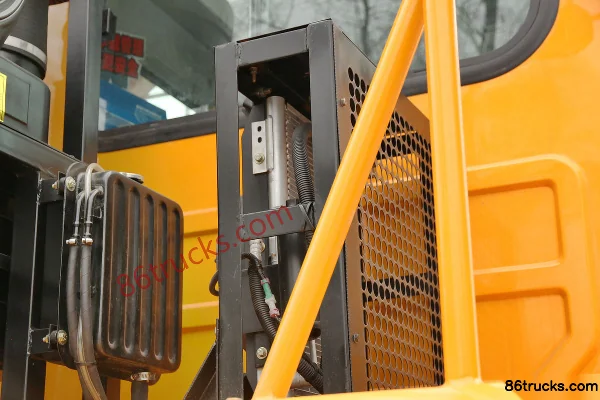

Body3

9 photos

FAQ

What emission standard does SHACMAN Tongli 420hp 6X4(10 wheels) off-road dump truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Tongli 420hp 6X4(10 wheels) off-road dump truck?

Key specs of SHACMAN Tongli 420hp 6X4(10 wheels) off-road dump truck: Drive: 6x4; Horsepower: 420 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Tongli 420hp 6X4(10 wheels) off-road dump truck suited for?

SHACMAN Tongli 420hp 6X4(10 wheels) off-road dump truck is a off-highway mining dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Tongli 420hp 6X4(10 wheels) off-road dump truck differ from other variants in the same series?

SHACMAN Tongli 420hp 6X4(10 wheels) off-road dump truck belongs to SHACMAN Tongli (off-highway mining dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Tongli 420hp 6X4(10 wheels) off-road dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Tongli 420hp 6X4(10 wheels) off-road dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
