DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck

Export reference
From $26,833
MSRP ¥19.32M CNY
Horsepower: 270
Emission: China VI
Fuel: Diesel
Engine: Yuchai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 7.97ton
DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck exterior
View more photos (9)
seating capacity: 2Personnel
Rated payload: 9.9ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck is a Heavy-duty cargo trucks featuring 6.2m cargo length, Stake type cargo body, 2Personnel volume and 9.9t payload. On the powertrain side, it comes with a Yuchai 6-cylinder engine, 270 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 270 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LZ5180CCYH5AC1
Type: stake truck
Drive type: 4X2
Wheelbase: 4700mm
Box length class: 6.2m
engine: YuchaiYCS06270-60
transmission: Fast Gear8JSX110TC
Rear Axle Ratio: 4.111
Cab length: 8.5m
Cab width: 2.55m
Cab height: 4m
Front track width: 1916mm
rear track: 1860mm
Curb Weight: 7.97ton
Rated payload: 9.9ton
GVWR: 18ton
Max. speed: 90km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy-duty cargo trucks
Approach angle: 20°
departure angle: 12°
Front/rear suspension: 1.445/2.355m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS06270-60
Engine info: Yuchai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.23L
Emission standard: China VI
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1050N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear8JSX110TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.2m
Cargo box width: 2.46m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: H51S
Cab width: 2300mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle description: 5T
Front axle allowable load: 6500kg
Frame Dimensions: 264(6)mm
rear axle description: 153
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 11/12+9
Aluminum wheels:
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
Power steering:
EBS electronic braking system:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
clutch booster:
Load-sensing proportioning valve (SABS):
automatic slack adjuster:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: pneumatic
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
Lane Keeping Assist System (B.LKA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:
AEB automatic emergency braking system:

Photos

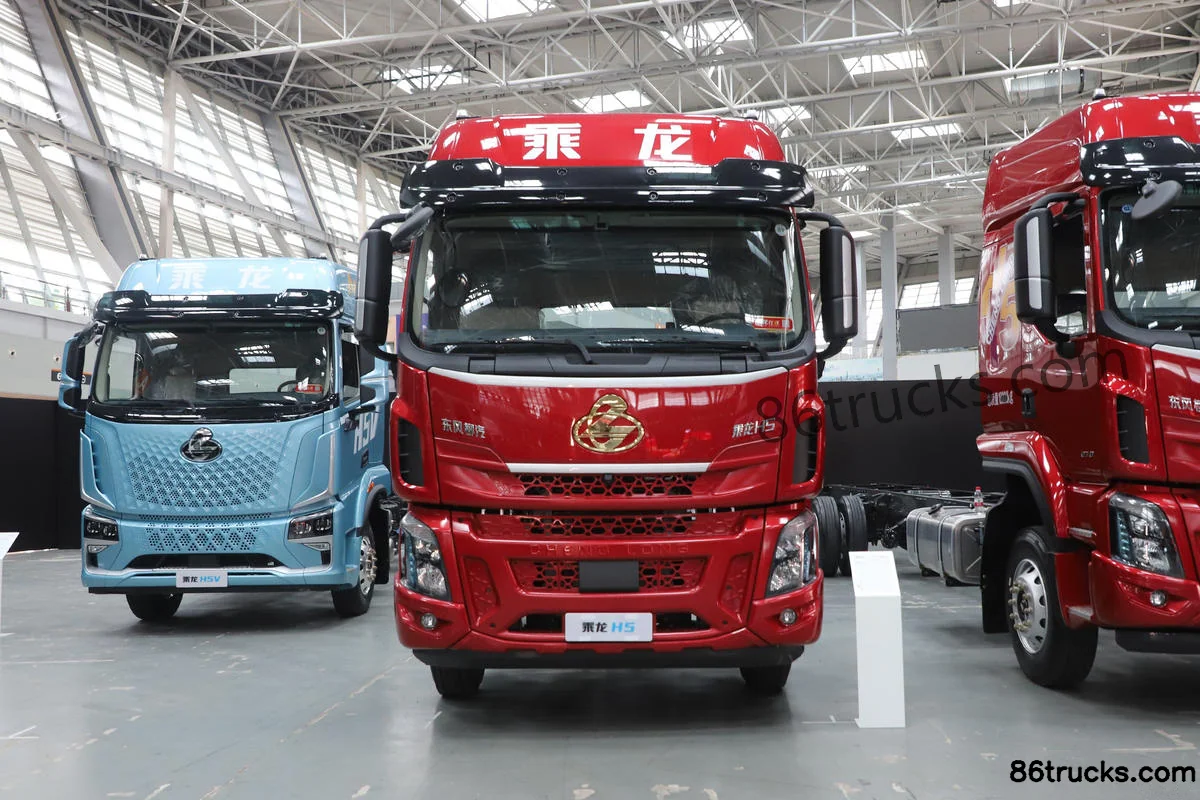

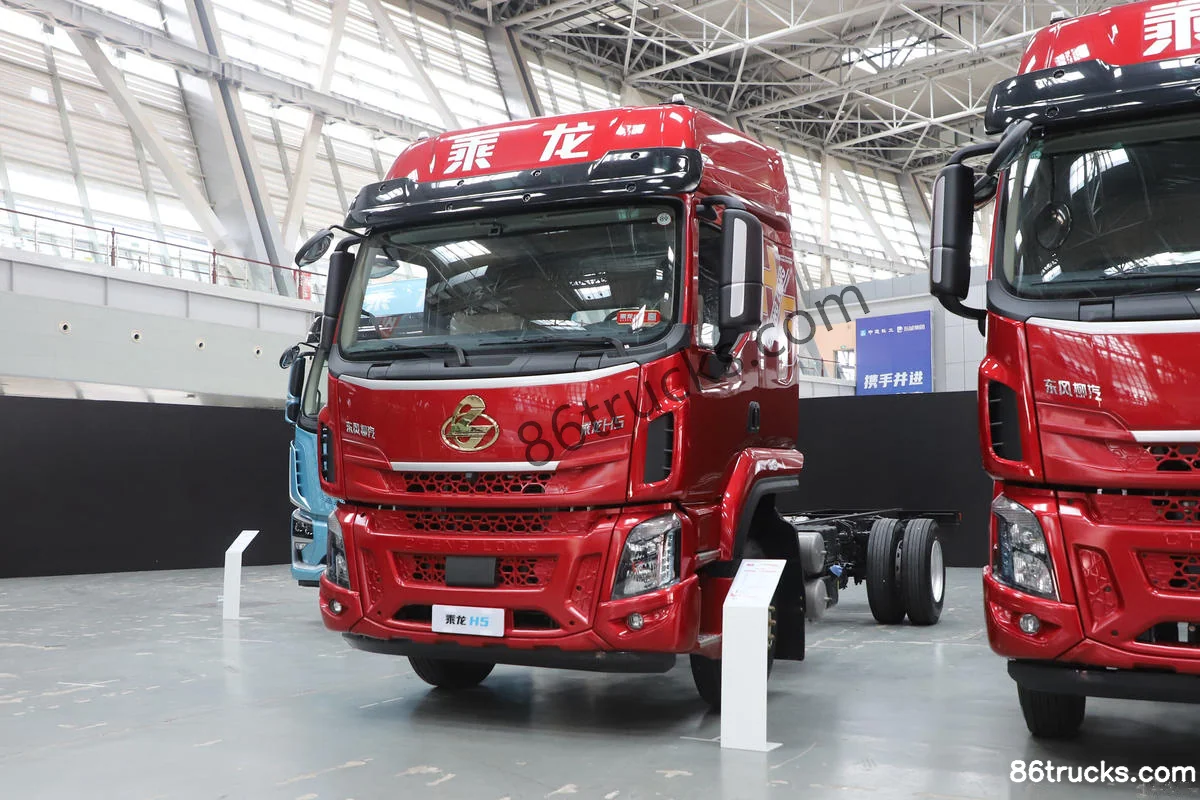

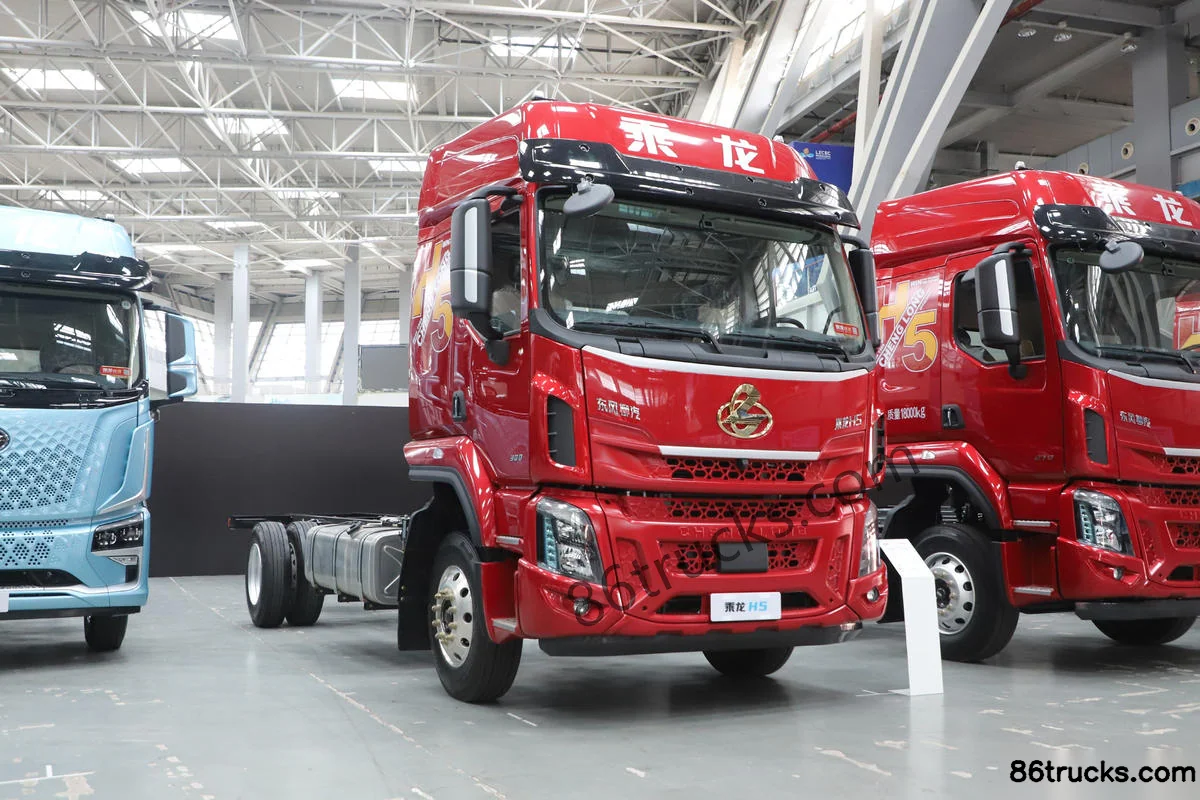

Exterior3

DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck Exterior (1) | 86Trucks DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck Exterior (2) | 86Trucks DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck Exterior (3) | 86Trucks

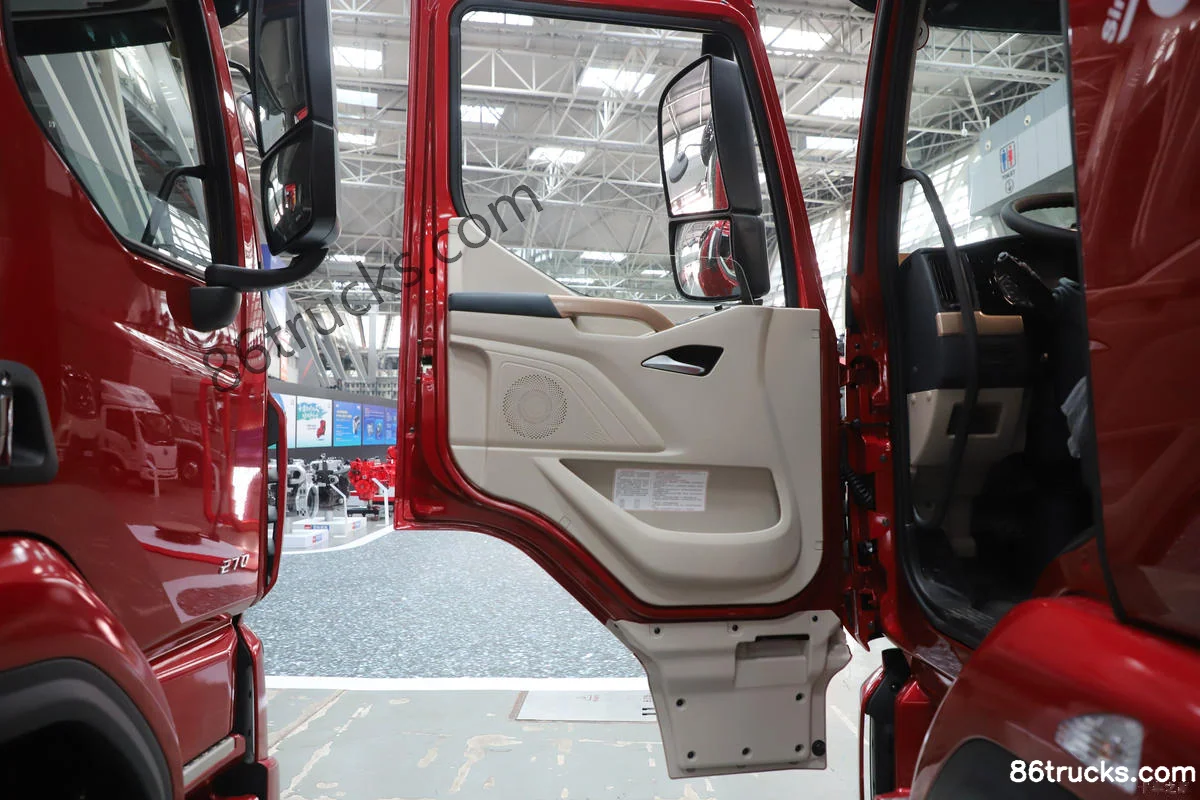

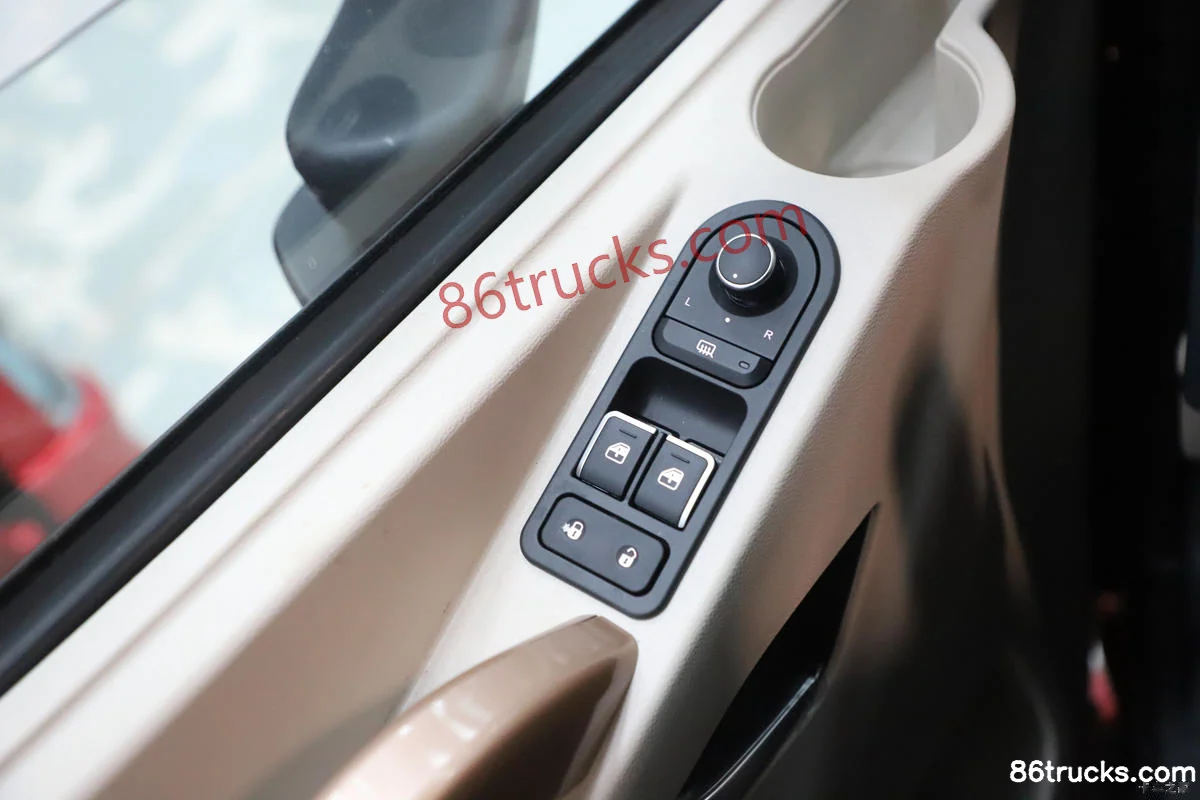

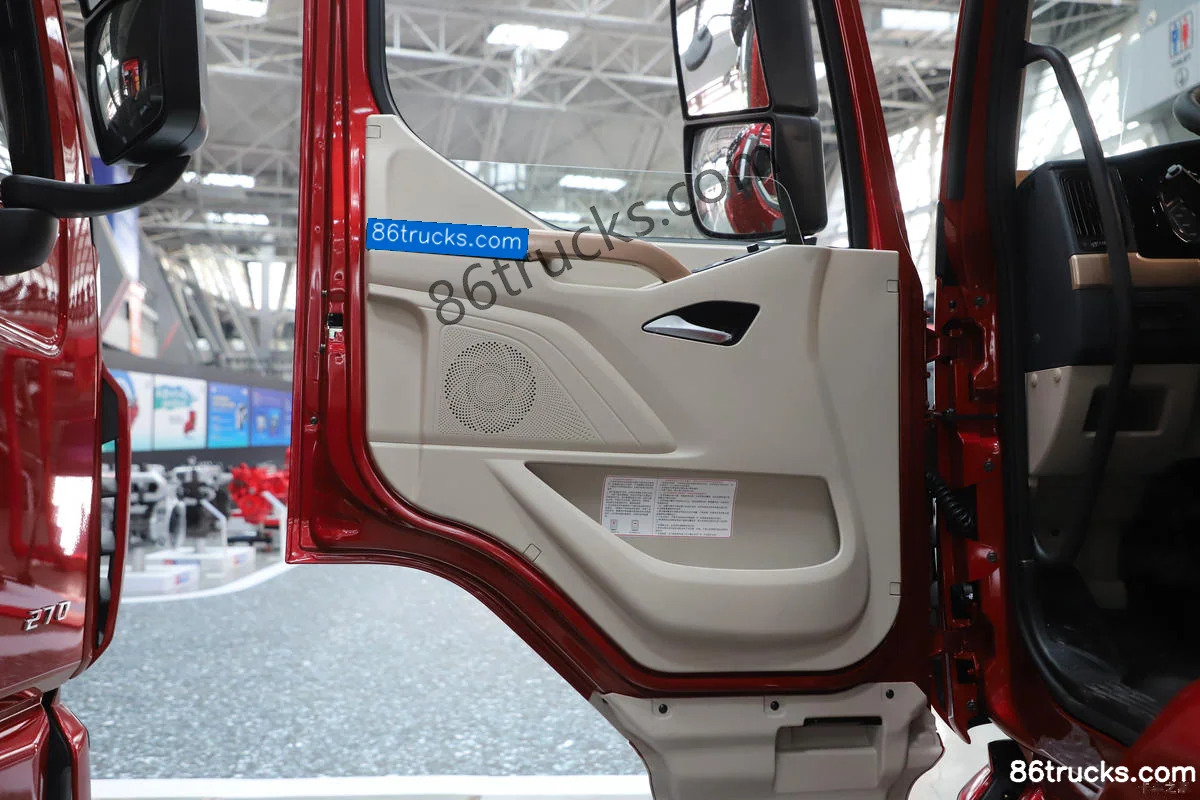

Cab3

DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck Cab (1) | 86Trucks DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck Cab (2) | 86Trucks DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck Cab (3) | 86Trucks

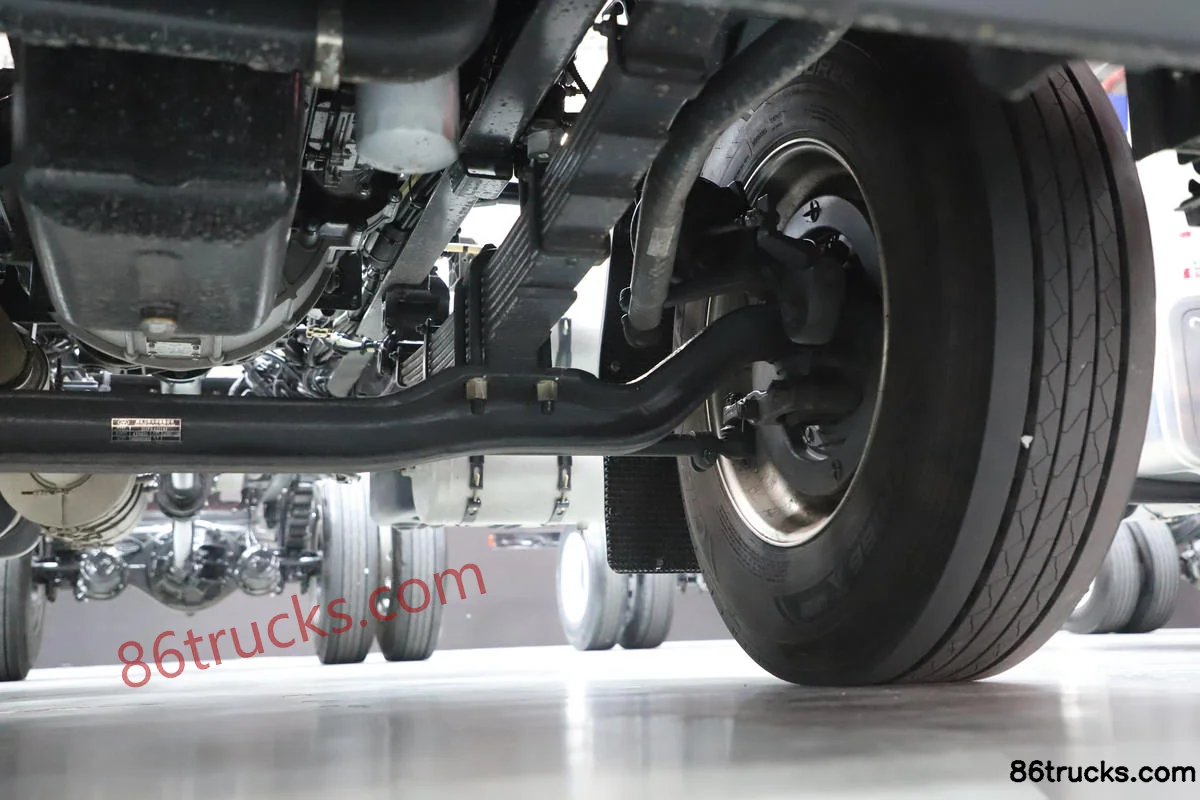

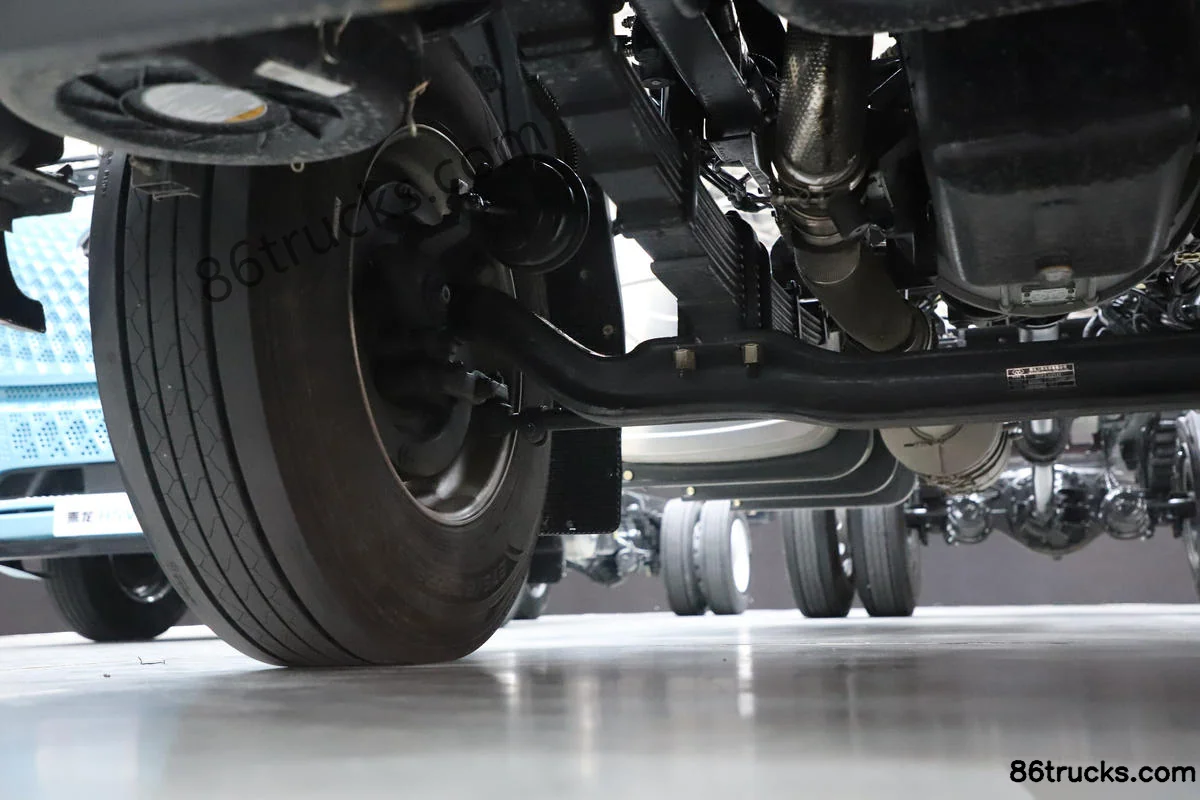

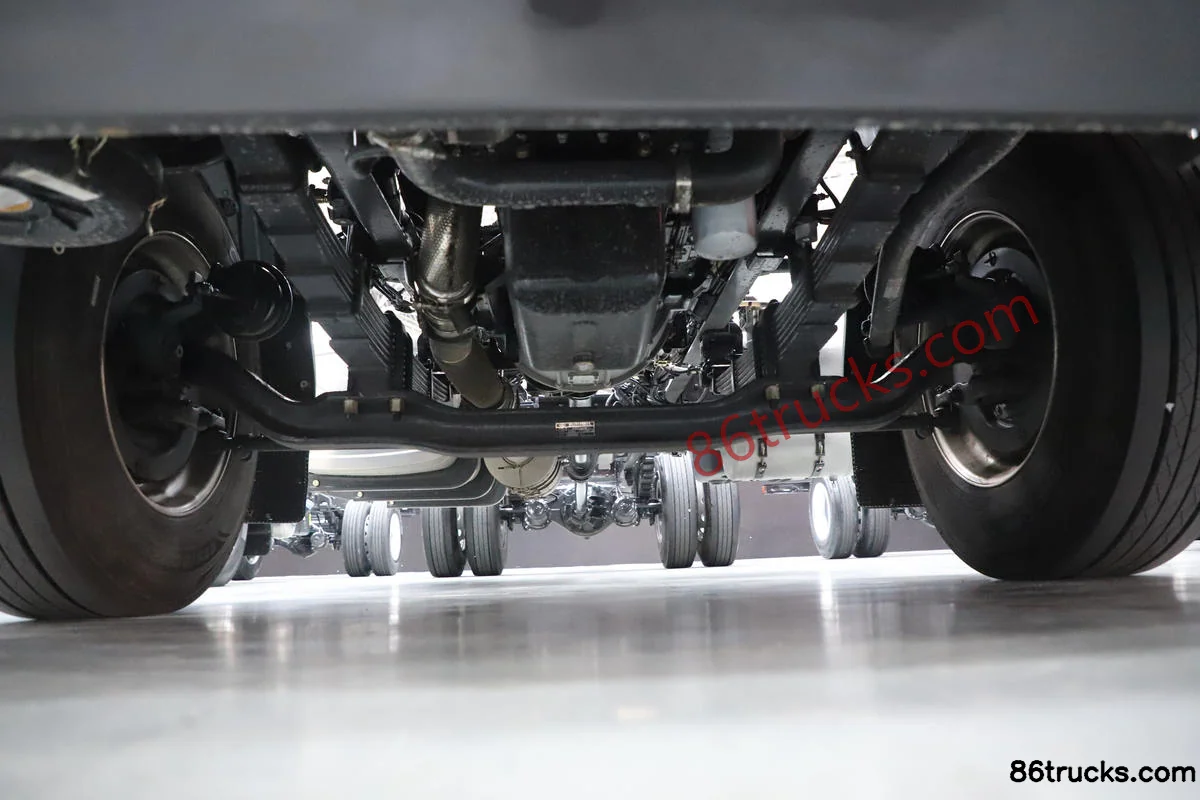

Chassis3

DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck Chassis (1) | 86Trucks DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck Chassis (2) | 86Trucks DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck Chassis (3) | 86Trucks

9 photos

FAQ

What is the export price of DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck, and what does it include?

DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck export reference is about From $26,833; MSRP is ¥19.32M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck?

Key specs of DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck: Drive: 4x2; Horsepower: 270 hp; Emission: China VI; Fuel: Diesel; Engine: Yuchai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck suited for?

DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck differ from other variants in the same series?

DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck belongs to Dongfeng H5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export DongfengLiuqi ChenglongH5 270hp 4X2(6 wheels) 6.2m stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
