JAC Gallop A5W III Heavy Truck 430 hp 4X2(6 wheels) Tractor Truck (China VI)

Export reference
From $52,583
MSRP ¥37.86M CNY
Fuel: Diesel
Gross Trailer Weight:: 35ton
Wheelbase:: 3500mm
Tire Size:: 12R22.5 16PR
Front axle allowable load:: 6500kg
Displacement:: 8.9L
Drive 4X2 (6 wheels)
Horsepower 430
Emission China VI
Transmission Fast Gear

Overview

The JAC Gallop A5W III Heavy Truck 430 hp 4X2(6 wheels) Tractor Truck (China VI) is a Heavy truck featuring 4X2 (6 wheels) drive, 430 hp, 18t GVW and China VI emissions. Its segment focus covers Port transport, matching those duty cycles. On the powertrain side, it comes with a DongfengL9NS6B430 engine, Fast Gear transmission and Diesel fuel.

China VI 430 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC4181P1K5A39CS
Drive type: 4X2
Wheelbase: 3500mm
engine: DongfengL9NS6B430
transmission: Fast Gear12JSD180TA
Rear Axle Ratio: 4.111
Cab length: 6.465m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2050mm
rear track: 1860mm
Gross Trailer Weight: 35ton
Curb Weight: 6.8ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Hefei, Anhui
tonnage class: Heavy truck
market segment: Port transport
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengL9NS6B430
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.9L
Emission standard: China VI
Max output power: 316kW
Max hp: 430Horsepower
Transmission Parameters
Transmission Model: Fast Gear12JSD180TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 600L
Chassis Specs
Front axle description: 5T
Front axle allowable load: 6500kg
Frame Dimensions: 280×80×8mm
rear axle description: 485
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 3/4+3
Tire
Tire Size: 12R22.5 16PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Traction Control (ASR/TCS/TRC etc.):
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
automatic slack adjuster:
Exterior features
integrated mudguard:
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Automatic
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
lighting configuration
LED headlight:
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Service features
subsidy available: Yes
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:
Lane Departure Warning System (LDWS):
AEB automatic emergency braking system:
maintenance service
24-hour service hotline:
Rescue service:

Photos

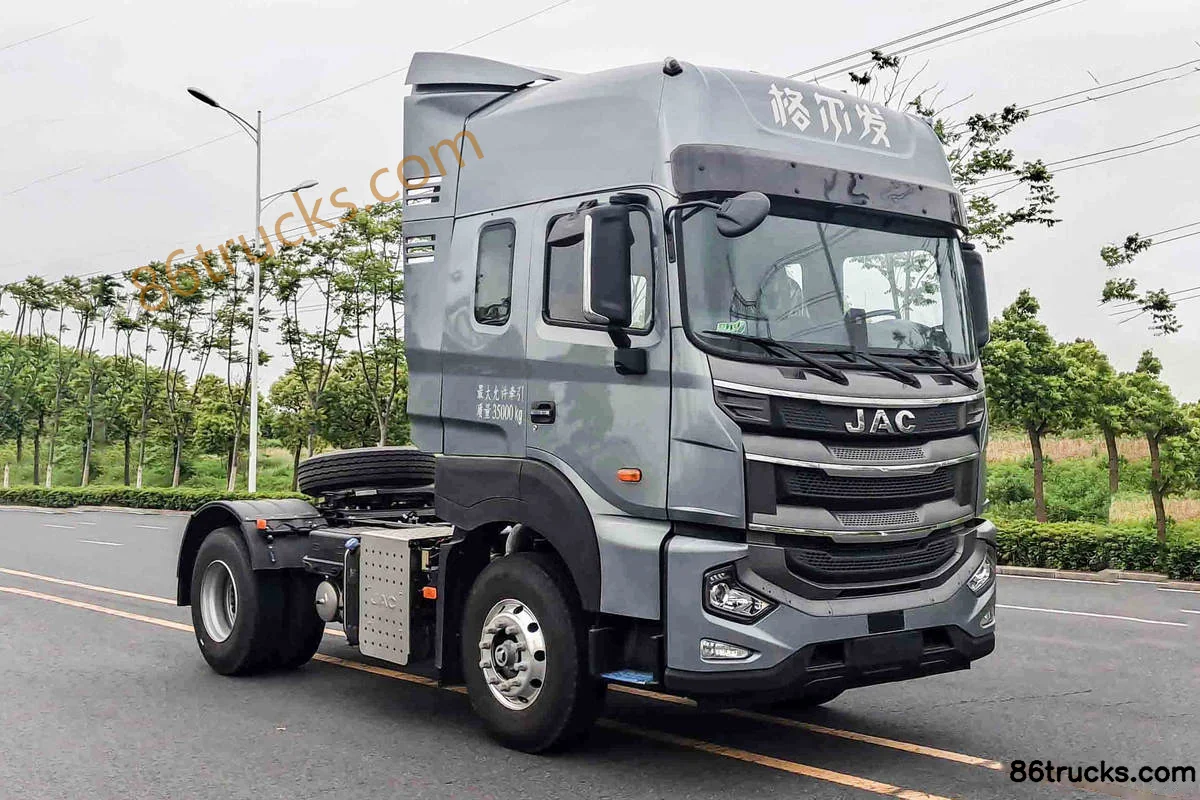

Exterior1

1 photos

FAQ

What is the export price of JAC Gallop A5W III Heavy Truck 430 hp 4X2(6 wheels) Tractor Truck (China VI), and what does it include?

JAC Gallop A5W III Heavy Truck 430 hp 4X2(6 wheels) Tractor Truck (China VI) export reference is about From $52,583; MSRP is ¥37.86M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop A5W III Heavy Truck 430 hp 4X2(6 wheels) Tractor Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A5W III Heavy Truck 430 hp 4X2(6 wheels) Tractor Truck (China VI)?

Key specs of JAC Gallop A5W III Heavy Truck 430 hp 4X2(6 wheels) Tractor Truck (China VI): Drive: 4x2; Horsepower: 430 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5W III Heavy Truck 430 hp 4X2(6 wheels) Tractor Truck (China VI) suited for?

JAC Gallop A5W III Heavy Truck 430 hp 4X2(6 wheels) Tractor Truck (China VI) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does JAC Gallop A5W III Heavy Truck 430 hp 4X2(6 wheels) Tractor Truck (China VI) differ from other variants in the same series?

JAC Gallop A5W III Heavy Truck 430 hp 4X2(6 wheels) Tractor Truck (China VI) belongs to JAC Gallop A5 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5W III Heavy Truck 430 hp 4X2(6 wheels) Tractor Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5W III Heavy Truck 430 hp 4X2(6 wheels) Tractor Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
