Foton AumanEST Star Edition 580 hp 6X4(10 wheels) LNG Automatic Tractor Truck

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 40ton
Wheelbase:: 3975+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 14.5L
Drive 6X4 (10 wheels)
Horsepower 580
Emission China VI
Transmission ZF

Overview

The Foton AumanEST Star Edition 580 hp 6X4(10 wheels) LNG Automatic Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 580 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a FotonA15NNS6B580 engine, ZF transmission and LNG (liquefied natural gas) fuel.

China VI 580 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ4259L6DLL-22
Drive type: 6X4
Wheelbase: 3975+1350mm
engine: FotonA15NNS6B580
transmission: ZF12TX2821TD
Rear Axle Ratio: 2.643
Cab length: 7.64m
Cab width: 2.55m
Cab height: 3.95m
Front track width: 2080mm
rear track: 1865/1865mm
Gross Trailer Weight: 40ton
Curb Weight: 8.805ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Huairou, Beijing
tonnage class: Heavy truck
Remarks: Optional ratio 3.083/2.846
Version: Xinghui Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Foton
Engine Model: FotonA15NNS6B580
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 14.5L
Emission standard: China VI
Max output power: 427kW
Max hp: 580Horsepower
Transmission Parameters
Transmission Model: ZF12TX2821TD
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Air tank capacity: 1500L
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 7000kg
Frame Dimensions: 225/286×80×7mm
rear axle description: 11T/440
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.643
Leaf spring count: 2/2
clutch: Φ430
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
smart configuration
Cruise control (CCS):

Photos

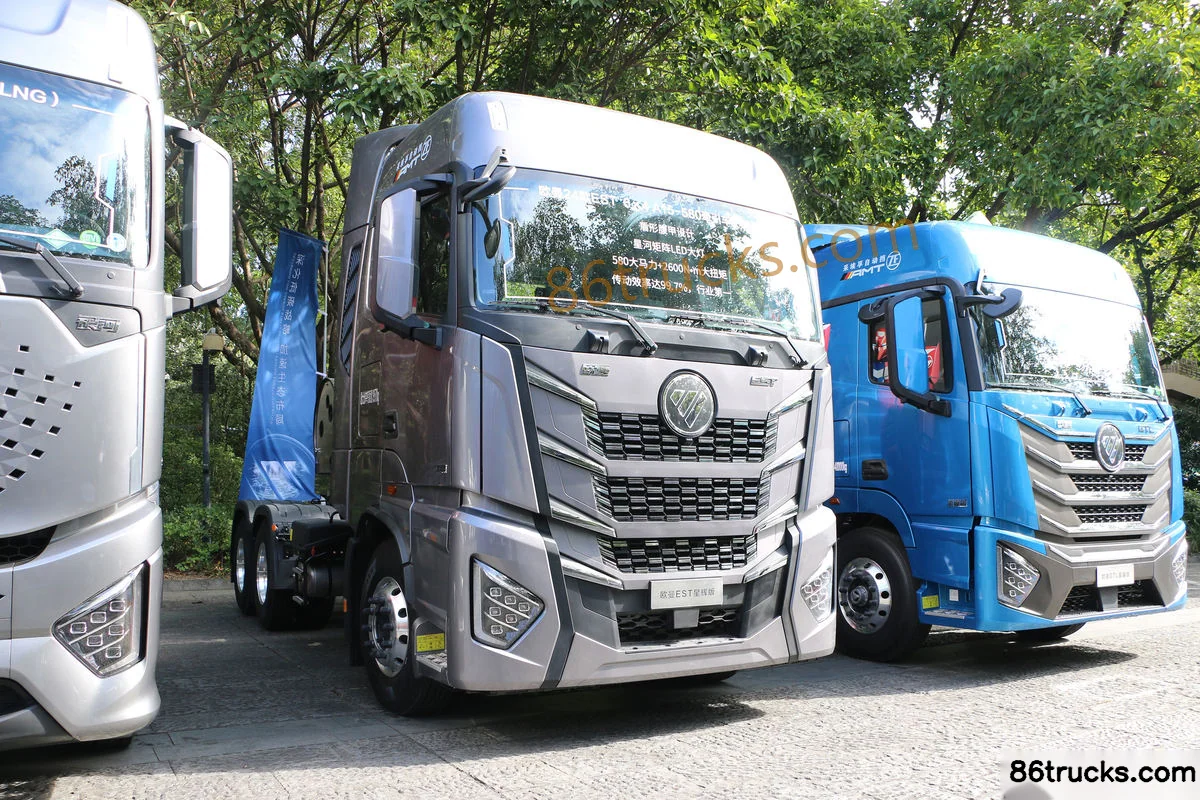

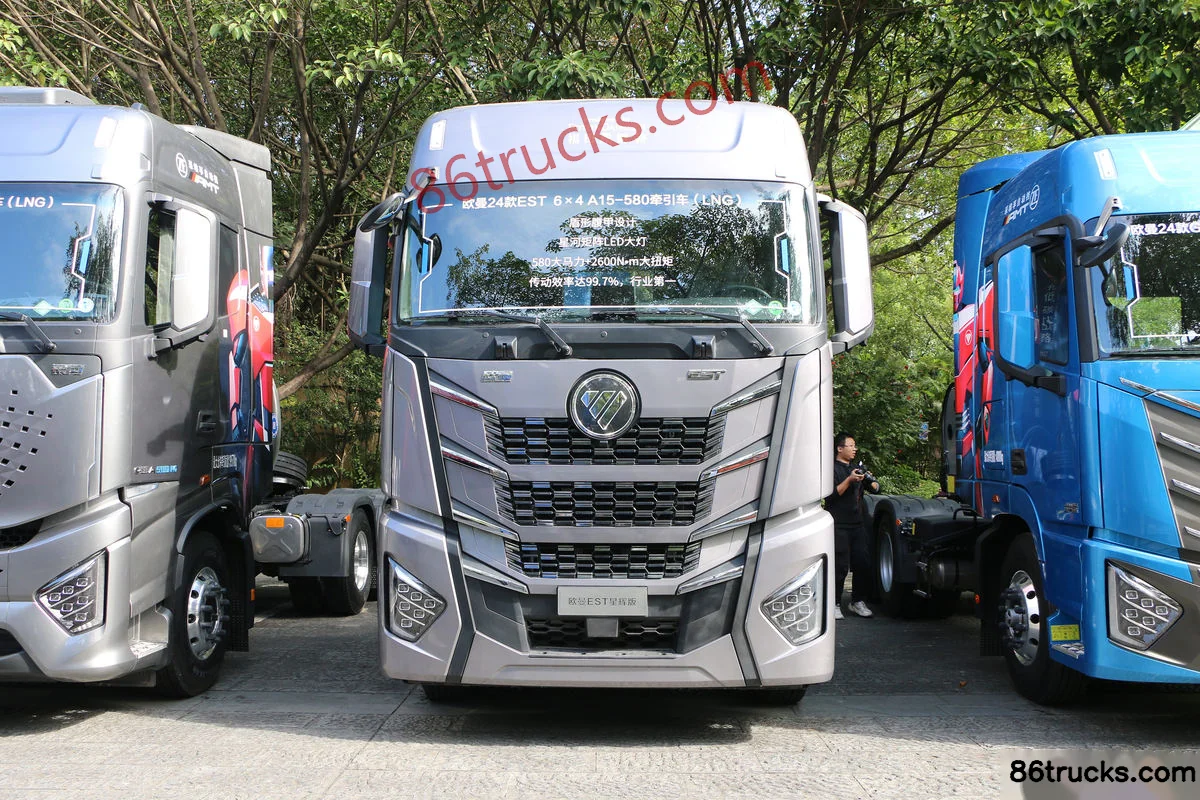

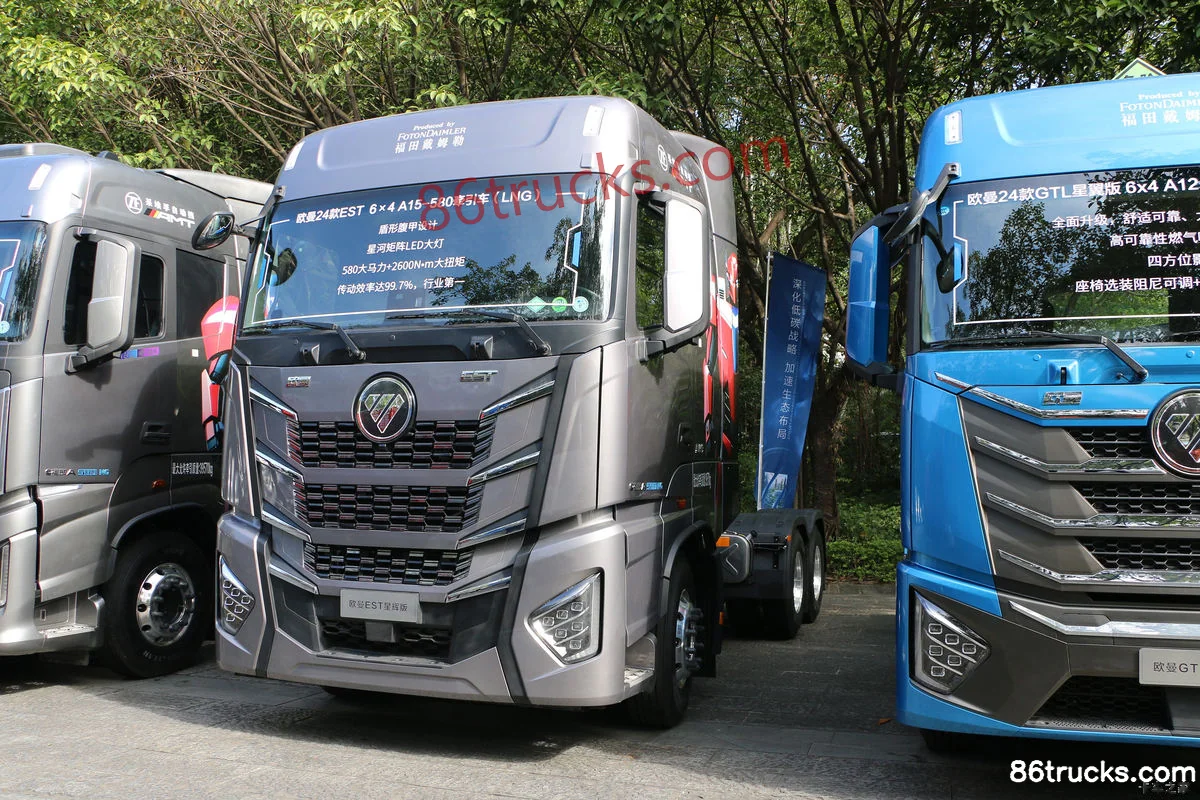

Exterior3

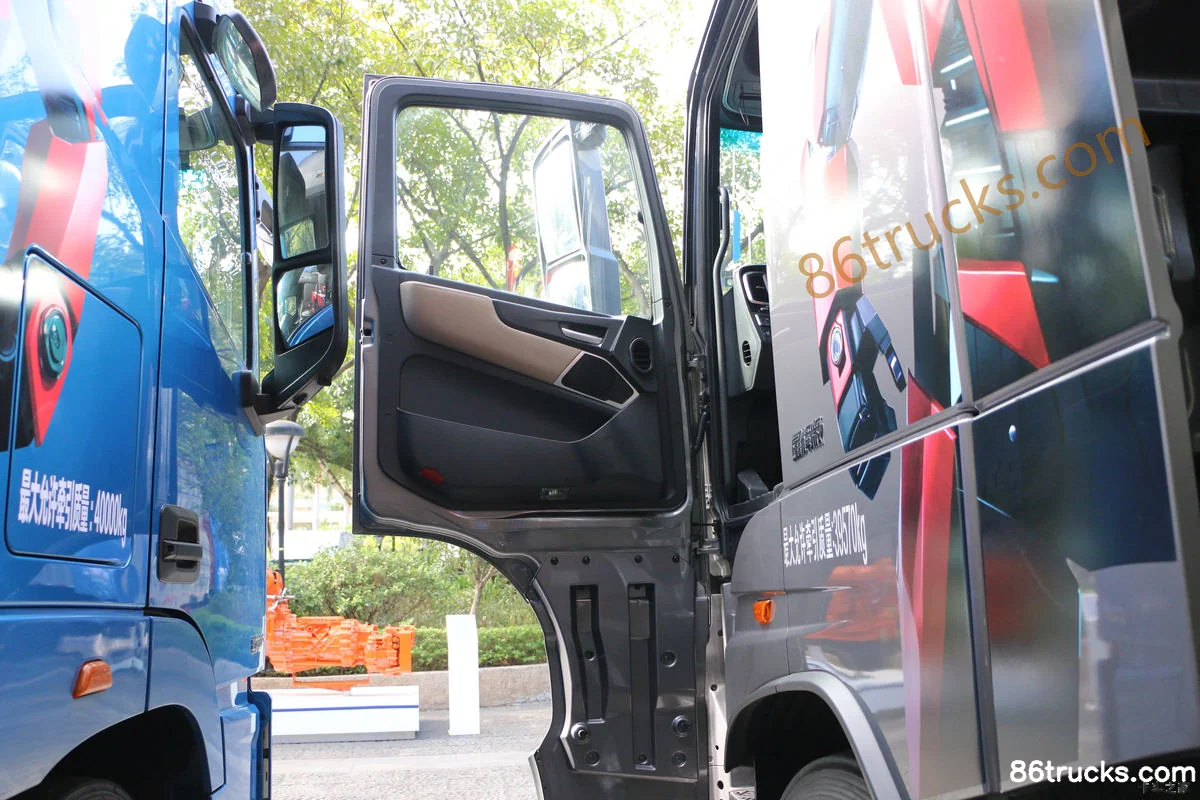

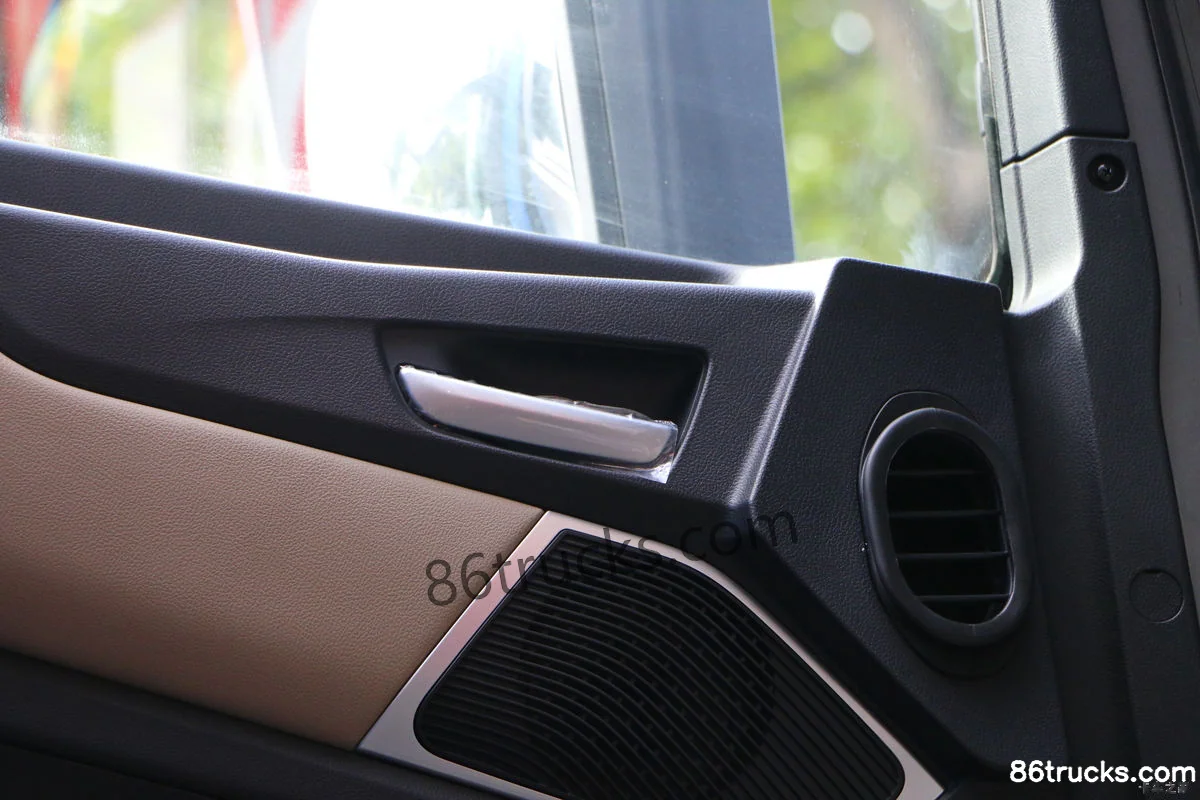

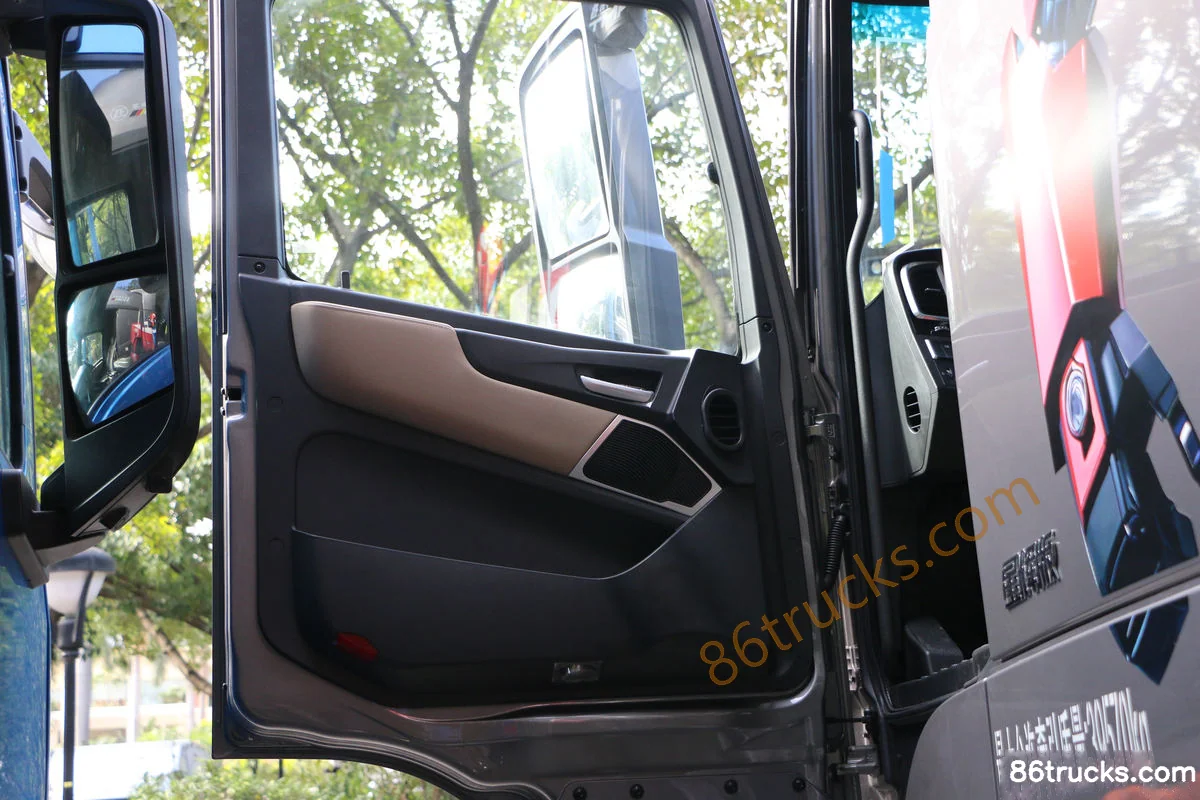

Cab3

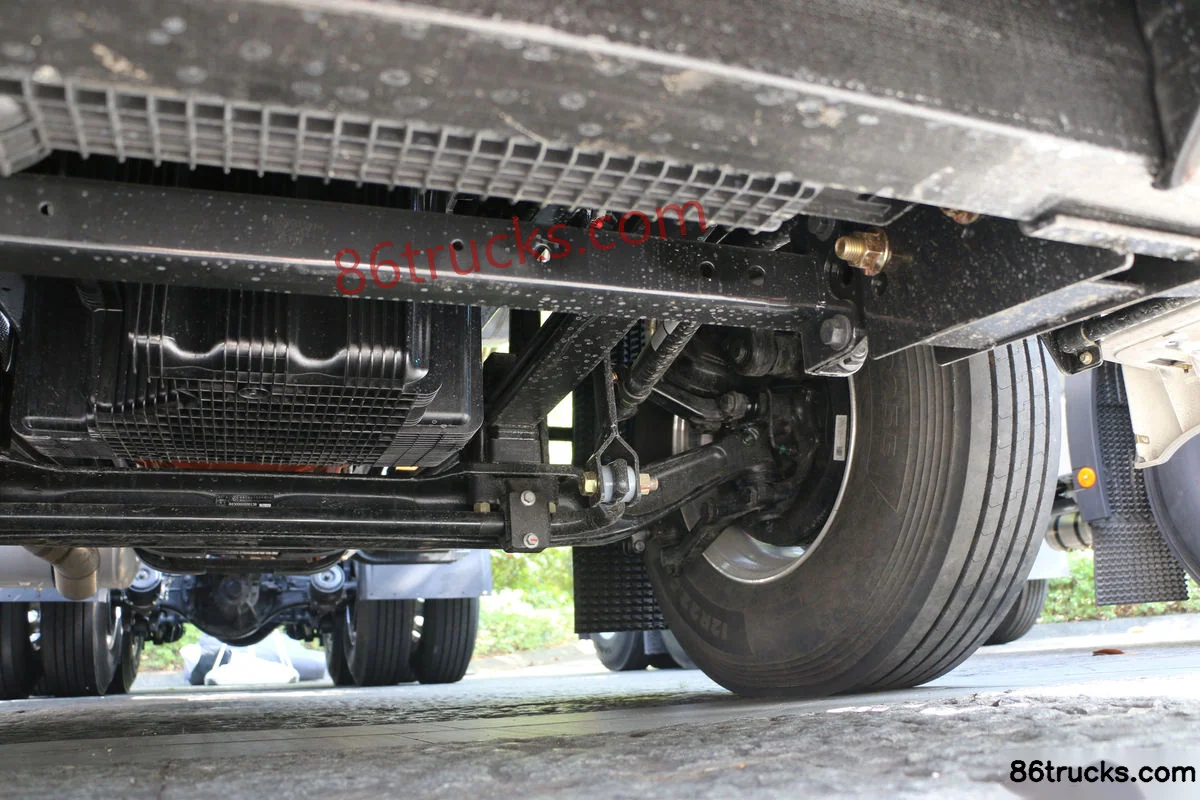

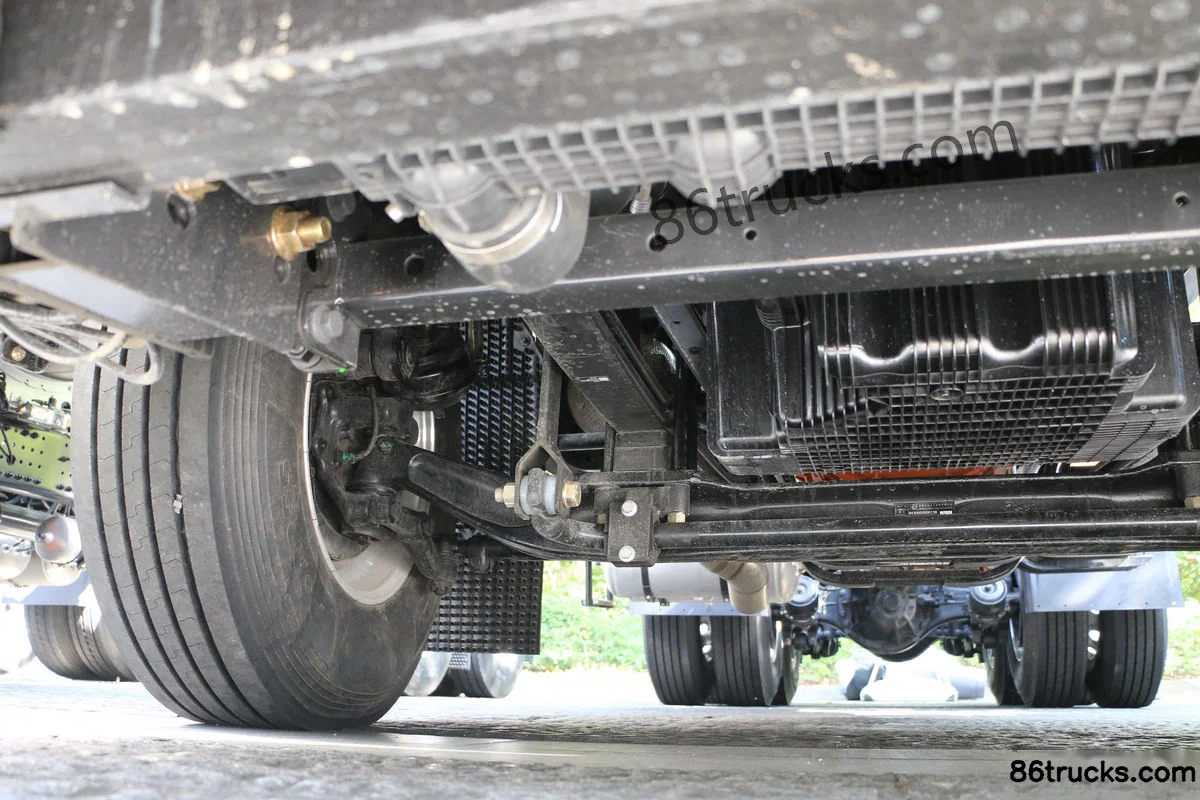

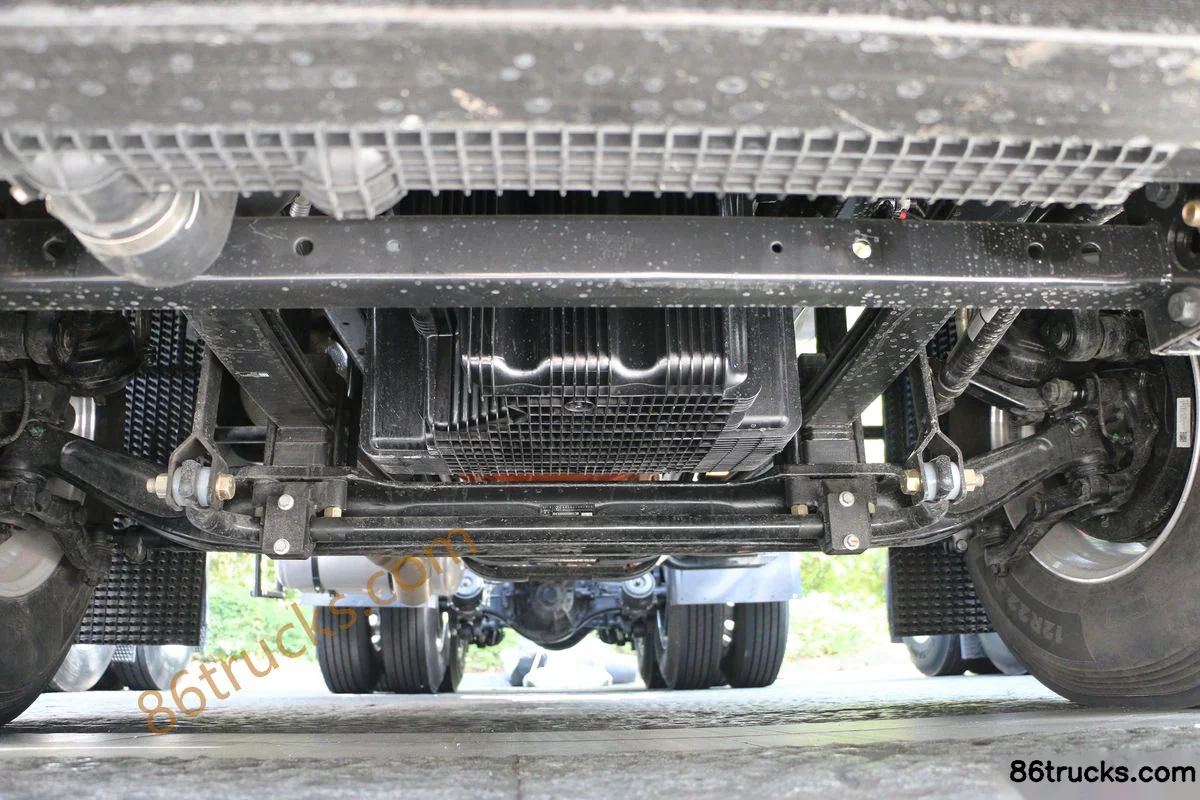

Chassis3

9 photos

FAQ

What emission standard does Foton AumanEST Star Edition 580 hp 6X4(10 wheels) LNG Automatic Tractor Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton AumanEST Star Edition 580 hp 6X4(10 wheels) LNG Automatic Tractor Truck?

Key specs of Foton AumanEST Star Edition 580 hp 6X4(10 wheels) LNG Automatic Tractor Truck: Drive: 6x4; Horsepower: 580 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton AumanEST Star Edition 580 hp 6X4(10 wheels) LNG Automatic Tractor Truck suited for?

Foton AumanEST Star Edition 580 hp 6X4(10 wheels) LNG Automatic Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Foton AumanEST Star Edition 580 hp 6X4(10 wheels) LNG Automatic Tractor Truck differ from other variants in the same series?

Foton AumanEST Star Edition 580 hp 6X4(10 wheels) LNG Automatic Tractor Truck belongs to Foton Auman EST Star Edition (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton AumanEST Star Edition 580 hp 6X4(10 wheels) LNG Automatic Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton AumanEST Star Edition 580 hp 6X4(10 wheels) LNG Automatic Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
