MaxxForce 4.8L 190hp 4.8L China V Diesel Engine

Export reference
MSRP N/A
Intake type:: twin-scroll turbocharger
Min. fuel consumption at full load:: 195g/kW.h
Compression ratio:: 16.8
Suitable Range: Light/Medium Truck, Medium Bus
Engine Model: 4.8
Engine Series: MaxxForce

Overview

The JAC MaxxForce 4.8L 190hp 4.8L China V Diesel Engine is a parts product with fit for Light/Medium Truck, Medium Bus and spec 4.8.

China V 190 Diesel

Model Specs

Legend: ● Standard ○ Optional - N/A

Engine parameters
Engine Series: MaxxForce
Engine manufacturer: Navistar
Suitable Range: Light/Medium Truck, Medium Bus
Intake type: twin-scroll turbocharger
Min. fuel consumption at full load: 195g/kW.h
Engine net weight: 430kg
Engine Dimensions: 981x876x694mm
Compression ratio: 16.8
Bore × Stroke: 105x137mm
Valves per cylinder: 4pcs
Engine Brand: JAC
Engine Model: 4.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.8L
Emission standard: China V
Max output power: 140kW
Max hp: 190Horsepower
Max torque: 740N·m
Max torque speed: 1200-1800rpm
Rated speed: 2200rpm
Engine Type: direct injection

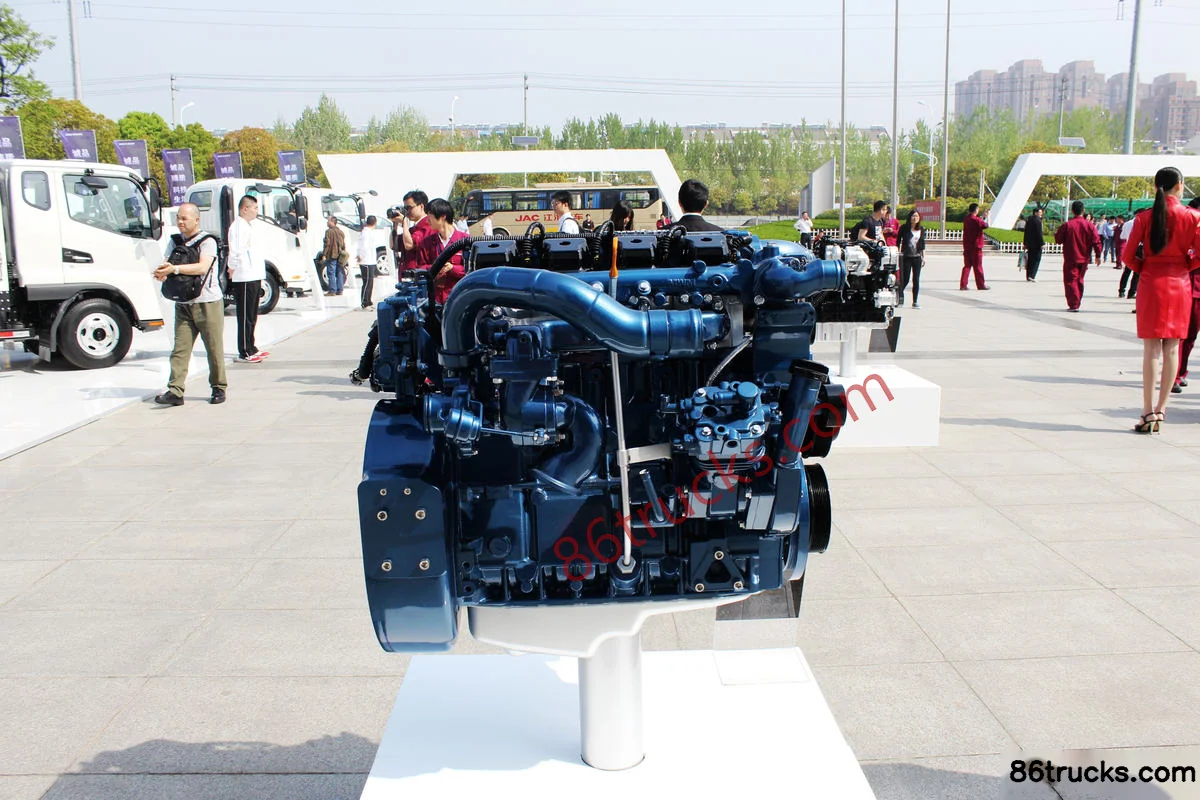

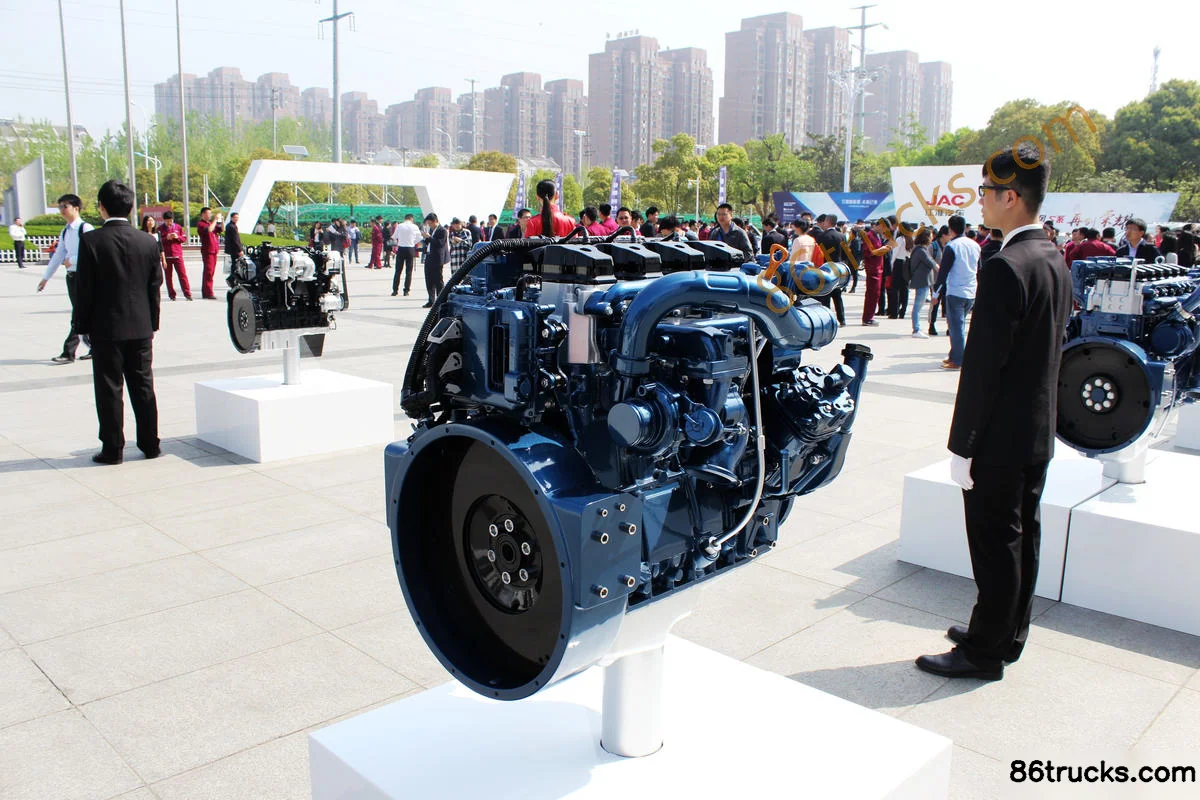

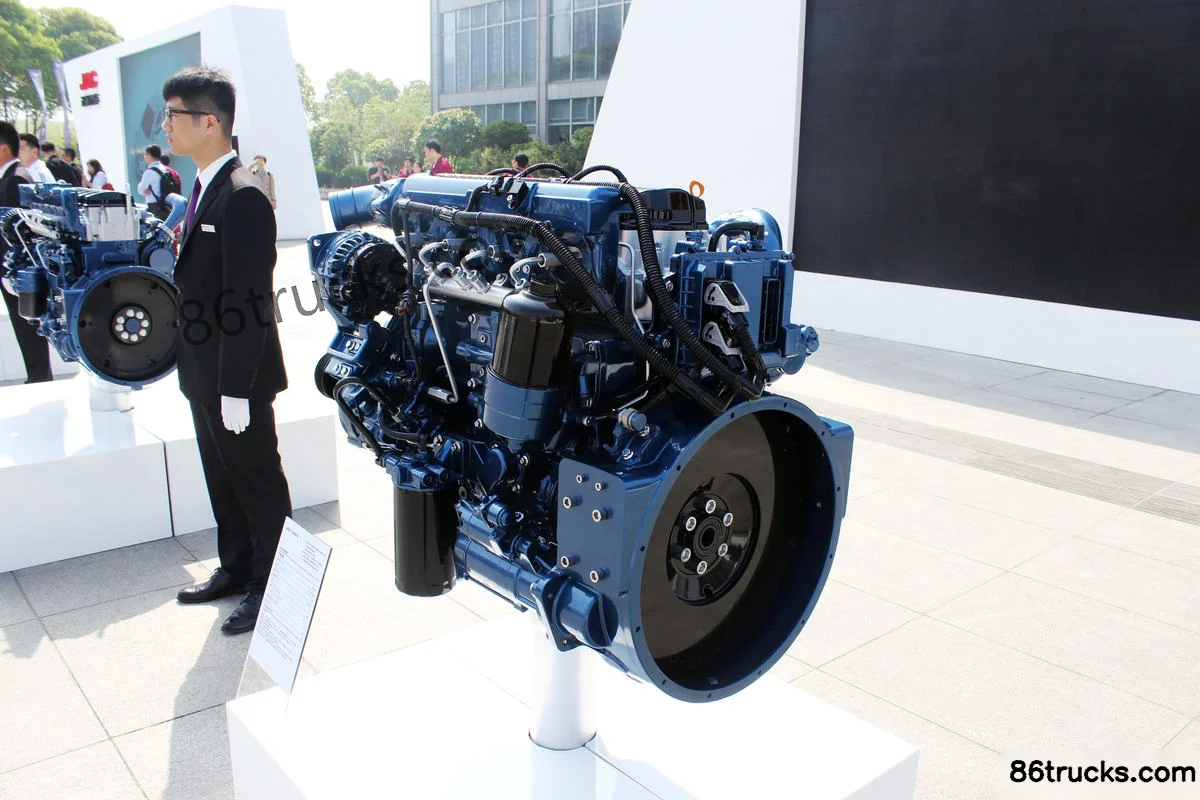

Photos

Exterior3

3 photos

FAQ

What emission standard does MaxxForce 4.8L 190hp 4.8L China V Diesel Engine use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of MaxxForce 4.8L 190hp 4.8L China V Diesel Engine?

Key specs of MaxxForce 4.8L 190hp 4.8L China V Diesel Engine: Horsepower: 190 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is MaxxForce 4.8L 190hp 4.8L China V Diesel Engine suited for?

Match MaxxForce 4.8L 190hp 4.8L China V Diesel Engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does MaxxForce 4.8L 190hp 4.8L China V Diesel Engine differ from other variants in the same series?

MaxxForce 4.8L 190hp 4.8L China V Diesel Engine belongs to JAC Maixifu (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for MaxxForce 4.8L 190hp 4.8L China V Diesel Engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export MaxxForce 4.8L 190hp 4.8L China V Diesel Engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
