Tangjun Ouling K3 Series 130hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (China VI)

Export reference
From $11,917
MSRP ¥8.58M CNY
Horsepower: 130
Emission: China VI
Fuel: Diesel
Engine: QuanchaiQ28
Transmission: JAC
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box length: 4.15m

Overview

The Tangjun Ouling K3 Series 130hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (China VI) is a Light Truck featuring 4.15m cargo length, 4.15m cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a QuanchaiQ28 engine, 130 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB1040JDD6L
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: QuanchaiQ28-130C60
transmission: JACML640A
Cab length: 5.995m
Cab width: 2.195m
Cab height: 2.46m
Front track width: 1650mm
rear track: 1600mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Zichuan, Shandong
tonnage class: Light Truck
Approach angle: 19°
departure angle: 15°
market segment: Building materials, agricultural products
Front/rear suspension: 1.14/1.495m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ28-130C60
Engine info: QuanchaiQ28
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.8L
Emission standard: China VI
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 395N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Transmission Parameters
Transmission Model: JACML640A
Transmission Brand: JAC
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box length: 4.15m
Cargo box width: 2.1m
Cargo box height: 0.4m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab: K3
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 1800kg
Frame Dimensions: 200X55X(5+4)mm
rear axle description: Isuzu
rear axle allowable load: 2695kg
Leaf spring count: 6/9+5,3/5+5
Tire

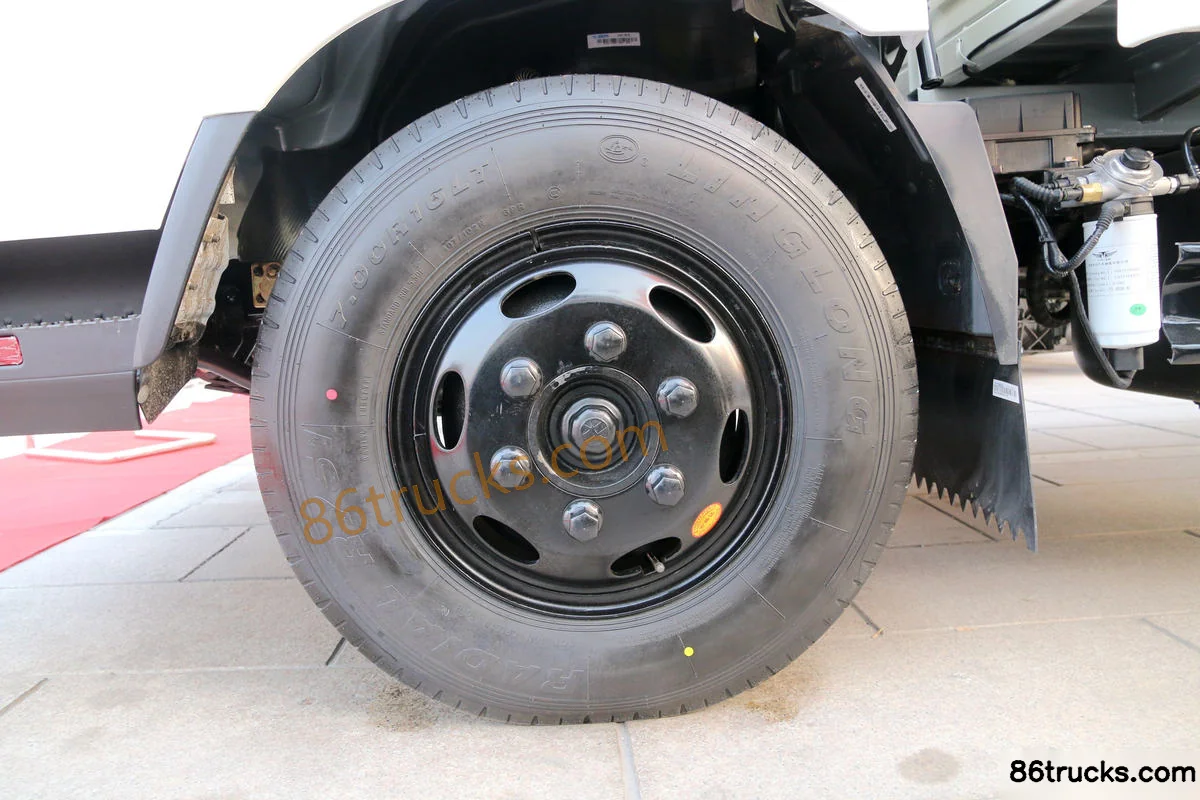

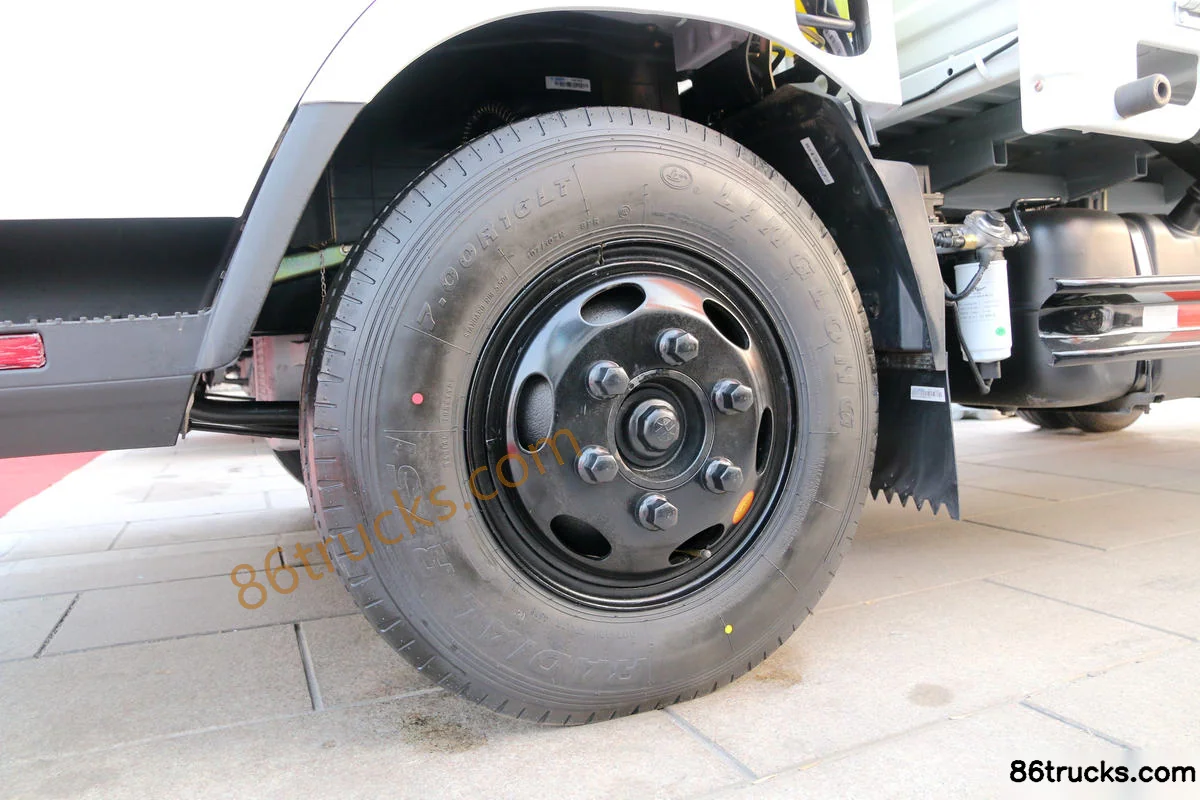

Tire Size: 7.00R16/7.50R16
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:

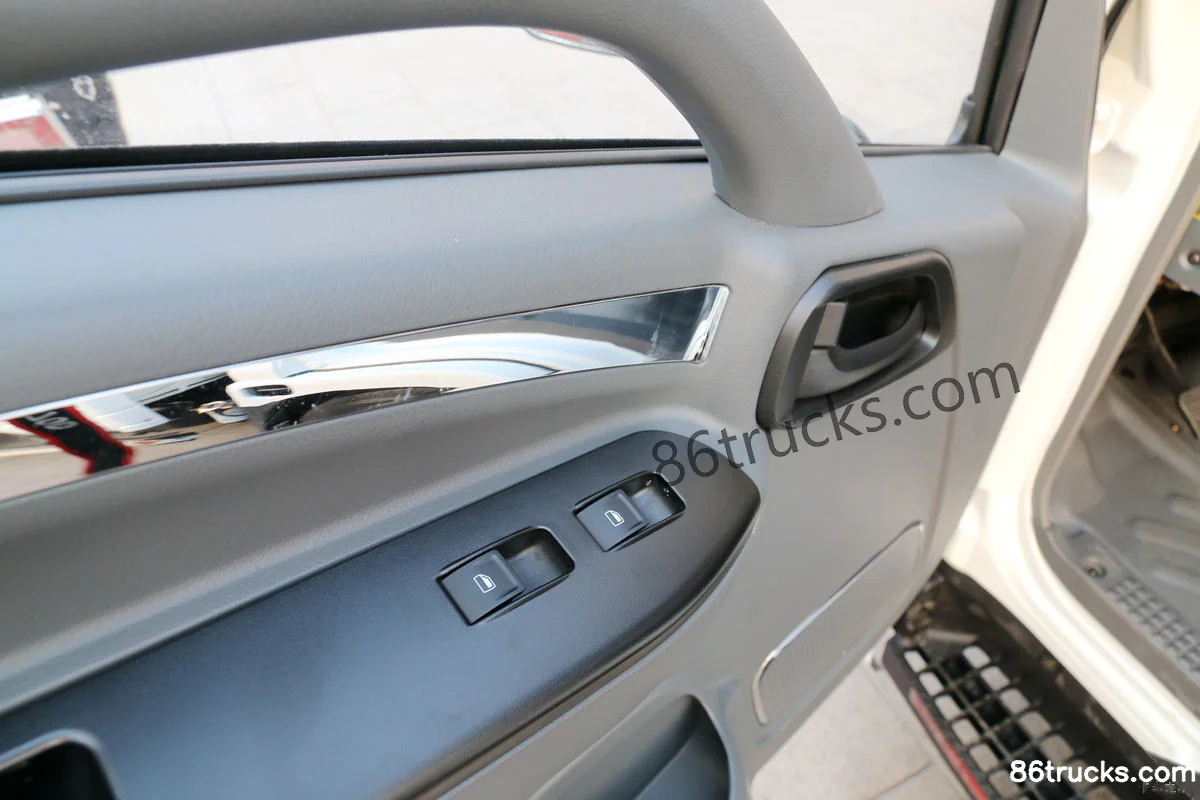

Power Windows:
Electronic Central Lock:
Service brake
Parking brake: Spring brake

Photos

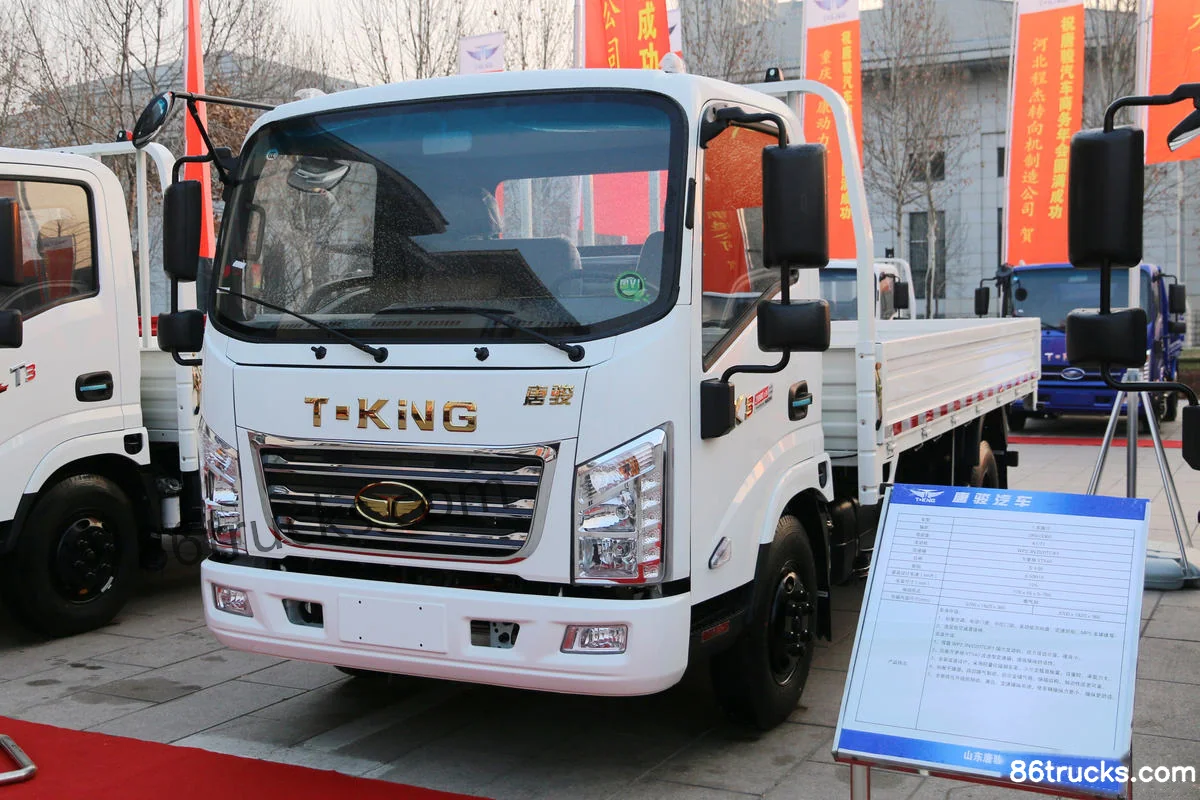

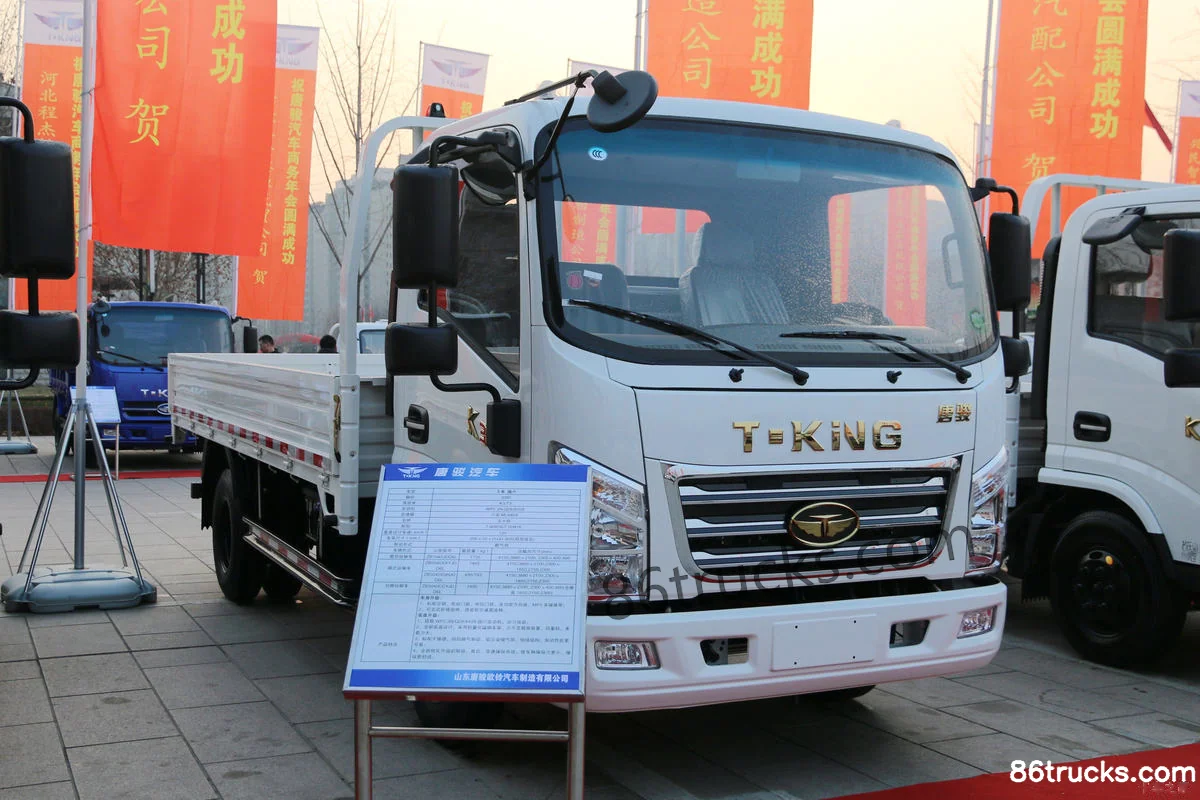

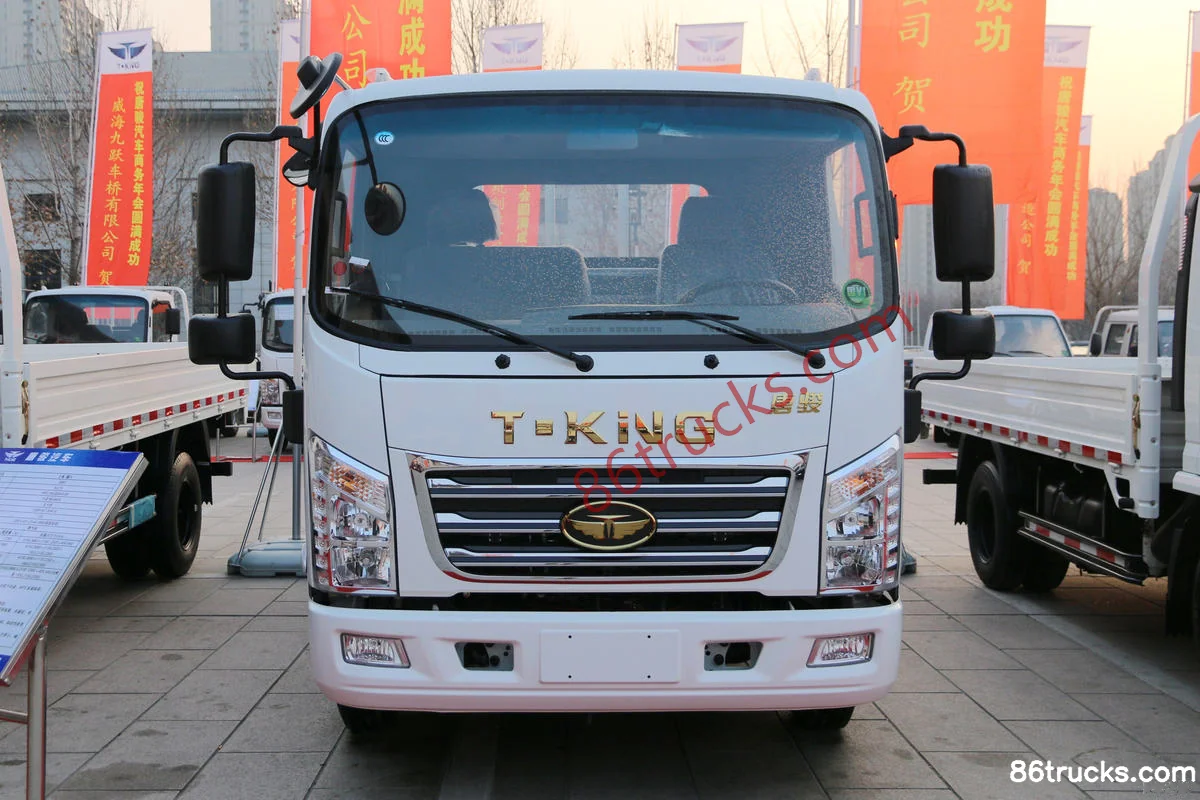

Exterior3

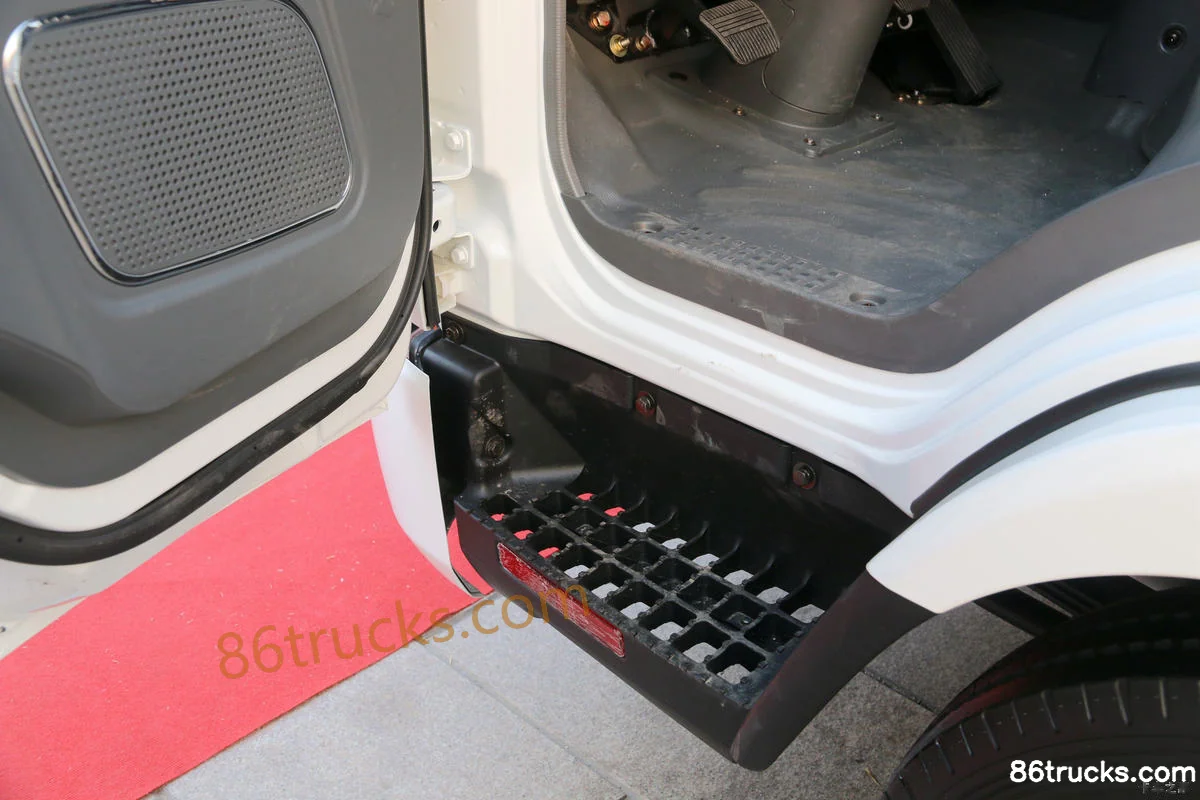

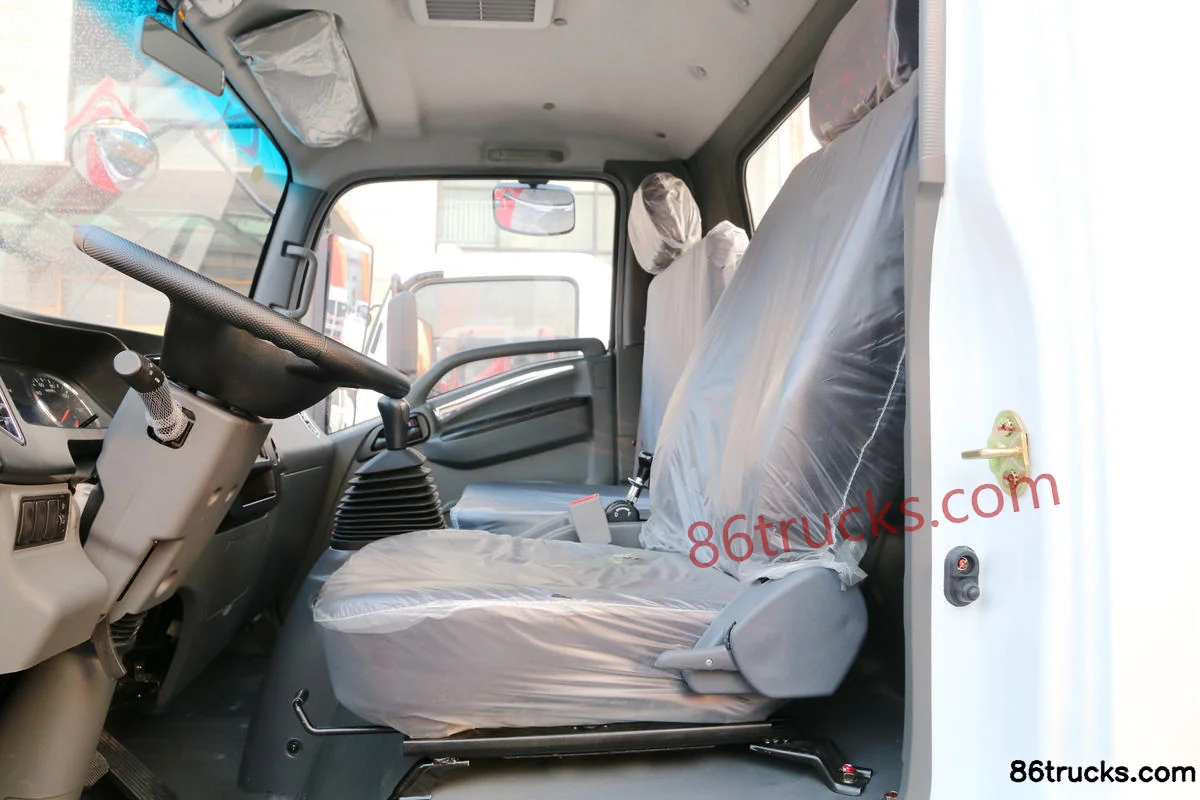

Cab3

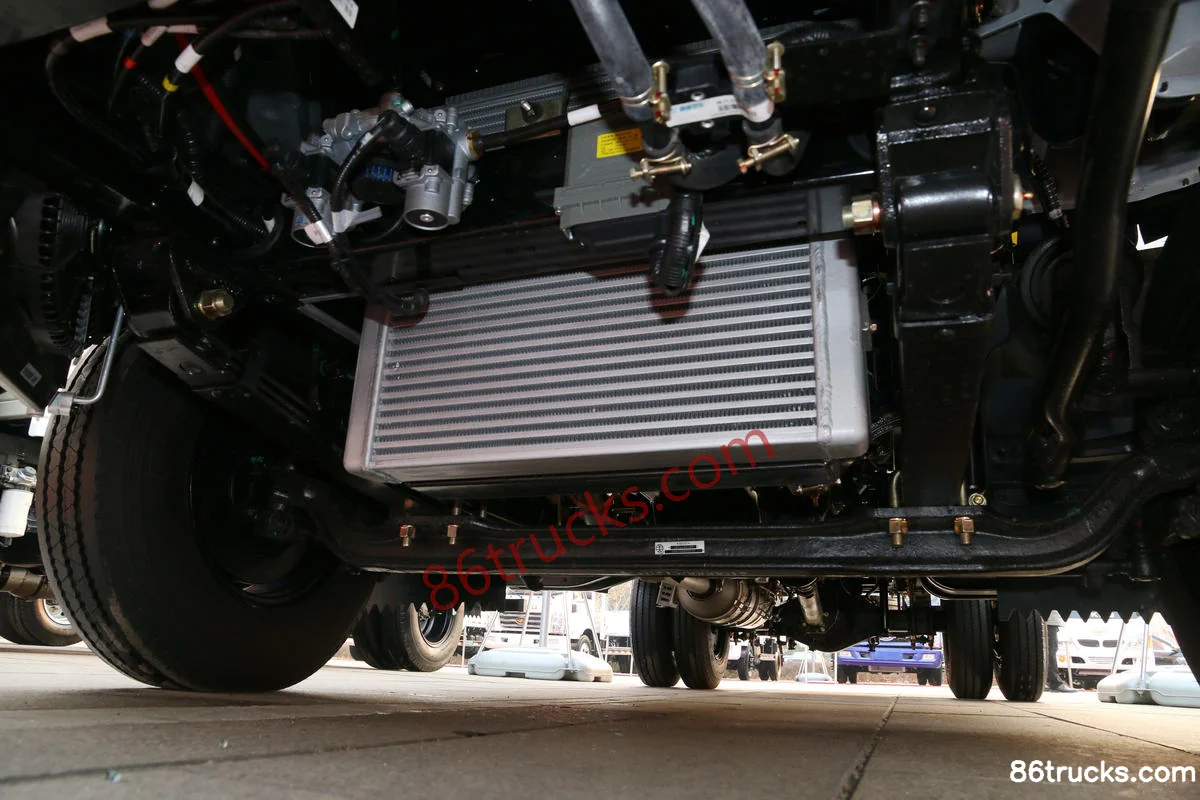

Chassis3

9 photos

FAQ

What is the export price of Tangjun Ouling K3 Series 130hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (China VI), and what does it include?

Tangjun Ouling K3 Series 130hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (China VI) export reference is about From $11,917; MSRP is ¥8.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Tangjun Ouling K3 Series 130hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling K3 Series 130hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (China VI)?

Key specs of Tangjun Ouling K3 Series 130hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (China VI): Drive: 4x2; Horsepower: 130 hp; Emission: China VI; Fuel: Diesel; Engine: QuanchaiQ28; Transmission: JAC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling K3 Series 130hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (China VI) suited for?

Tangjun Ouling K3 Series 130hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Tangjun Ouling K3 Series 130hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (China VI) differ from other variants in the same series?

Tangjun Ouling K3 Series 130hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (China VI) belongs to Ouling K3 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling K3 Series 130hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling K3 Series 130hp 4X2(6 wheels) 4.15m Single Row Flatbed Light Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
