Foton King Kong Engineering Type 130 hp 4X2(6 wheels) 4m Dump Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 7.615ton
Wheelbase:: 3700mm
Tire Type:: 9.00R20
Rated payload: 7.99ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Rear-dump body

Overview

The Foton King Kong Engineering Type 130 hp 4X2(6 wheels) 4m Dump Truck is a Light Truck featuring 7.99t payload, 15.8t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4D130-41 engine, 130 hp, China IV emissions and Sinotruk transmission.

China IV 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3165DJPFA-1
Drive type: 4X2
Wheelbase: 3700mm
engine: YuchaiYC4D130-41
transmission: SinotrukHW50508
Rear Axle Ratio: 6.833
Cab length: 6.43m
Cab width: 2.35m
Cab height: 2.79m
Front track width: 1761mm
rear track: 1638mm
Curb Weight: 7.615ton
Rated payload: 7.99ton
GVWR: 15.8ton
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 27°
departure angle: 17°
Remarks: Optional ratio 5.857
Version: Heavy-duty type
Energy Type: Diesel

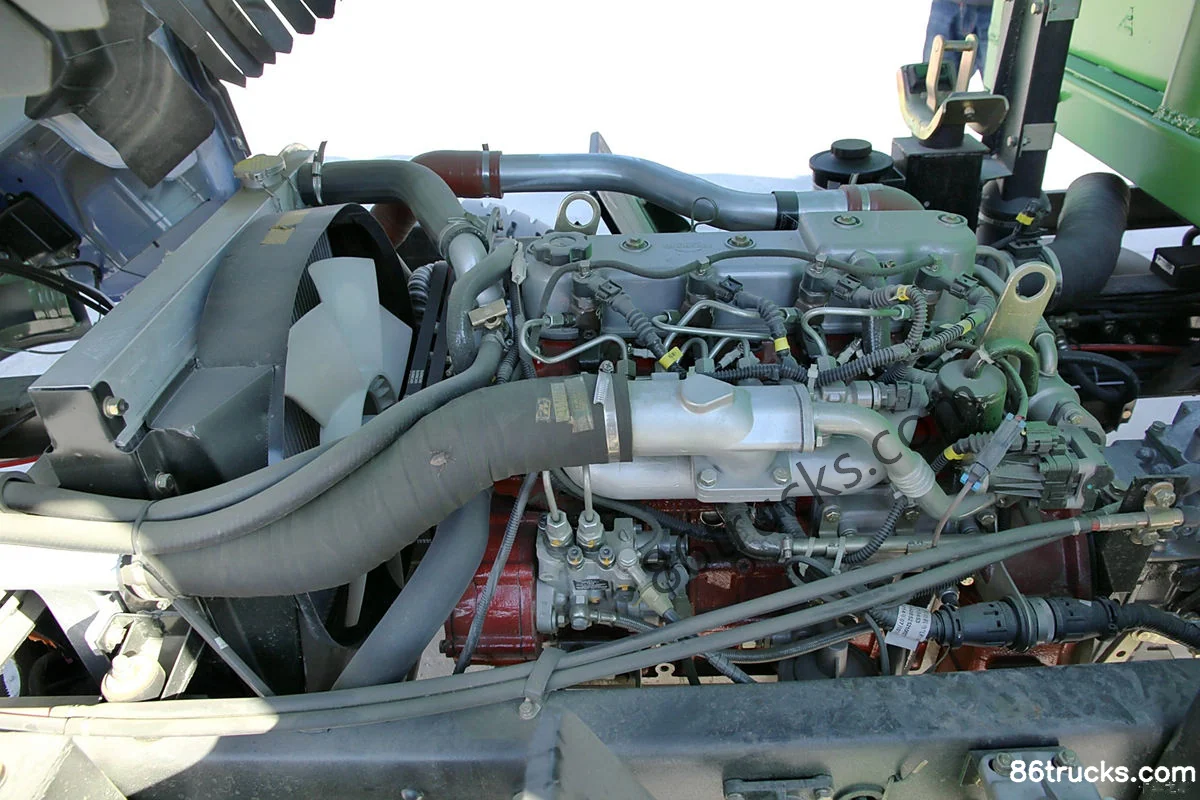

Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4D130-41
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.214L
Emission standard: China IV
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 420N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Electronic unit pump SCR
Transmission Parameters
Transmission Model: SinotrukHW50508
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 4m
Cargo box width: 2.17m
Cargo box height: 0.8m
Body Parameters
Lifting type: Front lift cylinder
Chassis Specs
Front axle allowable load: 5800kg
rear axle description: 1153Z-1
rear axle allowable load: 10000kg
Axle ratio: 6.833
Leaf spring count: 10/12+9
Cab parameters
Sunroof: Manual sunroof
Tire
Tire Type: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Multimedia features
GPS/Beidou driving recorder:
Service brake
Parking brake: Spring brake

Photos

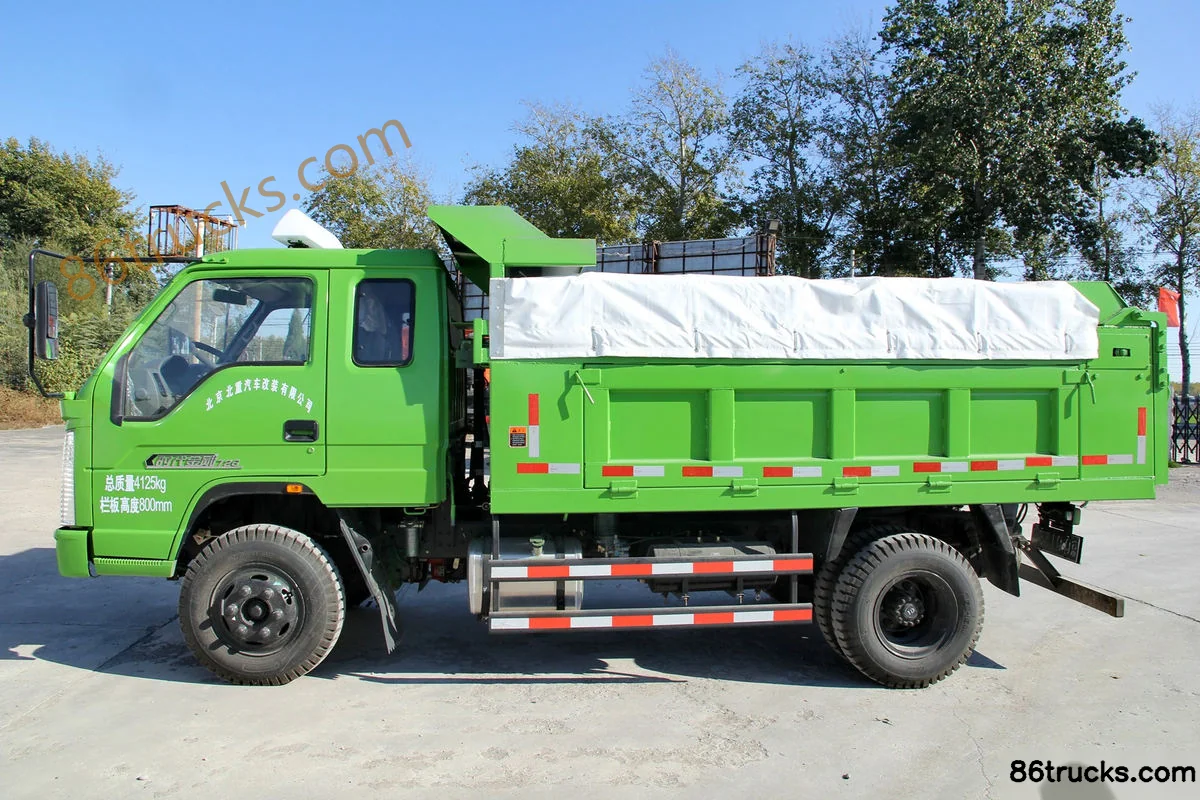

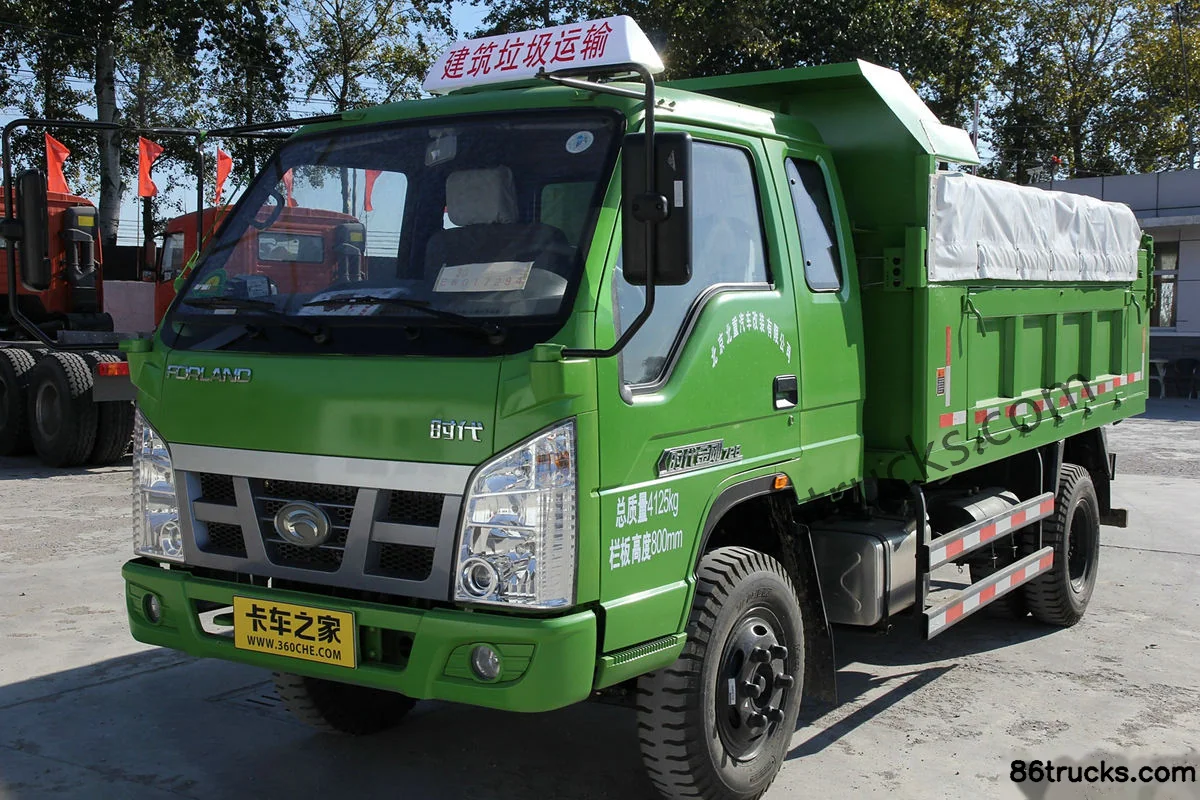

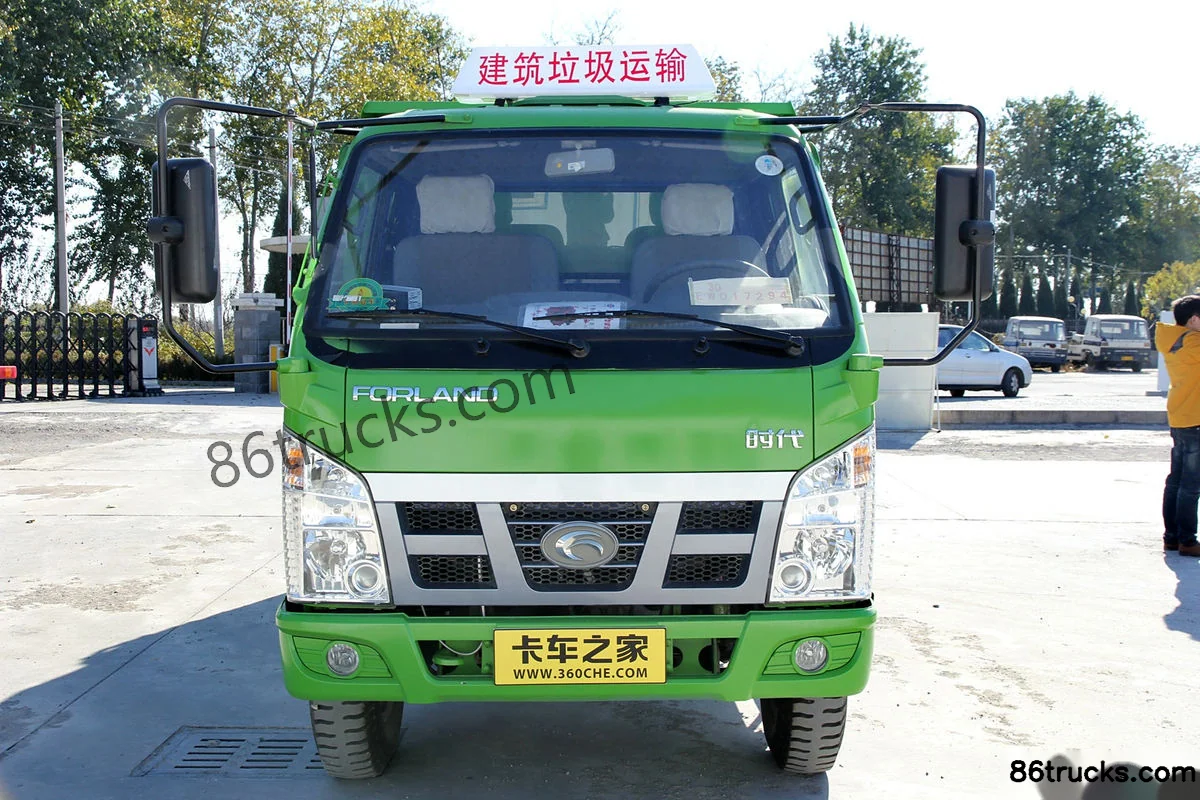

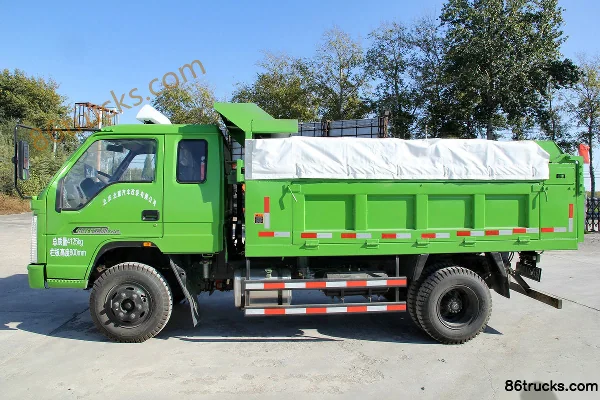

Exterior3

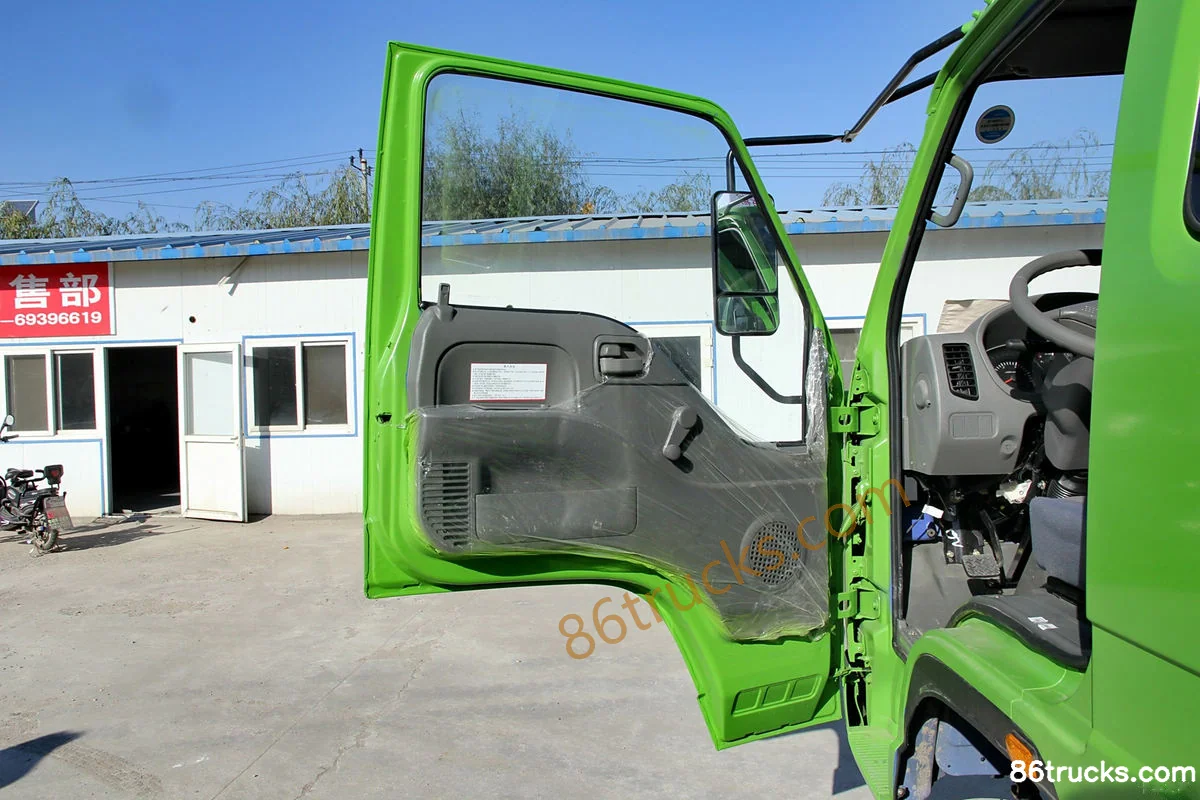

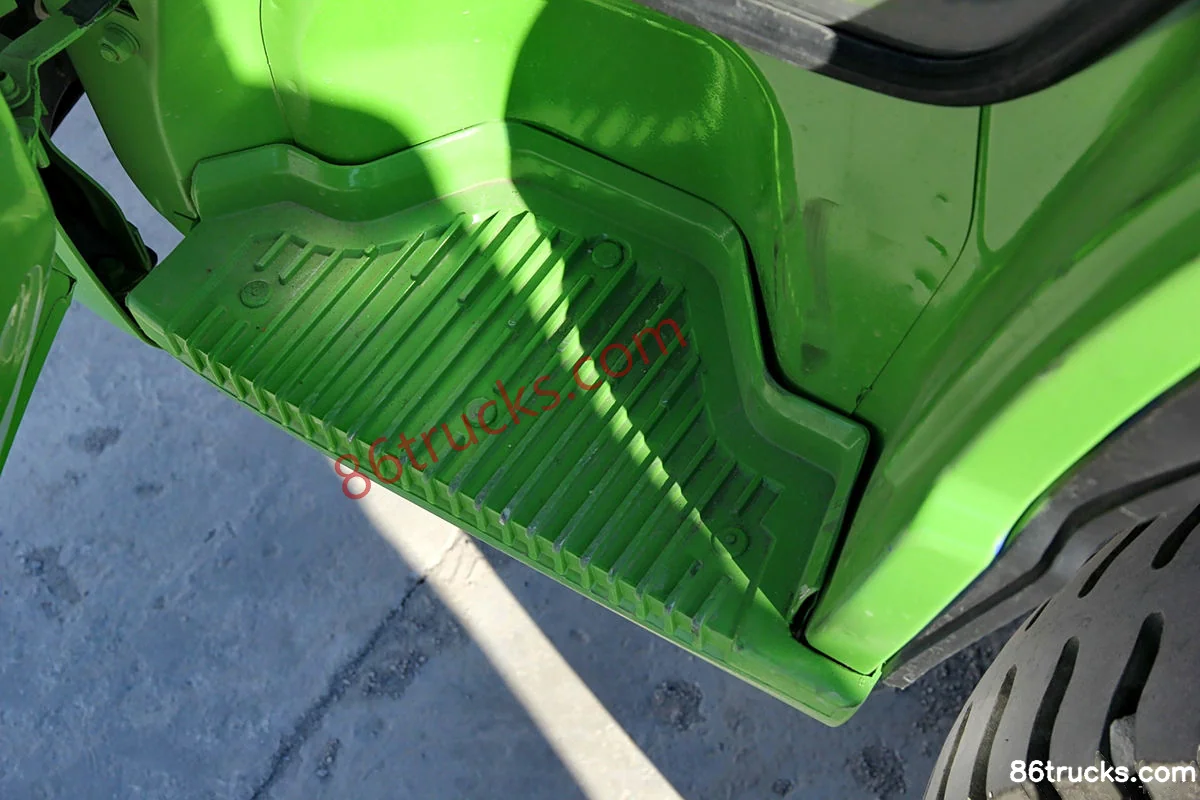

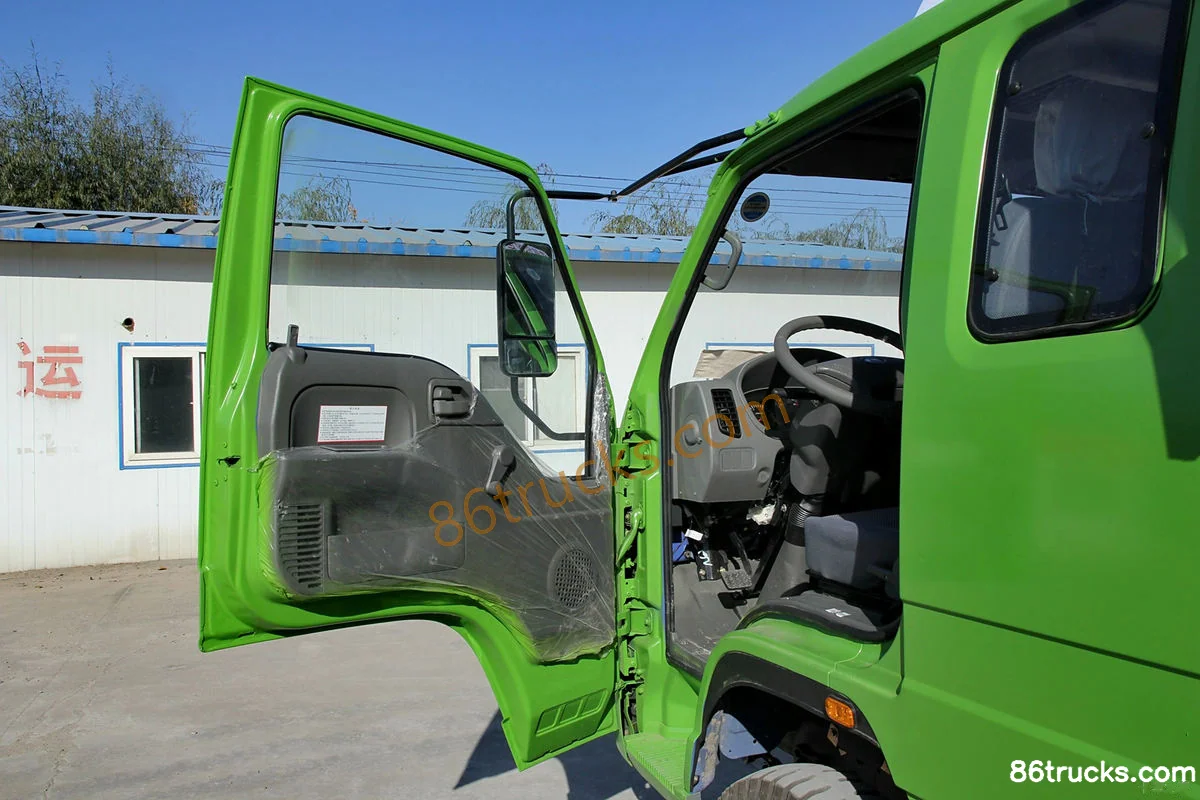

Cab3

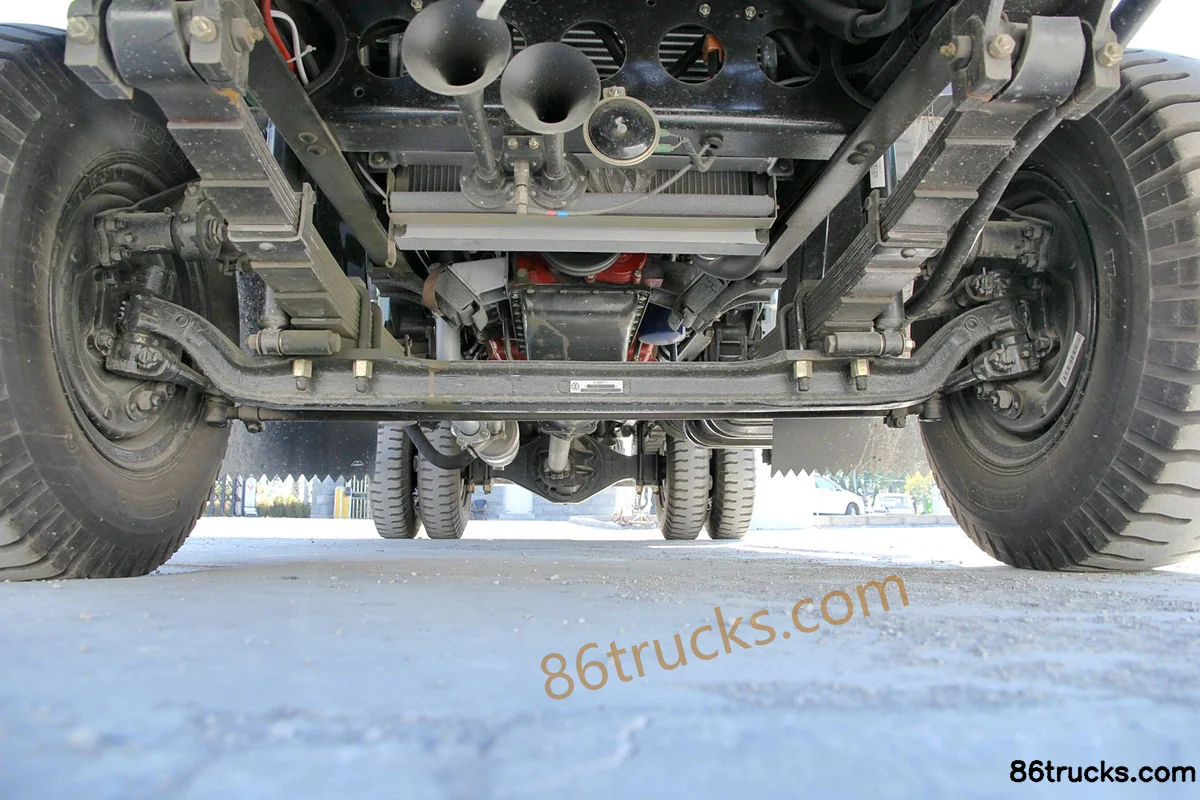

Chassis3

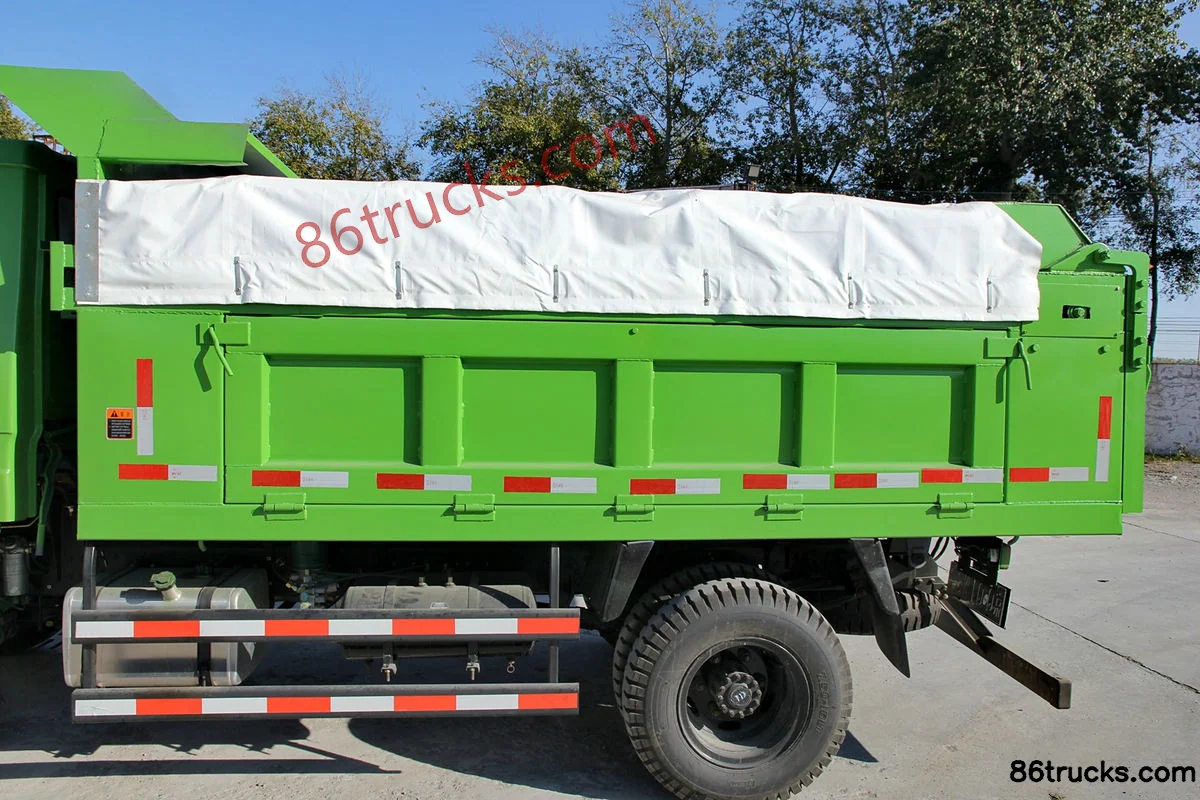

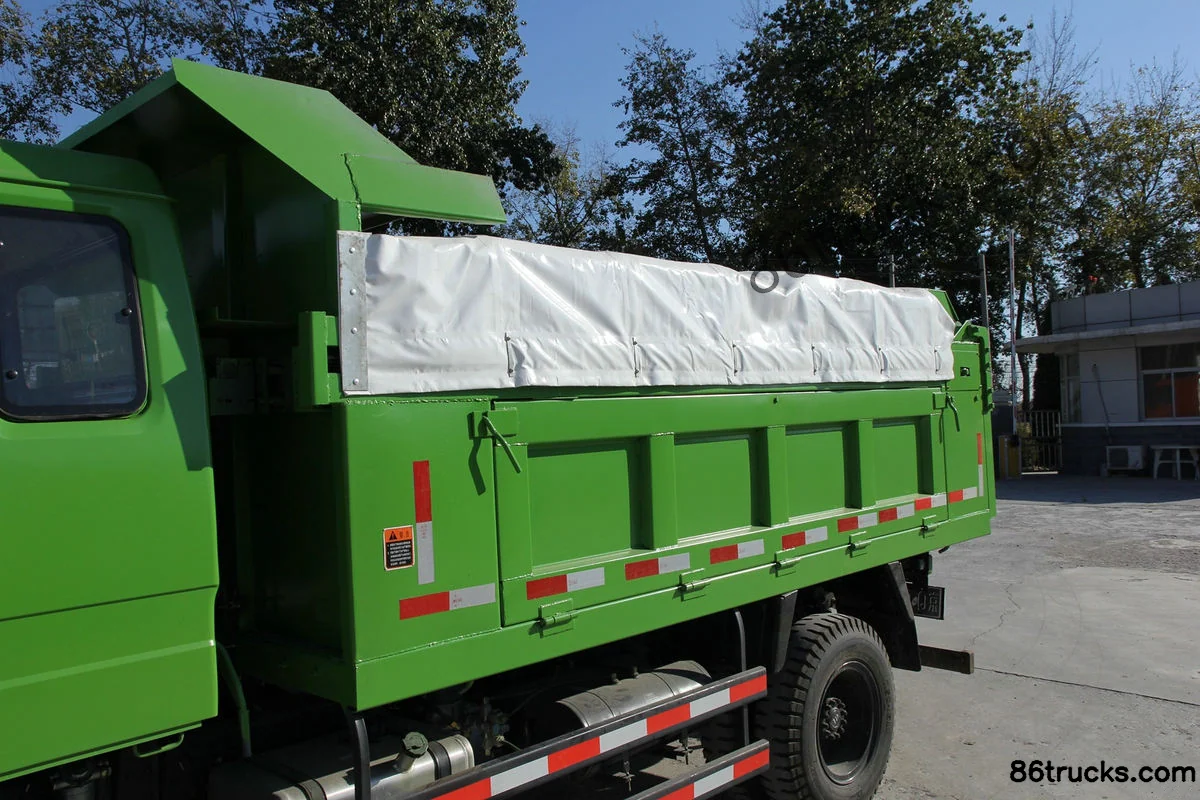

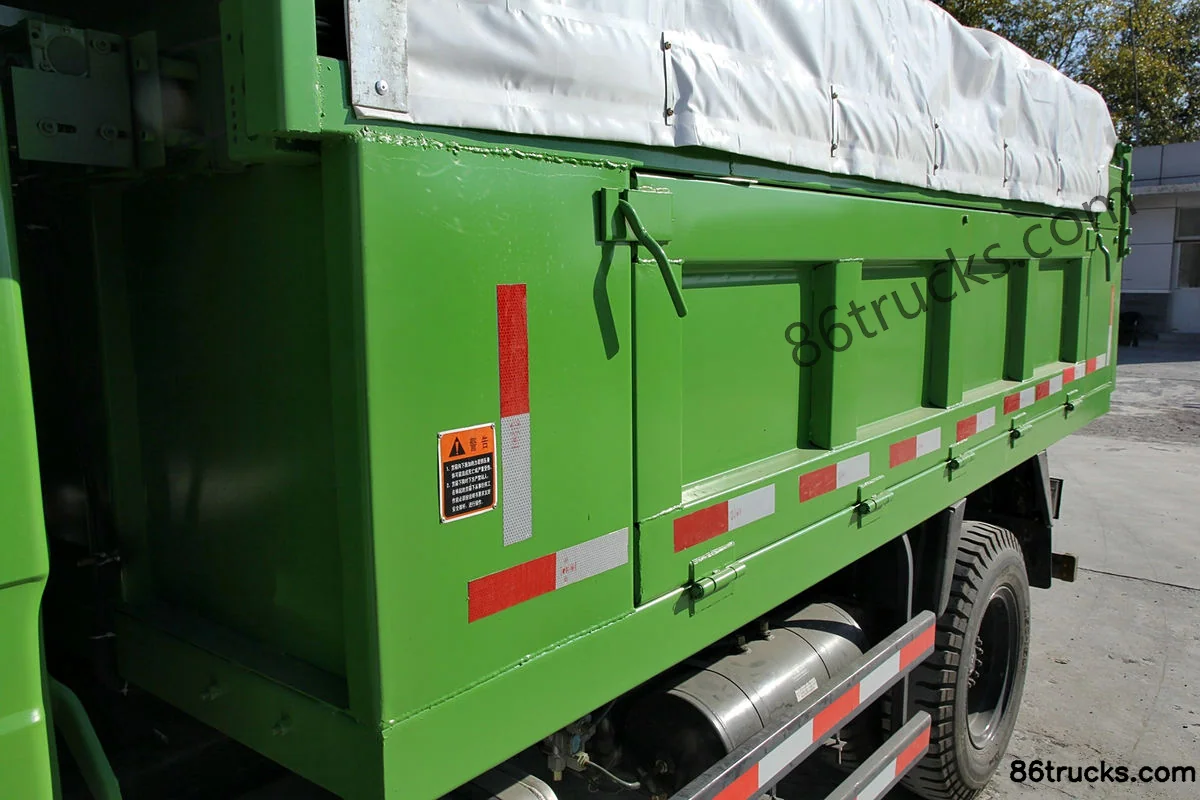

Body3

12 photos

FAQ

What emission standard does Foton King Kong Engineering Type 130 hp 4X2(6 wheels) 4m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton King Kong Engineering Type 130 hp 4X2(6 wheels) 4m Dump Truck?

Key specs of Foton King Kong Engineering Type 130 hp 4X2(6 wheels) 4m Dump Truck: Drive: 4x2; Horsepower: 130 hp; Emission: China IV; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton King Kong Engineering Type 130 hp 4X2(6 wheels) 4m Dump Truck suited for?

Foton King Kong Engineering Type 130 hp 4X2(6 wheels) 4m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton King Kong Engineering Type 130 hp 4X2(6 wheels) 4m Dump Truck differ from other variants in the same series?

Foton King Kong Engineering Type 130 hp 4X2(6 wheels) 4m Dump Truck belongs to Foton King Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton King Kong Engineering Type 130 hp 4X2(6 wheels) 4m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton King Kong Engineering Type 130 hp 4X2(6 wheels) 4m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
