FAW Jiefang J7 Heavy Truck 550 hp 6X4(10 wheels) AMT Automatic Tractor Truck (Red)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3300+1350mm
Tire Size:: 12E22.5
Front axle allowable load:: 7000kg
Displacement:: 12.52L
Drive 6X4 (10 wheels)
Horsepower 550
Emission China V
Transmission FAW Jiefang

Overview

The FAW Jiefang J7 Heavy Truck 550 hp 6X4(10 wheels) AMT Automatic Tractor Truck (Red) is a Heavy truck featuring 6X4 (10 wheels) drive, 550 hp, 25t GVW and China V emissions. Its segment focus covers Express & Freight, matching those duty cycles. On the powertrain side, it comes with a XichaiCA6DM3-55E52 engine, FAW Jiefang transmission and Diesel fuel.

China V 550 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4250P77K25T1E5
Drive type: 6X4
Wheelbase: 3300+1350mm
engine: XichaiCA6DM3-55E52
transmission: FAW JiefangCA12TAX250M5
Cab length: 6.915m
Cab width: 2.55m
Cab height: 4m
Front track width: 2100mm
rear track: 1830/1830mm
Gross Trailer Weight: 40ton
Curb Weight: 8.805ton
GVWR: 25ton
Max. speed: 120km/h
Origin: Changchun/Qingdao/Chengdu
tonnage class: Heavy truck
market segment: Express & Freight
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DM3-55E52
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.52L
Emission standard: China V
Max output power: 407kW
Max hp: 550Horsepower
Max torque: 2300N·m
Max torque speed: 1200-1300rpm
Rated speed: 1800rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: FAW JiefangCA12TAX250M5
Transmission Brand: FAW Jiefang
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: aluminum alloy
Cab parameters
Cab: High-roof flat floor
Cab suspension: Four-point air suspension
seating capacity: 3Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Suspension type: leaf spring suspension
Front axle allowable load: 7000kg
Fifth wheel: 90#
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 2/3
Suspension (front/rear): leaf spring suspension
clutch: Φ430
Tire
Tire Size: 12E22.5
Number of tires: 10pcs
Control configuration
ABS:
ASR traction control:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Independent AC:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

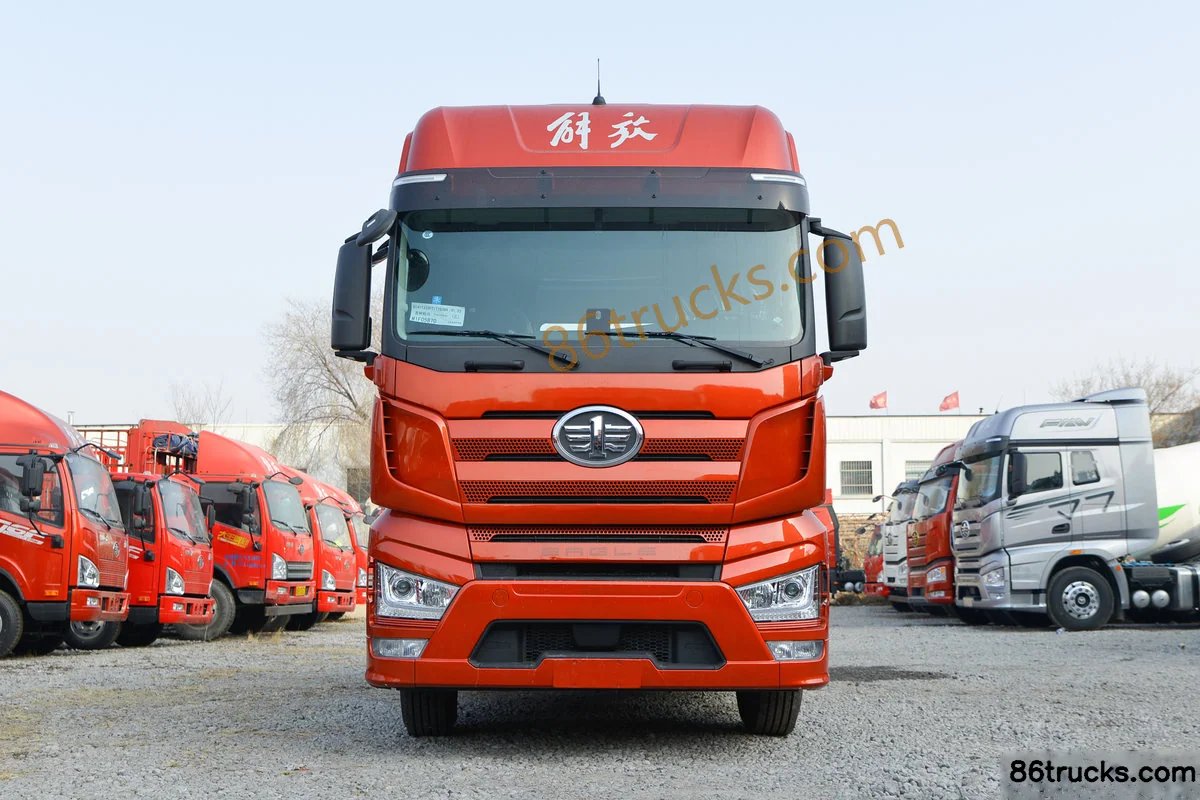

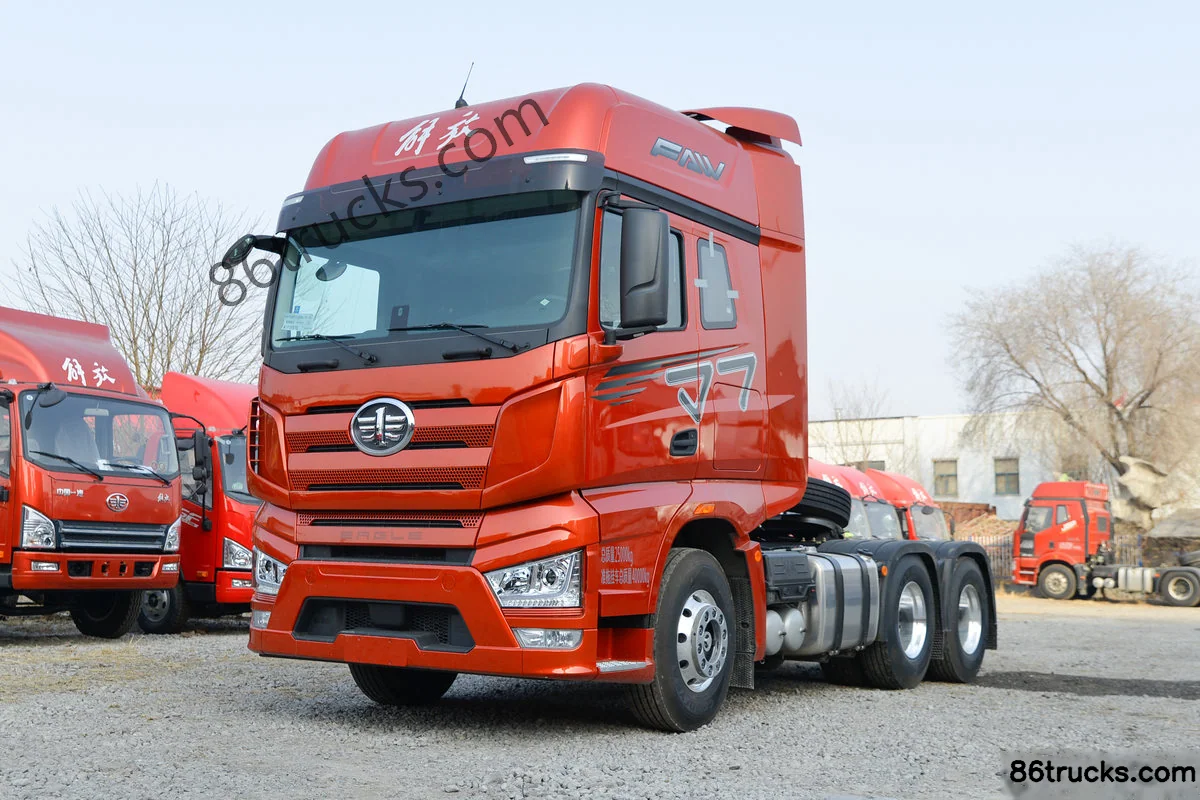

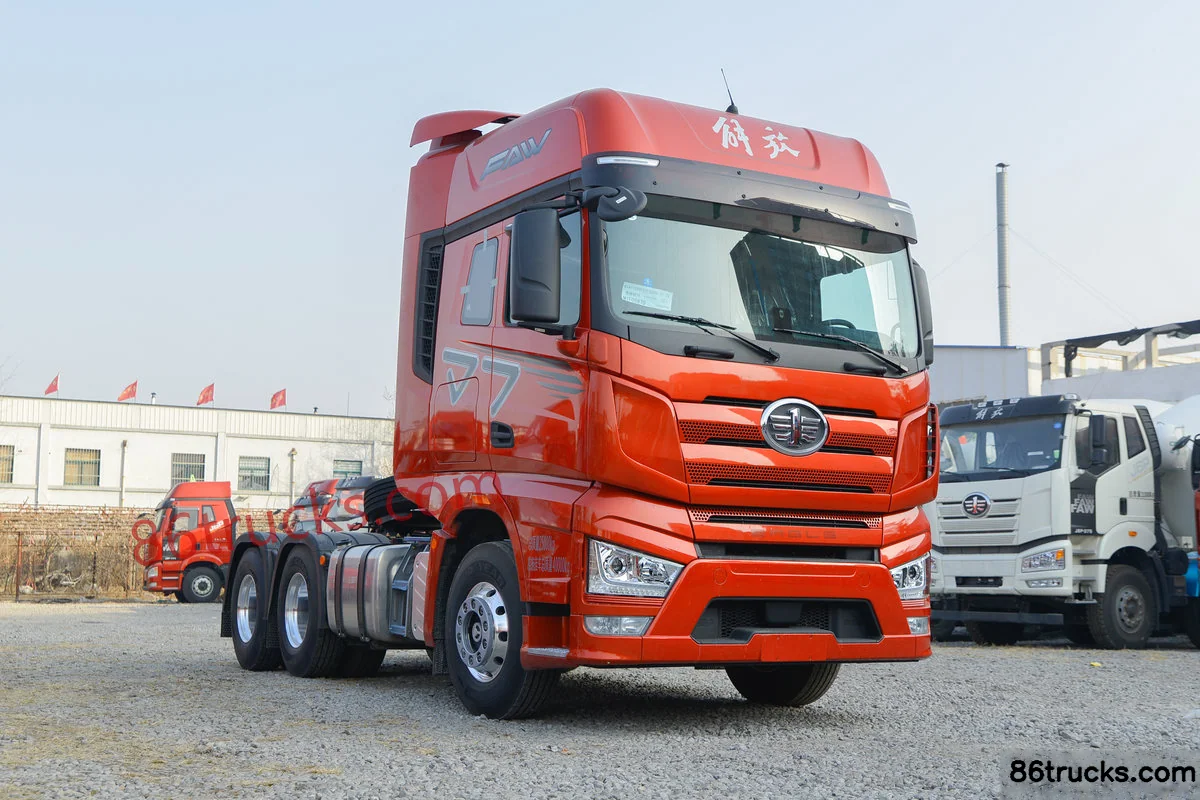

Exterior3

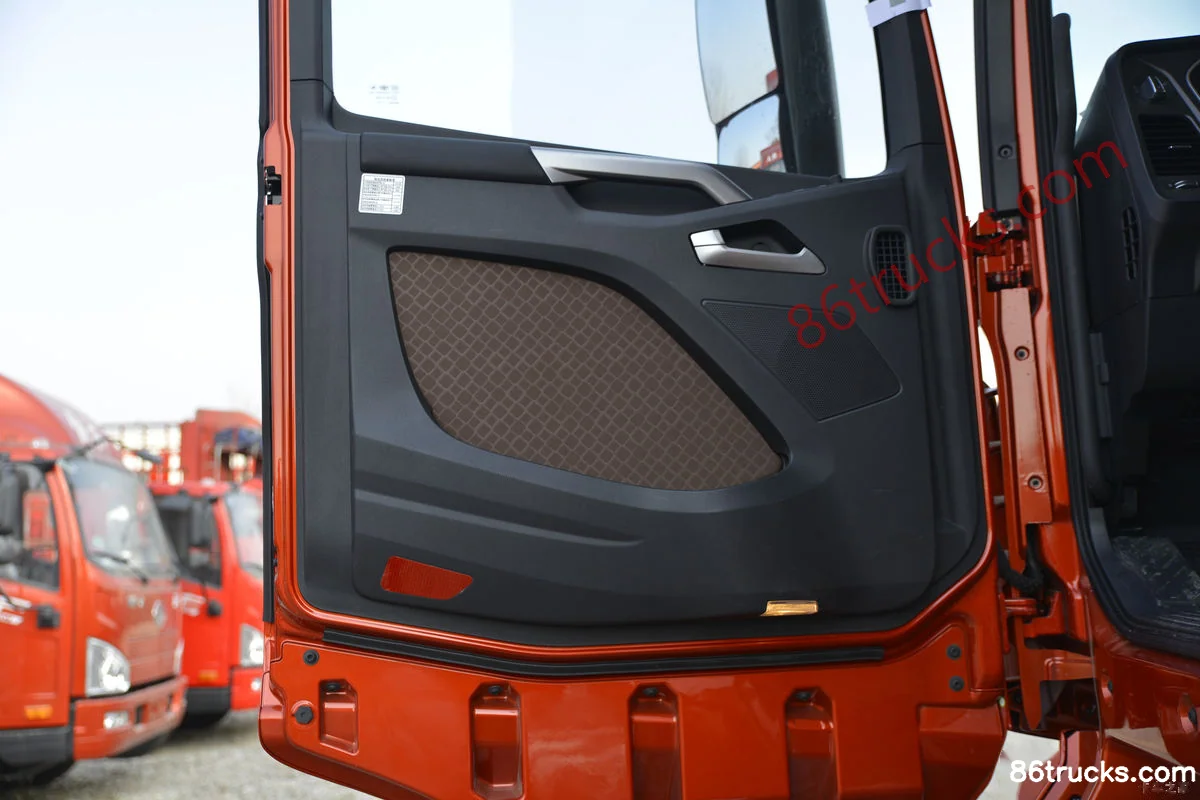

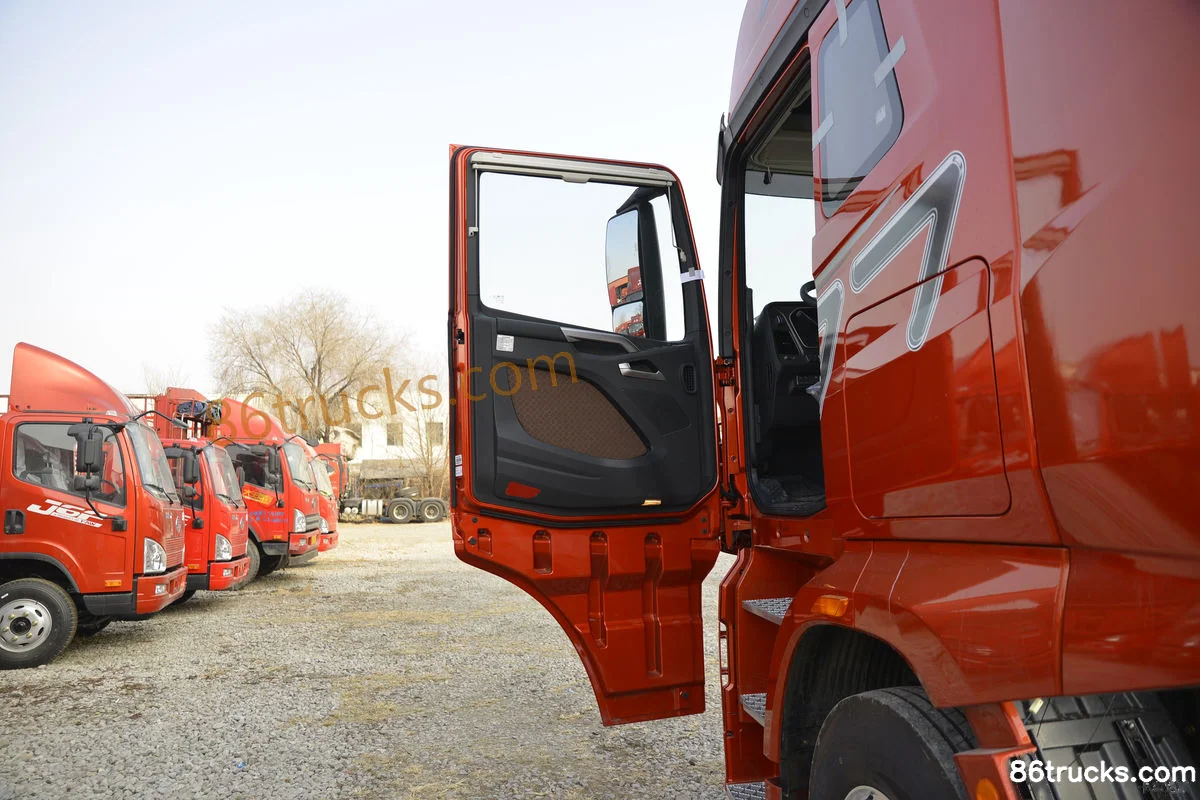

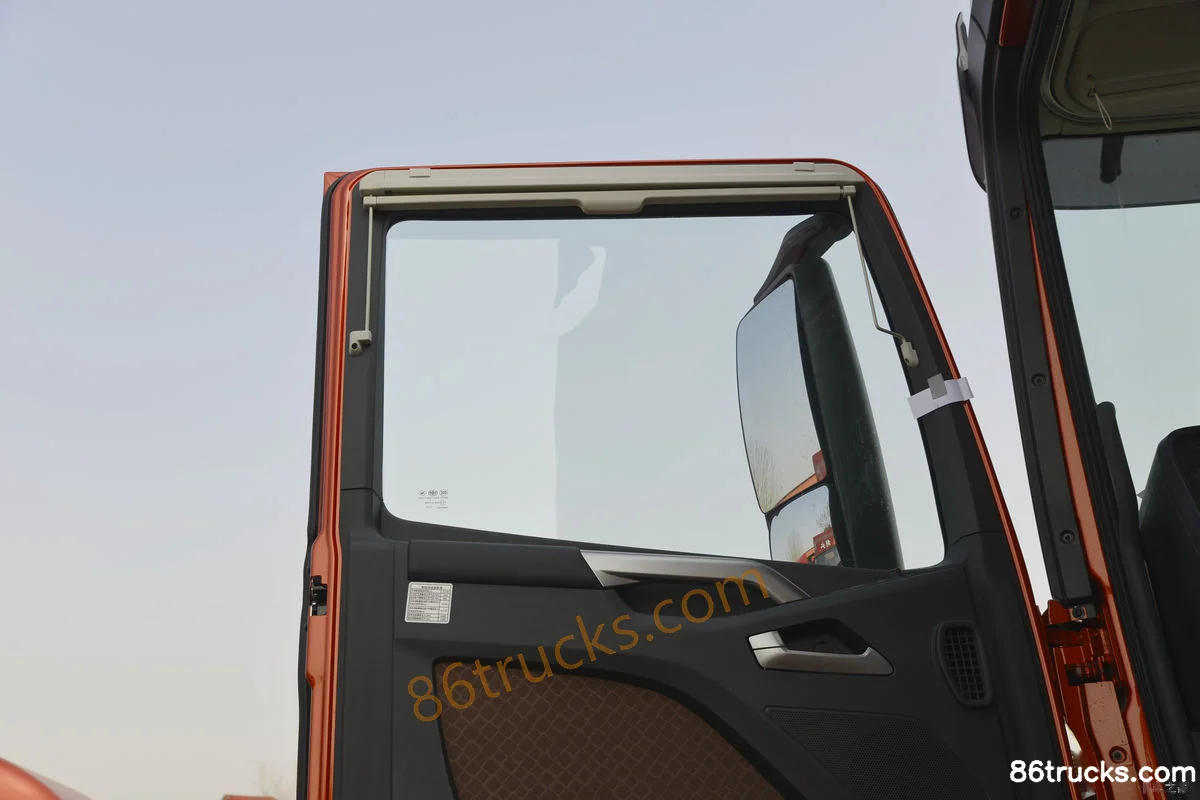

Cab3

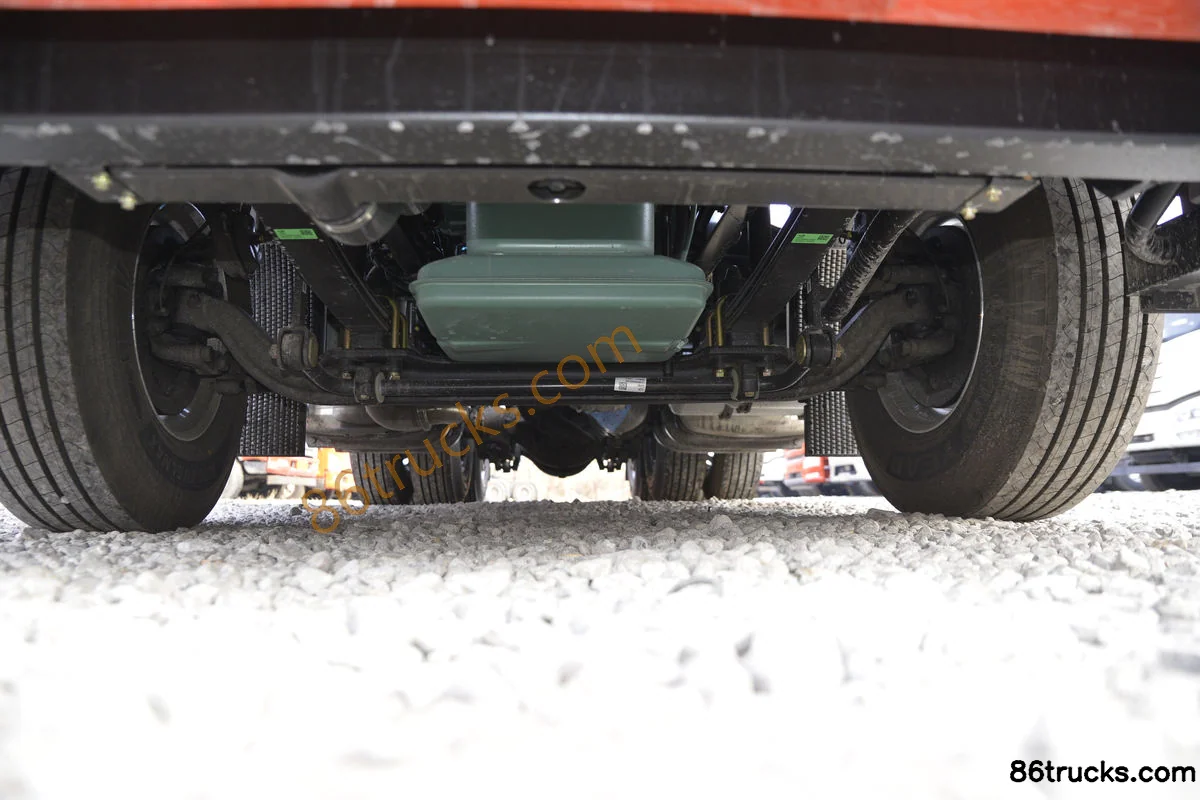

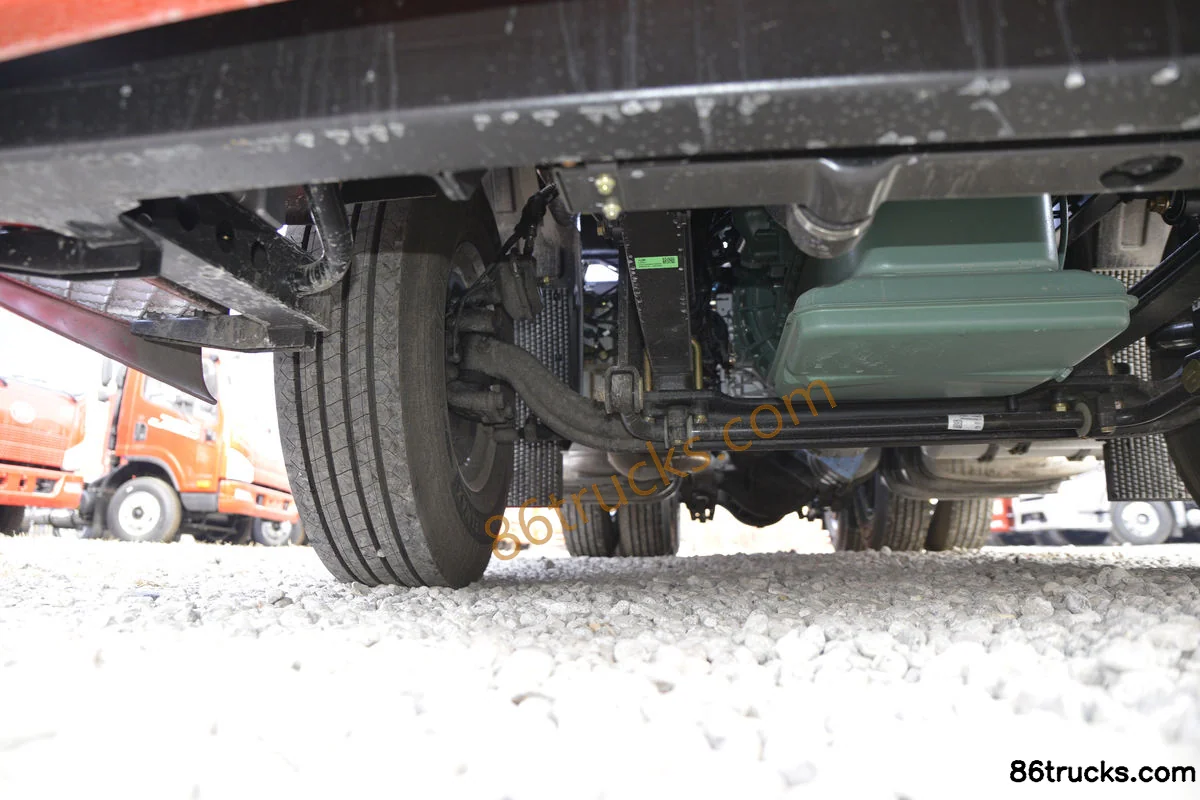

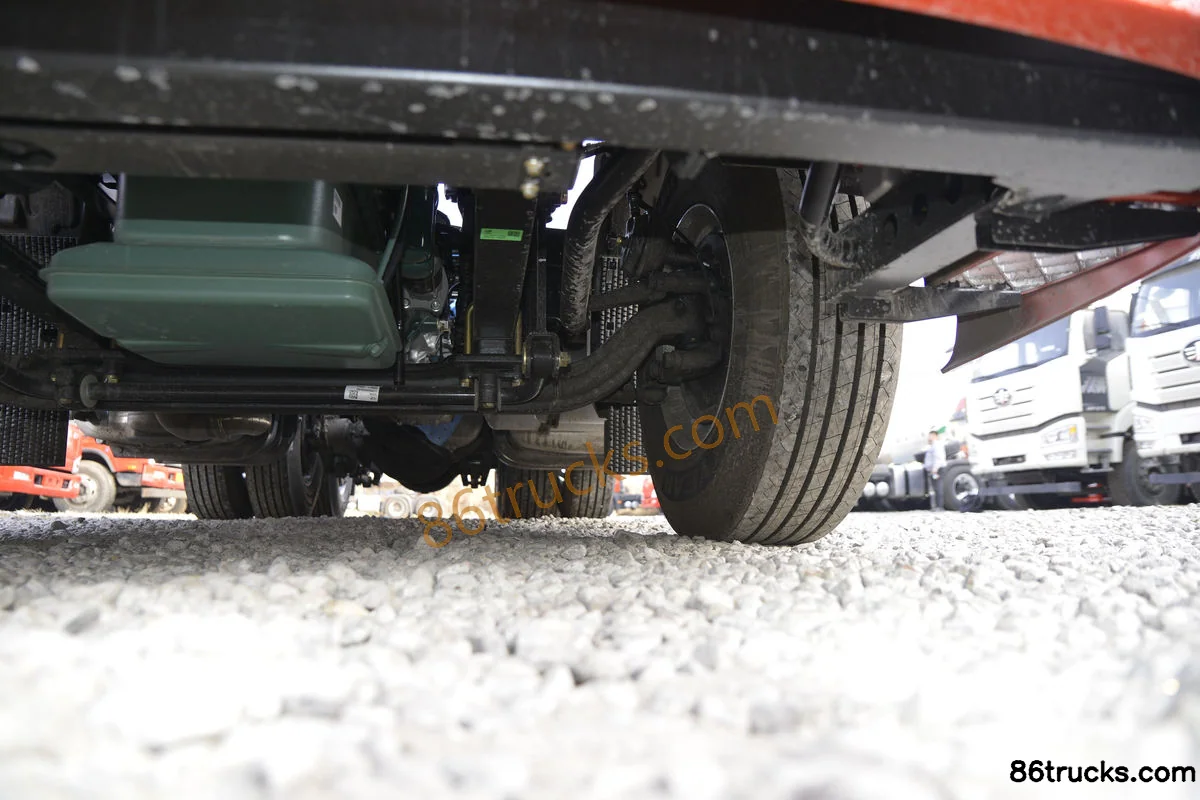

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang J7 Heavy Truck 550 hp 6X4(10 wheels) AMT Automatic Tractor Truck (Red) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J7 Heavy Truck 550 hp 6X4(10 wheels) AMT Automatic Tractor Truck (Red)?

Key specs of FAW Jiefang J7 Heavy Truck 550 hp 6X4(10 wheels) AMT Automatic Tractor Truck (Red): Drive: 6x4; Horsepower: 550 hp; Emission: China V; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J7 Heavy Truck 550 hp 6X4(10 wheels) AMT Automatic Tractor Truck (Red) suited for?

FAW Jiefang J7 Heavy Truck 550 hp 6X4(10 wheels) AMT Automatic Tractor Truck (Red) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang J7 Heavy Truck 550 hp 6X4(10 wheels) AMT Automatic Tractor Truck (Red) differ from other variants in the same series?

FAW Jiefang J7 Heavy Truck 550 hp 6X4(10 wheels) AMT Automatic Tractor Truck (Red) belongs to FAW Jiefang J7 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J7 Heavy Truck 550 hp 6X4(10 wheels) AMT Automatic Tractor Truck (Red)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J7 Heavy Truck 550 hp 6X4(10 wheels) AMT Automatic Tractor Truck (Red)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
