FAW Jiefang J6V 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 118kWh

Export reference
MSRP N/A
Gross Trailer Weight:: 37.87ton
Front axle allowable load:: 7000kg
Wheelbase:: 4000+1350mm
Emission: China VI
Fuel: LNG (liquefied natural gas)
Model code (announced):: CA4250P66M03T1E6REEV
Drive 6X4 (10 wheels)
Battery Brand: CATL
Motor 1 Brand: FAW Jiefang
Horsepower 300

Overview

The FAW Jiefang J6V 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 118kWh is a Heavy truck featuring CATL battery/range, FAW Jiefang motor, 6X4 (10 wheels) drive and 7000kg payload. On the powertrain side, it comes with 300 hp.

China VI 300 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4250P66M03T1E6REEV
Drive type: 6X4
Wheelbase: 4000+1350mm
Front/rear track width: Front track: 2050mm; Rear track: 1880/1880mm
Cab length: 7.6m
Cab width: 2.55m
Cab height: 3.95m
Gross Trailer Weight: 37.87ton
Curb Weight: 11ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Changchun, Jilin
tonnage class: Heavy truck
Energy Type: Hybrid
electric motor
Motor 1 Brand: FAW Jiefang
Motor 1 Model: CAM255PT52/CAM255PT52
Motor Type: Permanent magnet synchronous motor
Peak power: 480kW
Motor 1 Peak Power: 240kW
Engine parameters
Engine Brand: Yuchai
Engine Model: YCK08300N-60
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 7.7L
Emission standard: China VI
Max output power: 221kW
Max hp: 300Horsepower
Max torque: 1180N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 118kWh
Cab parameters
Cab: J6V flat-floor large-sleeper cab
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Chassis Specs
Front axle description: F5N front axle
Front axle allowable load: 7000kg
rear axle description: Electric Drive Axle
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
EBS electronic braking system:
interior configuration
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Exterior features
Air deflector:
Aluminum air tank:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Forward Collision Warning (FCW):

Photos

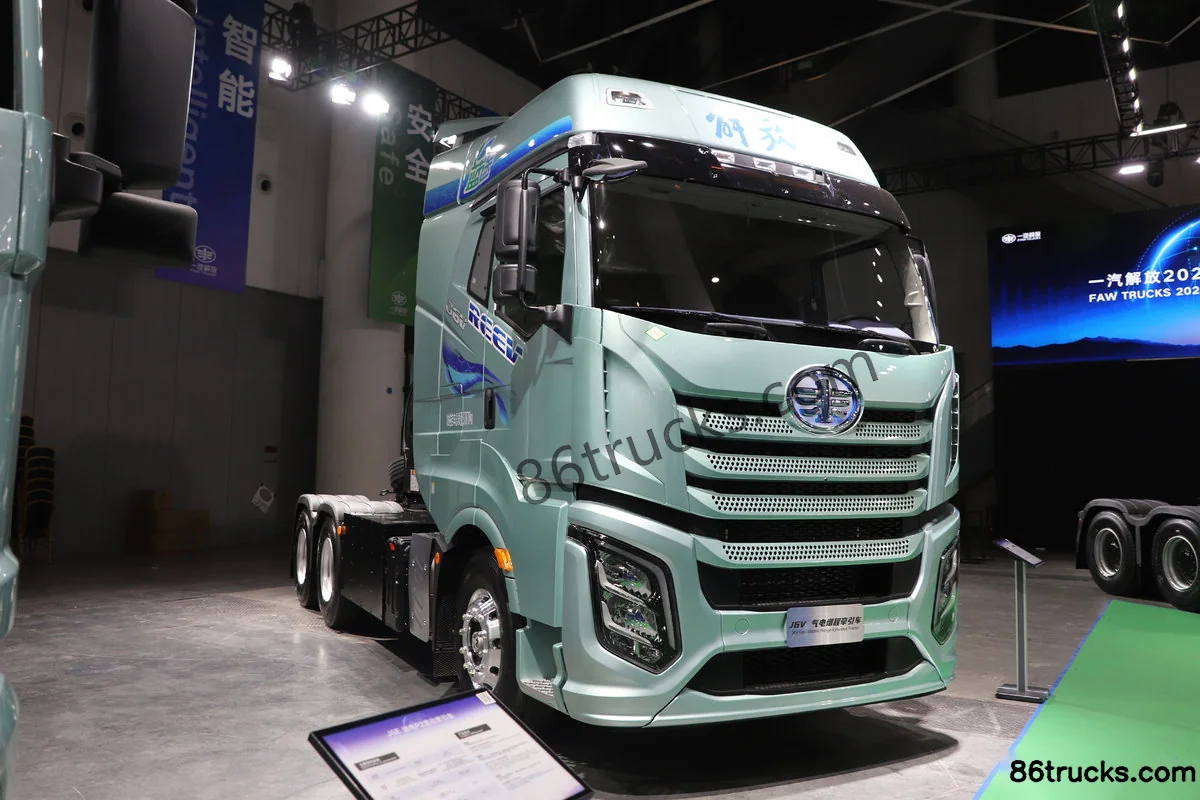

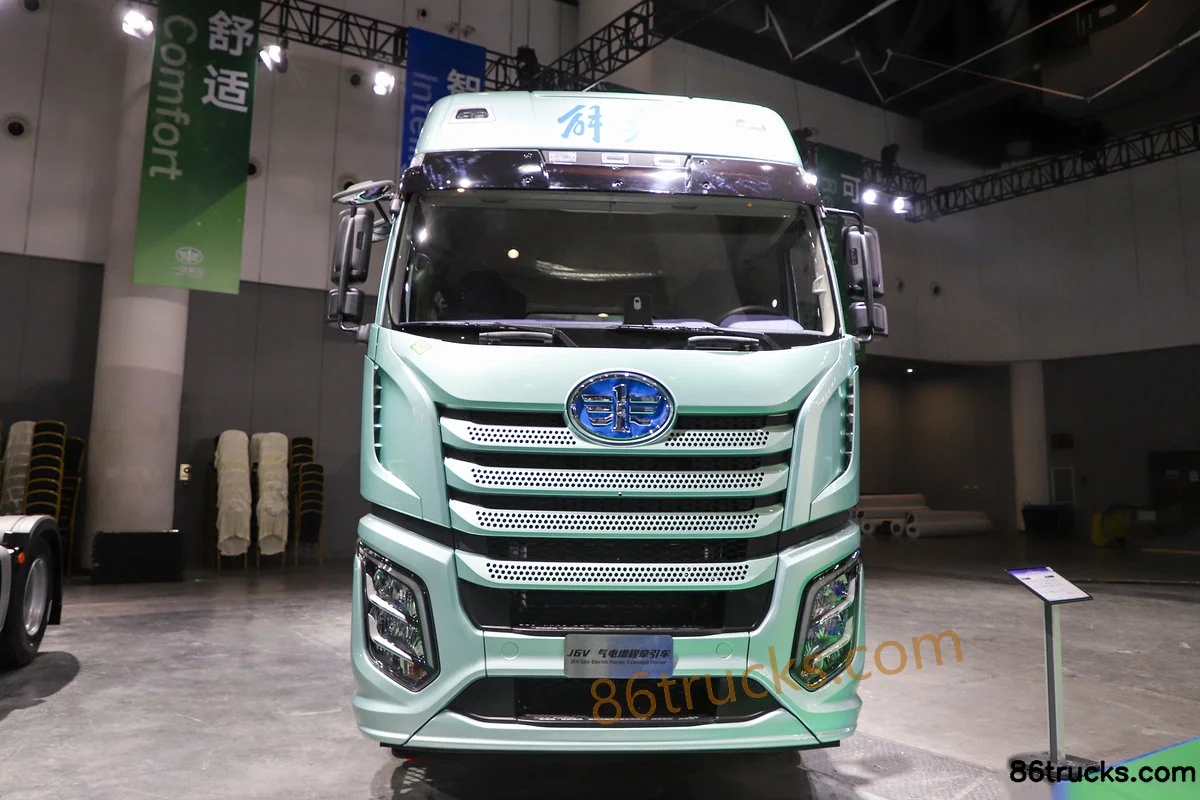

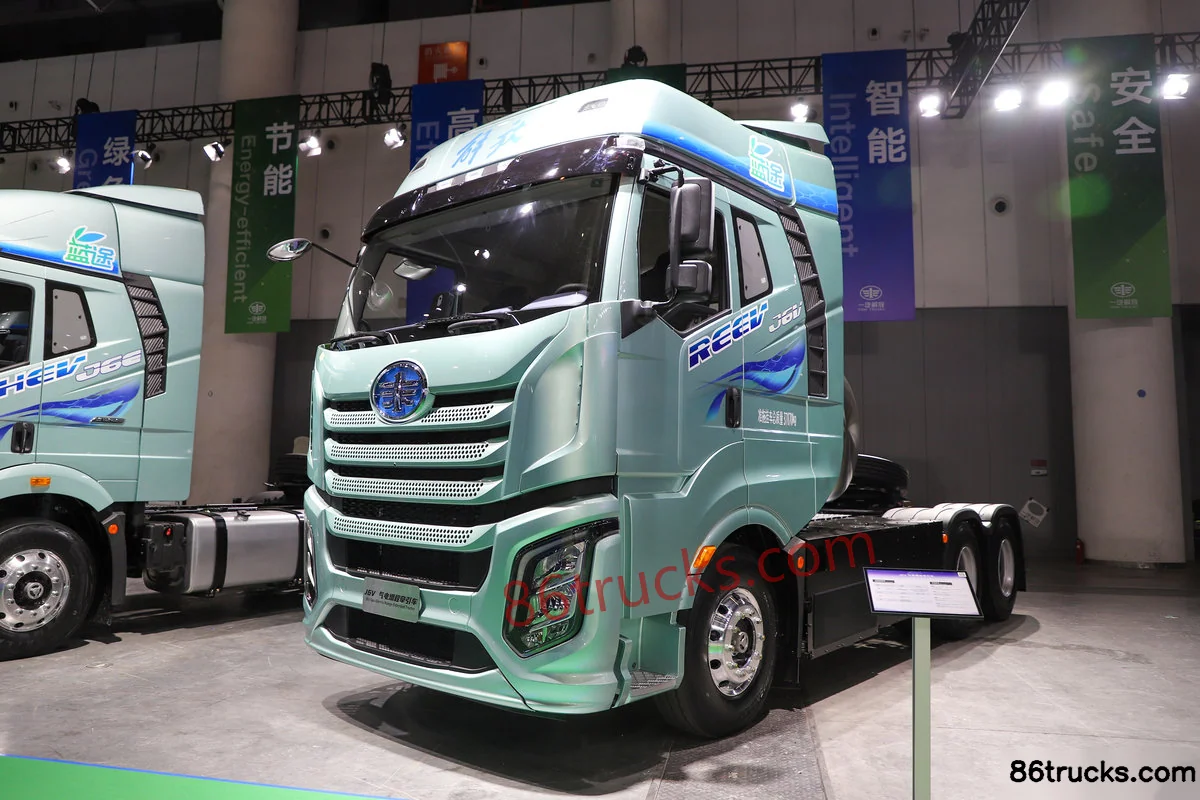

Exterior3

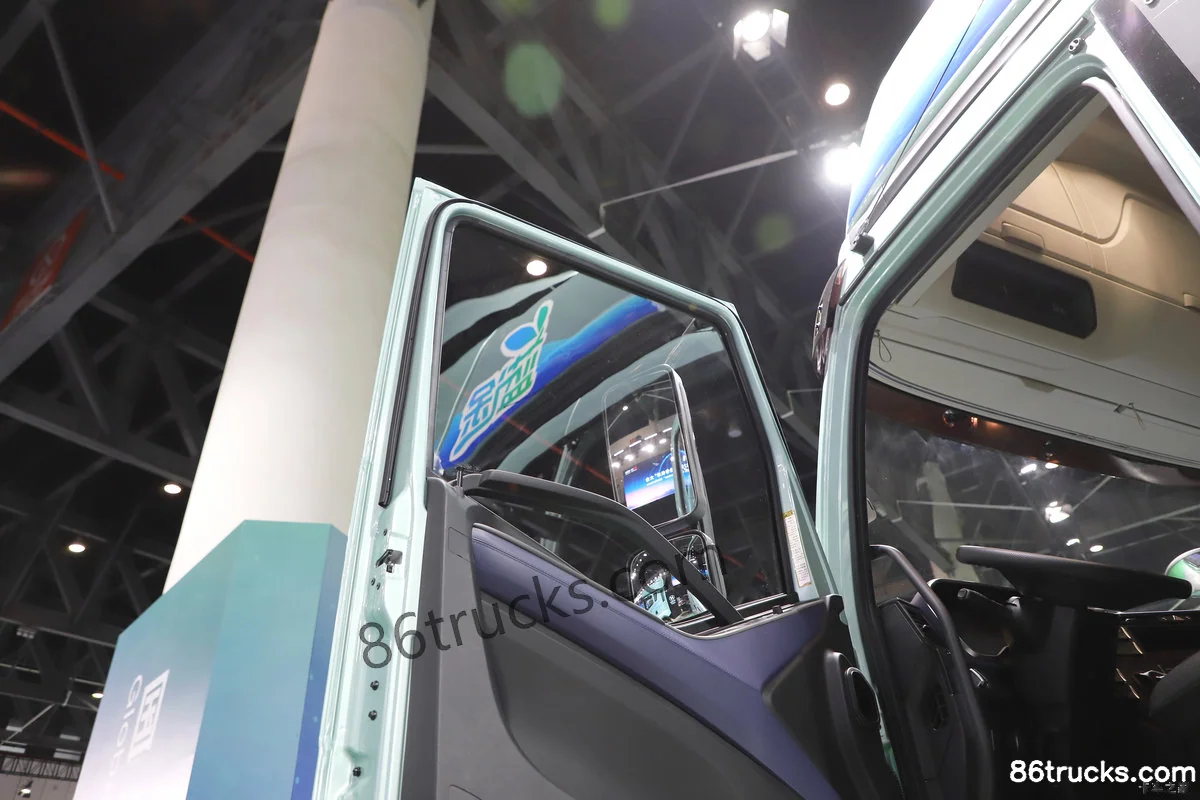

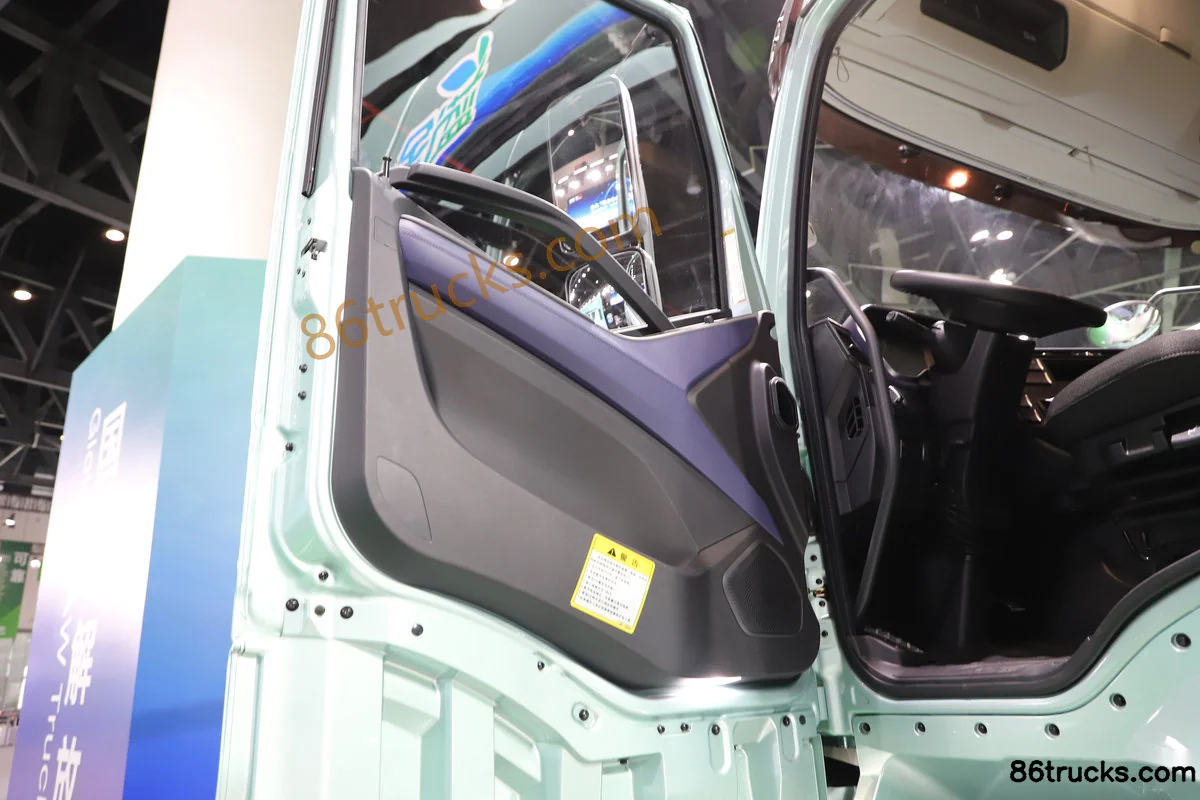

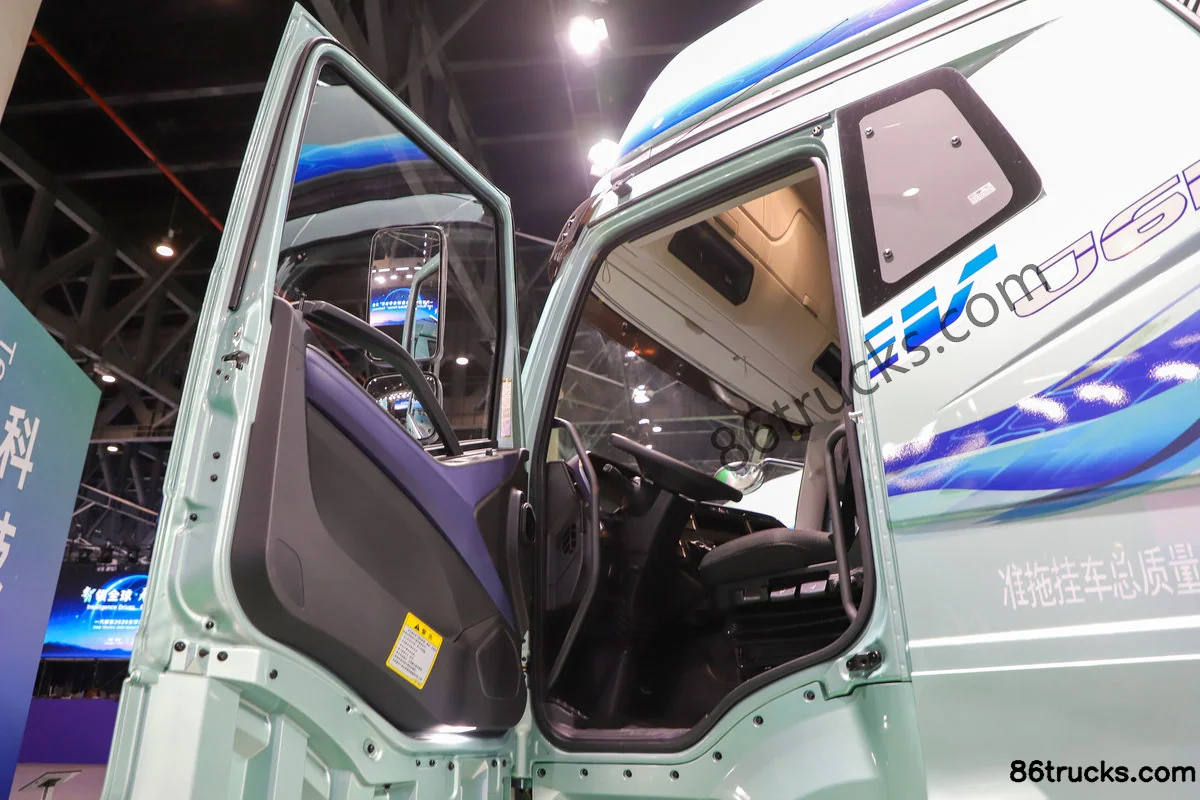

Cab3

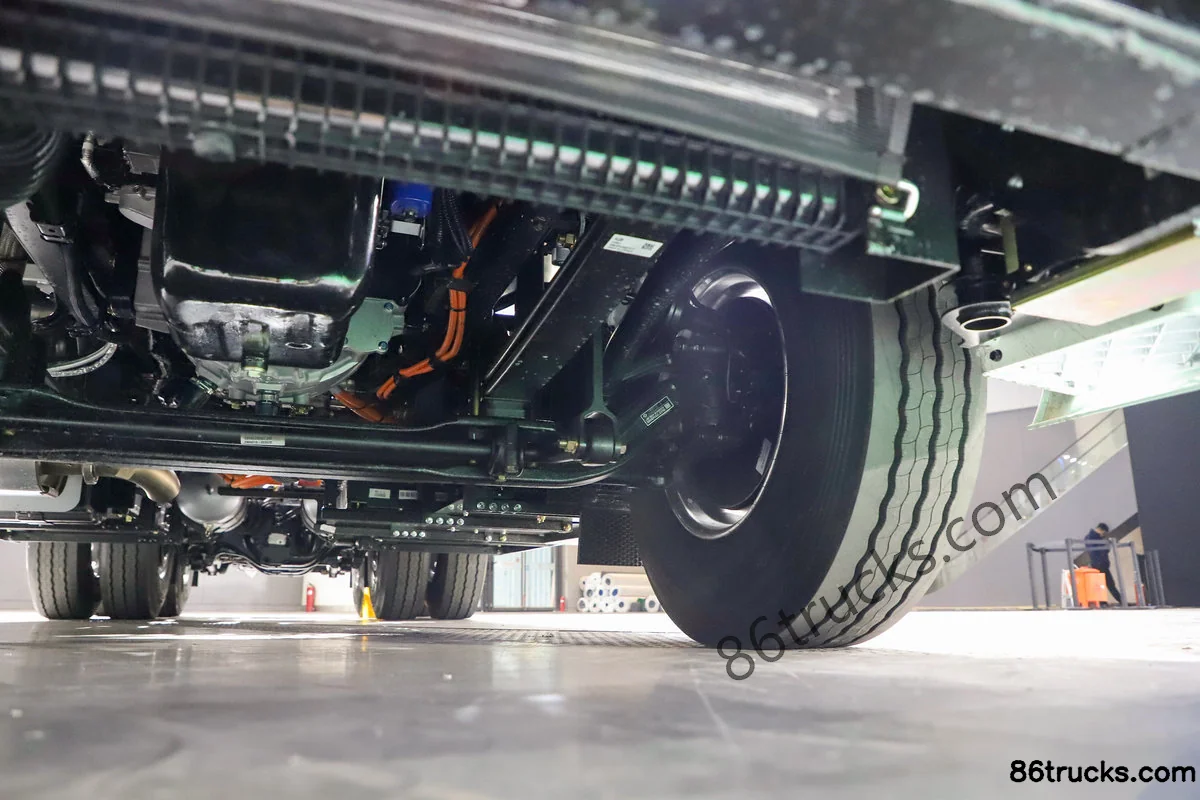

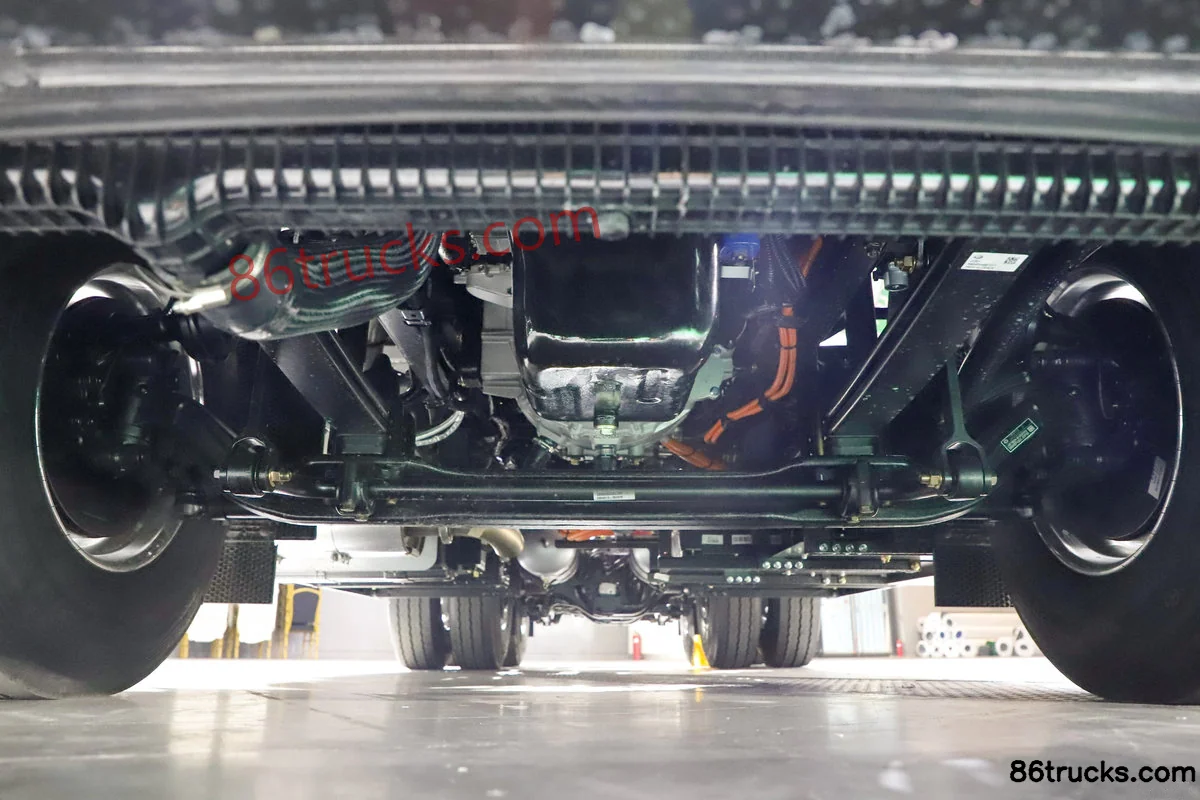

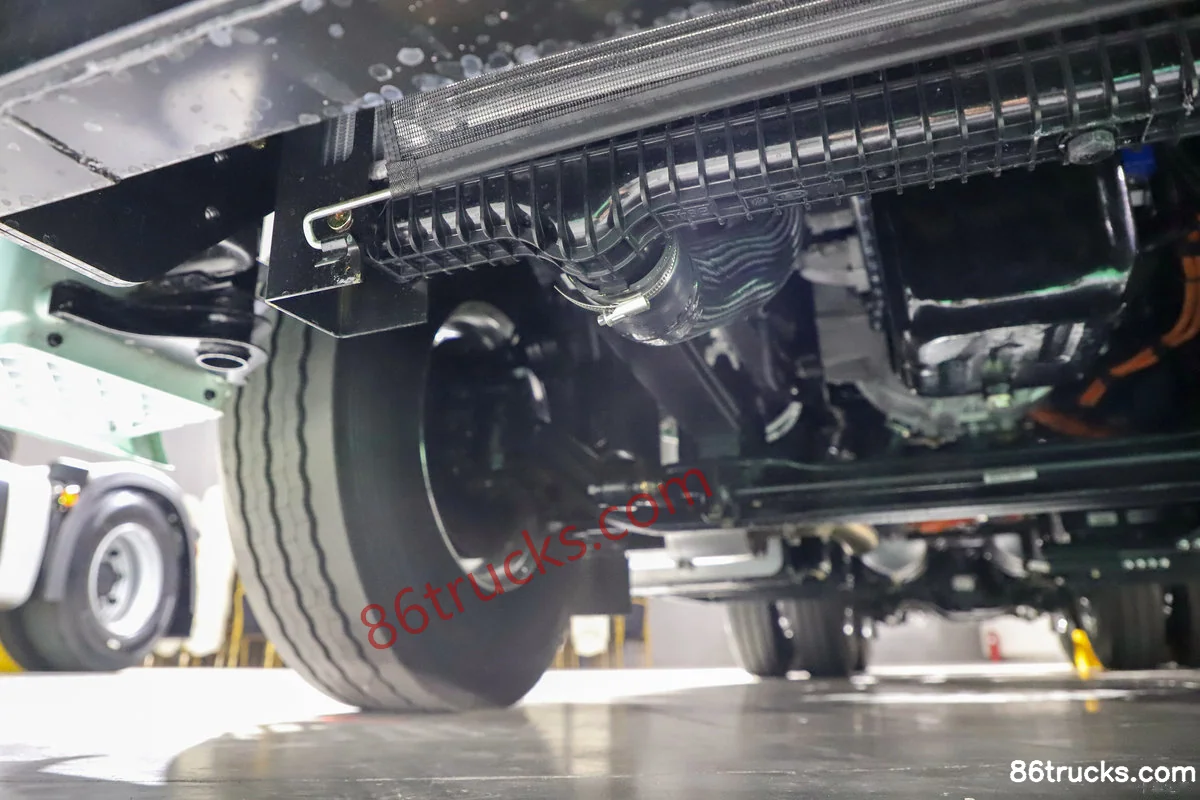

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang J6V 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 118kWh use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6V 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 118kWh?

Key specs of FAW Jiefang J6V 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 118kWh: Drive: 6x4; Horsepower: 300 hp; Emission: China VI; Fuel: LNG (liquefied natural gas). See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6V 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 118kWh suited for?

FAW Jiefang J6V 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 118kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang J6V 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 118kWh differ from other variants in the same series?

FAW Jiefang J6V 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 118kWh belongs to FAW Jiefang J6V Heavy Truck (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6V 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 118kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6V 6X4(10 wheels) Plug-in Extended Range Hybrid Tractor Truck CATL 118kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
