FAW Jiefang J6L Medium Truck Elite Edition 240 hp 4X2(6 wheels) 9.7m Van Cargo Truck

Export reference
From $34,306
MSRP ¥24.7M CNY
Horsepower: 240
Emission: China VI
Fuel: Diesel
Engine: Dachai 6-cylinder
Transmission: FAW Jiefang
Curb Weight:: 7.905ton
seating capacity: 3Personnel
Rated payload: 9.965ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang J6L Medium Truck Elite Edition 240 hp 4X2(6 wheels) 9.7m Van Cargo Truck is a Heavy-duty cargo trucks featuring 9.7m cargo length, Van body cargo body, 3Personnel volume and 9.965t payload. Its segment focus covers Express parcel and LTL, matching those duty cycles. On the powertrain side, it comes with a Dachai 6-cylinder engine, 240 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5180XXYP62K1L5E6
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7100mm
Box length class: 9.7m
engine: DachaiCA6DH1-24E6
transmission: FAW JiefangCA8TAX090M
Rear Axle Ratio: 4.875
Cab length: 11.96m
Cab width: 2.55m
Cab height: 4m
Front track width: 1943mm
rear track: 1860mm
Curb Weight: 7.905ton
Rated payload: 9.965ton
GVWR: 18ton
Origin: Changchun/Qingdao/Chengdu
tonnage class: Heavy-duty cargo trucks
Approach angle: 18°
departure angle: 10°
market segment: Express parcel, LTL
Front/rear suspension: 1.4/3.46m
Version: Elite Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DH1-24E6
Engine info: Dachai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.7L
Emission standard: China VI
Max output power: 194kW
Max hp: 240Horsepower
Max torque: 900N·m
Max torque speed: 1300-1800rpm
Rated speed: 2500rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: FAW JiefangCA8TAX090M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.7m
Cargo box width: 2.46m
Cargo box height: 2.6m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: J6L Semi-floating High Roof with Extended Cab
Cab width: 2250mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle allowable load: 6500kg
Frame Dimensions: 270×75×(7+5)mm
rear axle description: ф378 welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 7/7+6

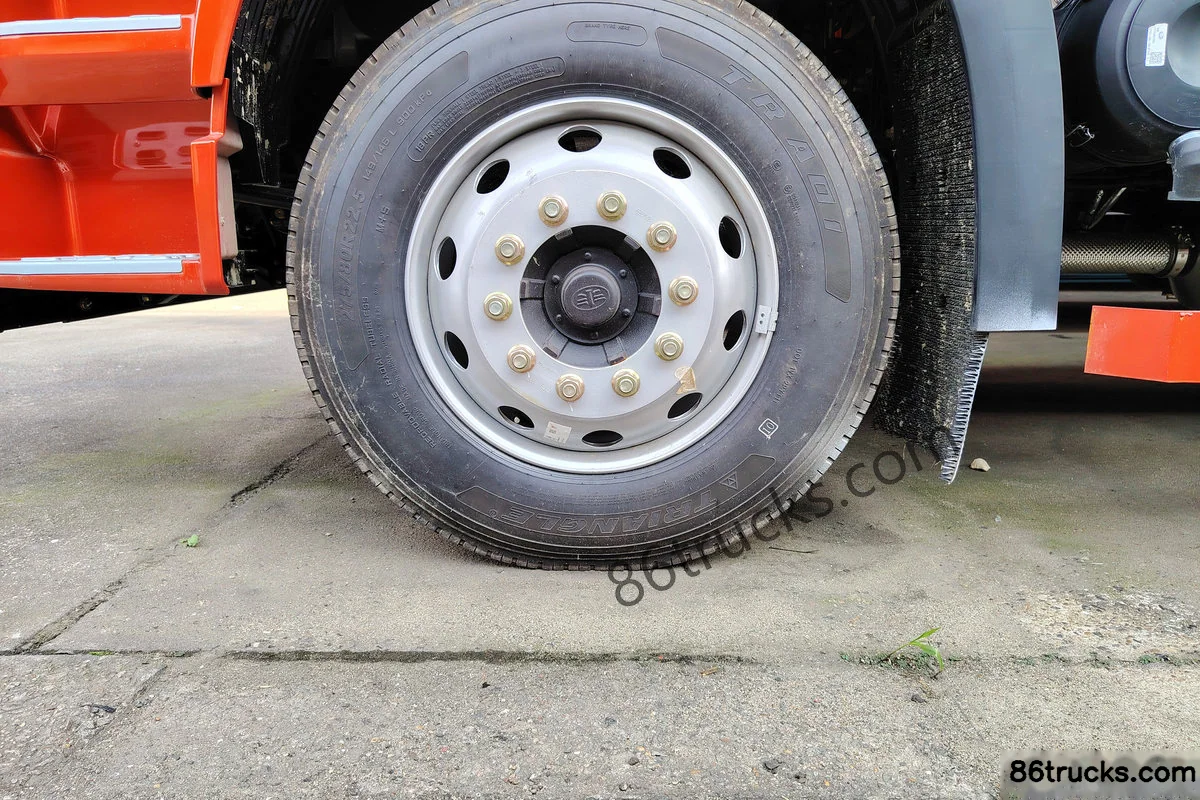

Tire
Tire Size: 10.00R20,275/80R22.5,295/60R22.5
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
Power steering:
EBS electronic braking system:
ASR traction control:
Inter-axle Differential Lock:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface: Optional 220V
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster:
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
Lane Keeping Assist System (B.LKA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:

Photos

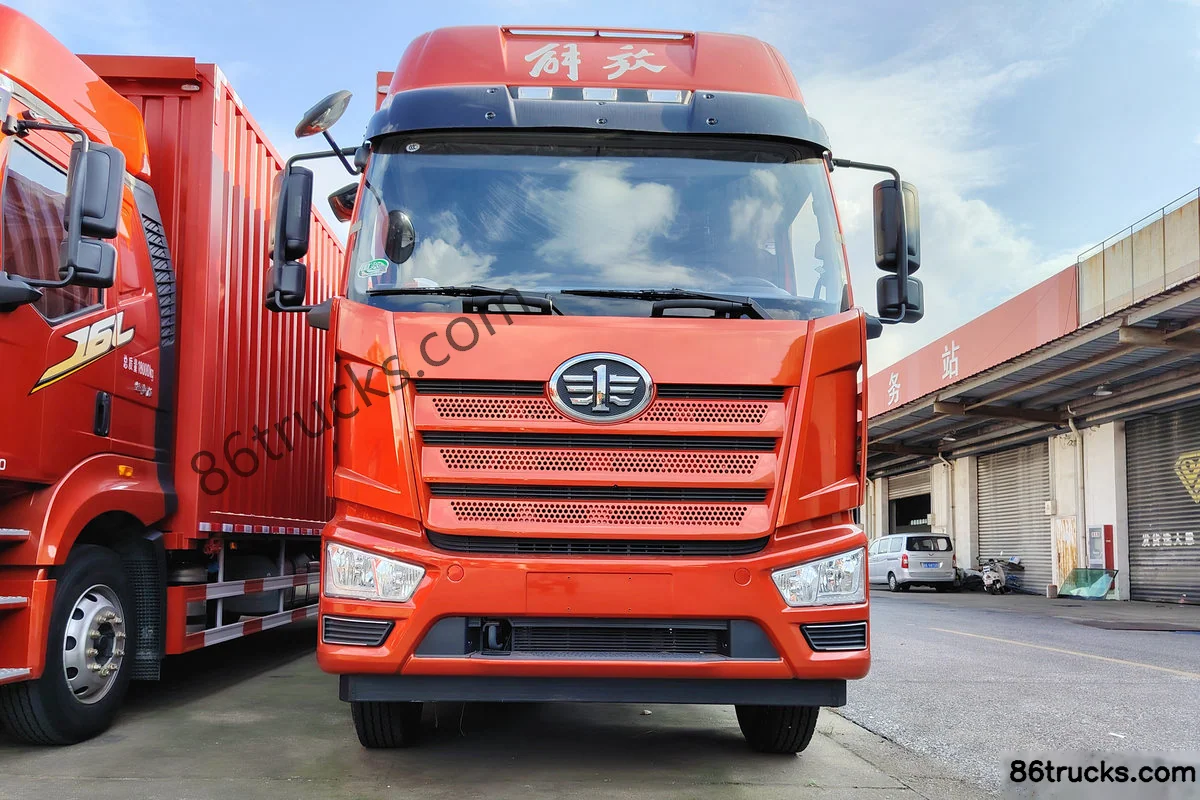

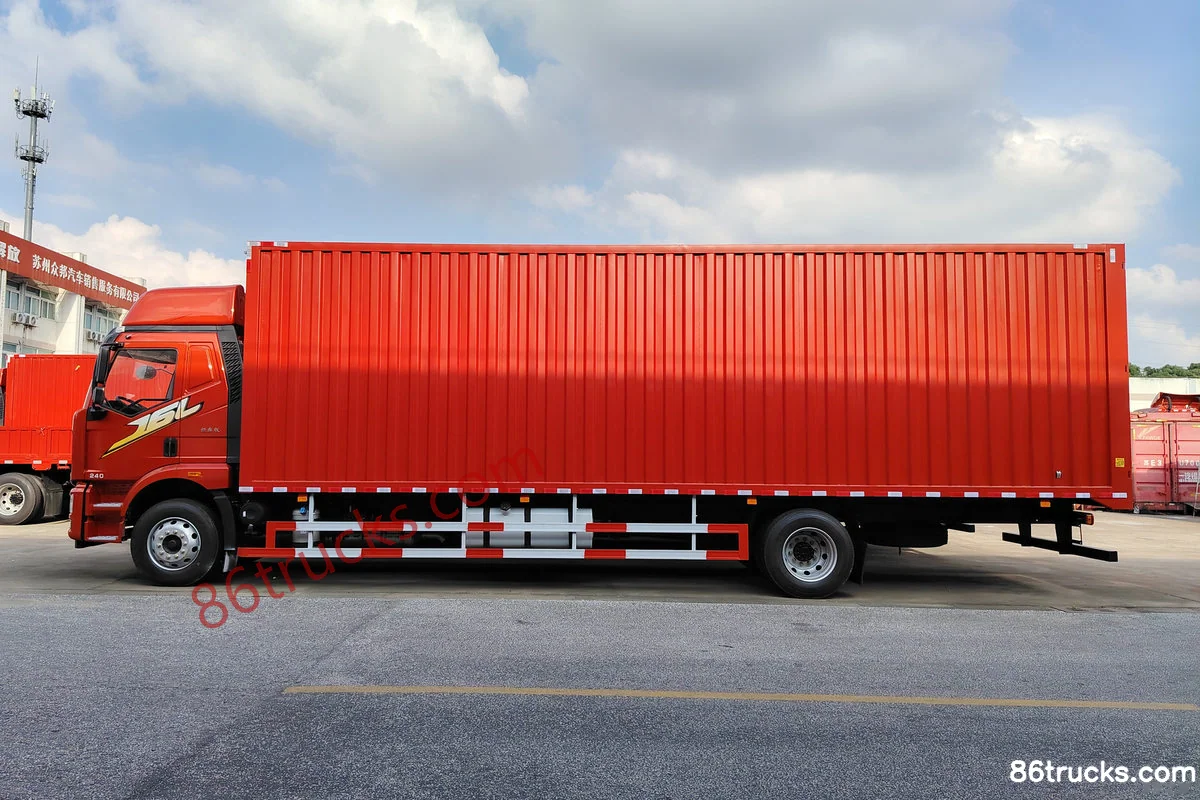

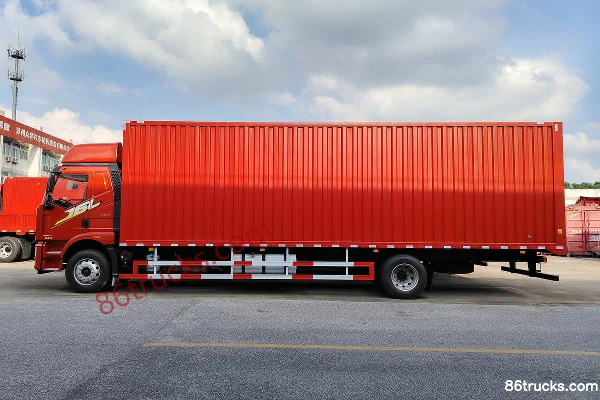

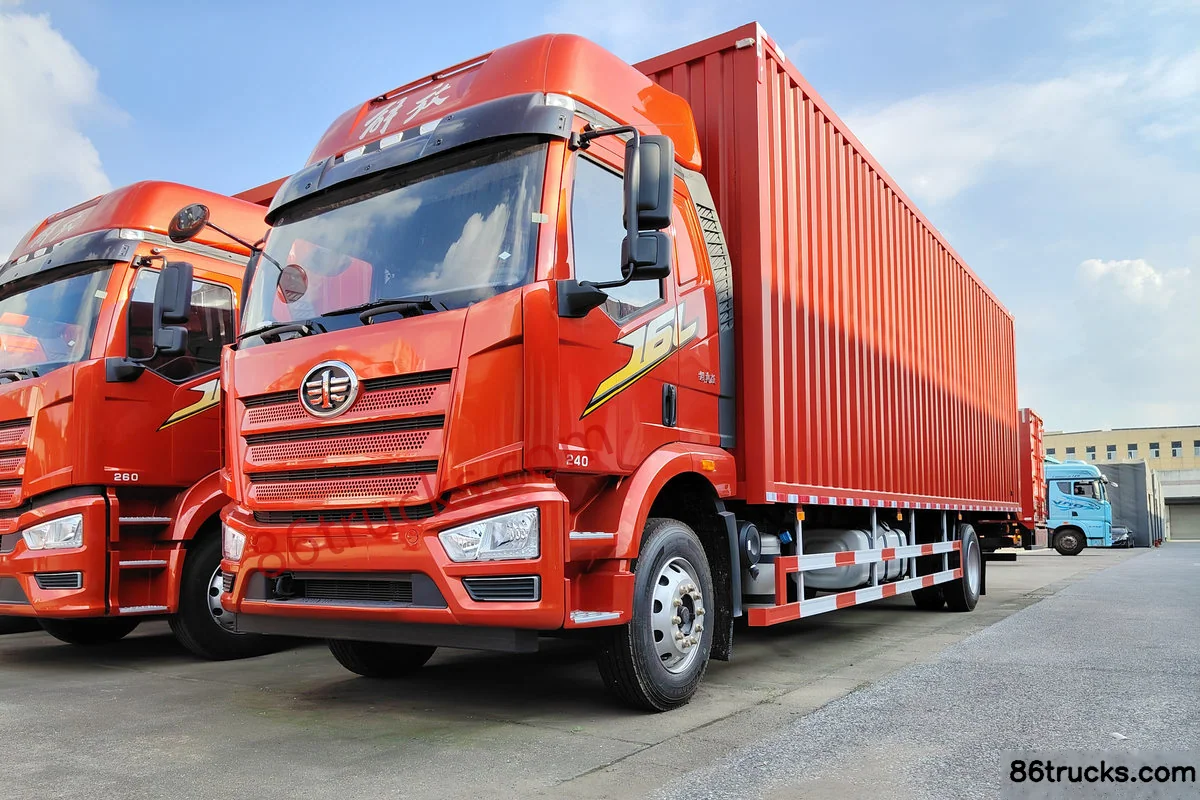

Exterior3

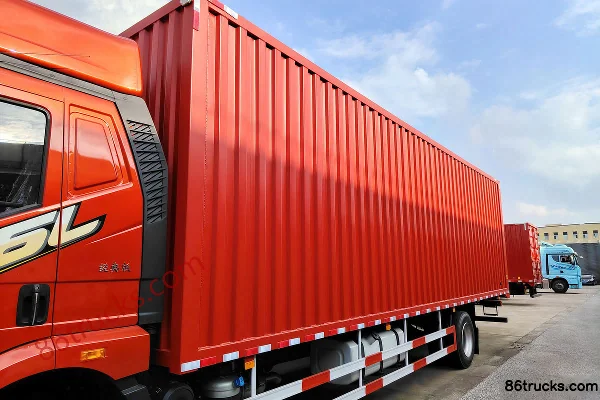

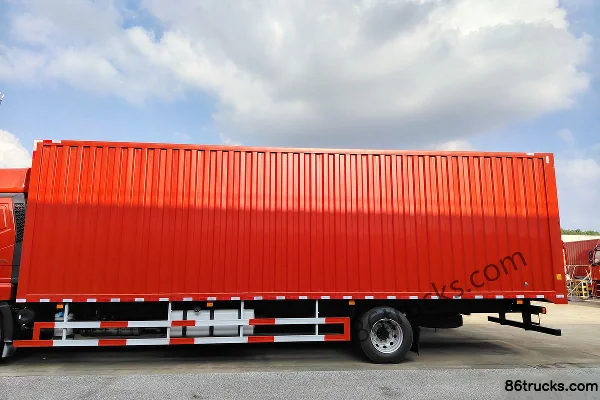

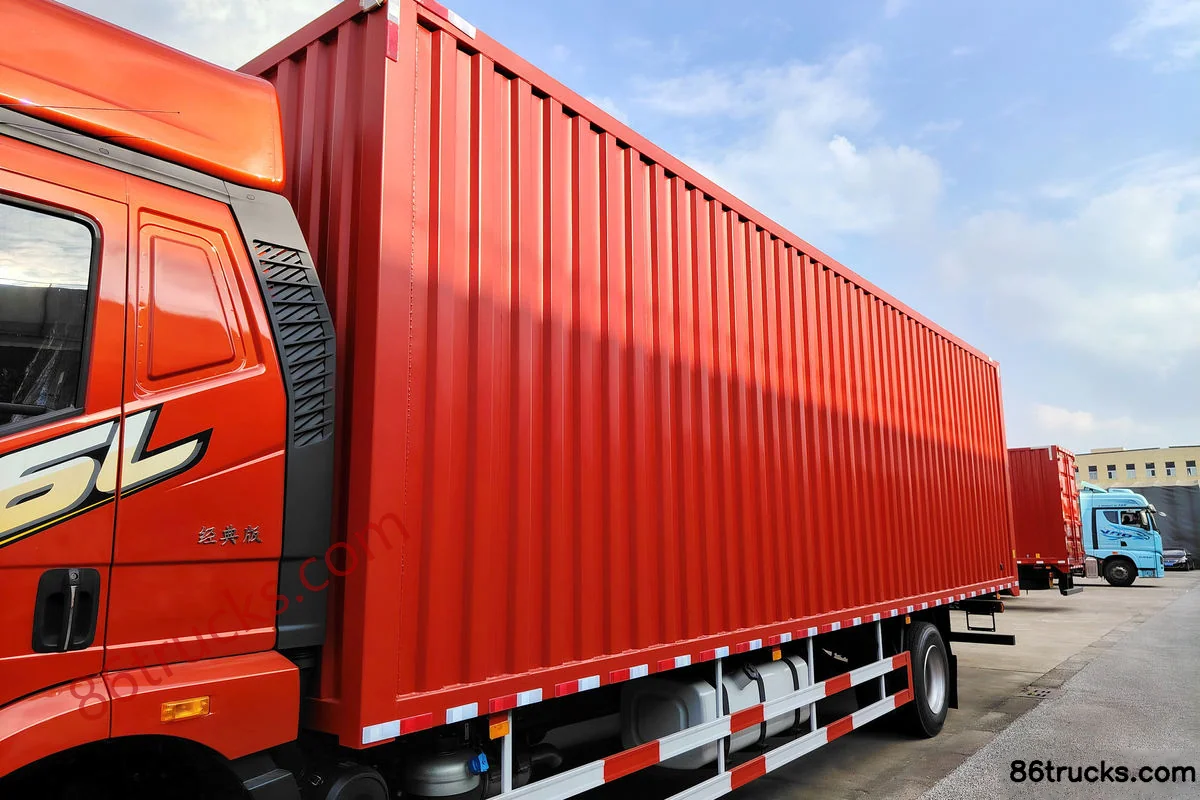

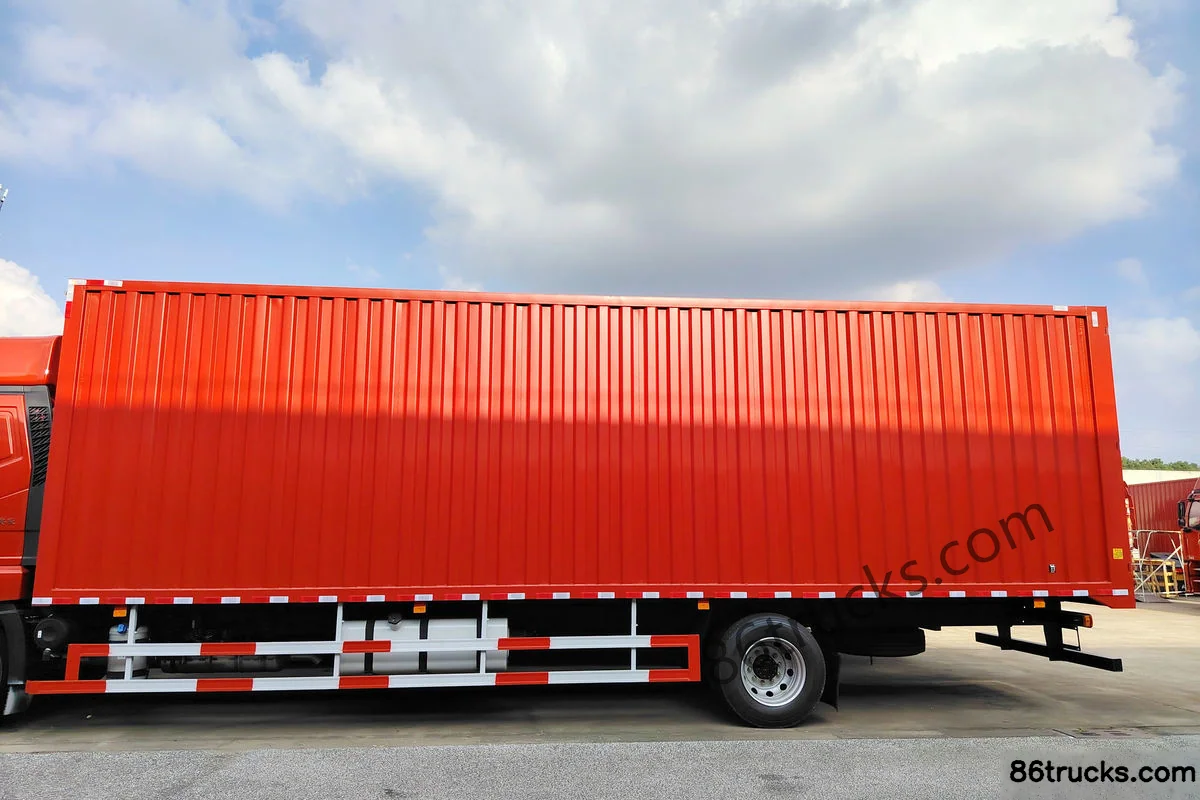

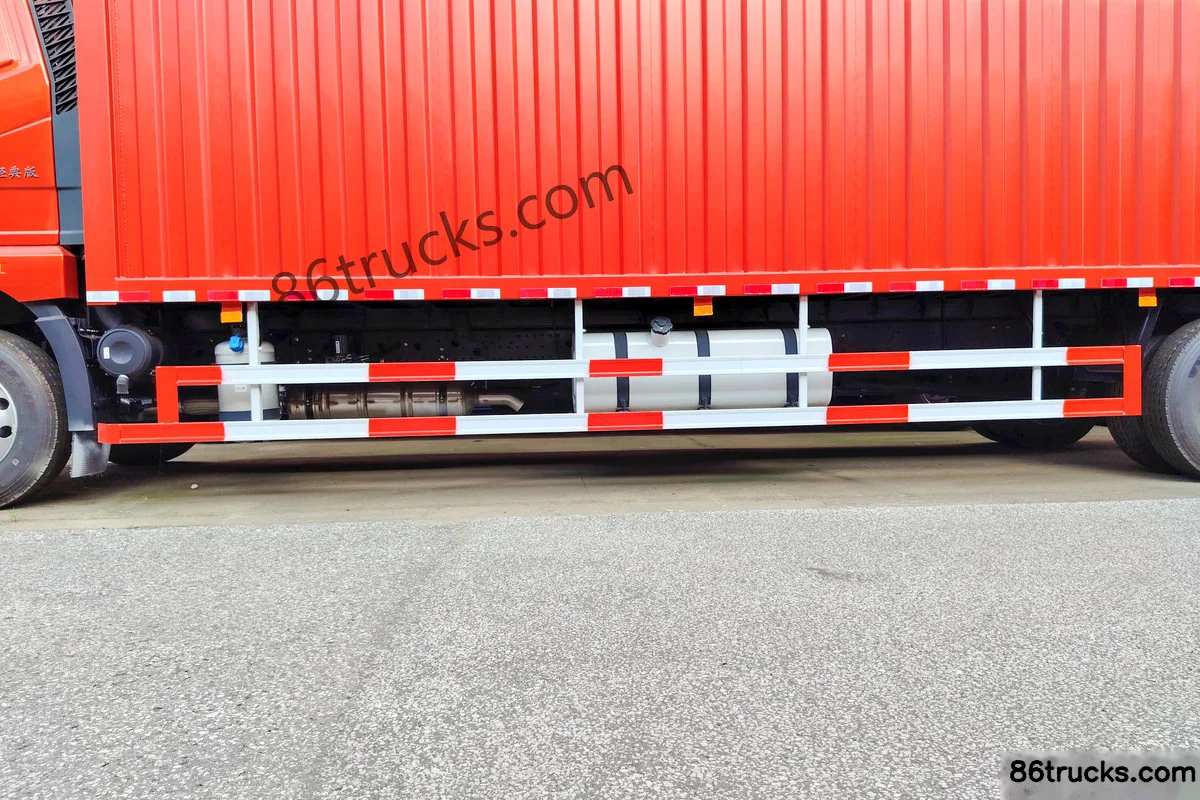

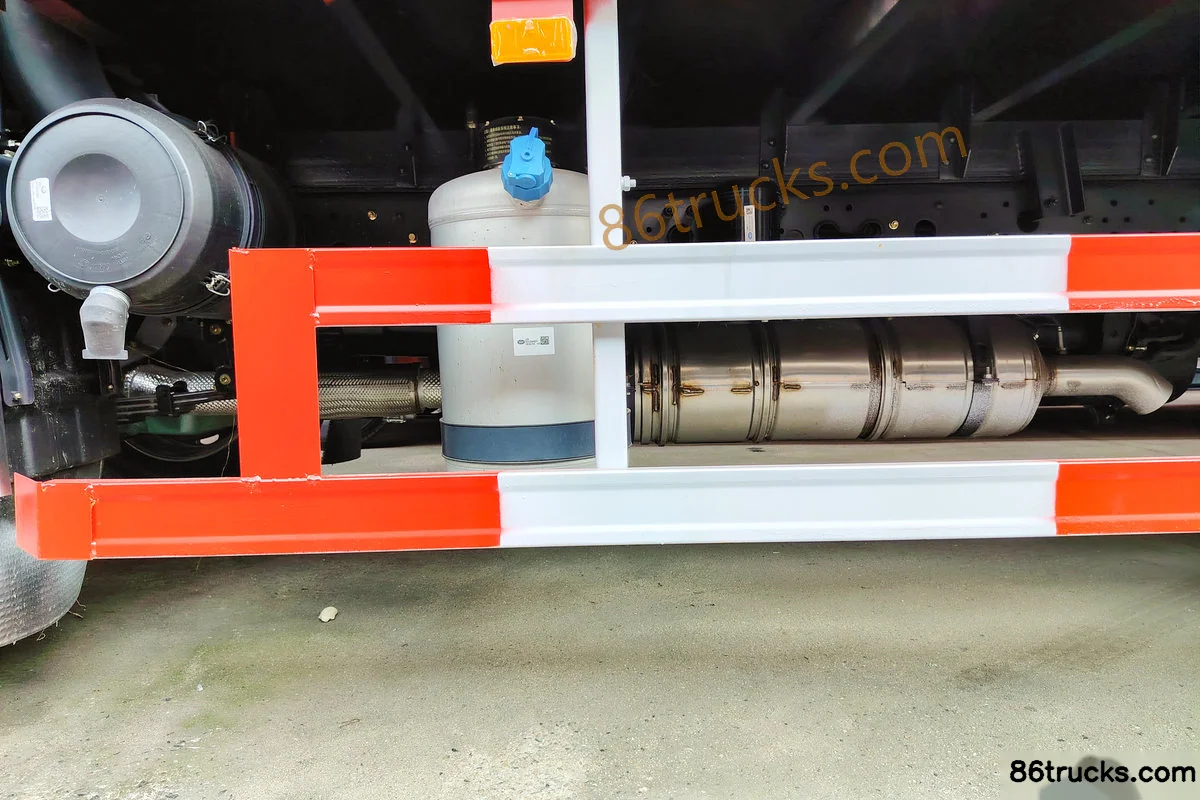

Chassis3

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang J6L Medium Truck Elite Edition 240 hp 4X2(6 wheels) 9.7m Van Cargo Truck, and what does it include?

FAW Jiefang J6L Medium Truck Elite Edition 240 hp 4X2(6 wheels) 9.7m Van Cargo Truck export reference is about From $34,306; MSRP is ¥24.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J6L Medium Truck Elite Edition 240 hp 4X2(6 wheels) 9.7m Van Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6L Medium Truck Elite Edition 240 hp 4X2(6 wheels) 9.7m Van Cargo Truck?

Key specs of FAW Jiefang J6L Medium Truck Elite Edition 240 hp 4X2(6 wheels) 9.7m Van Cargo Truck: Drive: 4x2; Horsepower: 240 hp; Emission: China VI; Fuel: Diesel; Engine: Dachai 6-cylinder; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L Medium Truck Elite Edition 240 hp 4X2(6 wheels) 9.7m Van Cargo Truck suited for?

FAW Jiefang J6L Medium Truck Elite Edition 240 hp 4X2(6 wheels) 9.7m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6L Medium Truck Elite Edition 240 hp 4X2(6 wheels) 9.7m Van Cargo Truck differ from other variants in the same series?

FAW Jiefang J6L Medium Truck Elite Edition 240 hp 4X2(6 wheels) 9.7m Van Cargo Truck belongs to FAW Jiefang J6L Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L Medium Truck Elite Edition 240 hp 4X2(6 wheels) 9.7m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L Medium Truck Elite Edition 240 hp 4X2(6 wheels) 9.7m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
