Hyundai Commercial Vehicle Hongtu EV 4.5T 4.14m Single Row Pure Electric Cage Light Truck 89kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.46ton
Wheelbase:: 3300mm
Cargo box type:: Stake type
Model code (announced):: CHM5042CCYZDC33BEV
Type:: stake truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
CLTC range: 230km
Motor 1 Brand: Inovance
Curb Weight: 2.905ton

Overview

The Hyundai Commercial Vehicle Hongtu EV 4.5T 4.14m Single Row Pure Electric Cage Light Truck 89kWh 4X2(6 wheels) is a Light Truck featuring 230km battery/range, Inovance motor, 4X2 (6 wheels) drive and 1.46t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CHM5042CCYZDC33BEV
Type: stake truck
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
Cab length: 5.99m
Cab width: 2.1m
Cab height: 3.15m
CLTC range: 230km
Curb Weight: 2.905ton
Rated payload: 1.46ton
GVWR: 4.495ton
Max. speed: 92km/h
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ230XSIN101
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 60kW
Peak power: 120kW
total peak torque: 320N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 89kWh
Battery Model: L173TB1
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.14m
Cargo box width: 2m
Cab parameters
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1990kg
rear axle description: 3.5T
rear axle allowable load: 2505kg
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electronic Central Lock:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

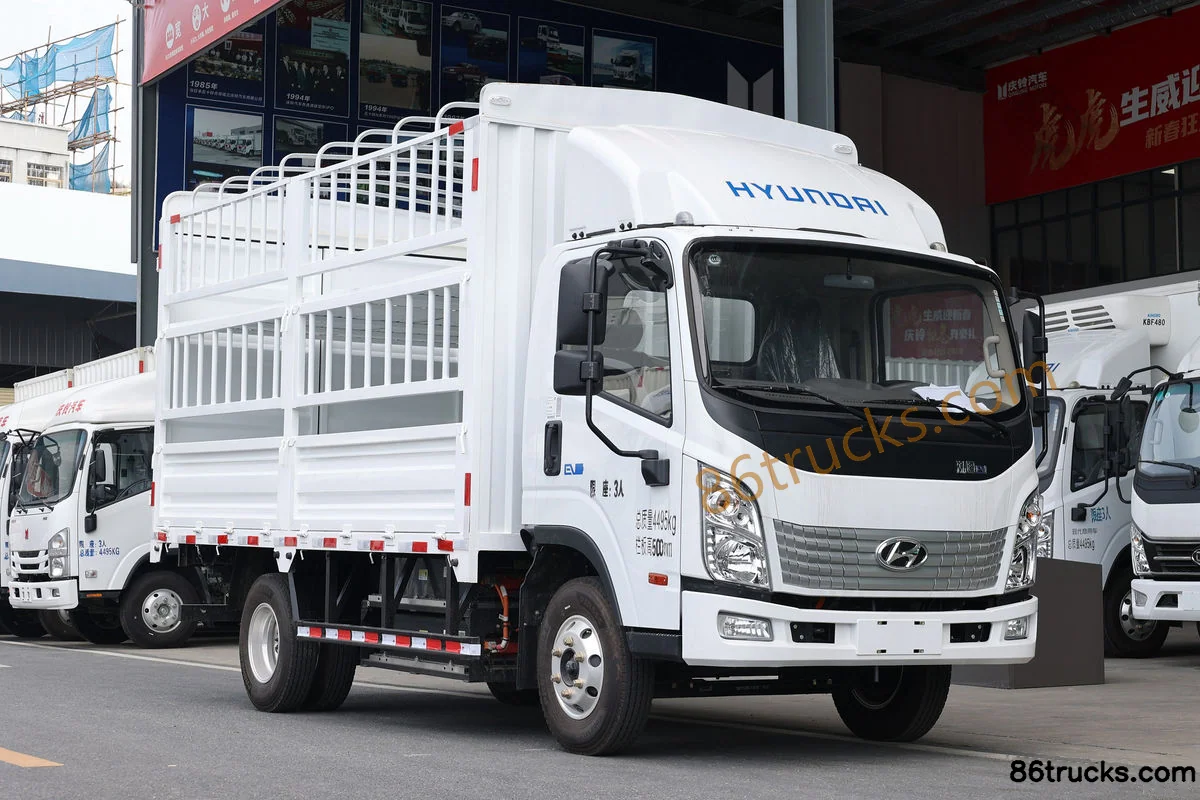

Exterior1

1 photos

FAQ

What are the key specs of Hyundai Commercial Vehicle Hongtu EV 4.5T 4.14m Single Row Pure Electric Cage Light Truck 89kWh 4X2(6 wheels)?

Key specs of Hyundai Commercial Vehicle Hongtu EV 4.5T 4.14m Single Row Pure Electric Cage Light Truck 89kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hyundai Commercial Vehicle Hongtu EV 4.5T 4.14m Single Row Pure Electric Cage Light Truck 89kWh 4X2(6 wheels) suited for?

Hyundai Commercial Vehicle Hongtu EV 4.5T 4.14m Single Row Pure Electric Cage Light Truck 89kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Hyundai Commercial Vehicle Hongtu EV 4.5T 4.14m Single Row Pure Electric Cage Light Truck 89kWh 4X2(6 wheels) differ from other variants in the same series?

Hyundai Commercial Vehicle Hongtu EV 4.5T 4.14m Single Row Pure Electric Cage Light Truck 89kWh 4X2(6 wheels) belongs to Hyundai Commercial Vehicle Hongtu EV light truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hyundai Commercial Vehicle Hongtu EV 4.5T 4.14m Single Row Pure Electric Cage Light Truck 89kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hyundai Commercial Vehicle Hongtu EV 4.5T 4.14m Single Row Pure Electric Cage Light Truck 89kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
