JAC Yunduoduo N5 Luxury 143hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI)

Export reference
From $22,917
MSRP ¥16.5M CNY
Horsepower: 143
Emission: China VI
Fuel: Diesel
Engine: Yunnei 4-cylinder
Transmission: WLY
Curb Weight:: 2.8ton
seating capacity: 3Personnel
Rated payload: 1.49ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Yunduoduo N5 Luxury 143hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI) is a Light Truck featuring 4.15m cargo length, Van body cargo body, 3Personnel volume and 1.49t payload. On the powertrain side, it comes with a Yunnei 4-cylinder engine, 143 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 143 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5045XXYP22K1C7QS
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3365mm
Box length class: 4.2m
engine: Yunnei PowerYN25PLUS1
transmission: WLYWLY6TS40B
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.215m
Cab height: 3.35m
Front track width: 1595mm
rear track: 1475mm
Curb Weight: 2.8ton
Rated payload: 1.49ton
GVWR: 4.485ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 21°
departure angle: 14.5°
Remarks: Optional: Axle ratio 4.33, leaf spring 4/4+2, plastic fuel tank.
Front/rear suspension: 1.17/1.46m
Version: Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN25PLUS1
Engine info: Yunnei 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.499L
Emission standard: China VI
Max output power: 105kW
Max hp: 143Horsepower
Transmission Parameters
Transmission Model: WLYWLY6TS40B
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.15m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cargo box material: Iron corrugated / iron flat
*Cargo box interior width: 2.1
Cab parameters
Cab: N5
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: air suspension seat
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 100L
Chassis Specs
Front axle description: I-beam front axle 2T
Front axle allowable load: 1620kg
Frame Dimensions: 180×65×4.5mm
rear axle description: Meiqiao ATM rear axle 5T
rear axle allowable load: 2865kg
Axle ratio: 4.875
Leaf spring count: 4/5+6
Tire
Tire Size: 7.00R16LT 8PR
Tire Type: tubeless tire
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
daytime running lights:

Photos

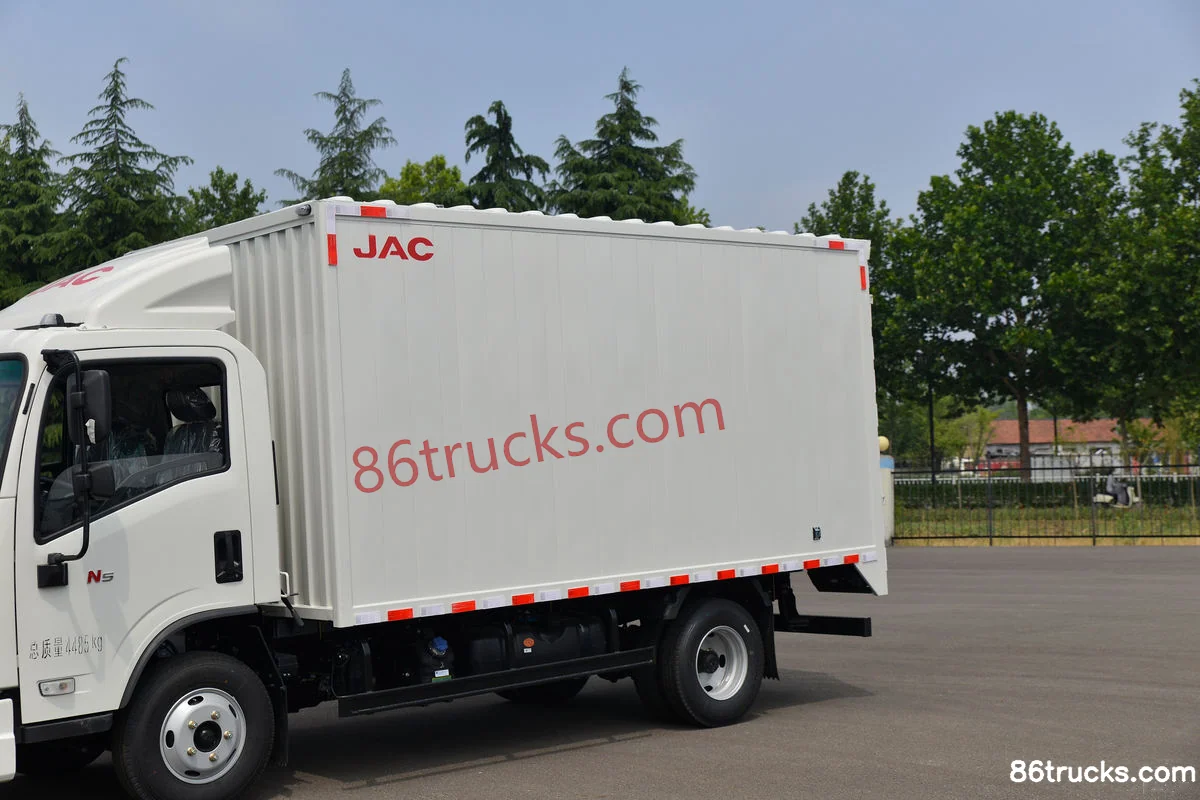

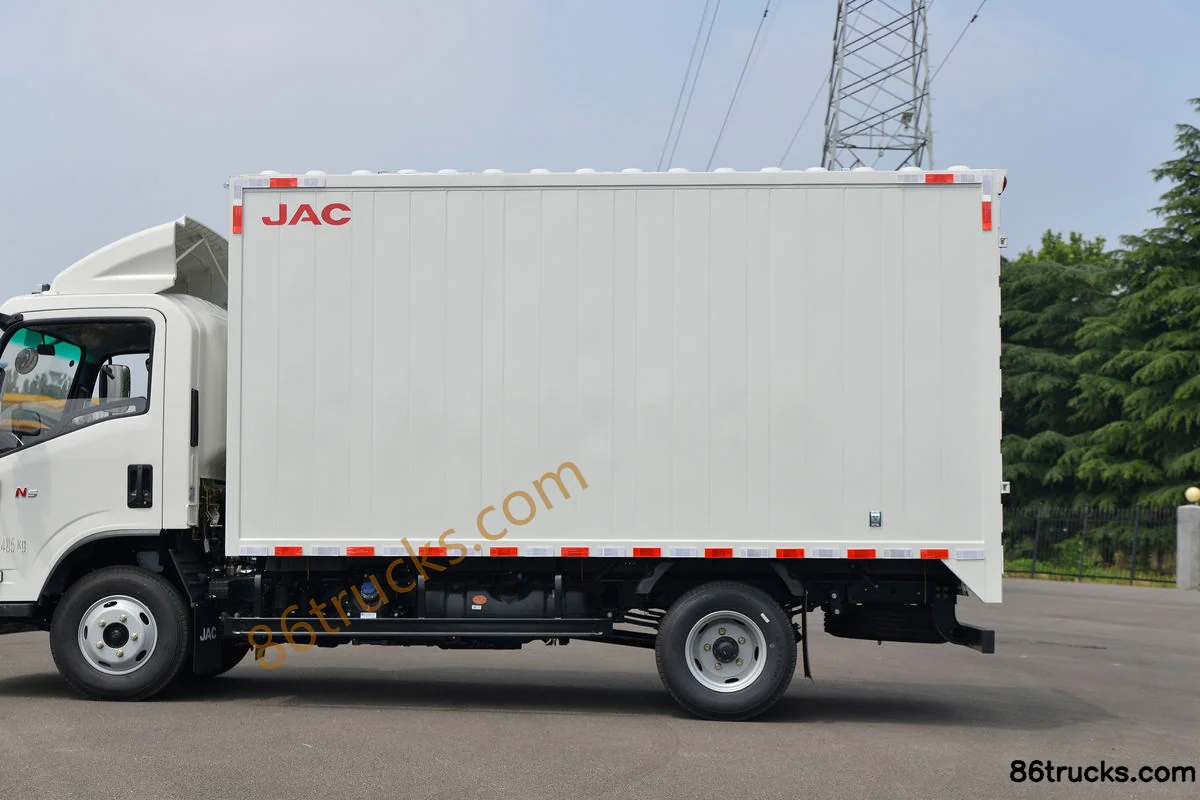

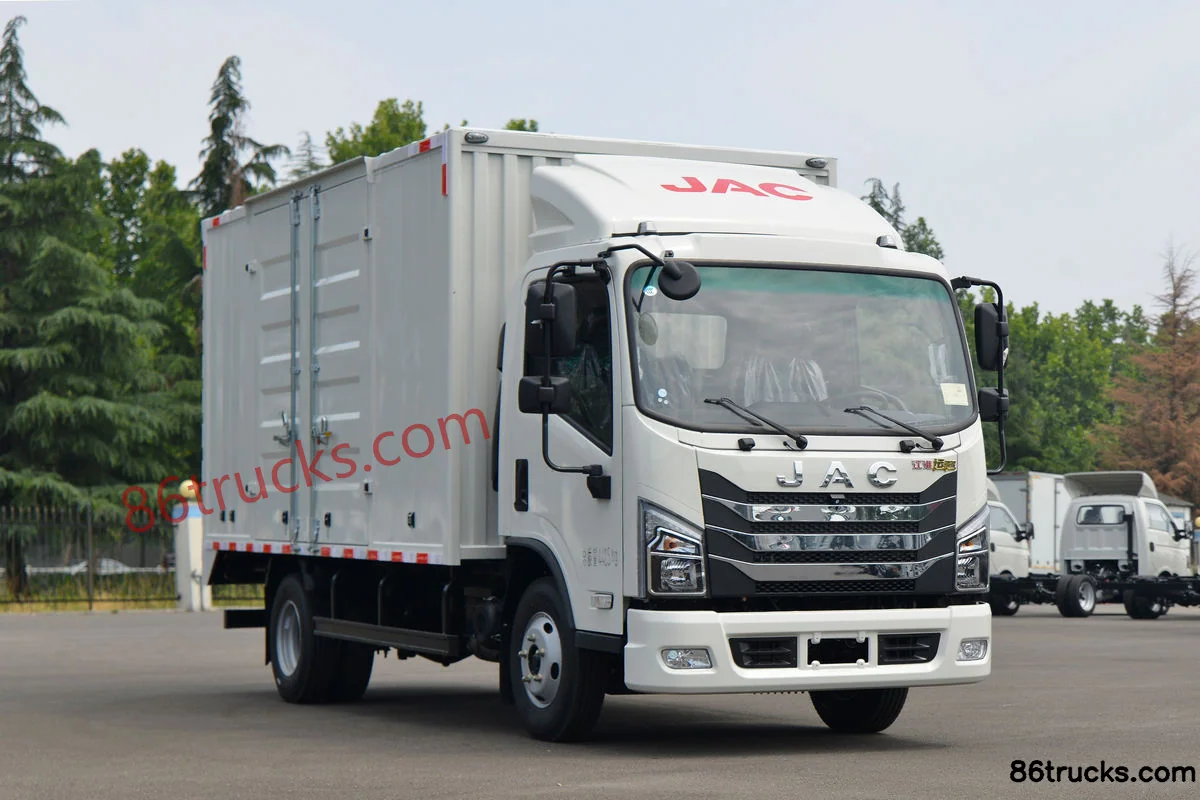

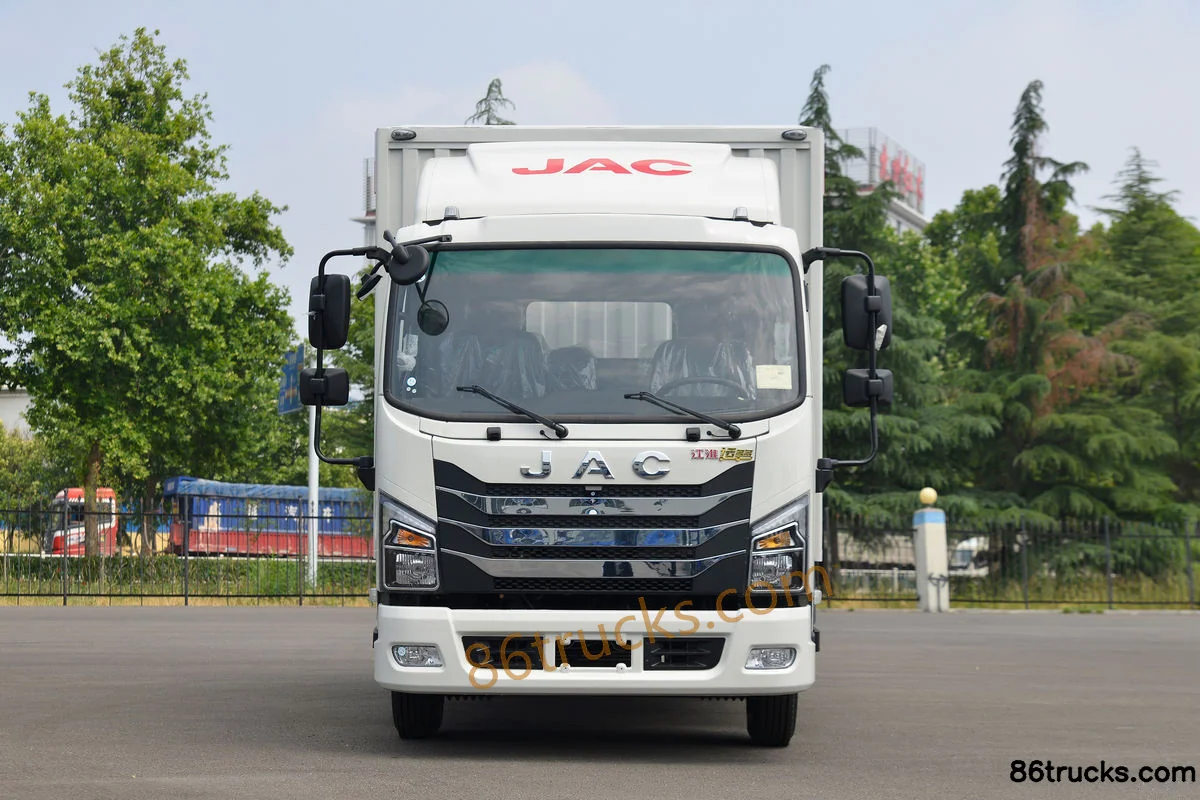

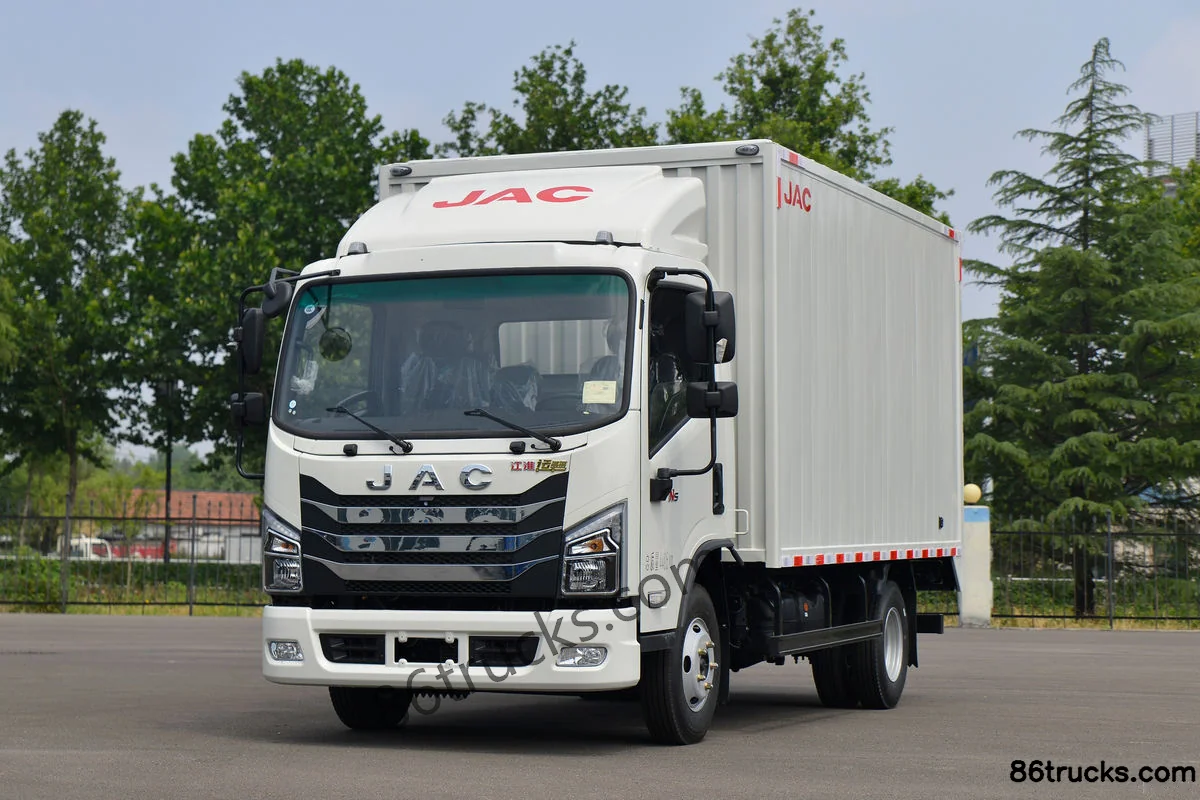

Exterior3

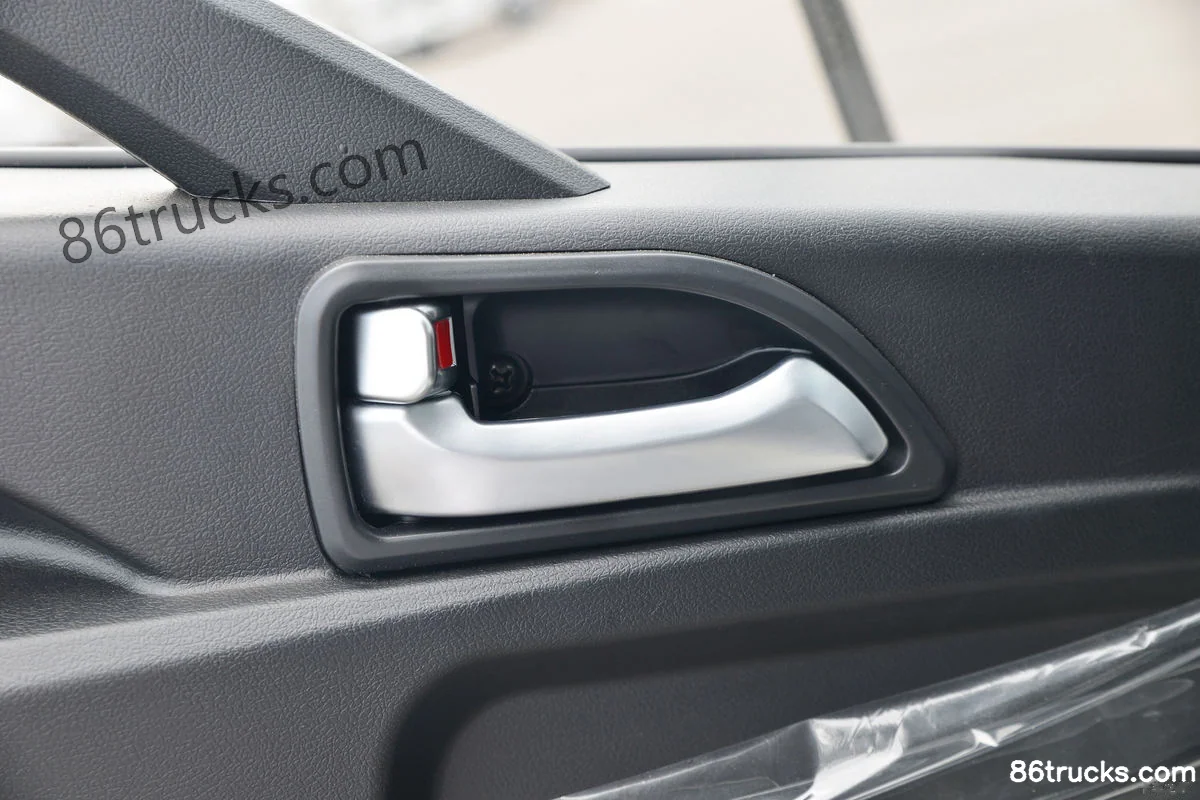

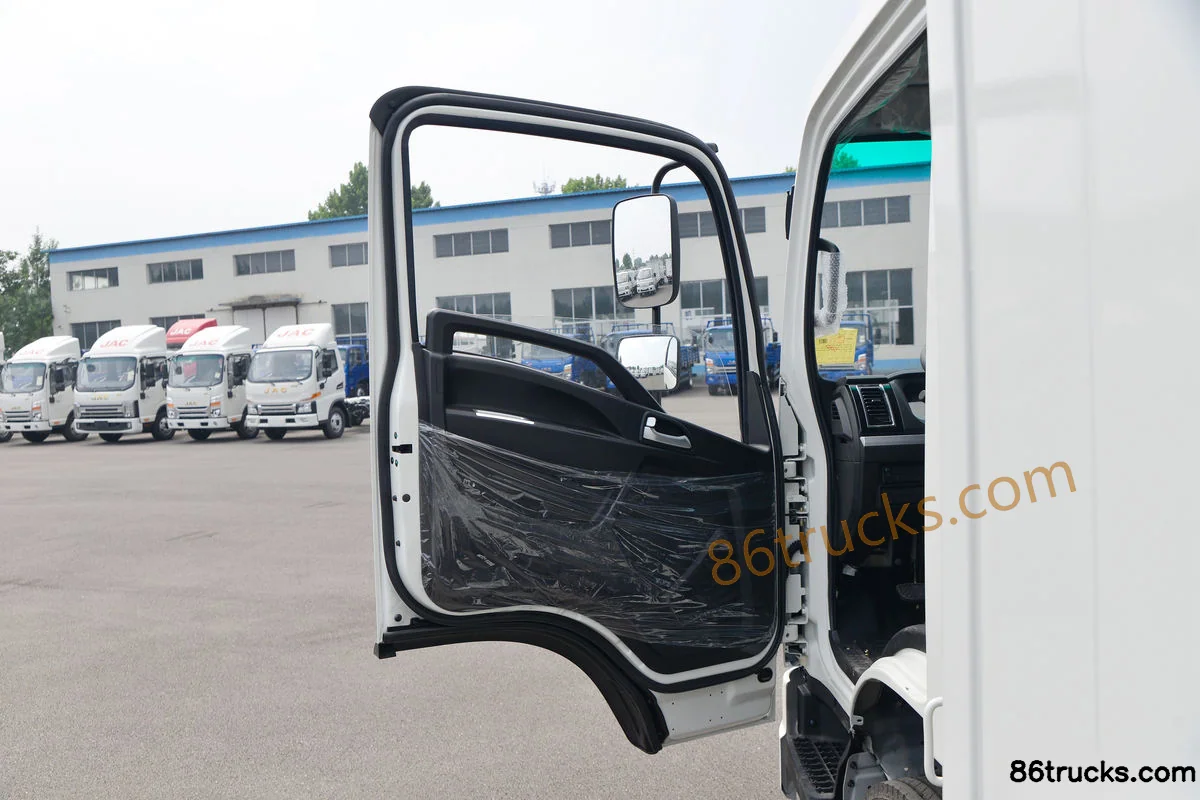

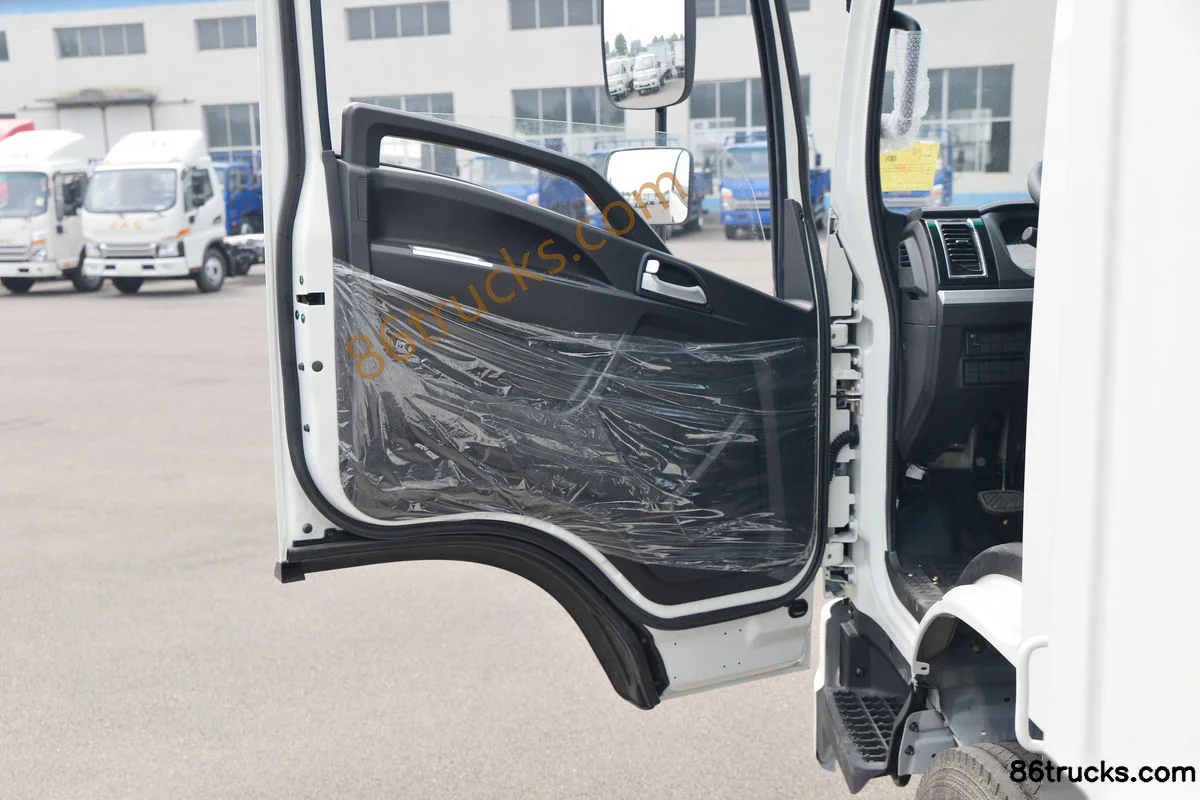

Cab3

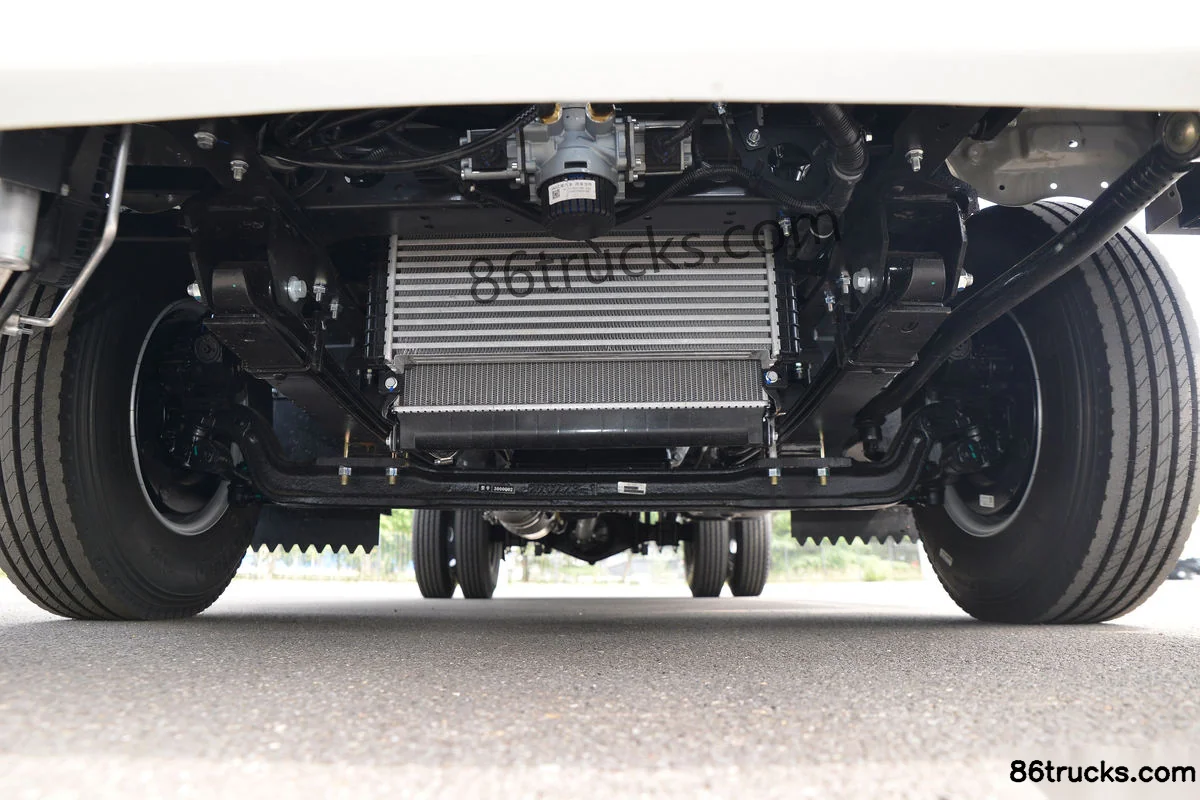

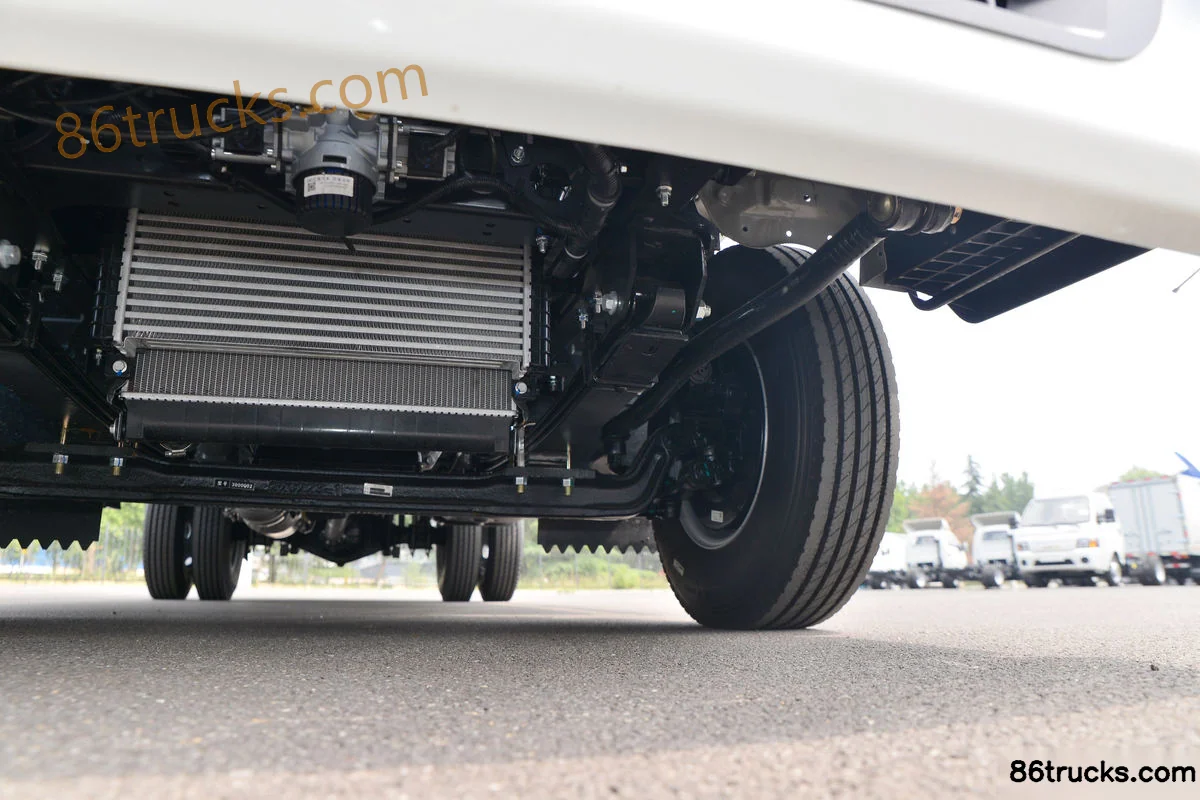

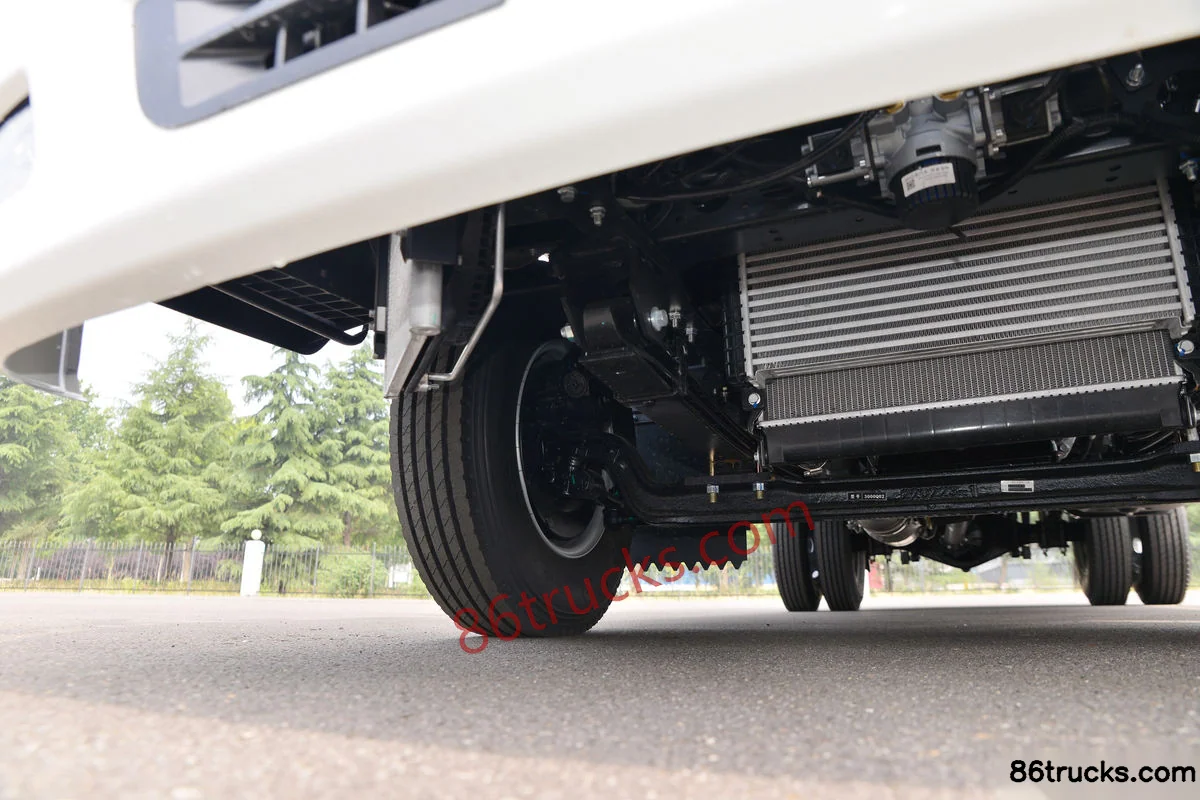

Chassis3

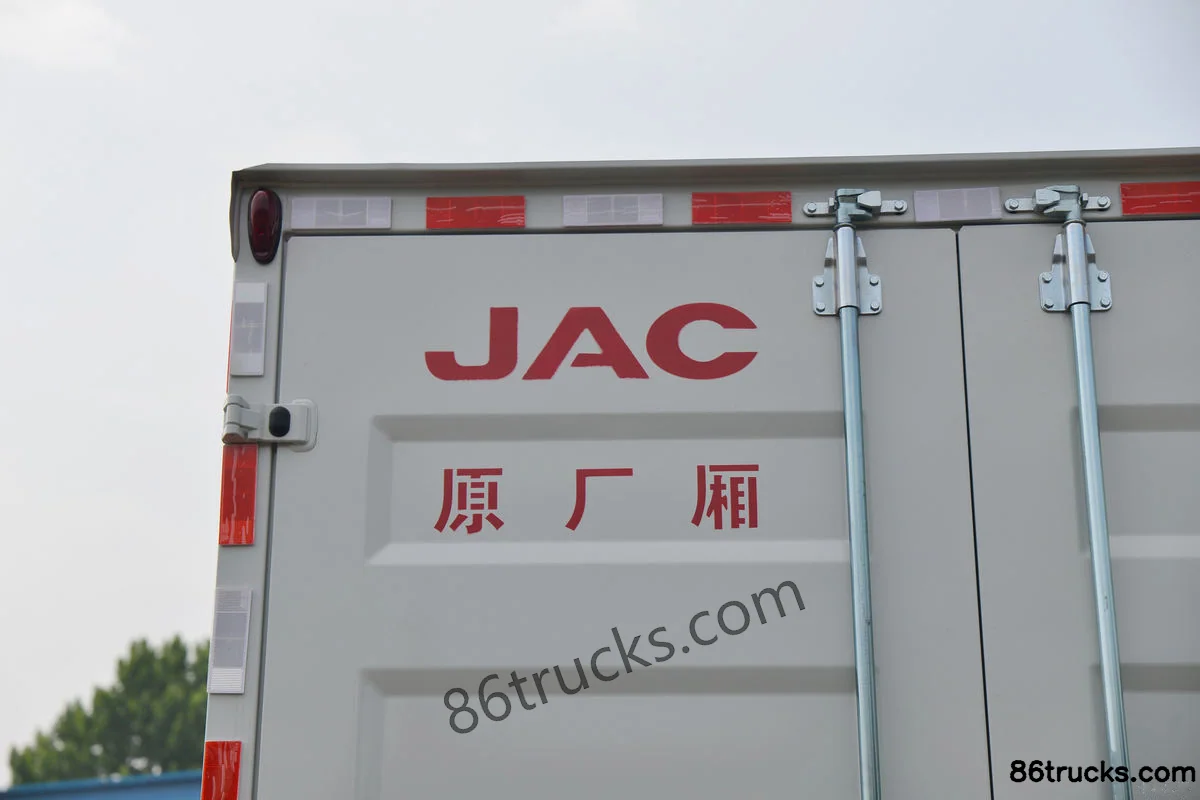

Body3

12 photos

FAQ

What is the export price of JAC Yunduoduo N5 Luxury 143hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI), and what does it include?

JAC Yunduoduo N5 Luxury 143hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI) export reference is about From $22,917; MSRP is ¥16.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Yunduoduo N5 Luxury 143hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Yunduoduo N5 Luxury 143hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI)?

Key specs of JAC Yunduoduo N5 Luxury 143hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI): Drive: 4x2; Horsepower: 143 hp; Emission: China VI; Fuel: Diesel; Engine: Yunnei 4-cylinder; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Yunduoduo N5 Luxury 143hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI) suited for?

JAC Yunduoduo N5 Luxury 143hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Yunduoduo N5 Luxury 143hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI) differ from other variants in the same series?

JAC Yunduoduo N5 Luxury 143hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI) belongs to JACN6 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Yunduoduo N5 Luxury 143hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Yunduoduo N5 Luxury 143hp 4X2(6 wheels) 4.15m Single Row Van Light Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
