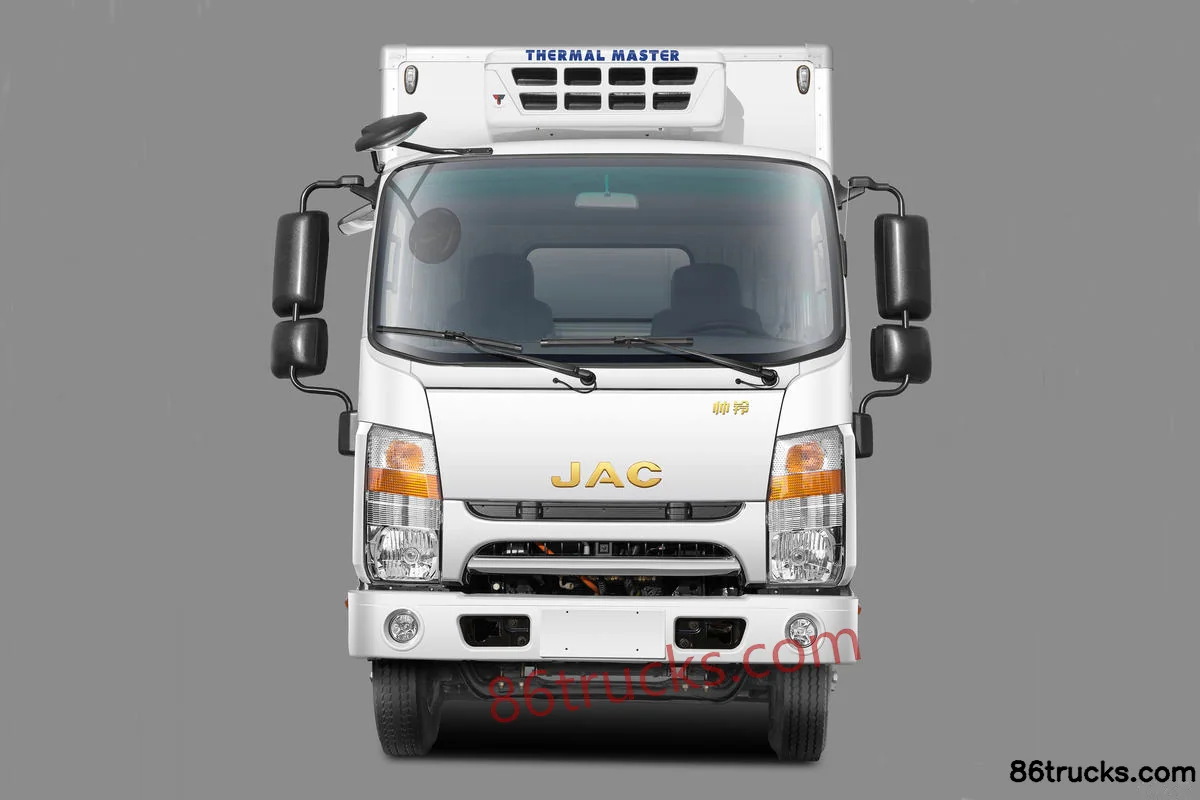

JAC Shuailing i5-Q330 Custom Edition 4.5T 4.15m Single Row Pure Electric Van Light Truck (with Refrigeration Unit) 96.77kWh 4X2(6 wheels)

Export reference
From $30,556
MSRP ¥22M CNY
Rated payload:: 1.14ton
Wheelbase:: 3308mm
Cargo box volume:: 18.26m³
Model code (announced):: HFC5041XXYEV10
Type:: enclosed cargo truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
CLTC range: 425km
Motor 1 Brand: Lv Kong
Curb Weight: 3.16ton

Overview

The JAC Shuailing i5-Q330 Custom Edition 4.5T 4.15m Single Row Pure Electric Van Light Truck (with Refrigeration Unit) 96.77kWh 4X2(6 wheels) is a Light Truck featuring 425km battery/range, Lv Kong motor, 4X2 (6 wheels) drive and 1.14t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5041XXYEV10
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.26/2.31m
Cab height: 3.05m
CLTC range: 425km
Curb Weight: 3.16ton
Rated payload: 1.14ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Version: Custom edition
Energy Type: Electric
electric motor
Motor 1 Brand: Lv Kong
Motor 1 Model: TZ370XS-LKM0901
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 75kW
Peak power: 120kW
total peak torque: 900N·m
total rated torque: 350N·m
Battery/Charging
Charging method: Fast Charge
Battery Brand: Guoxuan High-Tech
Battery type: Lithium Iron Phosphate Battery
fast charge time: 1.8h
Battery capacity: 96.77kWh
Energy Density: 140.45
Battery total voltage: 537.6V
Battery Model: GXB3-G7A-6P42S-30
Cargo box parameters
Cargo box volume: 18.26m³
Cargo box type: Van body
Cargo box length: 4.15m
Cargo box width: 2.2m
Cargo box height: 2m
Cab parameters
Cab: Shuailing I5
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1945kg
rear axle allowable load: 2550kg
Tire
Tire Size: 7.00R16 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Mirrors:
Reverse Camera: -/●
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:

Photos

Exterior1

1 photos

FAQ

What is the export price of JAC Shuailing i5-Q330 Custom Edition 4.5T 4.15m Single Row Pure Electric Van Light Truck (with Refrigeration Unit) 96.77kWh 4X2(6 wheels), and what does it include?

JAC Shuailing i5-Q330 Custom Edition 4.5T 4.15m Single Row Pure Electric Van Light Truck (with Refrigeration Unit) 96.77kWh 4X2(6 wheels) export reference is about From $30,556; MSRP is ¥22M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of JAC Shuailing i5-Q330 Custom Edition 4.5T 4.15m Single Row Pure Electric Van Light Truck (with Refrigeration Unit) 96.77kWh 4X2(6 wheels)?

Key specs of JAC Shuailing i5-Q330 Custom Edition 4.5T 4.15m Single Row Pure Electric Van Light Truck (with Refrigeration Unit) 96.77kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing i5-Q330 Custom Edition 4.5T 4.15m Single Row Pure Electric Van Light Truck (with Refrigeration Unit) 96.77kWh 4X2(6 wheels) suited for?

JAC Shuailing i5-Q330 Custom Edition 4.5T 4.15m Single Row Pure Electric Van Light Truck (with Refrigeration Unit) 96.77kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Shuailing i5-Q330 Custom Edition 4.5T 4.15m Single Row Pure Electric Van Light Truck (with Refrigeration Unit) 96.77kWh 4X2(6 wheels) differ from other variants in the same series?

JAC Shuailing i5-Q330 Custom Edition 4.5T 4.15m Single Row Pure Electric Van Light Truck (with Refrigeration Unit) 96.77kWh 4X2(6 wheels) belongs to JACEQ3 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing i5-Q330 Custom Edition 4.5T 4.15m Single Row Pure Electric Van Light Truck (with Refrigeration Unit) 96.77kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing i5-Q330 Custom Edition 4.5T 4.15m Single Row Pure Electric Van Light Truck (with Refrigeration Unit) 96.77kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
