Sinotruk Niuqichongtian EM1 4X2(6 wheels) 3.7m single-row pure electric dump truck CATL 155.33kWh

Export reference
MSRP N/A
Rated payload:: 7.465ton
Wheelbase:: 3100mm
Cargo box type:: Rear dump type
Model code (announced):: ZZ3128K17ZBEV0
Cab length:: 5.64m
GVWR:: 11.995ton
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 2 Brand: Sinotruk
Curb Weight: 4.4ton

Overview

The Sinotruk Niuqichongtian EM1 4X2(6 wheels) 3.7m single-row pure electric dump truck CATL 155.33kWh is a Light Truck featuring CATL battery/range, Sinotruk motor, 4X2 (6 wheels) drive and 7.465t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3128K17ZBEV0
Drive type: 4X2
Wheelbase: 3100mm
Cab length: 5.64m
Cab width: 2.25m
Cab height: 2.17m
Curb Weight: 4.4ton
Rated payload: 7.465ton
GVWR: 11.995ton
Max. speed: 90km/h
Origin: Yong'an, Fujian
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 2 Brand: Sinotruk
Motor 2 Model: TZ342XSHX16501
Motor Type: Permanent magnet synchronous motor
total rated power: 105kW
Peak power: 165kW
Motor 1 Peak Power: 165kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 155.33kWh
Cargo box parameters
Cargo box type: Rear dump type
Cargo box length: 3.7m
Cargo box width: 2.05m
Cargo box height: 0.8m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 3800kg
rear axle description: 1099J drive axle
rear axle allowable load: 8195kg
Tire
Tire Size: 245/70R19.5 16PR,245/70R17.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

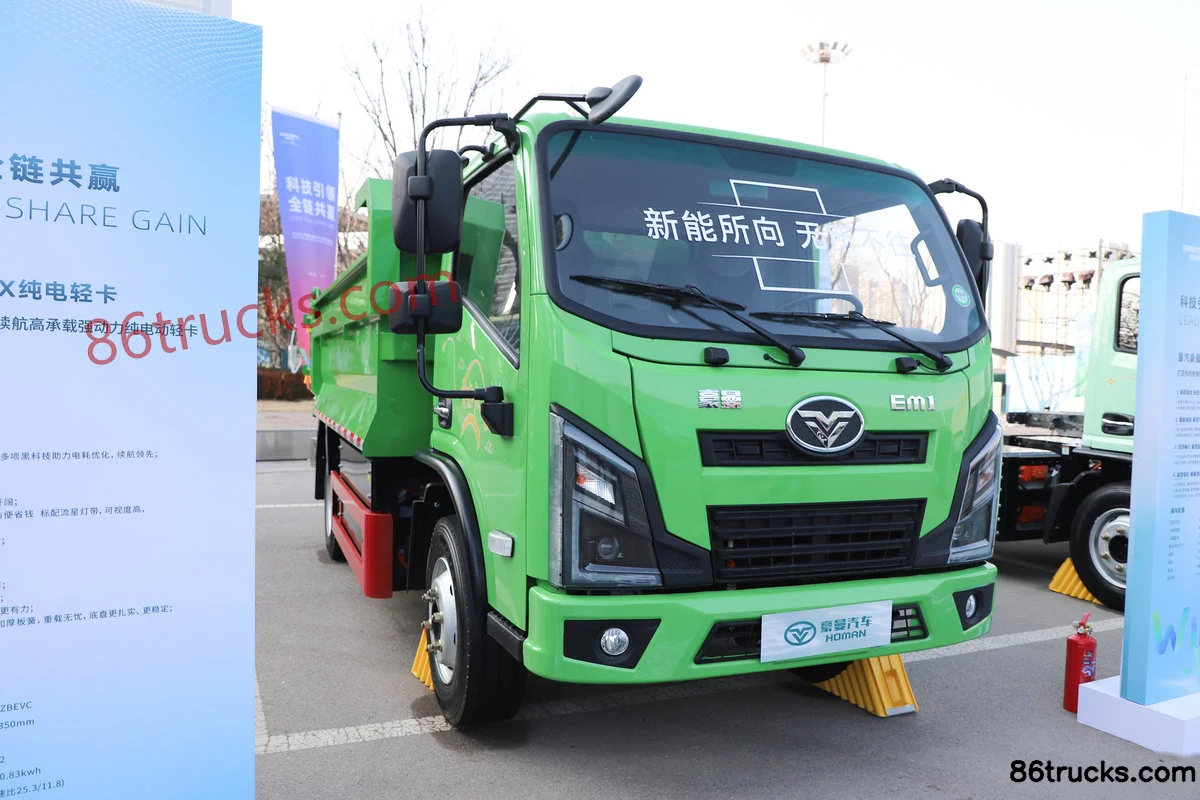

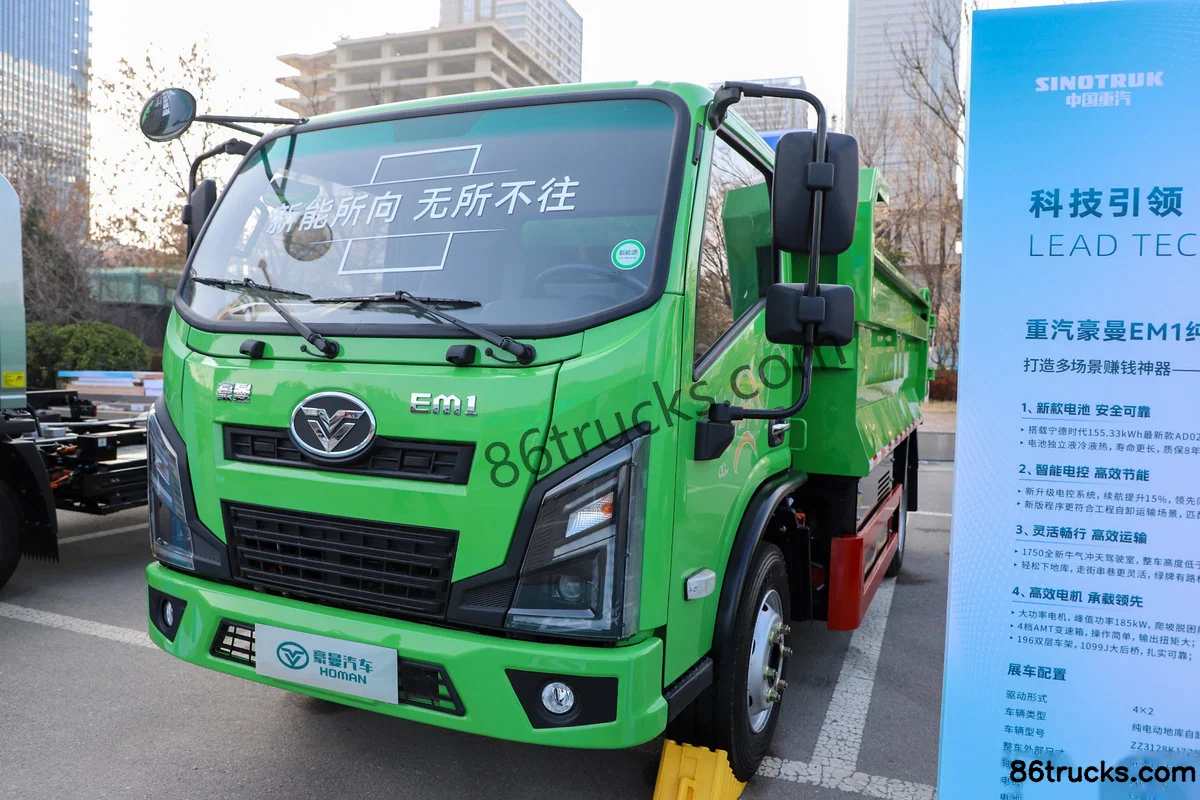

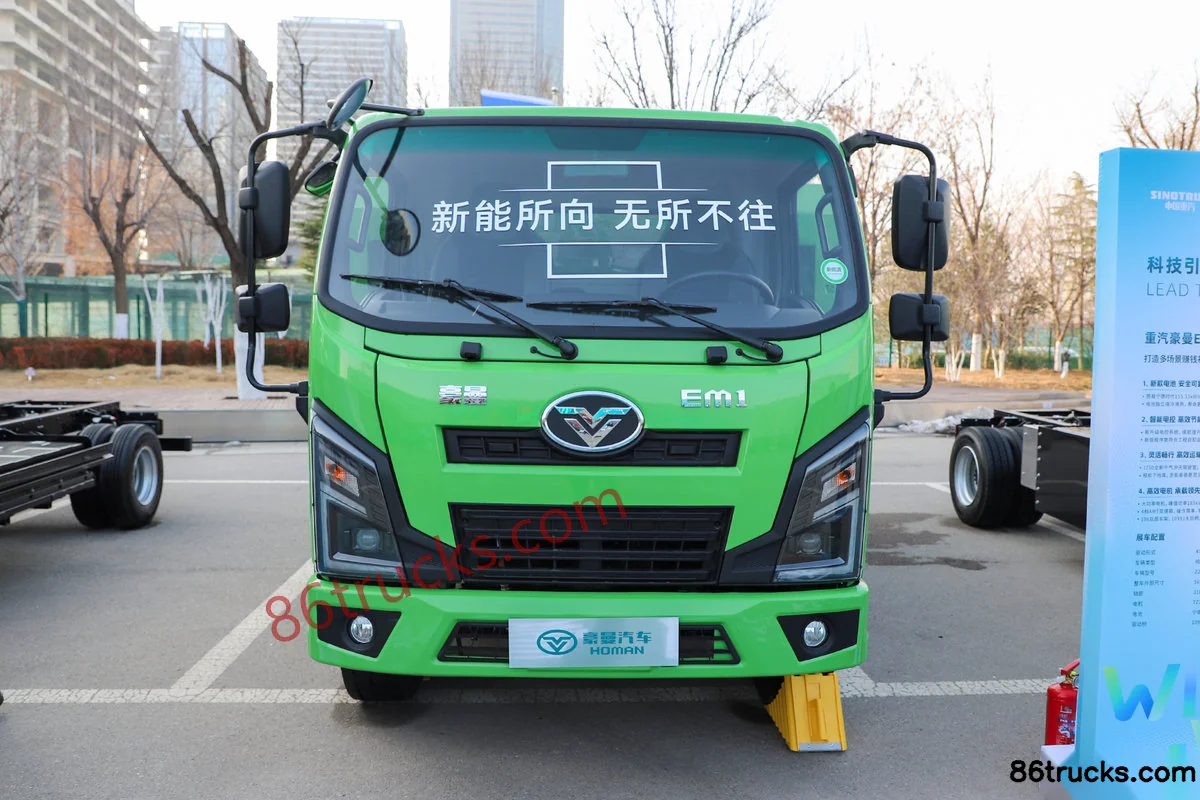

Exterior3

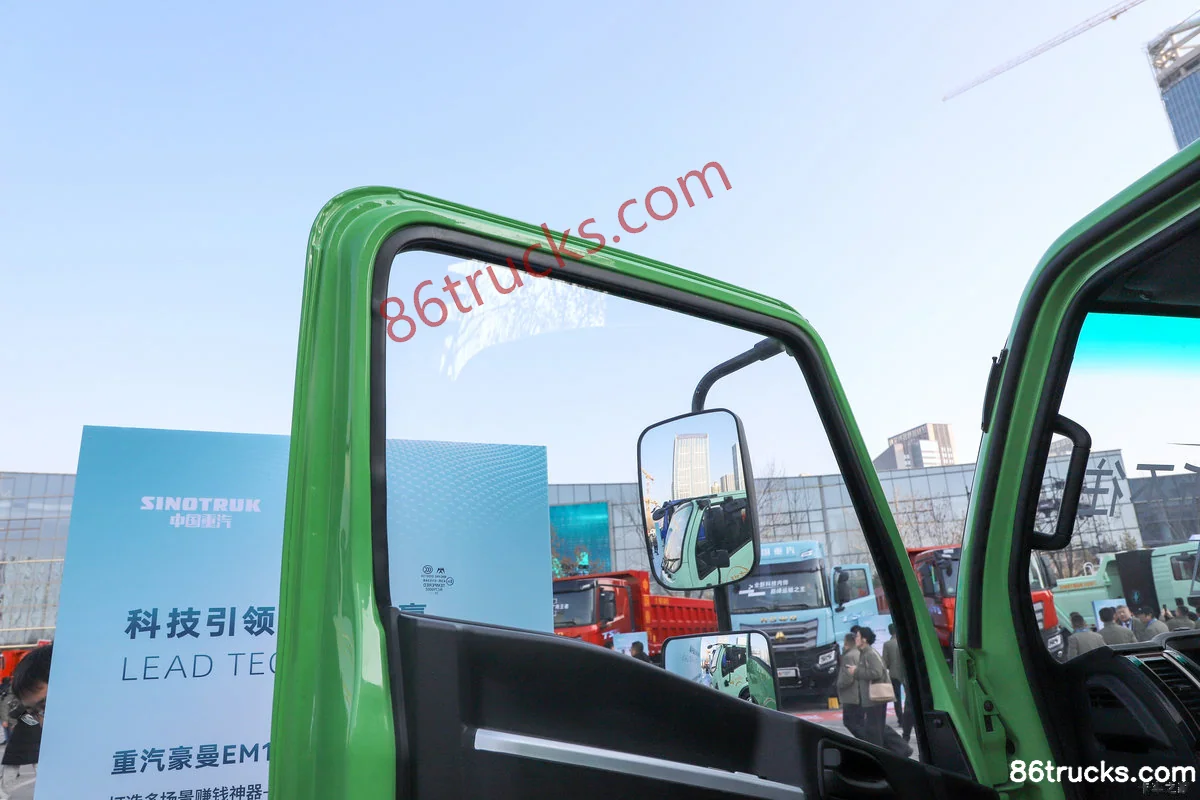

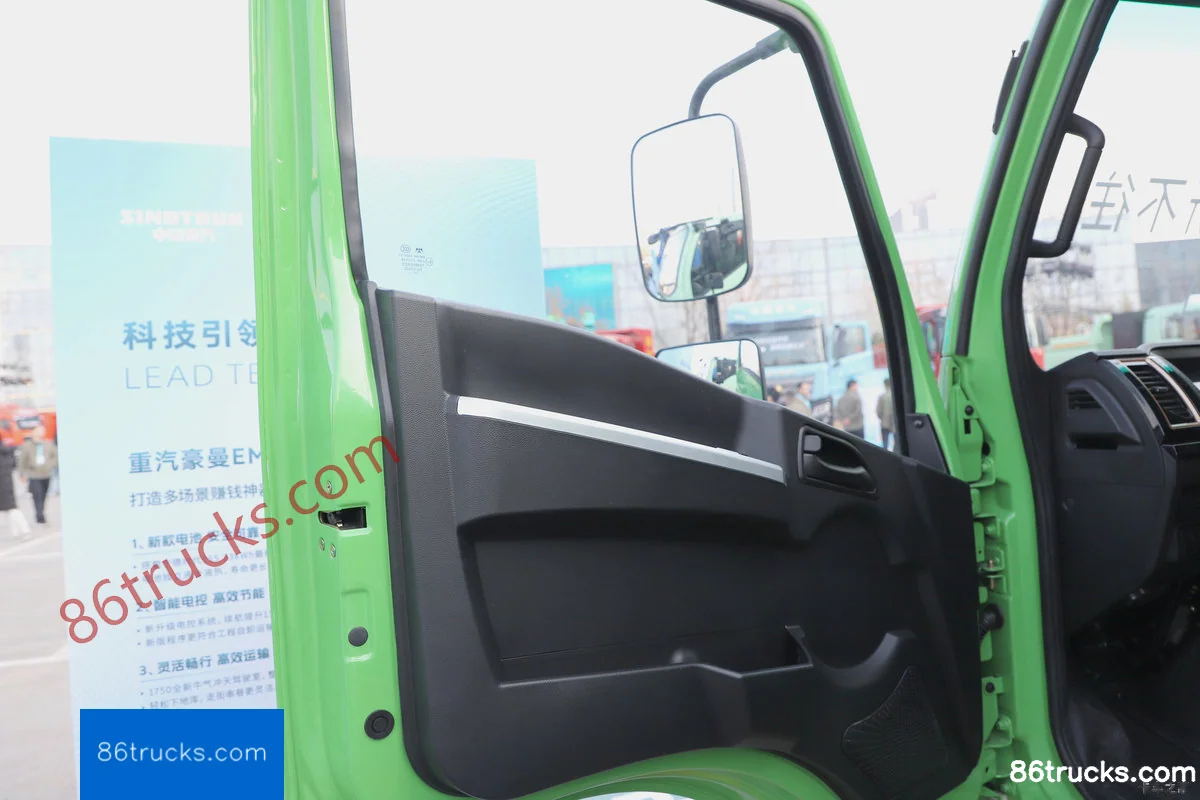

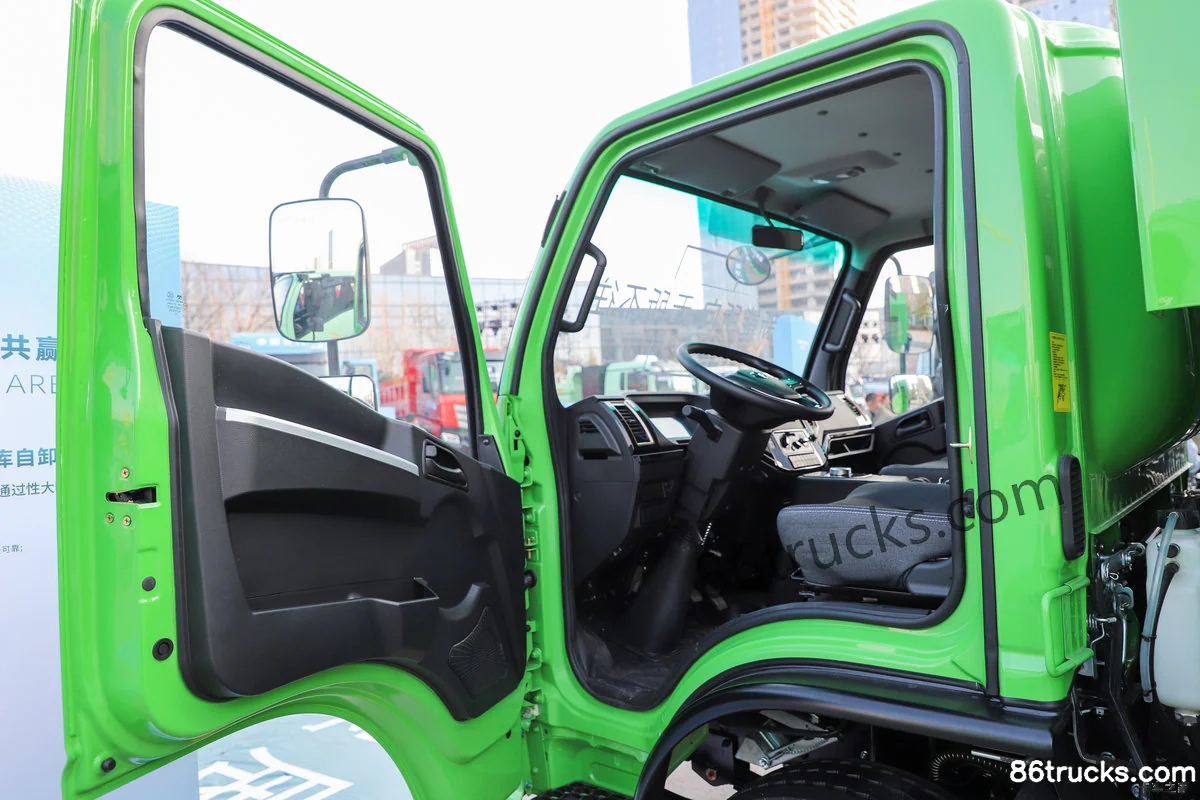

Cab3

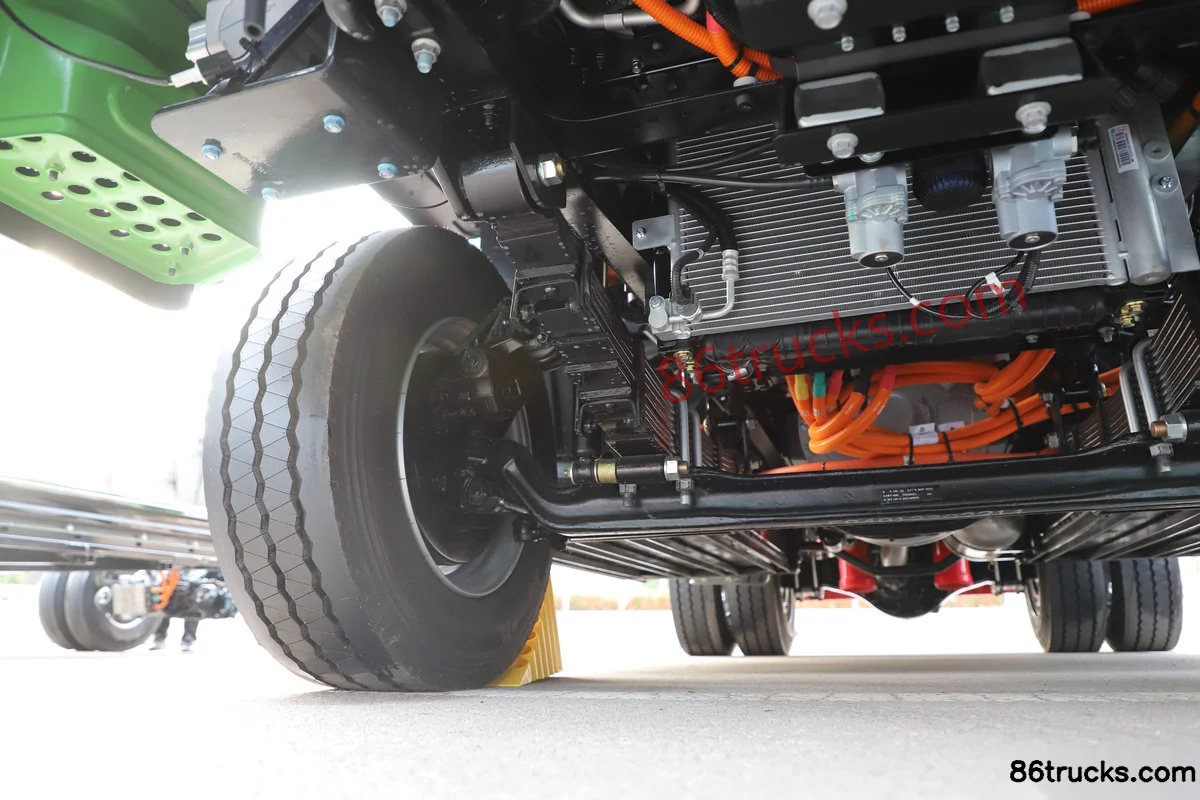

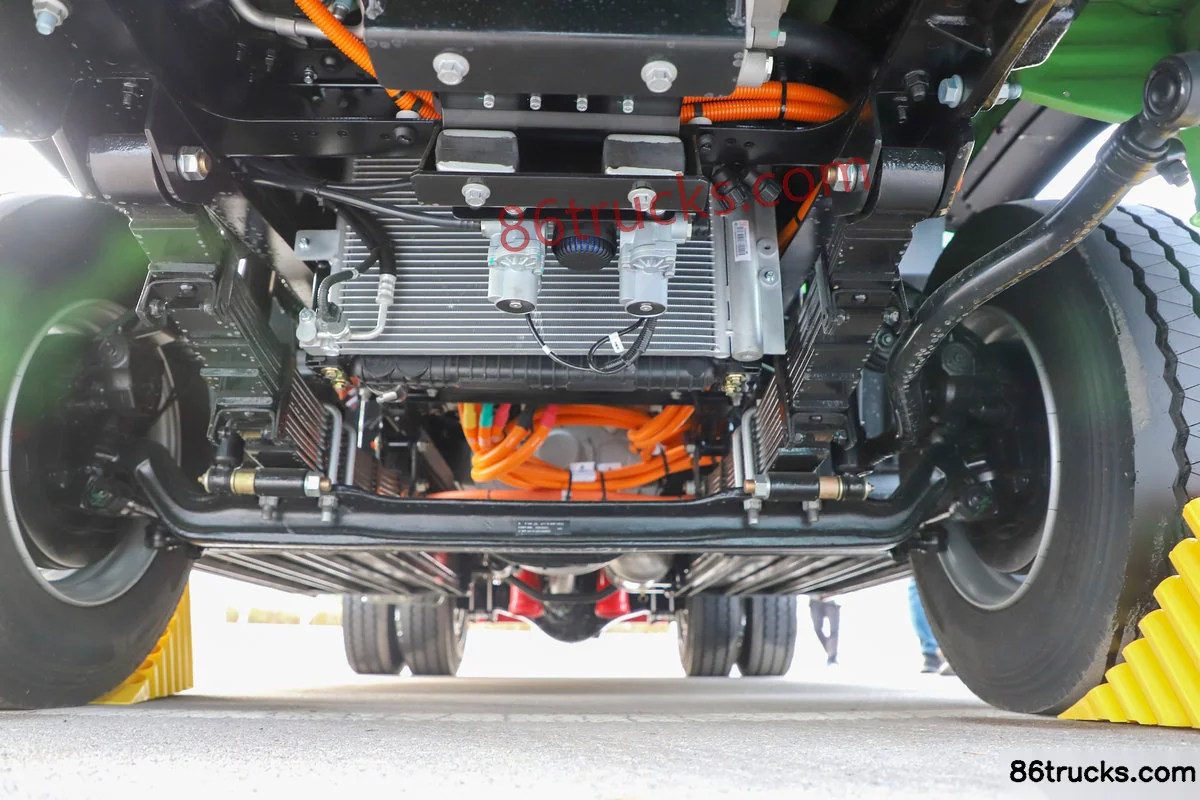

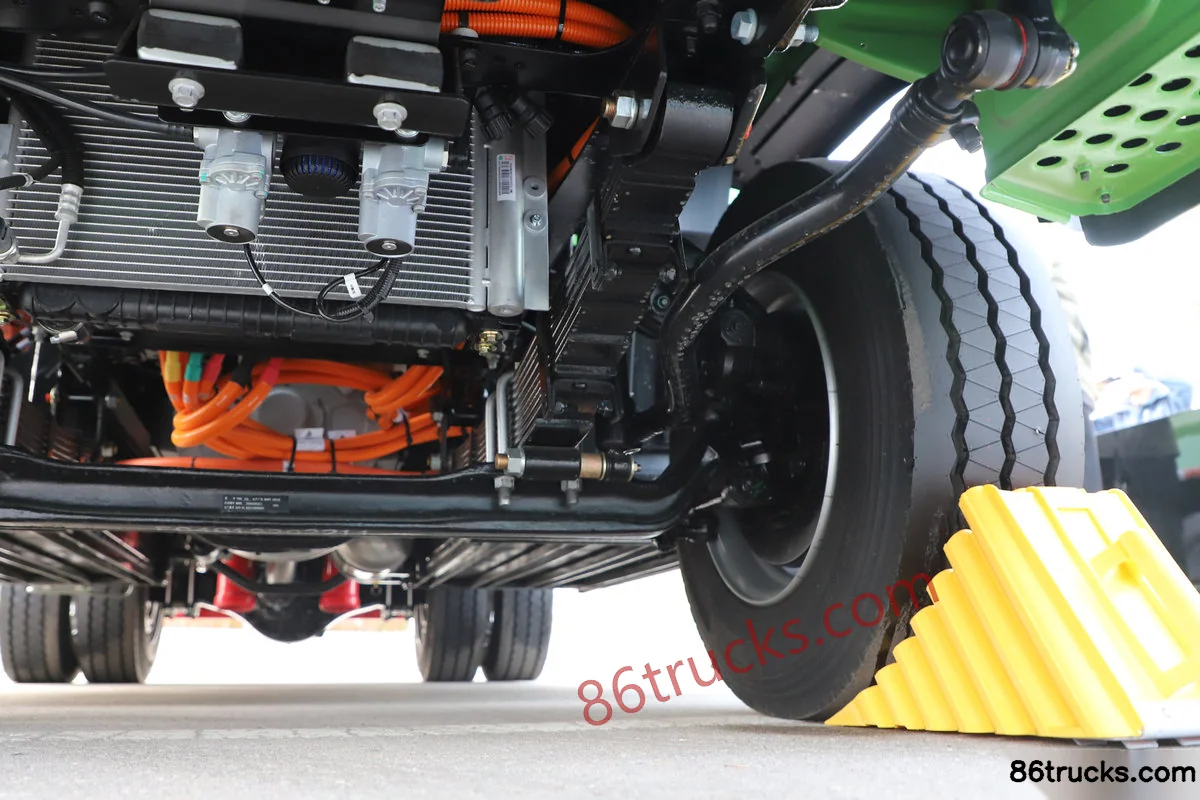

Chassis3

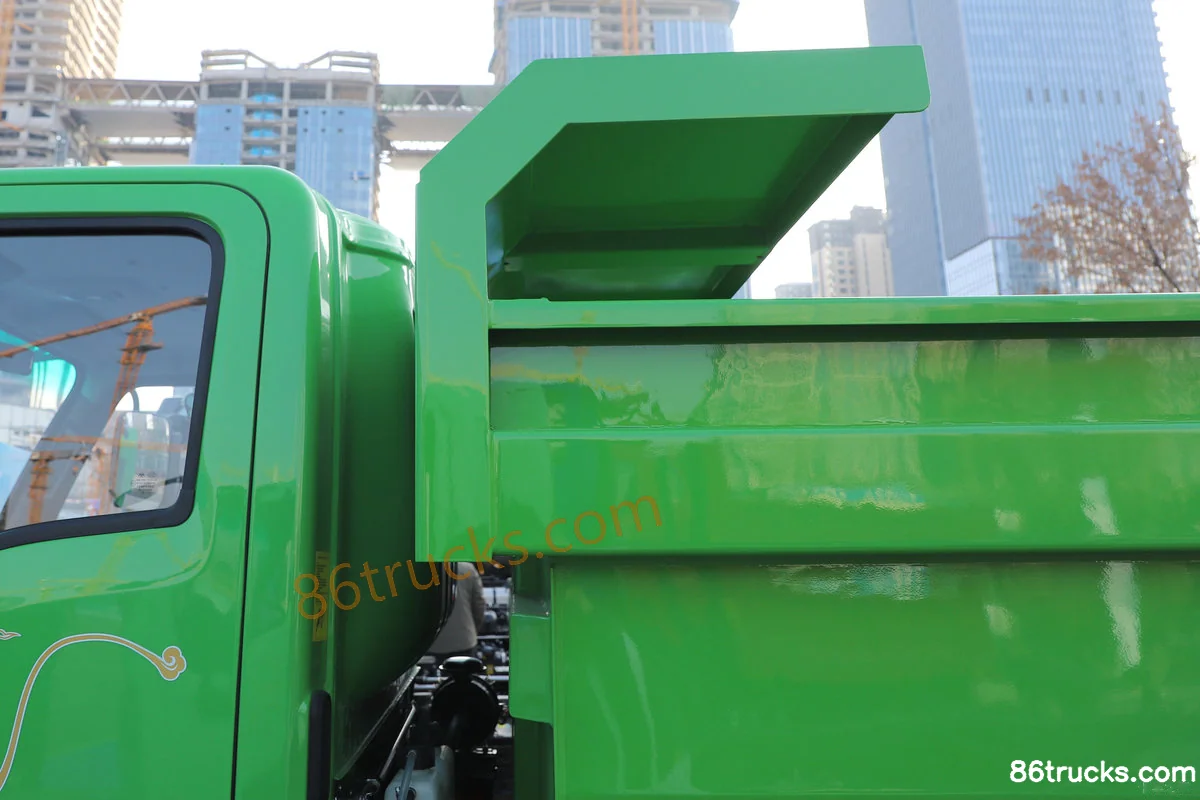

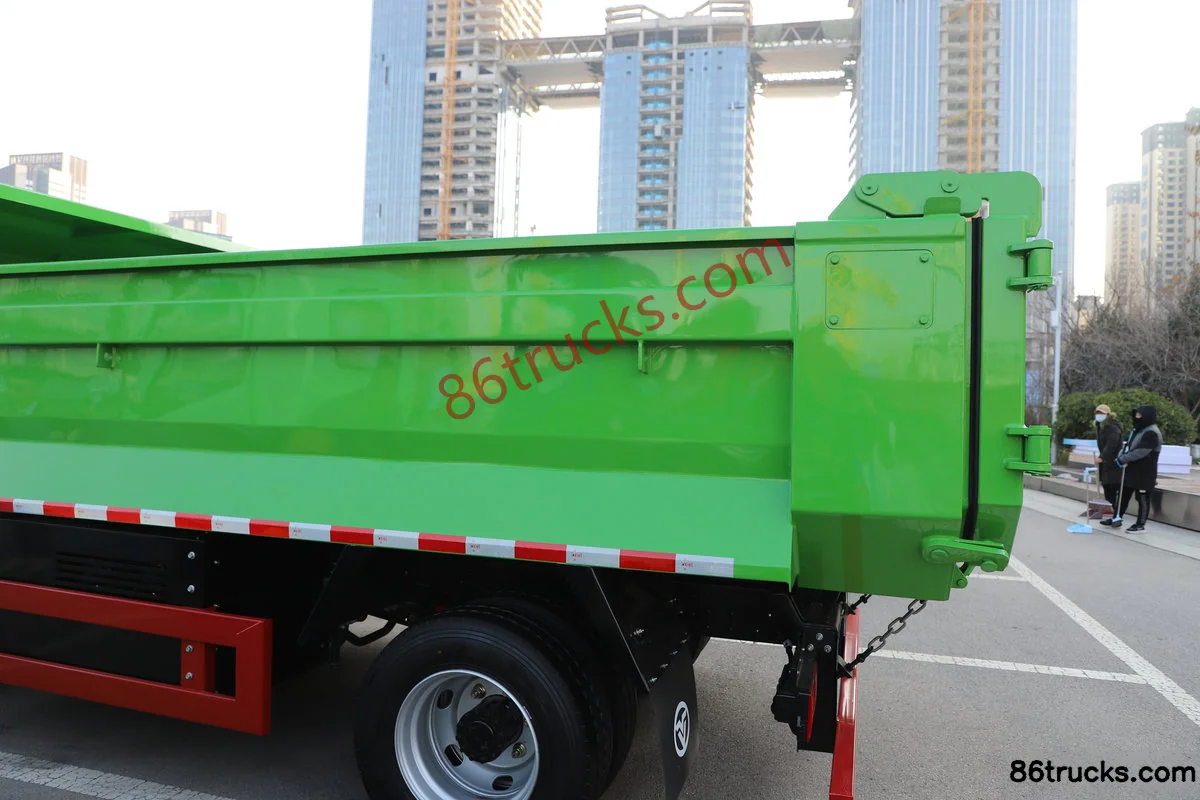

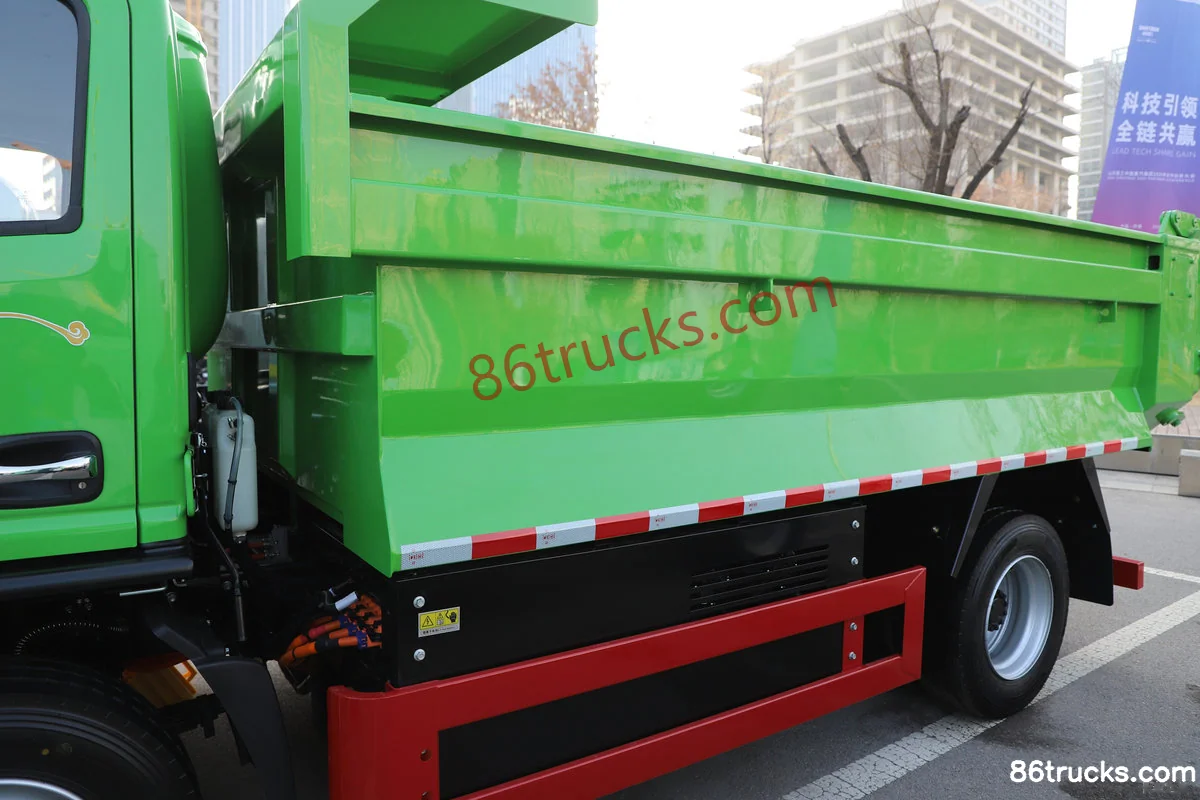

Body3

12 photos

FAQ

What are the key specs of Sinotruk Niuqichongtian EM1 4X2(6 wheels) 3.7m single-row pure electric dump truck CATL 155.33kWh?

Key specs of Sinotruk Niuqichongtian EM1 4X2(6 wheels) 3.7m single-row pure electric dump truck CATL 155.33kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Niuqichongtian EM1 4X2(6 wheels) 3.7m single-row pure electric dump truck CATL 155.33kWh suited for?

Sinotruk Niuqichongtian EM1 4X2(6 wheels) 3.7m single-row pure electric dump truck CATL 155.33kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Niuqichongtian EM1 4X2(6 wheels) 3.7m single-row pure electric dump truck CATL 155.33kWh differ from other variants in the same series?

Sinotruk Niuqichongtian EM1 4X2(6 wheels) 3.7m single-row pure electric dump truck CATL 155.33kWh belongs to Sinotruk Bullish (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Niuqichongtian EM1 4X2(6 wheels) 3.7m single-row pure electric dump truck CATL 155.33kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Niuqichongtian EM1 4X2(6 wheels) 3.7m single-row pure electric dump truck CATL 155.33kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
