SANY 100-ton 5-axle Truck Crane

Export reference
MSRP N/A
Machine dimensions: L×W×H:: 16.04×3×3.995m
Max travel speed:: 90km/h
Approach/departure angle:: 17/17°
Rated lifting moment:: 4028KN.m
Max lift height - base boom:: 73.2m
Max lifting height - main boom + jib:: 100.2m
SANY 100-ton 5-axle Truck Crane exterior
View more photos (7)
Operating weight: 100ton
Max output power: 316kW
Wheelbase: 1520+4350+1500+1500mm
Model: STC1000C7

Overview

The SANY 100-ton 5-axle Truck Crane is a crane truck featuring 100ton GVW and 316kW power. On the powertrain side, it comes with a WeichaiWP12.430E50 engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: STC1000C7
Machine dimensions: L×W×H: 16.04×3×3.995m
Operating weight: 100ton
total counterweight: 38.5ton
Wheelbase: 1520+4350+1500+1500mm
Max travel speed: 90km/h
Approach/departure angle: 17/17°
Lifting capacity
Rated lifting capacity: 100ton
Rated lifting moment: 4028KN.m
Max lift height - base boom: 73.2m
Max lifting height - main boom + jib: 100.2m
Engine parameters
Engine Model: WeichaiWP12.430E50
Max output power: 316kW
Rated speed: 1900rpm
Chassis Specs
Chassis Model: SYM5558J

Photos

Exterior3

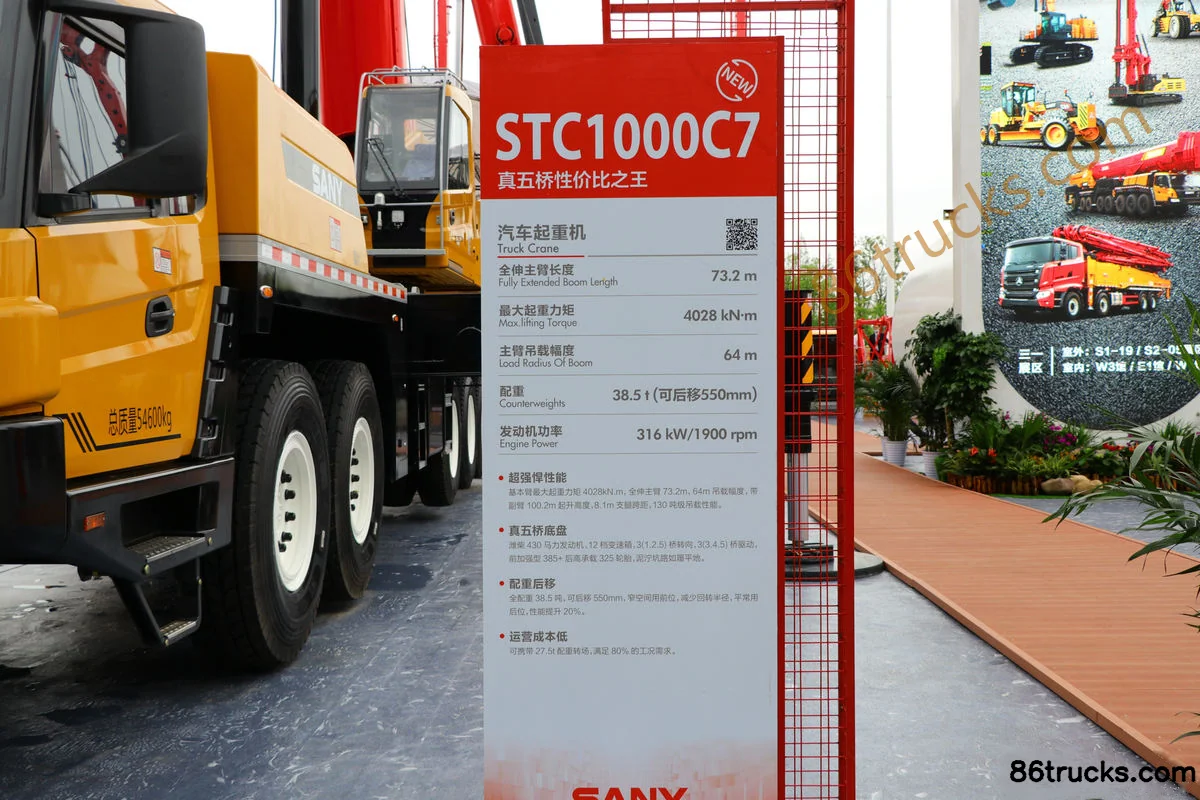

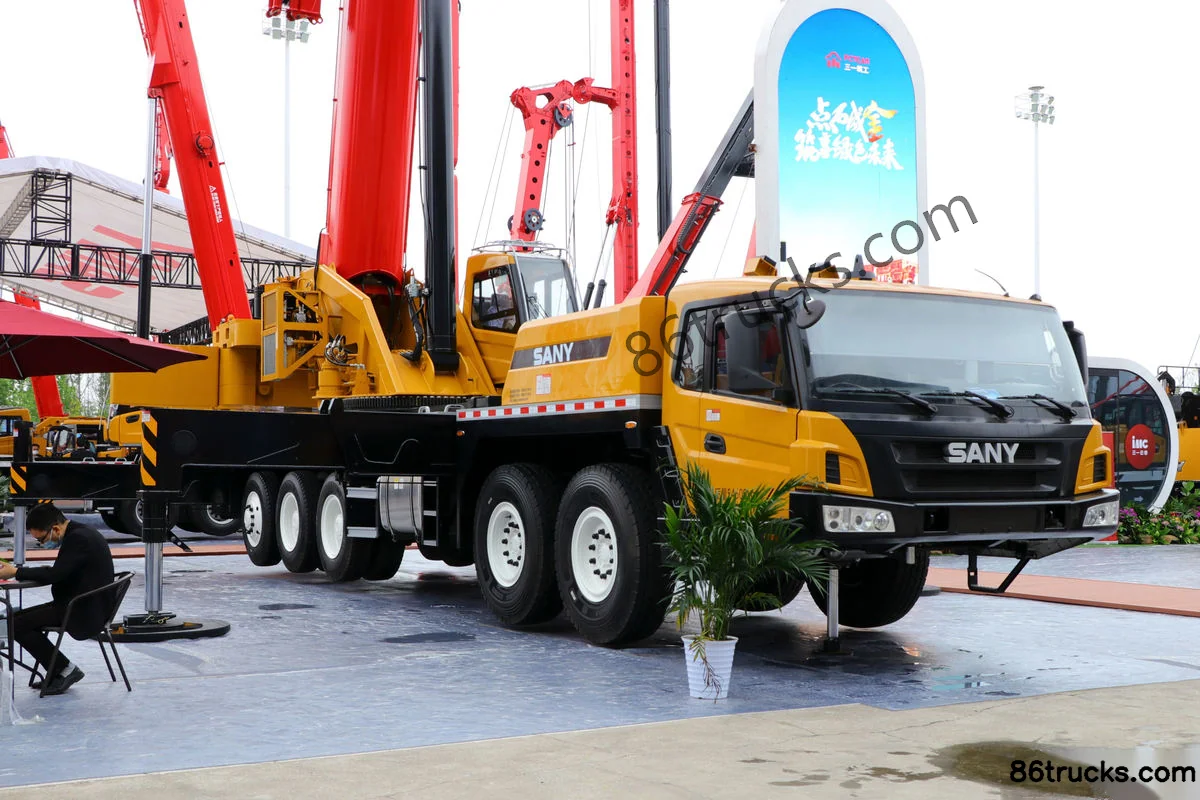

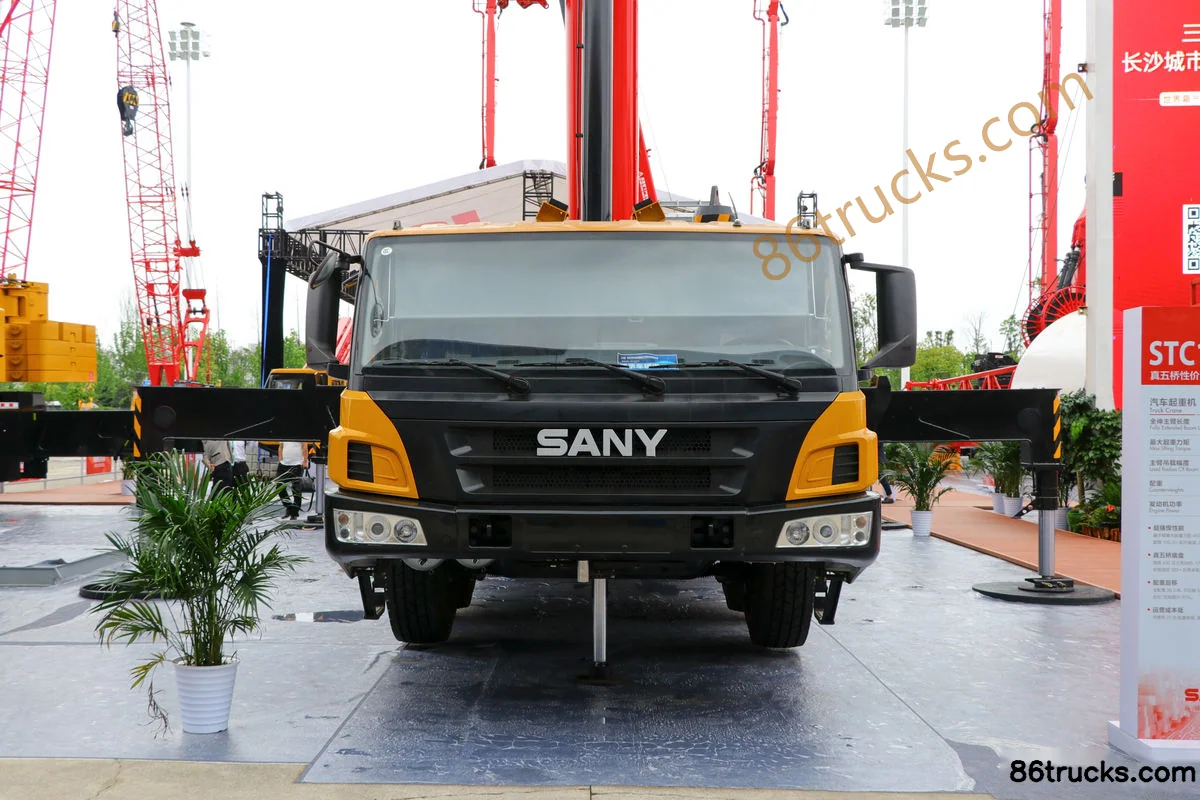

SANY 100-ton 5-axle Truck Crane Exterior (1) | 86Trucks SANY 100-ton 5-axle Truck Crane Exterior (2) | 86Trucks SANY 100-ton 5-axle Truck Crane Exterior (3) | 86Trucks

Chassis3

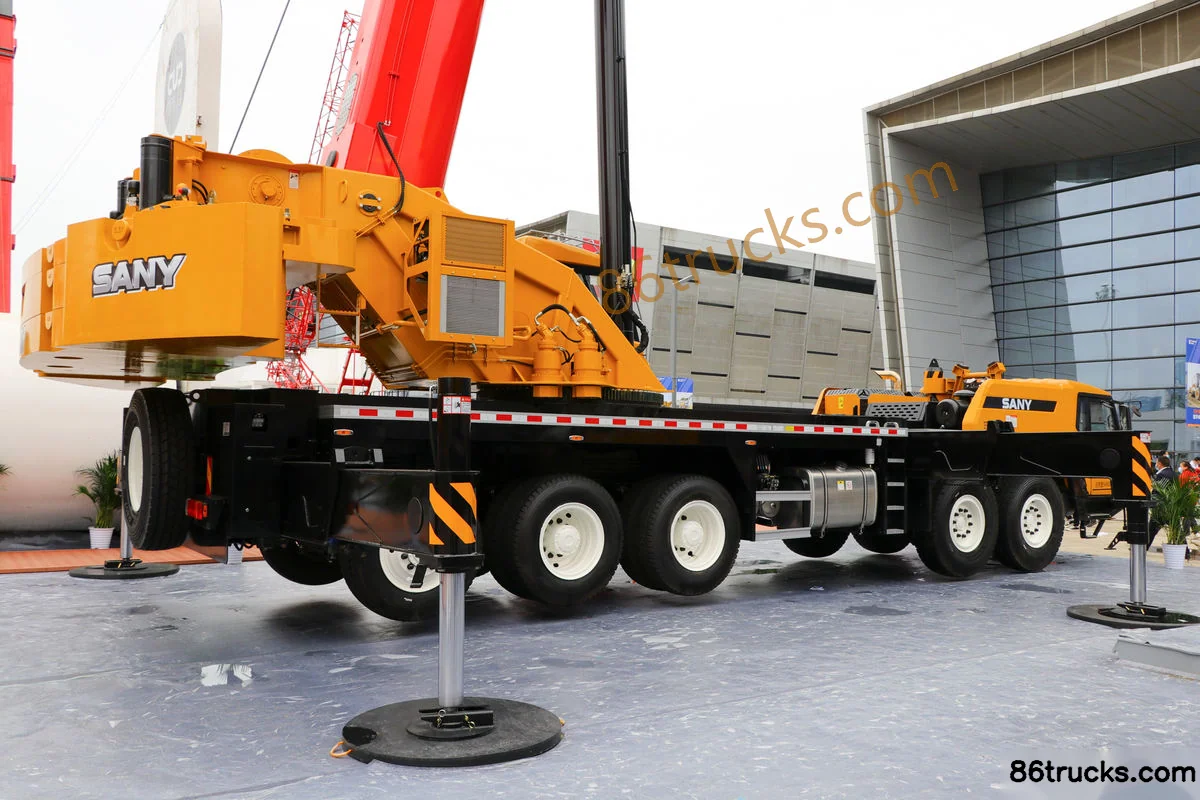

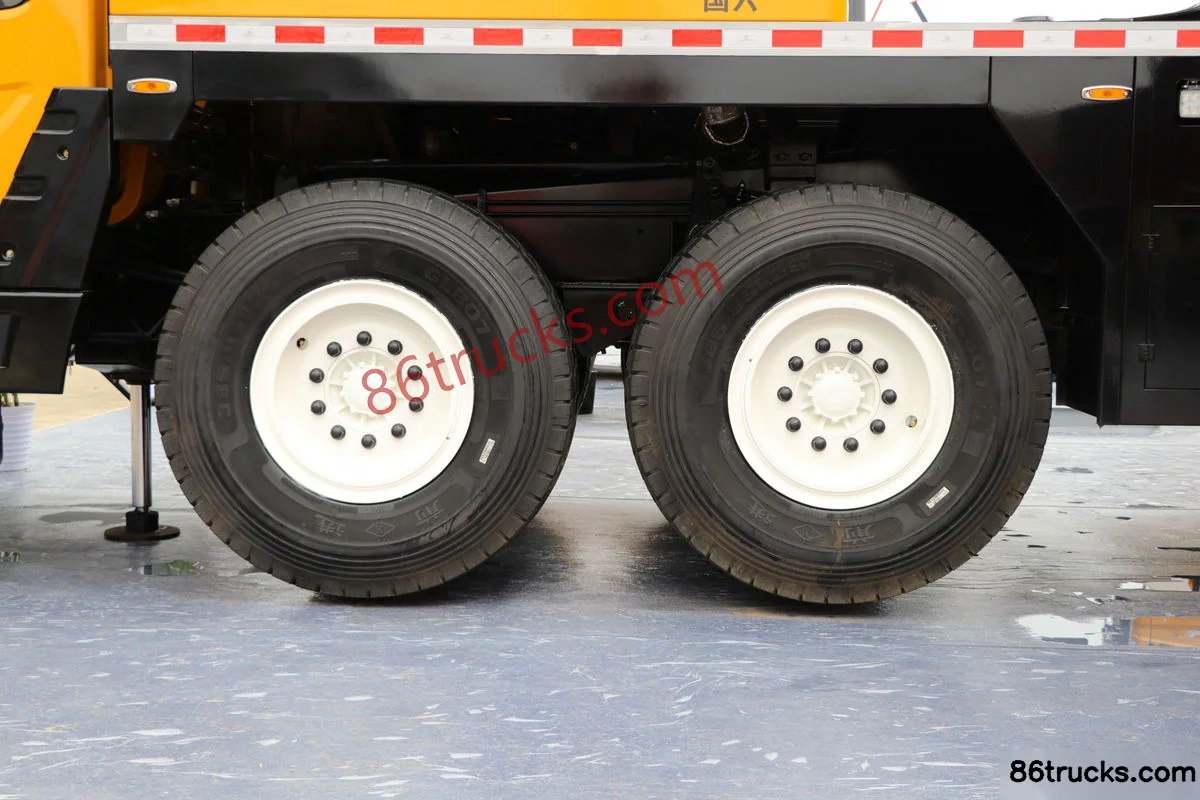

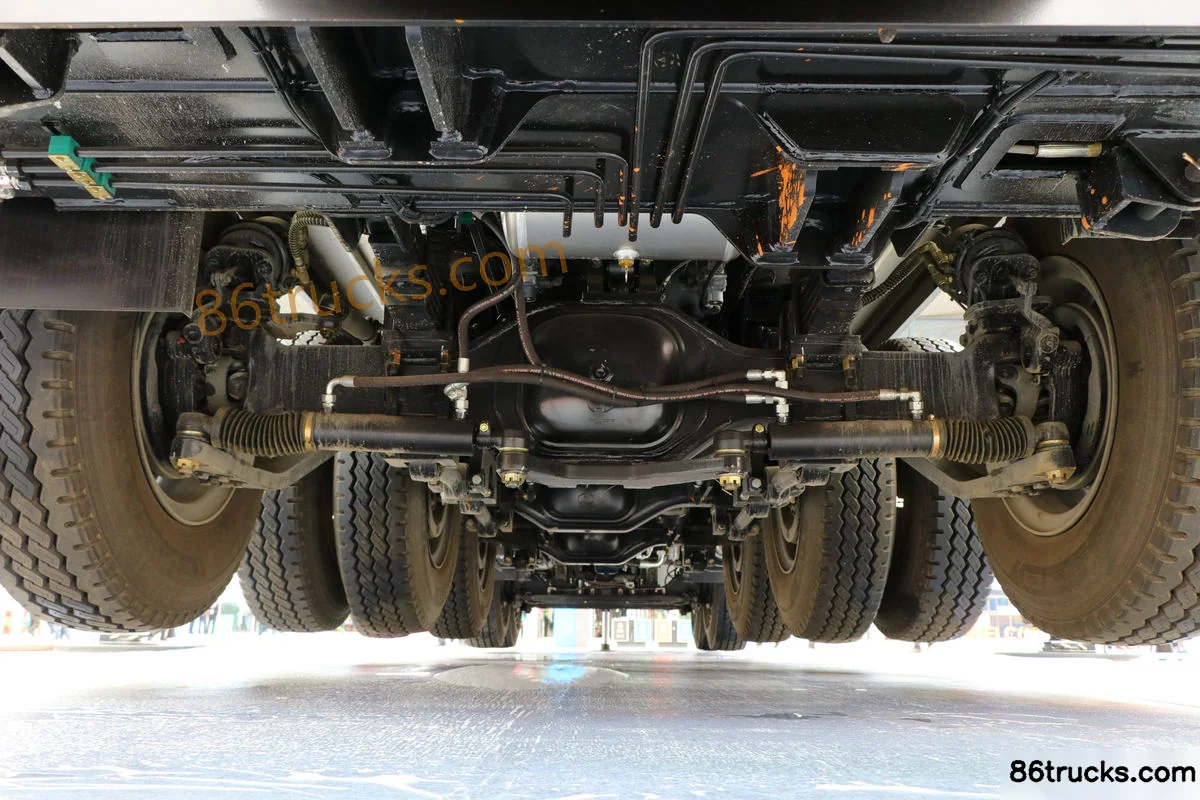

SANY 100-ton 5-axle Truck Crane Chassis (1) | 86Trucks SANY 100-ton 5-axle Truck Crane Chassis (2) | 86Trucks SANY 100-ton 5-axle Truck Crane Chassis (3) | 86Trucks

Chassis1

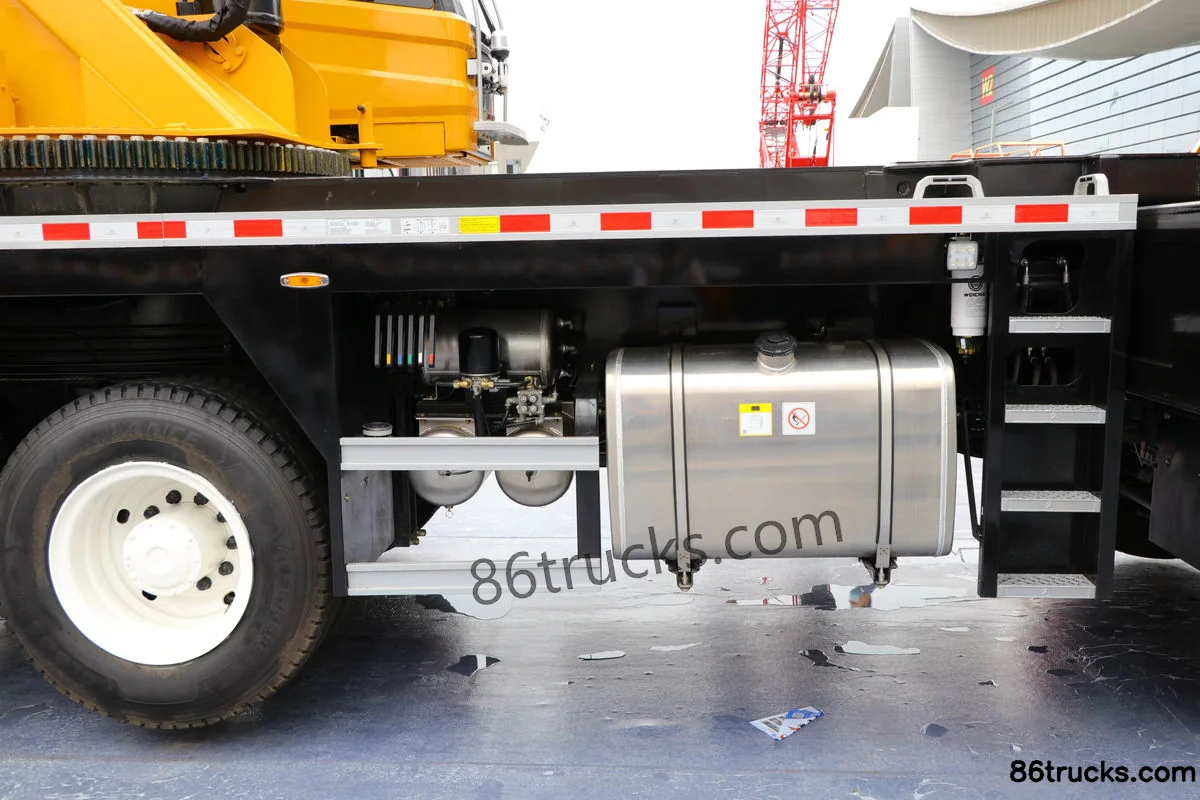

SANY 100-ton 5-axle Truck Crane Chassis (1) | 86Trucks

7 photos

FAQ

What transport jobs is SANY 100-ton 5-axle Truck Crane suited for?

SANY 100-ton 5-axle Truck Crane is a crane truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SANY 100-ton 5-axle Truck Crane differ from other variants in the same series?

SANY 100-ton 5-axle Truck Crane belongs to SANY truck crane (crane truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SANY 100-ton 5-axle Truck Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SANY 100-ton 5-axle Truck Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
