SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262)

Export reference
MSRP N/A
Horsepower: 430
Emission: China V
Fuel: Diesel
Engine: WeichaiWP12
Transmission: Fast Gear
Curb Weight:: 13.65ton
SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) exterior
View more photos (12)
seating capacity: 2Personnel
Rated payload: 17.22ton
Drive 8X4 (12 wheels)
Cargo box type: stake body

Overview

The SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) is a Heavy-duty cargo trucks featuring 9.55m cargo length, stake body cargo body, 2Personnel volume and 17.22t payload. Its segment focus covers Building material transport, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP12 engine, 430 hp, 8X4 (12 wheels) drive and China V emissions.

China V 430 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SX1310GB456
Type: Cargo Trucks
Drive type: 8X4
Wheelbase: 1800+4575+1400mm
Box length class: 9.6m
engine: WeichaiWP12.430E50
transmission: Fast Gear12JSD200TA-B
Rear Axle Ratio: 5.262
Cab length: 12m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2070/2070mm
rear track: 1860/1860mm
Curb Weight: 13.65ton
Rated payload: 17.22ton
GVWR: 31ton
Max. speed: 108km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 11°
market segment: Building material transport
Remarks: Tianxingjian Zhiya Edition BD Vehicle Terminal, domestic 4-channel ABS, 165Ah maintenance-free battery; optional 12JSD180TA + 16T MAN dual-stage 5.262, 600L aluminum fuel tank.
Front/rear suspension: 1.525/2.7m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12.430E50
Engine info: WeichaiWP12
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.596L
Emission standard: China V
Max output power: 316kW
Max hp: 430Horsepower
Max torque: 2060N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, electronically controlled high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD200TA-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.55m
Cargo box width: 2.45m
Cargo box height: 0.6m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab suspension: Four-point air suspension
Cab width: 2550mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: MAN7.5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 850×300(8+7)mm
rear axle description: 16T MAN double reduction
Steering gear: Domestic
rear axle allowable load: 18000kg
Axle ratio: 5.262
Leaf spring count: 3/3/5

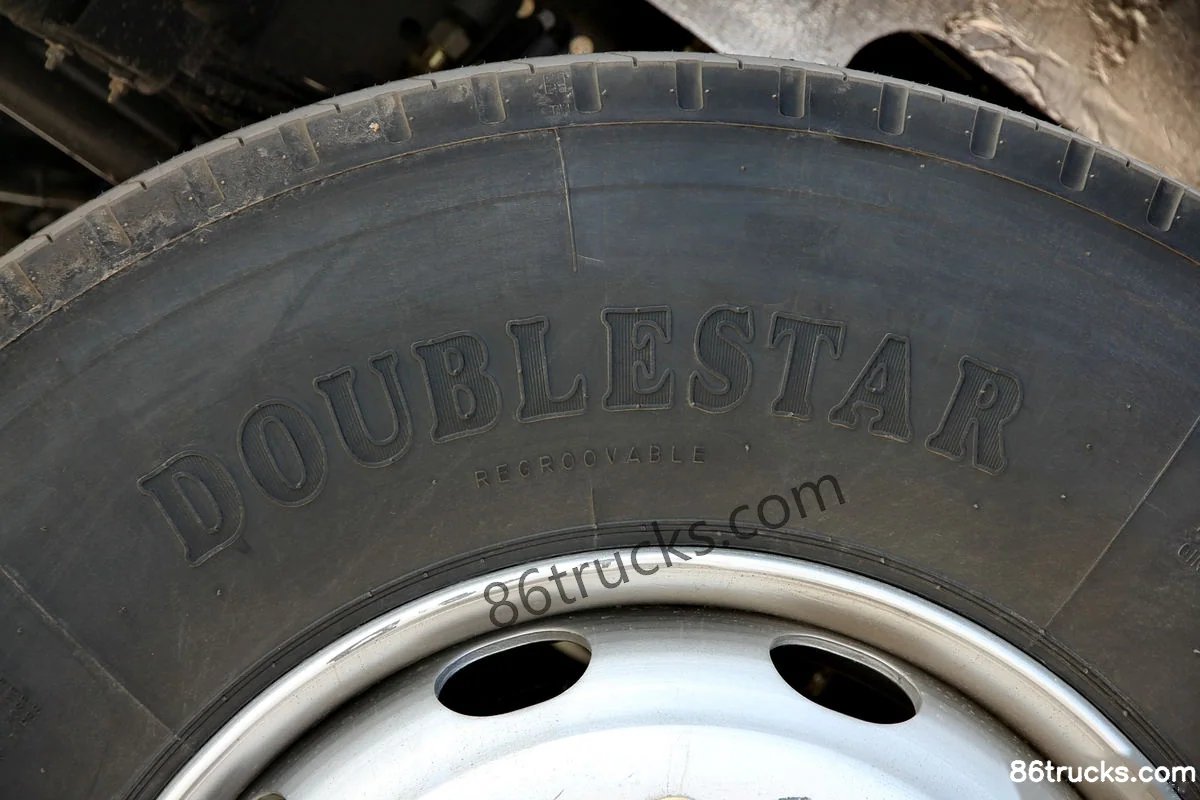

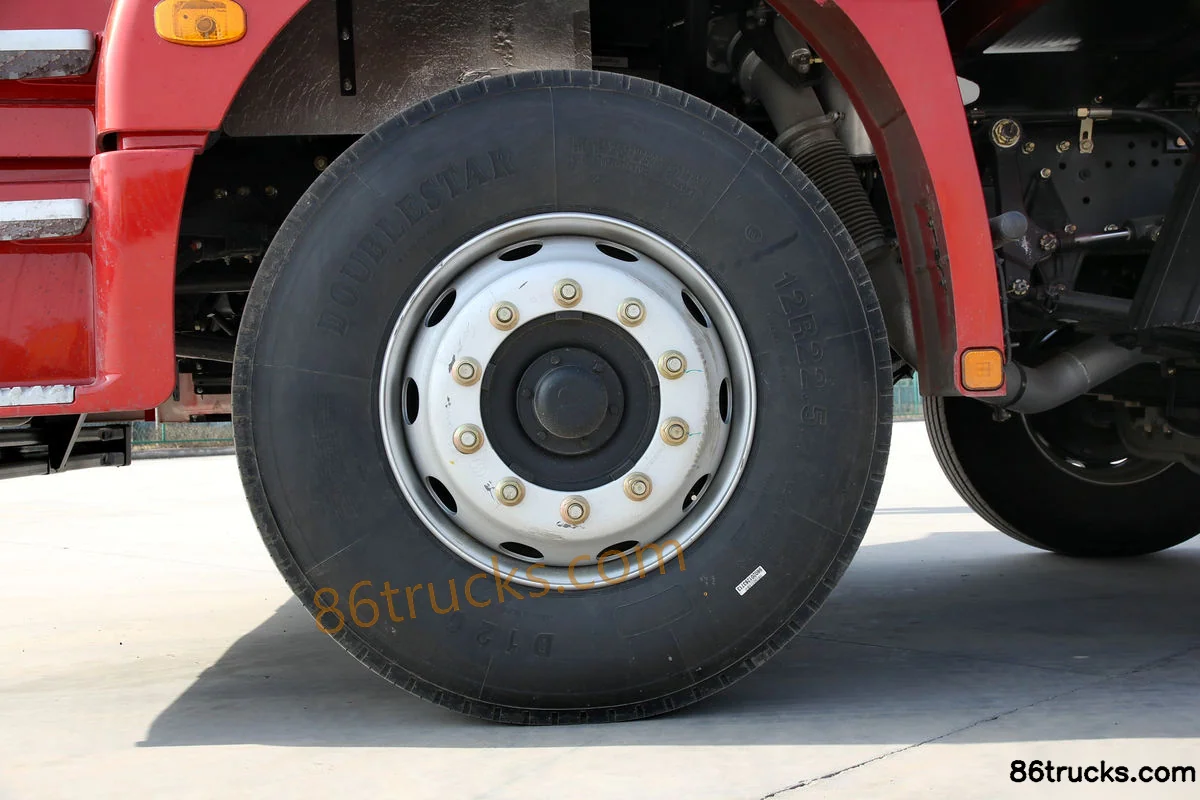

Tire
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
lighting configuration
daytime running lights:

Photos

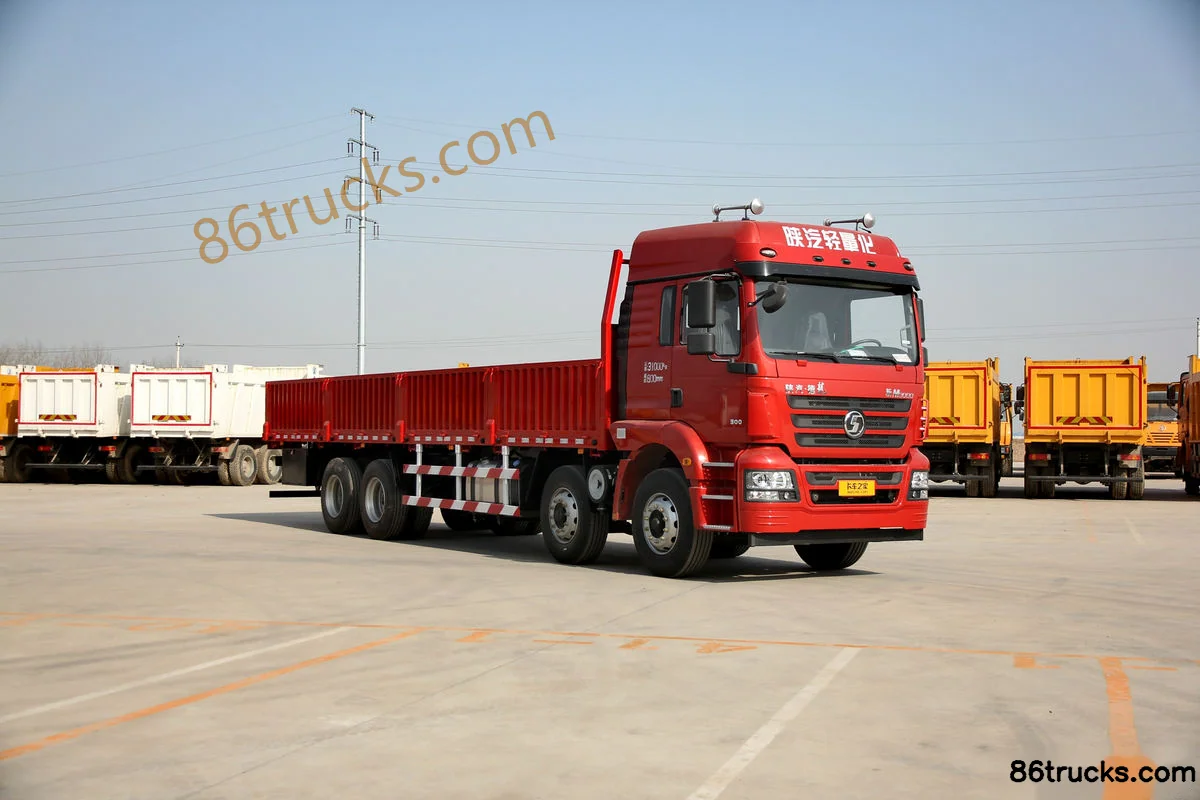

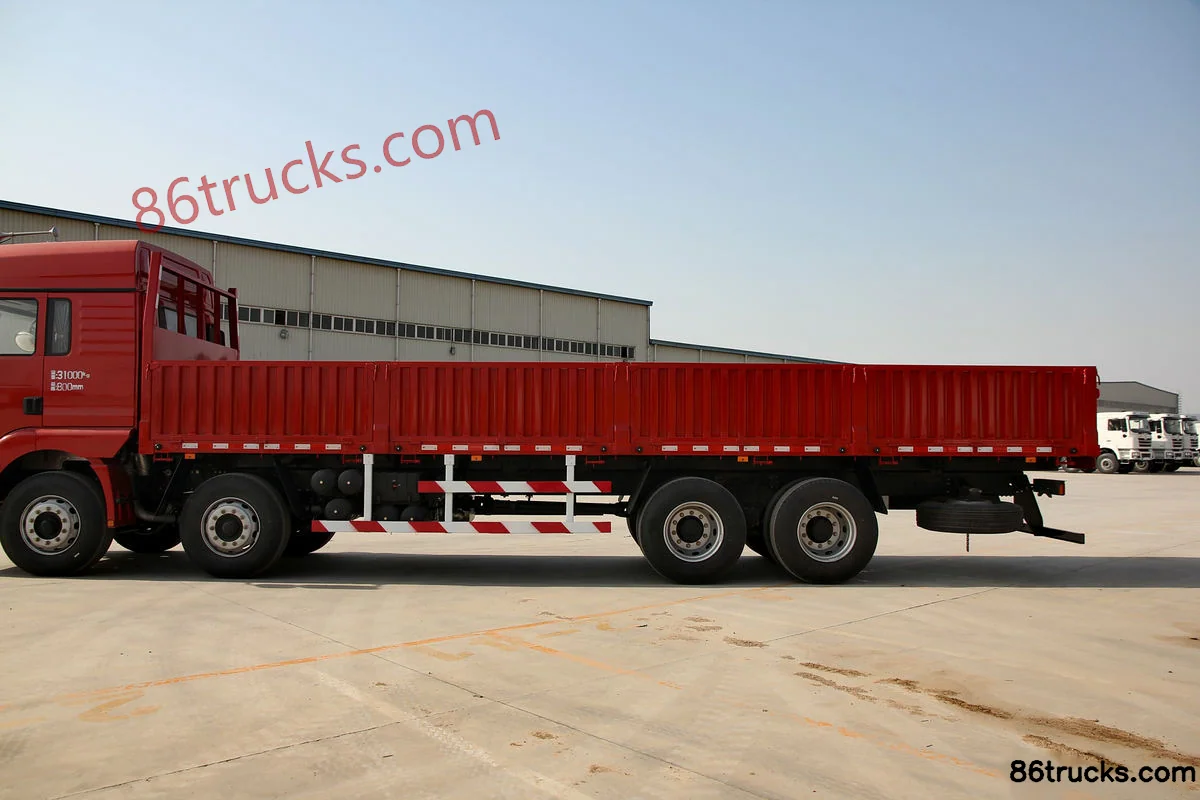

Exterior3

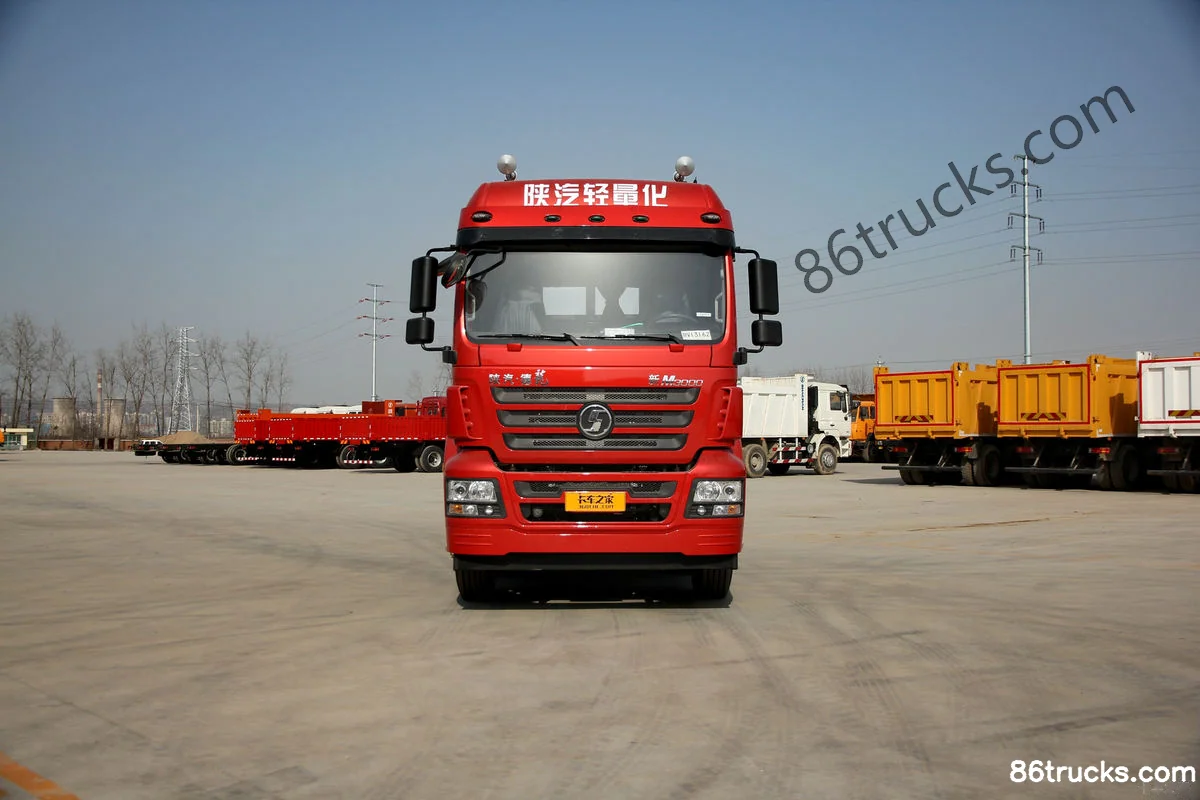

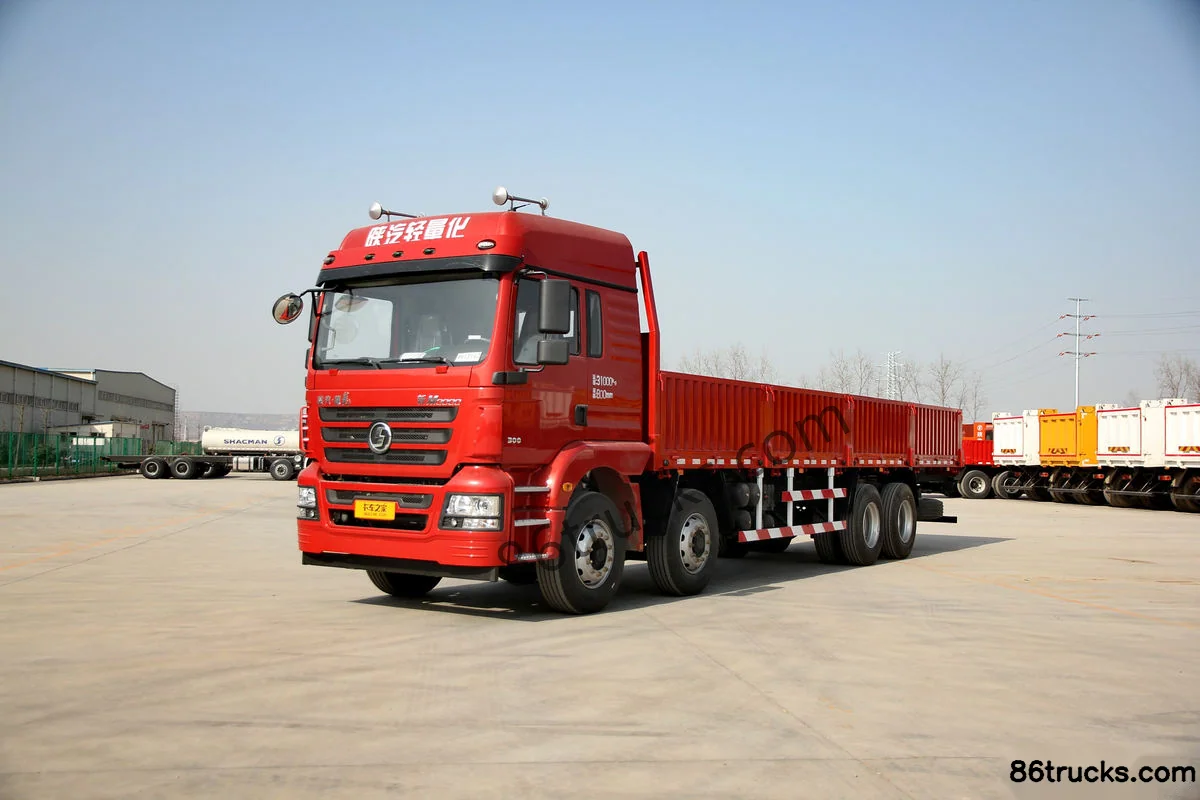

SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) Exterior (1) | 86Trucks SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) Exterior (2) | 86Trucks SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) Exterior (3) | 86Trucks

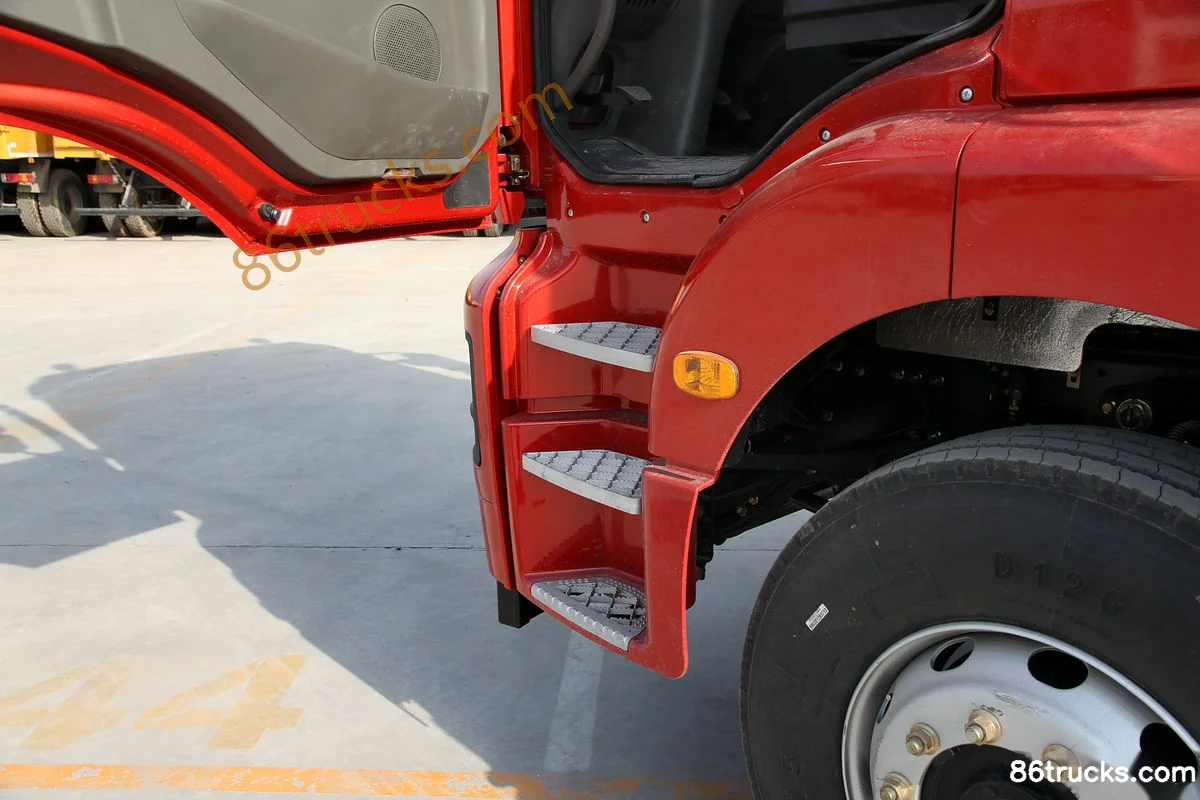

Cab3

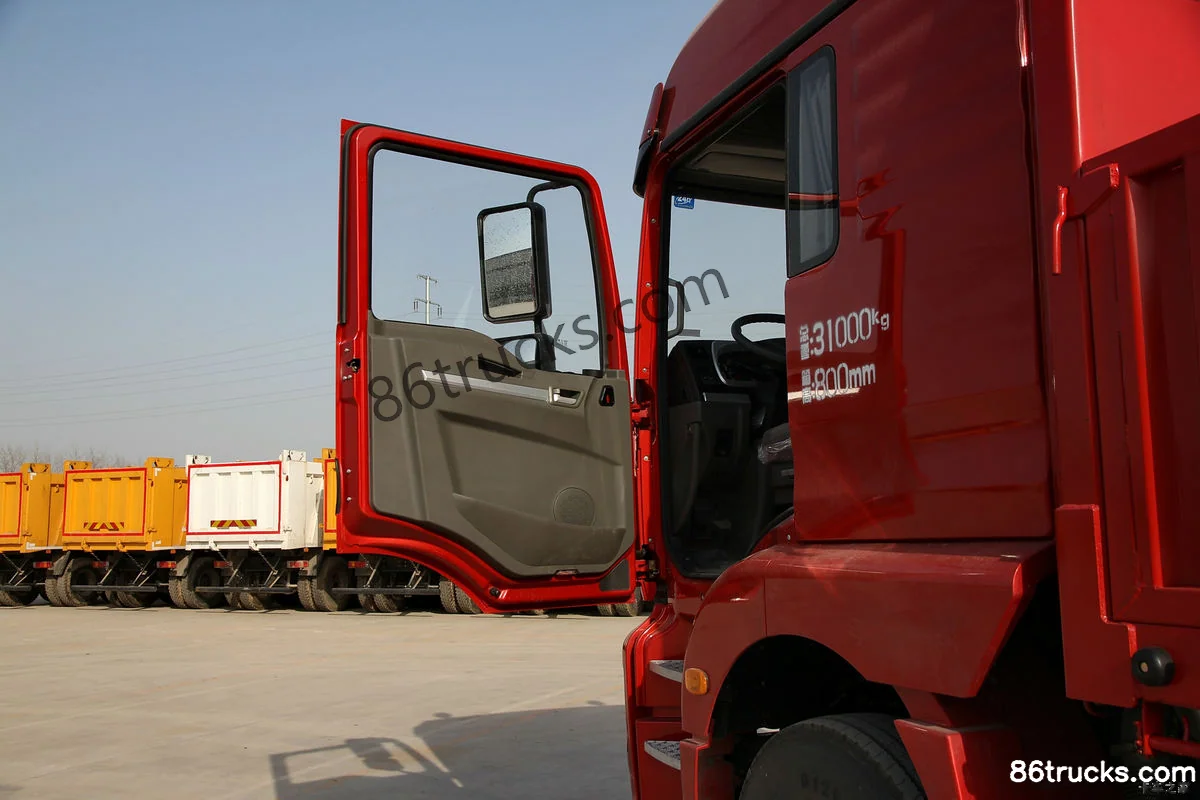

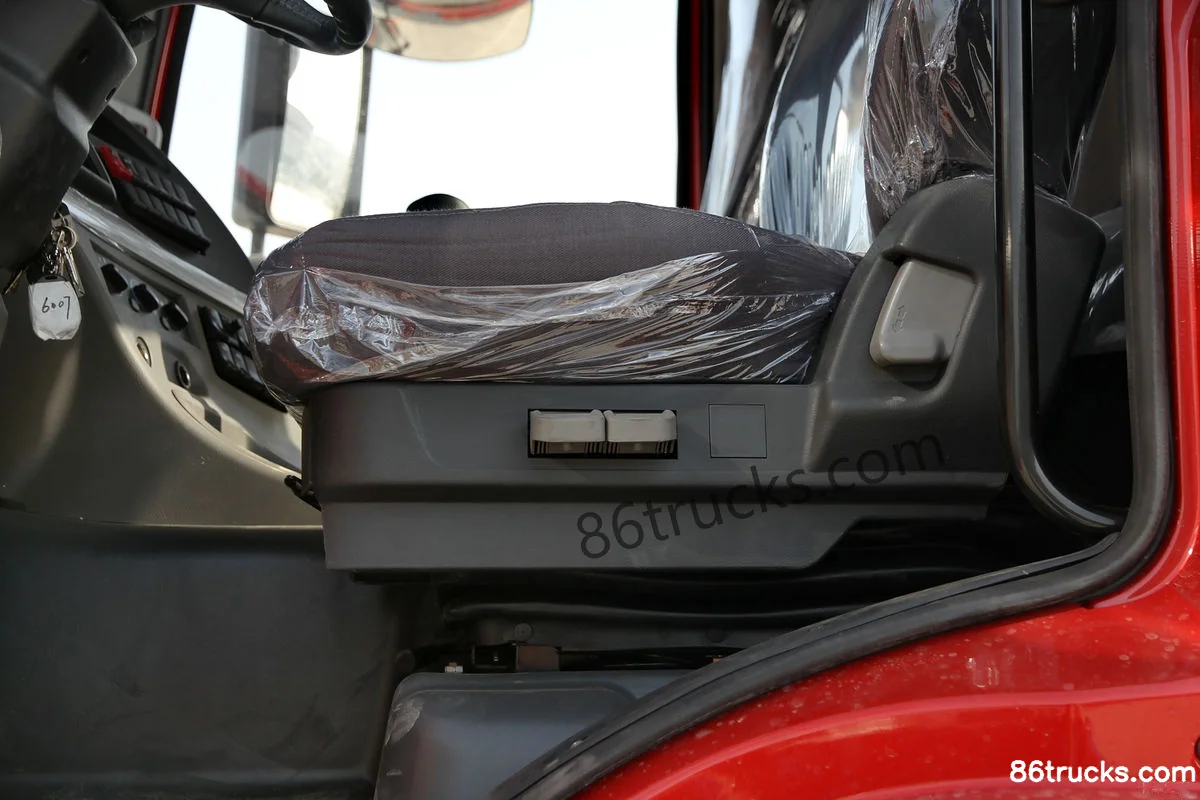

SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) Cab (1) | 86Trucks SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) Cab (2) | 86Trucks SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) Cab (3) | 86Trucks

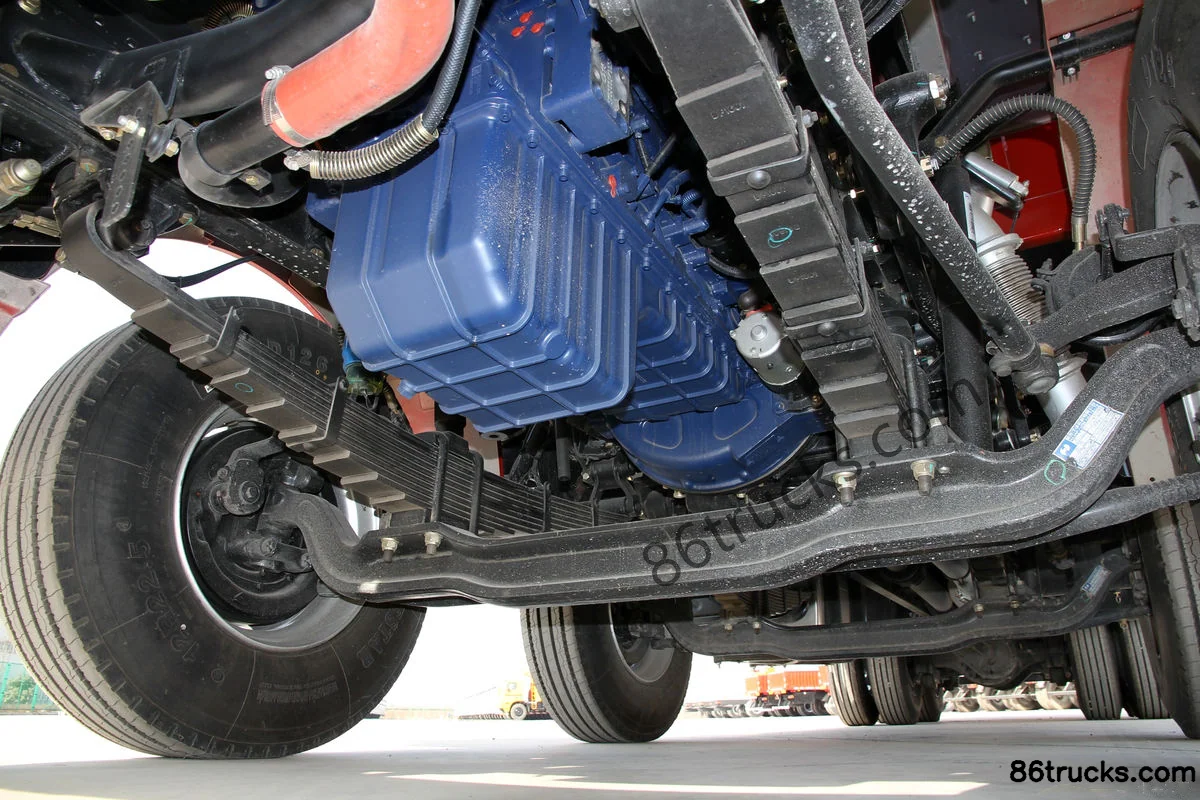

Chassis3

SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) Chassis (1) | 86Trucks SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) Chassis (2) | 86Trucks SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) Chassis (3) | 86Trucks

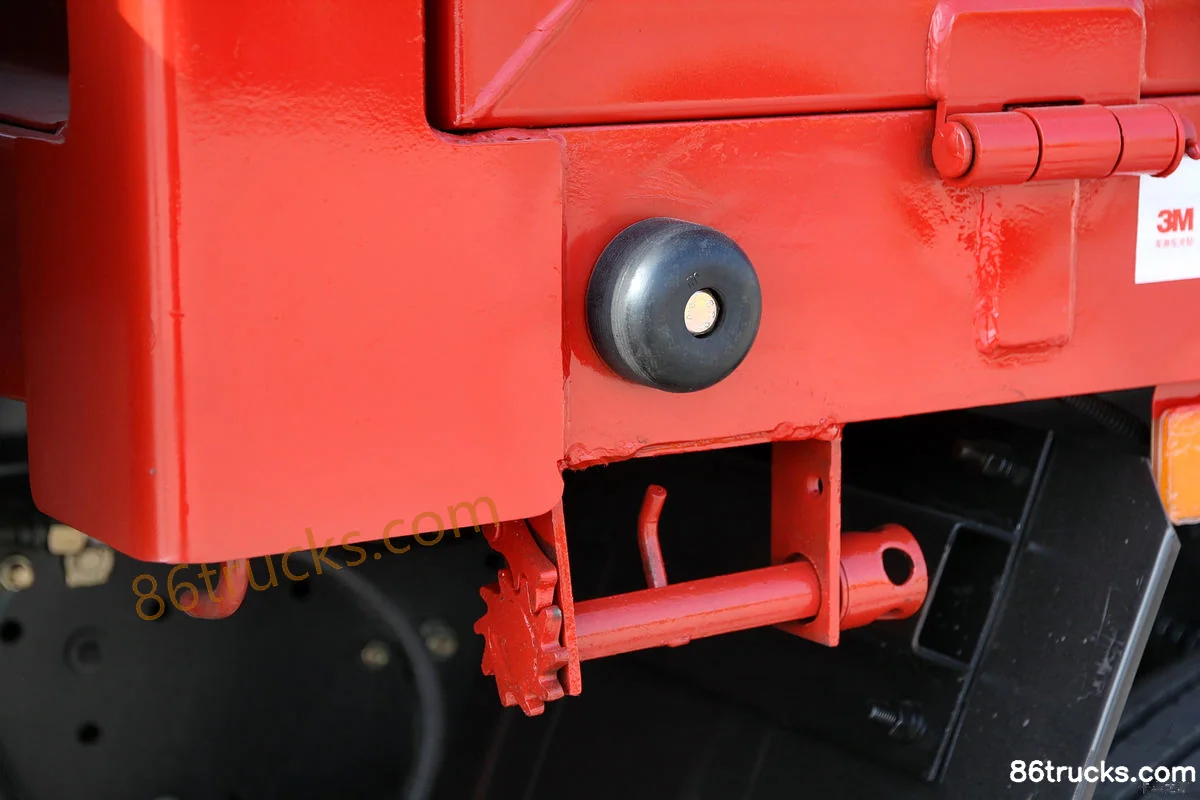

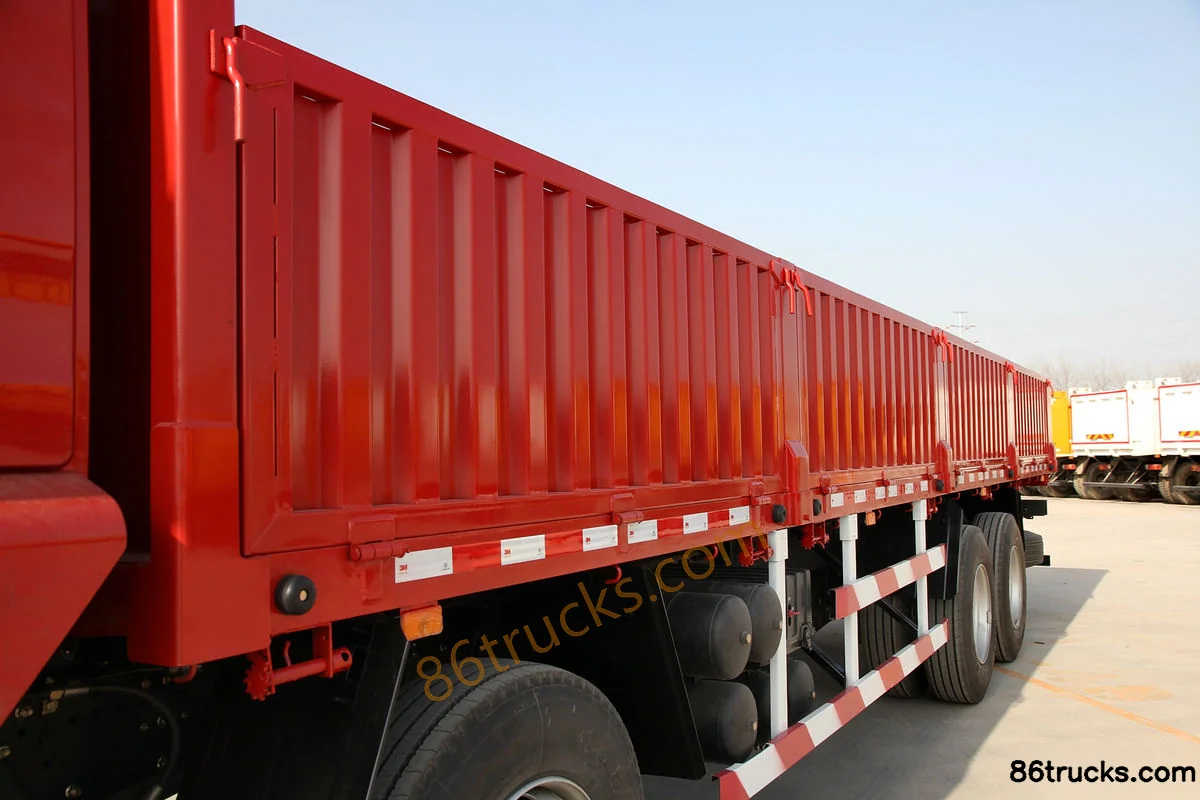

Body3

SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) Body (1) | 86Trucks SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) Body (2) | 86Trucks SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) Body (3) | 86Trucks

12 photos

FAQ

What emission standard does SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262)?

Key specs of SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262): Drive: 8x4; Horsepower: 430 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP12; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) suited for?

SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) differ from other variants in the same series?

SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262) belongs to SHACMAN Delong New M3000 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong New M3000 430 hp 8X4(12 wheels) 9.55 m flatbed cargo truck (axle ratio 5.262)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
