Dongfeng T5 Composite Edition 240 hp 4X2(6 wheels) 7.9m Refrigerated Truck (China VI)

Export reference
From $29,306
MSRP ¥21.1M CNY
Horsepower: 240
Emission: China VI
Fuel: Diesel
Curb Weight:: 8.53ton
Wheelbase:: 5800mm
Tire Size:: 295/60R22.5 18PR
Fuel tank capacity: 400L
Rated payload: 9.34ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 7.9×2.43×2.55m

Overview

The Dongfeng T5 Composite Edition 240 hp 4X2(6 wheels) 7.9m Refrigerated Truck (China VI) is a Refrigerated Truck featuring 7.9×2.43×2.55m cargo body, 400L volume, 9.34t payload and High roof cab. On the powertrain side, it comes with 240 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.4×2.6×4m
Truck Type: Refrigerated Truck
Drive type: 4X2
Vehicle origin: Shiyan, Hubei
Wheelbase: 5800mm
Front track width: 1910mm
rear track: 1820mm
Curb Weight: 8.53ton
Rated payload: 9.34ton
GVWR: 18ton
Max. speed: 88km/h
Remarks: Optional: Lithium battery home kit, dual-chamber fuel tank, diesel heater.
Front/rear suspension: 1.41/3.19m
Energy Type: Diesel
Engine parameters
Engine Model: YuchaiYCK05240-60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 5.13L
Emission standard: China VI
Max output power: 176kW
Max hp: 240Horsepower
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Cargo box parameters
Cargo box dimensions: 7.9×2.43×2.55m
Cargo box width: 2.43m
Cargo box height: 2.55m
Body Parameters
Vehicle certification code: EQ5186XLCL6D11
Body Brand: Dongfeng
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Huashen T5
Chassis Model: EQ5186XXYL6DJ1
Front axle description: 3.6T
Frame Dimensions: 230×7mm
rear axle description: Hande 9t
Axle ratio: 3.909
Leaf spring count: 10/10+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS95TE-C
Cab parameters
Cab: High roof
fuel tank
Fuel tank capacity: 400L
Tire
Tire Size: 295/60R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
EBS electronic braking system:
clutch booster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: pneumatic
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
lighting configuration
LED headlight:
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Exterior features
Air deflector:
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
Service brake
Brake Type: Air brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):

Photos

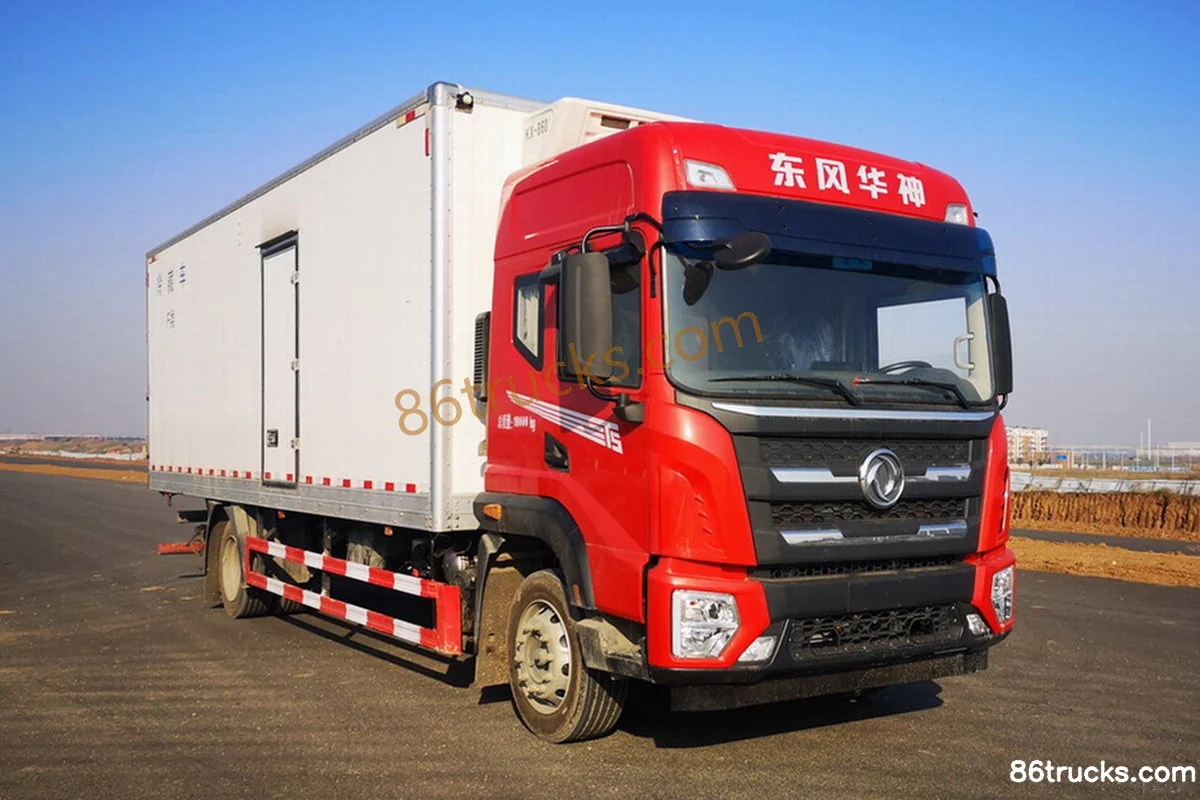

Exterior1

1 photos

FAQ

What is the export price of Dongfeng T5 Composite Edition 240 hp 4X2(6 wheels) 7.9m Refrigerated Truck (China VI), and what does it include?

Dongfeng T5 Composite Edition 240 hp 4X2(6 wheels) 7.9m Refrigerated Truck (China VI) export reference is about From $29,306; MSRP is ¥21.1M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng T5 Composite Edition 240 hp 4X2(6 wheels) 7.9m Refrigerated Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng T5 Composite Edition 240 hp 4X2(6 wheels) 7.9m Refrigerated Truck (China VI)?

Key specs of Dongfeng T5 Composite Edition 240 hp 4X2(6 wheels) 7.9m Refrigerated Truck (China VI): Drive: 4x2; Horsepower: 240 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng T5 Composite Edition 240 hp 4X2(6 wheels) 7.9m Refrigerated Truck (China VI) suited for?

Dongfeng T5 Composite Edition 240 hp 4X2(6 wheels) 7.9m Refrigerated Truck (China VI) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng T5 Composite Edition 240 hp 4X2(6 wheels) 7.9m Refrigerated Truck (China VI) differ from other variants in the same series?

Dongfeng T5 Composite Edition 240 hp 4X2(6 wheels) 7.9m Refrigerated Truck (China VI) belongs to Dongfeng T5 medium truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng T5 Composite Edition 240 hp 4X2(6 wheels) 7.9m Refrigerated Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng T5 Composite Edition 240 hp 4X2(6 wheels) 7.9m Refrigerated Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
