NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck

Export reference
MSRP N/A
Horsepower: 133
Emission: China IV
Fuel: gasoline
Engine: Liuji 1.8L
Transmission: Mengwo
Curb Weight:: 1.675ton
NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck exterior
View more photos (12)
seating capacity: 5Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck is a mini truck featuring 2.515m cargo length, stake body cargo body, 5Personnel volume and 1.495t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Liuji 1.8L engine, 133 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 133 gasoline 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): NJA1030SSG34SV
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3400mm
Box length class: 2.5m
engine: Wuling LiujiLJ4A18Q
transmission: Mengwo5-20CY11KS
Rear Axle Ratio: 5.375
Cab length: 5.525m
Cab width: 1.78m
Cab height: 2.13m
Front track width: 1455mm
rear track: 1330mm
Curb Weight: 1.675ton
Rated payload: 1.495ton
GVWR: 3.495ton
Max. speed: 80km/h
Origin: Ziyang, Sichuan
tonnage class: mini truck
Approach angle: 35°
departure angle: 16°
market segment: Building materials, agricultural products
Remarks: EPS + active return, leather seat
Front/rear suspension: 0.685/1.44m
Version: Flagship Edition
Energy Type: gasoline
Engine parameters
Engine Brand: Wuling Liuji
Engine Model: Wuling LiujiLJ4A18Q
Engine info: Liuji 1.8L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.798L
Emission standard: China IV
Max output power: 98kW
Max hp: 133Horsepower
Max torque: 182N·m
Transmission Parameters
Transmission Model: Mengwo5-20CY11KS
Transmission Brand: Mengwo
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.515m
Cargo box width: 1.68m
Cargo box height: 0.36m
*Cargo box interior width: 1.6799999475479
Cab parameters
Cab: SDG
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle description: 1028
Front axle allowable load: 1250kg
rear axle description: 1028
rear axle allowable load: 2245kg
Axle ratio: 5.375
Leaf spring count: 4/5,5/6+5
Tire
Tire Size: 185R14LT
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Reverse Camera:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:

Photos

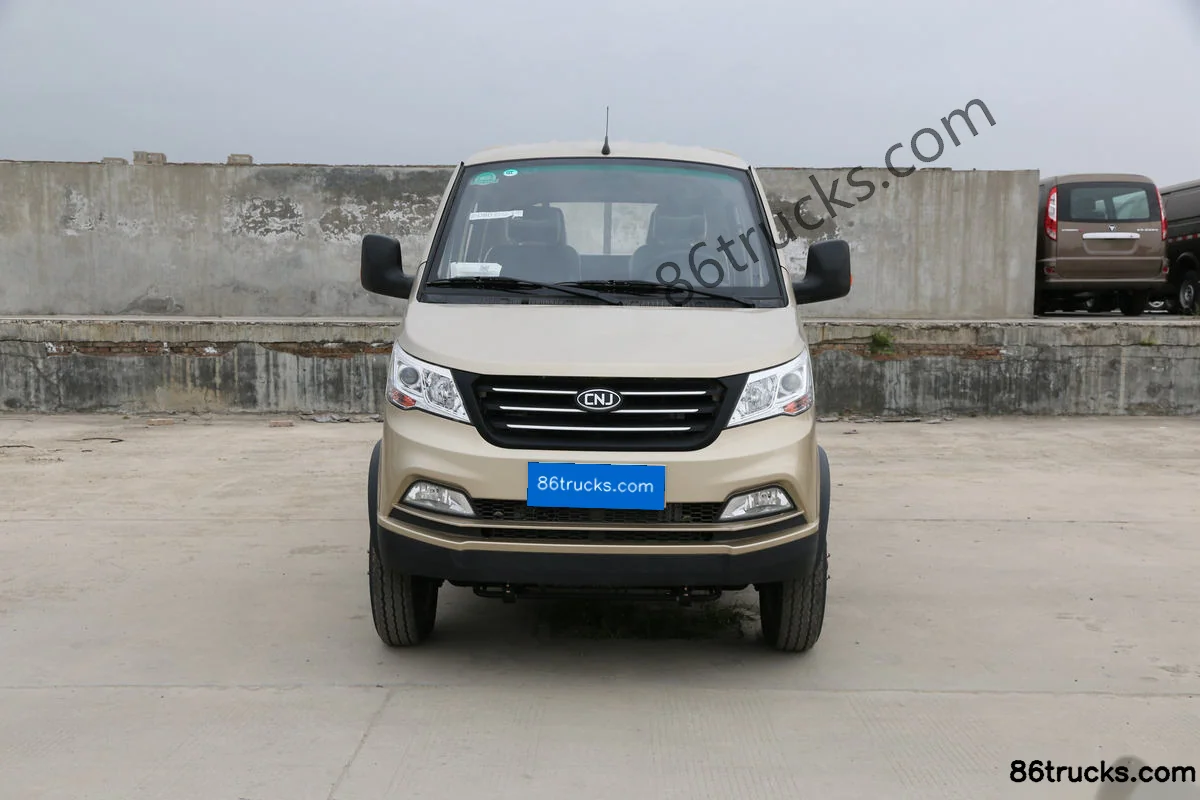

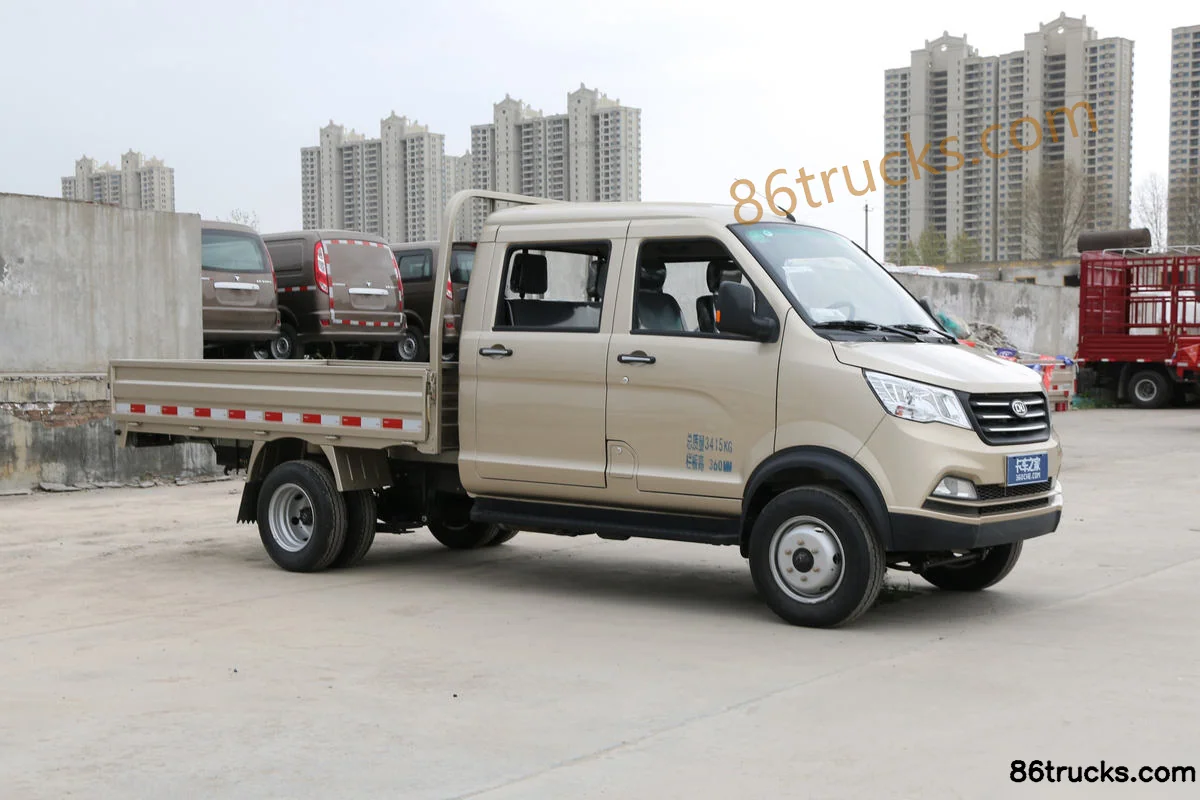

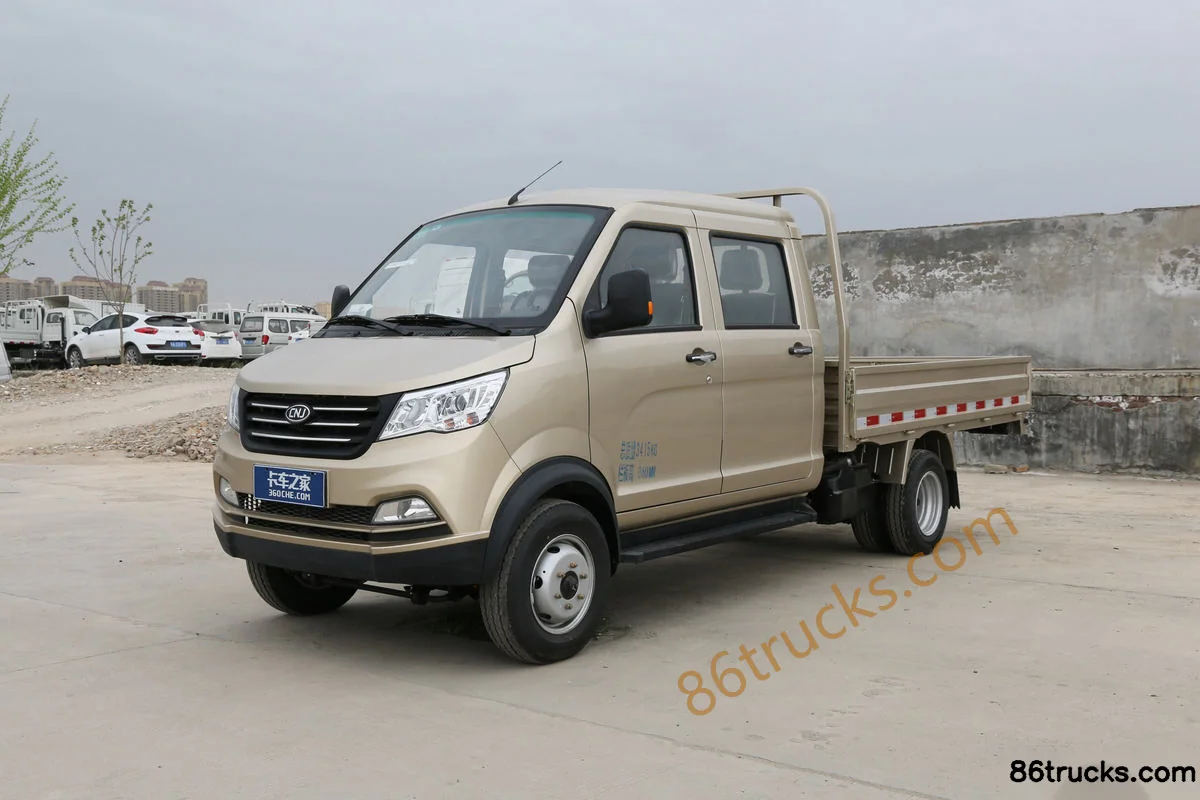

Exterior3

NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck Exterior (1) | 86Trucks NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck Exterior (2) | 86Trucks NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck Exterior (3) | 86Trucks

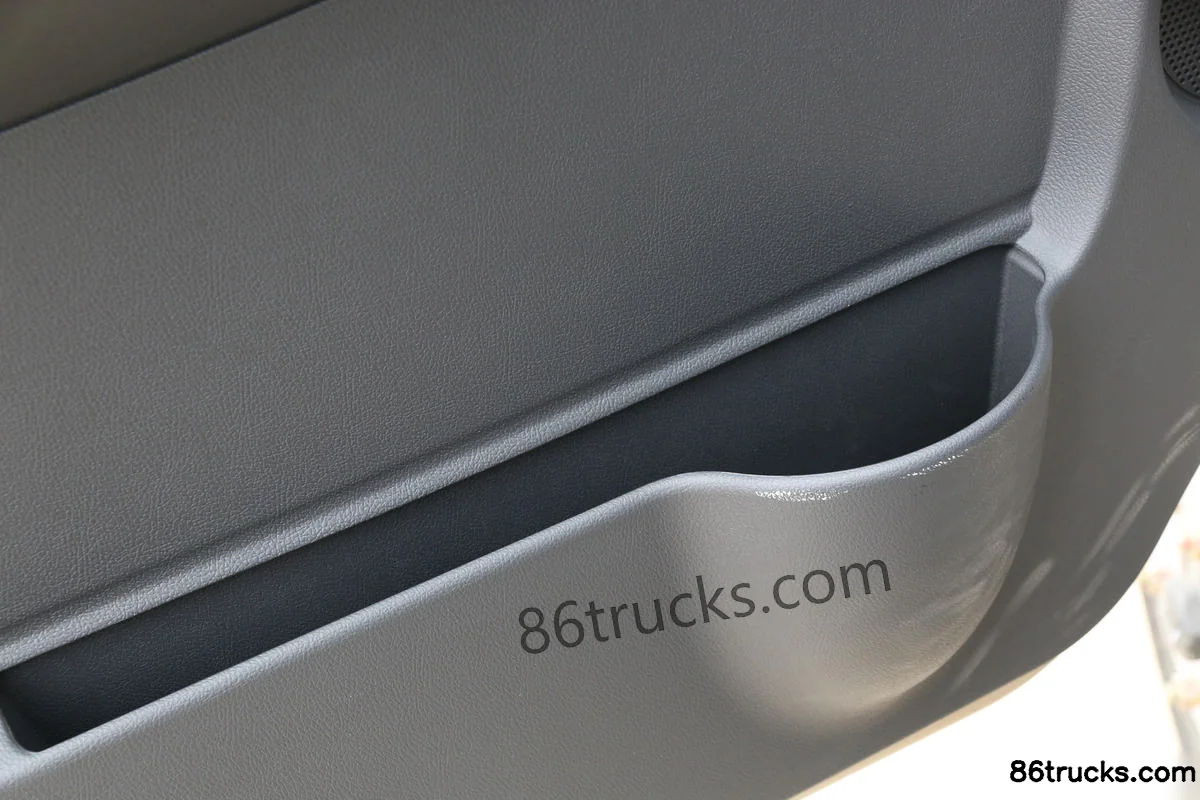

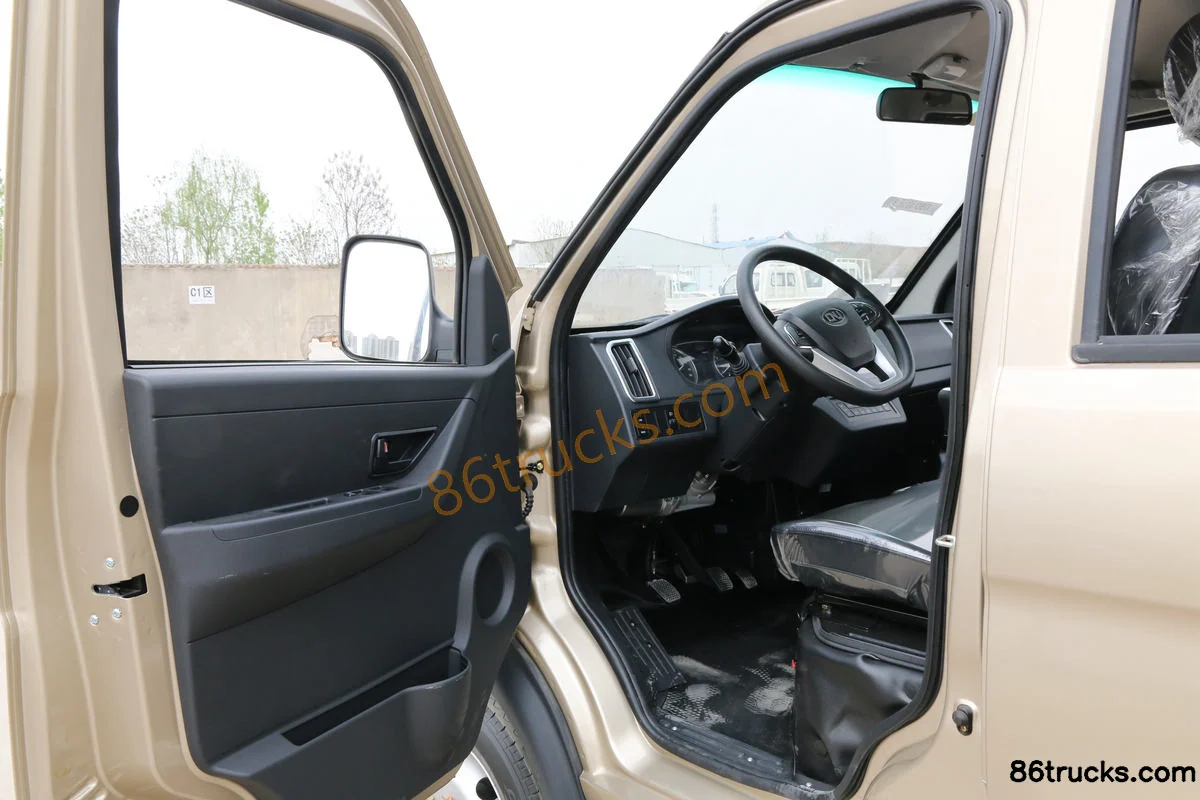

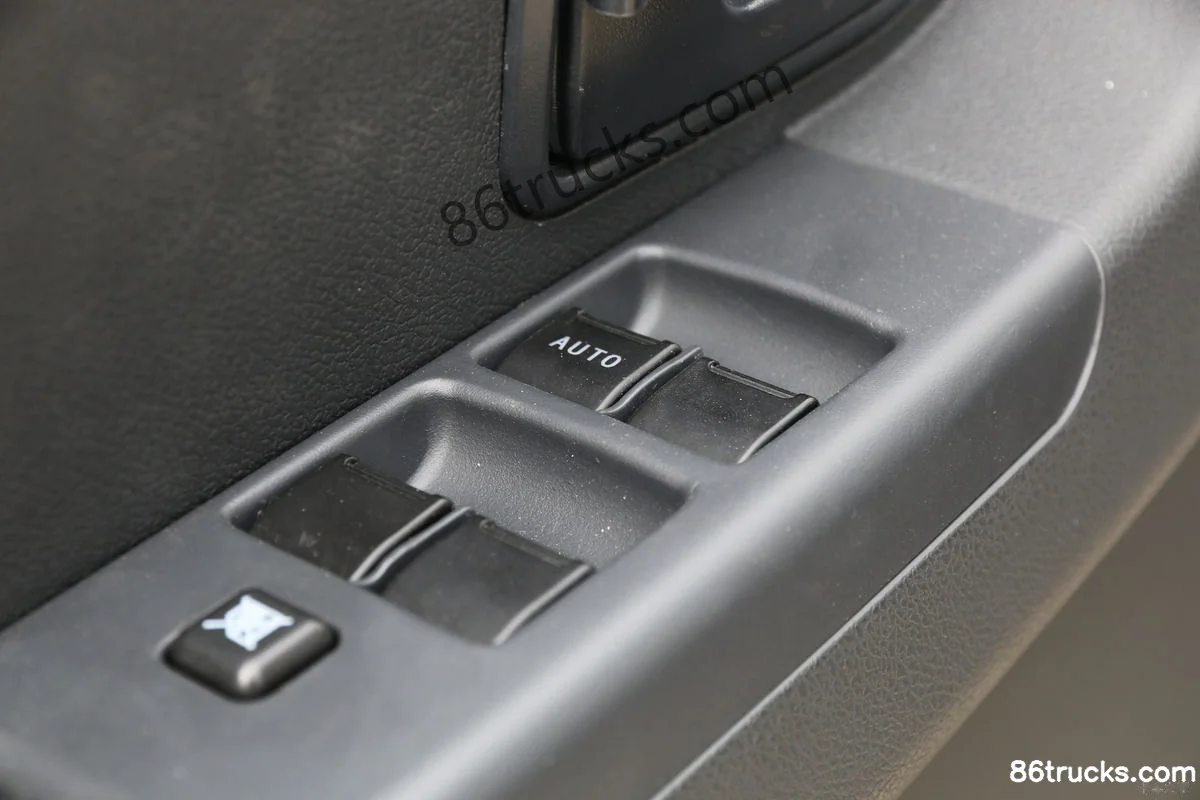

Cab3

NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck Cab (1) | 86Trucks NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck Cab (2) | 86Trucks NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck Cab (3) | 86Trucks

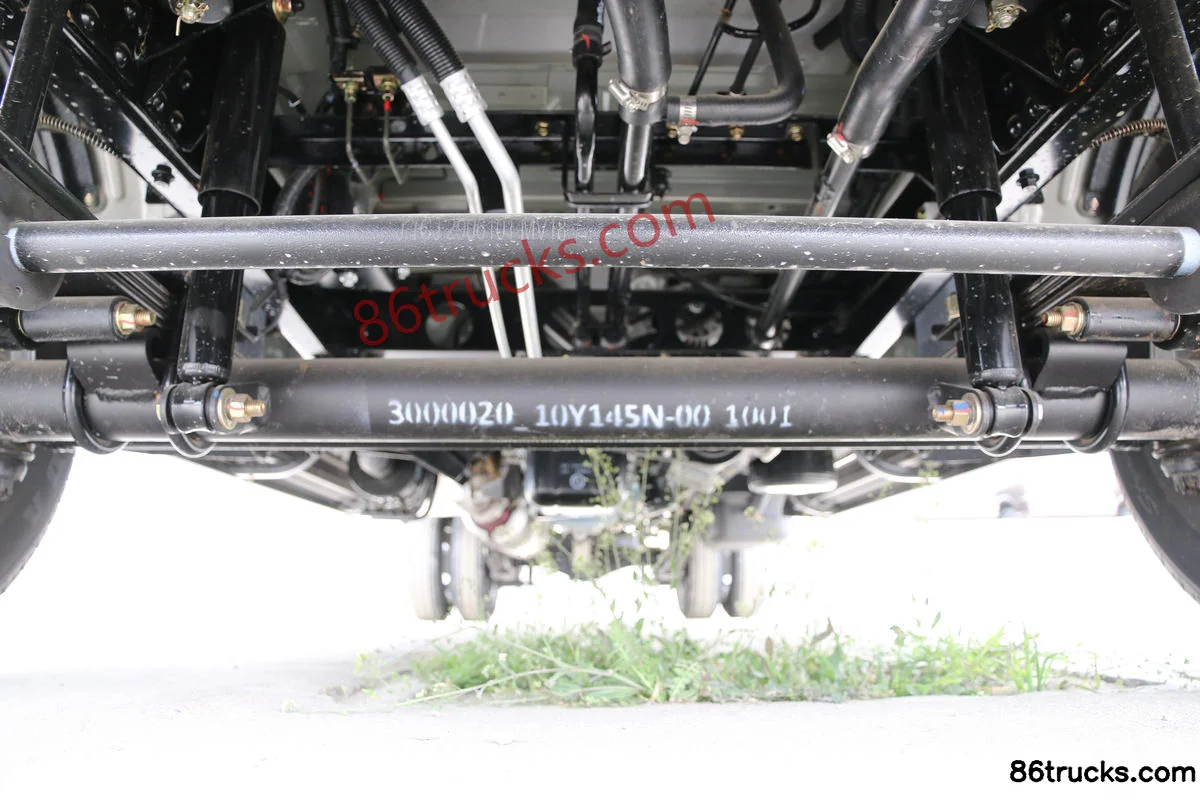

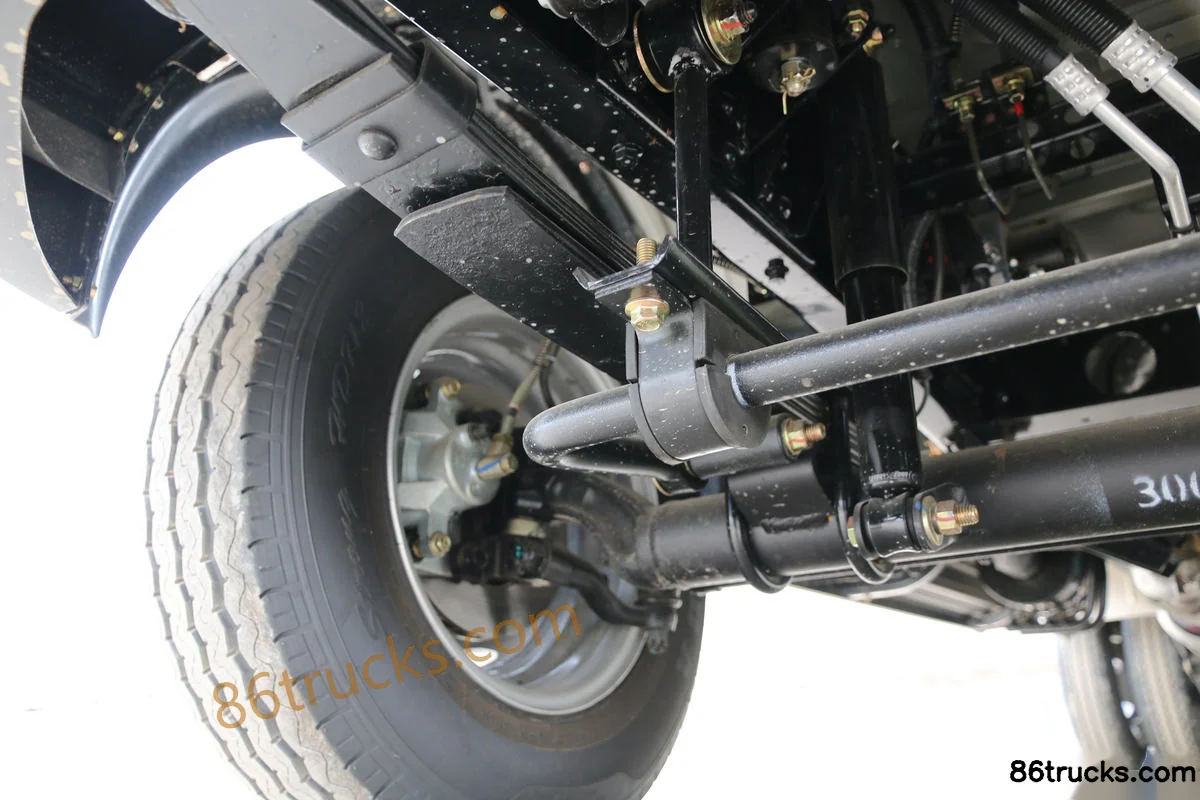

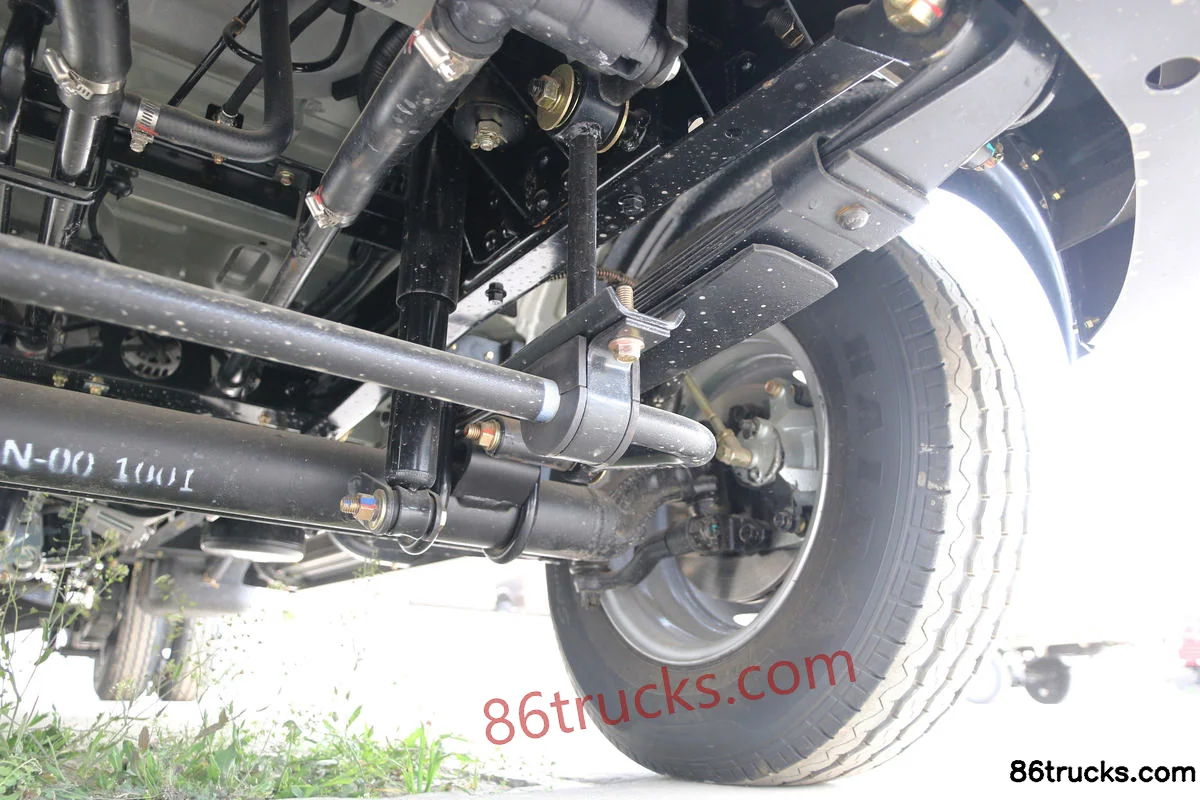

Chassis3

NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck Chassis (1) | 86Trucks NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck Chassis (2) | 86Trucks NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck Chassis (3) | 86Trucks

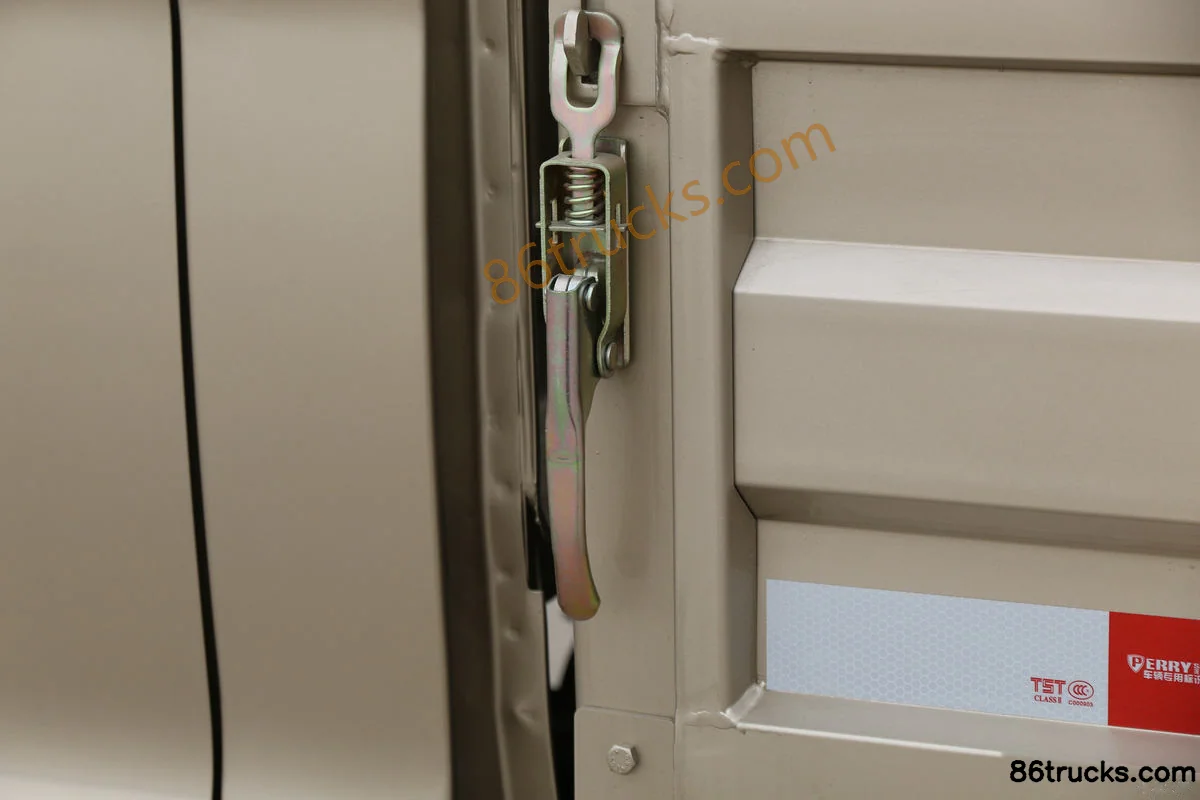

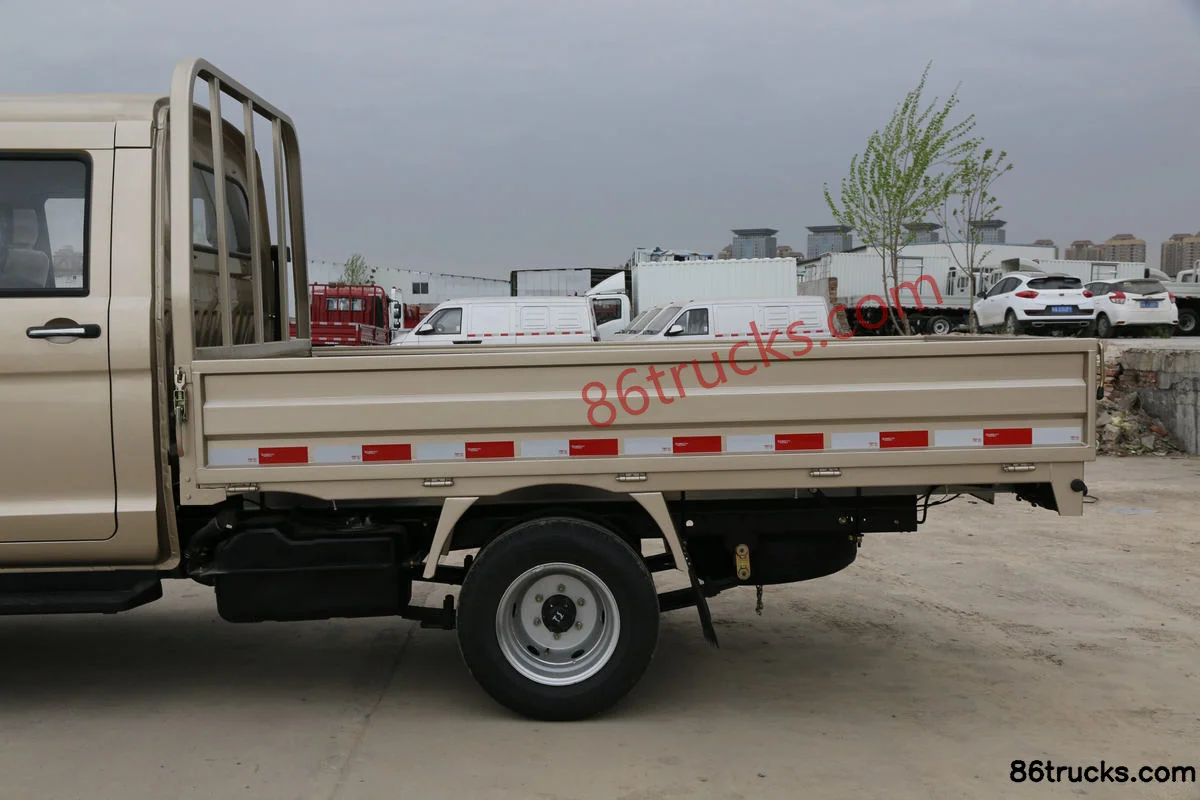

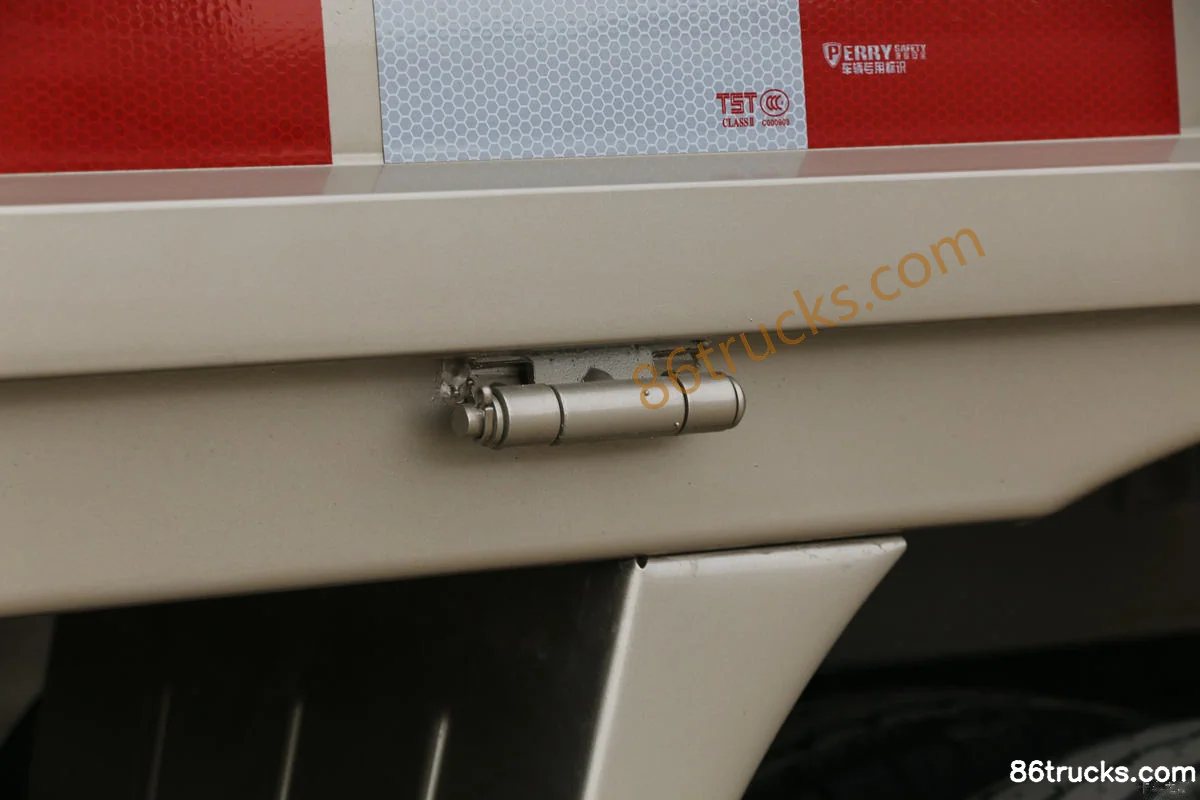

Body3

NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck Body (1) | 86Trucks NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck Body (2) | 86Trucks NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck?

Key specs of NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck: Drive: 4x2; Horsepower: 133 hp; Emission: China IV; Fuel: gasoline; Engine: Liuji 1.8L; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck suited for?

NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck differ from other variants in the same series?

NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck belongs to NanJun Ruishuai F-Series Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruishuai F2 Series Flagship Edition 133 hp 4X2(6 wheels) 2.515m Double Row Flatbed Mini Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
