JMC Xinshunda 109 hp 4X2(6 wheels) Sweeper Truck (Huawei Chiled Brand)

Export reference
From $45,833
MSRP ¥33M CNY
Fuel: Diesel
Wheelbase:: 3360mm
Cab dimensions:: 6.19x1.98x2.57m
Type:: sweeper truck
Front/rear track width:: Front: 1385mm, Rear: 1425
GVWR:: 5.88ton
Drive 4X2 (6 wheels)
Horsepower 109
Rated mass: 1.185ton
Emission China IV

Overview

The Sinotruk JMC Xinshunda 109 hp 4X2(6 wheels) Sweeper Truck (Huawei Chiled Brand) is a sweeper truck featuring 5.88t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Nanchang JMC JX493ZLQ4 engine, 109 hp, China IV emissions and Diesel fuel.

China IV 109 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 6.19x1.98x2.57m
Type: sweeper truck
Drive type: 4X2
Wheelbase: 3360mm
Front/rear track width: Front: 1385mm, Rear: 1425
Rated mass: 1.185ton
GVWR: 5.88ton
Front/rear suspension: 1.065/1.765m
Energy Type: Diesel
Engine parameters
Engine Model: Nanchang JMC JX493ZLQ4
fuel type: Diesel
Displacement: 2.771L
Emission standard: China IV
Max output power: 80kW
Max hp: 109Horsepower
Rated speed: 3800rpm
Body Parameters
Vehicle certification code: SGZ5069TSLJX4
Body Brand: Huawei Chile
Chassis Specs
Chassis Brand: JMC
Chassis Series: New Shunda
Chassis Model: JX1061TG24
Leaf spring count: 7/5+5
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed
Cab parameters
Cab: Flat roof
Tire
Tire Size: 7.00R16LT
Number of tires: 6pcs

Photos

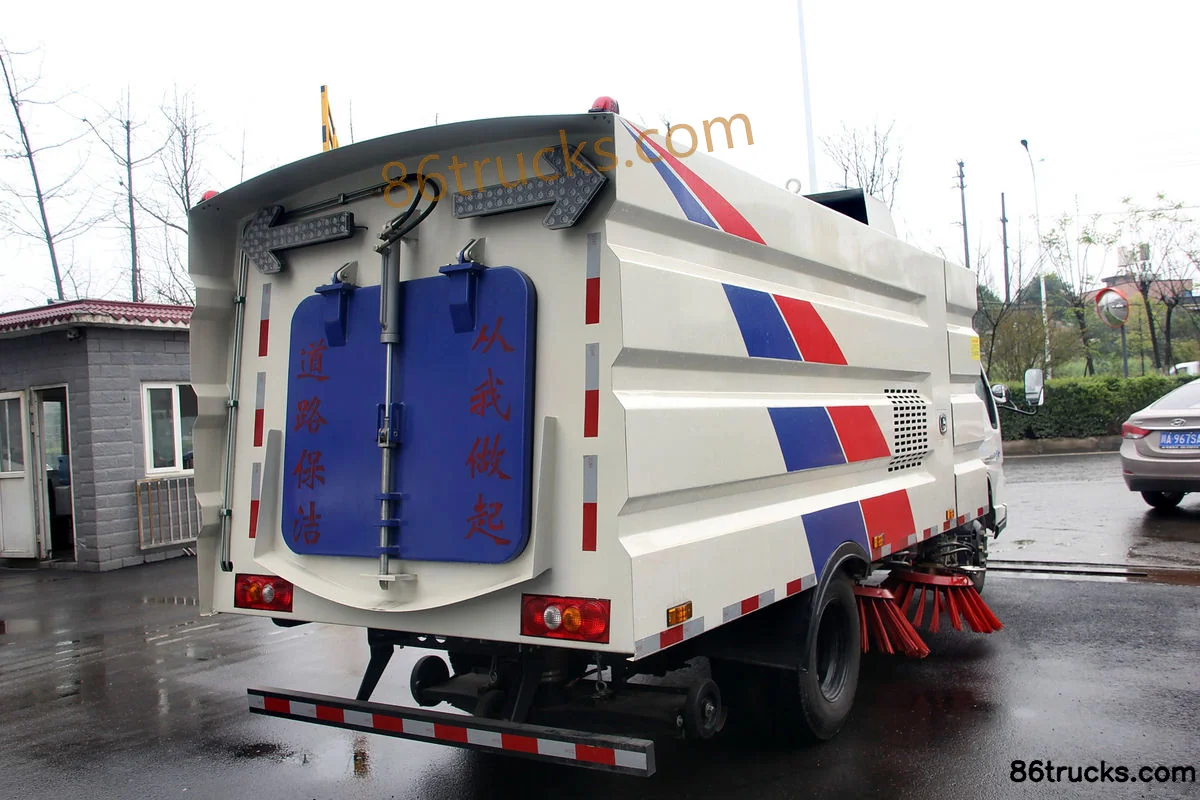

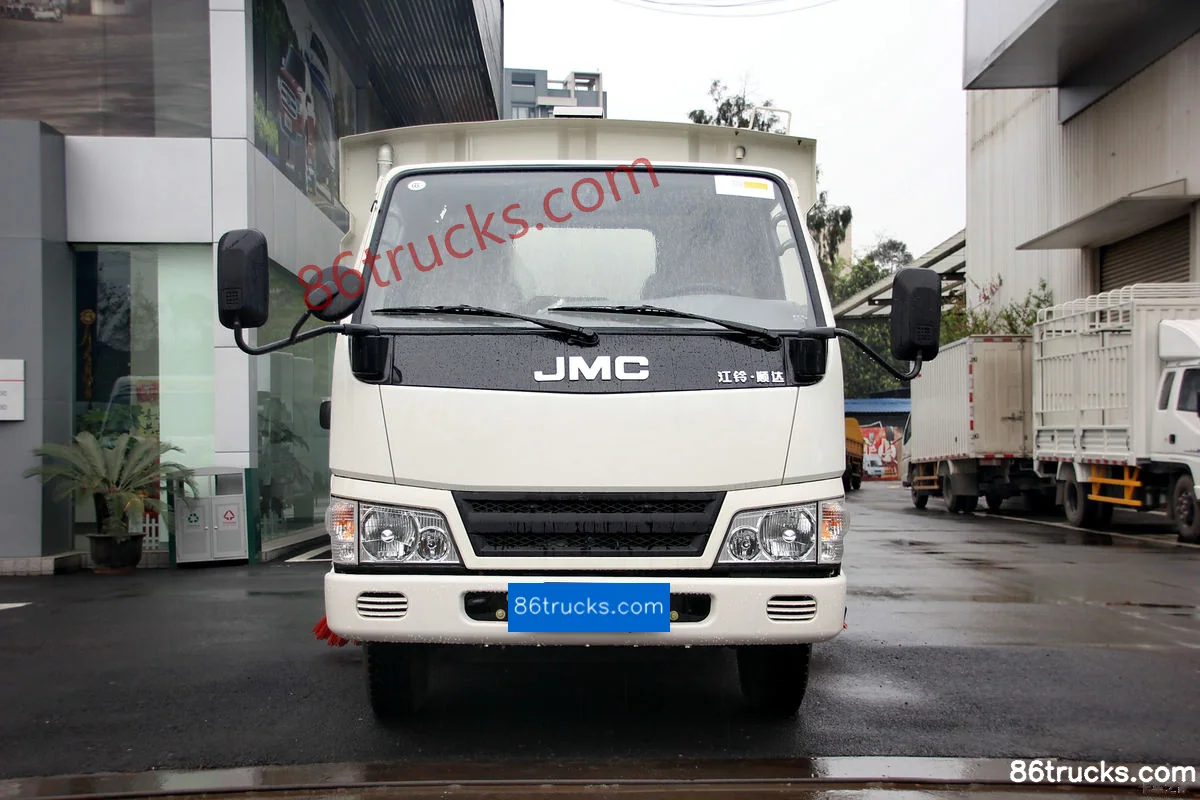

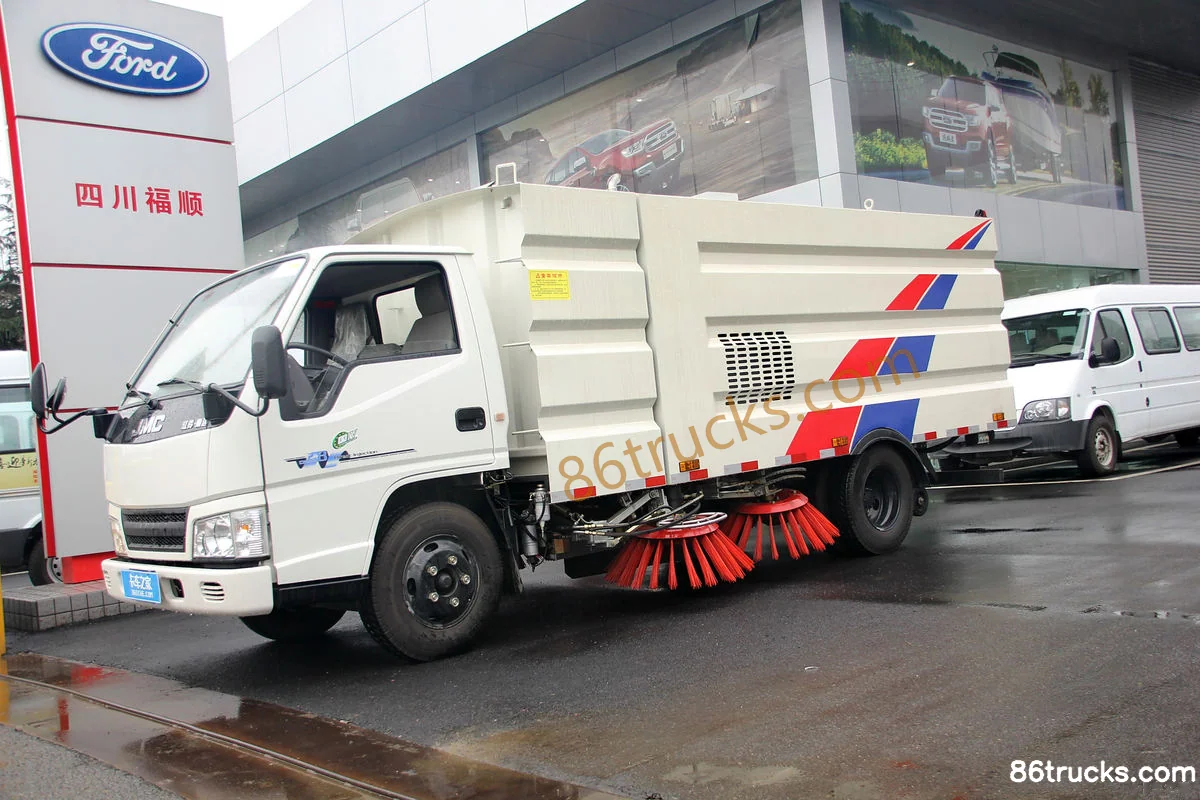

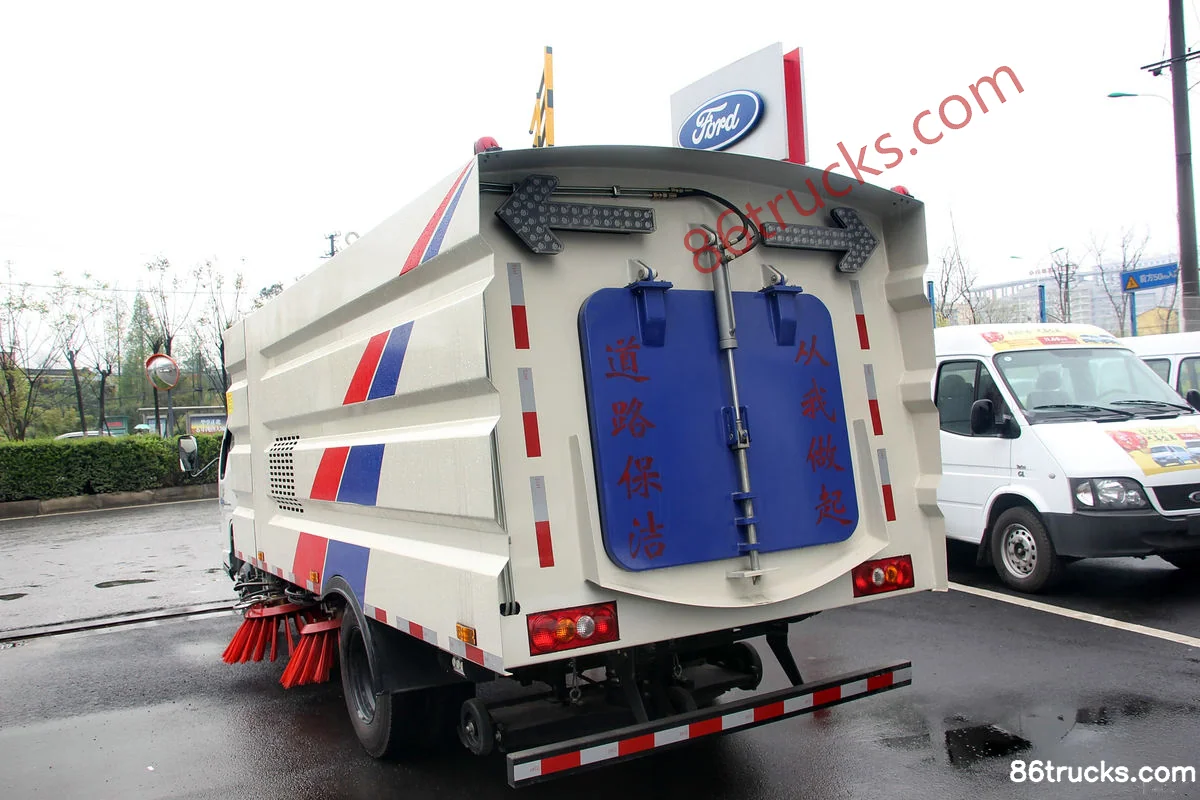

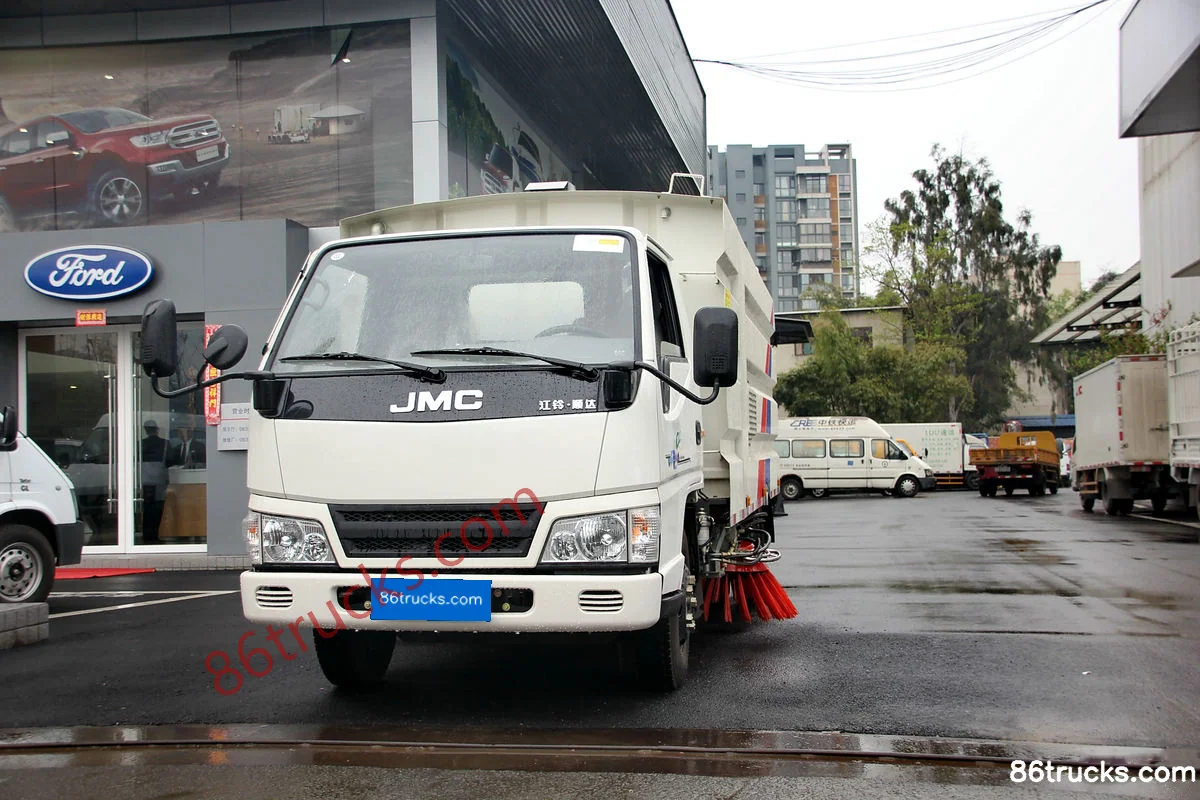

Exterior3

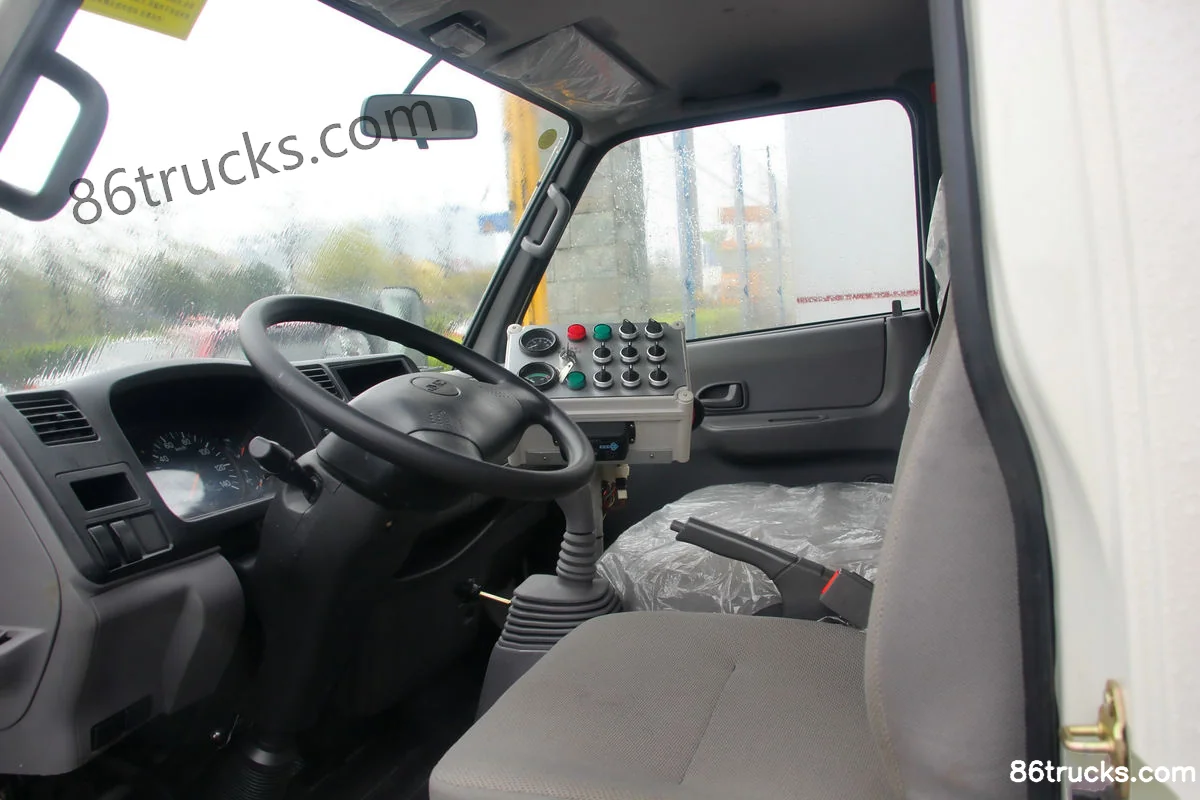

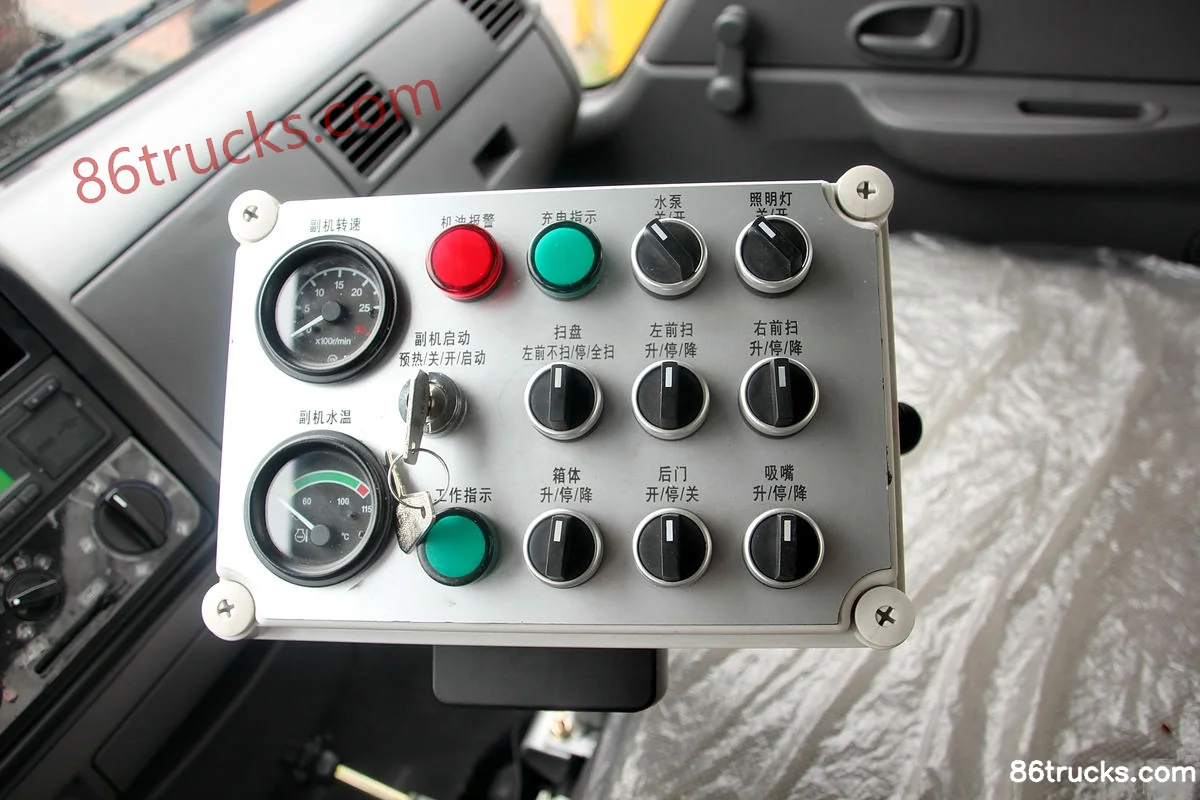

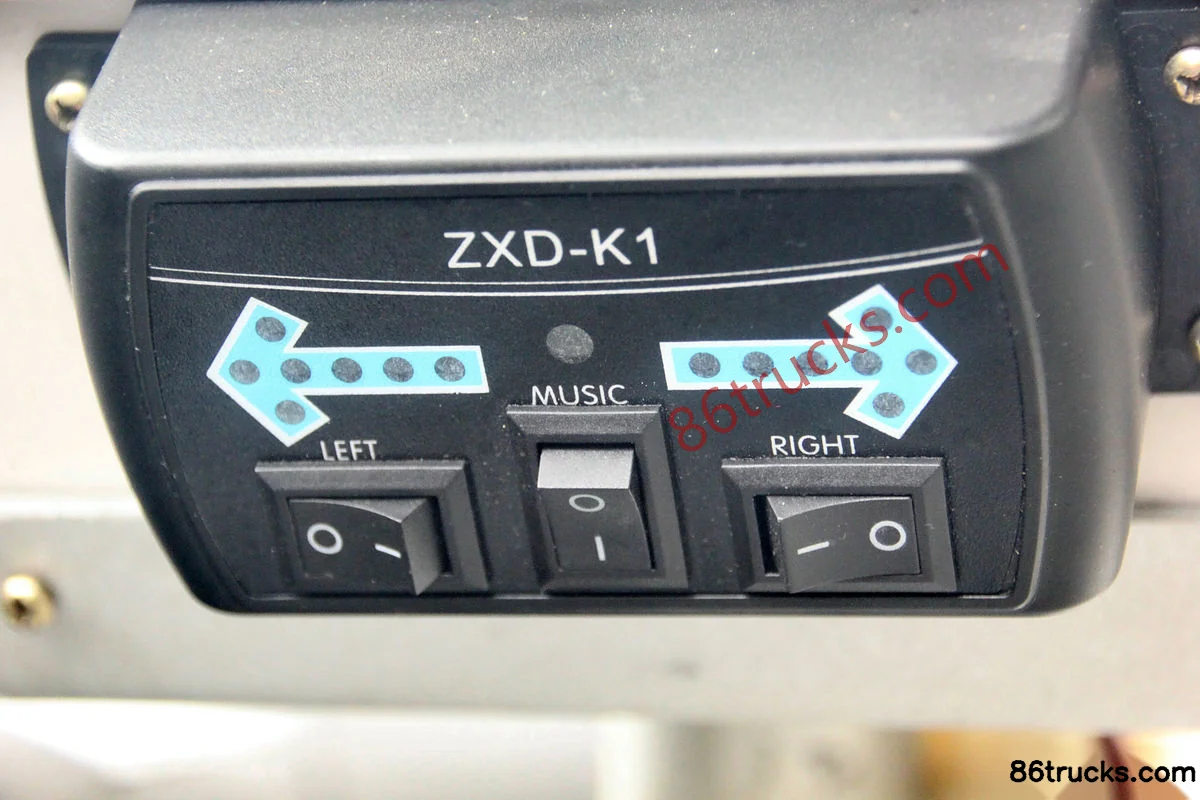

Cab3

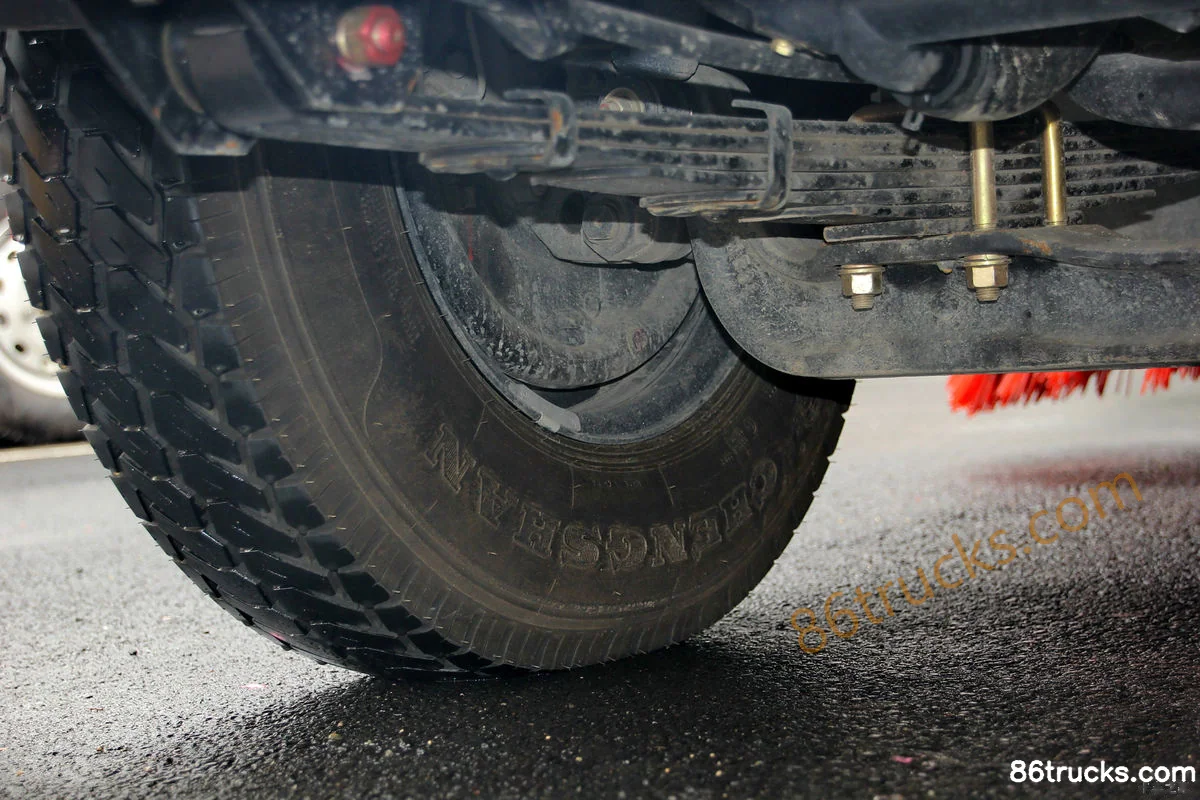

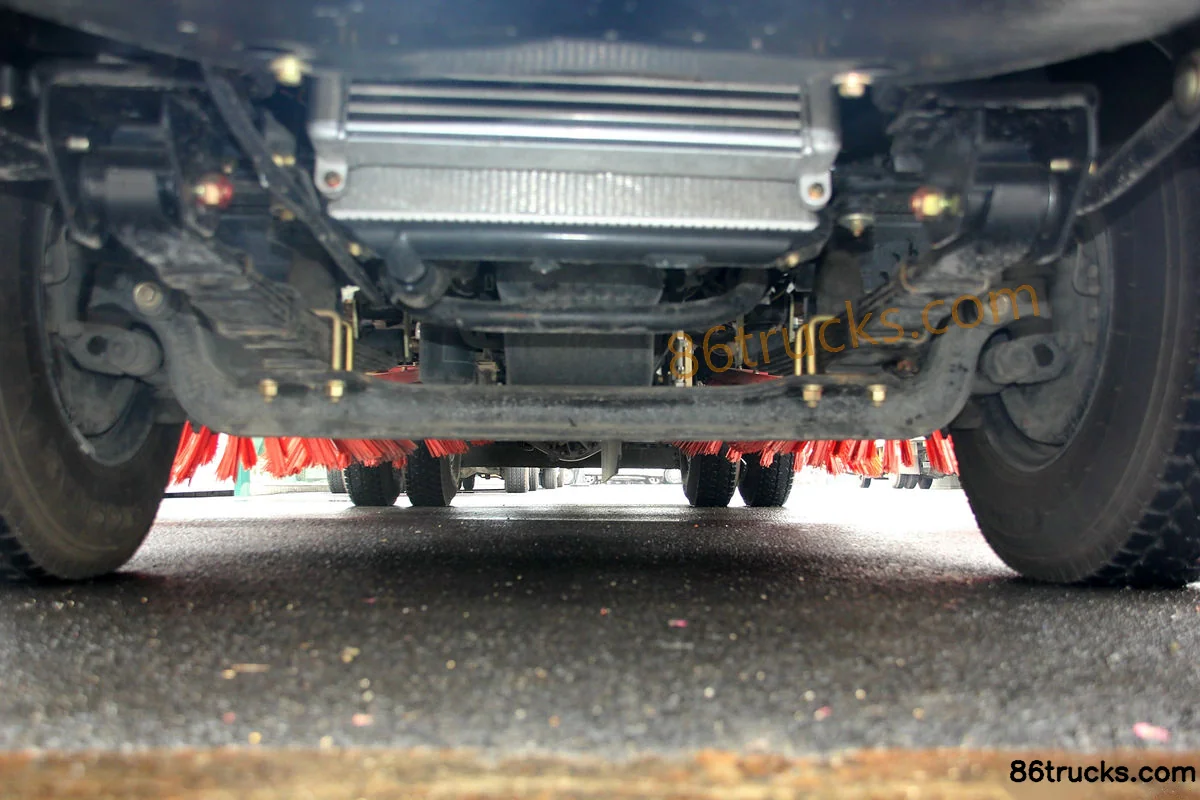

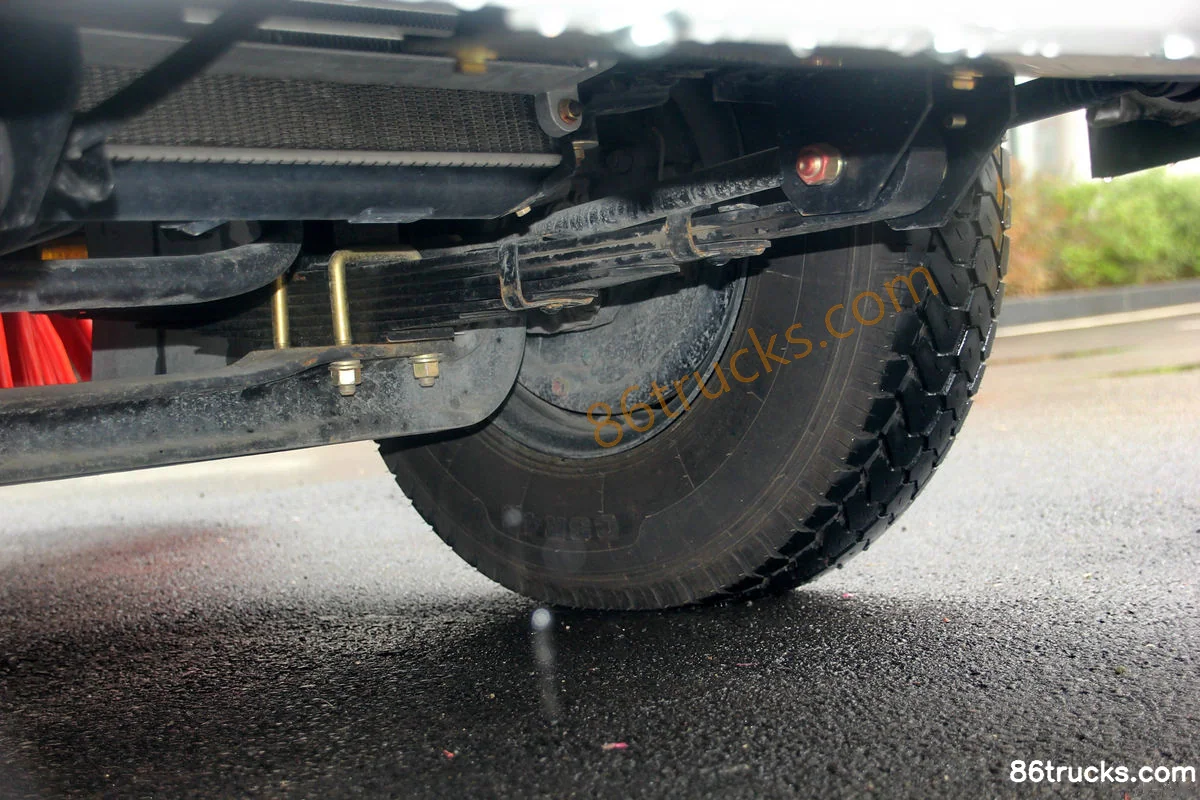

Chassis3

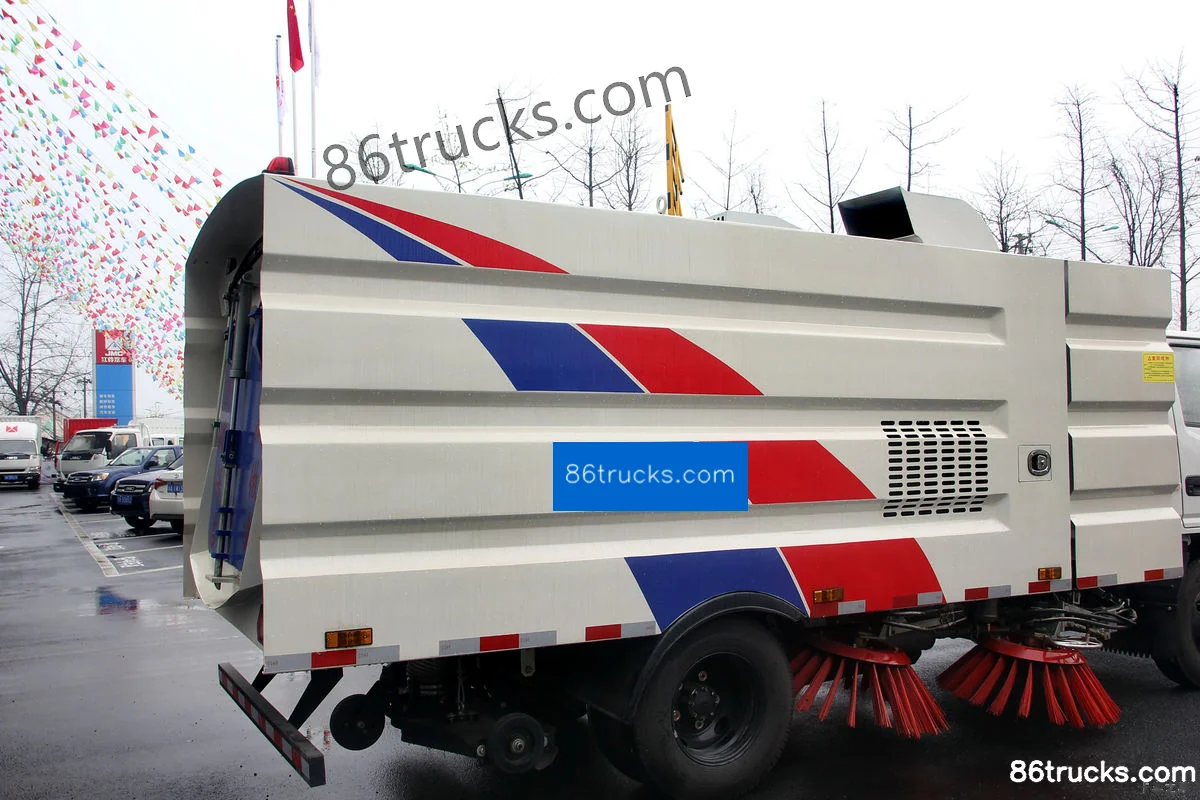

Body3

12 photos

FAQ

What is the export price of JMC Xinshunda 109 hp 4X2(6 wheels) Sweeper Truck (Huawei Chiled Brand), and what does it include?

JMC Xinshunda 109 hp 4X2(6 wheels) Sweeper Truck (Huawei Chiled Brand) export reference is about From $45,833; MSRP is ¥33M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Xinshunda 109 hp 4X2(6 wheels) Sweeper Truck (Huawei Chiled Brand) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Xinshunda 109 hp 4X2(6 wheels) Sweeper Truck (Huawei Chiled Brand)?

Key specs of JMC Xinshunda 109 hp 4X2(6 wheels) Sweeper Truck (Huawei Chiled Brand): Drive: 4x2; Horsepower: 109 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Xinshunda 109 hp 4X2(6 wheels) Sweeper Truck (Huawei Chiled Brand) suited for?

JMC Xinshunda 109 hp 4X2(6 wheels) Sweeper Truck (Huawei Chiled Brand) is a sweeper truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JMC Xinshunda 109 hp 4X2(6 wheels) Sweeper Truck (Huawei Chiled Brand) differ from other variants in the same series?

JMC Xinshunda 109 hp 4X2(6 wheels) Sweeper Truck (Huawei Chiled Brand) belongs to Sinotruk JMC Chassis (sweeper truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Xinshunda 109 hp 4X2(6 wheels) Sweeper Truck (Huawei Chiled Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Xinshunda 109 hp 4X2(6 wheels) Sweeper Truck (Huawei Chiled Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
