SANY 31T 8X4(12 wheels) 6.8m plug-in hybrid dump truck

Export reference
MSRP N/A
Curb Weight:: 16ton
Rated payload:: 14.87ton
Wheelbase:: 2000+3000+1400mm
Cargo box type:: Dump type
Emission: China VI
Model code (announced):: SYM3310ZZX1PHEV
Drive 8X4 (12 wheels)
Battery Brand: Weihong Power
Motor 1 Brand: SANY
Horsepower 360

Overview

The SANY 31T 8X4(12 wheels) 6.8m plug-in hybrid dump truck is a Heavy truck featuring Weihong Power battery/range, SANY motor, 8X4 (12 wheels) drive and 14.87t payload. On the powertrain side, it comes with 360 hp.

China VI 360 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SYM3310ZZX1PHEV
Drive type: 8X4
Wheelbase: 2000+3000+1400mm
Cab length: 10.15m
Cab width: 2.54m
Cab height: 3.6m
Curb Weight: 16ton
Rated payload: 14.87ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Changsha, Hunan
tonnage class: Heavy truck
Energy Type: Hybrid
electric motor
Motor 1 Brand: SANY
Motor 1 Model: TZ410XS-LKM2109
Motor Type: Permanent magnet synchronous motor
total rated power: 105kW
Peak power: 200kW
Motor 1 Peak Power: 200kW
Battery/Charging
Battery Brand: Weihong Power
Battery type: multi-element composite lithium battery
Battery capacity: 54.39kWh
Battery rated voltage: 621.6V
Engine parameters
Engine Model: D09C6-360E2
Displacement: 8.7L
Emission standard: China VI
Max output power: 256kW
Max hp: 360Horsepower
Cargo box parameters
Cargo box type: Dump type
Cargo box length: 6.8m
Cargo box width: 2.45m
Cargo box height: 1.5m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

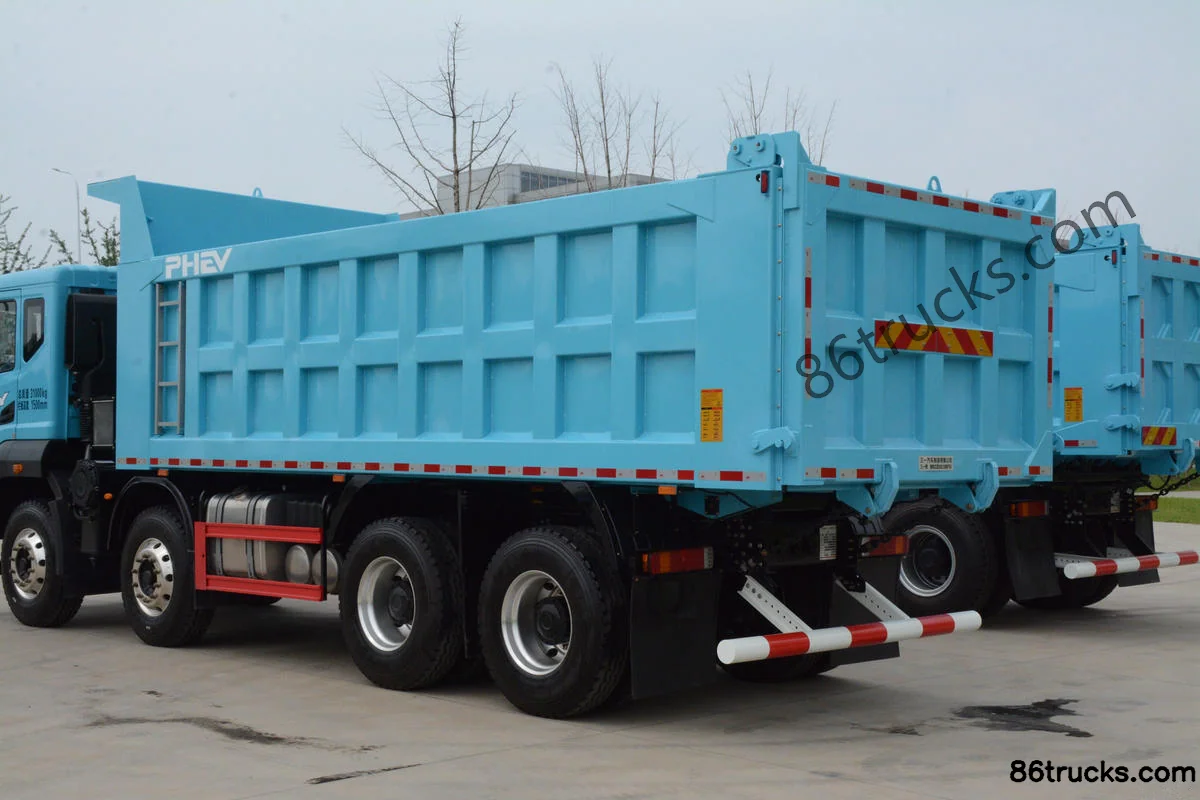

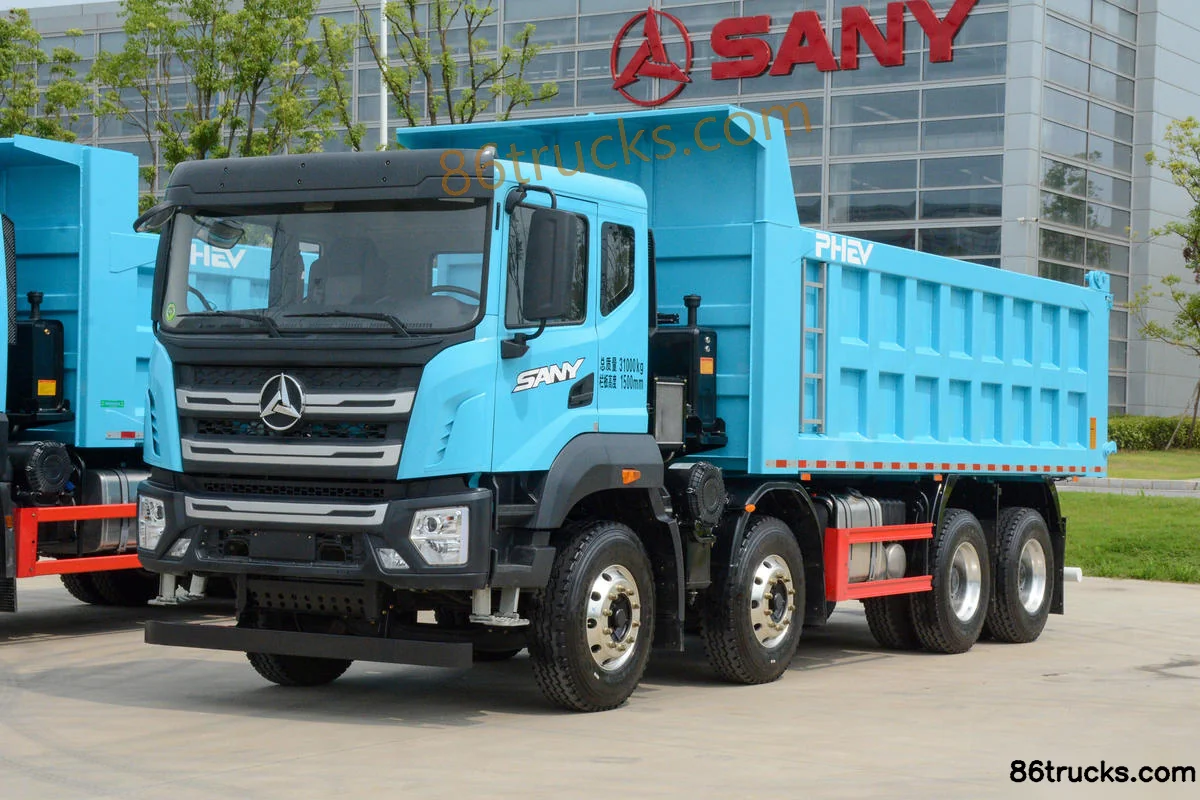

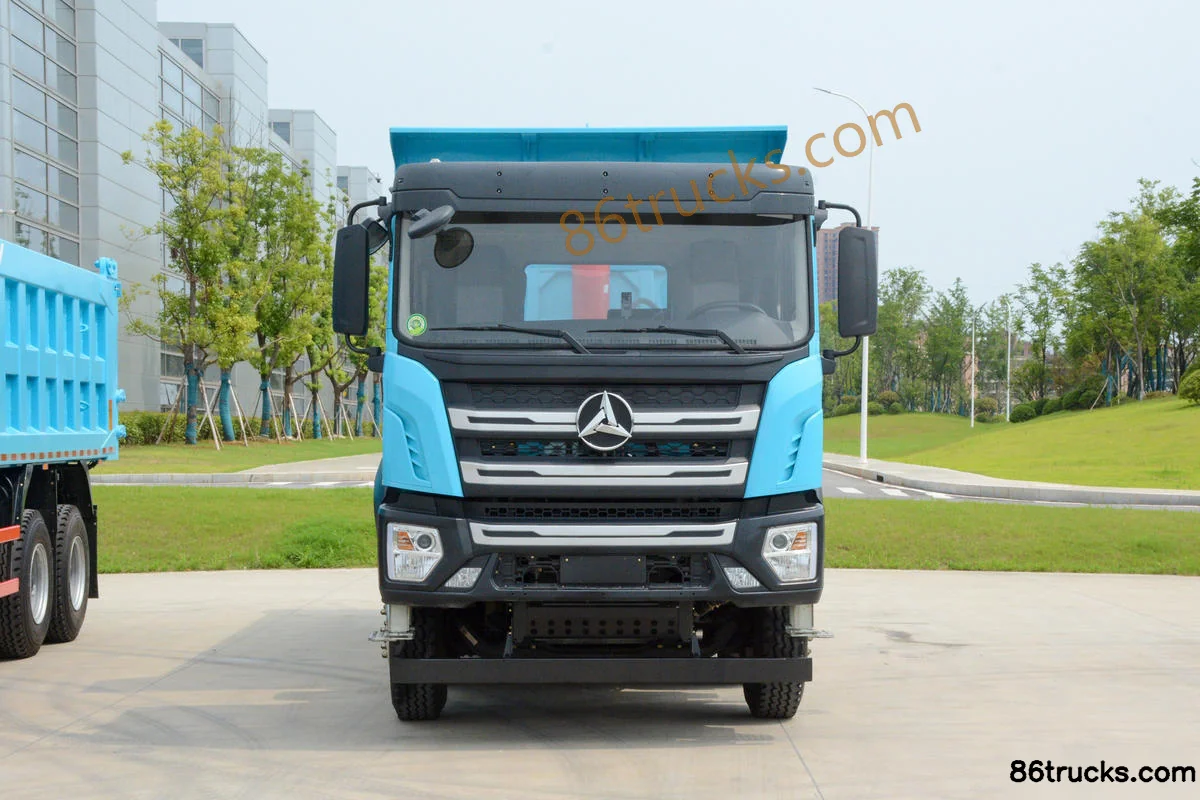

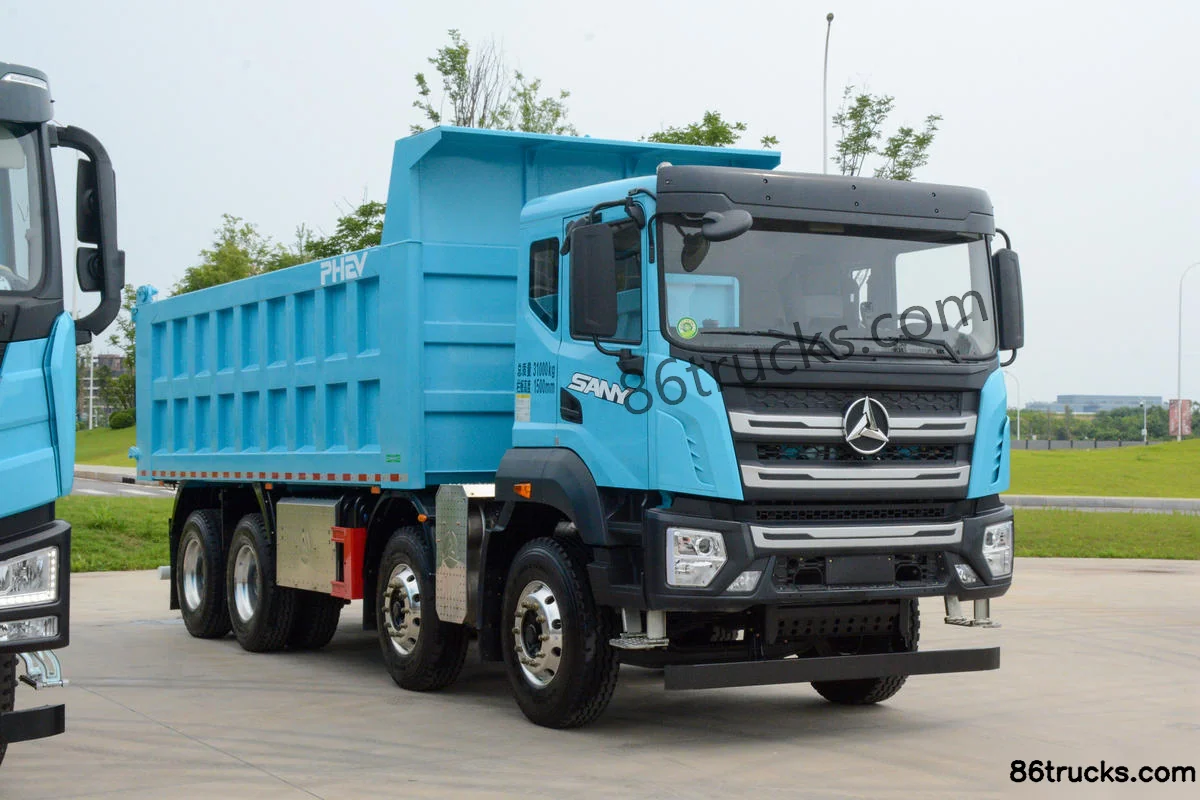

Exterior3

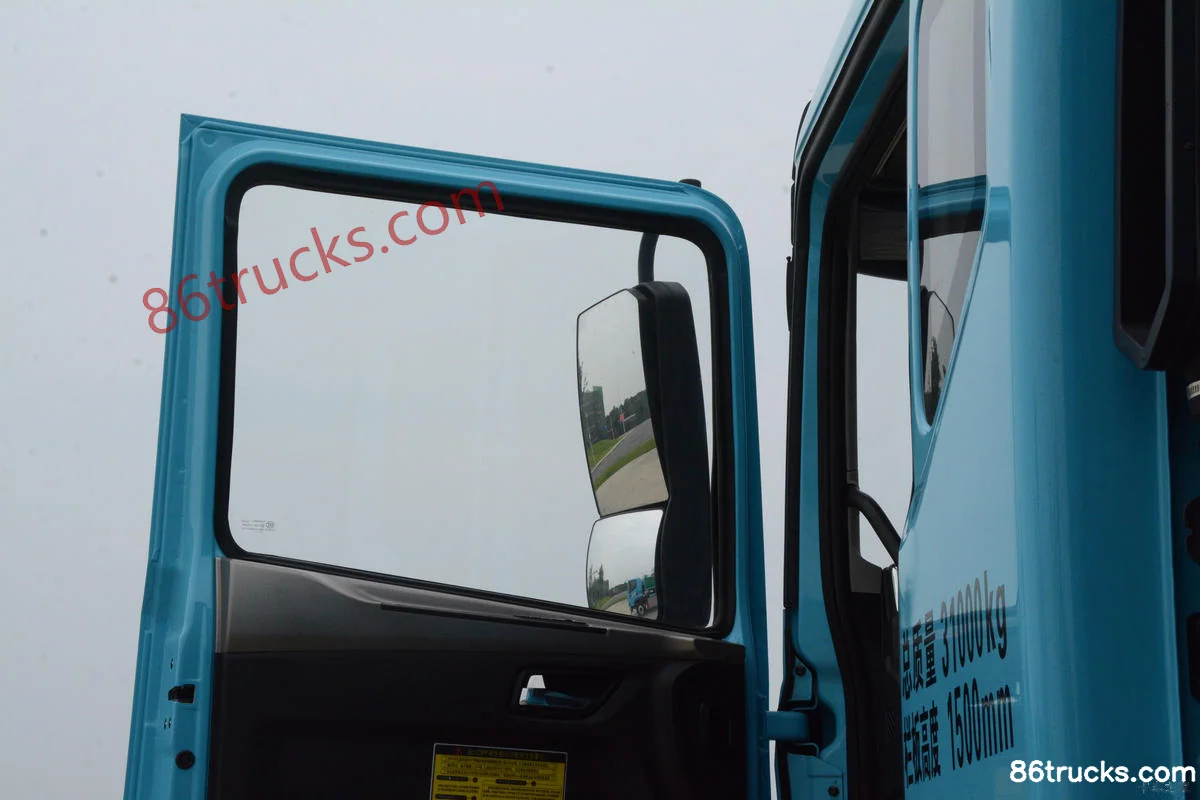

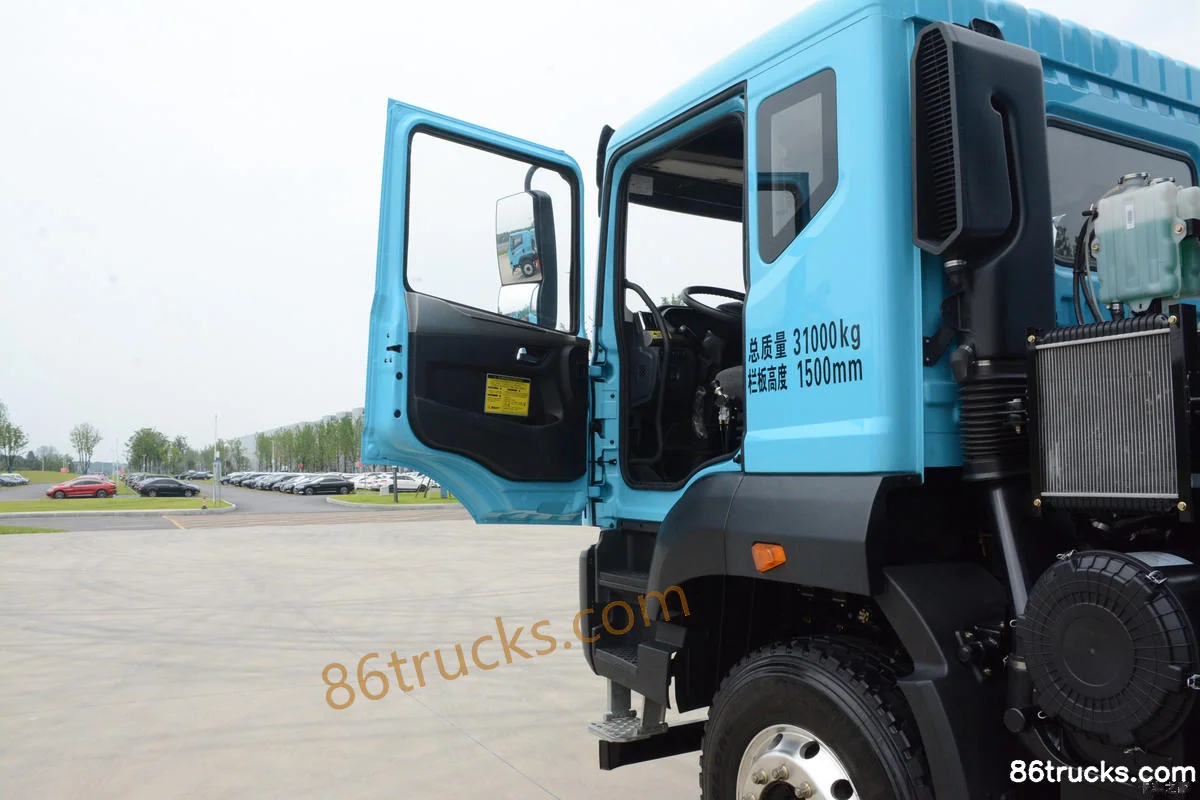

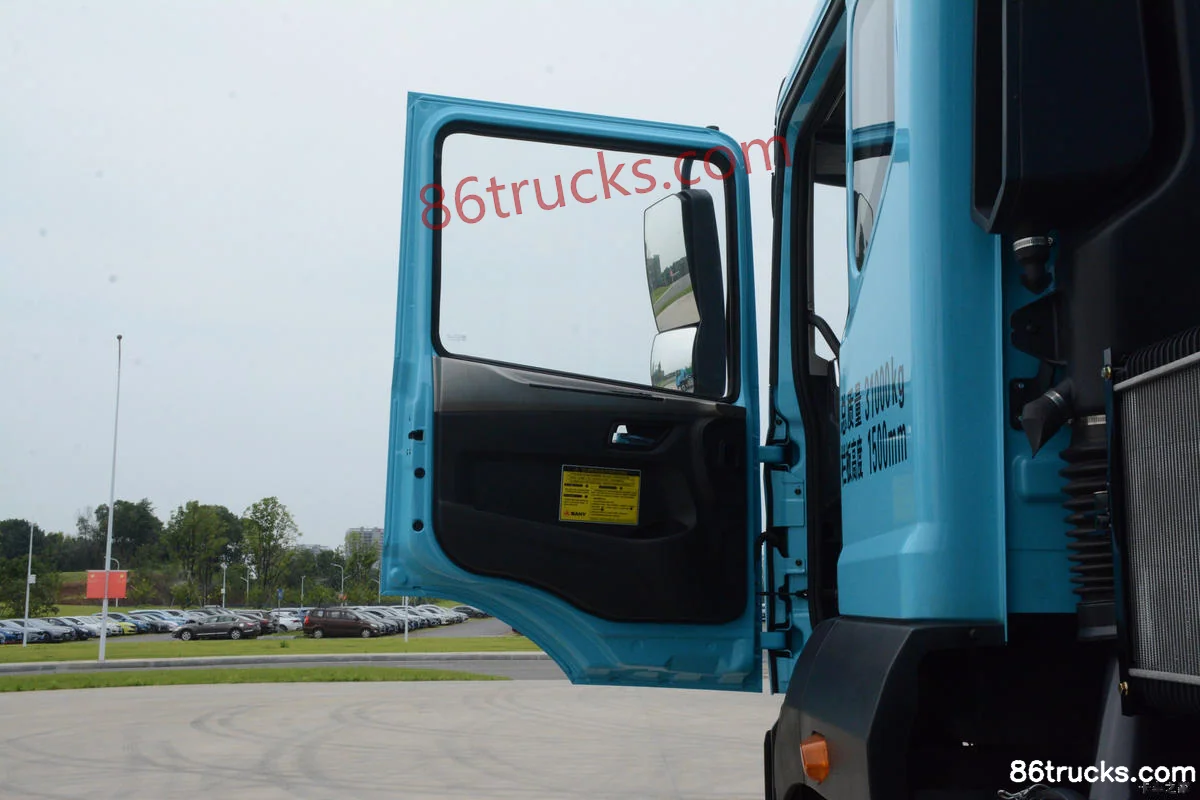

Cab3

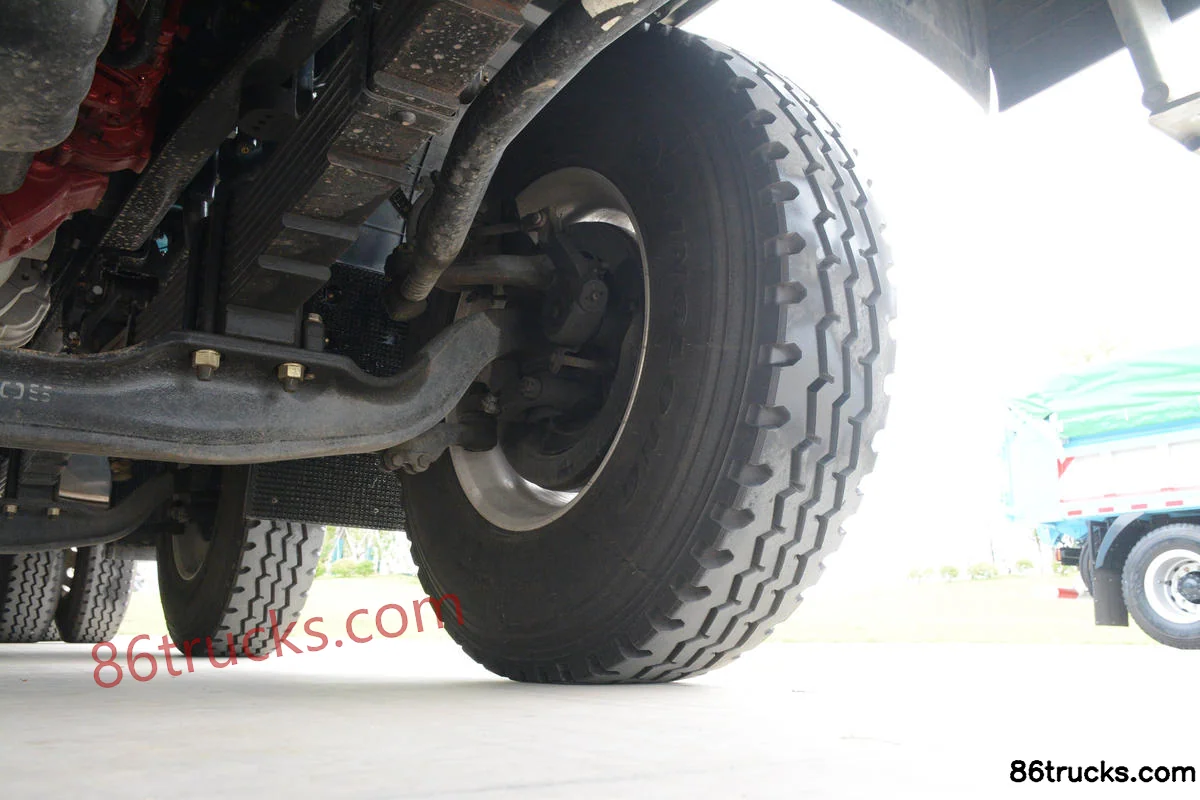

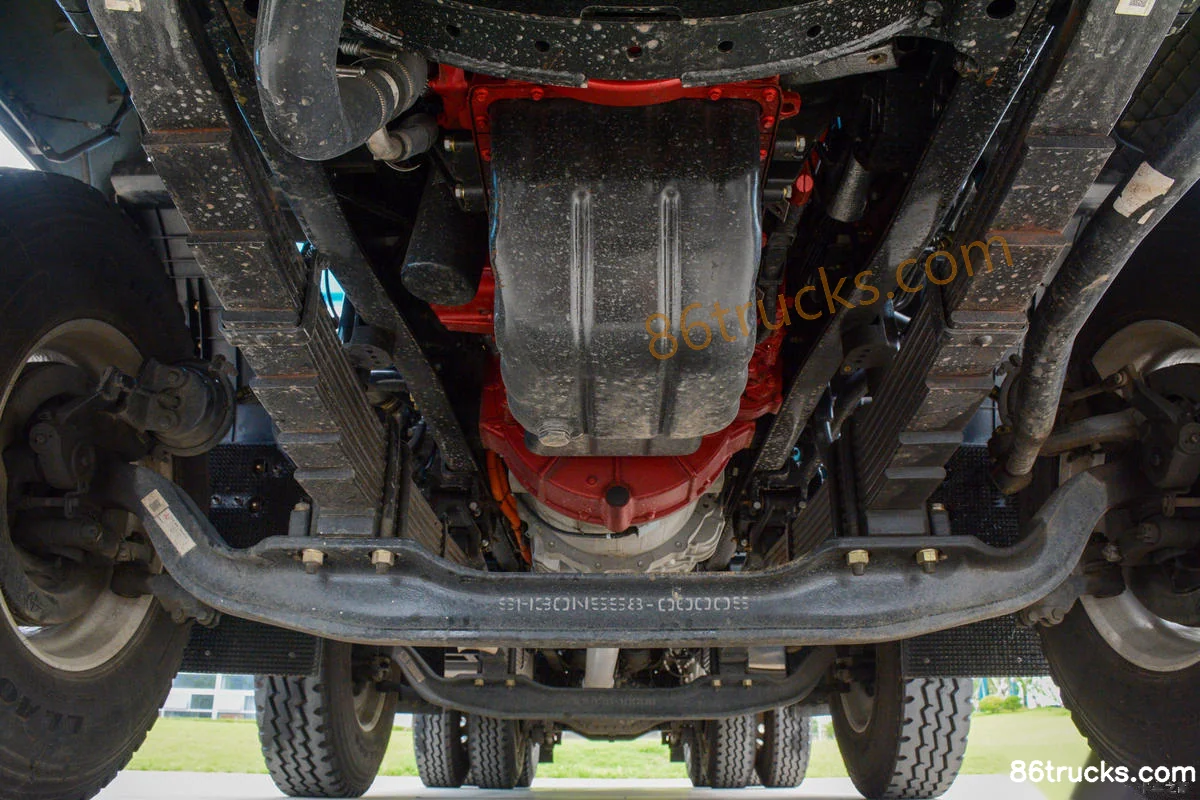

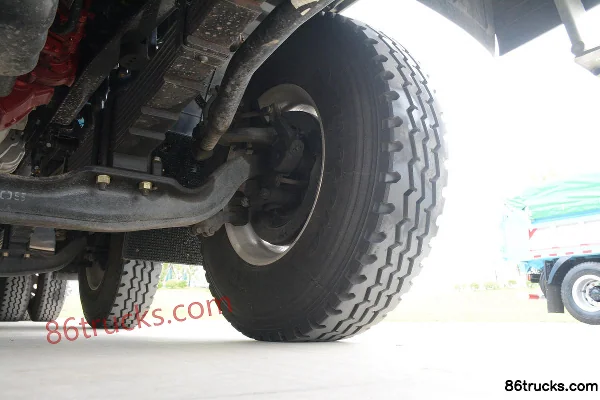

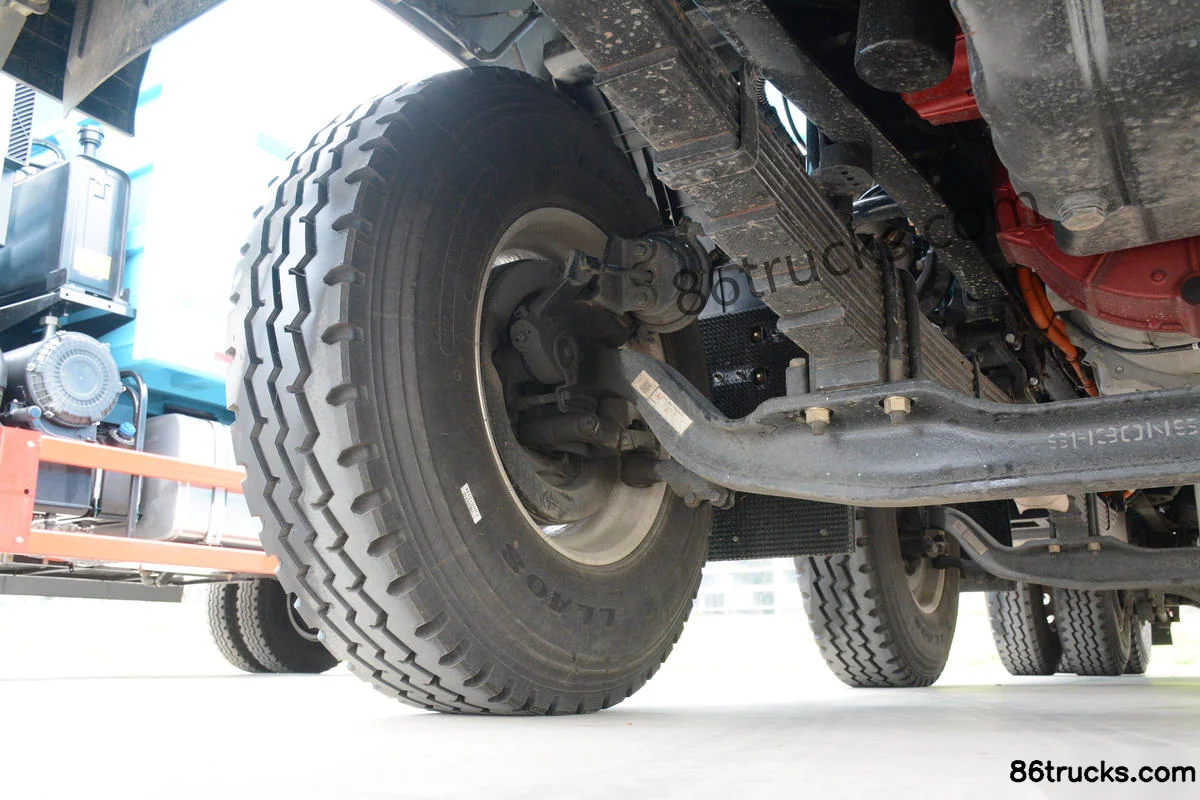

Chassis3

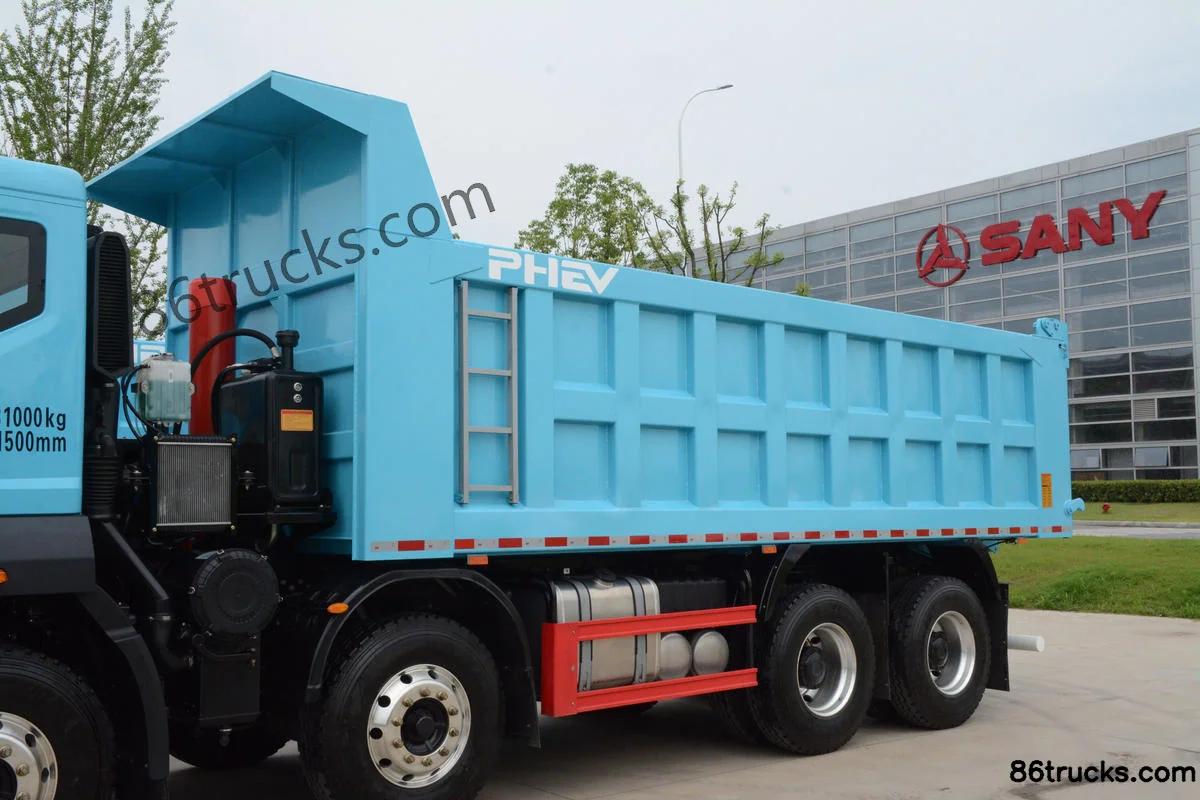

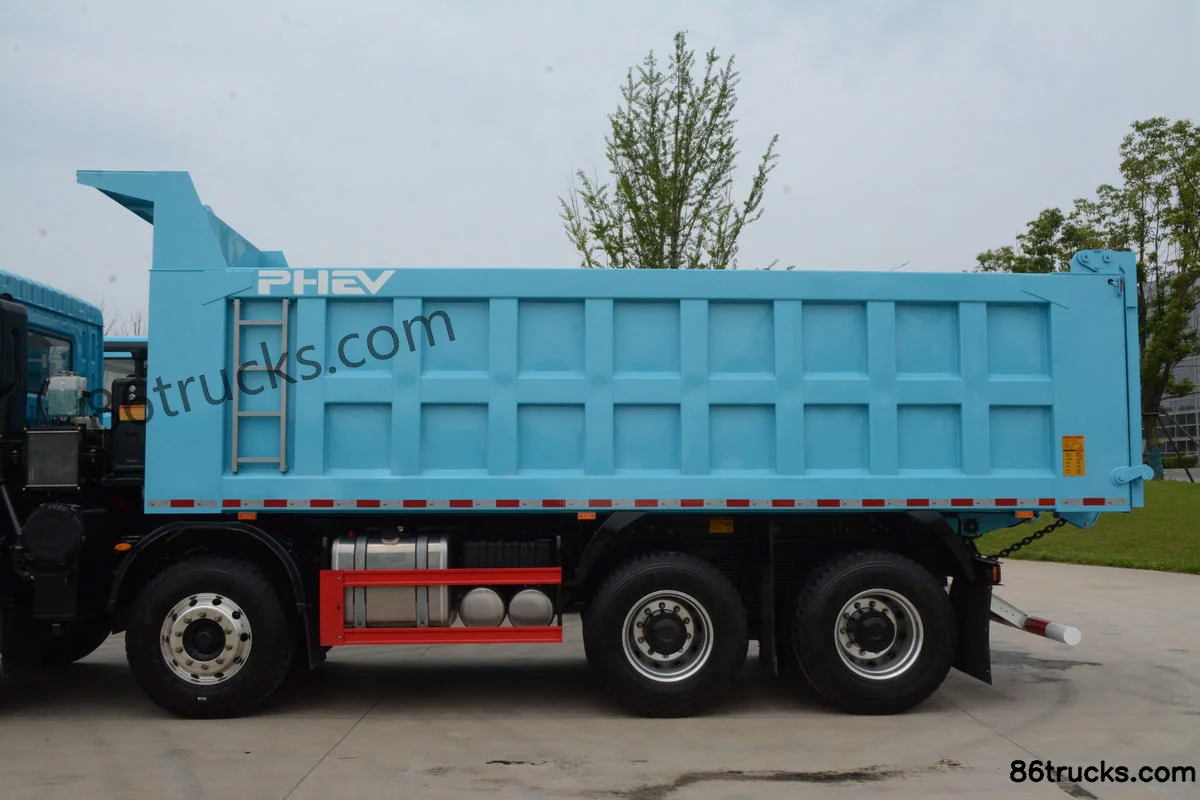

Body3

12 photos

FAQ

What emission standard does SANY 31T 8X4(12 wheels) 6.8m plug-in hybrid dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SANY 31T 8X4(12 wheels) 6.8m plug-in hybrid dump truck?

Key specs of SANY 31T 8X4(12 wheels) 6.8m plug-in hybrid dump truck: Drive: 8x4; Horsepower: 360 hp; Emission: China VI. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SANY 31T 8X4(12 wheels) 6.8m plug-in hybrid dump truck suited for?

SANY 31T 8X4(12 wheels) 6.8m plug-in hybrid dump truck is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SANY 31T 8X4(12 wheels) 6.8m plug-in hybrid dump truck differ from other variants in the same series?

SANY 31T 8X4(12 wheels) 6.8m plug-in hybrid dump truck belongs to SANY (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SANY 31T 8X4(12 wheels) 6.8m plug-in hybrid dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SANY 31T 8X4(12 wheels) 6.8m plug-in hybrid dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
