Dongfeng Commercial Vehicle Tianjin Medium Truck 245 hp 4X2(6 wheels) Port Tractor Truck (Axle Ratio 3.909)

Export reference
From $30,625
MSRP ¥22.05M CNY
Fuel: Diesel
Gross Trailer Weight:: 28.5ton
Wheelbase:: 3500mm
Tire Size:: 12R22.5
Front axle allowable load:: 6500kg
Displacement:: 6.7L
Drive 4X2 (6 wheels)
Horsepower 245
Emission China V
Transmission Fast Gear

Overview

The Dongfeng Commercial Vehicle Tianjin Medium Truck 245 hp 4X2(6 wheels) Port Tractor Truck (Axle Ratio 3.909) is a Medium-duty truck featuring 4X2 (6 wheels) drive, 245 hp, 18t GVW and China V emissions. Its segment focus covers Port transport, matching those duty cycles. On the powertrain side, it comes with a DongfengISD245 50 engine, Fast Gear transmission and Diesel fuel.

China V 245 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFH4180B
Drive type: 4X2
Wheelbase: 3500mm
engine: DongfengISD245 50
transmission: Fast Gear8JS125T
Rear Axle Ratio: 3.909
Cab length: 6.03m
Cab width: 2.5m
Cab height: 2.88m
Front track width: 1900mm
rear track: 1860mm
Gross Trailer Weight: 28.5ton
Curb Weight: 6.055ton
GVWR: 18ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
market segment: Port transport
Remarks: D530 Cab, optional ratio 4.875/5.143, 140Ah maintenance-free battery, GB7258 compliance items, reserved Beidou interface, mechanical suspension driver seat, no A/C
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISD245 50
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.7L
Emission standard: China V
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 950N·m
Max torque speed: 1200-1800rpm
Rated speed: 2500rpm
Transmission Parameters
Transmission Model: Fast Gear8JS125T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: Steel
Fuel tank capacity: 350L
Cab parameters
Cab: Flat roof
Cab suspension: 4-point mechanical suspension
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Suspension type: Leaf spring
Front axle description: DF502S
Front axle allowable load: 6500kg
Fifth wheel: 50#
Frame Dimensions: 280×80×(7+4)mm
rear axle description: Dongfeng460
rear axle allowable load: 11500kg
Axle ratio: 3.909
Leaf spring count: 8/10+8,3/4+3
Tire
Tire Size: 12R22.5
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

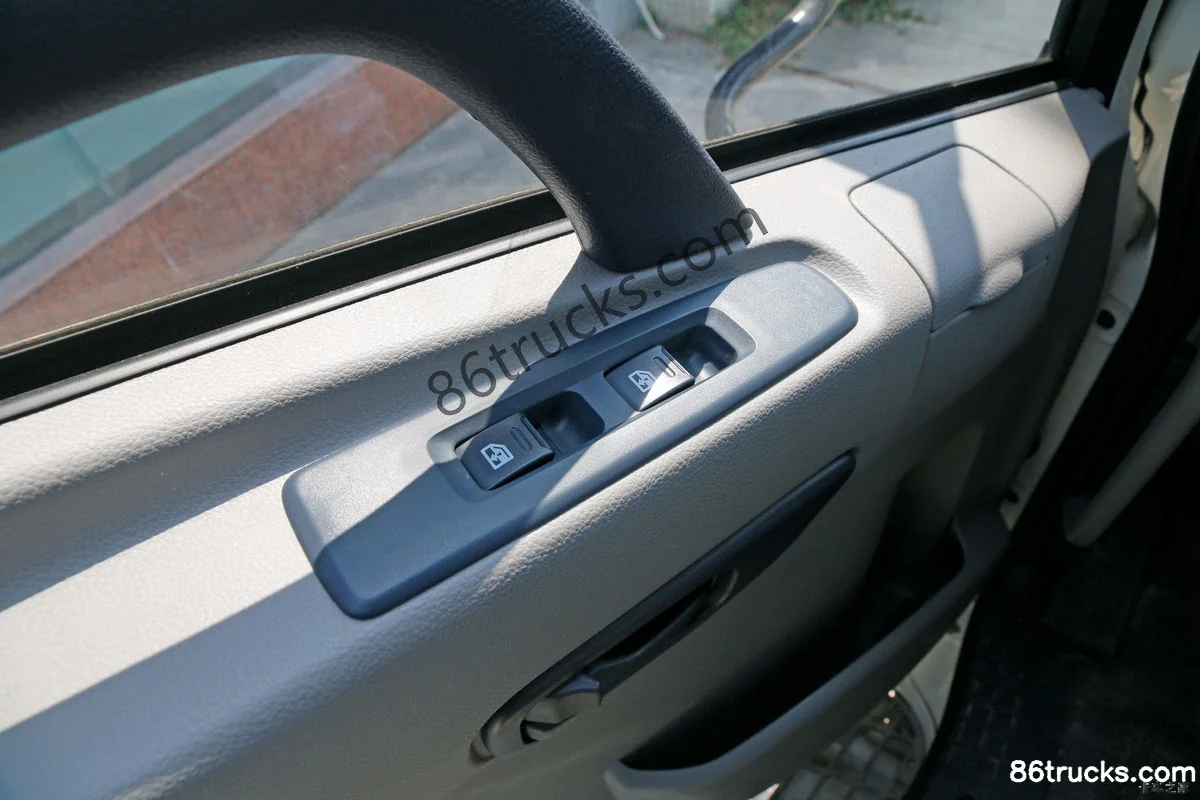

Power Windows:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
lighting configuration
Front fog lamp:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

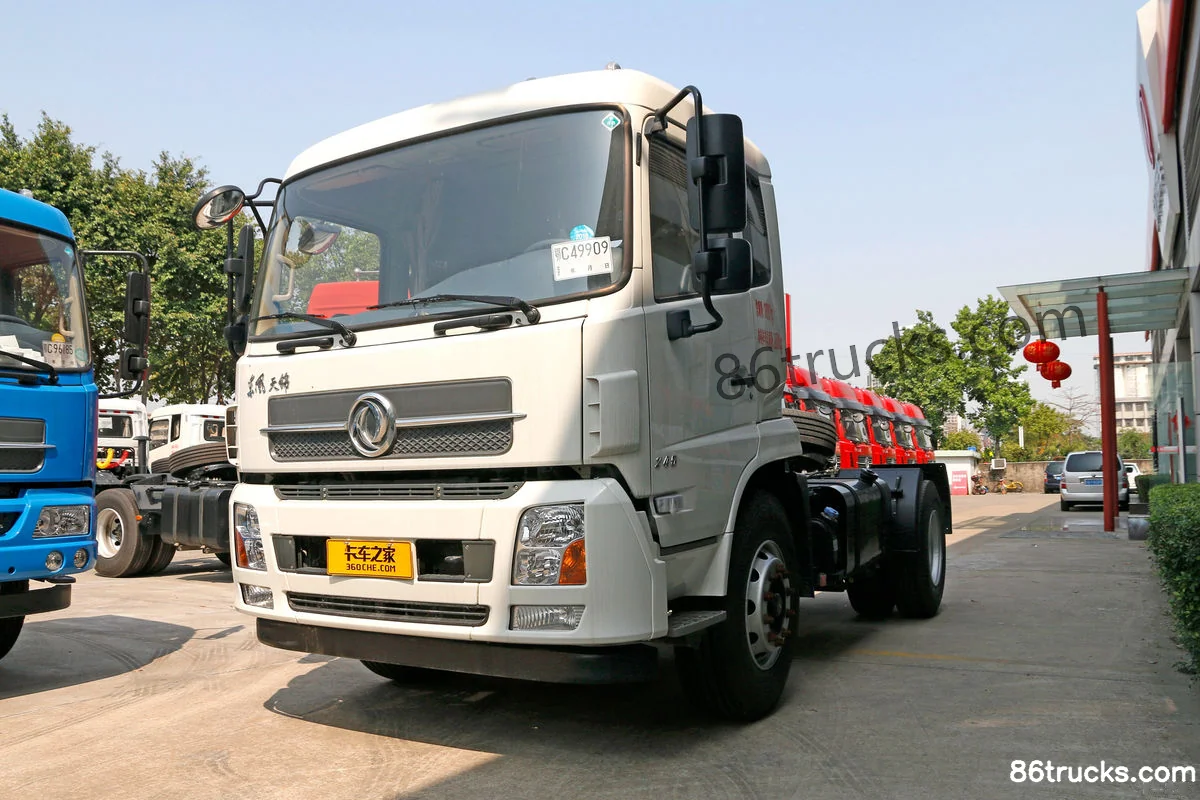

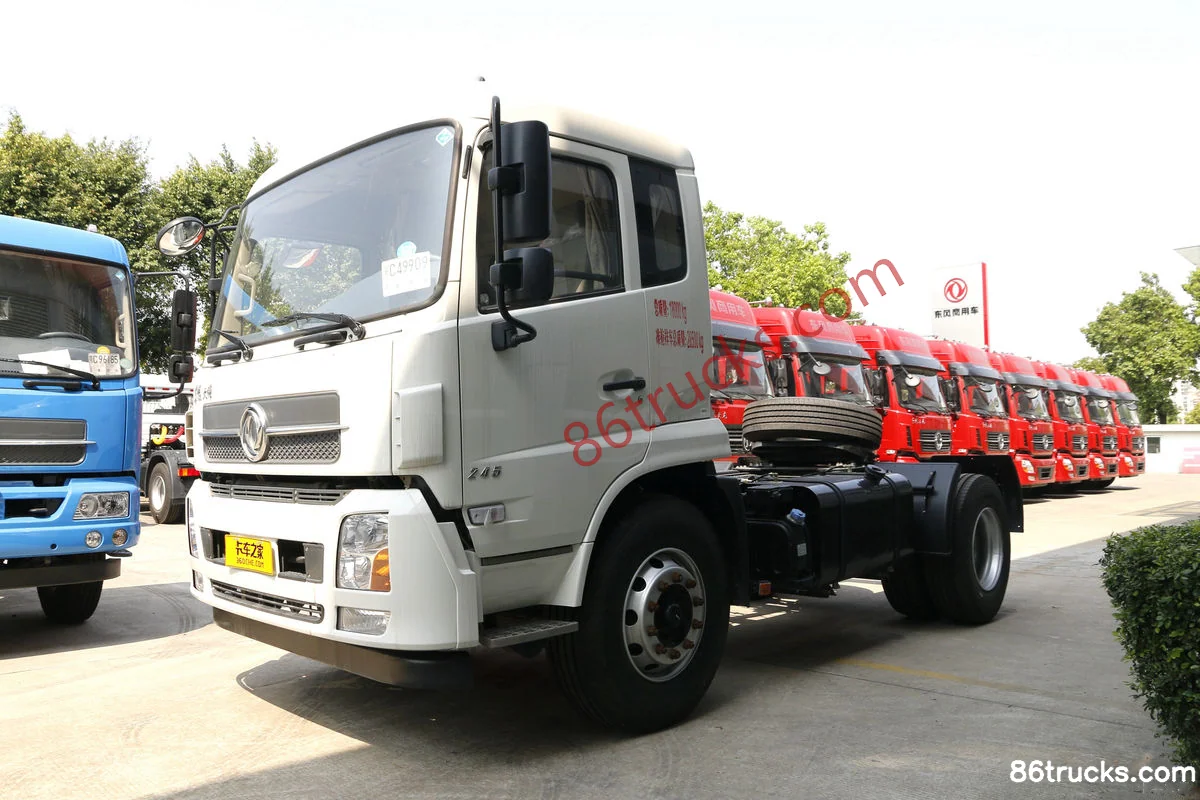

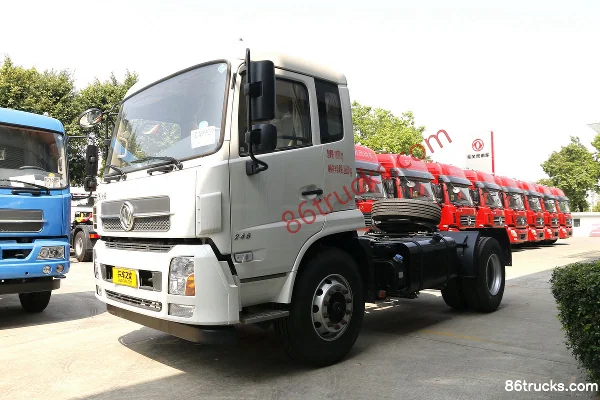

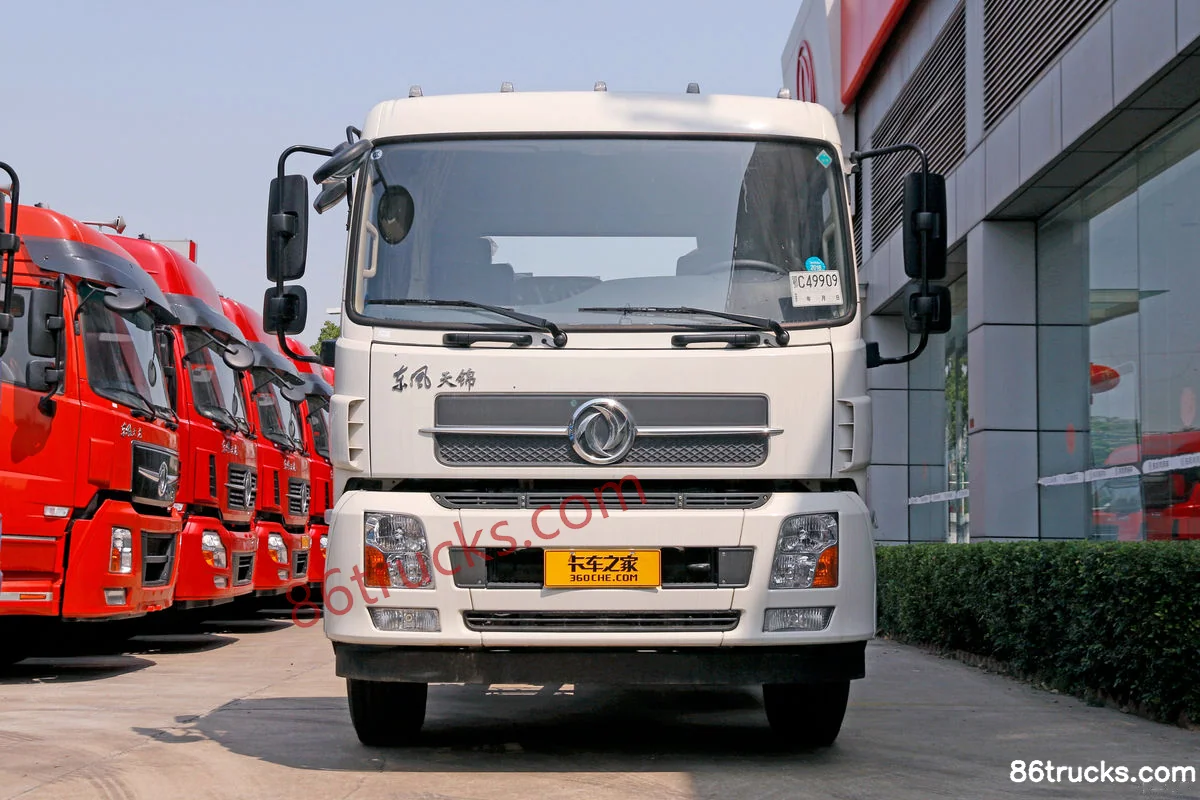

Exterior3

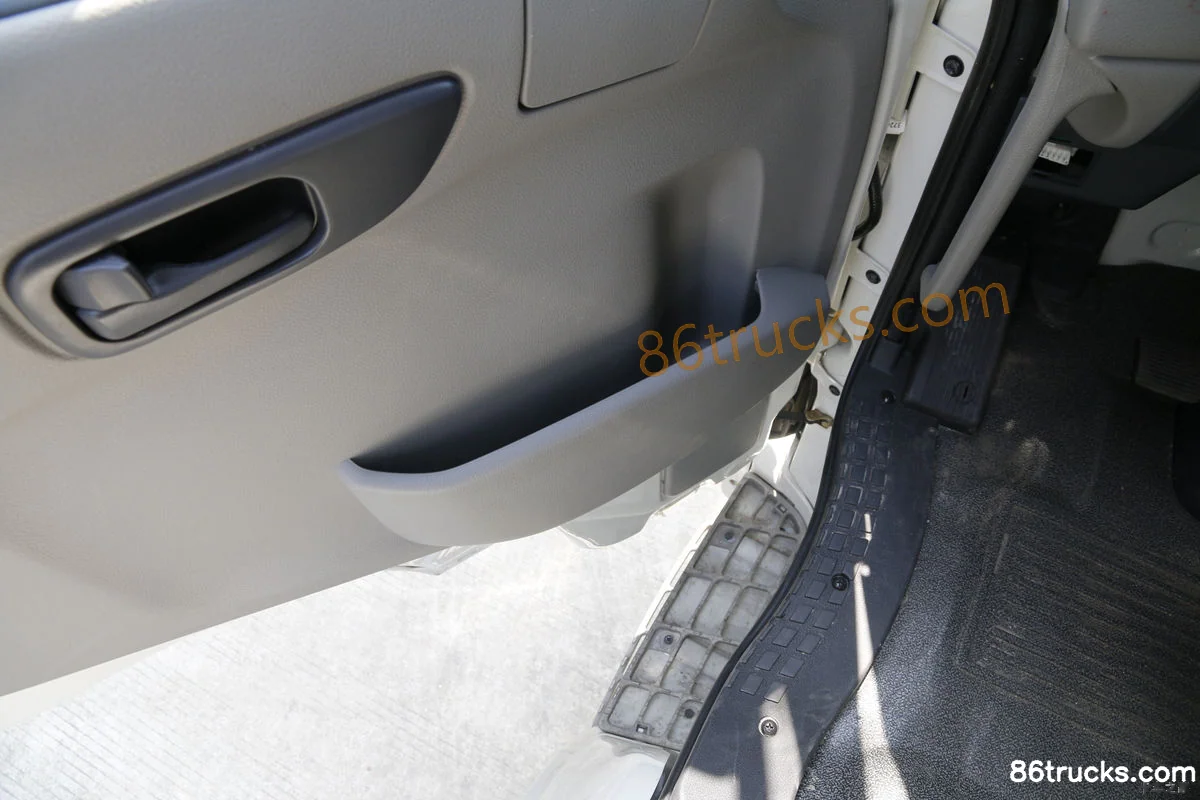

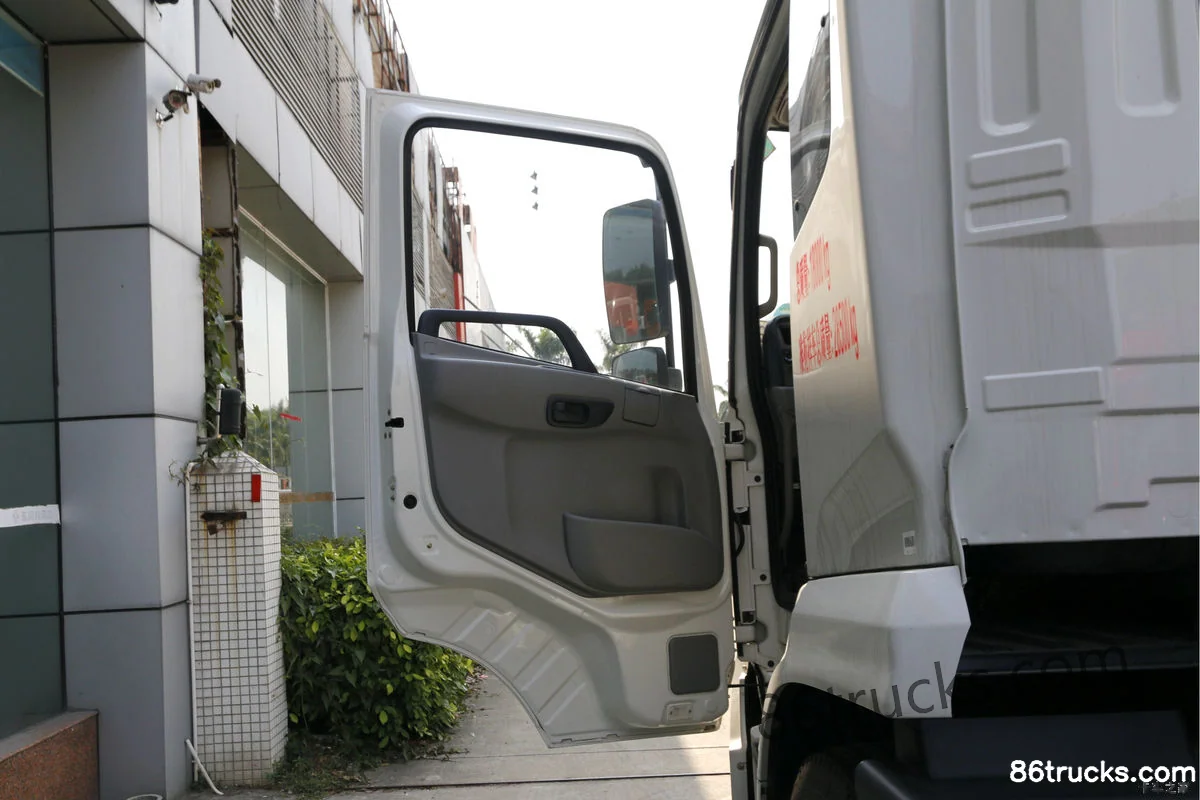

Cab3

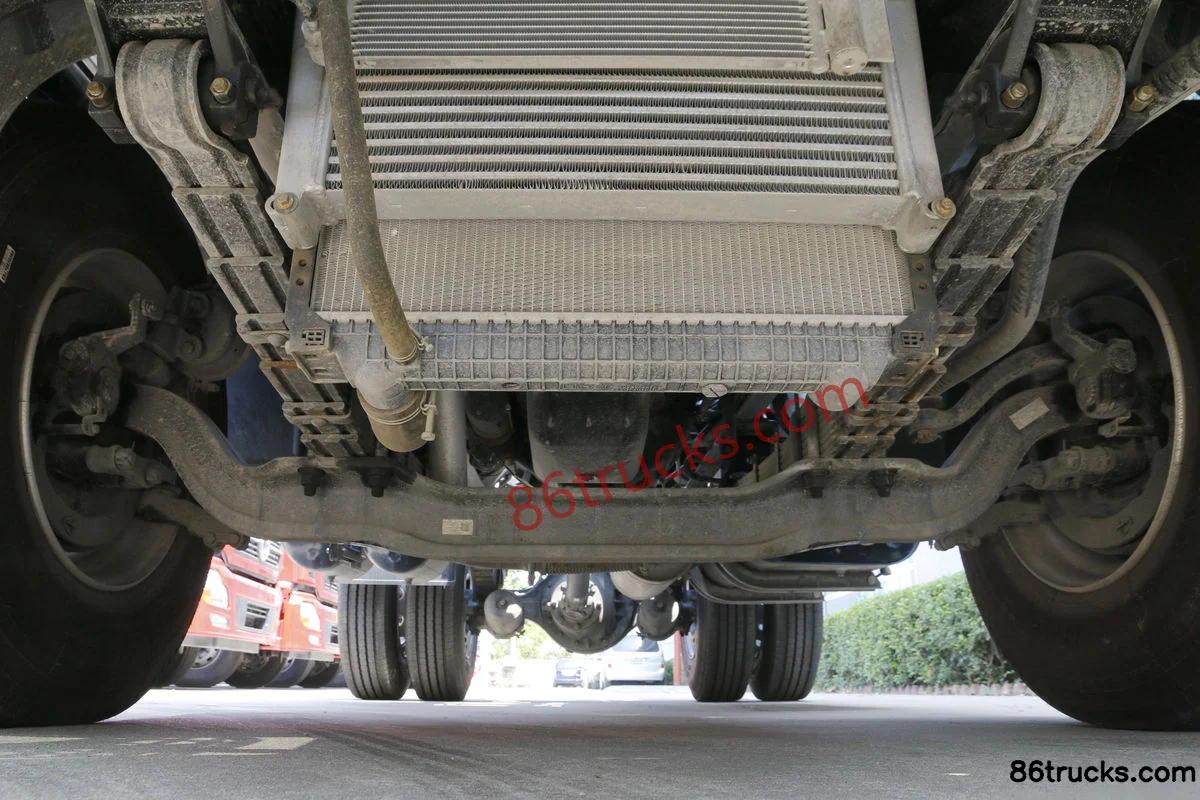

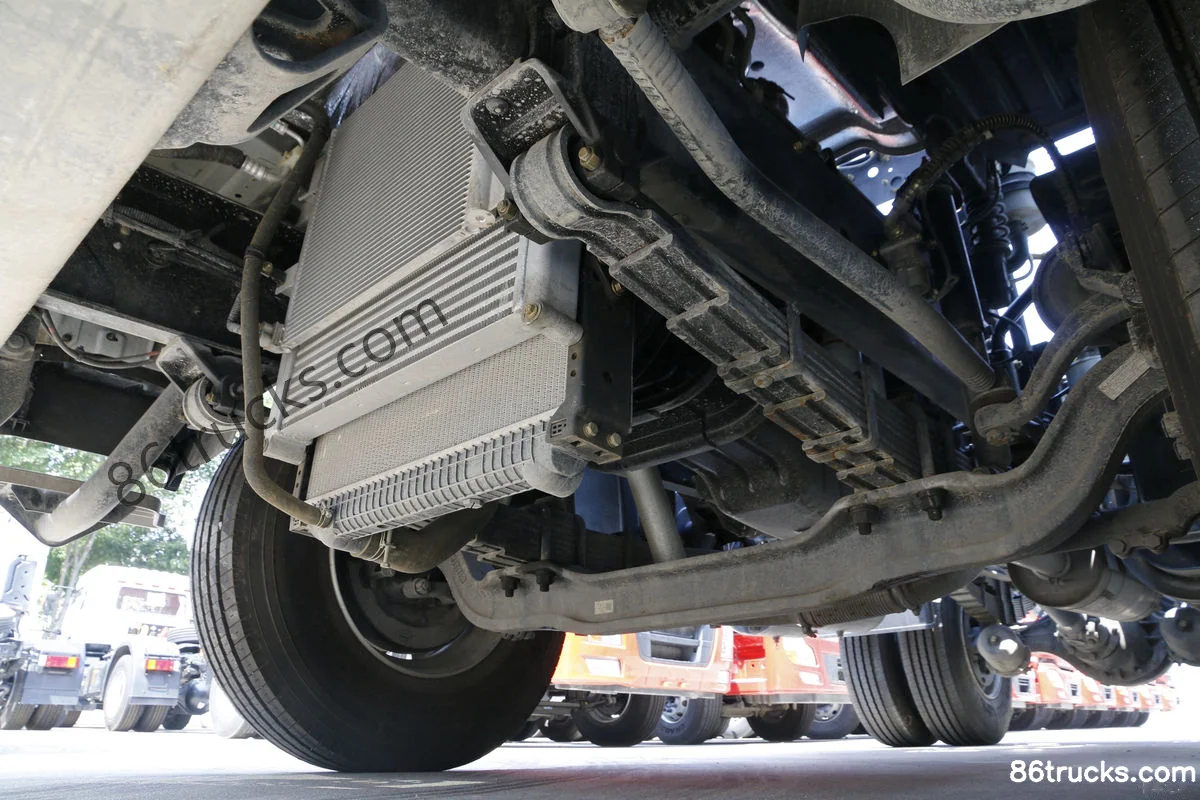

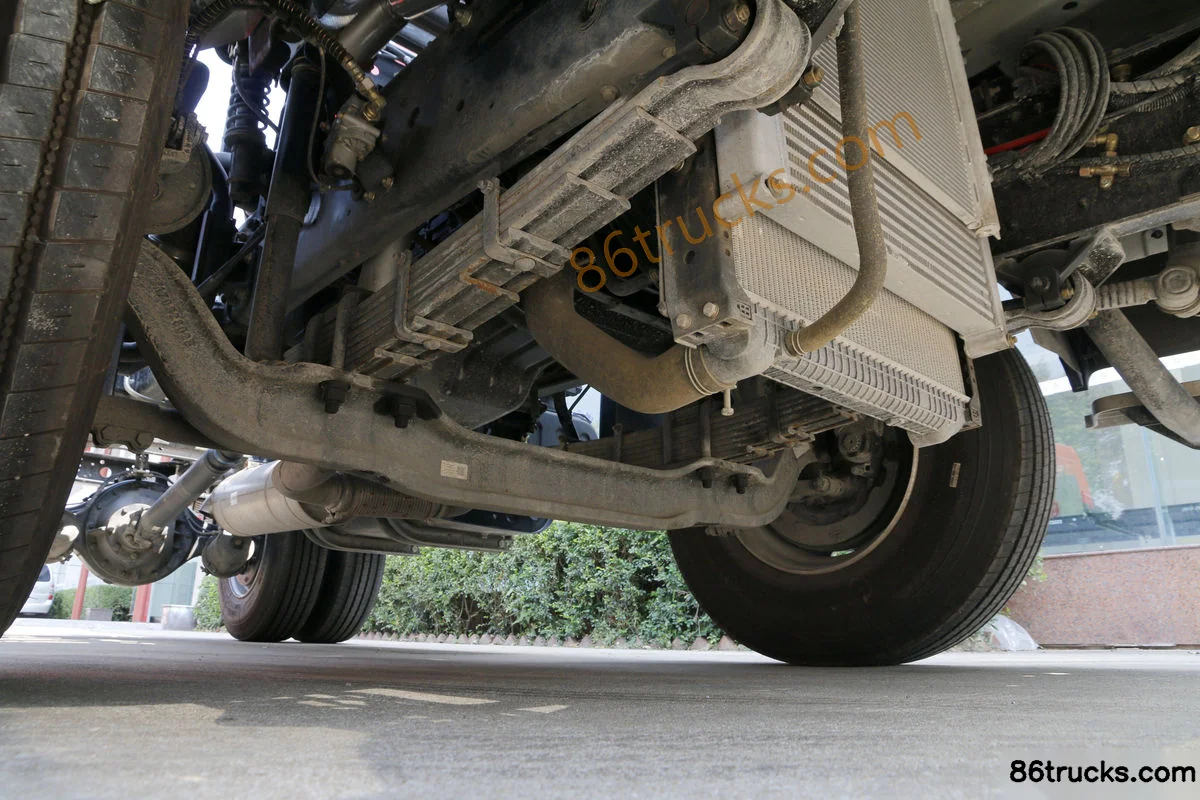

Chassis3

9 photos

FAQ

What is the export price of Dongfeng Commercial Vehicle Tianjin Medium Truck 245 hp 4X2(6 wheels) Port Tractor Truck (Axle Ratio 3.909), and what does it include?

Dongfeng Commercial Vehicle Tianjin Medium Truck 245 hp 4X2(6 wheels) Port Tractor Truck (Axle Ratio 3.909) export reference is about From $30,625; MSRP is ¥22.05M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Commercial Vehicle Tianjin Medium Truck 245 hp 4X2(6 wheels) Port Tractor Truck (Axle Ratio 3.909) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 245 hp 4X2(6 wheels) Port Tractor Truck (Axle Ratio 3.909)?

Key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 245 hp 4X2(6 wheels) Port Tractor Truck (Axle Ratio 3.909): Drive: 4x2; Horsepower: 245 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin Medium Truck 245 hp 4X2(6 wheels) Port Tractor Truck (Axle Ratio 3.909) suited for?

Dongfeng Commercial Vehicle Tianjin Medium Truck 245 hp 4X2(6 wheels) Port Tractor Truck (Axle Ratio 3.909) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dongfeng Commercial Vehicle Tianjin Medium Truck 245 hp 4X2(6 wheels) Port Tractor Truck (Axle Ratio 3.909) differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin Medium Truck 245 hp 4X2(6 wheels) Port Tractor Truck (Axle Ratio 3.909) belongs to Dongfeng Tianjin Medium Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin Medium Truck 245 hp 4X2(6 wheels) Port Tractor Truck (Axle Ratio 3.909)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin Medium Truck 245 hp 4X2(6 wheels) Port Tractor Truck (Axle Ratio 3.909)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
