Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh

Export reference
From $23,444
MSRP ¥16.88M CNY
Wheelbase:: 3160mm
Cargo box volume:: 6.2
Model code (announced):: JX5039XXYTEA-MBEV
Cab length:: 4.86m
warranty policy:: 3-year/100,000 km vehicle warranty
GVWR:: 3ton
Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh exterior
View more photos (12)
CLTC range: 305km
Motor 1 Brand: Inovance
Curb Weight: 1.495ton
Rated payload: 1.375ton

Overview

The Jinhu Auto Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh is a Electric Panel Van featuring 305km battery/range, Inovance motor, 1.375t payload and 6.2 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): JX5039XXYTEA-MBEV
Wheelbase: 3160mm
Cab length: 4.86m
Cab width: 1.75m
Cab height: 1.99m
warranty policy: 3-year/100,000 km vehicle warranty
CLTC range: 305km
Curb Weight: 1.495ton
Rated payload: 1.375ton
GVWR: 3ton
Max. speed: 100km/h
Front/rear suspension: 0.64/1.06m
Version: Smart Travel Edition
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ180XS000
Motor Type: Permanent magnet synchronous motor
total rated power: 32kW
Peak power: 60kW
total peak torque: 220N·m
Battery/Charging
Battery Brand: CATL
Charging method: DC fast charge / slow charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 41.86kWh
fast charge time: 0.75h
Body parameters
Cargo box volume: 6.2
Max body depth: 2.827
Max body width: 1.525
Cargo Box Height: 1.381
Chassis Specs
steering assist type: Electric Power Steering
Front suspension type: Front MacPherson strut
rear suspension type: Leaf spring
Body Parameters
Cab structure: Load-bearing
Seat count: 2Seats
Door Parameters
Number of Doors: 4
side door type: Single-side manual
Tailgate type: tailgate
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake

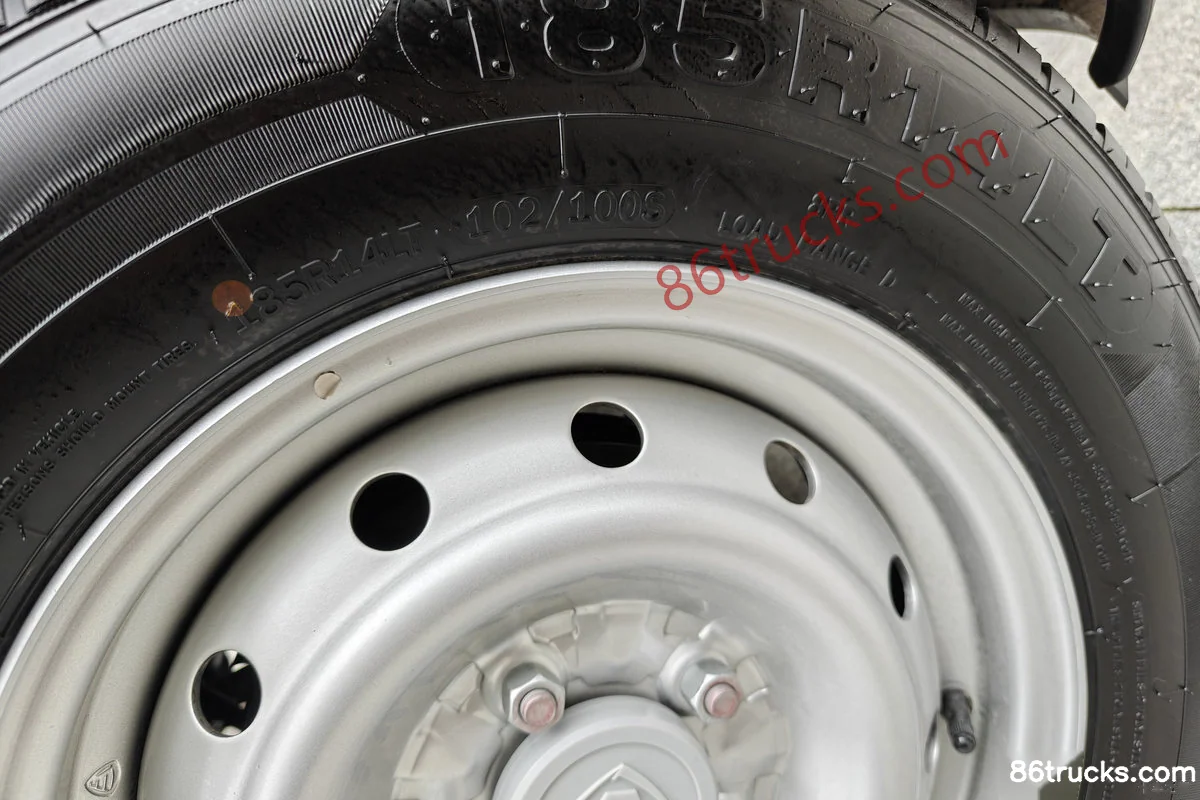

Front tire specification: 185R14LT
Rear Wheel Specification: 185R14LT
Cab parameters
Seat rows:
Safety features
Seat belt reminder:
Remote key:
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.):
interior configuration
AC control type: Manual
Power Windows:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Headlight height adjustment:

Photos

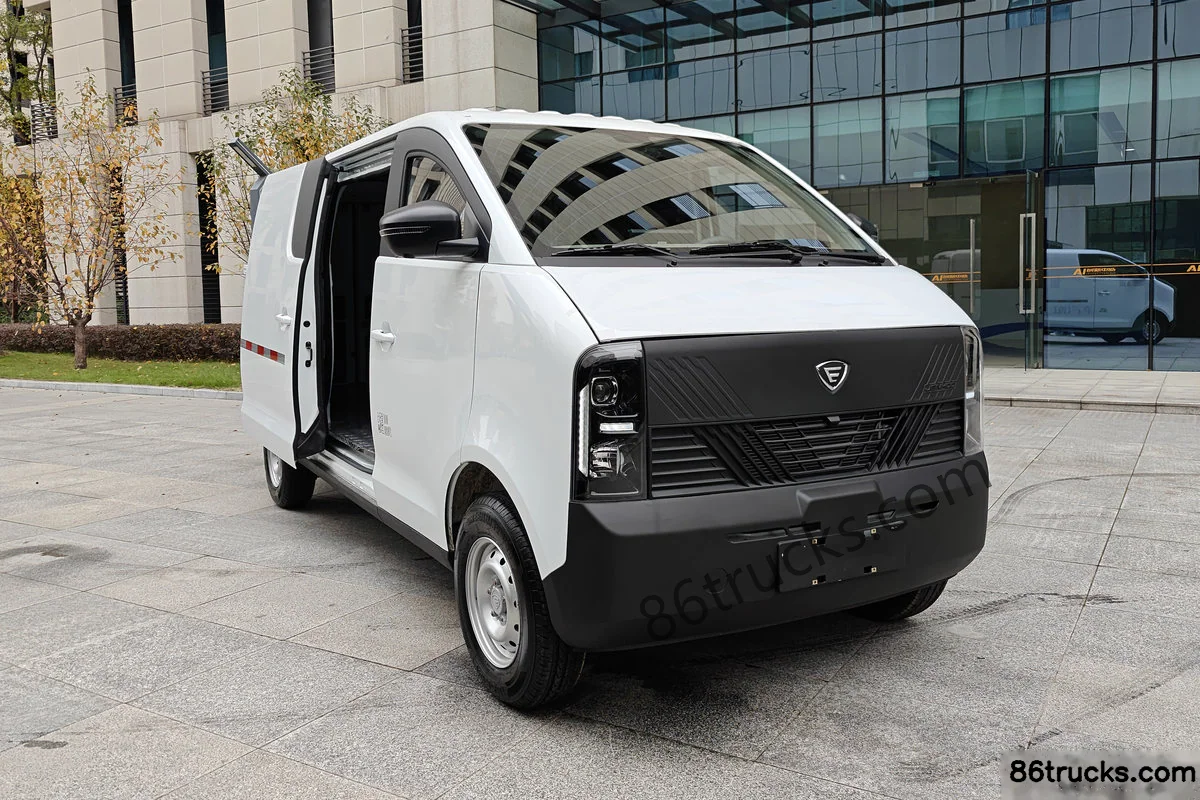

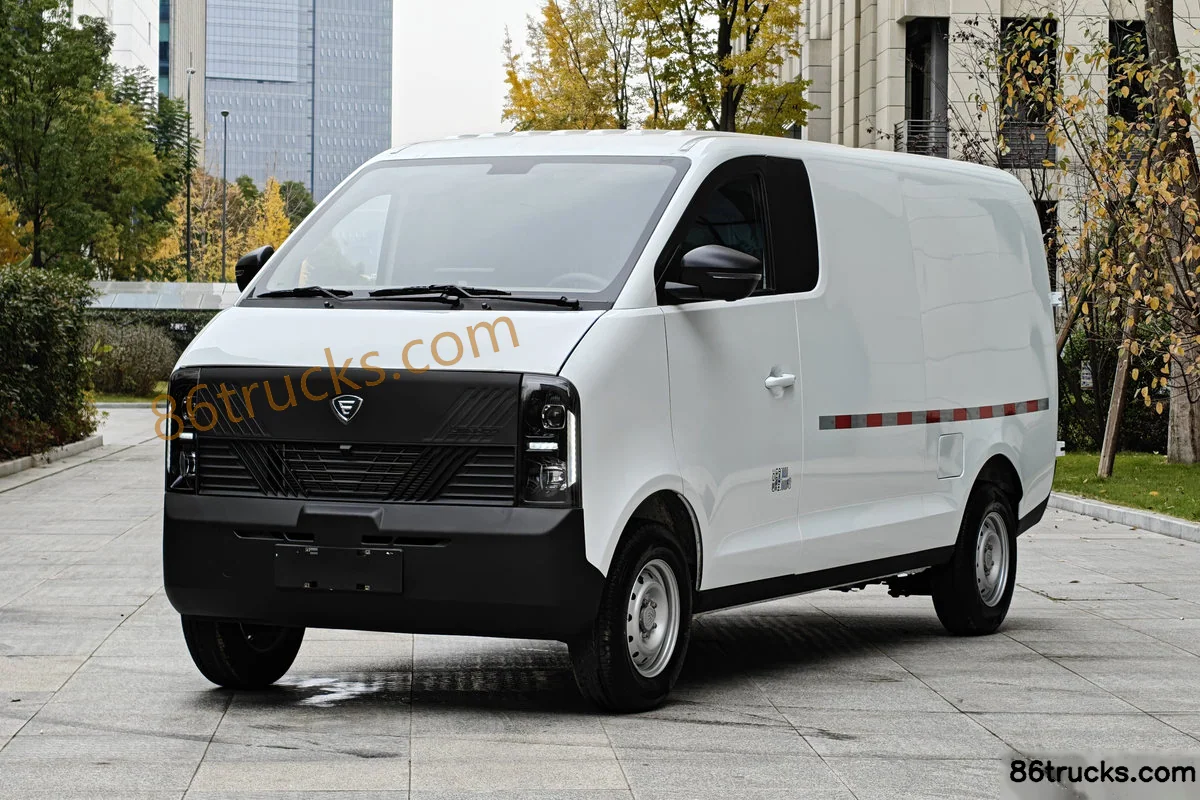

Exterior3

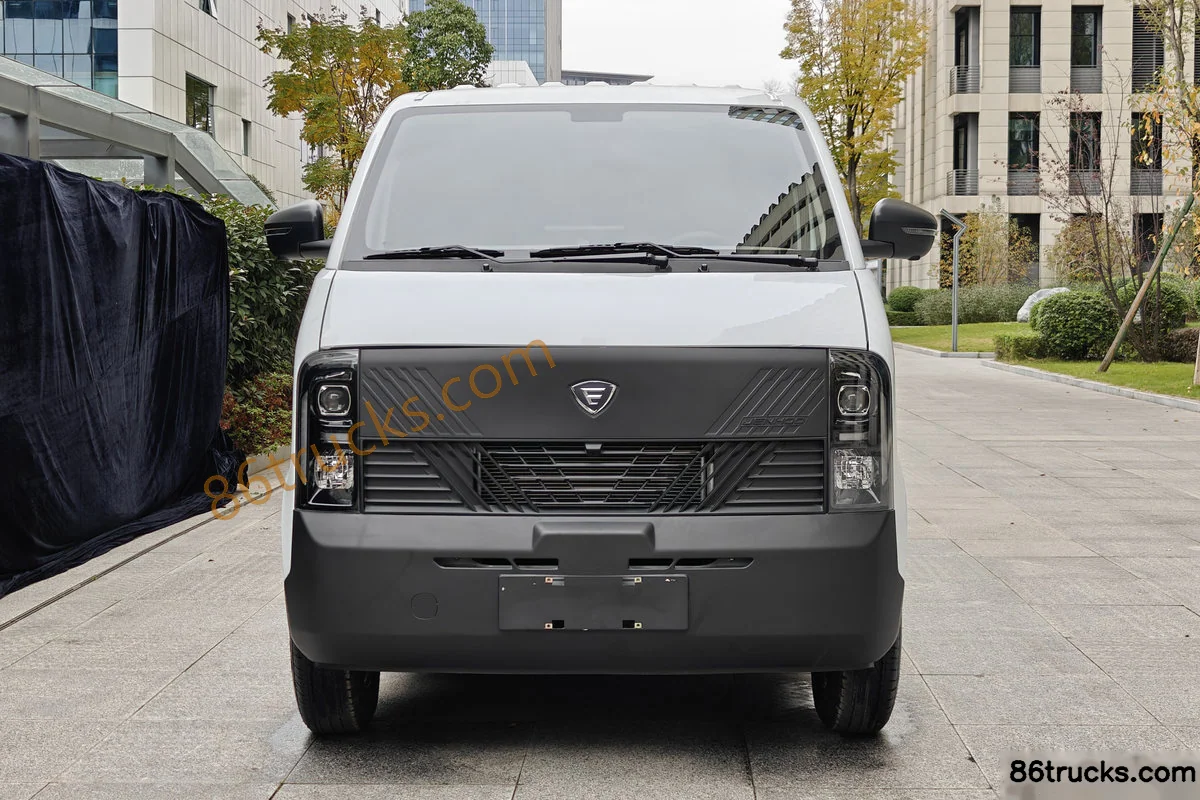

Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh Exterior (1) | 86Trucks Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh Exterior (2) | 86Trucks Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh Exterior (3) | 86Trucks

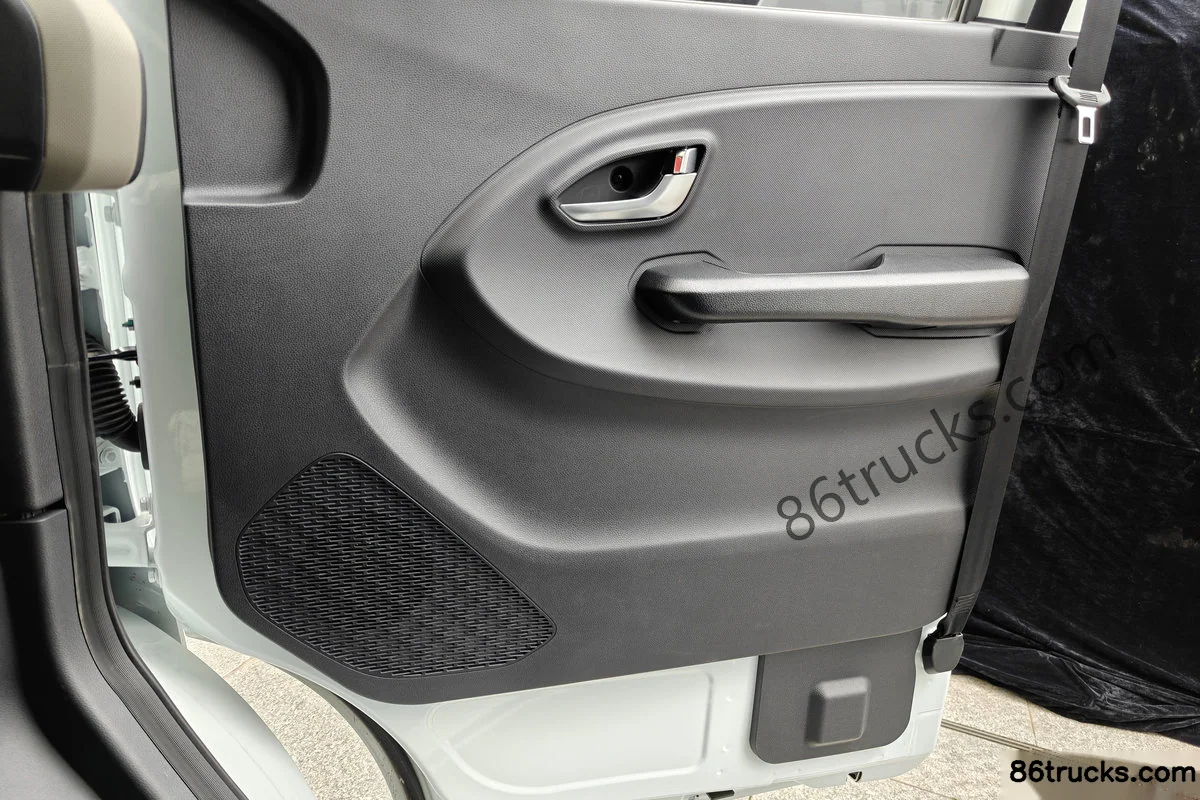

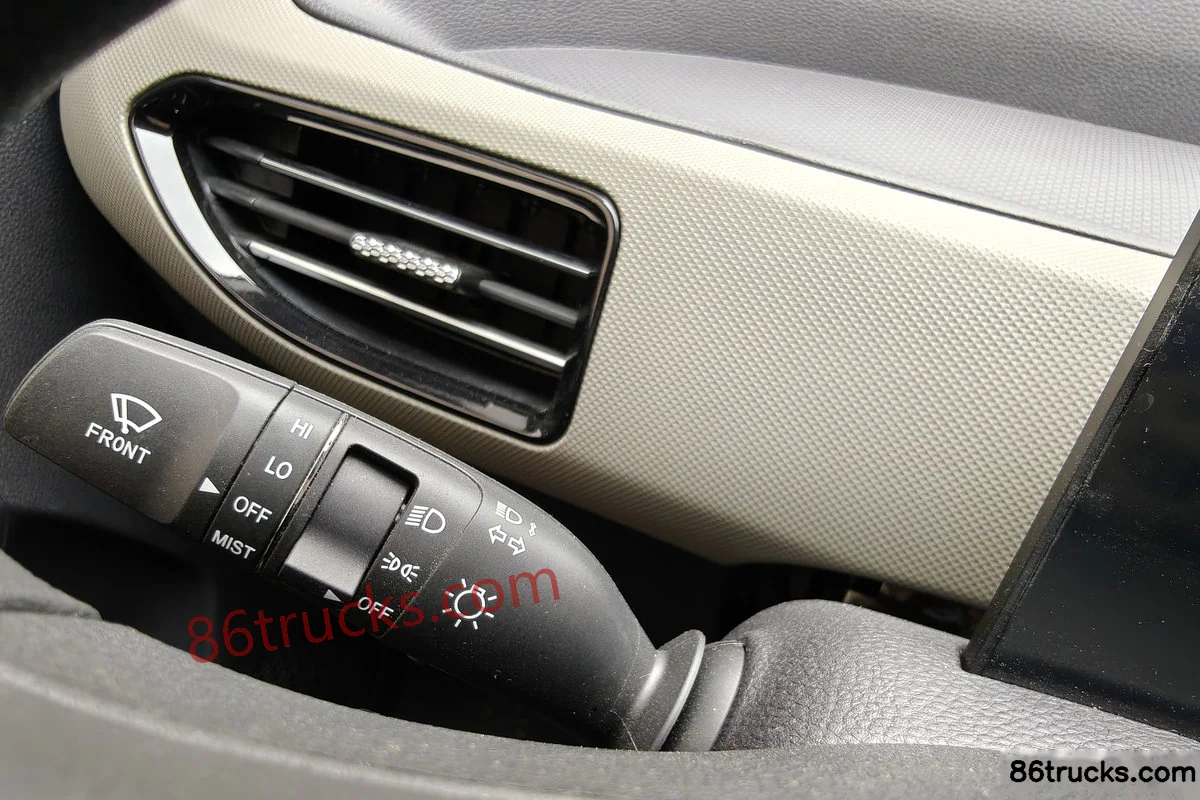

Cab3

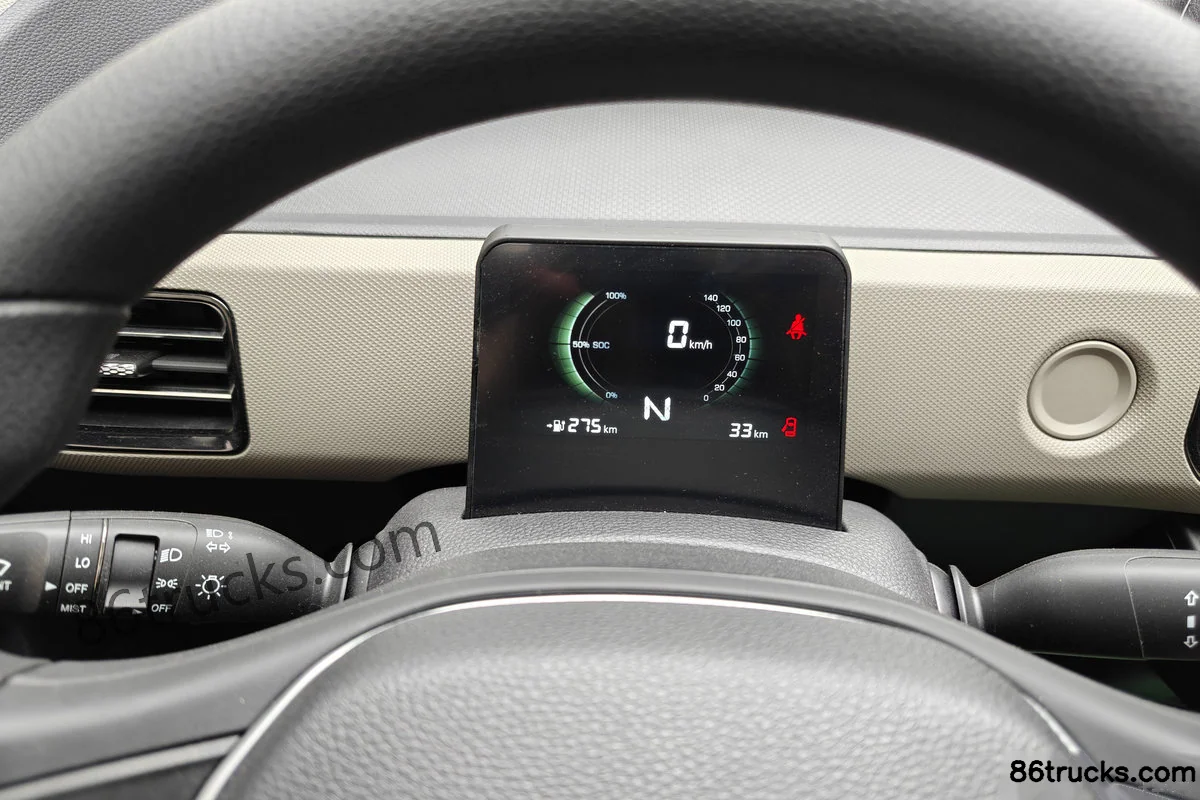

Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh Cab (1) | 86Trucks Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh Cab (2) | 86Trucks Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh Cab (3) | 86Trucks

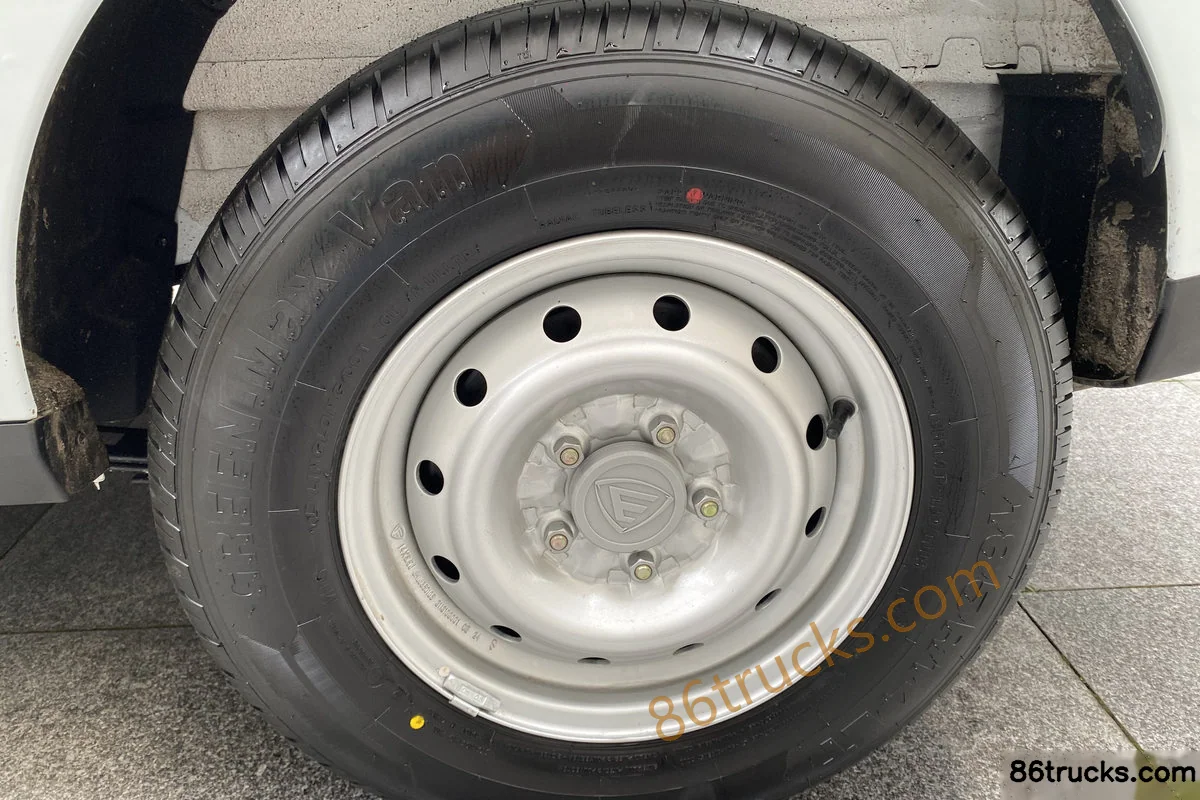

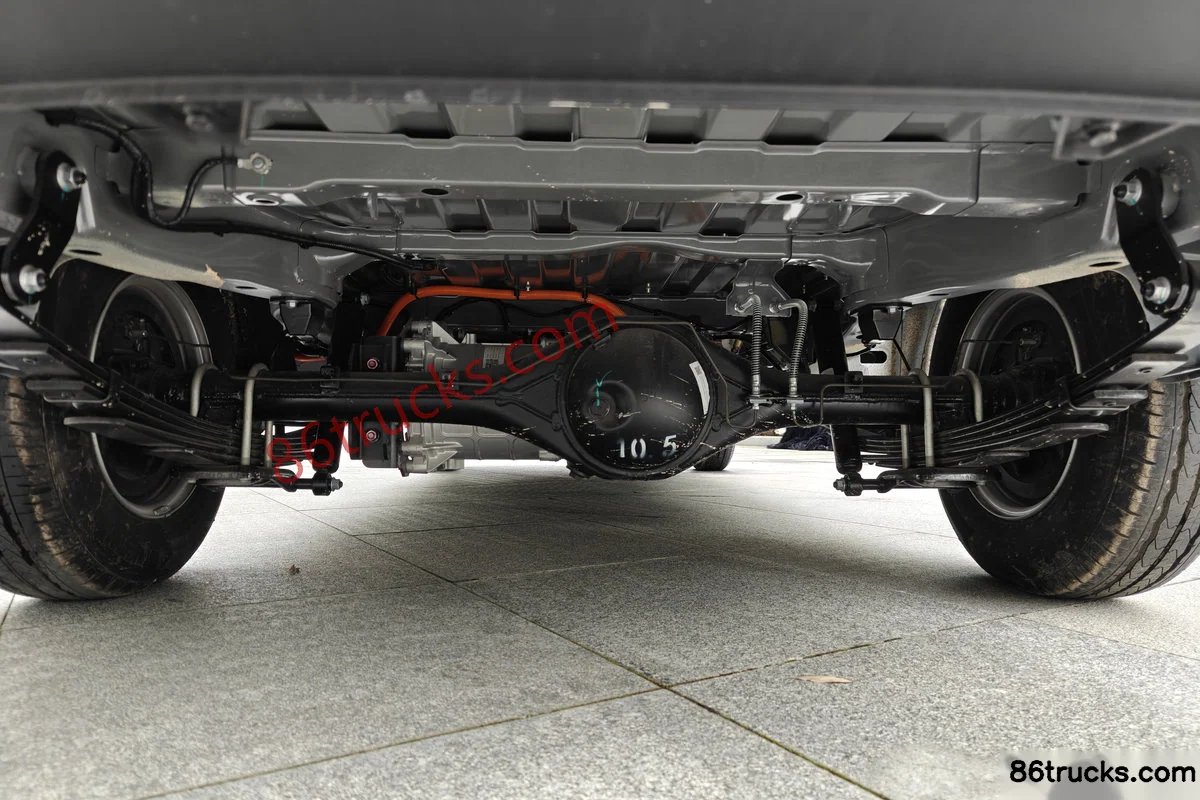

Chassis3

Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh Chassis (1) | 86Trucks Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh Chassis (2) | 86Trucks Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh Chassis (3) | 86Trucks

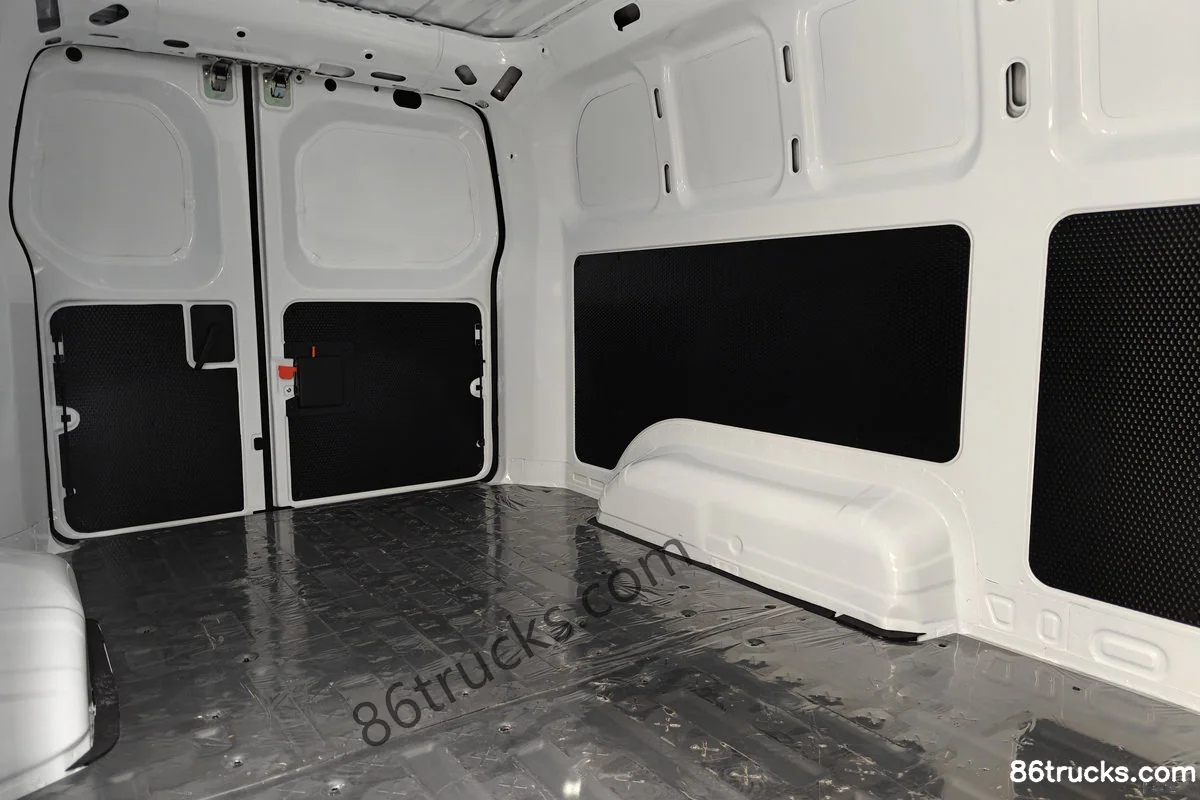

Cargo Box3

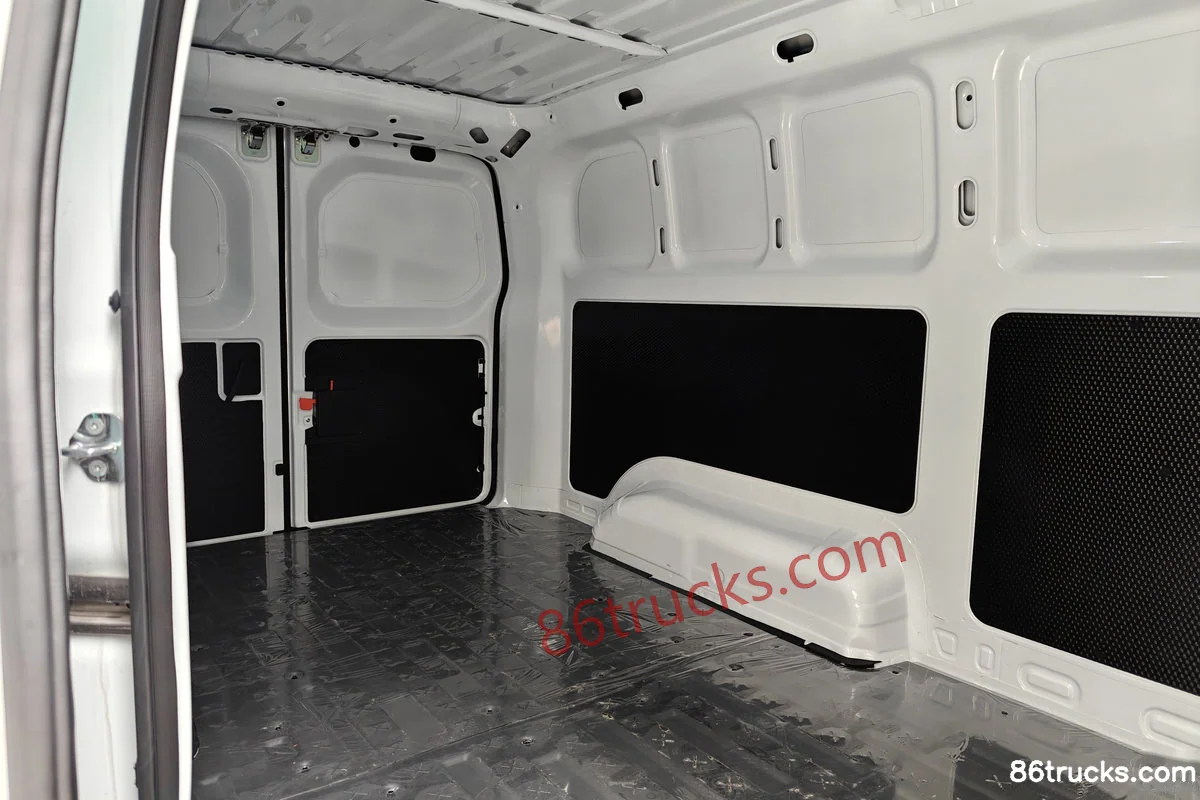

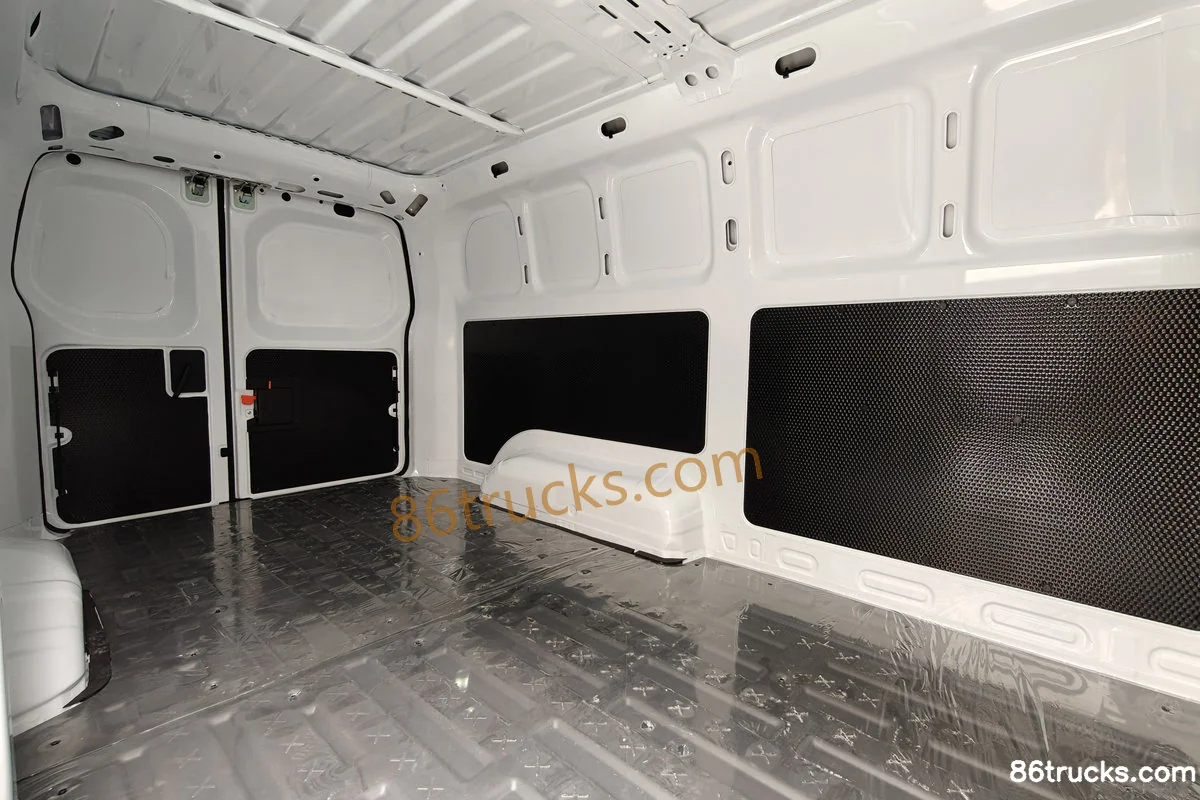

Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh Cargo Box (1) | 86Trucks Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh Cargo Box (2) | 86Trucks Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh Cargo Box (3) | 86Trucks

12 photos

FAQ

What is the export price of Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh, and what does it include?

Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh export reference is about From $23,444; MSRP is ¥16.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh suited for?

Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh differ from other variants in the same series?

Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh belongs to Jinhu Auto EV70 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jinhu EV70 Smart Edition 2-seat pure electric van CATL 41.86kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
