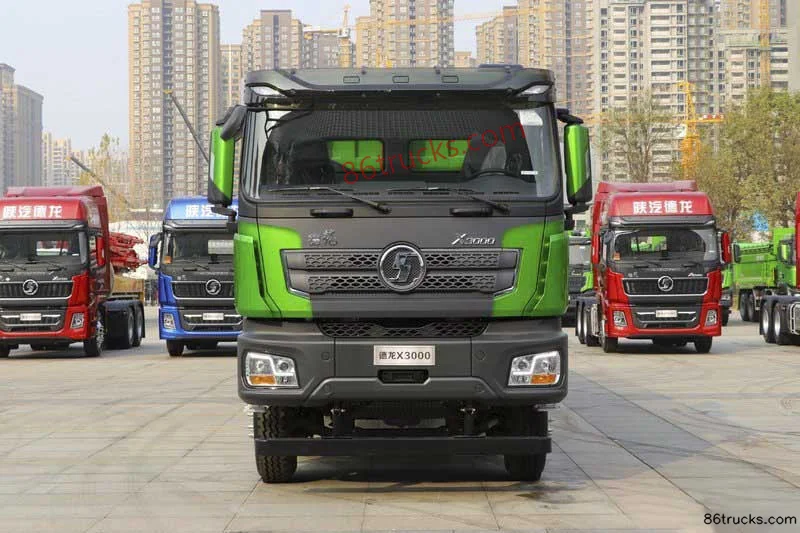

SHACMAN Delong New X3000 6X4(10 wheels) 5.4m Electric Dump Truck 350kWh

Export reference
MSRP N/A
Rated payload:: 4.57ton
Wheelbase:: 3975+1400mm
Cargo box type:: Rear-dump body
Model code (announced):: SX3257XF404BEV1
Cab length:: 8.4m
GVWR:: 25ton
Drive 6X4 (10 wheels)
CLTC range: 120km
Motor 1 Brand: Dana
Curb Weight: 20.3ton

Overview

The SHACMAN Delong New X3000 6X4(10 wheels) 5.4m Electric Dump Truck 350kWh is a Heavy truck featuring 120km battery/range, Dana motor, 6X4 (10 wheels) drive and 4.57t payload.

6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3257XF404BEV1
Drive type: 6X4
Wheelbase: 3975+1400mm
Cab length: 8.4m
Cab width: 2.55m
Cab height: 3.5m
CLTC range: 120km
Curb Weight: 20.3ton
Rated payload: 4.57ton
GVWR: 25ton
Max. speed: 70km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Dana
Motor 1 Model: TZ488XSPE352WH
total rated power: 250kW
Peak power: 350kW
Battery/Charging
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 350kWh
Transmission Parameters
Number of gears: 6Gear
shift type: Manual
Transmission Model: Fast Gear 6-speed
Cargo box parameters
Cargo box type: Rear-dump body
Cargo box length: 5.4m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 7000kg
rear axle description: 16T MAN double reduction
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20 18PR,315/80R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

Exterior1

1 photos

FAQ

What are the key specs of SHACMAN Delong New X3000 6X4(10 wheels) 5.4m Electric Dump Truck 350kWh?

Key specs of SHACMAN Delong New X3000 6X4(10 wheels) 5.4m Electric Dump Truck 350kWh: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong New X3000 6X4(10 wheels) 5.4m Electric Dump Truck 350kWh suited for?

SHACMAN Delong New X3000 6X4(10 wheels) 5.4m Electric Dump Truck 350kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong New X3000 6X4(10 wheels) 5.4m Electric Dump Truck 350kWh differ from other variants in the same series?

SHACMAN Delong New X3000 6X4(10 wheels) 5.4m Electric Dump Truck 350kWh belongs to SHACMAN Delong X3000 Heavy Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong New X3000 6X4(10 wheels) 5.4m Electric Dump Truck 350kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong New X3000 6X4(10 wheels) 5.4m Electric Dump Truck 350kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
