Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.415ton
Wheelbase:: 3360mm
Cargo box type:: Van body
Model code (announced):: QL5041XXYBEVECCA2
Type:: enclosed cargo truck
Box length class:: 4.2m
Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) exterior
View more photos (12)
Drive 4X2 (6 wheels)
CLTC range: 270km
Motor 1 Brand: Shanghai Electric Drive
Curb Weight: 2.95ton

Overview

The Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) is a Light Truck featuring 270km battery/range, Shanghai Electric Drive motor, 4X2 (6 wheels) drive and 1.415t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): QL5041XXYBEVECCA2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.1m
Cab height: 3.09m
CLTC range: 270km
Curb Weight: 2.95ton
Rated payload: 1.415ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Chongqing
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Shanghai Electric Drive
Motor 1 Model: YTD060W23
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 60kW
Peak power: 110kW
total peak torque: 1000N·m
Battery/Charging
Charging method: Standard DC fast charging, optional AC slow charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 96.77kWh
Battery Model: L140T26
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.25m
Cargo box width: 2.05m
Cargo box height: 2.1m
Cab parameters
Cab width: 1880mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1805kg
rear axle allowable load: 2690kg
Tire
Tire Size: 7.00R16 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

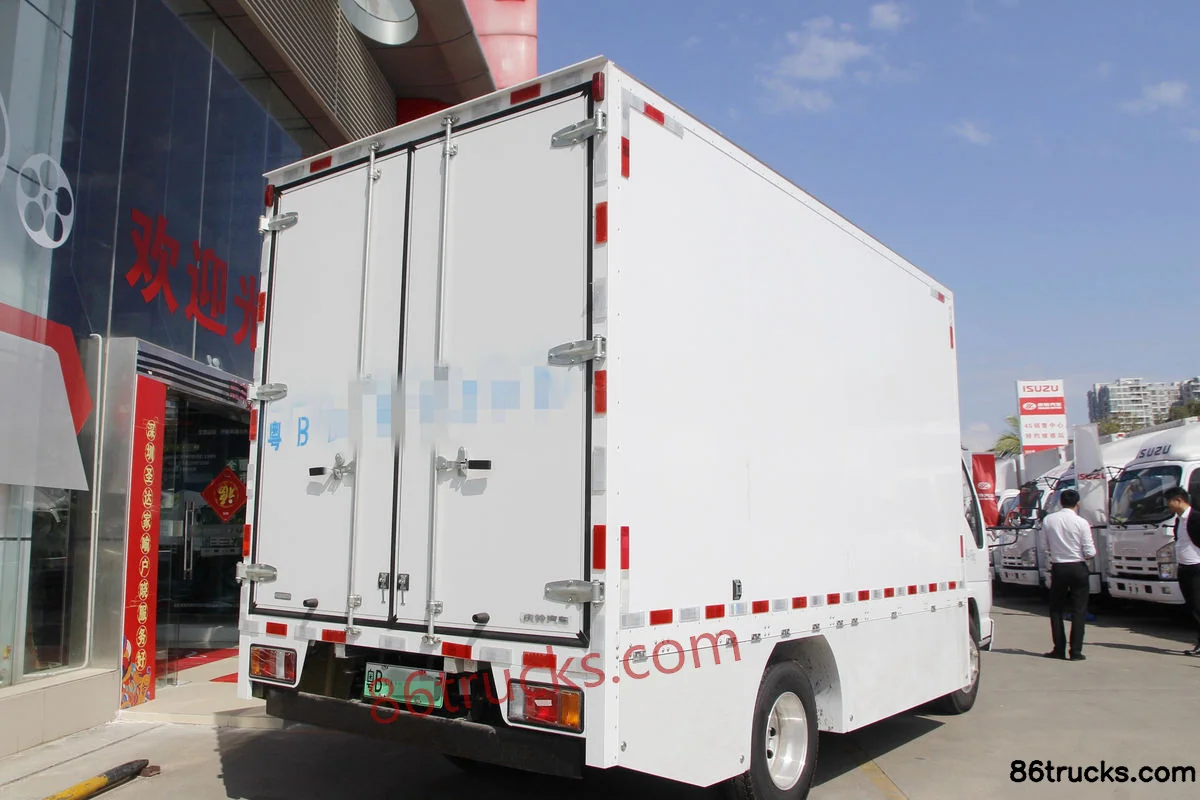

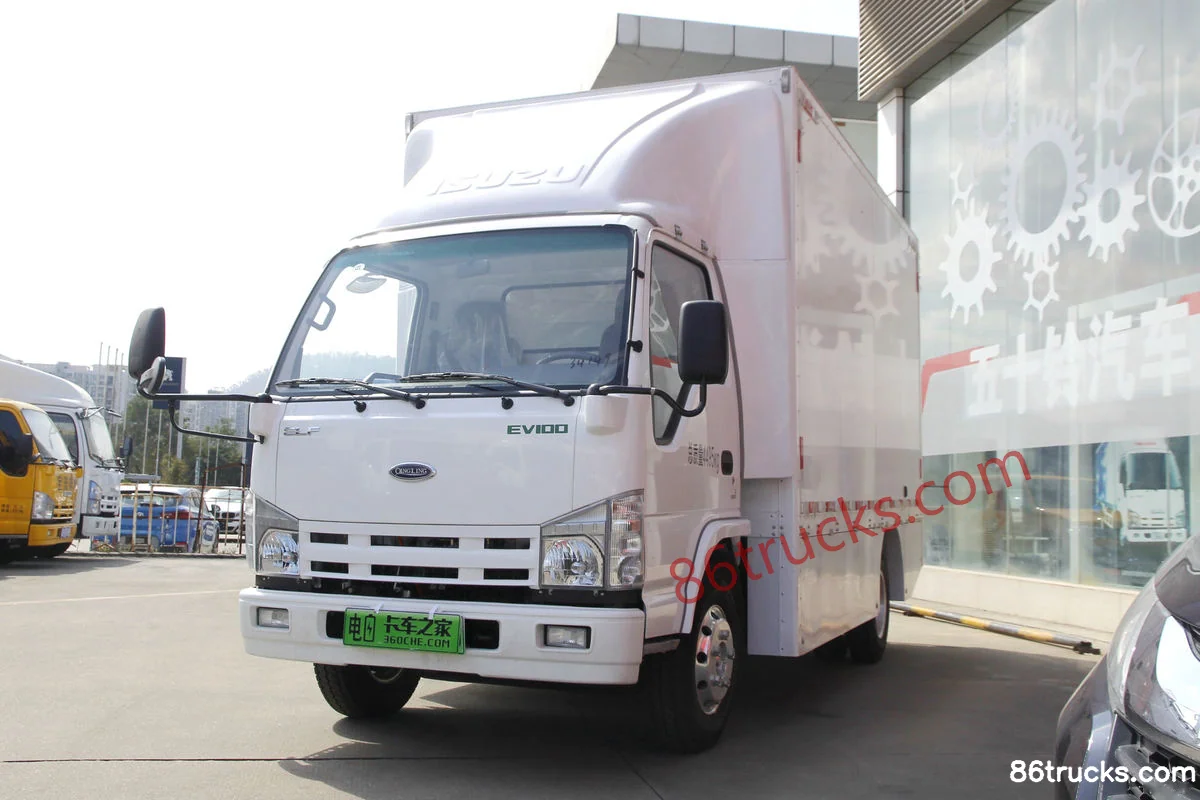

Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) Exterior (1) | 86Trucks Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) Exterior (2) | 86Trucks Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) Exterior (3) | 86Trucks

Interior3

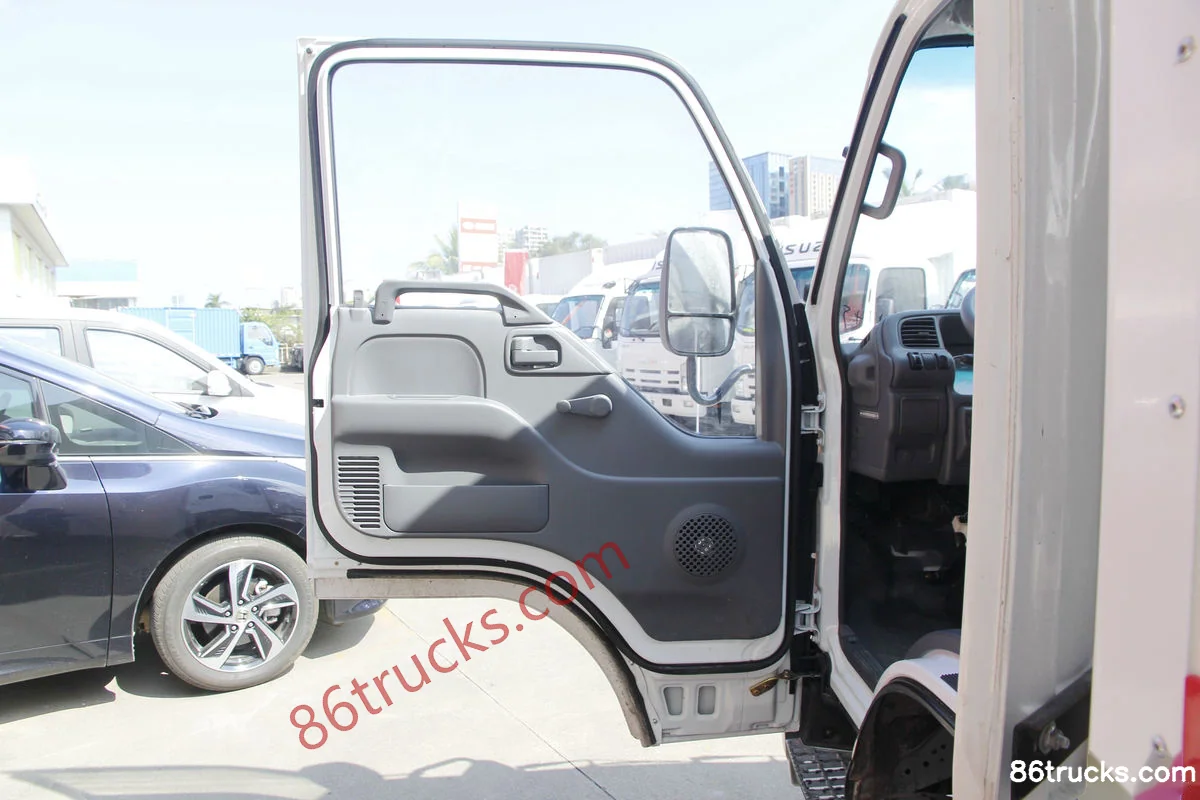

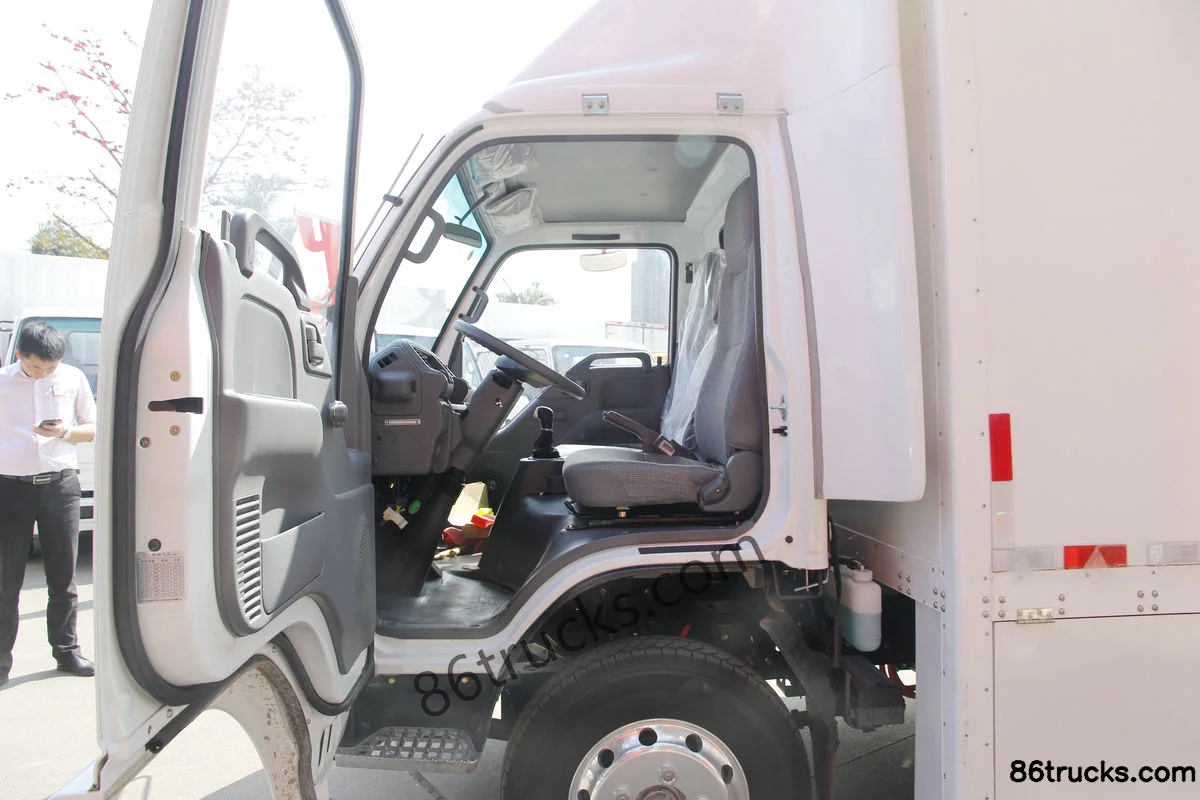

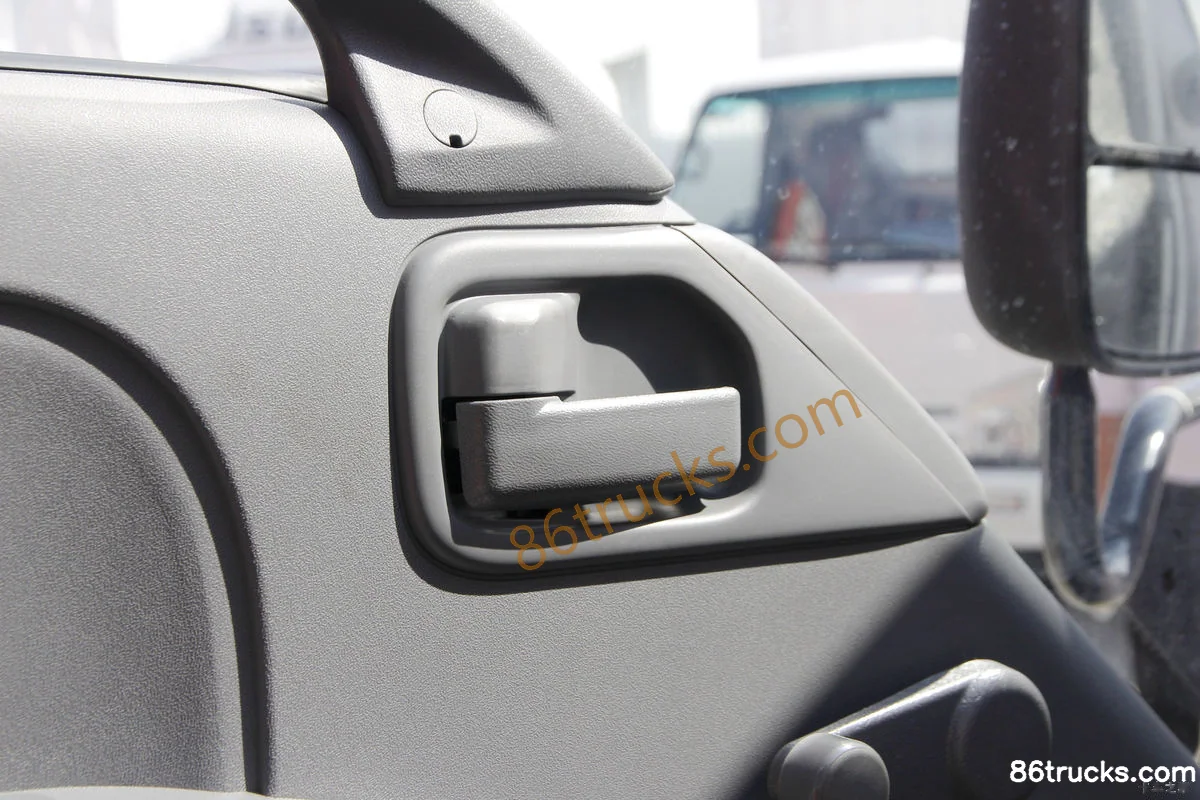

Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) Interior (1) | 86Trucks Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) Interior (2) | 86Trucks Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) Interior (3) | 86Trucks

Chassis3

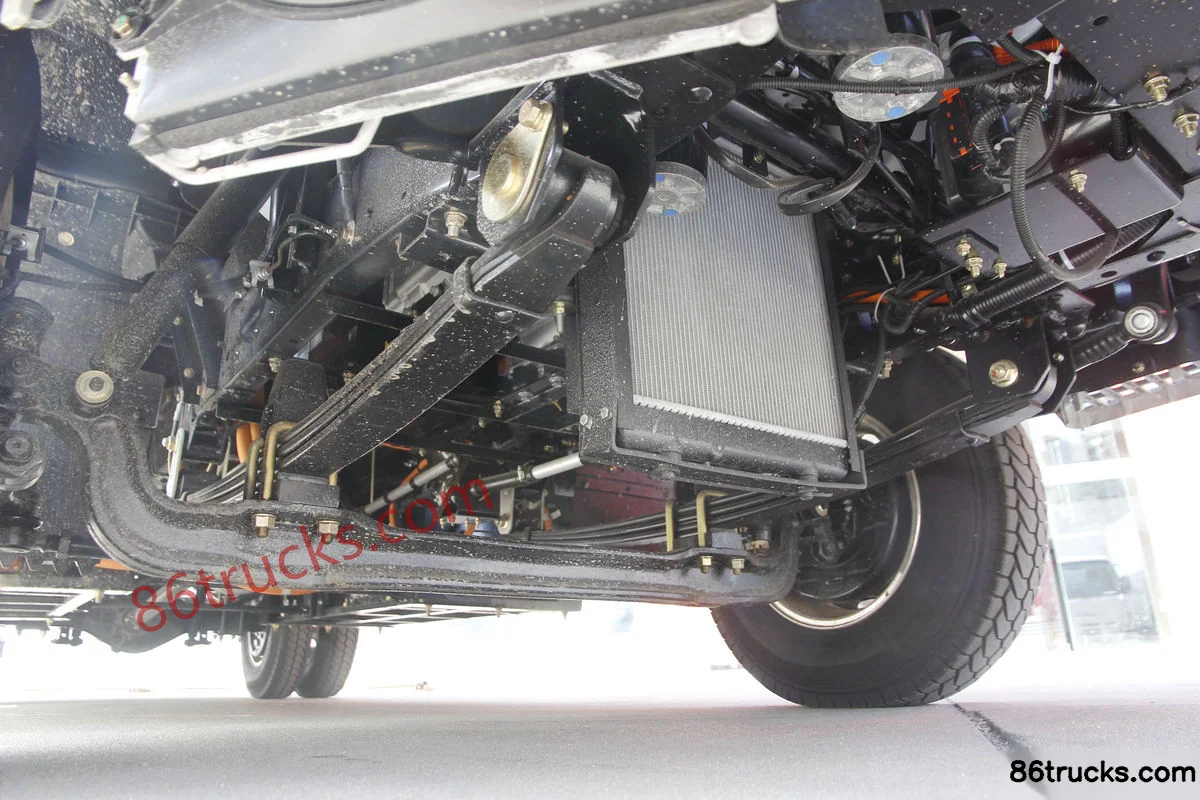

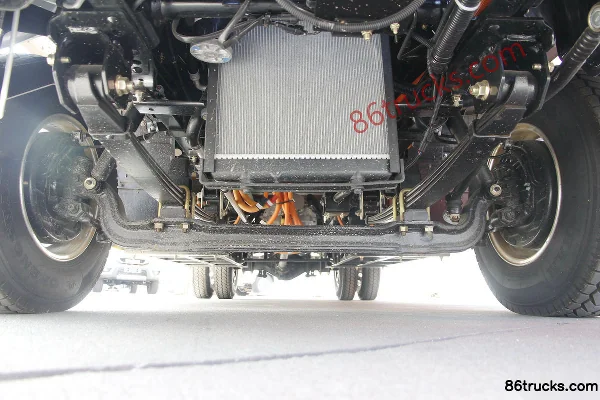

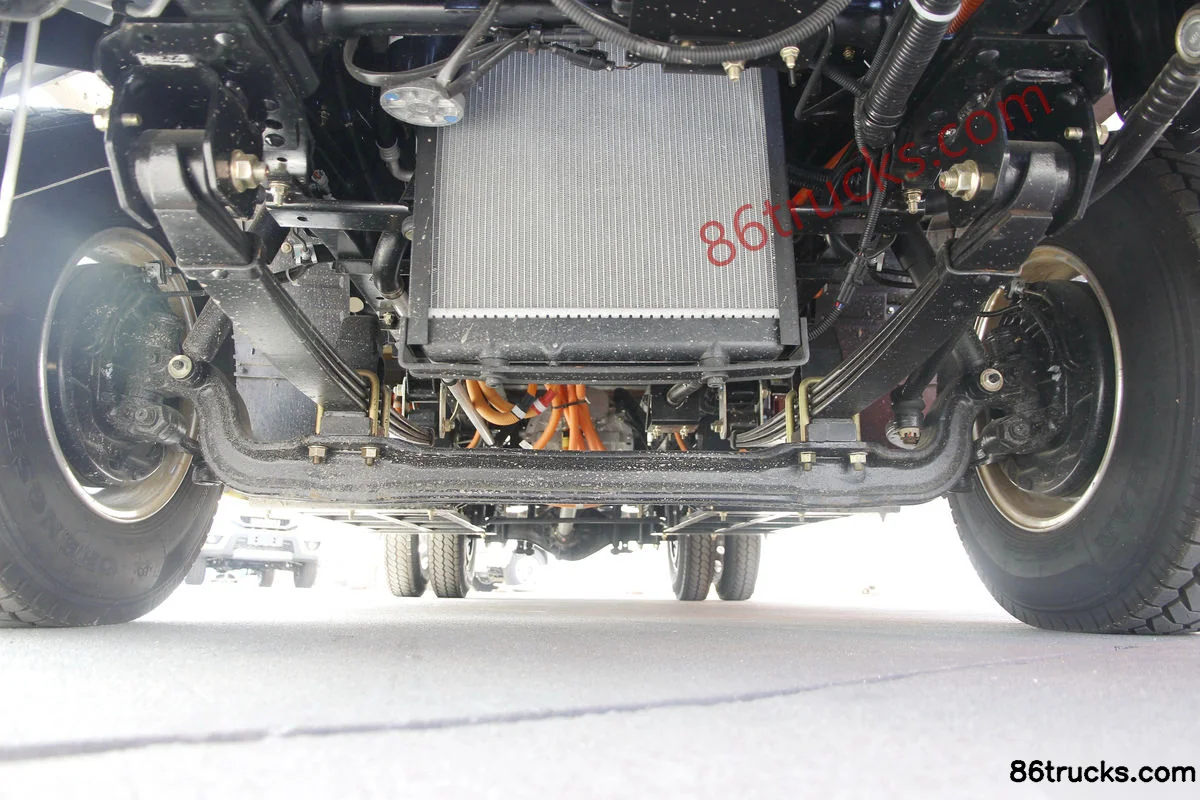

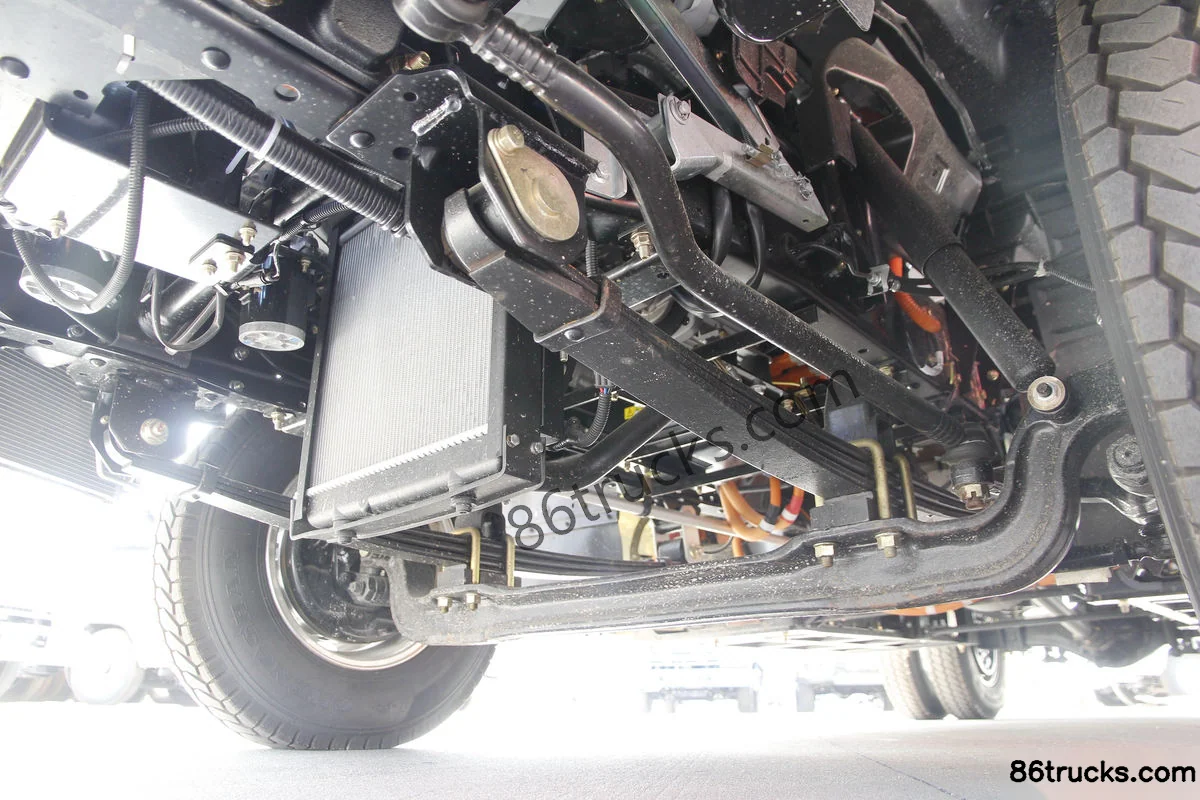

Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) Chassis (1) | 86Trucks Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) Chassis (2) | 86Trucks Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) Chassis (3) | 86Trucks

Body3

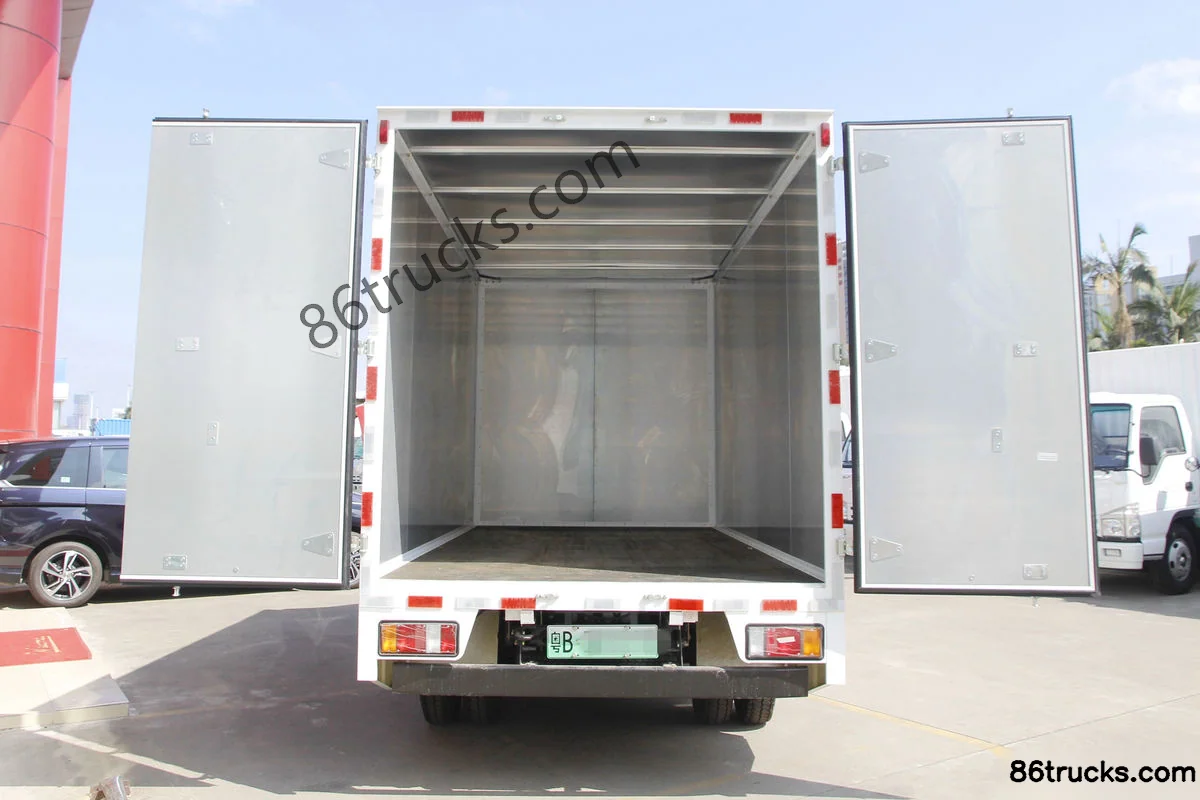

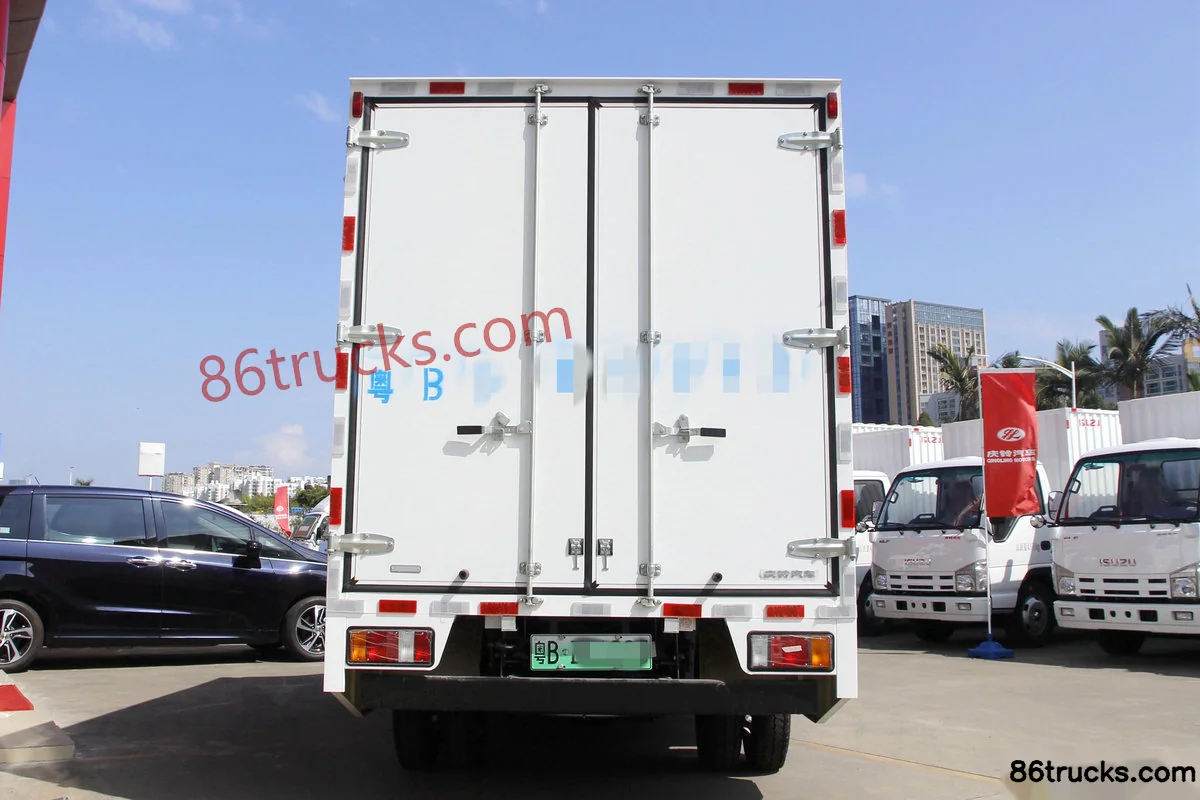

Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) Body (1) | 86Trucks Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) Body (2) | 86Trucks Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels)?

Key specs of Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) suited for?

Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) differ from other variants in the same series?

Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels) belongs to Qingling Isuzu EV100 Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling Isuzu EV100 4.5T 4.25m single-row pure electric van truck (range 315) 96.77kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
