Foton Aumark M Card 142hp 4X2(6 wheels) 3.94m semi-cab flatbed mini truck (air brake)

Export reference
From $12,264
MSRP ¥8.83M CNY
Horsepower: 142
Emission: China VI
Fuel: Diesel
Engine: QuanchaiQ23
Transmission: WLY
Curb Weight:: 2.295ton
seating capacity: 2Personnel
Rated payload: 2.05ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Aumark M Card 142hp 4X2(6 wheels) 3.94m semi-cab flatbed mini truck (air brake) is a mini truck featuring 3.94m cargo length, stake body cargo body, 2Personnel volume and 2.05t payload. On the powertrain side, it comes with a QuanchaiQ23 engine, 142 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 142 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1044V9JBA-AB1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.9m
engine: QuanchaiQ23A-142E60
transmission: WLYWLY5G32
Rear Axle Ratio: 4.875
Cab length: 5.98m
Cab width: 2.05m
Cab height: 2.185m
Front track width: 1500mm
rear track: 1420mm
Curb Weight: 2.295ton
Rated payload: 2.05ton
GVWR: 4.475ton
Max. speed: 110km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 18°
departure angle: 17°
Front/rear suspension: 1.115/1.505m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23A-142E60
Engine info: QuanchaiQ23
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.3L
Emission standard: China VI
Max output power: 103kW
Max hp: 142Horsepower
Transmission Parameters
Transmission Model: WLYWLY5G32
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.94m
Cargo box width: 1.95m
Cargo box height: 0.4m
*Cargo box interior width: 1.95
Cab parameters
Cab width: 1730mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 70L
Chassis Specs
Front axle description: 1.5t
Front axle allowable load: 1790kg
Frame Dimensions: 714/760, H160, W50, T4 framemm
rear axle allowable load: 2685kg
Axle ratio: 4.875
Leaf spring count: 3/3+2
Aluminum wheels:
Tire
Tire Size: 6.50R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Multimedia features
Bluetooth / hands-free calling:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
smart configuration
Cruise control (CCS):

Photos

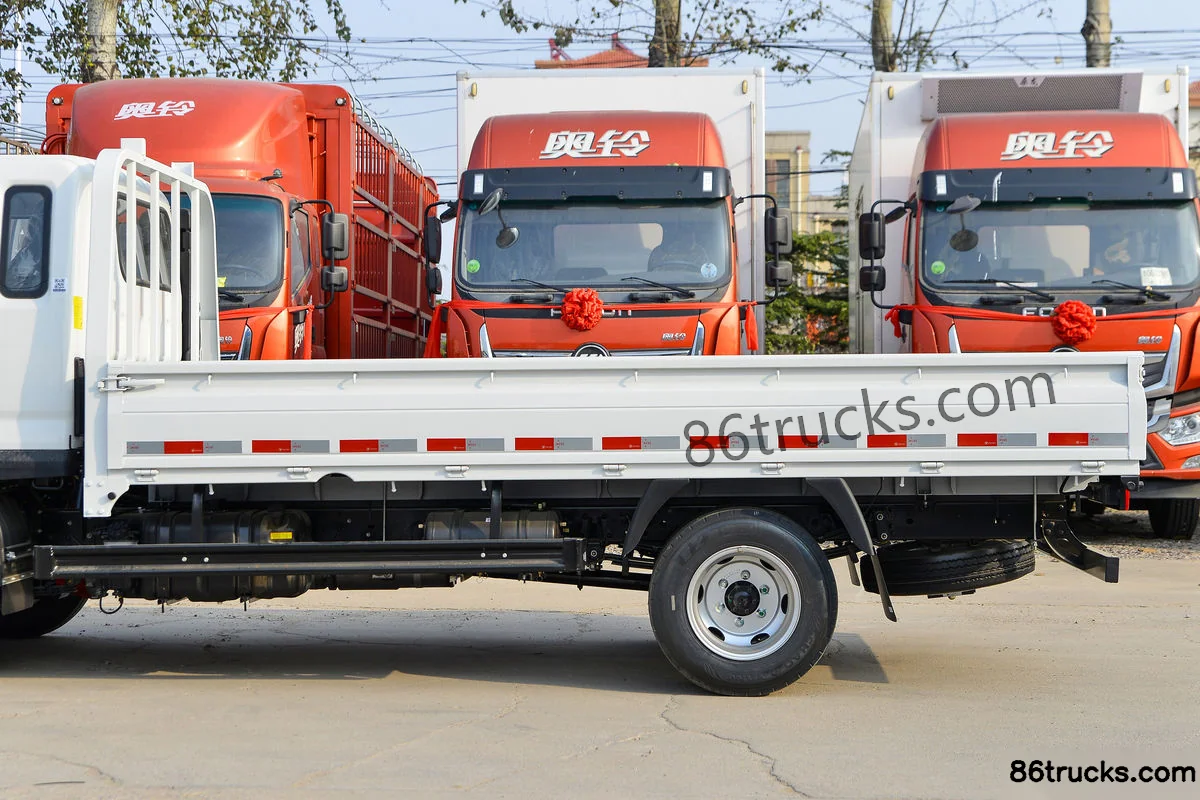

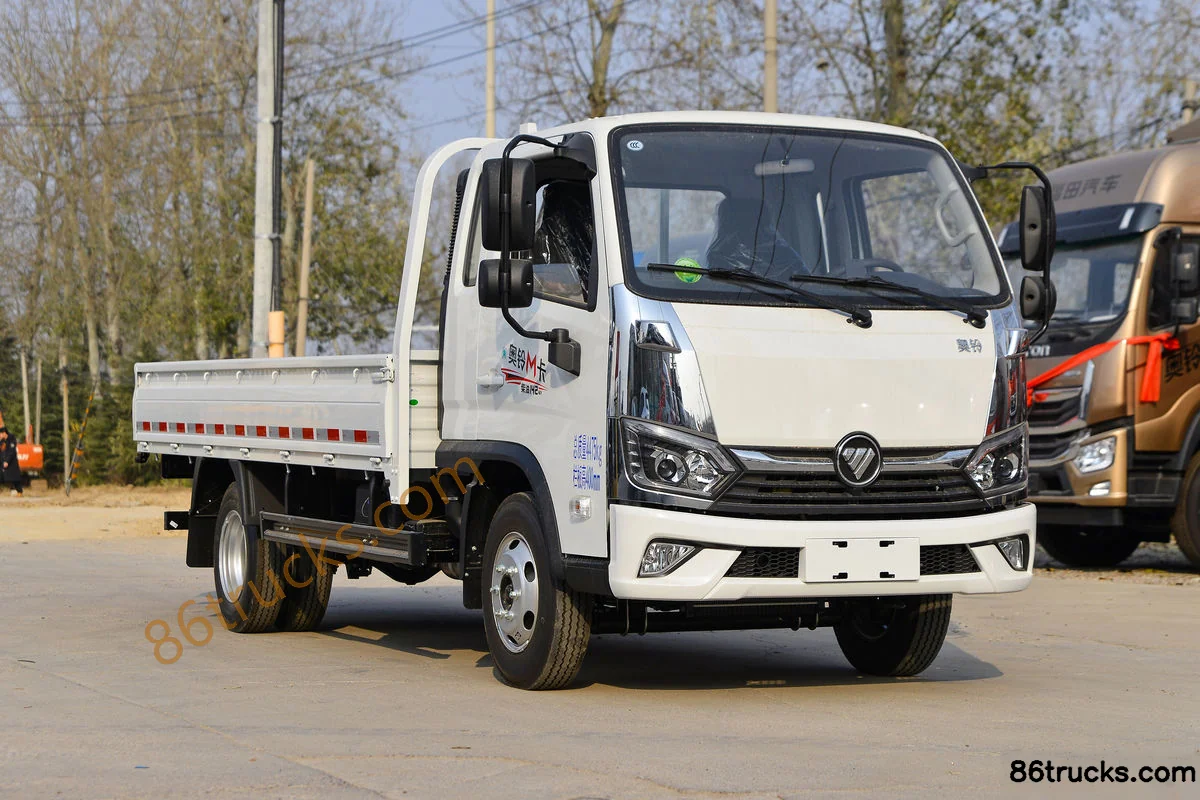

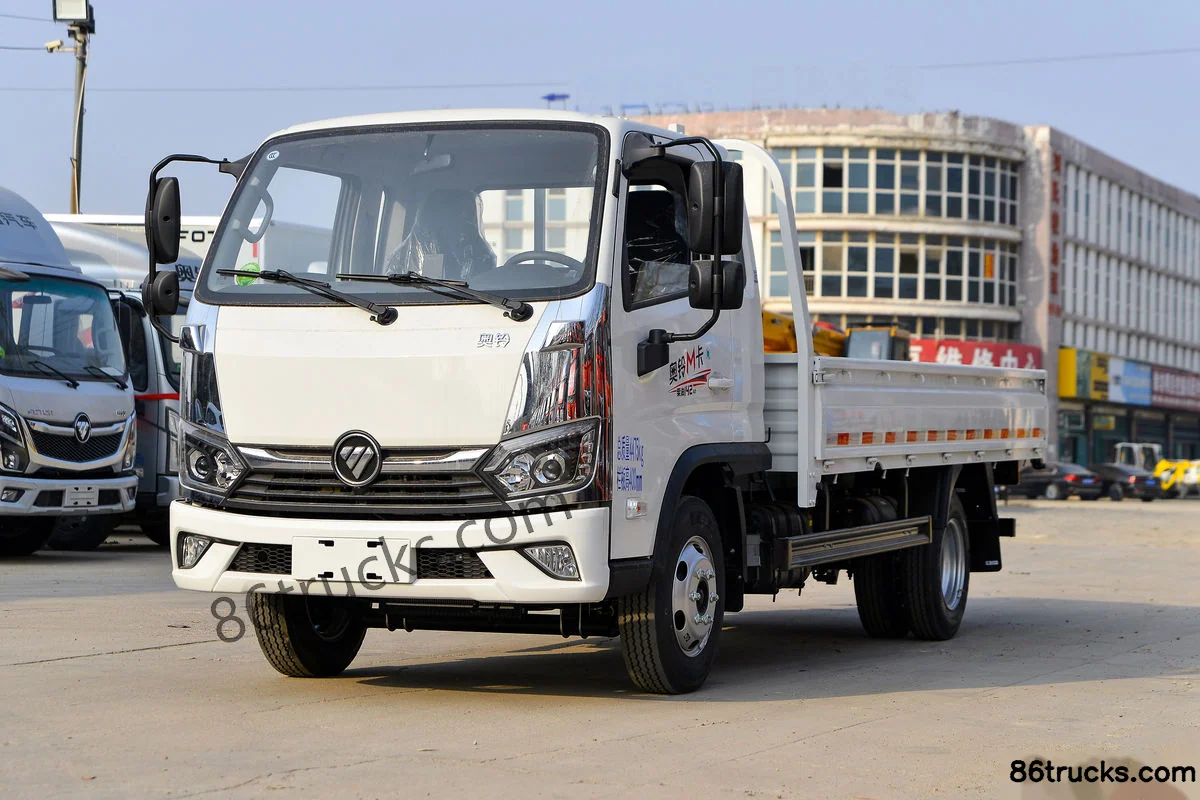

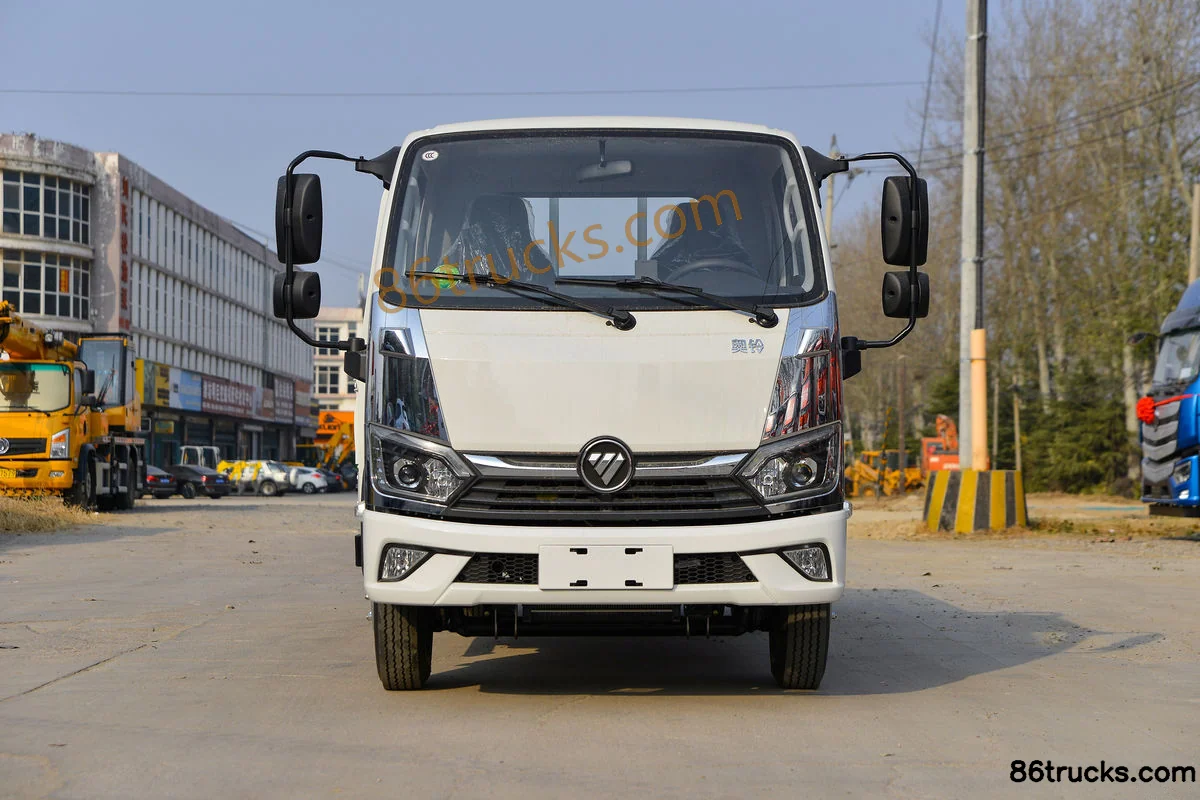

Exterior3

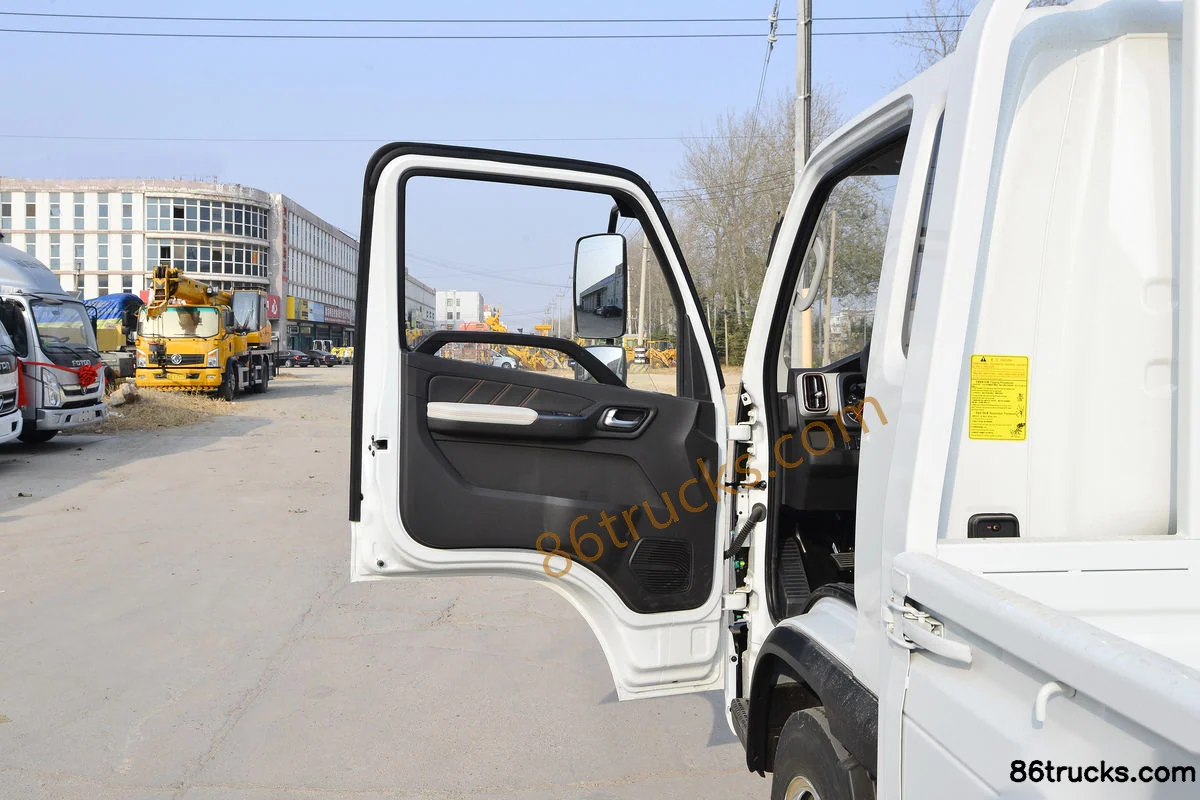

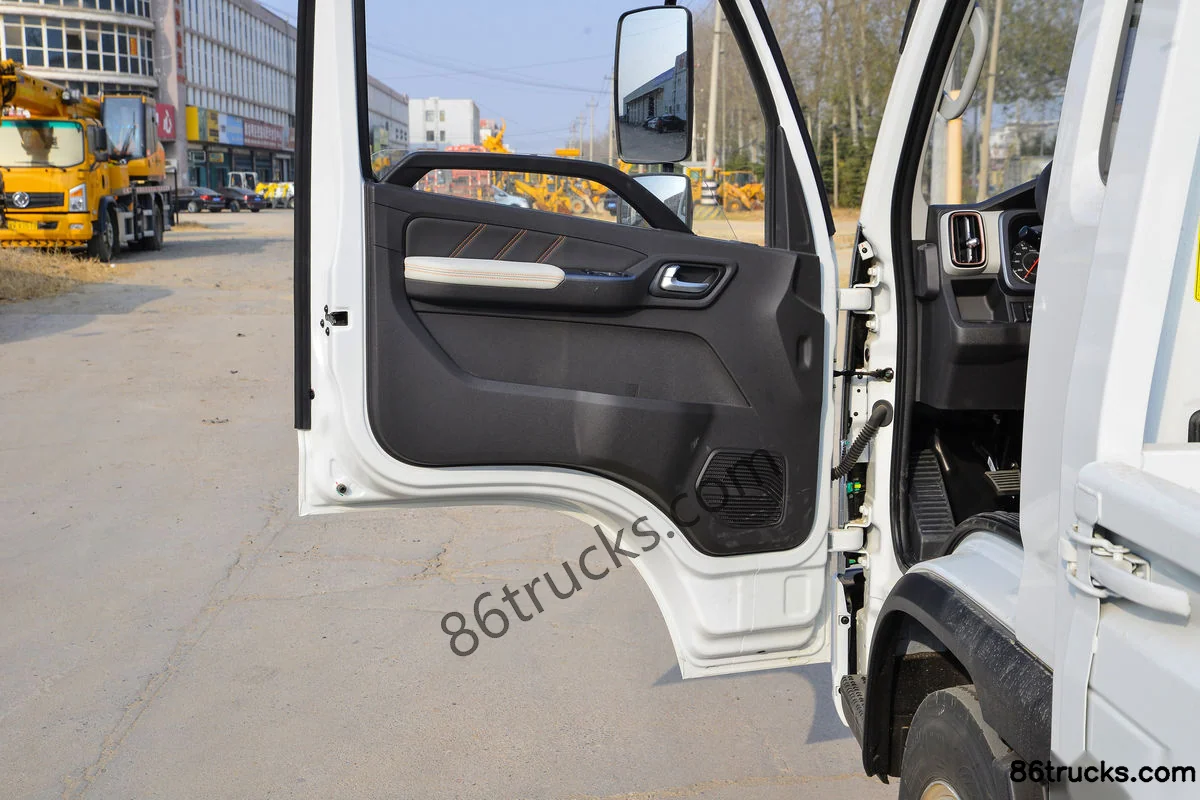

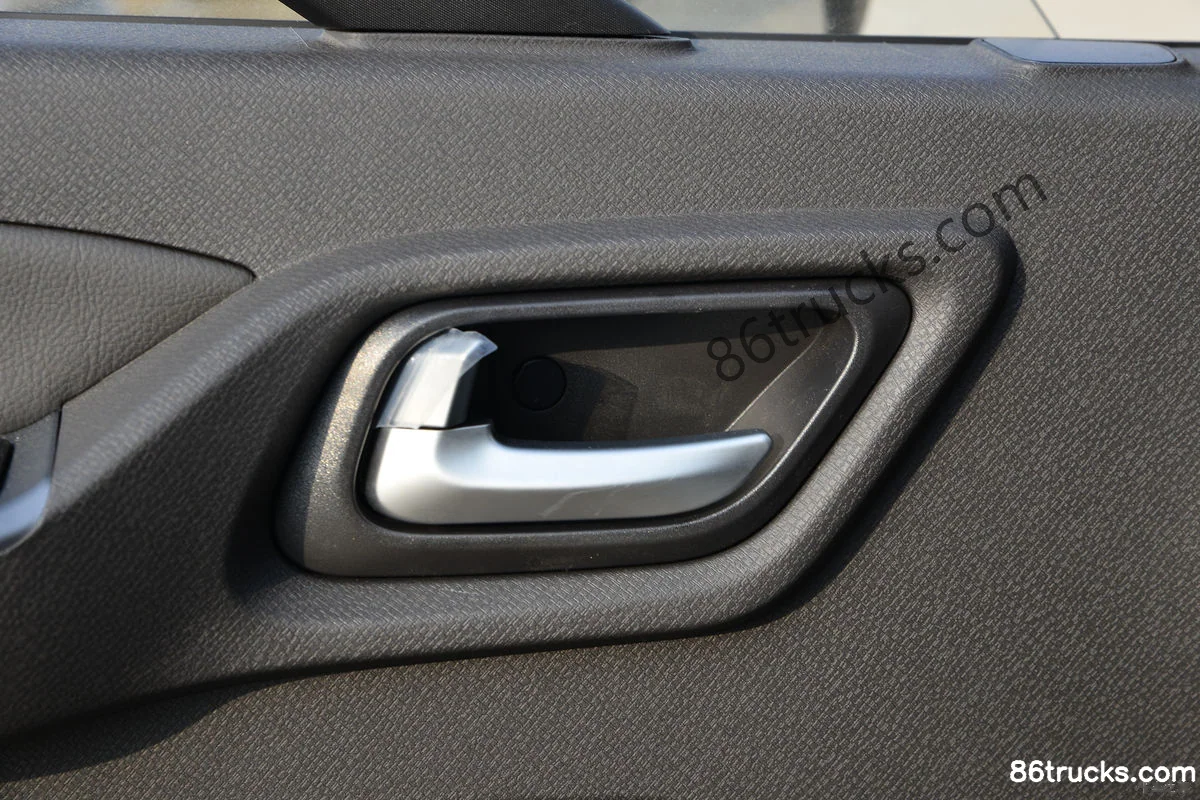

Cab3

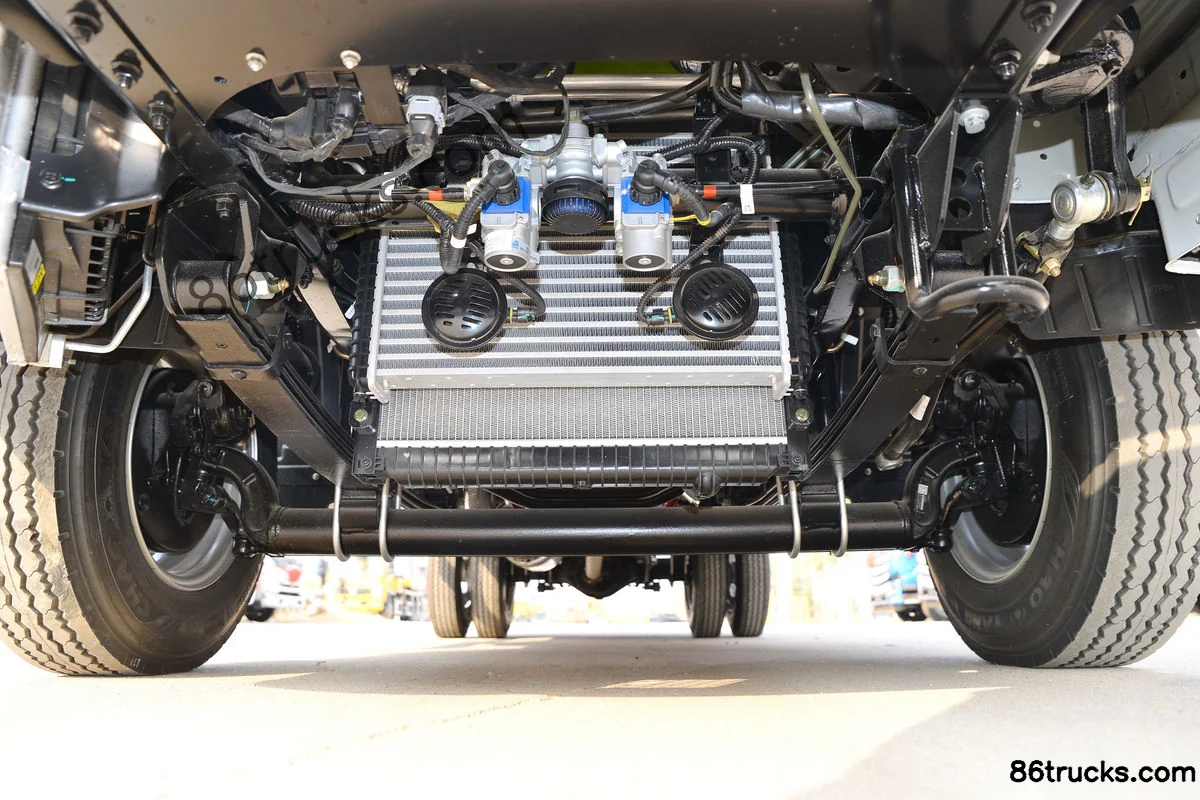

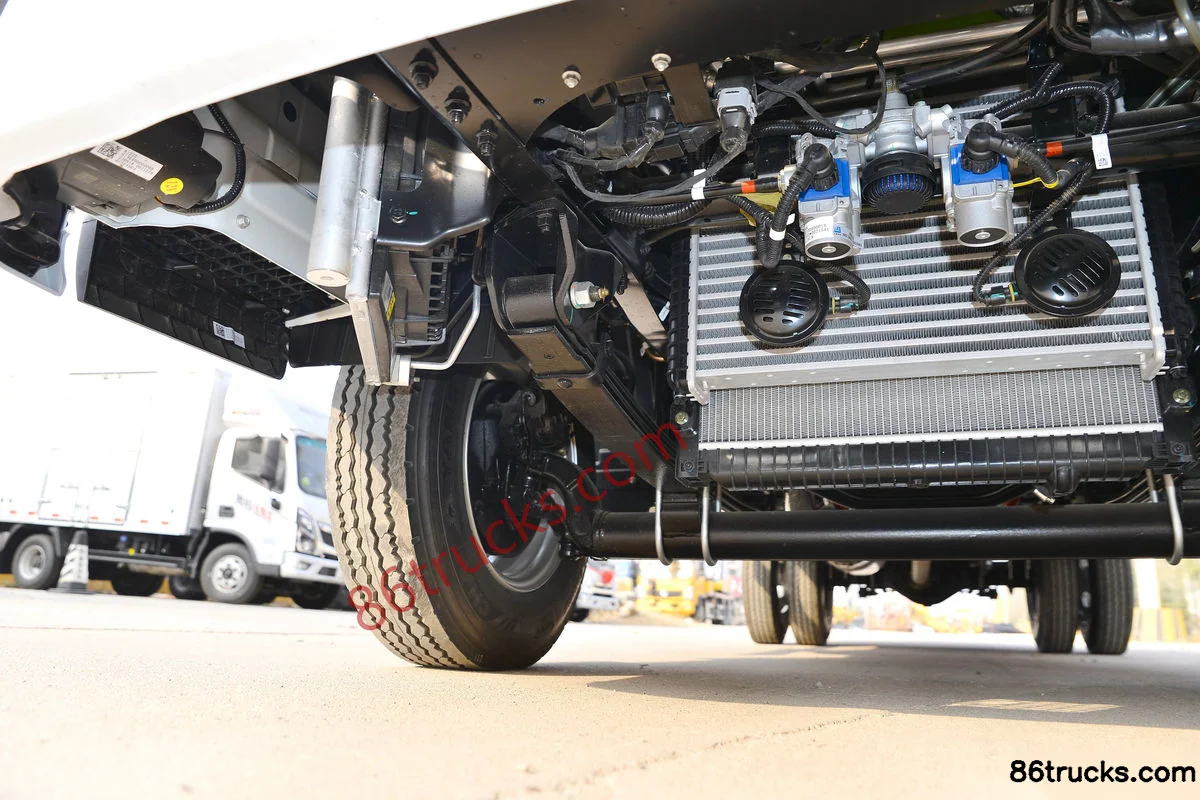

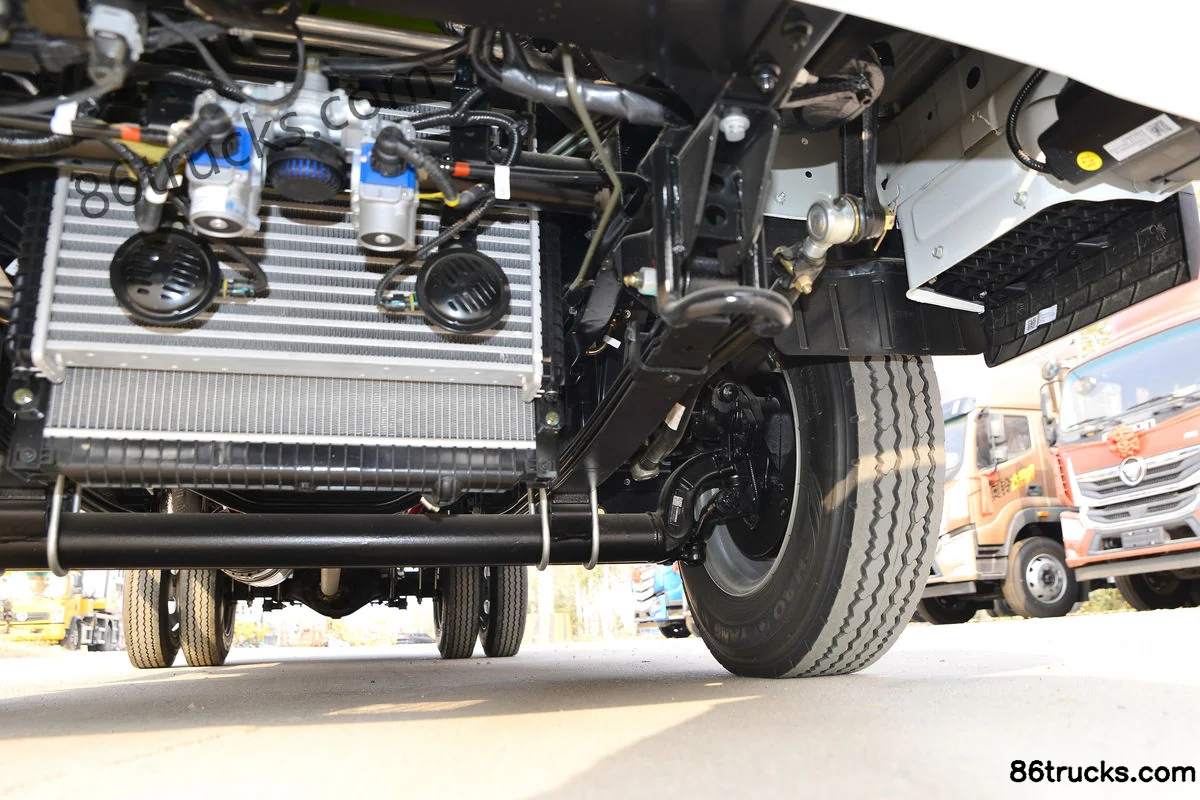

Chassis3

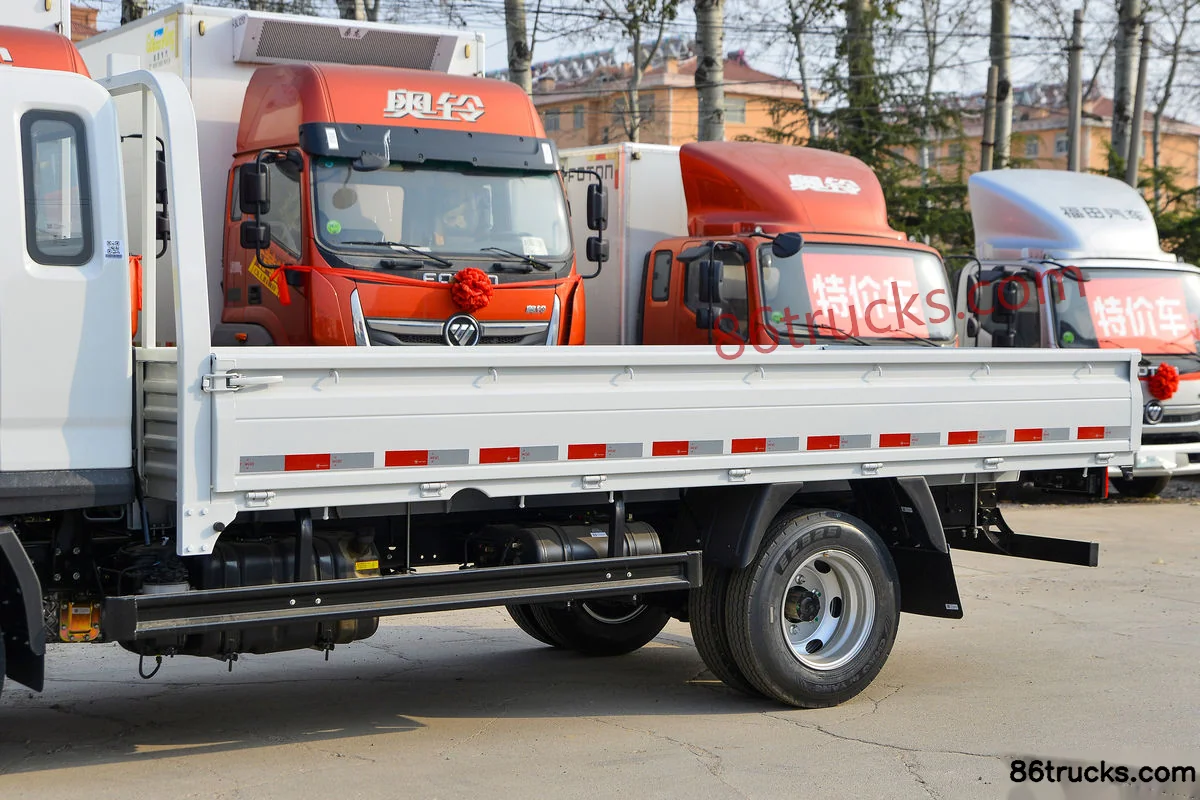

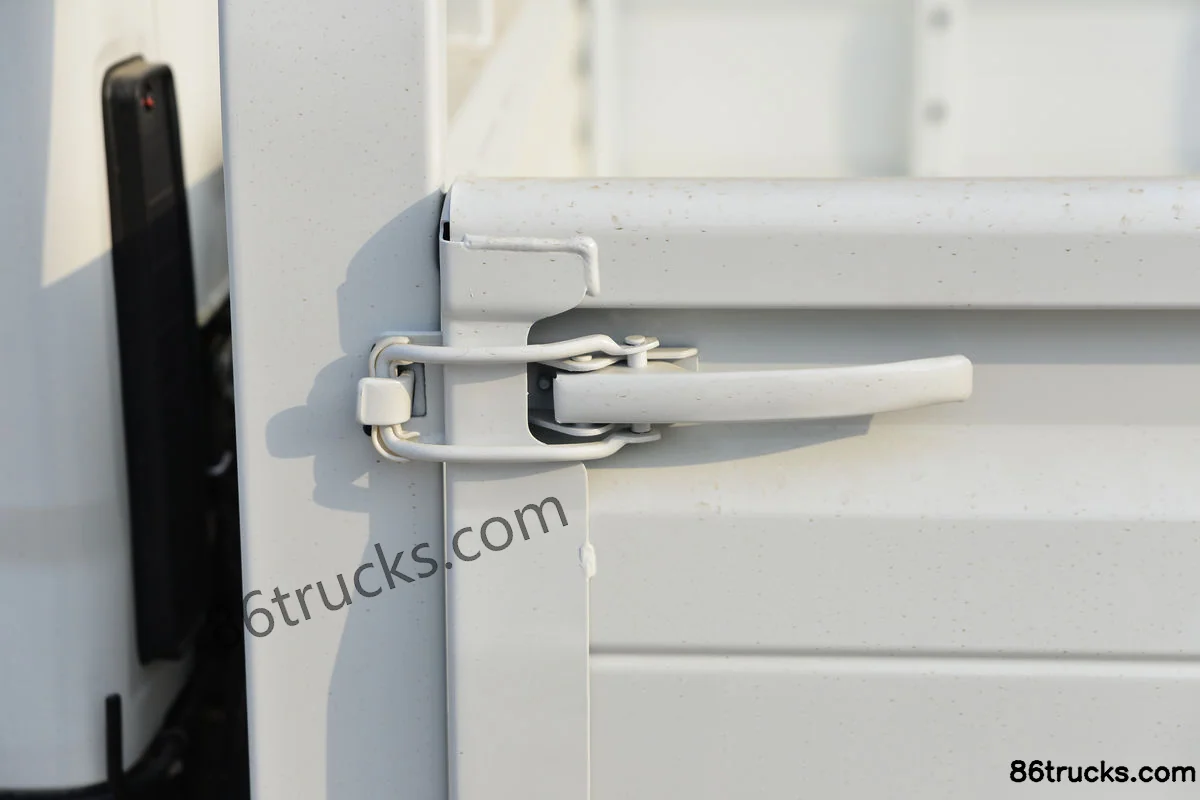

Body3

12 photos

FAQ

What is the export price of Foton Aumark M Card 142hp 4X2(6 wheels) 3.94m semi-cab flatbed mini truck (air brake), and what does it include?

Foton Aumark M Card 142hp 4X2(6 wheels) 3.94m semi-cab flatbed mini truck (air brake) export reference is about From $12,264; MSRP is ¥8.83M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aumark M Card 142hp 4X2(6 wheels) 3.94m semi-cab flatbed mini truck (air brake) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aumark M Card 142hp 4X2(6 wheels) 3.94m semi-cab flatbed mini truck (air brake)?

Key specs of Foton Aumark M Card 142hp 4X2(6 wheels) 3.94m semi-cab flatbed mini truck (air brake): Drive: 4x2; Horsepower: 142 hp; Emission: China VI; Fuel: Diesel; Engine: QuanchaiQ23; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aumark M Card 142hp 4X2(6 wheels) 3.94m semi-cab flatbed mini truck (air brake) suited for?

Foton Aumark M Card 142hp 4X2(6 wheels) 3.94m semi-cab flatbed mini truck (air brake) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aumark M Card 142hp 4X2(6 wheels) 3.94m semi-cab flatbed mini truck (air brake) differ from other variants in the same series?

Foton Aumark M Card 142hp 4X2(6 wheels) 3.94m semi-cab flatbed mini truck (air brake) belongs to Foton M Card Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aumark M Card 142hp 4X2(6 wheels) 3.94m semi-cab flatbed mini truck (air brake)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aumark M Card 142hp 4X2(6 wheels) 3.94m semi-cab flatbed mini truck (air brake)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
