Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 6.75m stake truck

Export reference
From $29,861
MSRP ¥21.5M CNY
Horsepower: 180
Emission: China IV
Fuel: Diesel
Engine: Sinotruk MAN 4-cylinder
Transmission: WLY
Curb Weight:: 6.915ton
seating capacity: 3Personnel
Rated payload: 8.885ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 6.75m stake truck is a Medium-duty truck featuring 6.75m cargo length, Stake type cargo body, 3Personnel volume and 8.885t payload. Its segment focus covers Green Pass, matching those duty cycles. On the powertrain side, it comes with a Sinotruk MAN 4-cylinder engine, 180 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW5161CCYA1N4L
Type: stake truck
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: SinotrukMC05.18-40
transmission: WLYWLY675
Rear Axle Ratio: 4.44
Cab length: 9m
Cab width: 2.5m
Cab height: 3.76m
Front track width: 1880mm
rear track: 1860mm
Curb Weight: 6.915ton
Rated payload: 8.885ton
GVWR: 15.995ton
Max. speed: 99km/h
Origin: Chengdu, Sichuan
tonnage class: Medium-duty truck
Approach angle: 24°
departure angle: 12°
market segment: Green Pass
Front/rear suspension: 1.46/2.54m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC05.18-40
Engine info: Sinotruk MAN 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.58L
Emission standard: China IV
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 700N·m
Max torque speed: 1300-1700rpm
Rated speed: 2400rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: WLYWLY675
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.75m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 5995kg
rear axle description: 153 rear axle
rear axle allowable load: 10000kg
Axle ratio: 4.44
Leaf spring count: 9/10+8
Suspension (front/rear): Leaf spring
Tire
Tire Size: 9.00R20
Number of tires: 6pcs

Photos

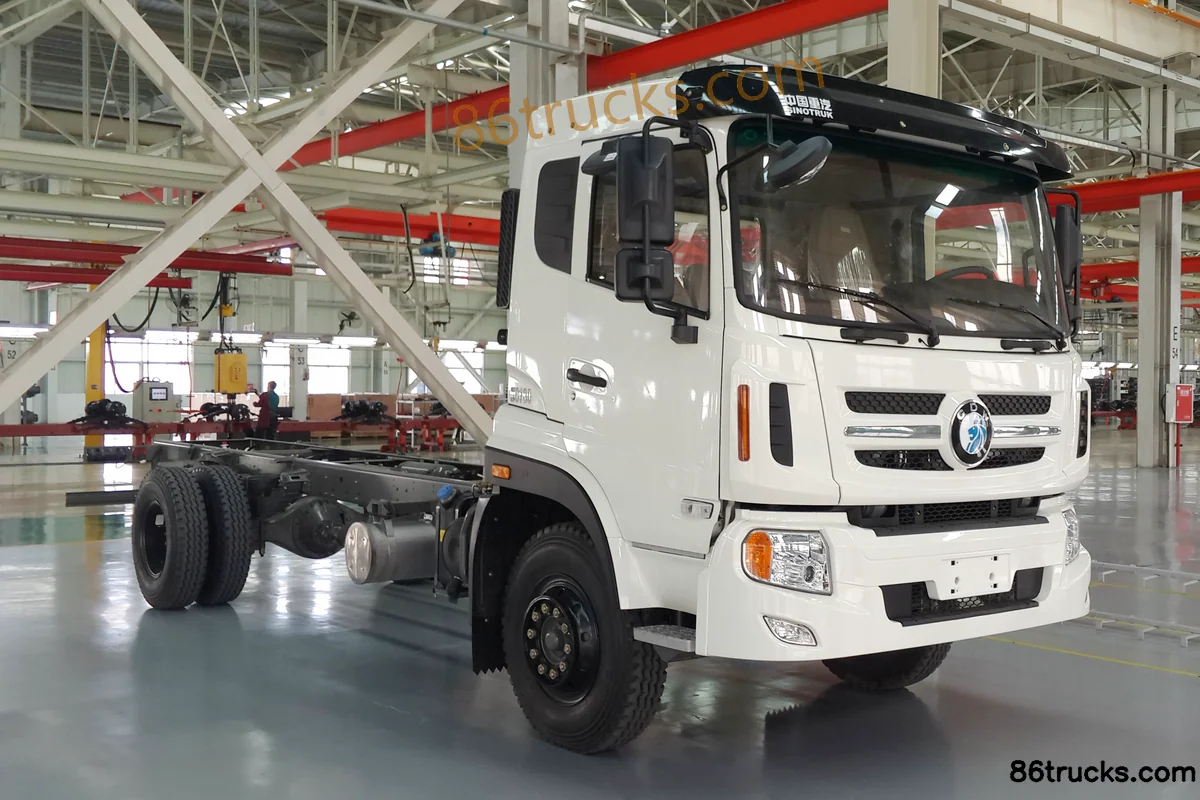

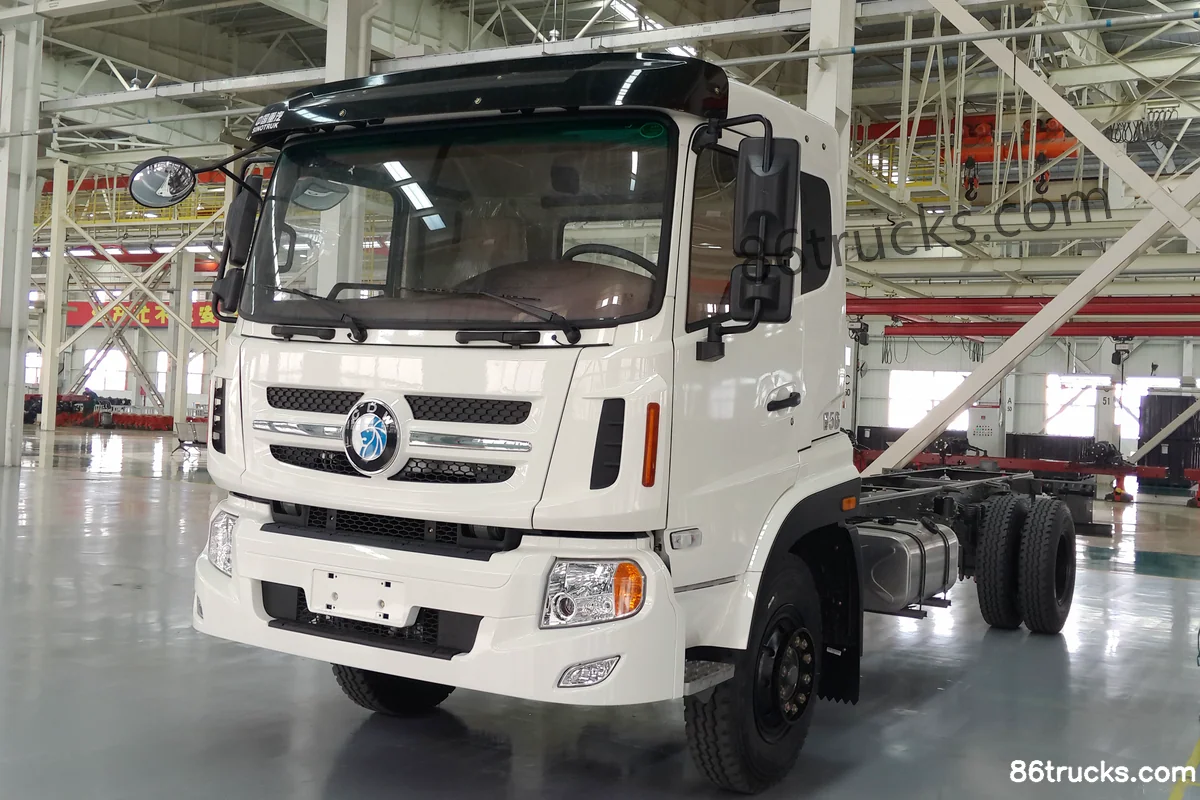

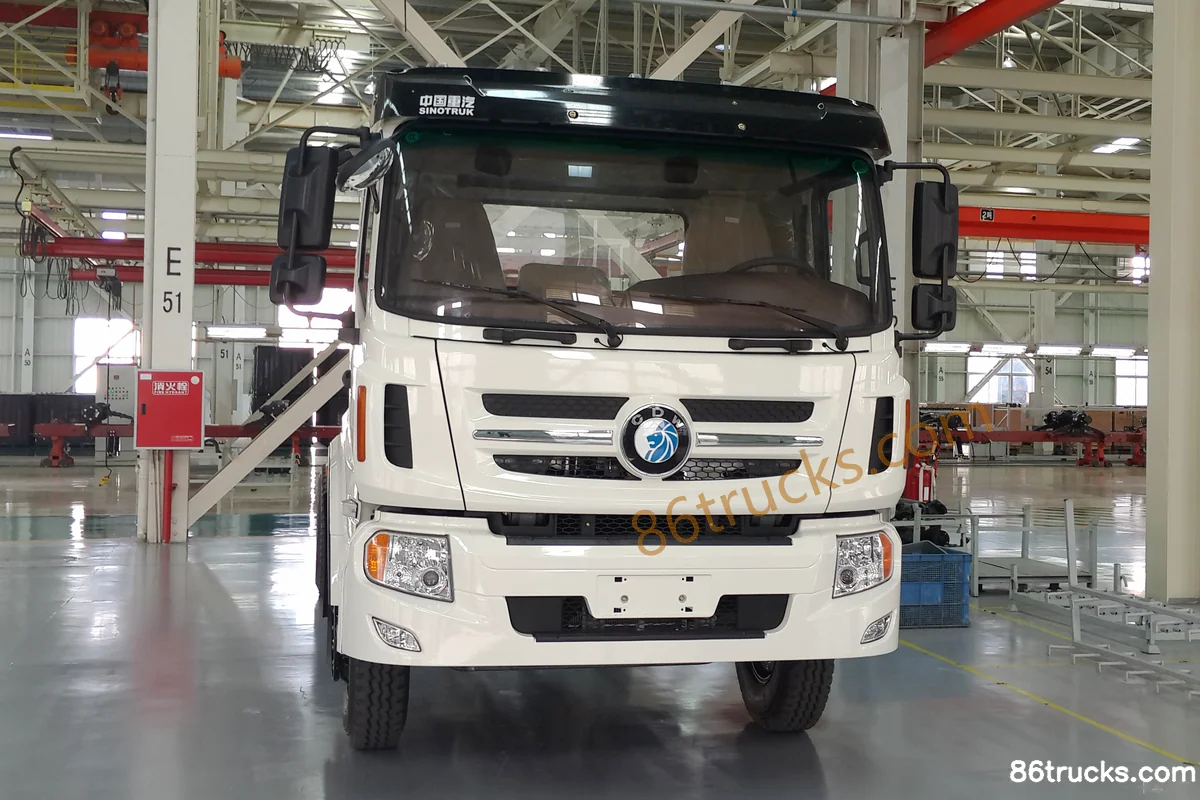

Exterior3

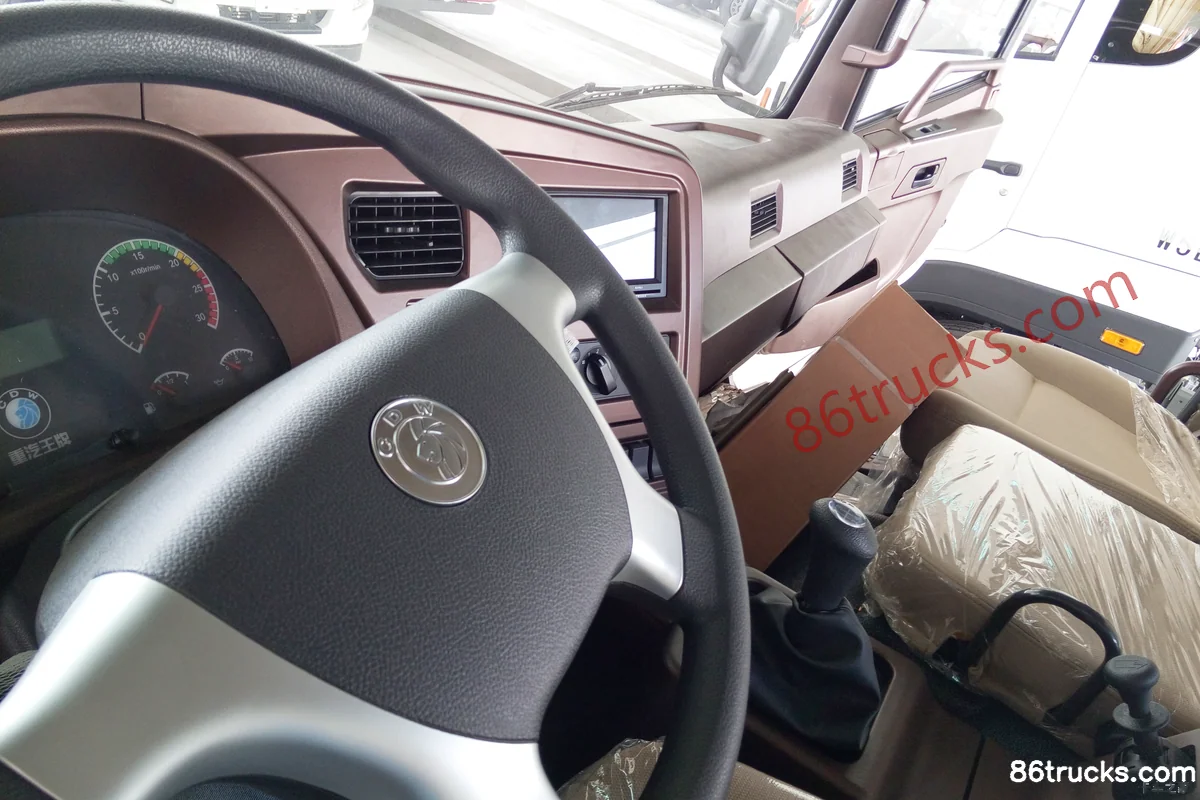

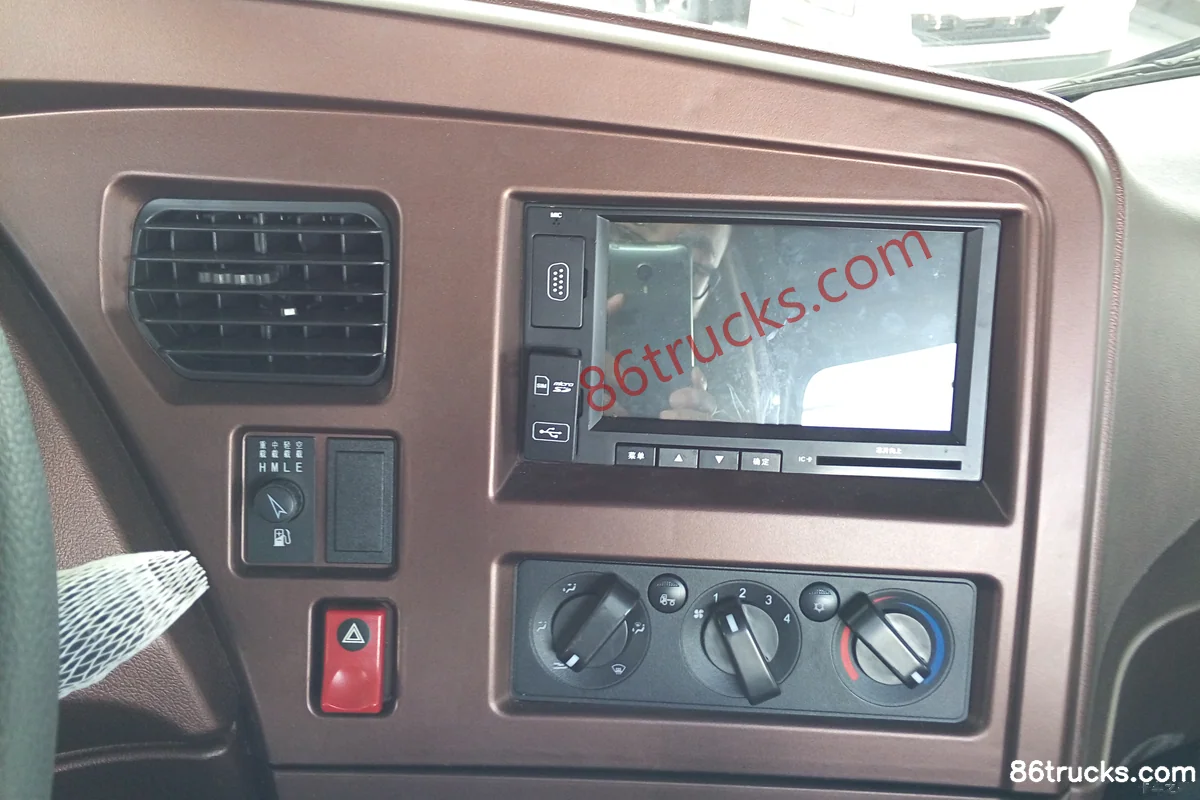

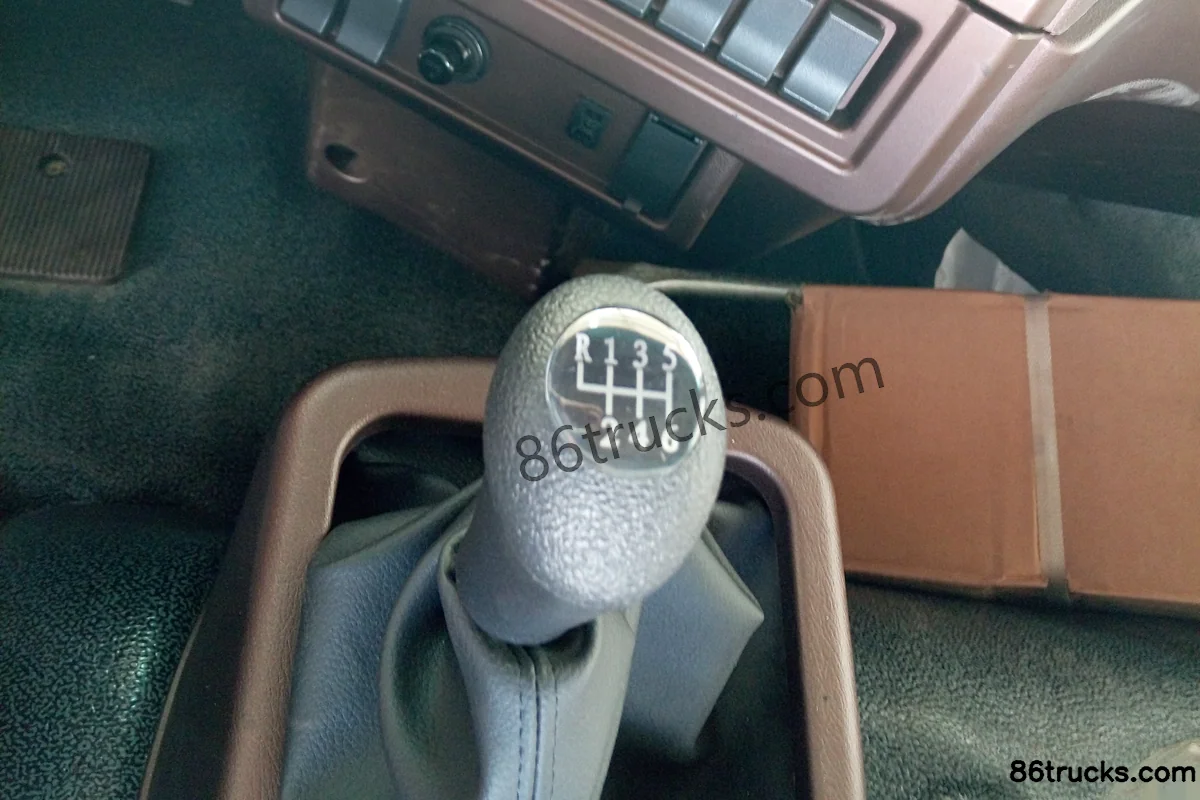

Cab3

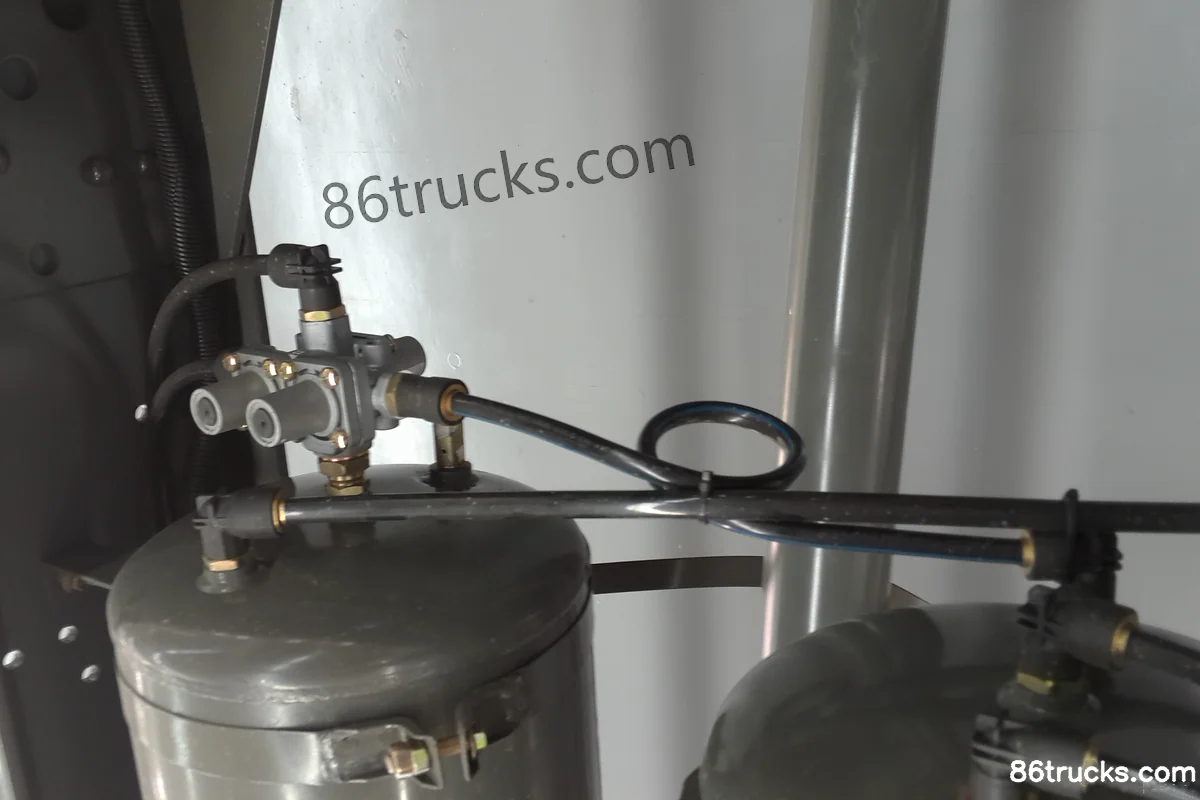

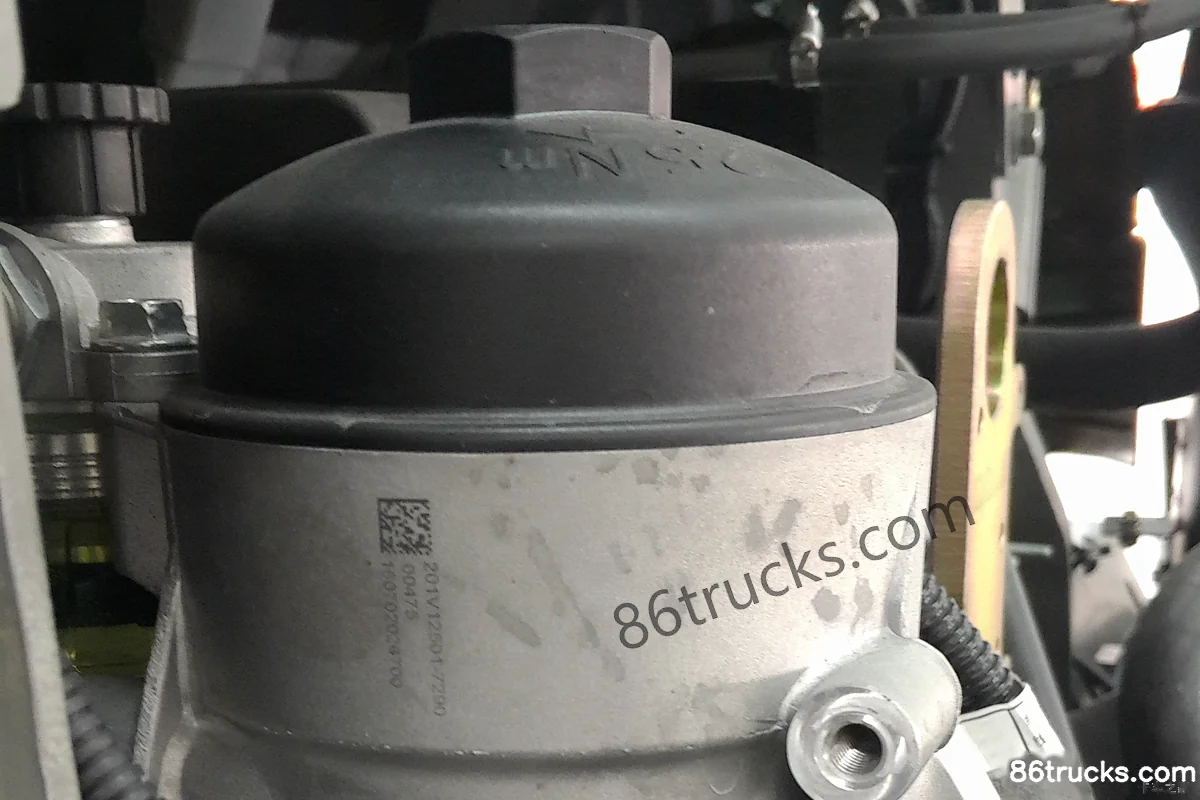

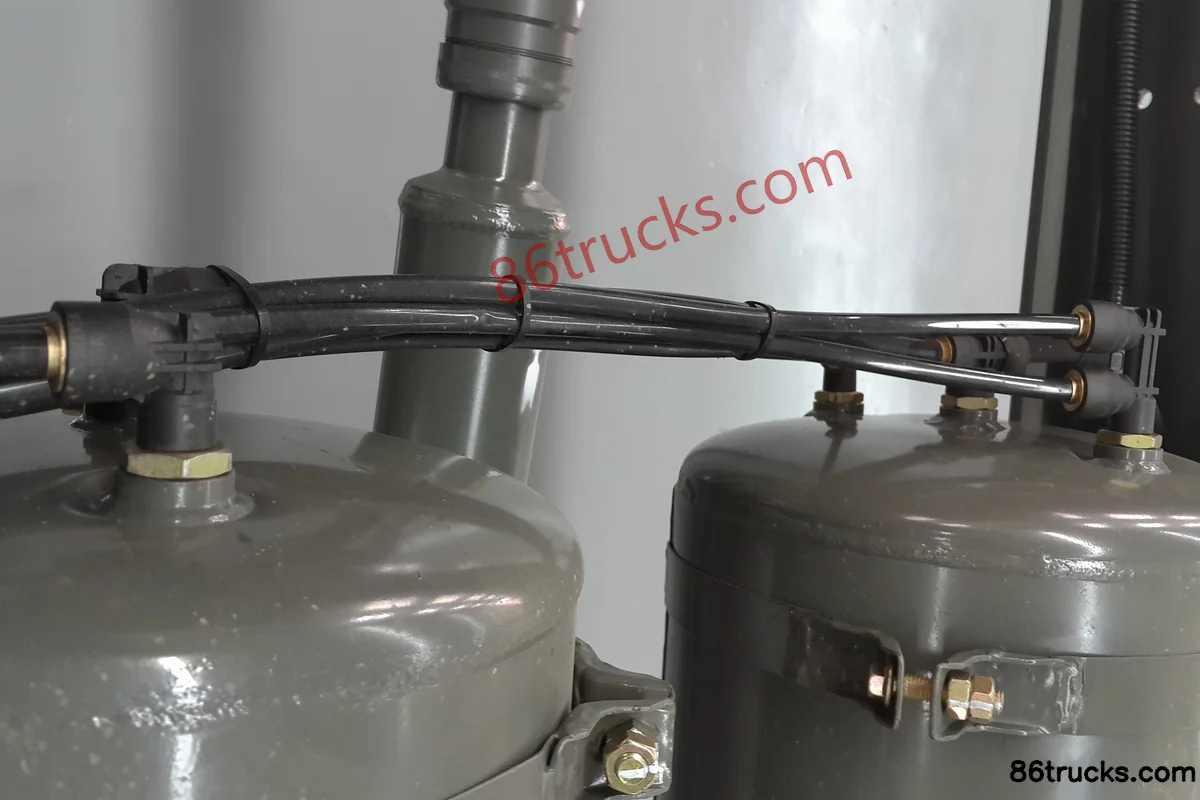

Chassis3

9 photos

FAQ

What is the export price of Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 6.75m stake truck, and what does it include?

Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 6.75m stake truck export reference is about From $29,861; MSRP is ¥21.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 6.75m stake truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 6.75m stake truck?

Key specs of Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 6.75m stake truck: Drive: 4x2; Horsepower: 180 hp; Emission: China IV; Fuel: Diesel; Engine: Sinotruk MAN 4-cylinder; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 6.75m stake truck suited for?

Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 6.75m stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 6.75m stake truck differ from other variants in the same series?

Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 6.75m stake truck belongs to Sinotruk Wangpai W5D near-heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 6.75m stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai W5D-M medium truck 180 hp 4X2(6 wheels) 6.75m stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
