Foton Zhilan EL 4X2(6 wheels) 4.08m Single-row Pure Electric Refrigerated Truck 86.55kWh

Export reference
MSRP N/A
Rated payload:: 1.12ton
Wheelbase:: 3360mm
Cargo box width:: 2.1m
Model code (announced):: BJ5045XLCEV13
Cab length:: 5.995m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Foton
Curb Weight: 3.18ton

Overview

The Foton Zhilan EL 4X2(6 wheels) 4.08m Single-row Pure Electric Refrigerated Truck 86.55kWh is a Electric Refrigerated Truck featuring CATL battery/range, Foton motor, 4X2 (6 wheels) drive and 1.12t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5045XLCEV13
Drive type: 4X2
Wheelbase: 3360mm
Cab length: 5.995m
Cab width: 2.26m
Cab height: 3.25m
Curb Weight: 3.18ton
Rated payload: 1.12ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Changsha, Hunan
Energy Type: Electric
electric motor
Motor 1 Brand: Foton
Motor 1 Model: FTTB065B
Motor Type: Permanent magnet synchronous motor
total rated power: 65kW
Peak power: 120kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 86.55kWh
Chassis Specs
Chassis Series: ZhiLan EL
Chassis Model: BJ1045EVJA13
Leaf spring count: 3/5+2
Cargo box parameters
Cargo box width: 2.1m
Cargo box height: 2.1m
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake

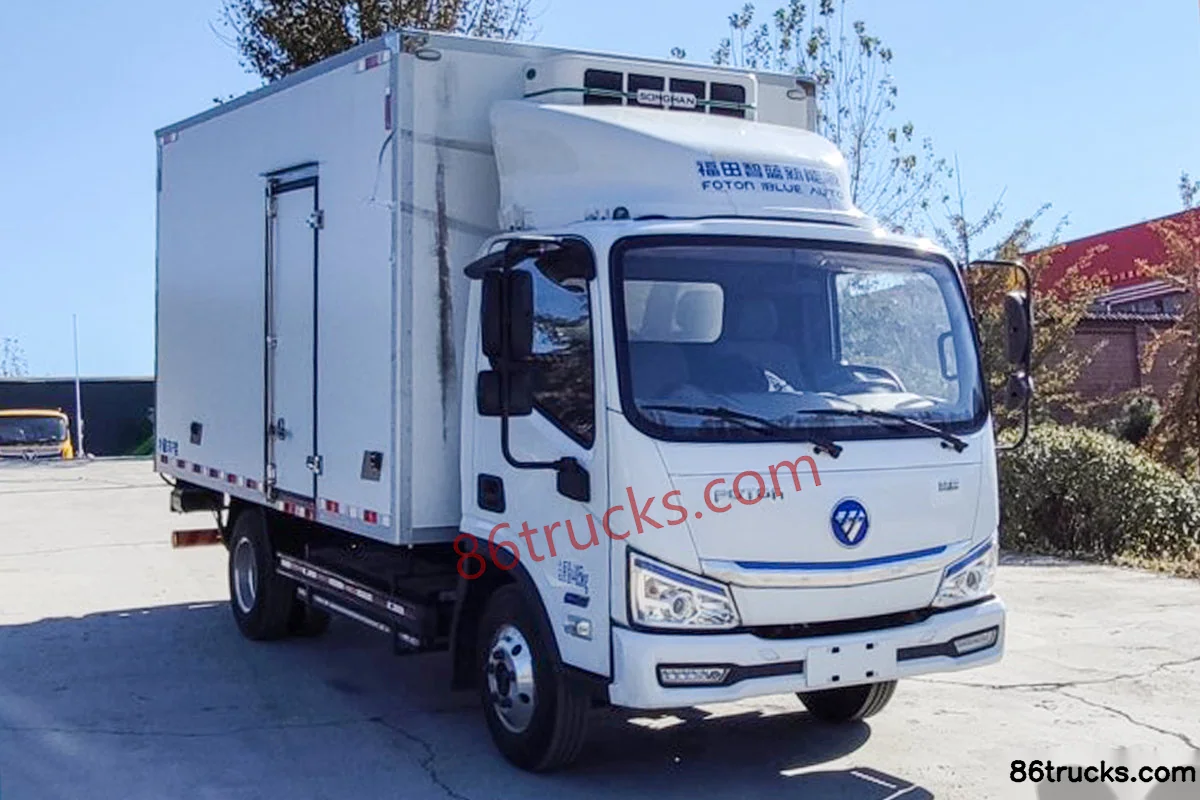

Photos

Exterior1

1 photos

FAQ

What are the key specs of Foton Zhilan EL 4X2(6 wheels) 4.08m Single-row Pure Electric Refrigerated Truck 86.55kWh?

Key specs of Foton Zhilan EL 4X2(6 wheels) 4.08m Single-row Pure Electric Refrigerated Truck 86.55kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Zhilan EL 4X2(6 wheels) 4.08m Single-row Pure Electric Refrigerated Truck 86.55kWh suited for?

Foton Zhilan EL 4X2(6 wheels) 4.08m Single-row Pure Electric Refrigerated Truck 86.55kWh is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Foton Zhilan EL 4X2(6 wheels) 4.08m Single-row Pure Electric Refrigerated Truck 86.55kWh differ from other variants in the same series?

Foton Zhilan EL 4X2(6 wheels) 4.08m Single-row Pure Electric Refrigerated Truck 86.55kWh belongs to Foton ZhiLan EL (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Zhilan EL 4X2(6 wheels) 4.08m Single-row Pure Electric Refrigerated Truck 86.55kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Zhilan EL 4X2(6 wheels) 4.08m Single-row Pure Electric Refrigerated Truck 86.55kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
