Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake)

Export reference
From $13,333
MSRP ¥9.6M CNY
Horsepower: 115
Emission: China VI
Fuel: Diesel
Engine: WeichaiWP2.3Q
Transmission: WLY
Curb Weight:: 2.565ton
Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) exterior
View more photos (12)
seating capacity: 2Personnel
Rated payload: 1.795ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) is a mini truck featuring 3.95m cargo length, stake body cargo body, 2Personnel volume and 1.795t payload. On the powertrain side, it comes with a WeichaiWP2.3Q engine, 115 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 115 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZZ1047F3112F145
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3120mm
Box length class: 4m
engine: WeichaiWP2.3Q115E62
transmission: WLYWLY5G32
Rear Axle Ratio: 4.333
Cab length: 5.99m
Cab width: 2.145m
Cab height: 2.165m
Front track width: 1560mm
rear track: 1505mm
Curb Weight: 2.565ton
Rated payload: 1.795ton
GVWR: 4.49ton
Max. speed: 95km/h
Origin: Jinan, Shandong
tonnage class: mini truck
Approach angle: 20°
departure angle: 16°
Front/rear suspension: 1.215/1.655m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3Q115E62
Engine info: WeichaiWP2.3Q
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.289L
Emission standard: China VI
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 280N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: High-pressure common rail
Engine Oil Change Interval: 50,000 km
Transmission Parameters
Transmission Model: WLYWLY5G32
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.95m
Cargo box width: 2.05m
Cargo box height: 0.4m
*Cargo box interior width: 2.05
Cab parameters
Cab width: 1750mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1790kg
rear axle description: 2.5t
rear axle allowable load: 2700kg
Axle ratio: 4.333
Leaf spring count: 3/5+3
Aluminum wheels:
Tire
Tire Size: 6.50R16LT 12PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
Power steering:
EBS electronic braking system:
ASR traction control:
clutch booster:
Load-sensing proportioning valve (SABS):
automatic slack adjuster:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Wiper type: flat wiper blades
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Radio:
LCD instrument cluster:
Roadside assistance call:
Service brake
Engine brake: engine brake
Brake Type: Hydraulic brake
Parking brake: parking brake
Exhaust brake:
Front wheel brake: Standard drum brake, optional disc brake
Rear Wheel Brake: Drum Type
lighting configuration
Headlight brand: Sinotruk light truck genuine parts
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Emergency Brake Assist (EBA):
Tire Pressure Monitoring System (TPMS):
maintenance service
24-hour service hotline: 400-188-8666
Rescue service:

Photos

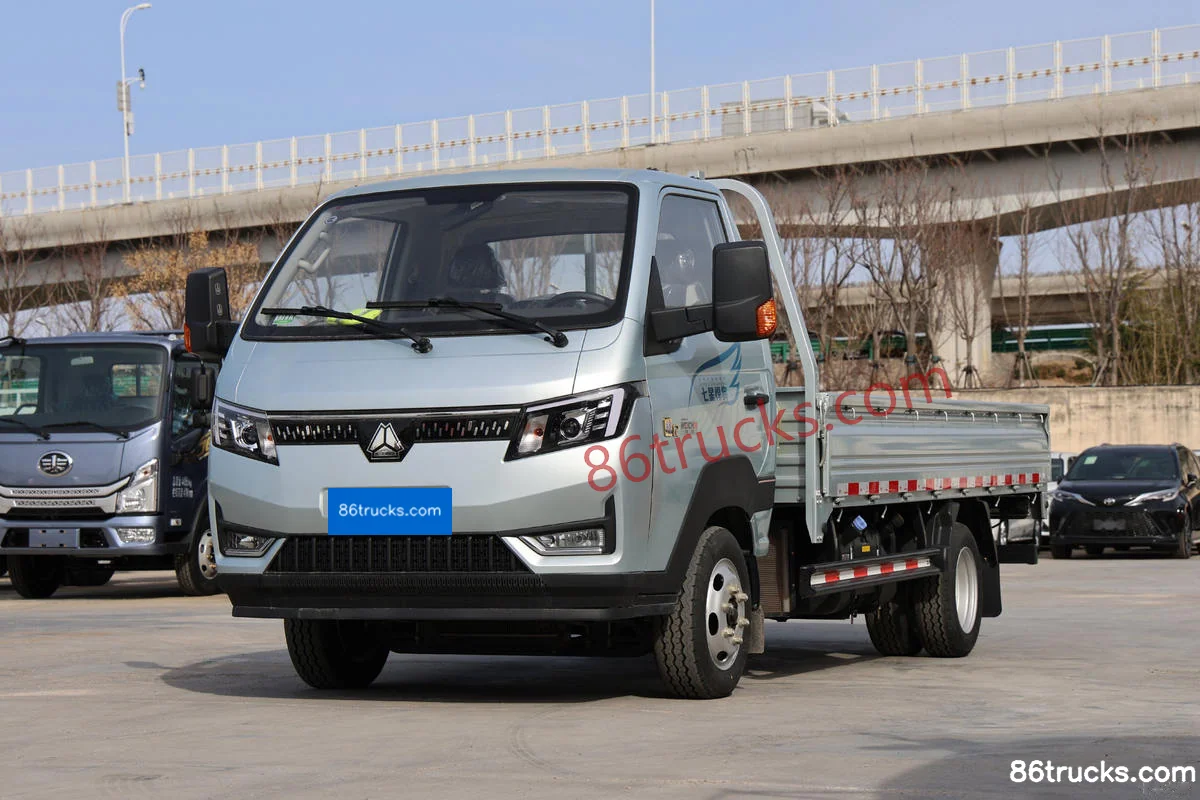

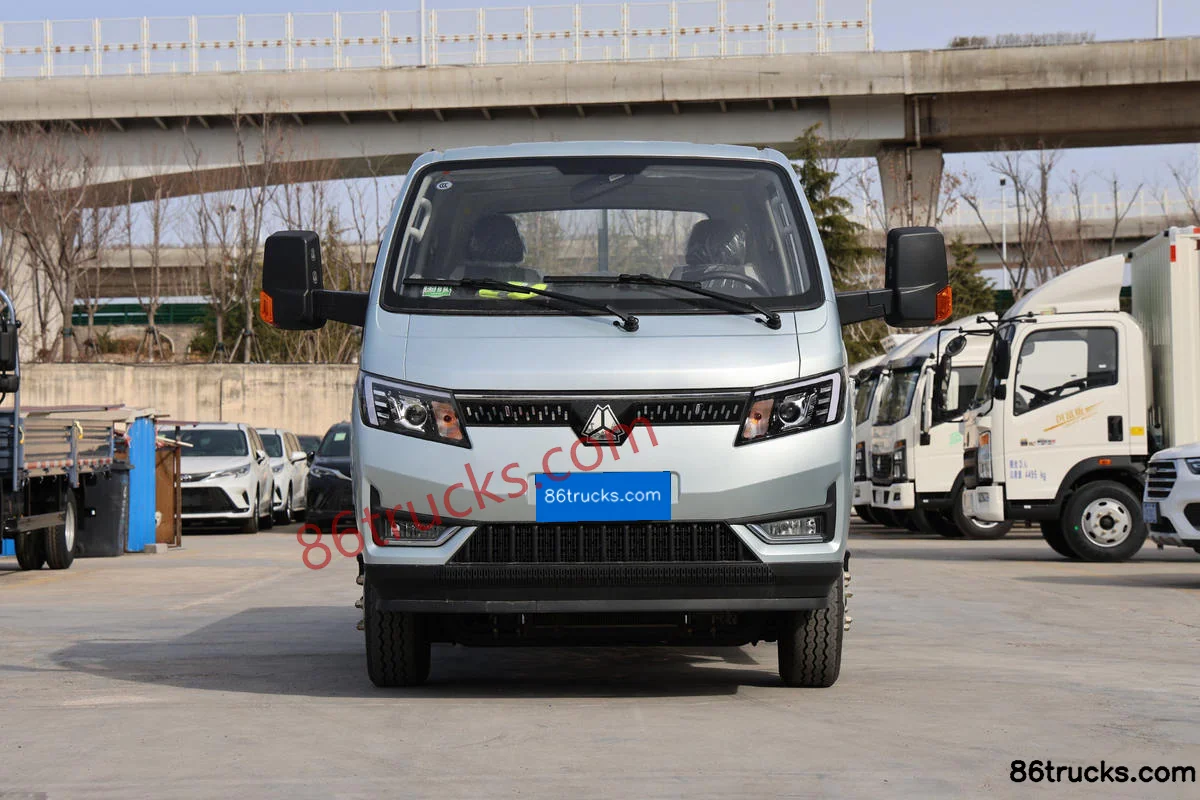

Exterior3

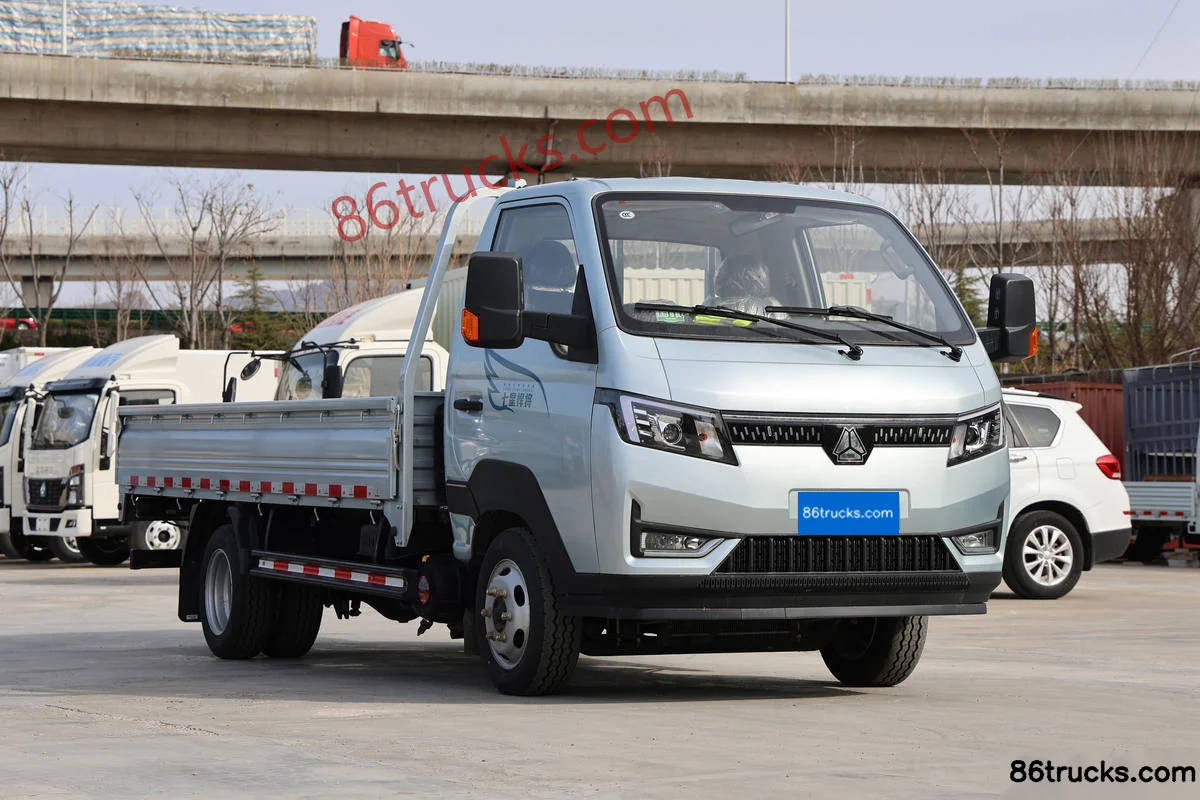

Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) Exterior (1) | 86Trucks Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) Exterior (2) | 86Trucks Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) Exterior (3) | 86Trucks

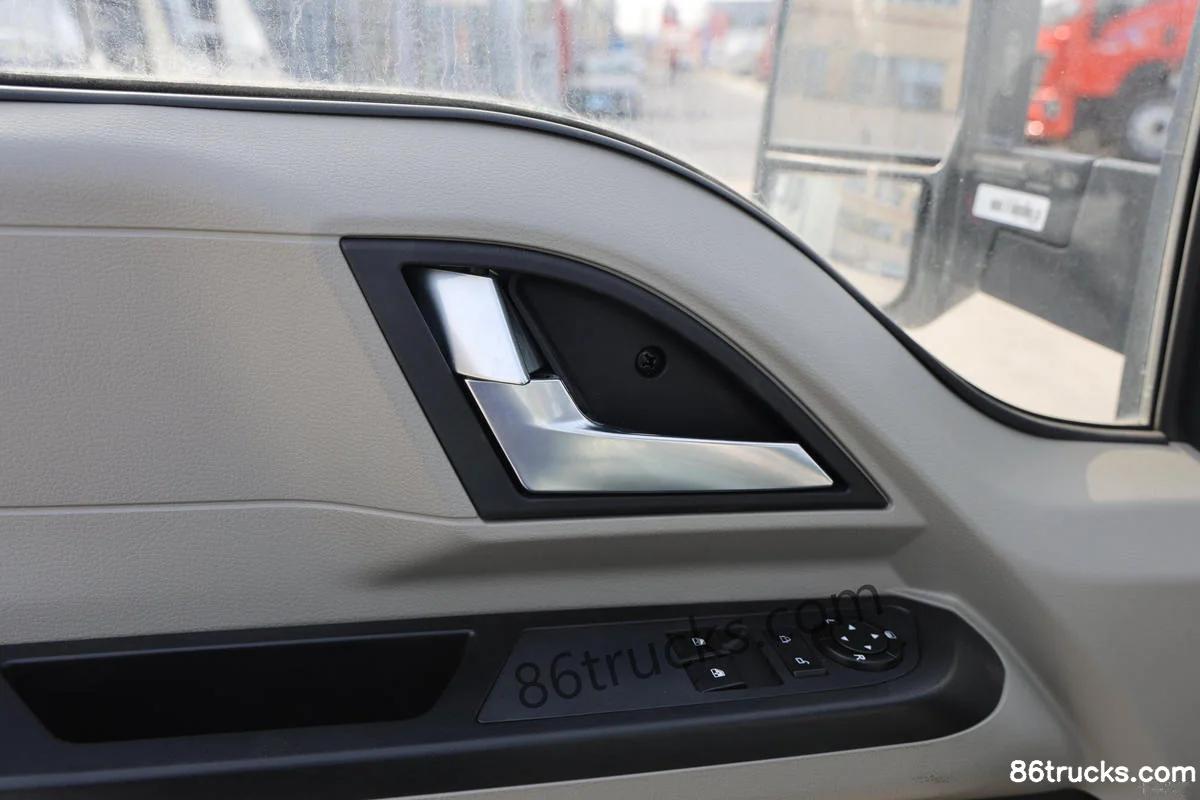

Cab3

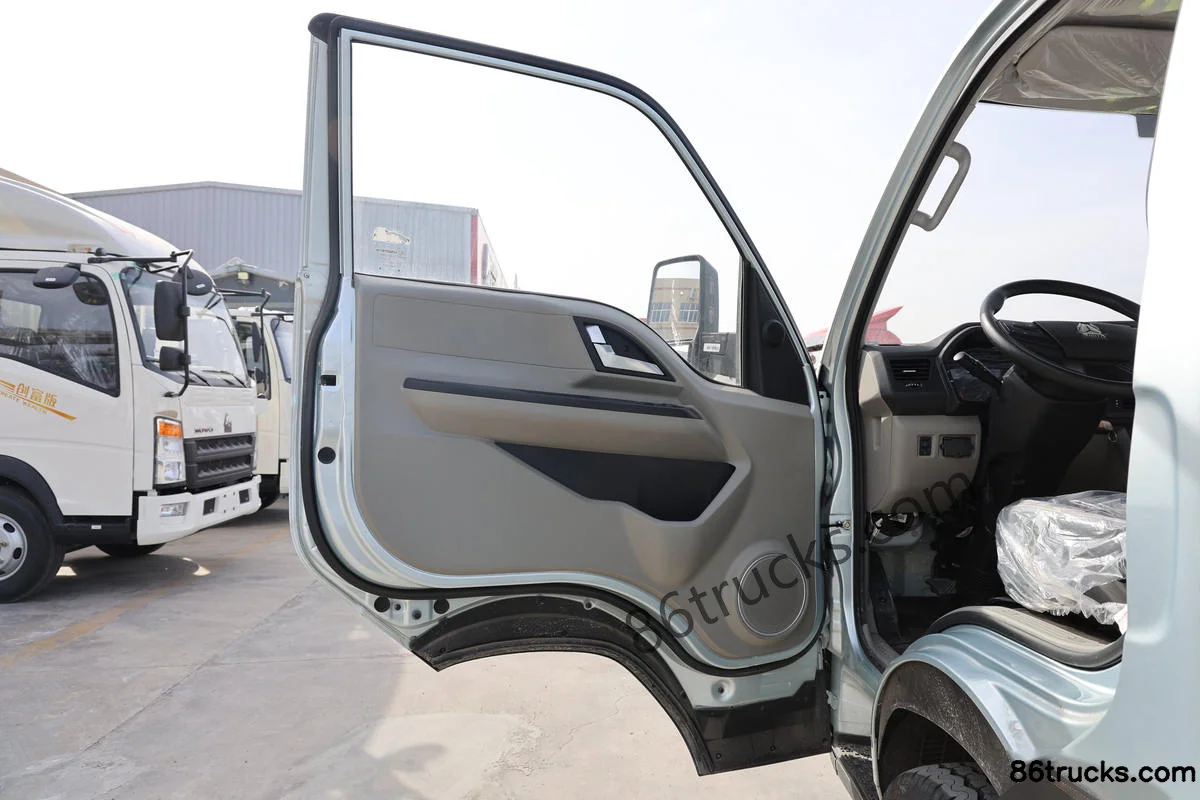

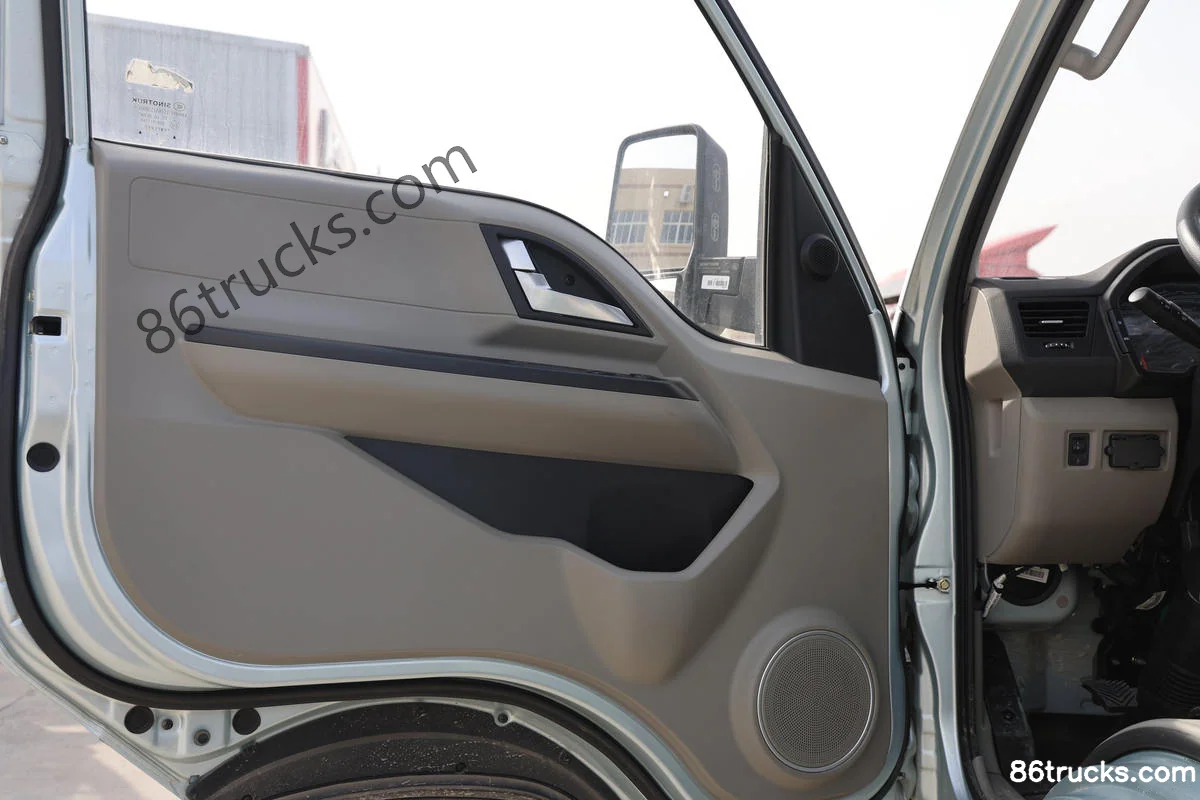

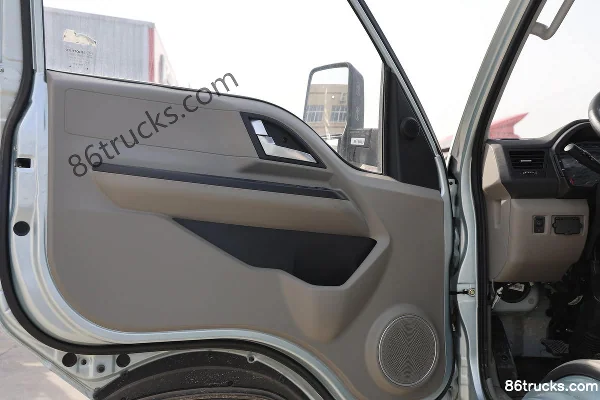

Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) Cab (1) | 86Trucks Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) Cab (2) | 86Trucks Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) Cab (3) | 86Trucks

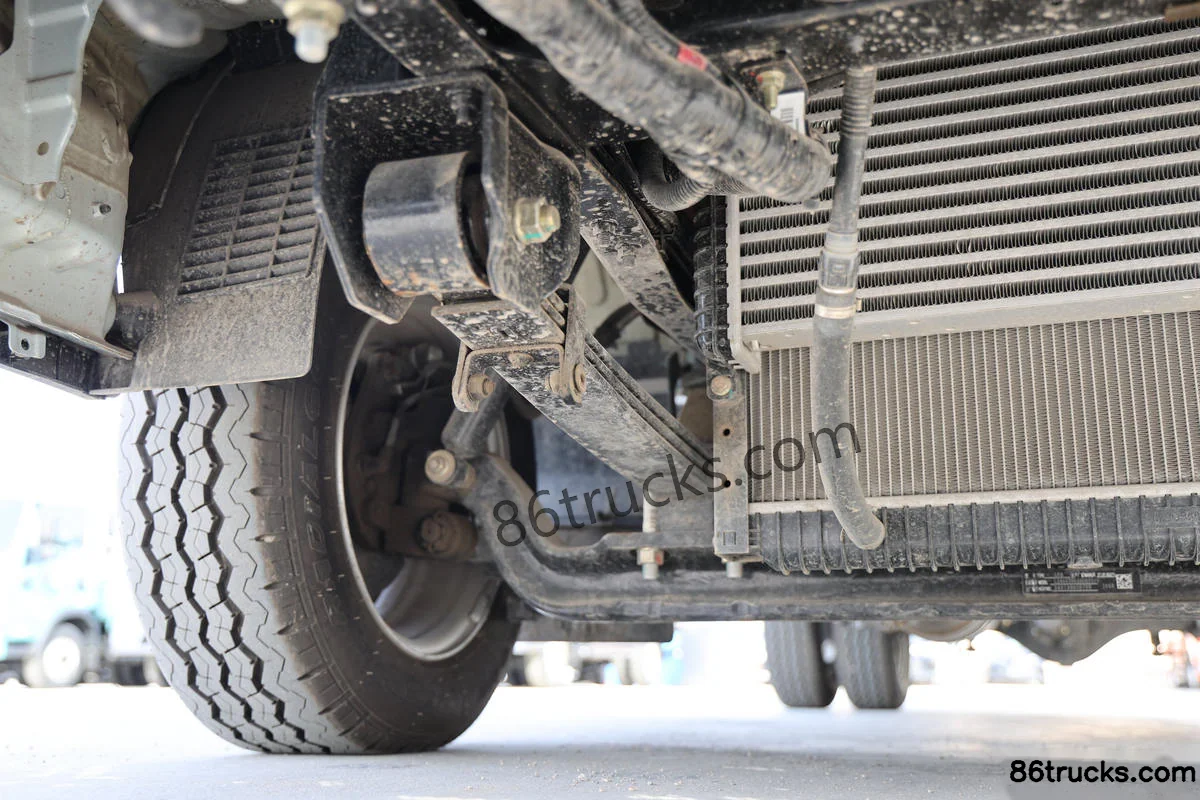

Chassis3

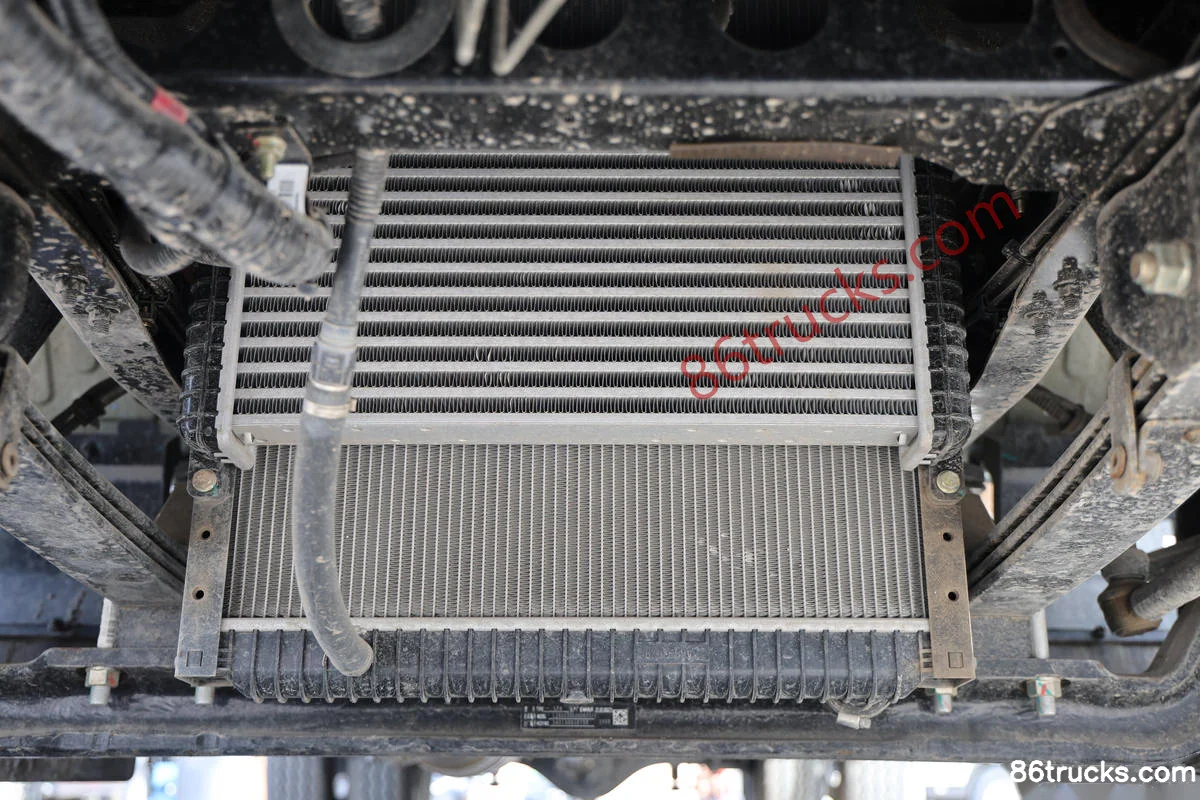

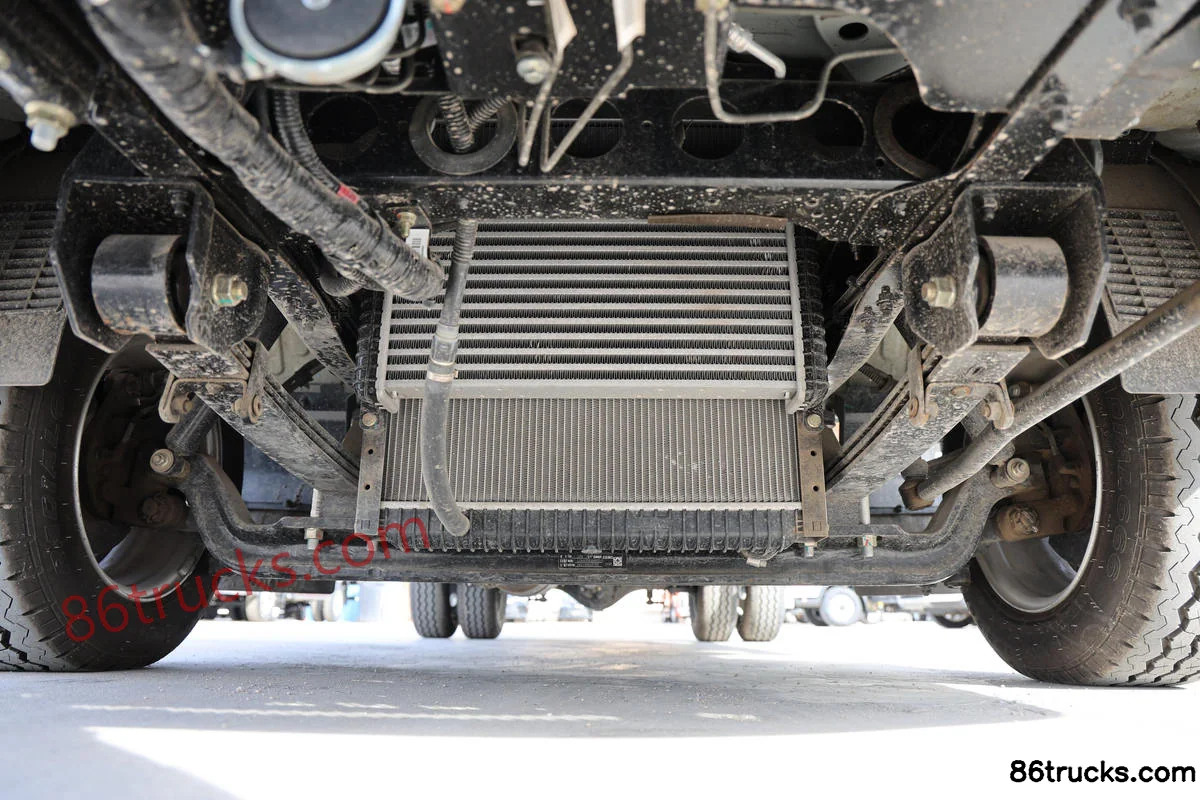

Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) Chassis (1) | 86Trucks Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) Chassis (2) | 86Trucks Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) Chassis (3) | 86Trucks

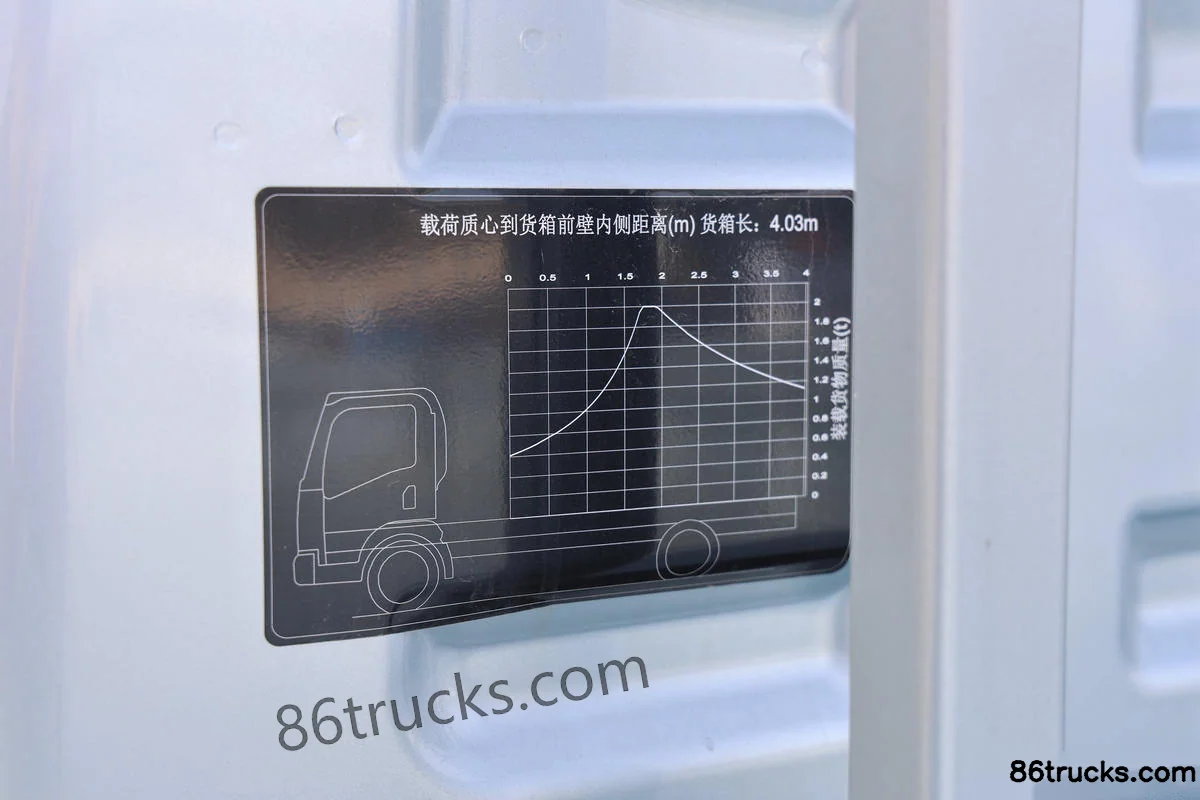

Body3

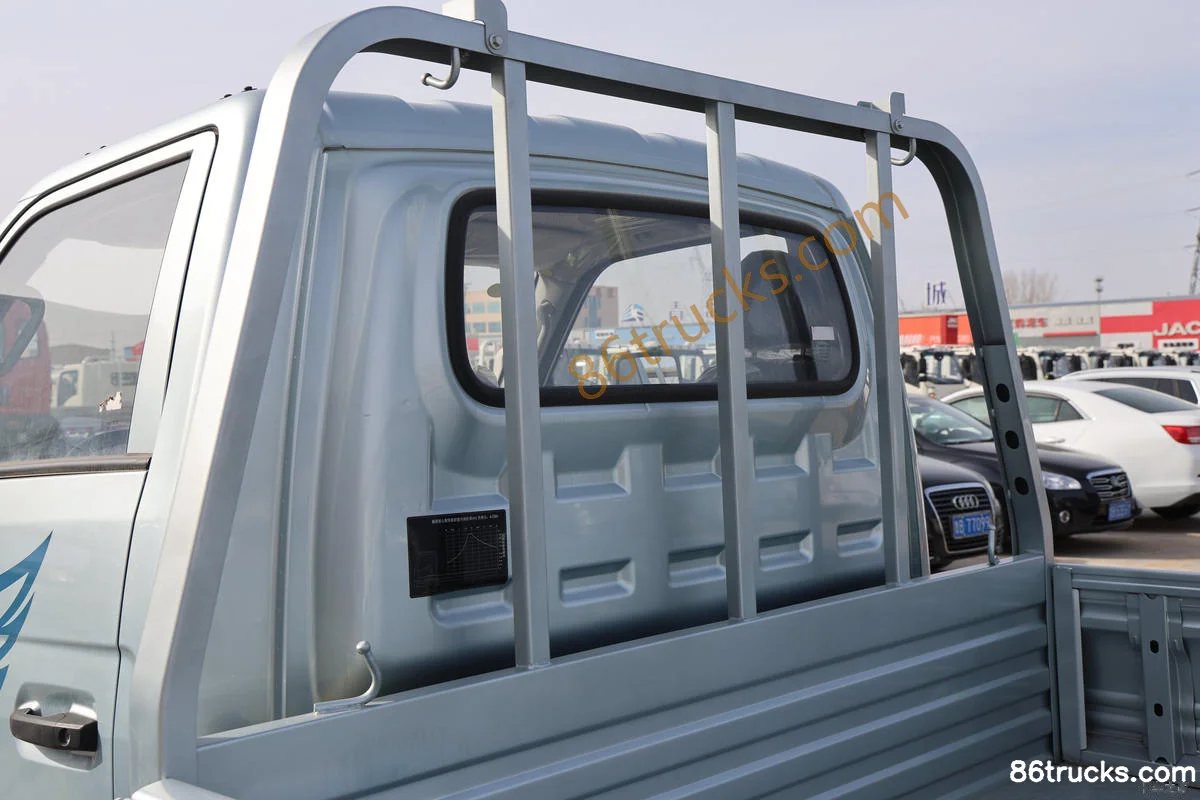

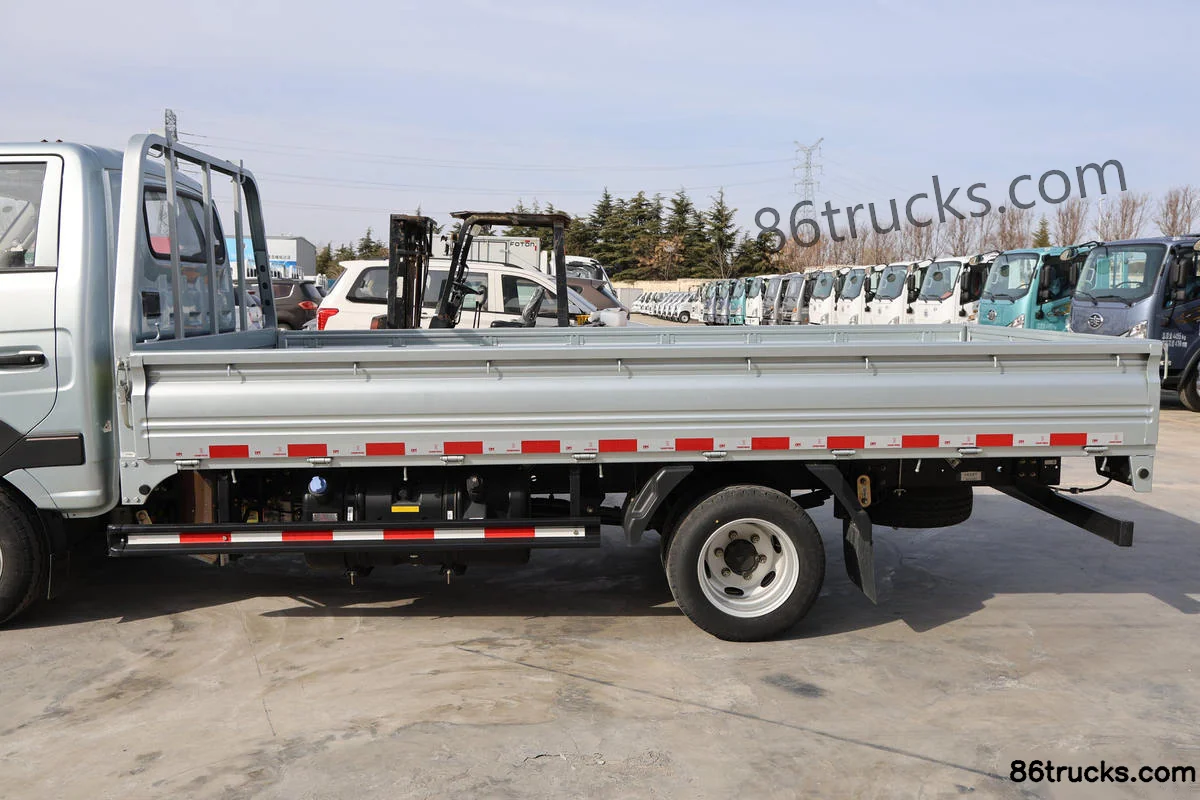

Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) Body (1) | 86Trucks Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) Body (2) | 86Trucks Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) Body (3) | 86Trucks

12 photos

FAQ

What is the export price of Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake), and what does it include?

Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) export reference is about From $13,333; MSRP is ¥9.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake)?

Key specs of Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake): Drive: 4x2; Horsepower: 115 hp; Emission: China VI; Fuel: Diesel; Engine: WeichaiWP2.3Q; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) suited for?

Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) differ from other variants in the same series?

Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake) belongs to Sinotruk HOWO Xiaojiang Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Xiaojiang 115hp 4X2(6 wheels) 3.95m Single Row Flatbed Light Truck (Hydraulic Brake)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
