Sinotruk HOWO T6G Heavy Truck 380 hp 8X4(12 wheels) Dump Truck (Construction Truck)

Export reference
From $60,778
MSRP ¥43.76M CNY
Emission: China V
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 15.11ton
Wheelbase:: 1950+3800+1400mm
Tire Size:: 11.00R20
Rated payload: 15.76ton
Drive 8X4 (12 wheels)
Horsepower 380
Cargo box type: Dump type

Overview

The Sinotruk HOWO T6G Heavy Truck 380 hp 8X4(12 wheels) Dump Truck (Construction Truck) is a Heavy truck featuring 15.76t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SinotrukMC09.38-50 engine, 380 hp, China V emissions and Sinotruk transmission.

China V 380 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3317N386WE1
Drive type: 8X4
Wheelbase: 1950+3800+1400mm
engine: SinotrukMC09.38-50
transmission: SinotrukHW19712L
Rear Axle Ratio: 4.8
Cab length: 10.795m
Cab width: 2.55m
Cab height: 3.49m
Front track width: 2022/2022mm
rear track: 1860/1860mm
Curb Weight: 15.11ton
Rated payload: 15.76ton
GVWR: 31ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 16°
departure angle: 22°
Version: Urban Construction & Muck
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC09.38-50
Number of cylinders: 5cylinder
fuel type: Diesel
Displacement: 8.765L
Emission standard: China V
Max output power: 273kW
Max hp: 380Horsepower
Max torque: 1760N·m
Max torque speed: 1100-1400rpm
Rated speed: 1900rpm
Engine Type: Inline, 4-stroke, turbocharged with intercooler, Bosch high-pressure common rail CP3.4
Transmission Parameters
Transmission Model: SinotrukHW19712L
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 7.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle description: HF7
Front axle allowable load: 6500/7000kg
rear axle description: HC16 tandem rear axle
rear axle allowable load: 17500 (two-axle group)kg
Axle ratio: 4.8
Leaf spring count: 11/11/12
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:

Photos

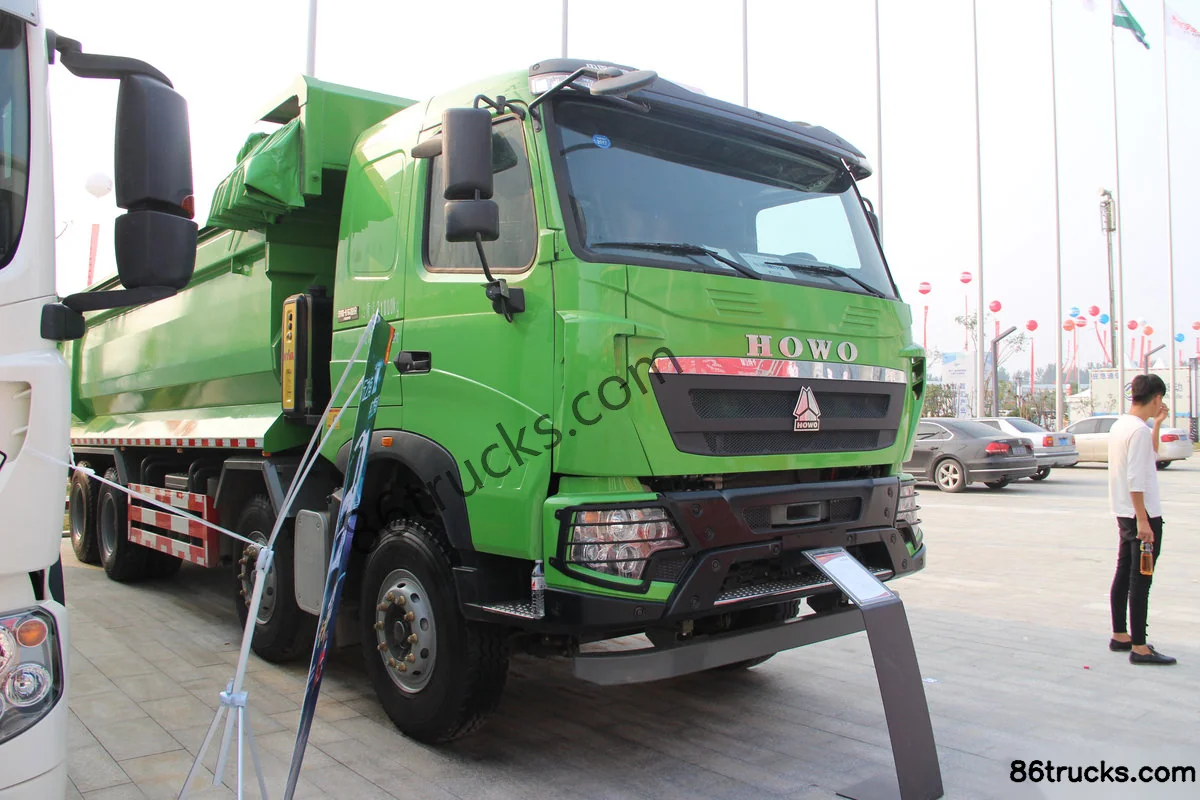

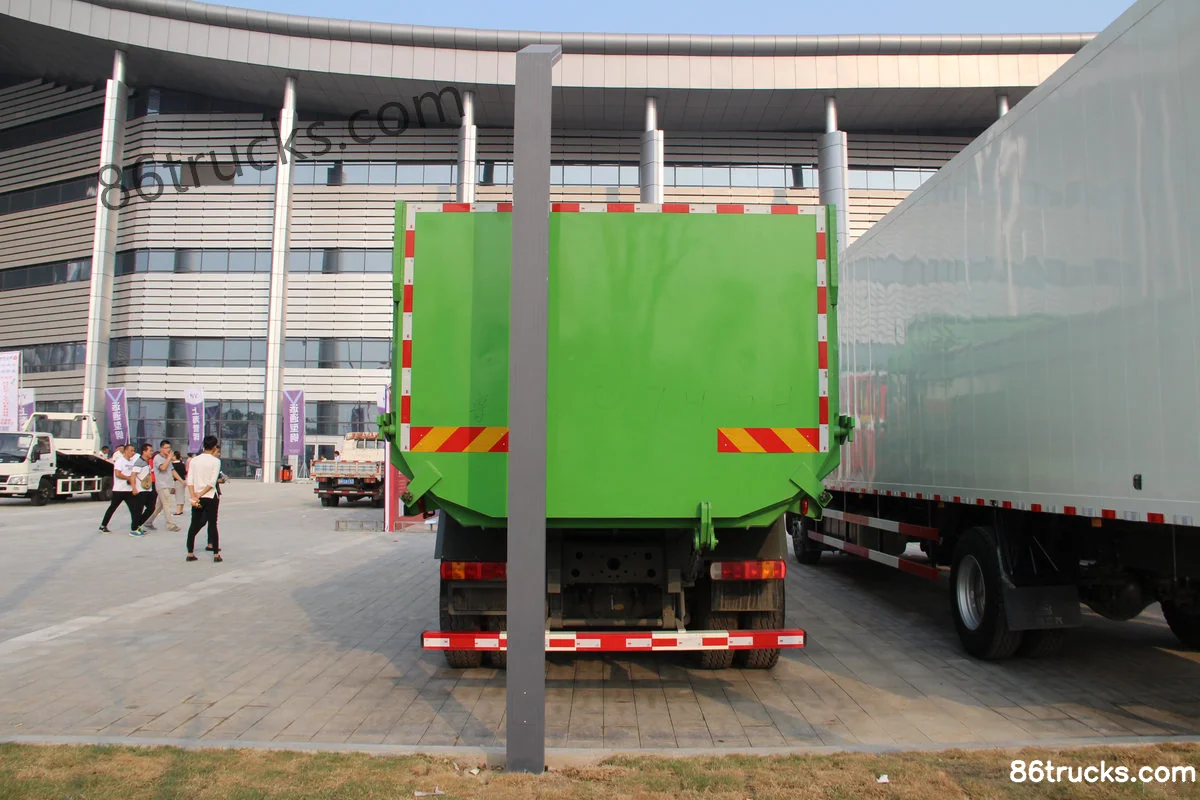

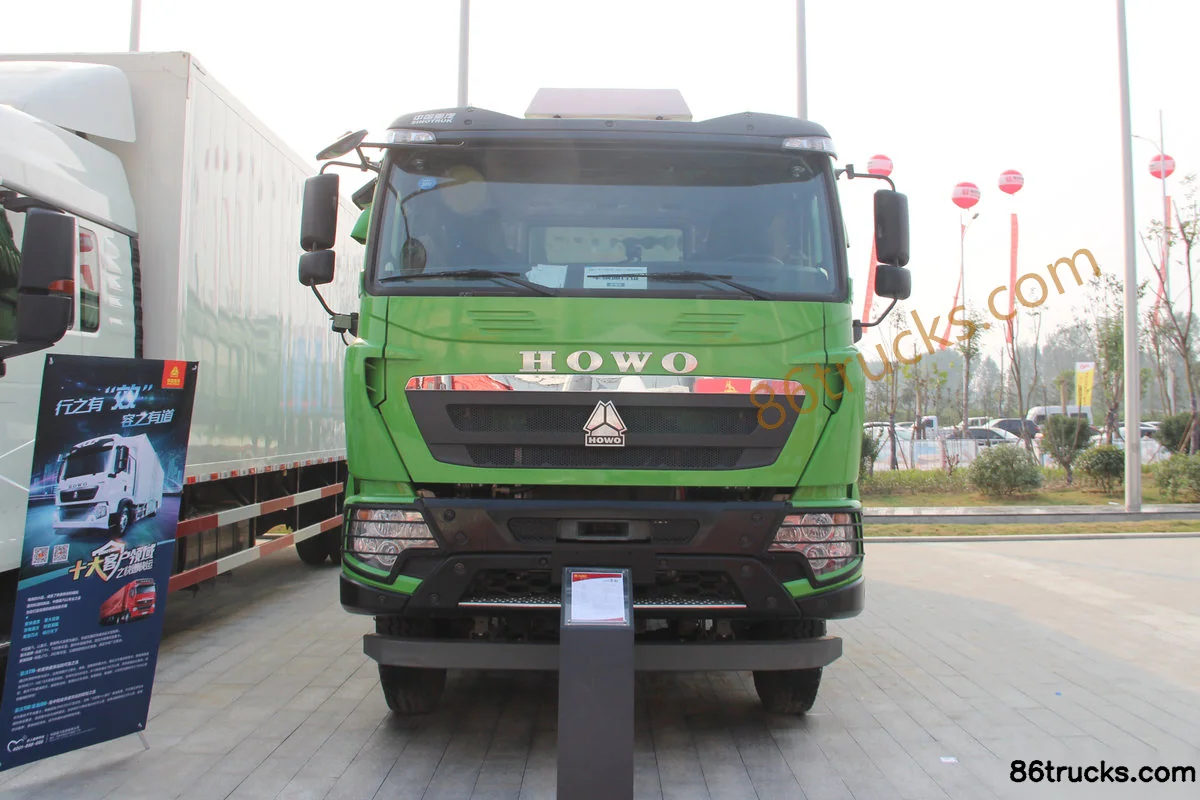

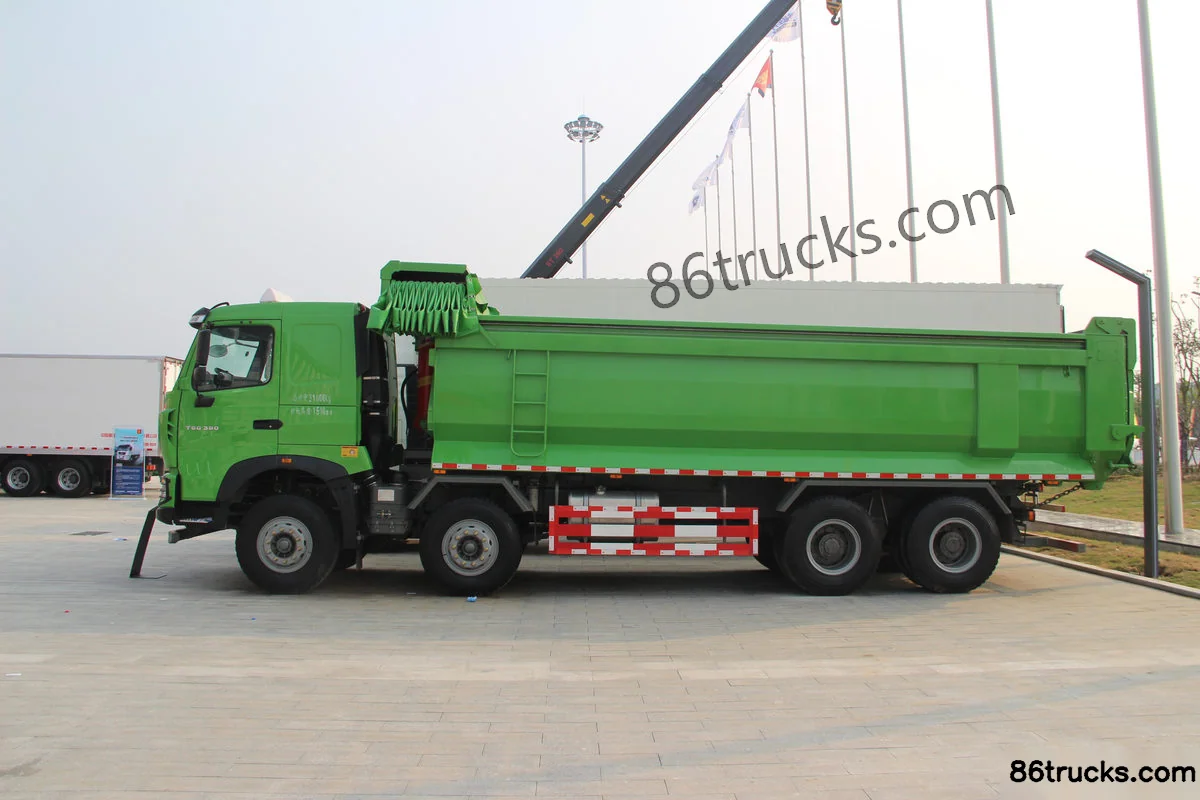

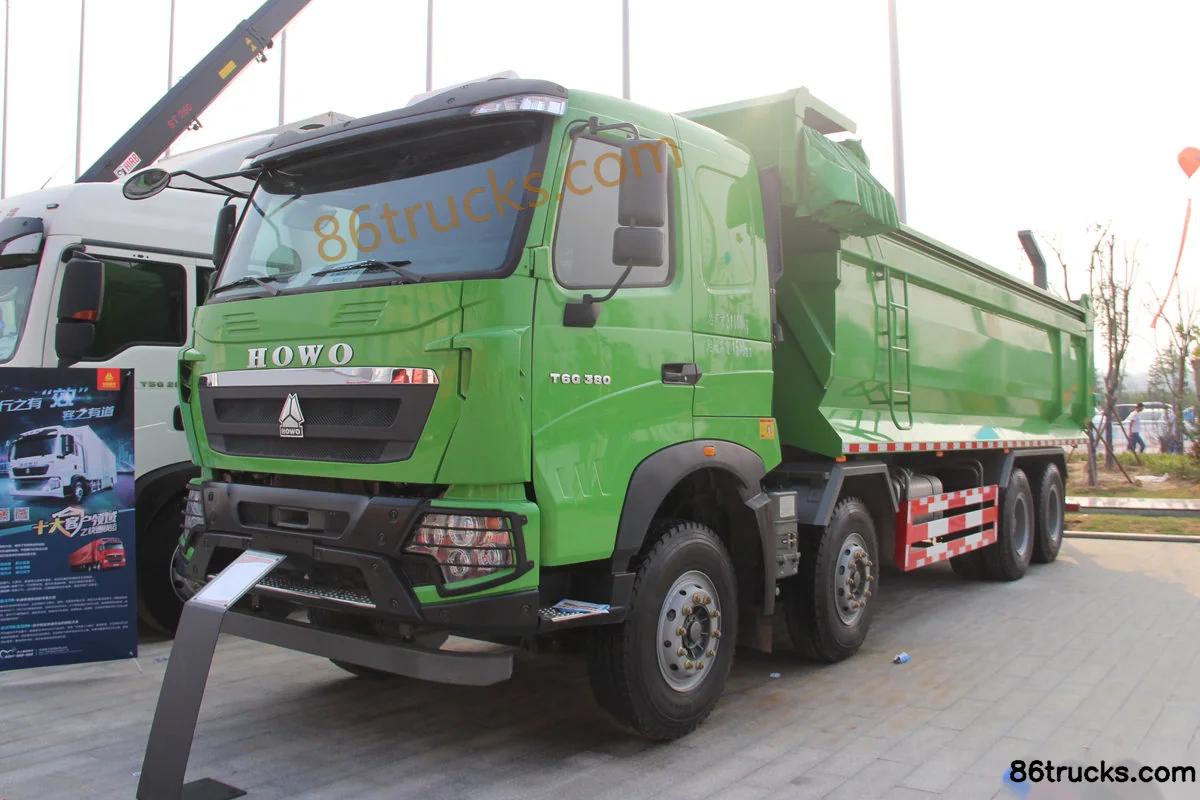

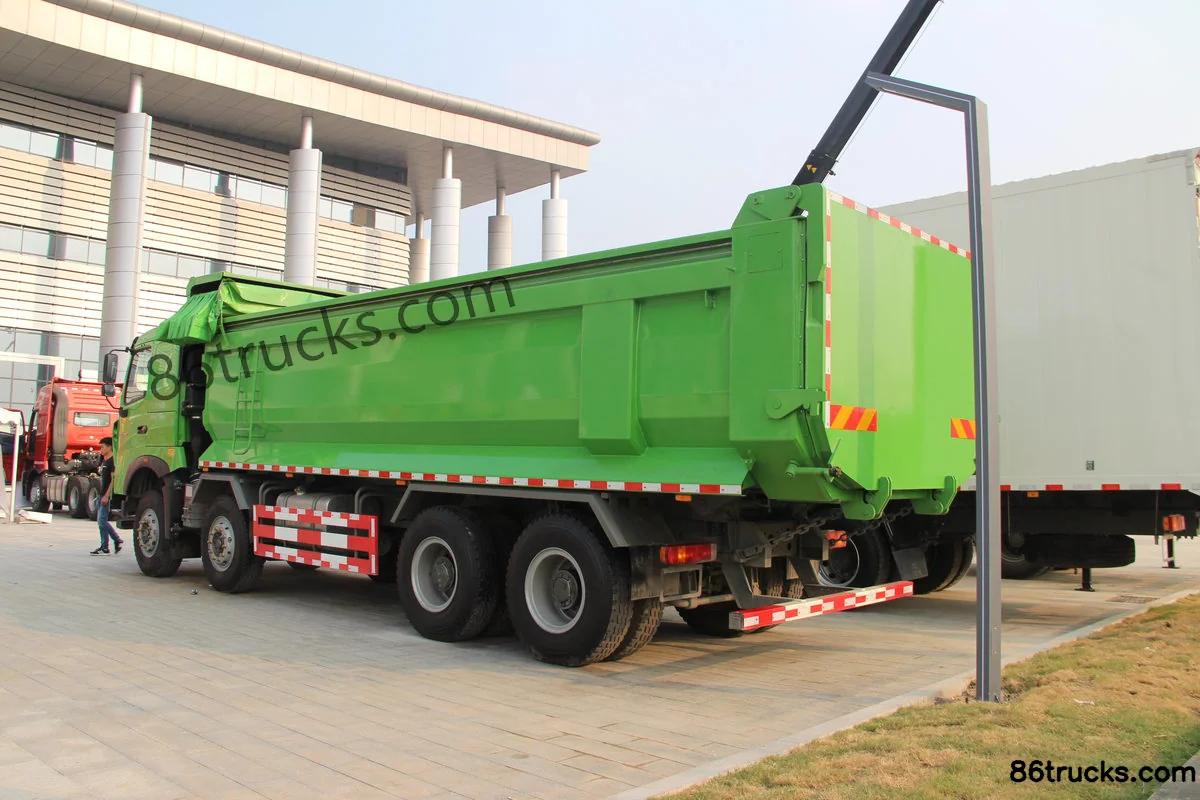

Exterior3

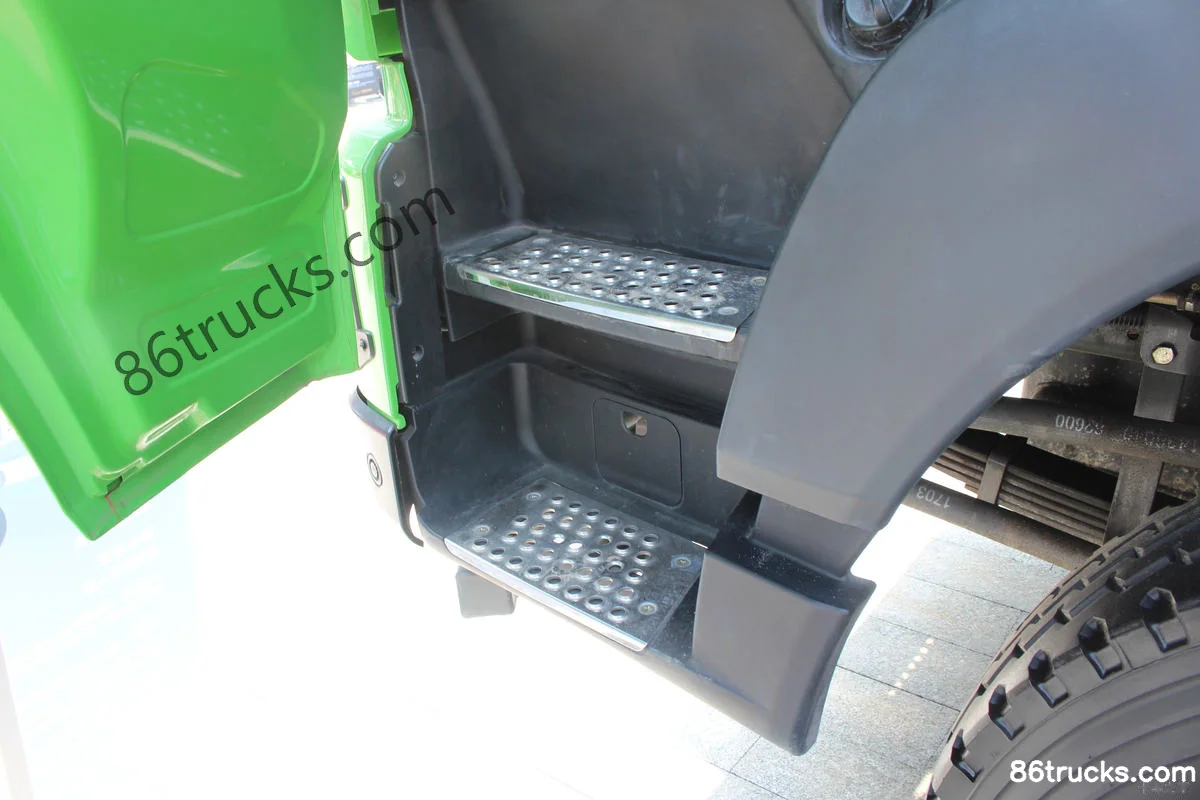

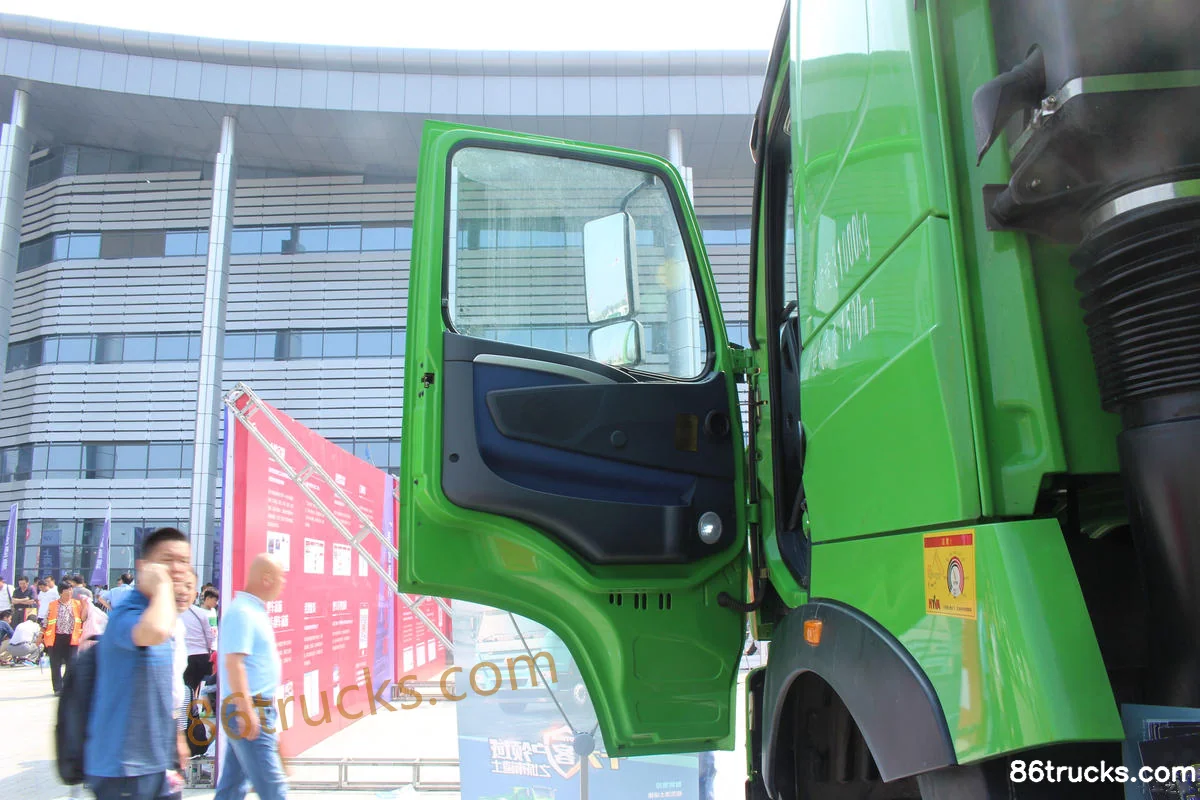

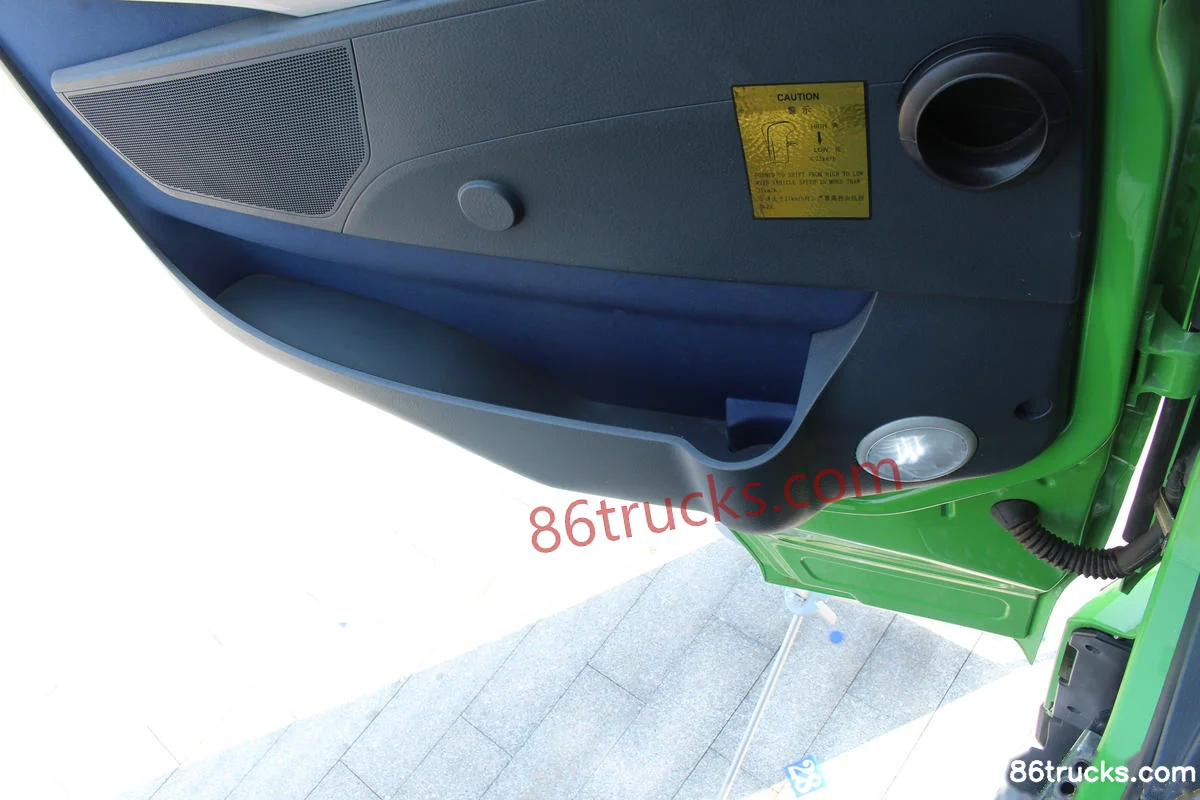

Cab3

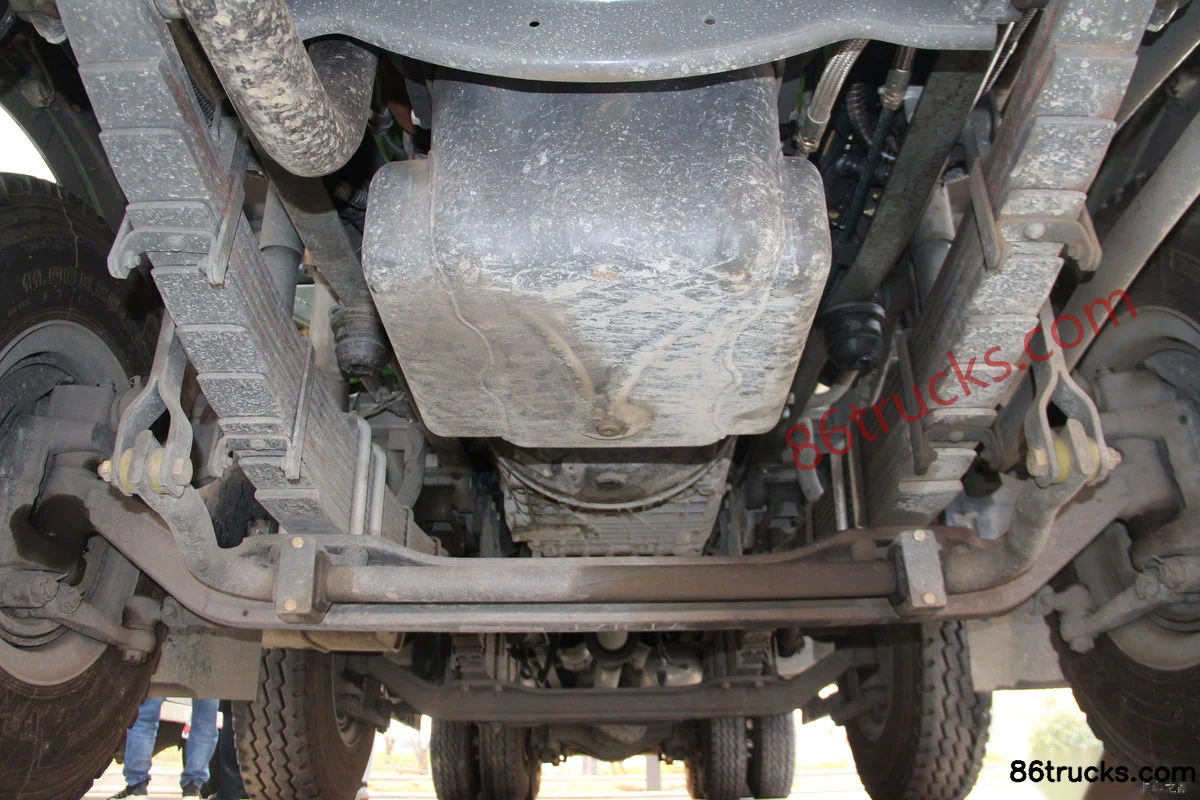

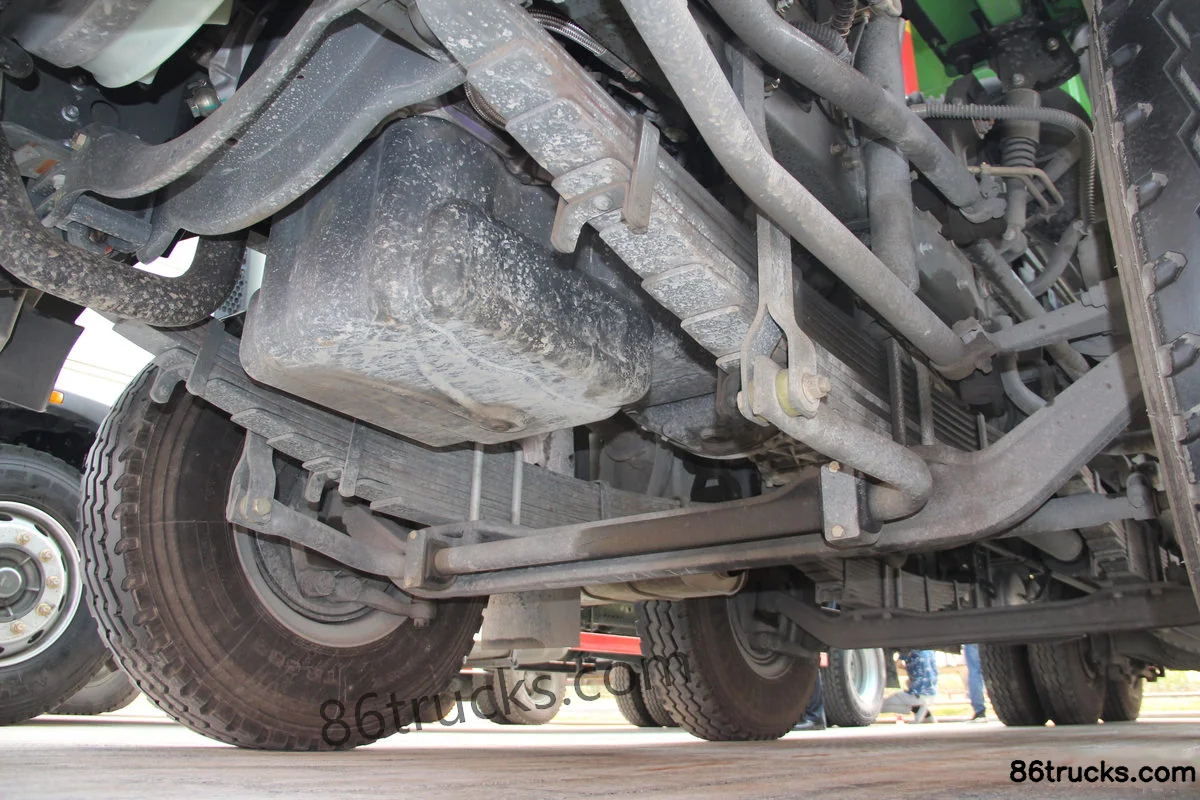

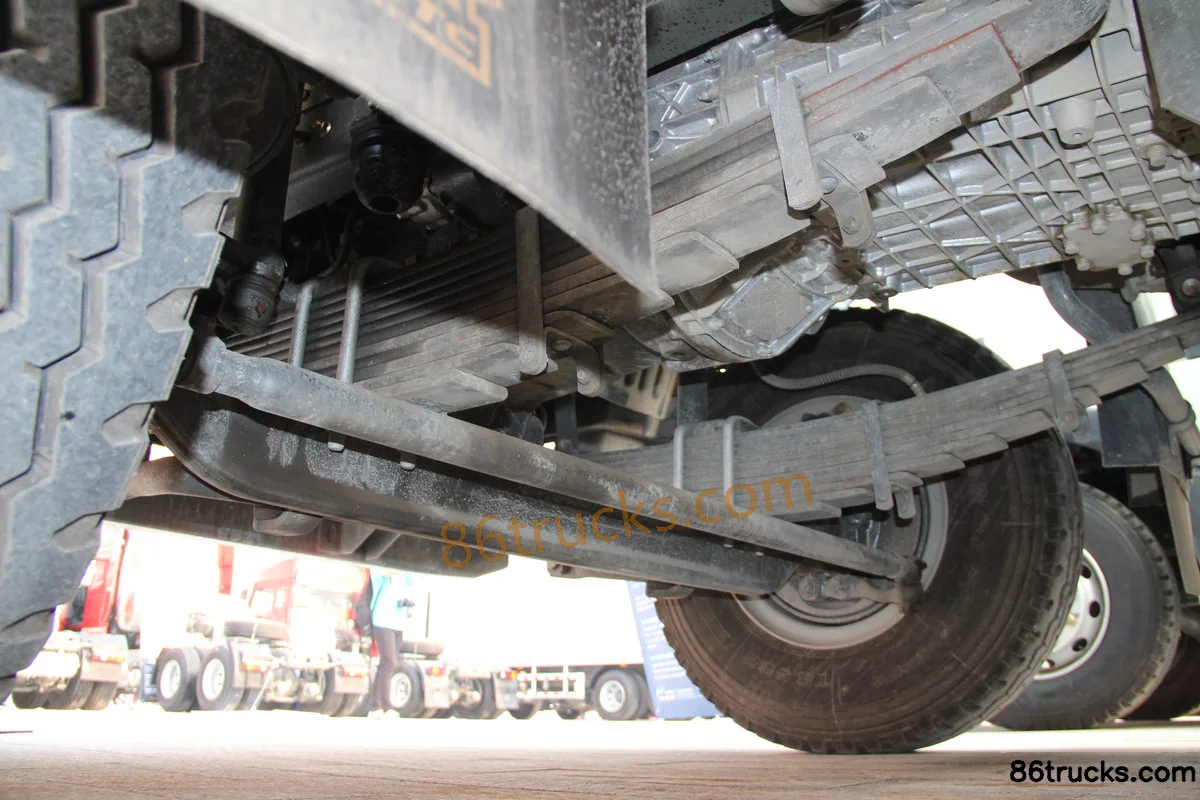

Chassis3

Body3

12 photos

FAQ

What is the export price of Sinotruk HOWO T6G Heavy Truck 380 hp 8X4(12 wheels) Dump Truck (Construction Truck), and what does it include?

Sinotruk HOWO T6G Heavy Truck 380 hp 8X4(12 wheels) Dump Truck (Construction Truck) export reference is about From $60,778; MSRP is ¥43.76M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO T6G Heavy Truck 380 hp 8X4(12 wheels) Dump Truck (Construction Truck) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T6G Heavy Truck 380 hp 8X4(12 wheels) Dump Truck (Construction Truck)?

Key specs of Sinotruk HOWO T6G Heavy Truck 380 hp 8X4(12 wheels) Dump Truck (Construction Truck): Drive: 8x4; Horsepower: 380 hp; Emission: China V; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T6G Heavy Truck 380 hp 8X4(12 wheels) Dump Truck (Construction Truck) suited for?

Sinotruk HOWO T6G Heavy Truck 380 hp 8X4(12 wheels) Dump Truck (Construction Truck) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO T6G Heavy Truck 380 hp 8X4(12 wheels) Dump Truck (Construction Truck) differ from other variants in the same series?

Sinotruk HOWO T6G Heavy Truck 380 hp 8X4(12 wheels) Dump Truck (Construction Truck) belongs to Sinotruk HOWO T6G heavy-duty truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T6G Heavy Truck 380 hp 8X4(12 wheels) Dump Truck (Construction Truck)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T6G Heavy Truck 380 hp 8X4(12 wheels) Dump Truck (Construction Truck)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
