JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck

Export reference
From $30,556
MSRP ¥22M CNY
Horsepower: 220
Emission: China VI
Fuel: Diesel
Engine: Ankang 4.5
Transmission: Fast Gear
Curb Weight:: 7.875ton
JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck exterior
View more photos (9)
seating capacity: 3Personnel
Rated payload: 9.93ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck is a Medium-duty truck featuring 5.48m cargo length, Stake type cargo body, 3Personnel volume and 9.93t payload. Its segment focus covers LTL transport, matching those duty cycles. On the powertrain side, it comes with a Ankang 4.5 engine, 220 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5181CCYB80K1D4S
Type: stake truck
Drive type: 4X2
Wheelbase: 5200mm
Box length class: 5.5m
engine: Anhui CumminsB4.5NS6B220
transmission: Fast Gear8JS85TC
Rear Axle Ratio: 4.875
Cab length: 7.775m
Cab width: 2.55m
Cab height: 3.85m
Front track width: 1915mm
rear track: 1800mm
Curb Weight: 7.875ton
Rated payload: 9.93ton
GVWR: 18ton
Max. speed: 110km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 26°
departure angle: 12°
market segment: LTL transport
Front/rear suspension: 1.3/2.275m
Energy Type: Diesel
Engine parameters
Engine Brand: Anhui Cummins
Engine Model: Anhui CumminsB4.5NS6B220
Engine info: Ankang 4.5
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.5L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 820N·m
Max torque speed: 1300-1500rpm
Rated speed: 2300rpm
Engine Type: DOC+DPF+SCR
Engine Oil Change Interval: 60,000 km
Transmission Parameters
Transmission Model: Fast Gear8JS85TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
Transmission oil change interval: 100,000 km
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 5.48m
Cargo box width: 2.45m
*Cargo box interior width: 2.45
Cab parameters
Cab width: 2235mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 3/9+7
Frame Type: Straight-through frame
rear axle oil change interval: 100,000 km
Maintenance-free wheel end: Standard wheel ends, optional front axle maintenance-free wheel ends, rear axle ConMet wheel ends rated for 300,000 km
Tire
Tire Size: 11R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Power steering:
EBS electronic braking system:
clutch booster:
Load-sensing proportioning valve (SABS):
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Wiper type: flat wiper blades / conventional wiper blades
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
LCD instrument cluster:
Service brake
Engine brake: engine brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):
maintenance service
24-hour service hotline: none
Rescue service: none

Photos

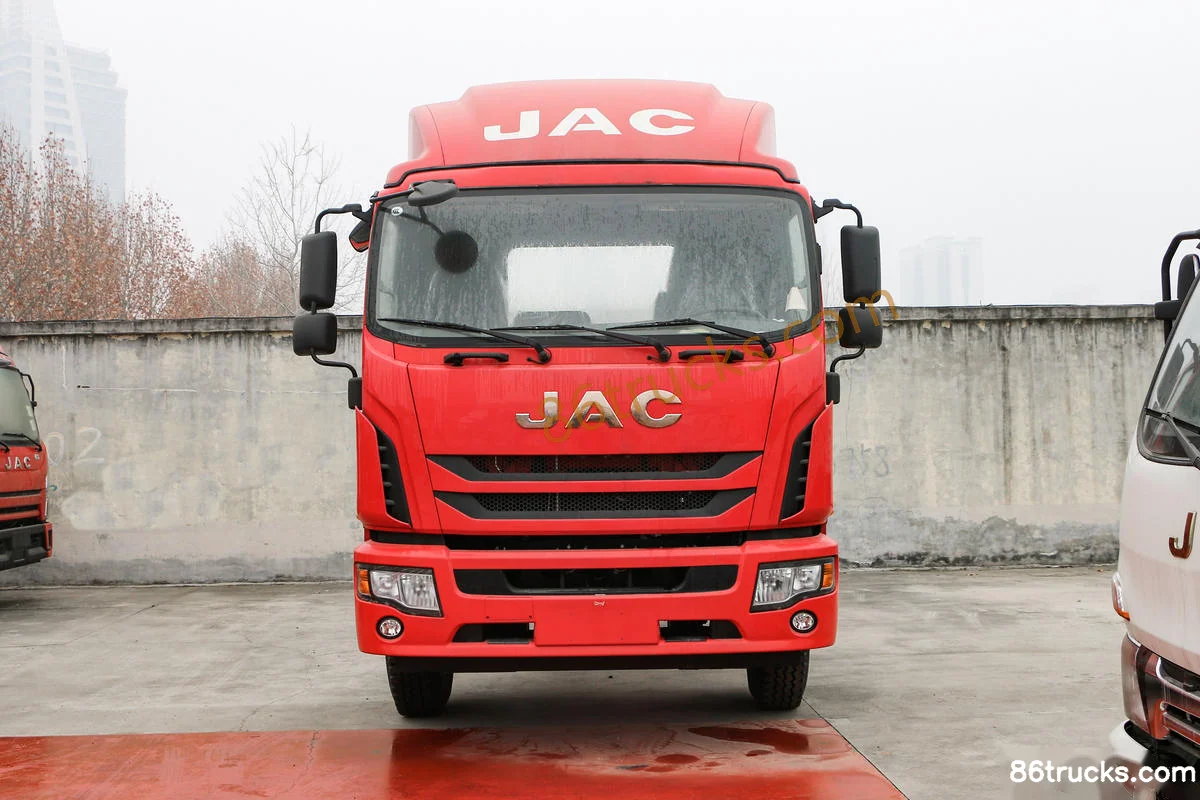

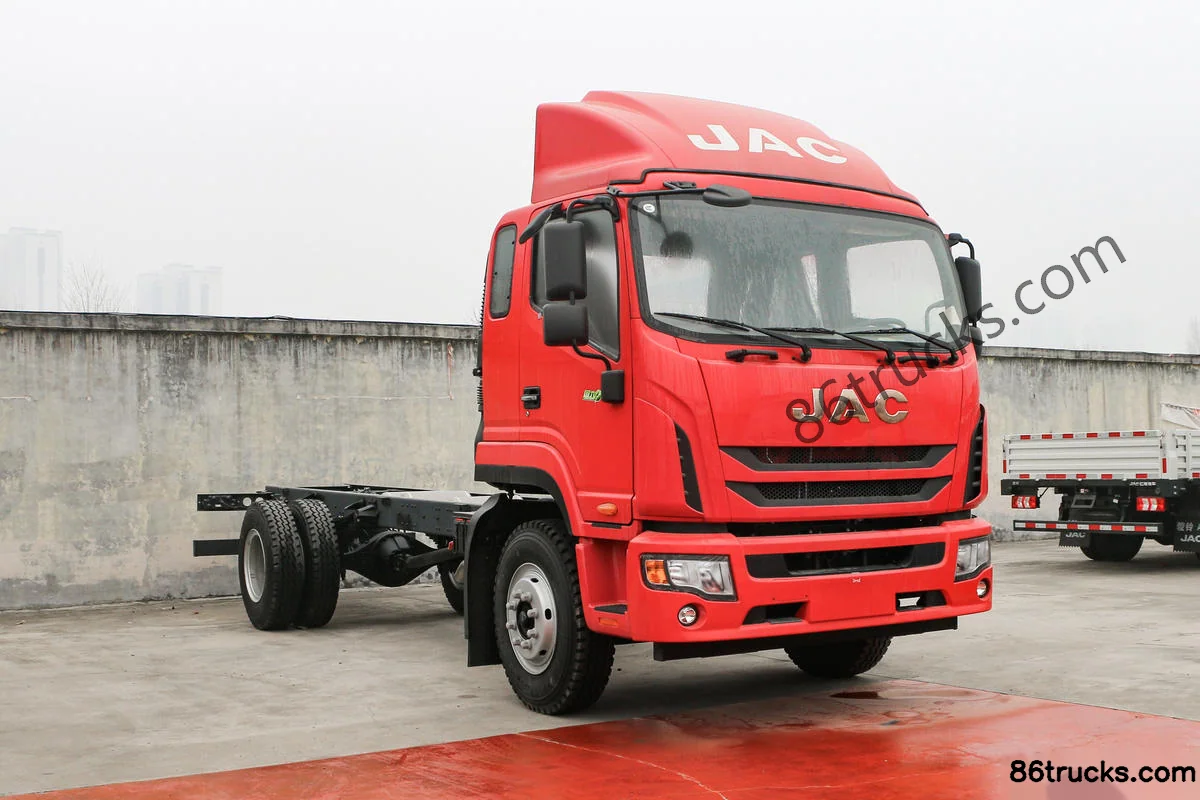

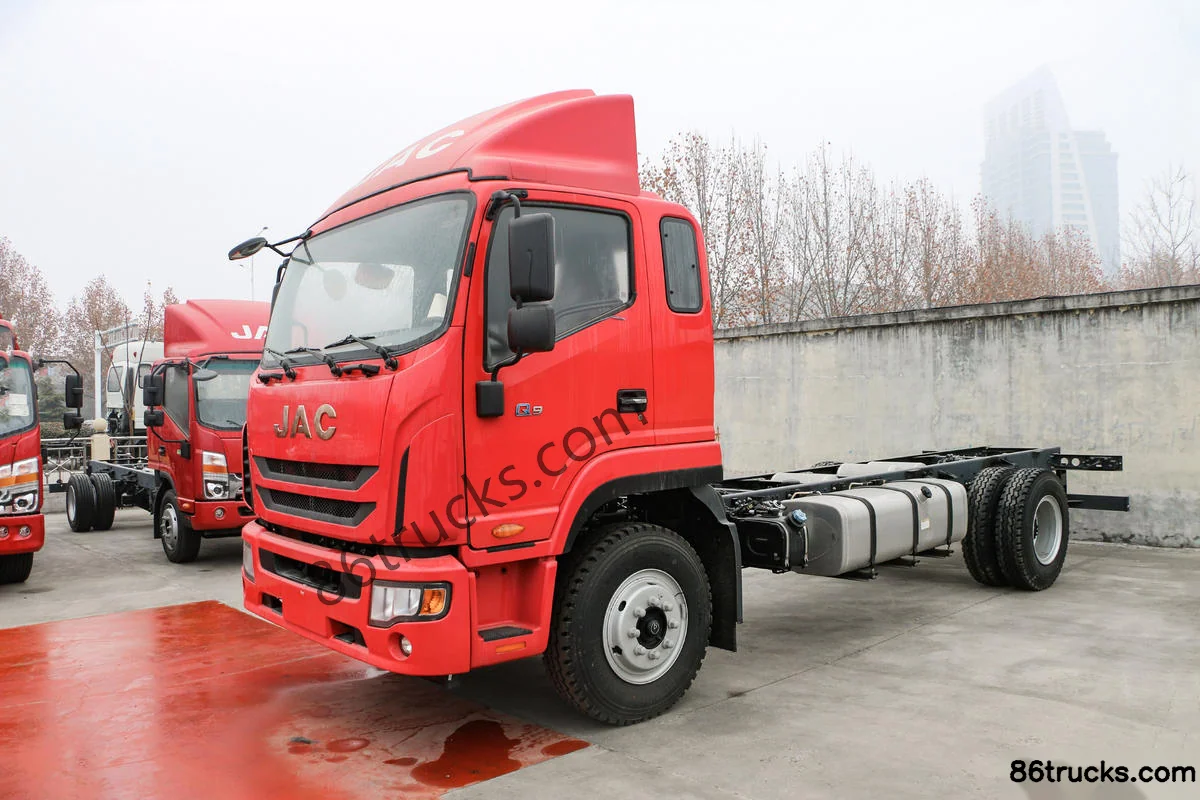

Exterior3

JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck Exterior (1) | 86Trucks JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck Exterior (2) | 86Trucks JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck Exterior (3) | 86Trucks

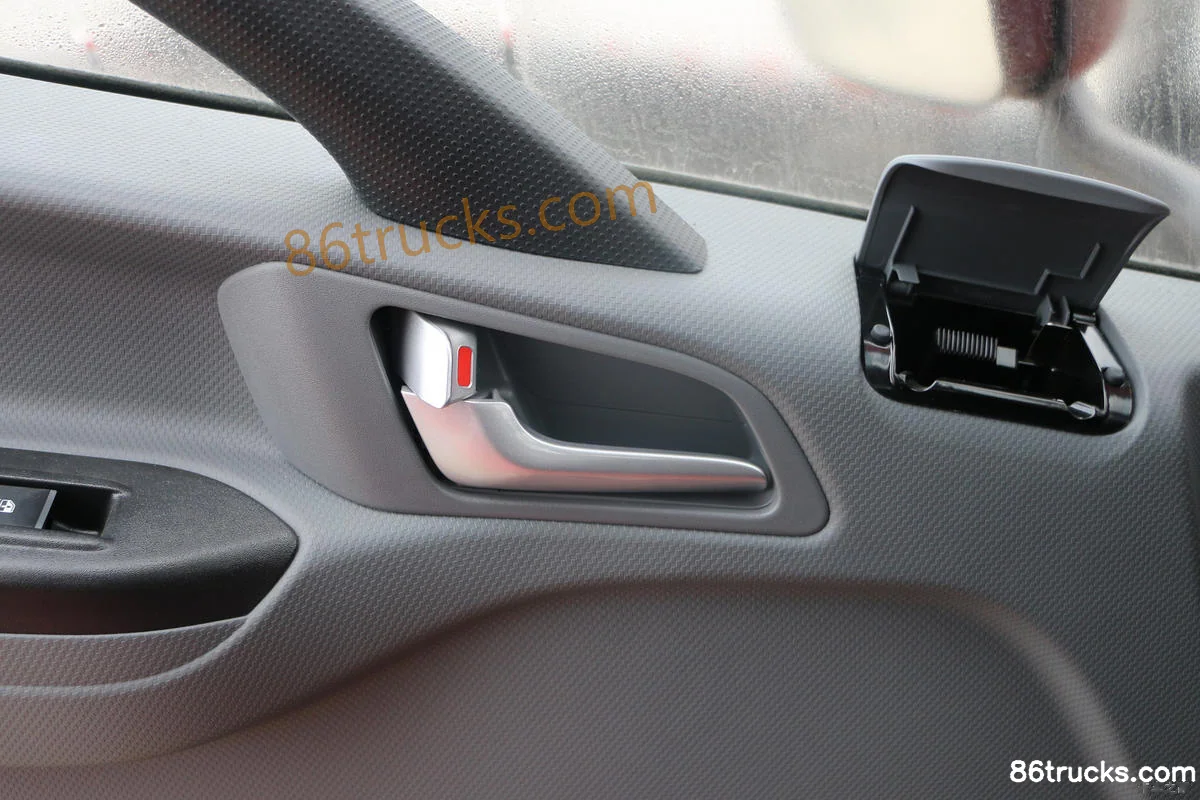

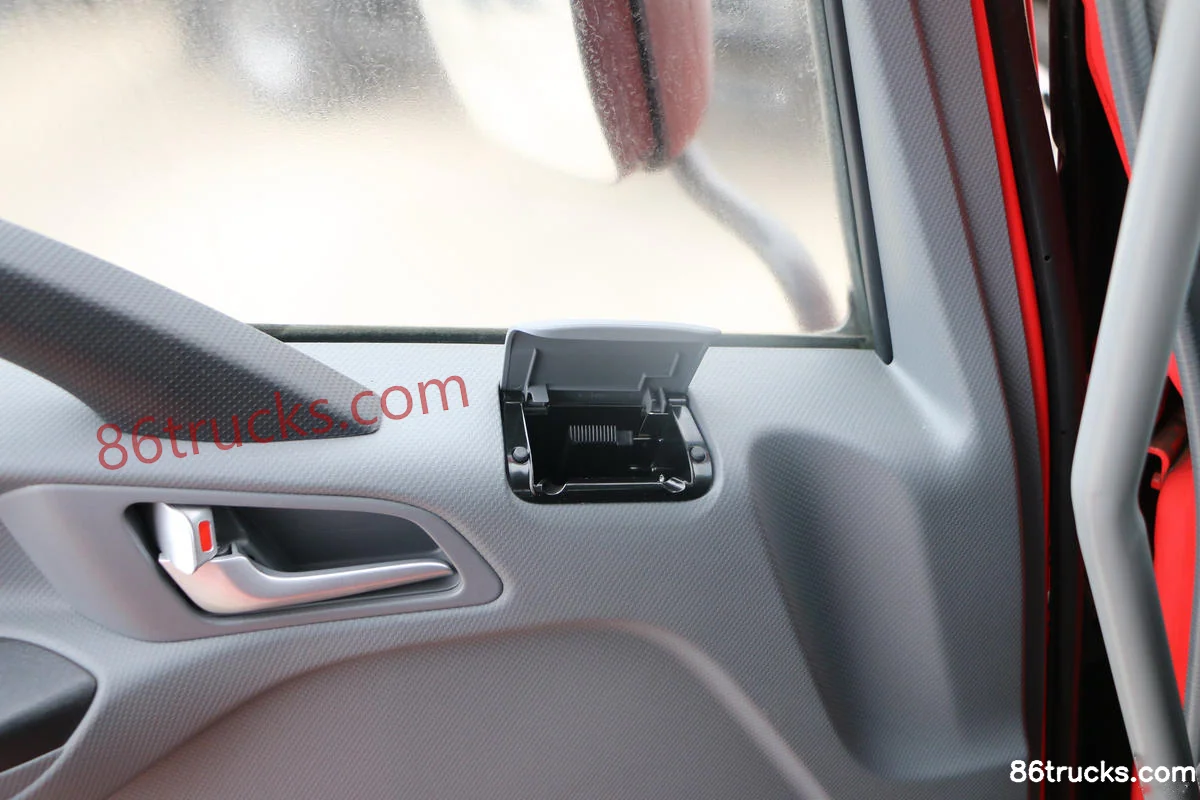

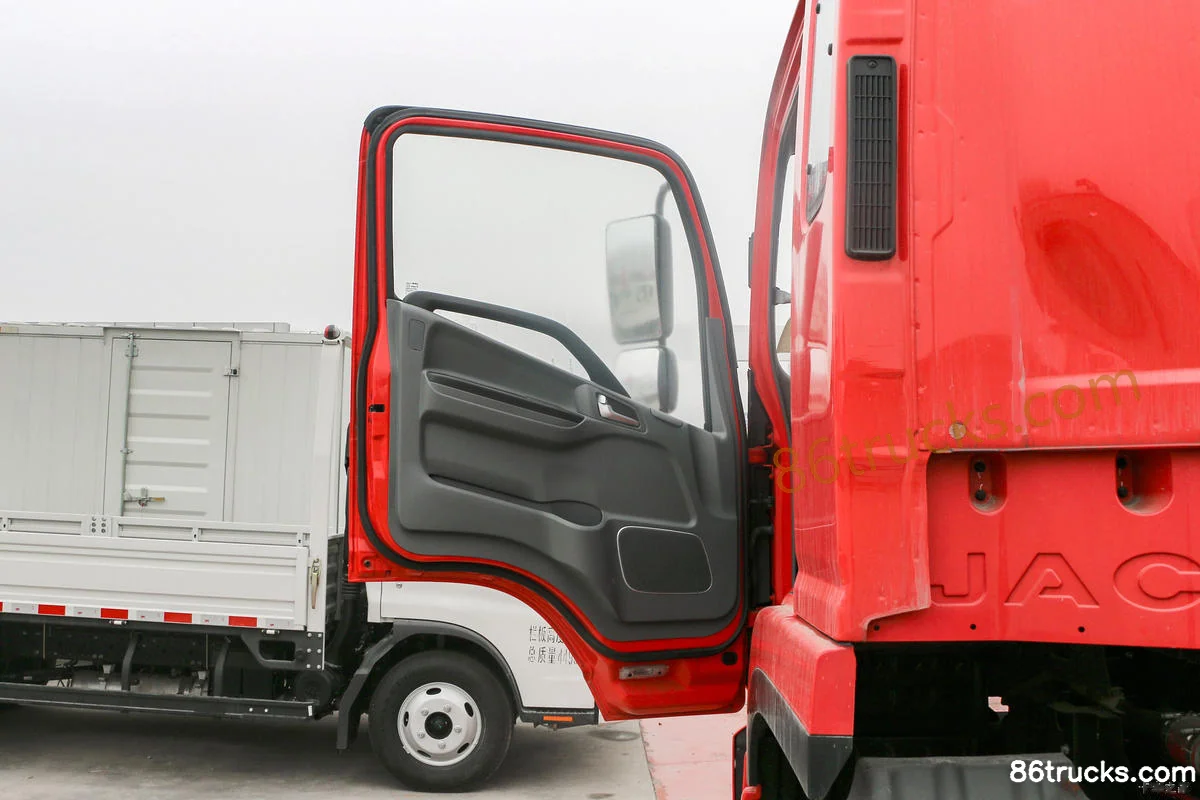

Cab3

JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck Cab (1) | 86Trucks JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck Cab (2) | 86Trucks JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck Cab (3) | 86Trucks

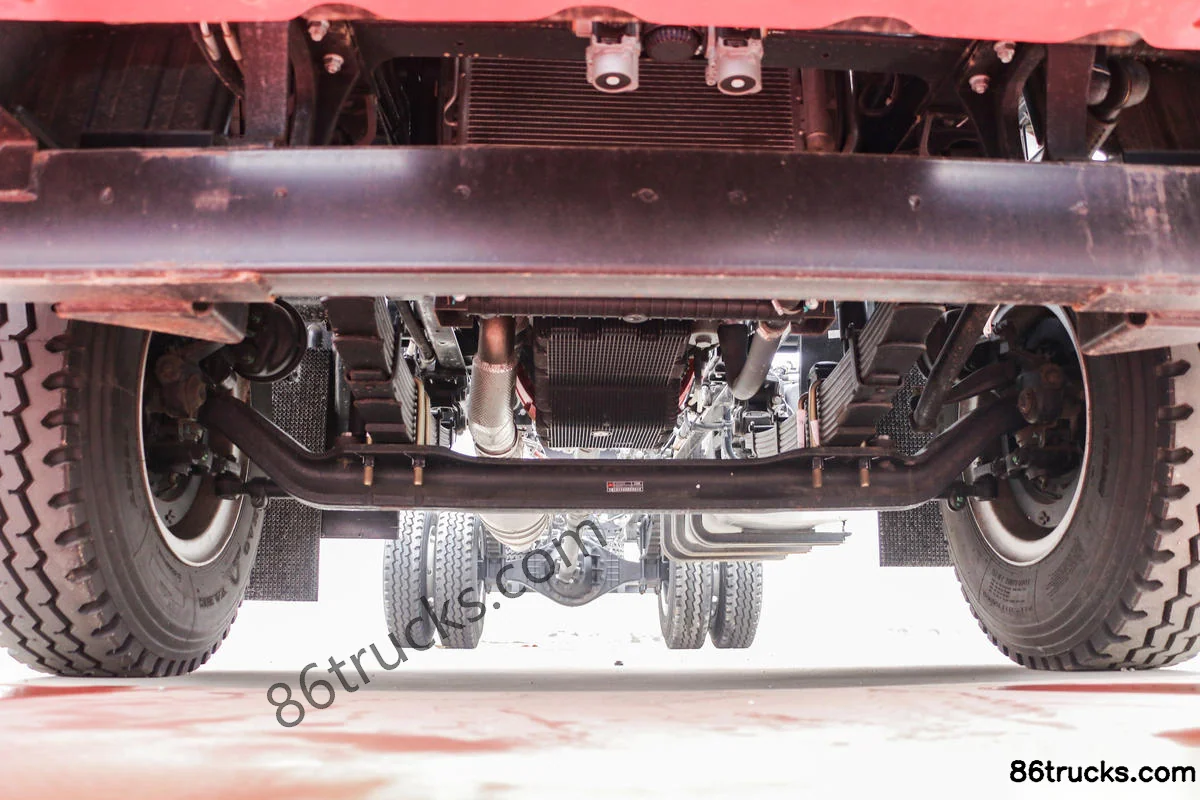

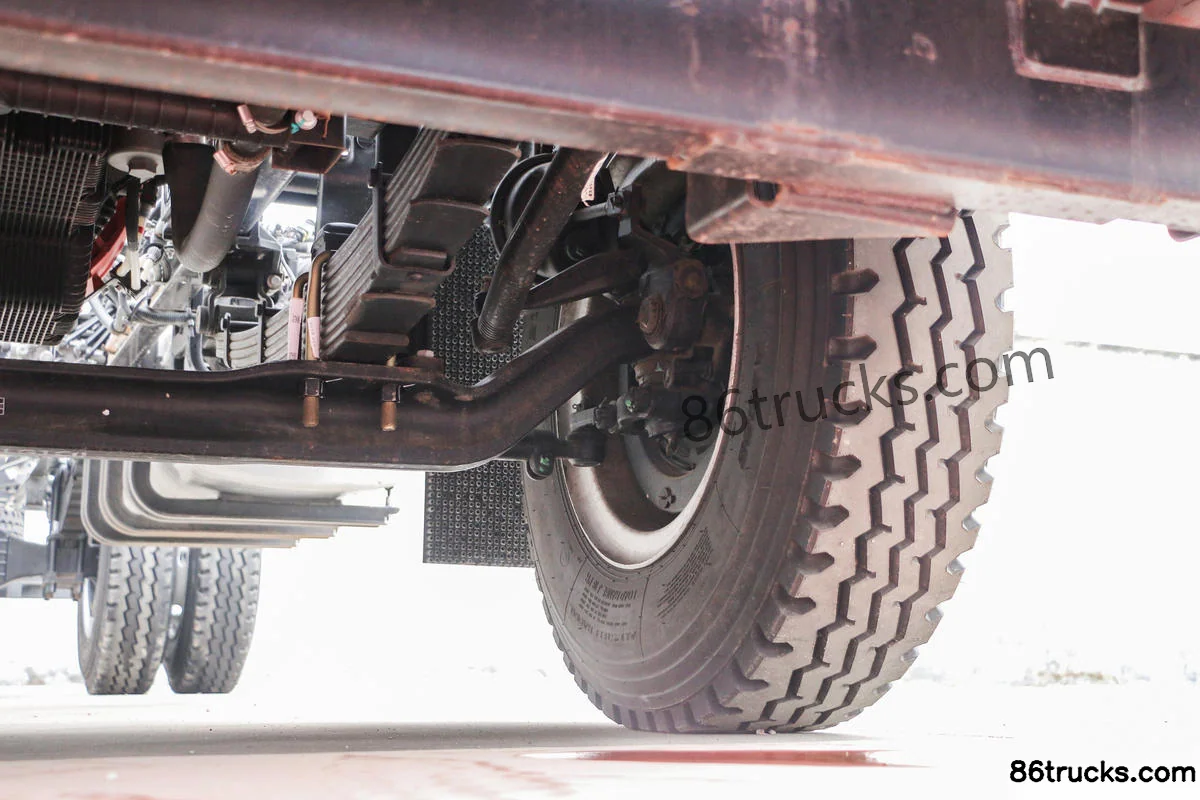

Chassis3

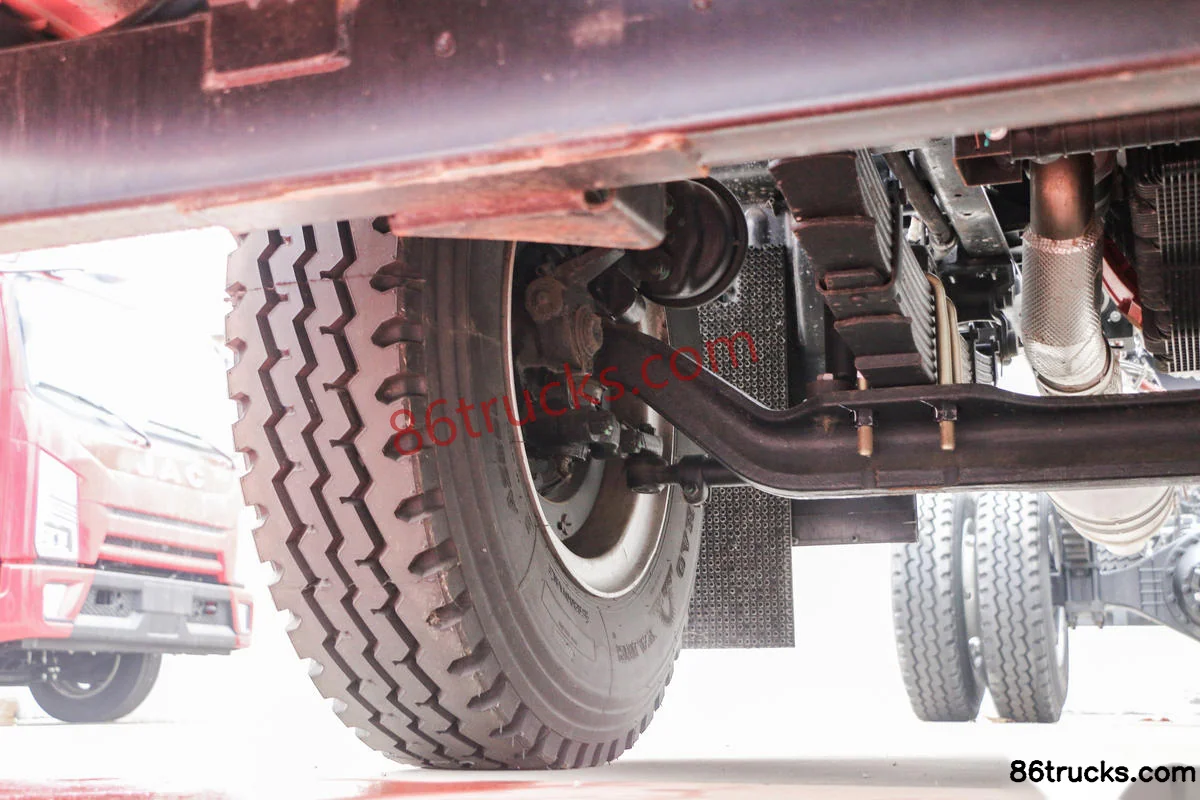

JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck Chassis (1) | 86Trucks JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck Chassis (2) | 86Trucks JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck Chassis (3) | 86Trucks

9 photos

FAQ

What is the export price of JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck, and what does it include?

JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck export reference is about From $30,556; MSRP is ¥22M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck?

Key specs of JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck: Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Engine: Ankang 4.5; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck suited for?

JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck differ from other variants in the same series?

JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck belongs to JAC Q9 medium-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Dewos Q9 220hp 4X2(6 wheels) 5.48m Cage Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
