SAIC MAXUS Dana V 4.8m Pure Electric Short Wheelbase High Roof Panel Van 43kWh

Export reference
From $22,472
MSRP ¥16.18M CNY
Wheelbase:: 3100mm
Cargo box volume:: 8.3
Model code (announced):: SH5032XXYU6BEV-J4
Cab length:: 4.8m
GVWR:: 3.05ton
Max. speed:: 100km/h
CLTC range: 270km
Motor 1 Brand: Inbol
Curb Weight: 1.5ton
Rated payload: 1.42ton

Overview

The SAIC MAXUS Dana V 4.8m Pure Electric Short Wheelbase High Roof Panel Van 43kWh is a Electric Panel Van featuring 270km battery/range, Inbol motor, 1.42t payload and 8.3 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH5032XXYU6BEV-J4
Wheelbase: 3100mm
Cab length: 4.8m
Cab width: 1.87m
Cab height: 2.18m
CLTC range: 270km
Curb Weight: 1.5ton
Rated payload: 1.42ton
GVWR: 3.05ton
Max. speed: 100km/h
Remarks: Optional: dual sliding side doors
Front/rear suspension: 0.65/1.05m
Energy Type: Electric
electric motor
Motor 1 Brand: Inbol
Motor 1 Model: TZ180XSSQB
Motor Type: Permanent magnet synchronous motor
total rated power: 50kW
Peak power: 90kW
total rated torque: 87N·m
Battery/Charging
Battery Brand: SAIC Times
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 43kWh
fast charge time: 0.6h
Body parameters
Cargo box volume: 8.3
Cargo Box Height: 1.7
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Door Parameters
side door type: Sliding side door
Tailgate type: split doors
Wheel brake
Front brake type: Disc
rear brake type: Disc
Front tire specification: 195/70R15LT
Rear Wheel Specification: 195/70R15LT
Cab parameters
Seat rows:
Safety features
Driver airbag:
Anti-theft alarm:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Headlight height adjustment:

Photos

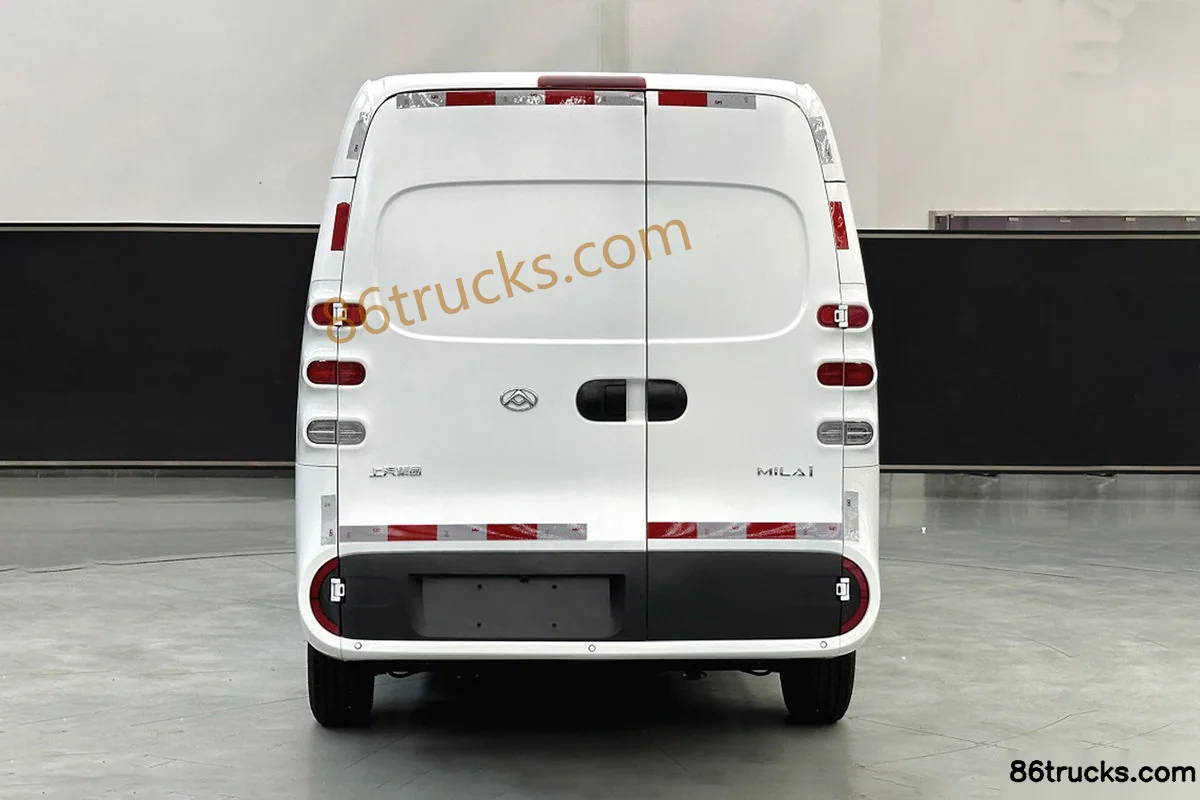

Exterior2

2 photos

FAQ

What is the export price of SAIC MAXUS Dana V 4.8m Pure Electric Short Wheelbase High Roof Panel Van 43kWh, and what does it include?

SAIC MAXUS Dana V 4.8m Pure Electric Short Wheelbase High Roof Panel Van 43kWh export reference is about From $22,472; MSRP is ¥16.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is SAIC MAXUS Dana V 4.8m Pure Electric Short Wheelbase High Roof Panel Van 43kWh suited for?

SAIC MAXUS Dana V 4.8m Pure Electric Short Wheelbase High Roof Panel Van 43kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SAIC MAXUS Dana V 4.8m Pure Electric Short Wheelbase High Roof Panel Van 43kWh differ from other variants in the same series?

SAIC MAXUS Dana V 4.8m Pure Electric Short Wheelbase High Roof Panel Van 43kWh belongs to SAIC MAXUS Dana V (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC MAXUS Dana V 4.8m Pure Electric Short Wheelbase High Roof Panel Van 43kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC MAXUS Dana V 4.8m Pure Electric Short Wheelbase High Roof Panel Van 43kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
