Sinotruk Wangpai W5D medium truck 180hp 4X2(6 wheels) 6.75m cargo truck chassis

Export reference
From $23,292
MSRP ¥16.77M CNY
Horsepower: 180
Emission: China V
Fuel: Diesel
Engine: Sinotruk MAN 4-cylinder
Transmission: WLY
Curb Weight:: 5.89ton
seating capacity: 3Personnel
Rated payload: 9.91ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk Wangpai W5D medium truck 180hp 4X2(6 wheels) 6.75m cargo truck chassis is a Medium-duty truck featuring 6.75m cargo length, stake body cargo body, 3Personnel volume and 9.91t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Sinotruk MAN 4-cylinder engine, 180 hp, 4X2 (6 wheels) drive and China V emissions.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW1161A1N5L
Type: Chassis
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: SinotrukMC05.18-50
transmission: WLYWLY6T75
Rear Axle Ratio: 4.444
Cab length: 9m
Cab width: 2.5m
Cab height: 2.98m
Front track width: 1900mm
rear track: 1860mm
Curb Weight: 5.89ton
Rated payload: 9.91ton
GVWR: 15.995ton
Max. speed: 100km/h
Origin: Chengdu, Sichuan
tonnage class: Medium-duty truck
Approach angle: 24°
departure angle: 12°
market segment: Building materials, agricultural products
Front/rear suspension: 1.46/2.54m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC05.18-50
Engine info: Sinotruk MAN 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.58L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 700N·m
Max torque speed: 1300-1700rpm
Rated speed: 2400rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: WLYWLY6T75
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.75m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 5995kg
rear axle description: 153 rear axle
rear axle allowable load: 10000kg
Axle ratio: 4.44
Leaf spring count: 9/10+8
Suspension (front/rear): Leaf spring
Tire
Tire Size: 9.00R20
Number of tires: 6pcs

Photos

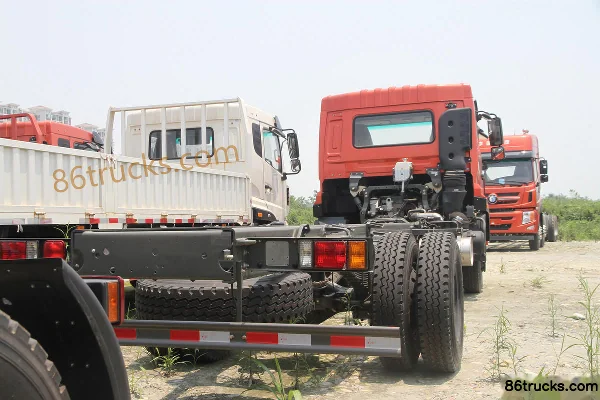

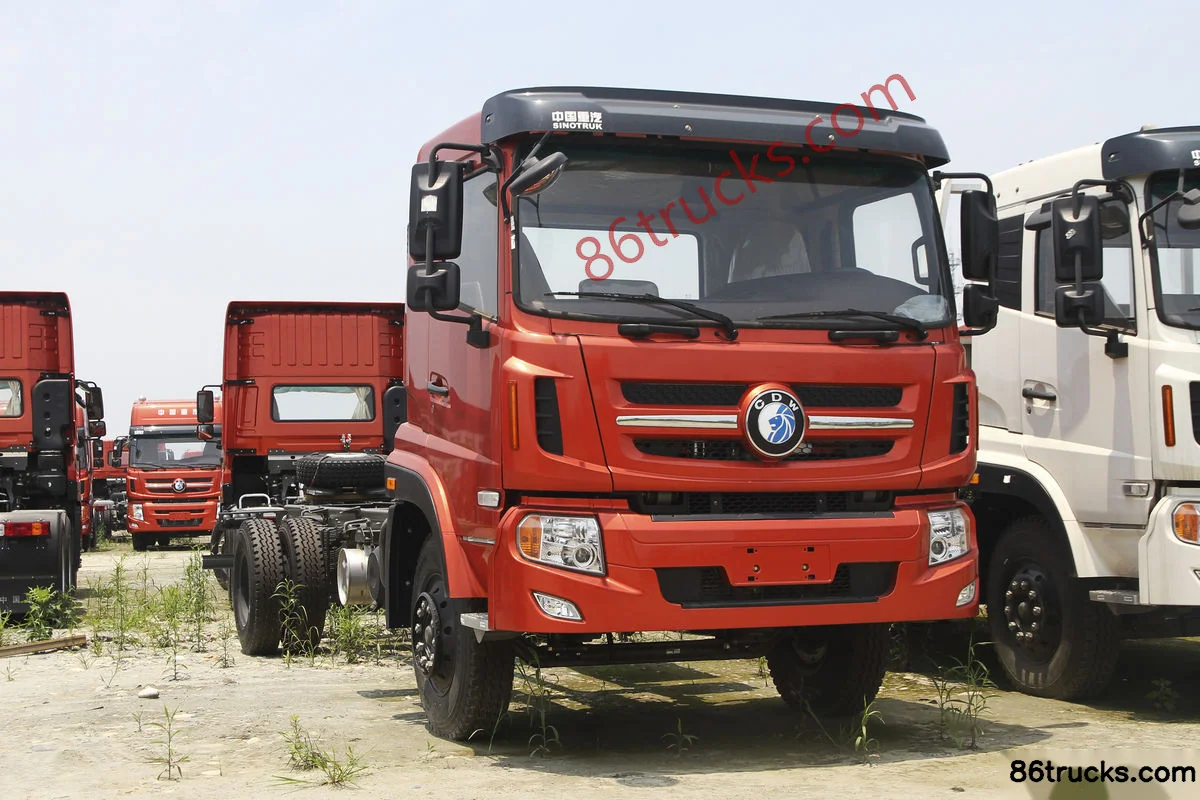

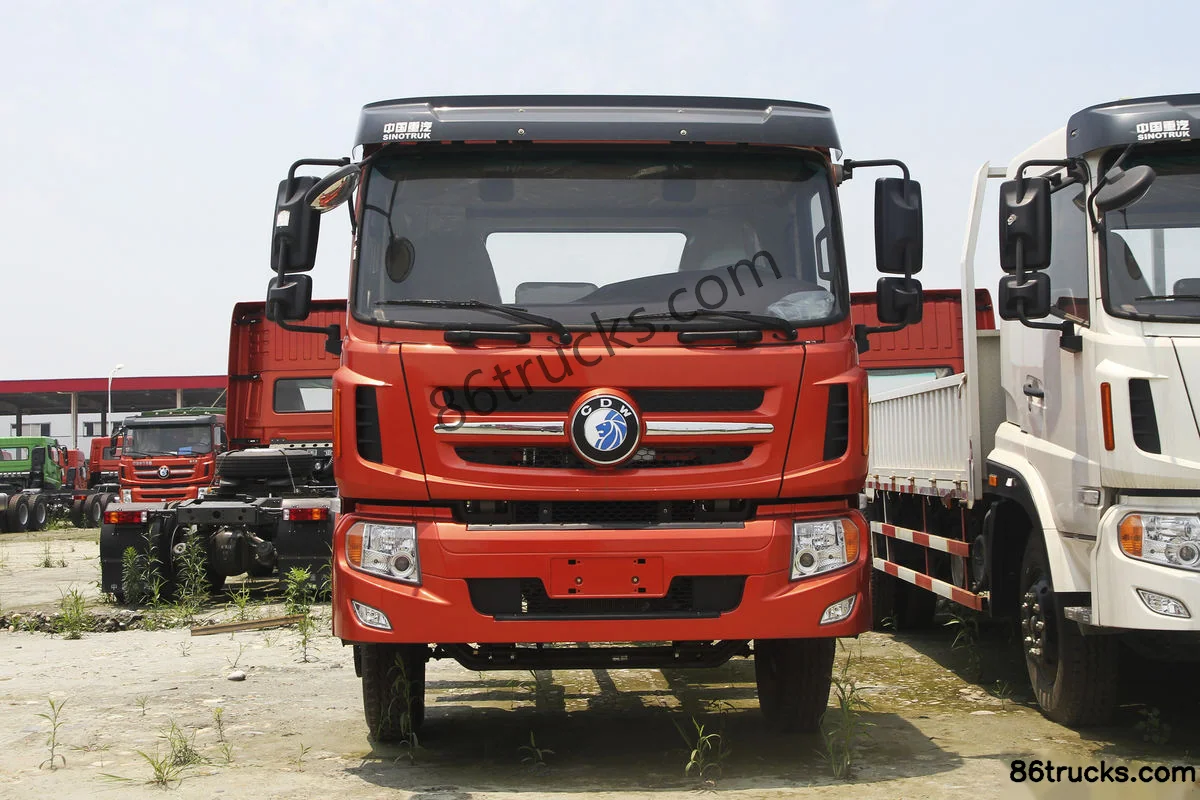

Exterior3

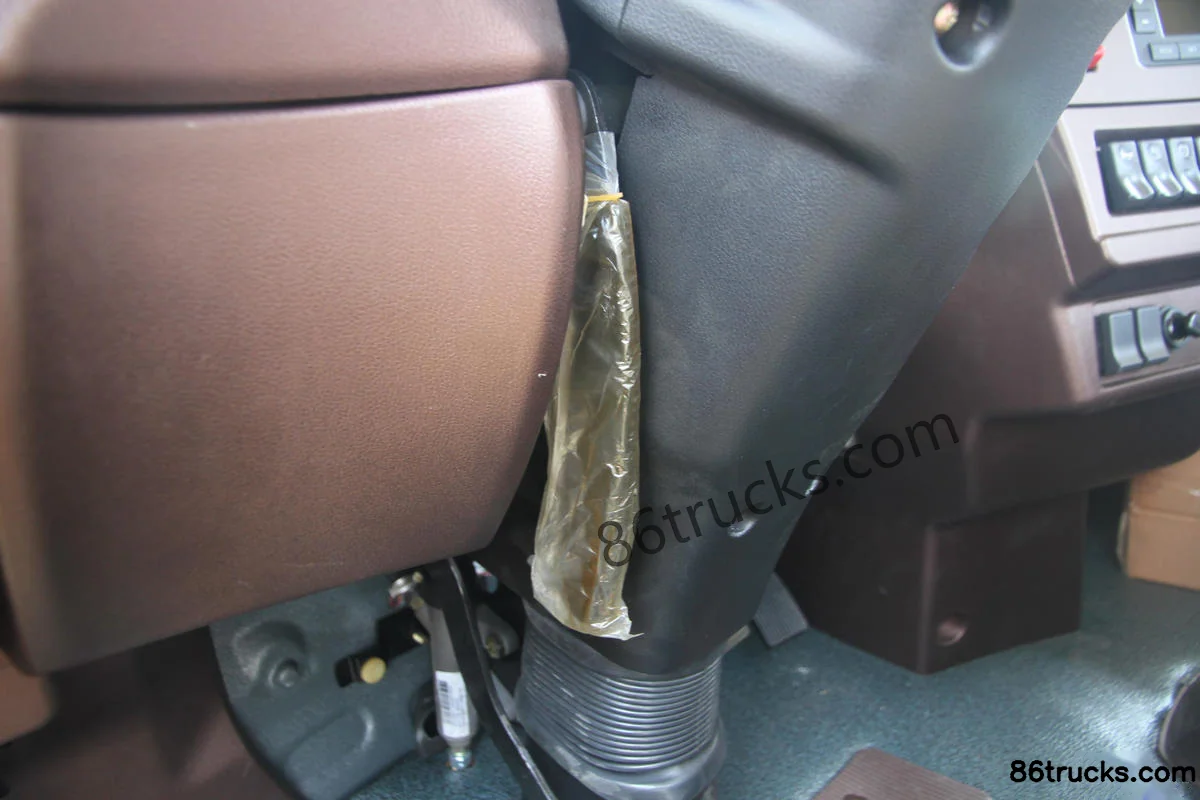

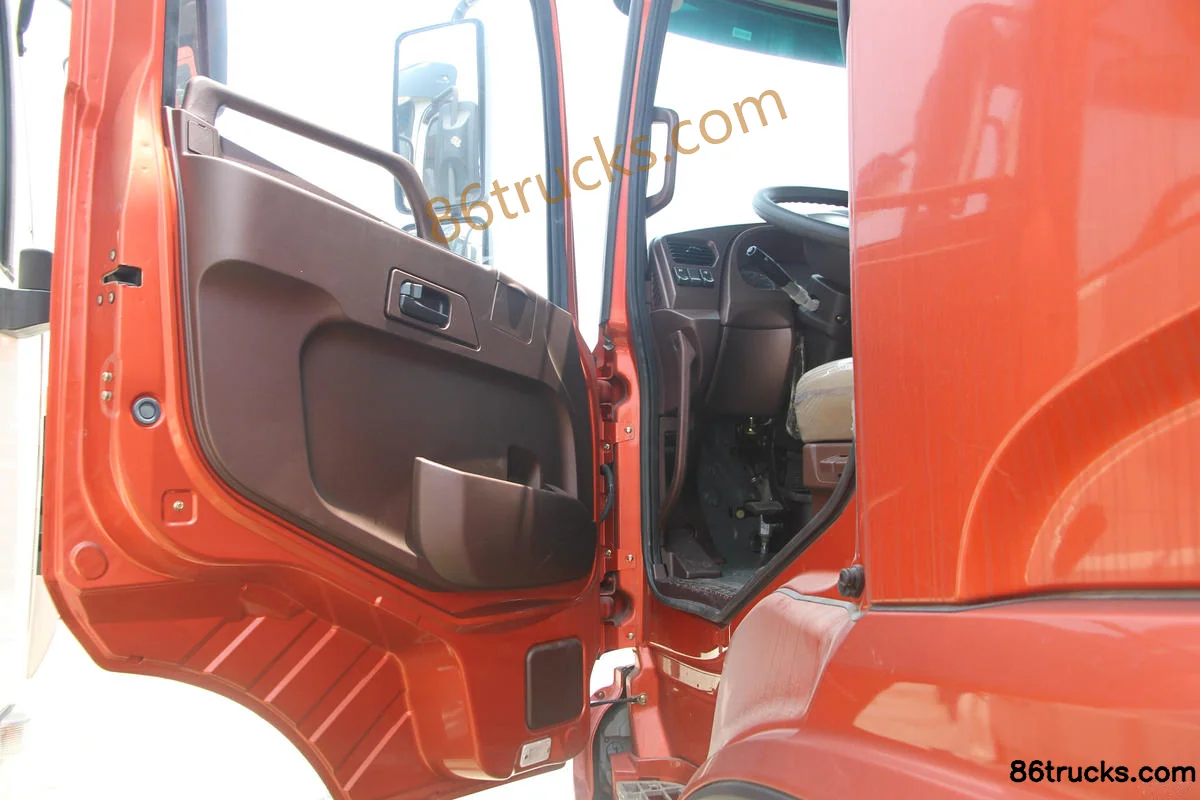

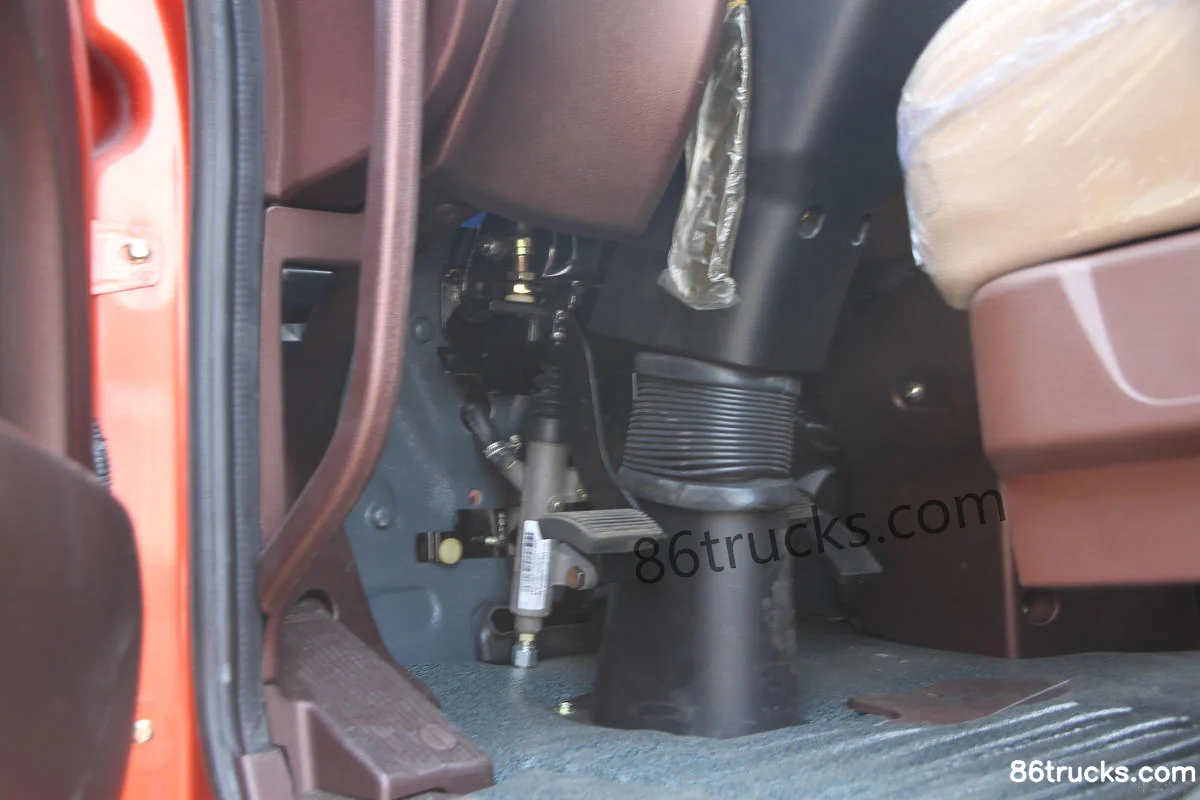

Cab3

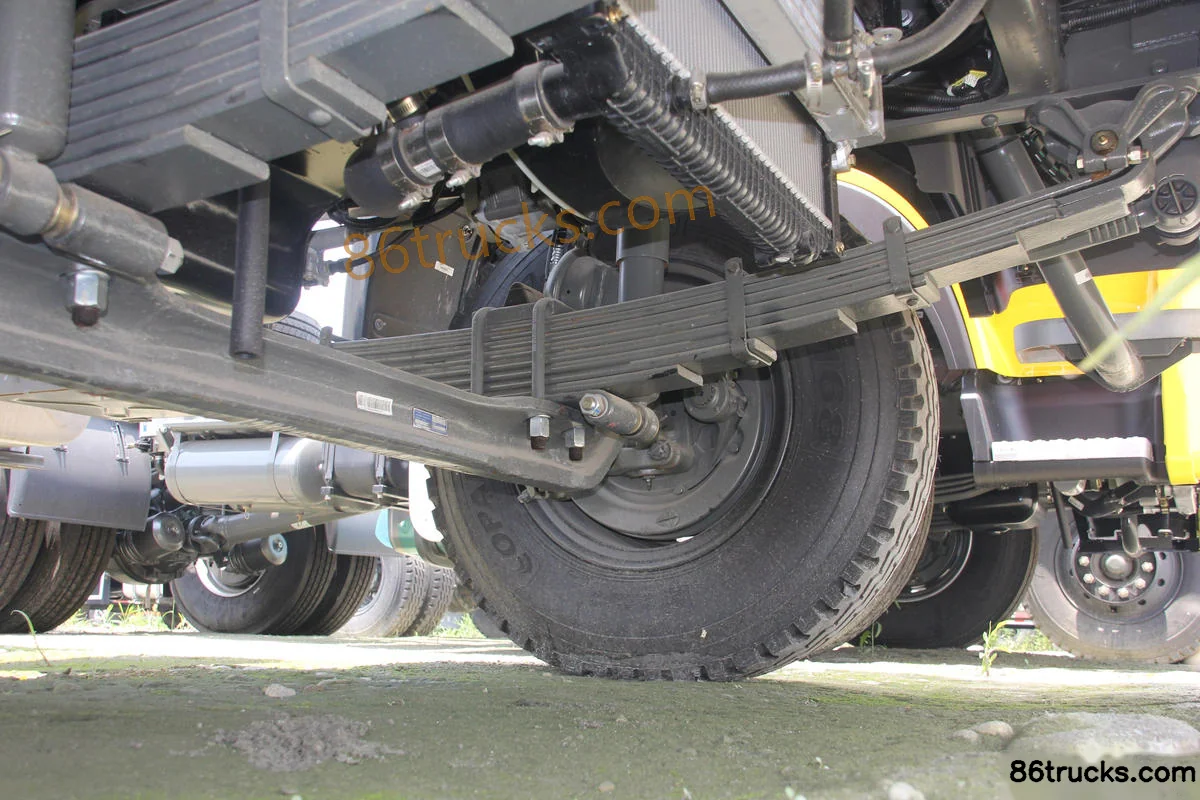

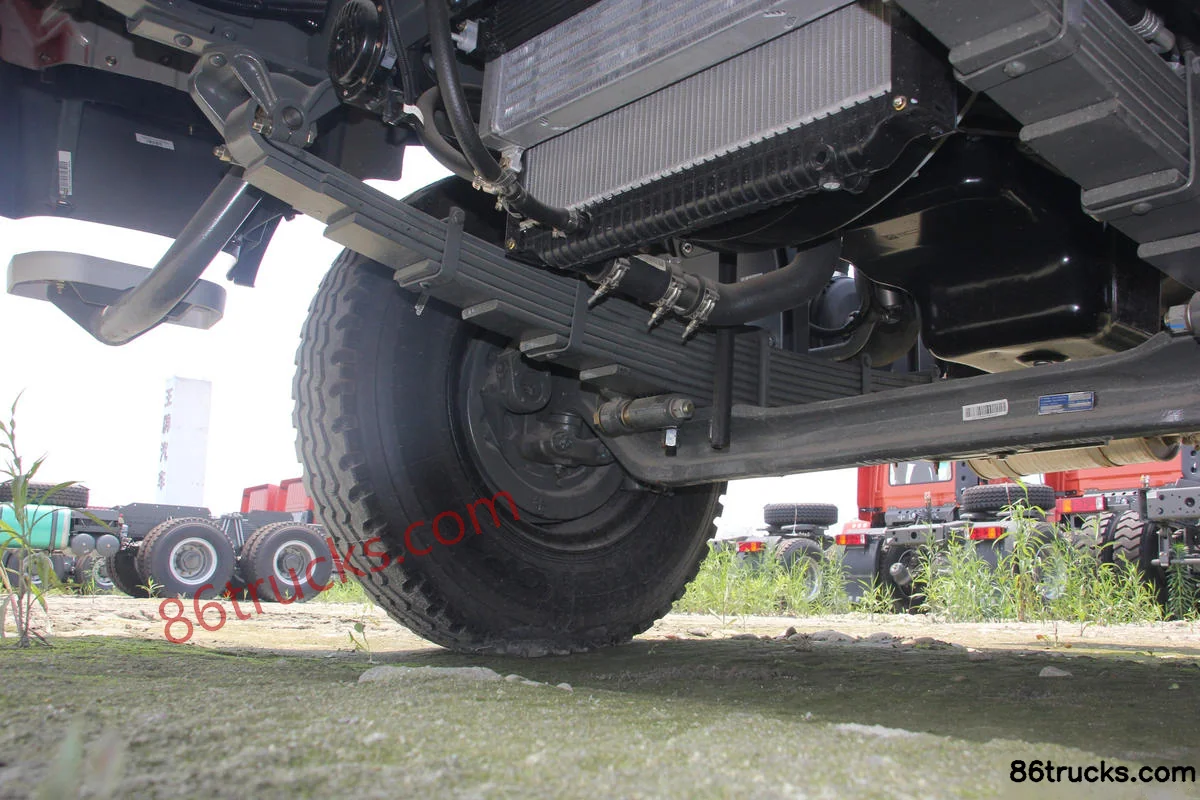

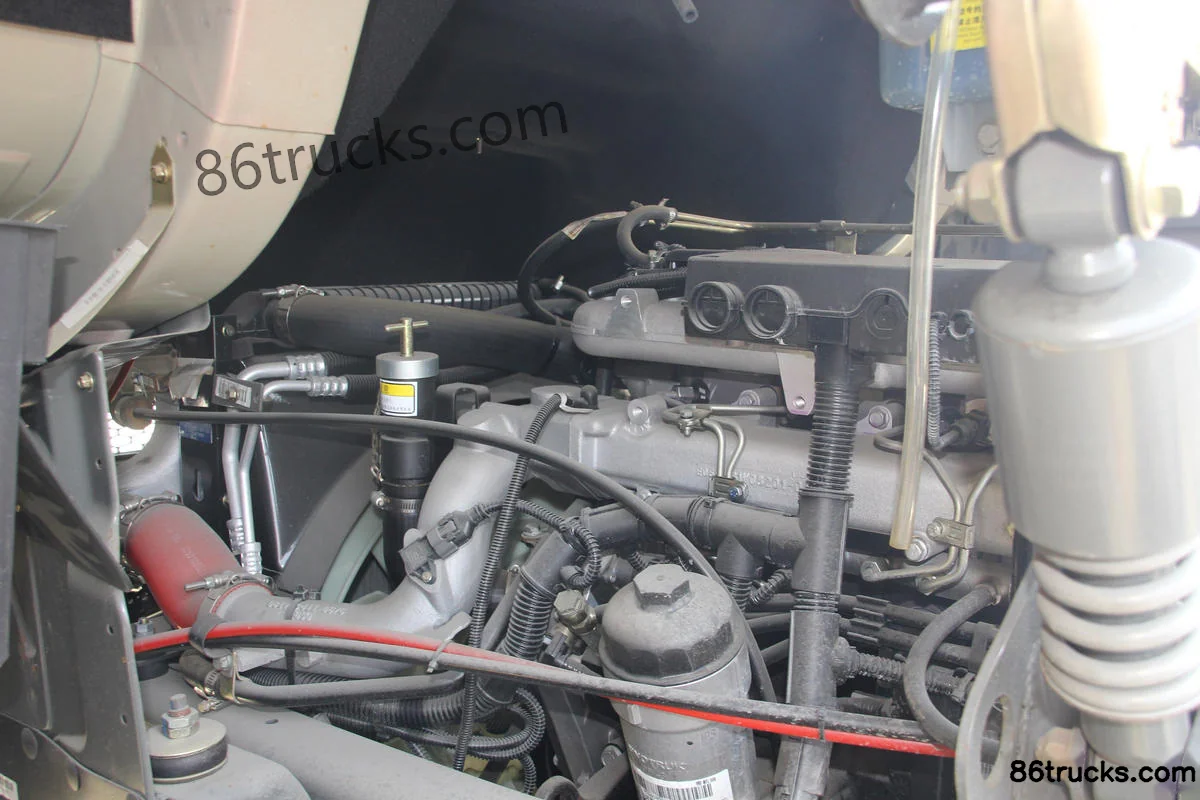

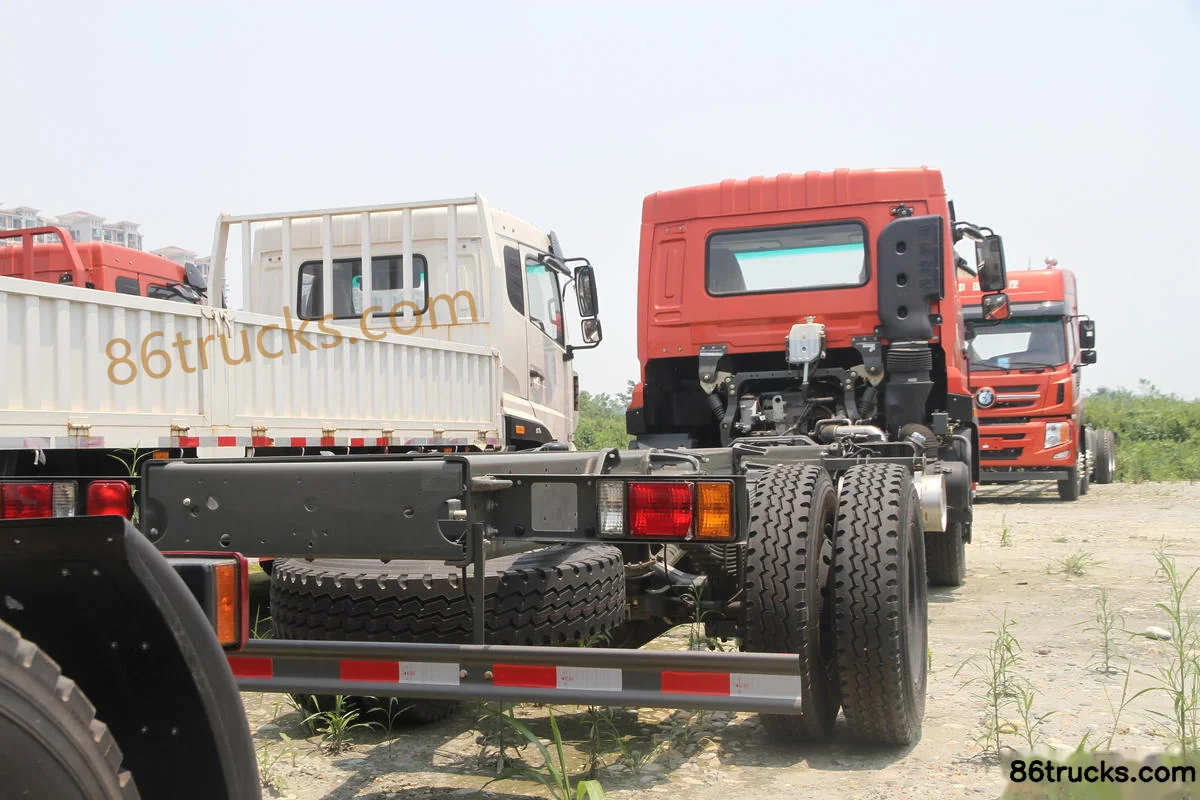

Chassis3

9 photos

FAQ

What is the export price of Sinotruk Wangpai W5D medium truck 180hp 4X2(6 wheels) 6.75m cargo truck chassis, and what does it include?

Sinotruk Wangpai W5D medium truck 180hp 4X2(6 wheels) 6.75m cargo truck chassis export reference is about From $23,292; MSRP is ¥16.77M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Wangpai W5D medium truck 180hp 4X2(6 wheels) 6.75m cargo truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai W5D medium truck 180hp 4X2(6 wheels) 6.75m cargo truck chassis?

Key specs of Sinotruk Wangpai W5D medium truck 180hp 4X2(6 wheels) 6.75m cargo truck chassis: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Engine: Sinotruk MAN 4-cylinder; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai W5D medium truck 180hp 4X2(6 wheels) 6.75m cargo truck chassis suited for?

Sinotruk Wangpai W5D medium truck 180hp 4X2(6 wheels) 6.75m cargo truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Wangpai W5D medium truck 180hp 4X2(6 wheels) 6.75m cargo truck chassis differ from other variants in the same series?

Sinotruk Wangpai W5D medium truck 180hp 4X2(6 wheels) 6.75m cargo truck chassis belongs to Sinotruk Wangpai W5D near-heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai W5D medium truck 180hp 4X2(6 wheels) 6.75m cargo truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai W5D medium truck 180hp 4X2(6 wheels) 6.75m cargo truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
