CIMC Huajun 13.75m box semi-trailer

Export reference
MSRP N/A
Cab width:: 2.55m
Design load capacity:: 32.2ton
Cab height:: 4m
Wheel brand:: Porun
Cargo box length:: 13.65m
Cargo box width:: 2.47m
Axle Brand: BPW 10-ton round axle
Curb Weight: 7.8ton
Cab length: 13.75m
Tire brand: Double Coin

Overview

The CIMC Huajun 13.75m box semi-trailer is a van semi-trailer featuring BPW 10-ton round axle-axle setup, 7.8ton GVW, 13.75m length and 32.2ton payload.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Design load capacity: 32.2ton
Cab length: 13.75m
Cab width: 2.55m
Cab height: 4m
Curb Weight: 7.8ton
Chassis Specs
Axle Brand: BPW 10-ton round axle
Number of Axles: 3
Axle Load Rating: -/24000(tri-axle group)
Wheel brand: Porun
Number of wheels: 12
Cargo box parameters
Cargo box length: 13.65m
Cargo box width: 2.47m
Cargo box height: 2.8m
Parts & accessories
Outrigger: Kemi;4S/2M
Tire
Tire brand: Double Coin
Tire Size: 245/70R19.5 12P
Number of tires: 12pcs

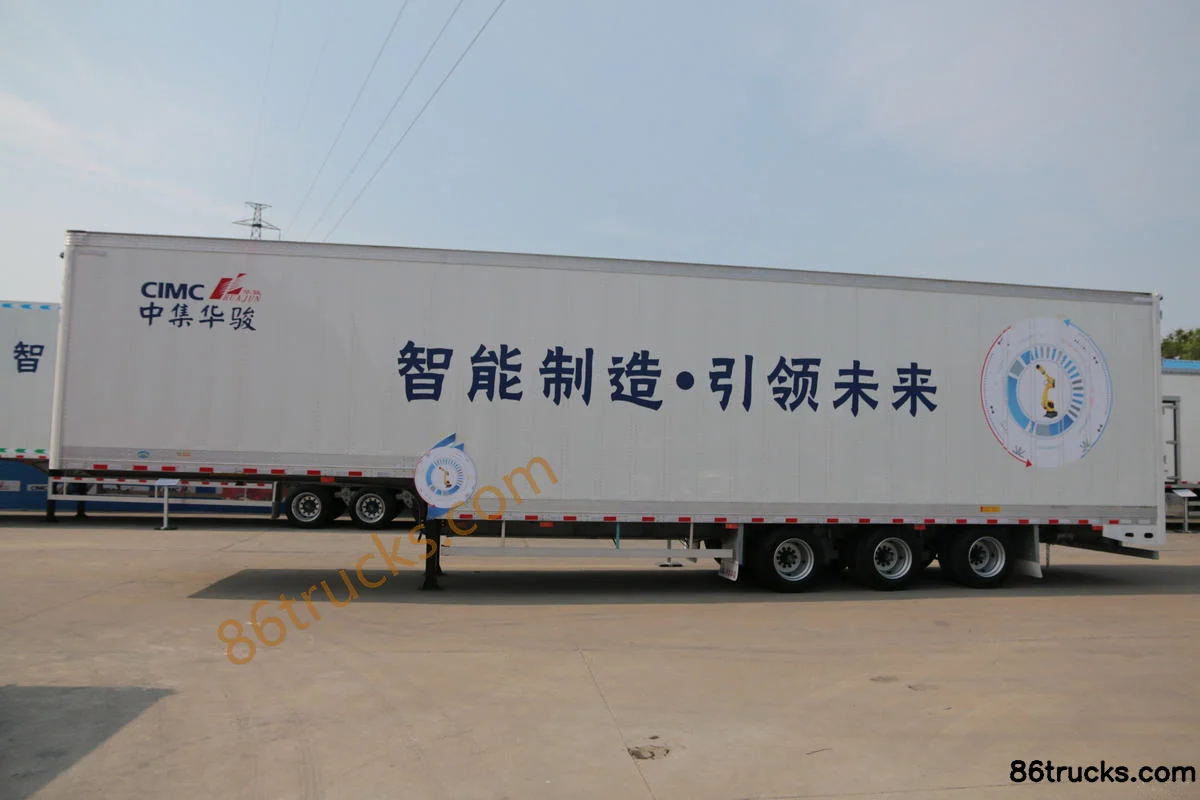

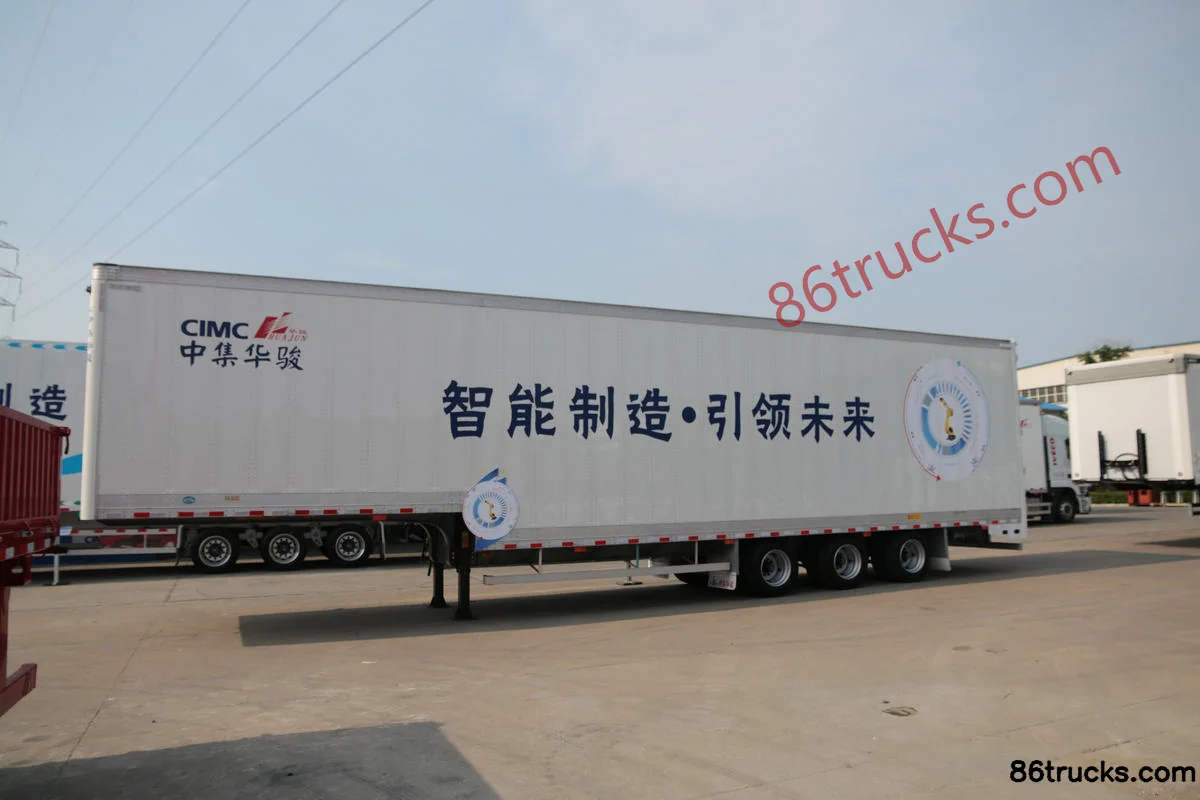

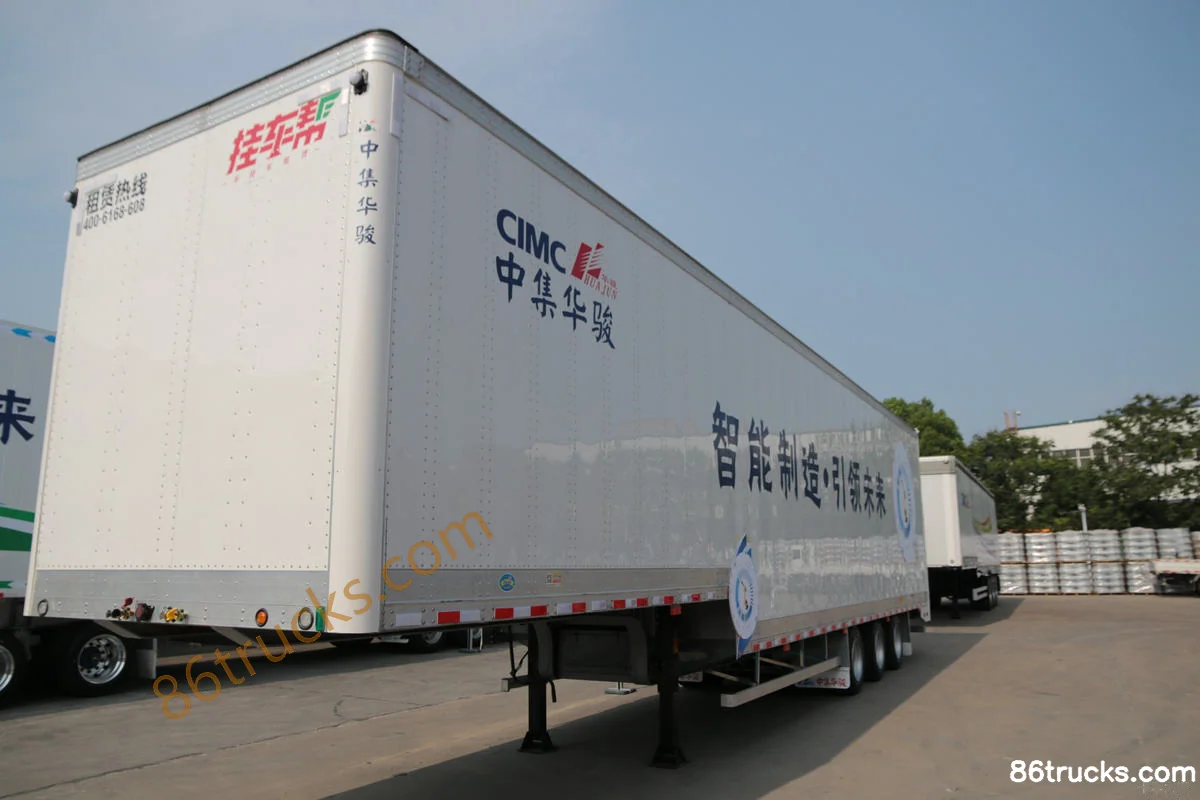

Photos

Exterior3

3 photos

FAQ

What transport jobs is CIMC Huajun 13.75m box semi-trailer suited for?

CIMC Huajun 13.75m box semi-trailer is a van semi-trailer model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does CIMC Huajun 13.75m box semi-trailer differ from other variants in the same series?

CIMC Huajun 13.75m box semi-trailer belongs to CIMC Huajun 13.75m Series (van semi-trailer). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for CIMC Huajun 13.75m box semi-trailer?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export CIMC Huajun 13.75m box semi-trailer?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
