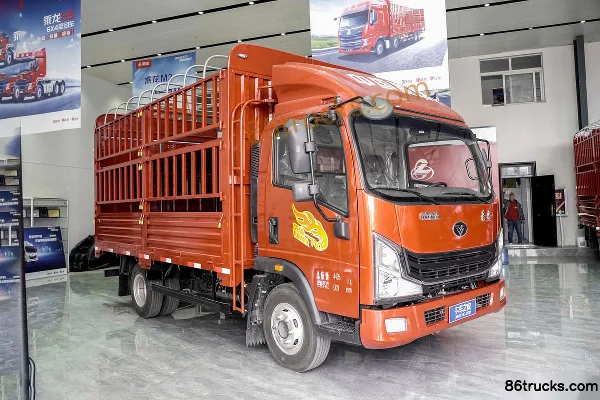

Sinotruk Pioneer H3 2.5L Diesel 185 hp 4X2(6 wheels) Sinotruk 12-speed 3.85m Semi-row Cage Cargo Truck

Export reference
From $22,222
MSRP ¥16M CNY
Horsepower: 185
Emission: China VI
Fuel: Diesel
Engine: Weichai2.5L
Transmission: Sinotruk
Curb Weight:: 2.72ton
seating capacity: 2Personnel
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Sinotruk Pioneer H3 2.5L Diesel 185 hp 4X2(6 wheels) Sinotruk 12-speed 3.85m Semi-row Cage Cargo Truck is a Light Truck featuring 3.85m cargo length, Stake type cargo body, 2Personnel volume and 1.645t payload. On the powertrain side, it comes with a Weichai2.5L engine, 185 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 185 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5048CCYG17FBD
Type: stake truck
Drive type: 4X2
Wheelbase: 3650mm
Box length class: 3.8m
engine: WeichaiWP2.5NQ190E62
transmission: SinotrukHW11712STC
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.15m
Front track width: 1595mm
rear track: 1550mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Max. speed: 89km/h
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
Front/rear suspension: 1.175/1.54m
Version: Bullish Momentum
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WP2.5NQ190E62
Engine info: Weichai2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.493L
Emission standard: China VI
Max output power: 136kW
Max hp: 185Horsepower
Transmission Parameters
Transmission Model: HW11712STC
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.85m
Cargo box width: 2.1m
*Cargo box interior width: 2.1
Cab parameters
Cab width: 2080mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 2.7T
Front axle allowable load: 1785kg
Frame Dimensions: 216/865mm
rear axle description: 7.2T
rear axle allowable load: 2710kg
Axle ratio: 4.875
Leaf spring count: 11/11+7
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Camera:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

0 photos

FAQ

What is the export price of Sinotruk Pioneer H3 2.5L Diesel 185 hp 4X2(6 wheels) Sinotruk 12-speed 3.85m Semi-row Cage Cargo Truck, and what does it include?

Sinotruk Pioneer H3 2.5L Diesel 185 hp 4X2(6 wheels) Sinotruk 12-speed 3.85m Semi-row Cage Cargo Truck export reference is about From $22,222; MSRP is ¥16M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Pioneer H3 2.5L Diesel 185 hp 4X2(6 wheels) Sinotruk 12-speed 3.85m Semi-row Cage Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Pioneer H3 2.5L Diesel 185 hp 4X2(6 wheels) Sinotruk 12-speed 3.85m Semi-row Cage Cargo Truck?

Key specs of Sinotruk Pioneer H3 2.5L Diesel 185 hp 4X2(6 wheels) Sinotruk 12-speed 3.85m Semi-row Cage Cargo Truck: Drive: 4x2; Horsepower: 185 hp; Emission: China VI; Fuel: Diesel; Engine: Weichai2.5L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Pioneer H3 2.5L Diesel 185 hp 4X2(6 wheels) Sinotruk 12-speed 3.85m Semi-row Cage Cargo Truck suited for?

Sinotruk Pioneer H3 2.5L Diesel 185 hp 4X2(6 wheels) Sinotruk 12-speed 3.85m Semi-row Cage Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Pioneer H3 2.5L Diesel 185 hp 4X2(6 wheels) Sinotruk 12-speed 3.85m Semi-row Cage Cargo Truck differ from other variants in the same series?

Sinotruk Pioneer H3 2.5L Diesel 185 hp 4X2(6 wheels) Sinotruk 12-speed 3.85m Semi-row Cage Cargo Truck belongs to Sinotruk Pioneer Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Pioneer H3 2.5L Diesel 185 hp 4X2(6 wheels) Sinotruk 12-speed 3.85m Semi-row Cage Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Pioneer H3 2.5L Diesel 185 hp 4X2(6 wheels) Sinotruk 12-speed 3.85m Semi-row Cage Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
