Dongfeng DV5 350 hp 8X4(12 wheels) 6m dump truck (China VI) (axle ratio 5.14)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 11ton
Wheelbase:: 1850+2800+1350mm
Tire Size:: 11R22.5 18PR

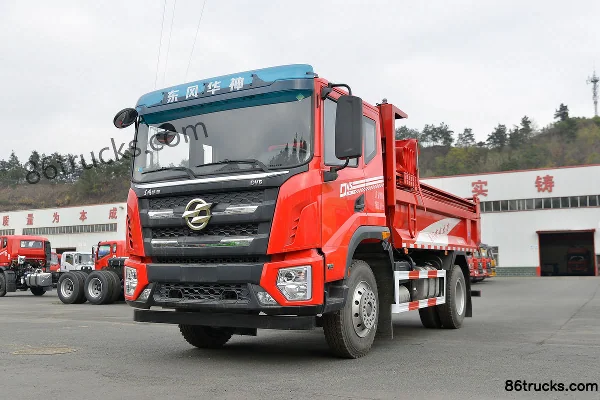

Dongfeng DV5 350 hp 8X4(12 wheels) 6m dump truck (China VI) (axle ratio 5.14) exterior
Rated payload: 19.87ton
Drive 8X4 (12 wheels)
Horsepower 350
Cargo box type: Dump type

Overview

The Dongfeng DV5 350 hp 8X4(12 wheels) 6m dump truck (China VI) (axle ratio 5.14) is a Heavy truck featuring 19.87t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYCK08350-60 engine, 350 hp, China VI emissions and Fast Gear transmission.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): EQ3318GL6D11
Drive type: 8X4
Wheelbase: 1850+2800+1350mm
engine: YuchaiYCK08350-60
transmission: Fast Gear10JSD140B
Rear Axle Ratio: 5.14
Cab length: 9.1m
Cab width: 2.55m
Cab height: 3.08m
Front track width: 1910/1910mm
rear track: 1860/1860mm
Curb Weight: 11ton
Rated payload: 19.87ton
GVWR: 31ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 22°
departure angle: 28°
Remarks: Standard: digital instrument cluster, PTO, sun visor, driver right armrest, desert air filter; Optional: front roof
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK08350-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.7L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1450N·m
Max torque speed: 1300-1500rpm
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear10JSD140B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum housing
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6m
Cargo box width: 2.35m
Cargo box height: 1.1m
Cab parameters
Cab: T712G Standard Roof
Cab width: 2350mm
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 3.6T*2
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280(7+4)mm
rear axle description: 10T heavy-duty *2
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.14
Leaf spring count: 9/9/9
clutch: Φ430
Tire
Tire Size: 11R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:

Photos

0 photos

FAQ

What emission standard does Dongfeng DV5 350 hp 8X4(12 wheels) 6m dump truck (China VI) (axle ratio 5.14) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng DV5 350 hp 8X4(12 wheels) 6m dump truck (China VI) (axle ratio 5.14)?

Key specs of Dongfeng DV5 350 hp 8X4(12 wheels) 6m dump truck (China VI) (axle ratio 5.14): Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng DV5 350 hp 8X4(12 wheels) 6m dump truck (China VI) (axle ratio 5.14) suited for?

Dongfeng DV5 350 hp 8X4(12 wheels) 6m dump truck (China VI) (axle ratio 5.14) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng DV5 350 hp 8X4(12 wheels) 6m dump truck (China VI) (axle ratio 5.14) differ from other variants in the same series?

Dongfeng DV5 350 hp 8X4(12 wheels) 6m dump truck (China VI) (axle ratio 5.14) belongs to DongfengDV5 heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng DV5 350 hp 8X4(12 wheels) 6m dump truck (China VI) (axle ratio 5.14)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng DV5 350 hp 8X4(12 wheels) 6m dump truck (China VI) (axle ratio 5.14)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
