DeepWay Shenxiang Xingchen 4X2(6 wheels) Battery Swap Electric Tractor Truck CATL 513kWh

Export reference
MSRP N/A
Front axle allowable load:: 6500kg
Wheelbase:: 5000mm
Model code (announced):: HFC4189SEV03
Front/rear track width:: Front track: 2090mm; Rear track: 1866mm
Cab length:: 7.075m
GVWR:: 18ton

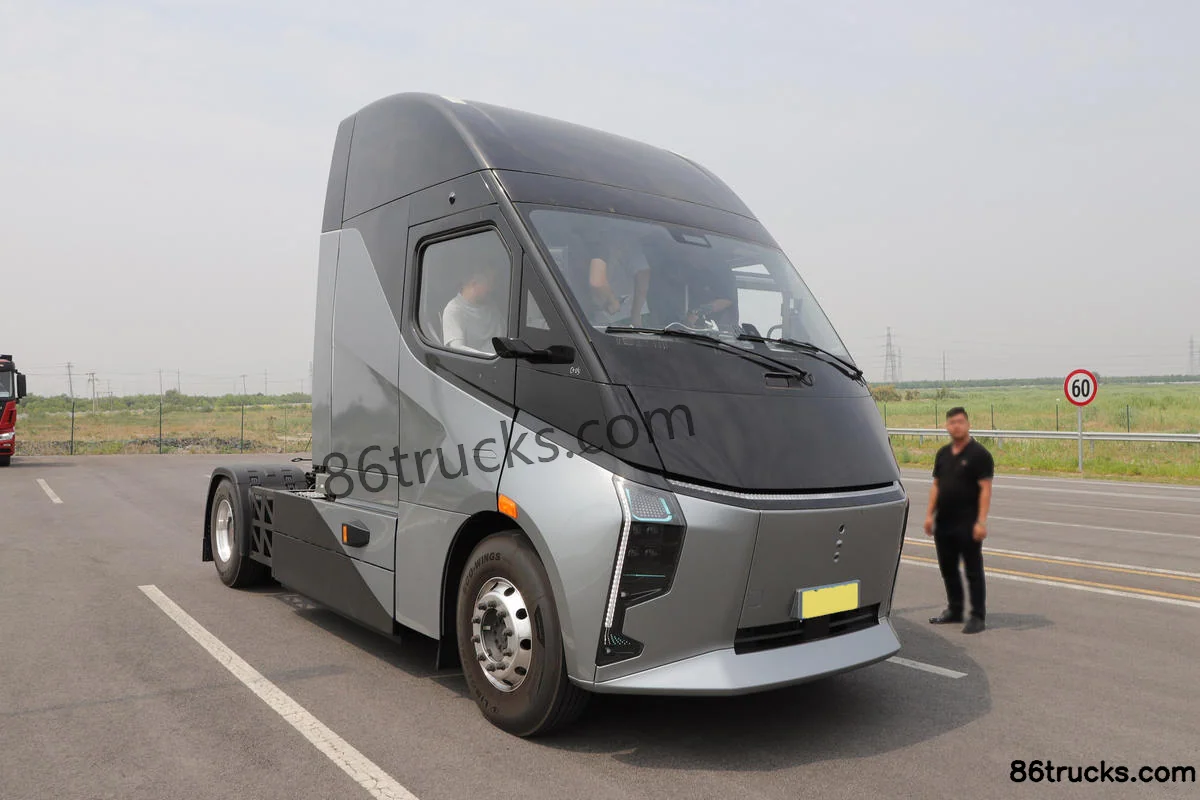

DeepWay Shenxiang Xingchen 4X2(6 wheels) Battery Swap Electric Tractor Truck CATL 513kWh exterior
View more photos (1)
Drive 4X2 (6 wheels)
battery swap support: Supported
Motor 2 Brand: Hangzhou Shidai
Gross Trailer Weight: 32.67ton

Overview

The DeepWay Shenxiang Xingchen 4X2(6 wheels) Battery Swap Electric Tractor Truck CATL 513kWh is a Heavy truck featuring Supported battery/range, Hangzhou Shidai motor, 4X2 (6 wheels) drive and 6500kg payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC4189SEV03
Drive type: 4X2
Wheelbase: 5000mm
Front/rear track width: Front track: 2090mm; Rear track: 1866mm
Cab length: 7.075m
Cab width: 2.55m
Cab height: 3.95m
Gross Trailer Weight: 32.67ton
Curb Weight: 9.5ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Hefei, Anhui
battery swap support: Supported
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 2 Brand: Hangzhou Shidai
Motor 2 Model: TZ260XS-80-09
Motor 1 Brand: Hangzhou Shidai
Motor 1 Model: TZ260XS-80-09
Motor Type: Permanent magnet synchronous motor
total rated power: 160kW
Peak power: 360kW
total rated torque: 500N·m
Motor 1 Peak Power: 180kW
Motor 2 Peak Power: 180kW
Number of drive motors: Dual Motor
Battery/Charging
Charging method: Fast Charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.5h
Battery capacity: 513kWh
Cab parameters
seating capacity: 2Personnel
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 5.6T
Front axle allowable load: 6500kg
rear axle description: 13T
rear axle allowable load: 11500kg
Axle ratio: 3.947
Tire
Tire Size: 12R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Exterior features
Air deflector:
Aluminum air tank:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
adaptive cruise control (ACC):

Photos

Exterior1

DeepWay Shenxiang Xingchen 4X2(6 wheels) Battery Swap Electric Tractor Truck CATL 513kWh Exterior (1) | 86Trucks

1 photos

FAQ

What are the key specs of DeepWay Shenxiang Xingchen 4X2(6 wheels) Battery Swap Electric Tractor Truck CATL 513kWh?

Key specs of DeepWay Shenxiang Xingchen 4X2(6 wheels) Battery Swap Electric Tractor Truck CATL 513kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is DeepWay Shenxiang Xingchen 4X2(6 wheels) Battery Swap Electric Tractor Truck CATL 513kWh suited for?

DeepWay Shenxiang Xingchen 4X2(6 wheels) Battery Swap Electric Tractor Truck CATL 513kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does DeepWay Shenxiang Xingchen 4X2(6 wheels) Battery Swap Electric Tractor Truck CATL 513kWh differ from other variants in the same series?

DeepWay Shenxiang Xingchen 4X2(6 wheels) Battery Swap Electric Tractor Truck CATL 513kWh belongs to DeepWay Deep Sky Electric Heavy Truck (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for DeepWay Shenxiang Xingchen 4X2(6 wheels) Battery Swap Electric Tractor Truck CATL 513kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export DeepWay Shenxiang Xingchen 4X2(6 wheels) Battery Swap Electric Tractor Truck CATL 513kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
