Volvo FMX Series 440 hp 8X4(12 wheels) Mining Dump Truck

Export reference
MSRP N/A
Drive: 8X4 (12 wheels)
Wheelbase:: 1995+2605+1370mm
Cab dimensions:: 9.07X2.6X1.37m
Rated payload:: 34.5ton
GVWR:: 50ton
Max. speed:: 45km/h
Curb Weight: 15.5ton
Horsepower 440
Max output power: 324kW
Emission China III / Euro III

Overview

The Volvo FMX Series 440 hp 8X4(12 wheels) Mining Dump Truck is a off-highway mining dump truck featuring 50t GVW, 440 hp, 324kW power and 8X4 (12 wheels) drive. On the powertrain side, it comes with China III / Euro III emissions.

China III / Euro III 440 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.07X2.6X1.37m
Drive type: 8X4
Wheelbase: 1995+2605+1370mm
Curb Weight: 15.5ton
Rated payload: 34.5ton
GVWR: 50ton
Max. speed: 45km/h
Body Parameters
Truck Brand: Volvo
Chassis Specs
Front/rear axle load: 18/32, rear axle wheel hub reduction with diff lockton
Engine parameters
Engine Model: Volvo VOLVO D13
Displacement: 12.8L
Emission standard: China III / Euro III
Max output power: 324kW
Max hp: 440Horsepower
Max torque speed: 2200/1050-1400rpm
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Volvo l-shift AT2512
Tire
Tire Size: 12.00R24
Number of tires: 12pcs

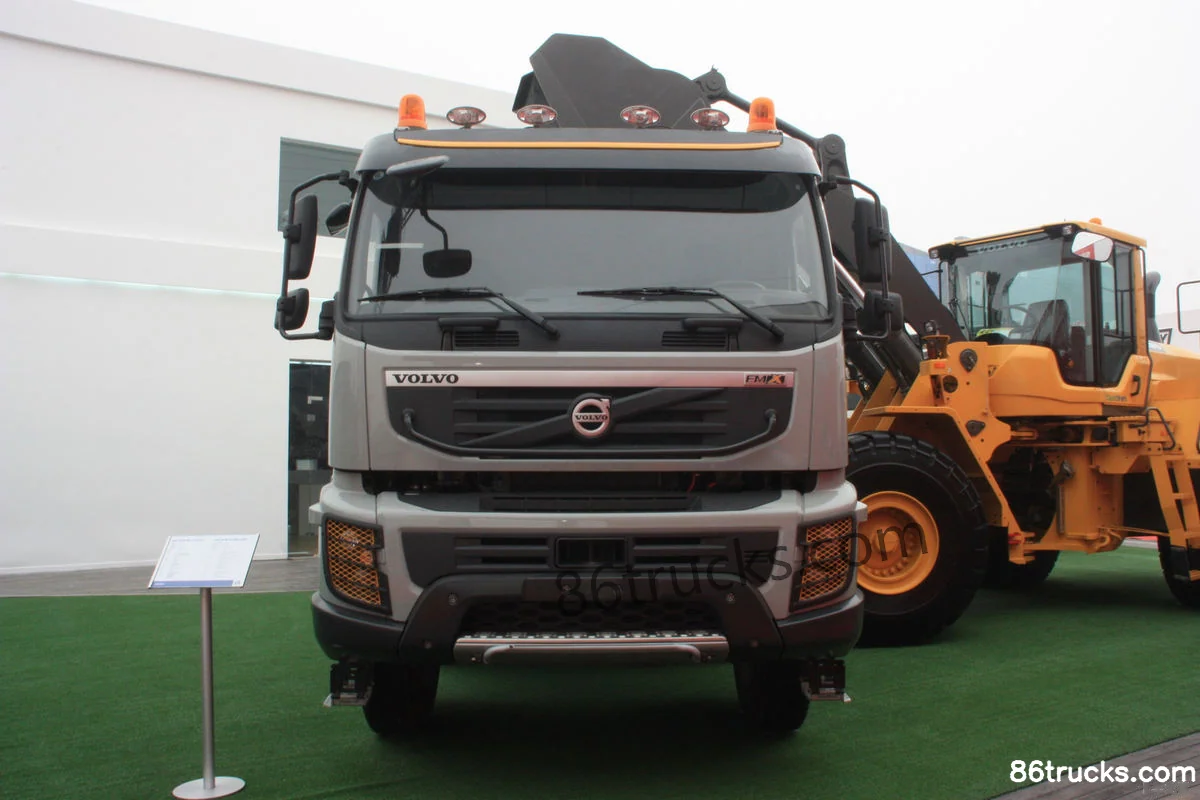

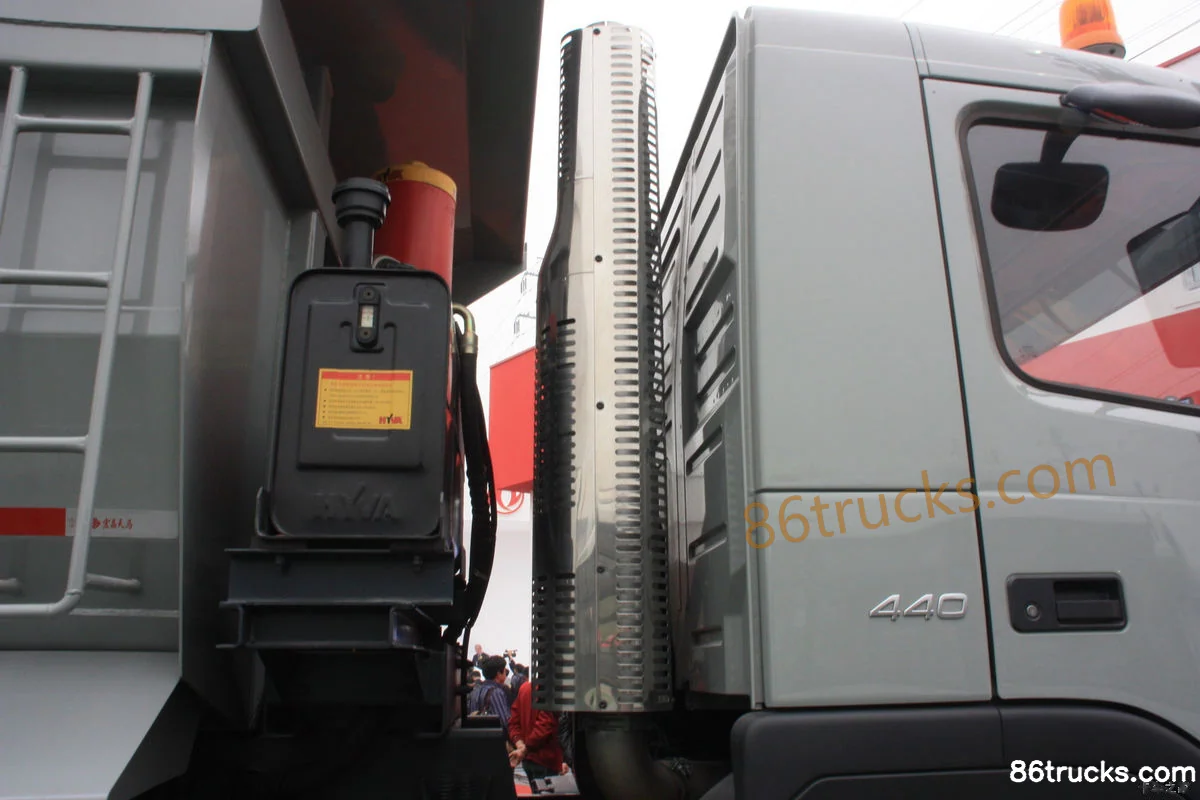

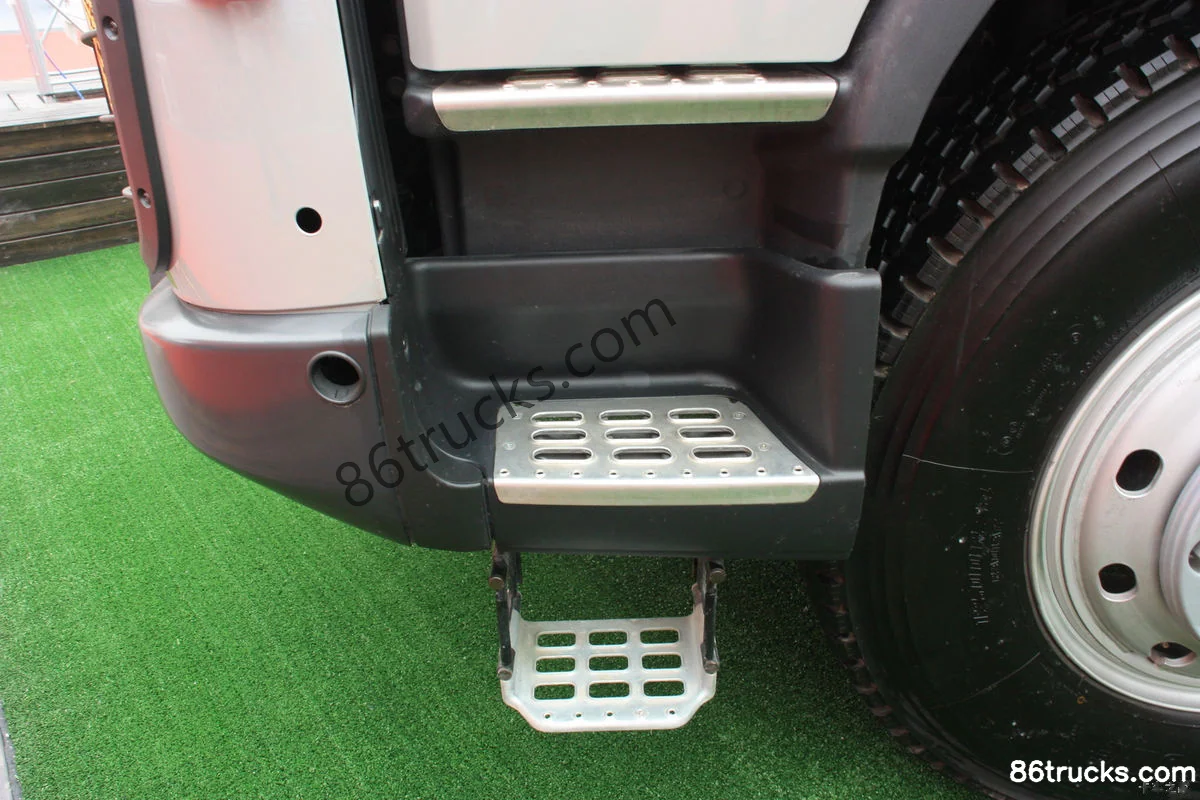

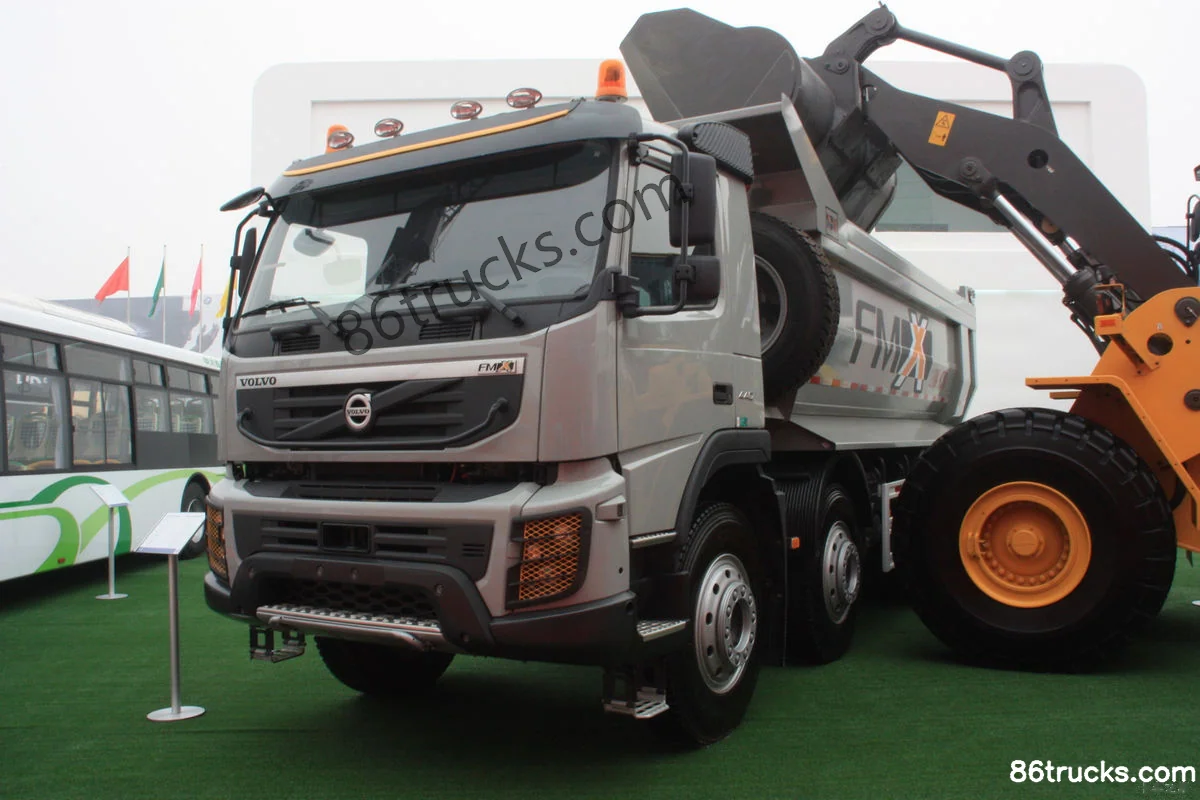

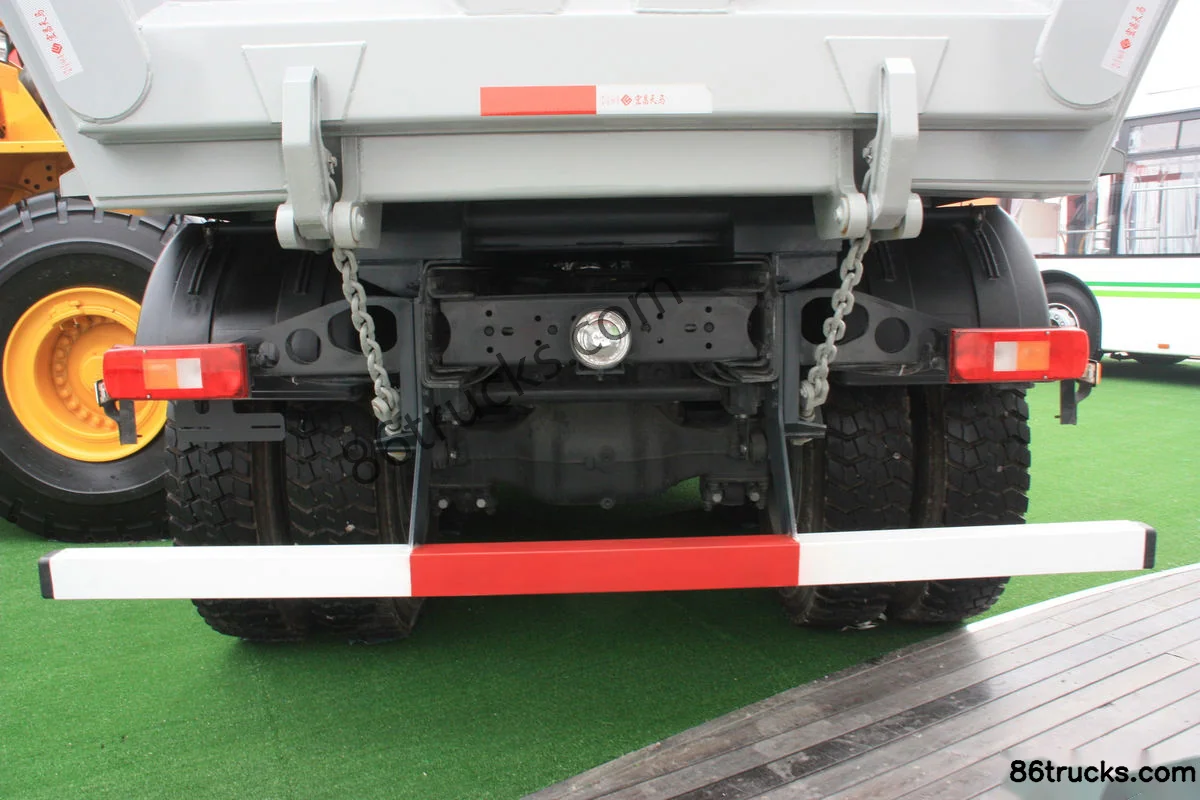

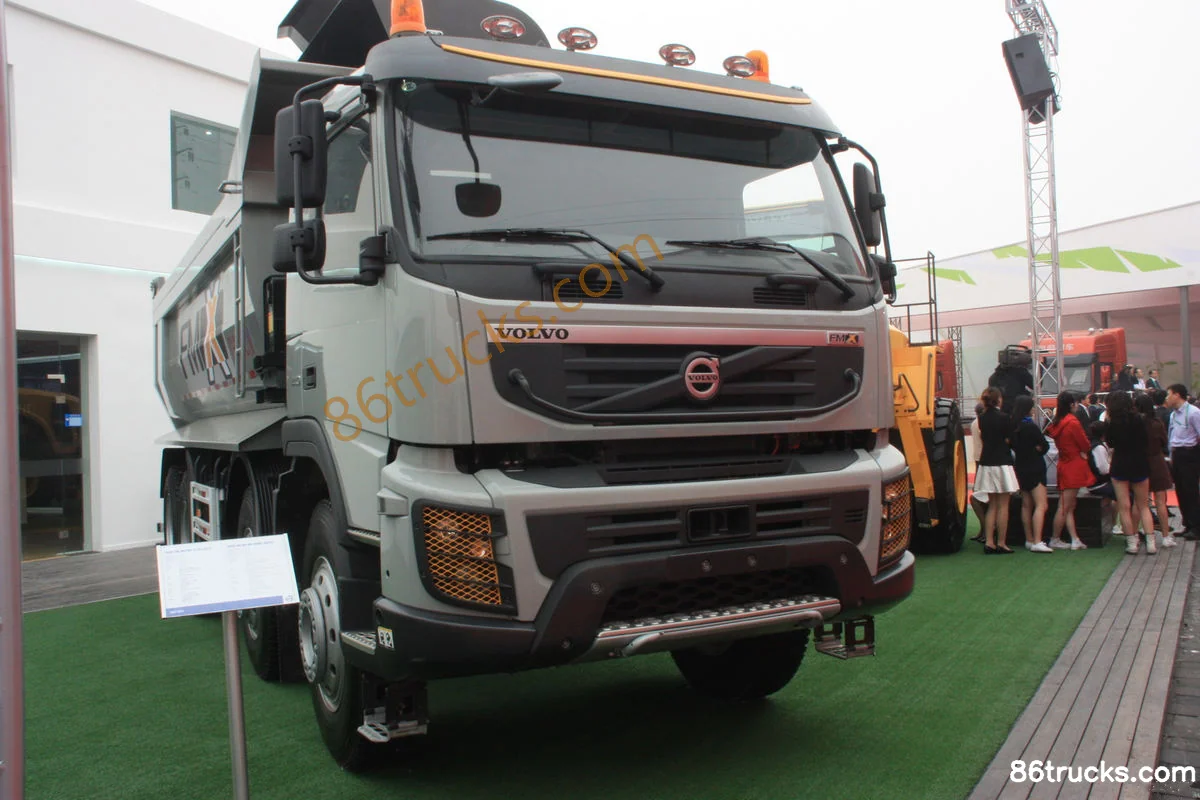

Photos

Exterior3

Chassis3

6 photos

FAQ

What emission standard does Volvo FMX Series 440 hp 8X4(12 wheels) Mining Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Volvo FMX Series 440 hp 8X4(12 wheels) Mining Dump Truck?

Key specs of Volvo FMX Series 440 hp 8X4(12 wheels) Mining Dump Truck: Drive: 8x4; Horsepower: 440 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Volvo FMX Series 440 hp 8X4(12 wheels) Mining Dump Truck suited for?

Volvo FMX Series 440 hp 8X4(12 wheels) Mining Dump Truck is a off-highway mining dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Volvo FMX Series 440 hp 8X4(12 wheels) Mining Dump Truck differ from other variants in the same series?

Volvo FMX Series 440 hp 8X4(12 wheels) Mining Dump Truck belongs to Volvo FMX heavy truck (off-highway mining dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Volvo FMX Series 440 hp 8X4(12 wheels) Mining Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Volvo FMX Series 440 hp 8X4(12 wheels) Mining Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
