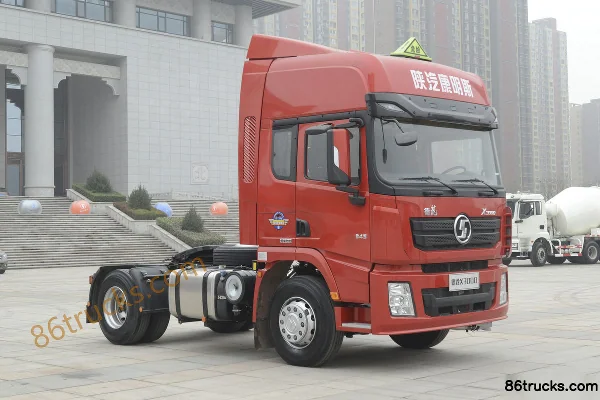

SHACMAN Cummins Delong X3000 Lightweight Special Offer Edition 385 hp 4X2(6 wheels) Hazardous Material Tractor Truck (Eaton 13-speed)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 34ton
Wheelbase:: 3600mm
Tire Size:: 12R22.5
Front axle allowable load:: 7000kg
Displacement:: 10.8L
Drive 4X2 (6 wheels)
Horsepower 385
Emission China V
Transmission Eaton

Overview

The SHACMAN Cummins Delong X3000 Lightweight Special Offer Edition 385 hp 4X2(6 wheels) Hazardous Material Tractor Truck (Eaton 13-speed) is a Heavy truck featuring 4X2 (6 wheels) drive, 385 hp, 18t GVW and China V emissions. Its segment focus covers dangerous goods transport, matching those duty cycles. On the powertrain side, it comes with a Xi’an CumminsISM11E5 385 engine, Eaton transmission and Diesel fuel.

China V 385 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX4180XC1W
Drive type: 4X2
Wheelbase: 3600mm
engine: Xi’an CumminsISM11E5 385
transmission: EatonET-20013
Rear Axle Ratio: 4.111
Cab length: 6.15m
Cab width: 2.49m
Cab height: 3.65m
Front track width: 2036mm
rear track: 1860mm
Gross Trailer Weight: 34ton
Curb Weight: 7.8ton
GVWR: 18ton
Max. speed: 80km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
market segment: dangerous goods transport
Remarks: Fiberglass bumper, Tianxingjian Zhiya Edition BD terminal, domestic four-channel ABS, 165Ah maintenance-free battery, standard rearview mirror, three-piece integrated fender, antistatic rubber drag strap, electromagnetic master switch, ISM engine standard Jacob brake, standard steering wheel, ISM model standard dual-cylinder air compressor, ECU speed limiter, front axle disc brake, hazardous material sign, 2kg fire extinguisher, front exhaust (with flame arrestor), WABCO brake valve, VOSS brake fittings, lightweight rim; optional extended high-roof cab with deflector, standard 50# fifth wheel
Version: Lightweight Mega Deal Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Xi’an Cummins
Engine Model: Xi’an CumminsISM11E5 385
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 10.8L
Emission standard: China V
Max output power: 283kW
Max hp: 385Horsepower
Max torque: 1900N·m
Max torque speed: 1100-1300rpm
Rated speed: 1900rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: EatonET-20013
Transmission Brand: Eaton
shift method: Manual
Forward gears: 13Gear
Number of Reverse Gears: 3pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 400L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
Cab tilting: Electric
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Suspension type: Front and rear leaf springs (few)
Front axle description: MAN 7.5T
Front axle allowable load: 7000kg
Fifth wheel: JOST lightweight 90 fifth wheel
Frame Dimensions: (940-850)×300(single 8)mm
rear axle description: 13T MAN single reduction
Steering gear: Domestic
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.111
Leaf spring count: 4/3,3/3,9/9+6
Suspension (front/rear): Leaf spring
Tire
Tire Size: 12R22.5
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Electronic Central Lock:
Exterior features
Air deflector:
Service brake
Engine brake: Jacob brake
Multimedia features
GPS/Beidou driving recorder:
lighting configuration
daytime running lights:

Photos

0 photos

FAQ

What emission standard does SHACMAN Cummins Delong X3000 Lightweight Special Offer Edition 385 hp 4X2(6 wheels) Hazardous Material Tractor Truck (Eaton 13-speed) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Cummins Delong X3000 Lightweight Special Offer Edition 385 hp 4X2(6 wheels) Hazardous Material Tractor Truck (Eaton 13-speed)?

Key specs of SHACMAN Cummins Delong X3000 Lightweight Special Offer Edition 385 hp 4X2(6 wheels) Hazardous Material Tractor Truck (Eaton 13-speed): Drive: 4x2; Horsepower: 385 hp; Emission: China V; Fuel: Diesel; Transmission: Eaton. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Cummins Delong X3000 Lightweight Special Offer Edition 385 hp 4X2(6 wheels) Hazardous Material Tractor Truck (Eaton 13-speed) suited for?

SHACMAN Cummins Delong X3000 Lightweight Special Offer Edition 385 hp 4X2(6 wheels) Hazardous Material Tractor Truck (Eaton 13-speed) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Cummins Delong X3000 Lightweight Special Offer Edition 385 hp 4X2(6 wheels) Hazardous Material Tractor Truck (Eaton 13-speed) differ from other variants in the same series?

SHACMAN Cummins Delong X3000 Lightweight Special Offer Edition 385 hp 4X2(6 wheels) Hazardous Material Tractor Truck (Eaton 13-speed) belongs to SHACMAN Delong X3000 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Cummins Delong X3000 Lightweight Special Offer Edition 385 hp 4X2(6 wheels) Hazardous Material Tractor Truck (Eaton 13-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Cummins Delong X3000 Lightweight Special Offer Edition 385 hp 4X2(6 wheels) Hazardous Material Tractor Truck (Eaton 13-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
