Qingling TF Series 3.0L Diesel 4WD Double Cab Pickup

Export reference
MSRP N/A
Curb Weight:: 1.7ton
Wheelbase:: 3025mm
Rated payload:: 0.8ton
Displacement:: 3L
Model code (announced):: QL1030XGDSB
Min. turning diameter:: 11.8m
Drive 4WD
Horsepower 130
Emission China III / Euro III
Fuel Diesel

Overview

The Qingling Isuzu Qingling TF Series 3.0L Diesel 4WD Double Cab Pickup is a pickup truck featuring 4WD drive, 130 hp, 2.625t GVW and China III / Euro III emissions. On the powertrain side, it comes with Diesel fuel.

China III / Euro III 130 Diesel 4WD

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QL1030XGDSB
Drive type: 4WD
Min. turning diameter: 11.8m
Front/rear track width: 1425/1435mm
Wheelbase: 3025mm
Cab length: 4.975m
Cab width: 1.69m
Cab height: 1.64m
Approach/departure angle: 30/20°
Min ground clearance: 205cm
Curb Weight: 1.7ton
Rated payload: 0.8ton
GVWR: 2.625ton
Max. speed: 130km/h
Origin: Chongqing
Front/rear suspension: 0.785/1.165m
Energy Type: Diesel
Engine parameters
Engine Model: Isuzu 4KH1-TC1
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3L
Emission standard: China III / Euro III
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 280N·m
Transmission Parameters
Number of gears: 5Gear
shift type: Manual
Transmission Model: 5-speed gearbox
Cargo box parameters
Cargo box type: stake body
Cargo box length: 1.486m
Cargo box width: 1.47m
Cargo box height: 0.447m
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab

Photos

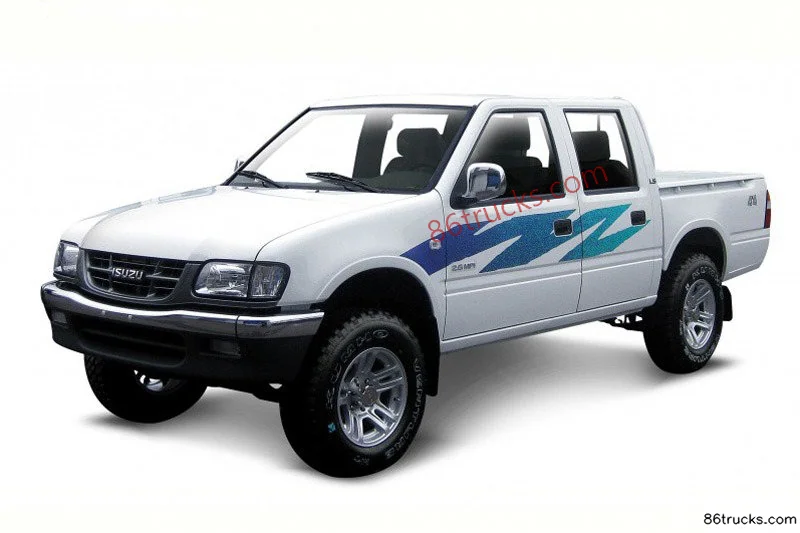

Exterior1

1 photos

FAQ

What emission standard does Qingling TF Series 3.0L Diesel 4WD Double Cab Pickup use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Qingling TF Series 3.0L Diesel 4WD Double Cab Pickup?

Key specs of Qingling TF Series 3.0L Diesel 4WD Double Cab Pickup: Drive: 4WD; Horsepower: 130 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling TF Series 3.0L Diesel 4WD Double Cab Pickup suited for?

Match Qingling TF Series 3.0L Diesel 4WD Double Cab Pickup to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Qingling TF Series 3.0L Diesel 4WD Double Cab Pickup differ from other variants in the same series?

Qingling TF Series 3.0L Diesel 4WD Double Cab Pickup belongs to Qingling Isuzu IsuzuTF (pickup truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling TF Series 3.0L Diesel 4WD Double Cab Pickup?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling TF Series 3.0L Diesel 4WD Double Cab Pickup?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
