Qingling Isuzu KV100 2023 120 hp 4X2(6 wheels) 2.52m engineering truck (China VI)

Export reference
MSRP N/A
Horsepower: 120
Emission: China VI
Fuel: Diesel
Engine: Qingling Isuzu4KH1
Transmission: Isuzu
Curb Weight:: 3.3ton
Fuel tank capacity: 100L
Rated payload: 0.675ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Qingling Isuzu KV100 2023 120 hp 4X2(6 wheels) 2.52m engineering truck (China VI) is a Light Truck featuring 2.52m cargo length, stake body cargo body, 100L volume and 0.675t payload. On the powertrain side, it comes with a Qingling Isuzu4KH1 engine, 120 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QL5040XGCBUHAJ
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 2.5m
engine: Qingling Isuzu4KH1CN6LB
transmission: IsuzuMSB-5SM
Rear Axle Ratio: 5.375
Cab length: 5.995m
Cab width: 2.01m
Cab height: 2.87m
Front track width: 1685mm
rear track: 1525mm
Curb Weight: 3.3ton
Rated payload: 0.675ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Jiulongpo, Chongqing
tonnage class: Light Truck
Approach angle: 22°
departure angle: 15°
Remarks: Three rows of seats, rated for 6-9 passengers
Front/rear suspension: 1.11/1.525m
Energy Type: Diesel
Engine parameters
Engine Brand: Qingling Isuzu
Engine Model: Qingling Isuzu4KH1CN6LB
Engine info: Qingling Isuzu4KH1
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.999L
Emission standard: China VI
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 290N·m
Transmission Parameters
Transmission Model: IsuzuMSB-5SM
Transmission Brand: Isuzu
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.52m
Cargo box width: 1.89m
Cargo box height: 0.6m
*Cargo box interior width: 1.8899999856949
Cab parameters
Cab width: 2030mm
fuel tank
Fuel tank capacity: 100L
Chassis Specs
Front axle description: F033
Front axle allowable load: 1750kg
rear axle description: R048
rear axle allowable load: 2745kg
Axle ratio: 5.375
Tire
Tire Size: 7.00R16LT 8PR
Tire Type: tubeless tire
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Manual
Power Windows:
Reverse Camera:
Electronic Central Lock:
Multimedia features
Radio:
lighting configuration
Front fog lamp:
Service brake
Exhaust brake:
smart configuration
Telematics System:
Cruise control (CCS):

Photos

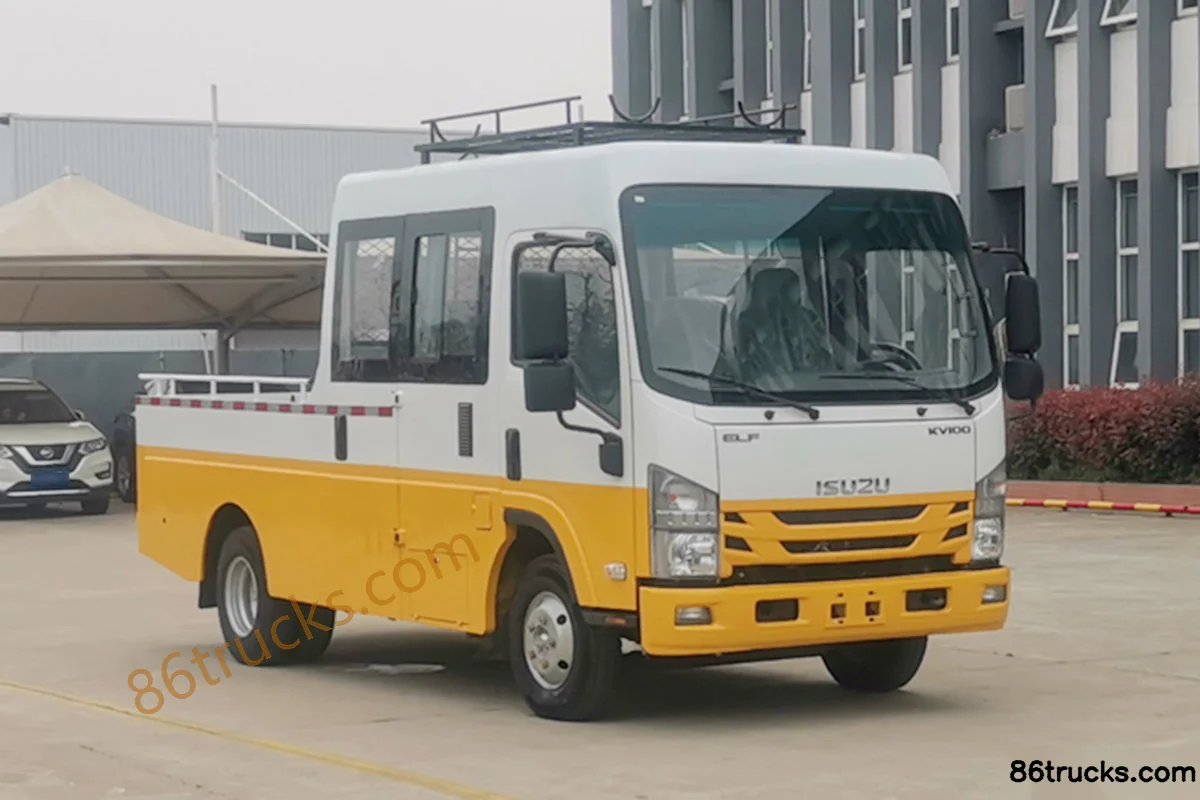

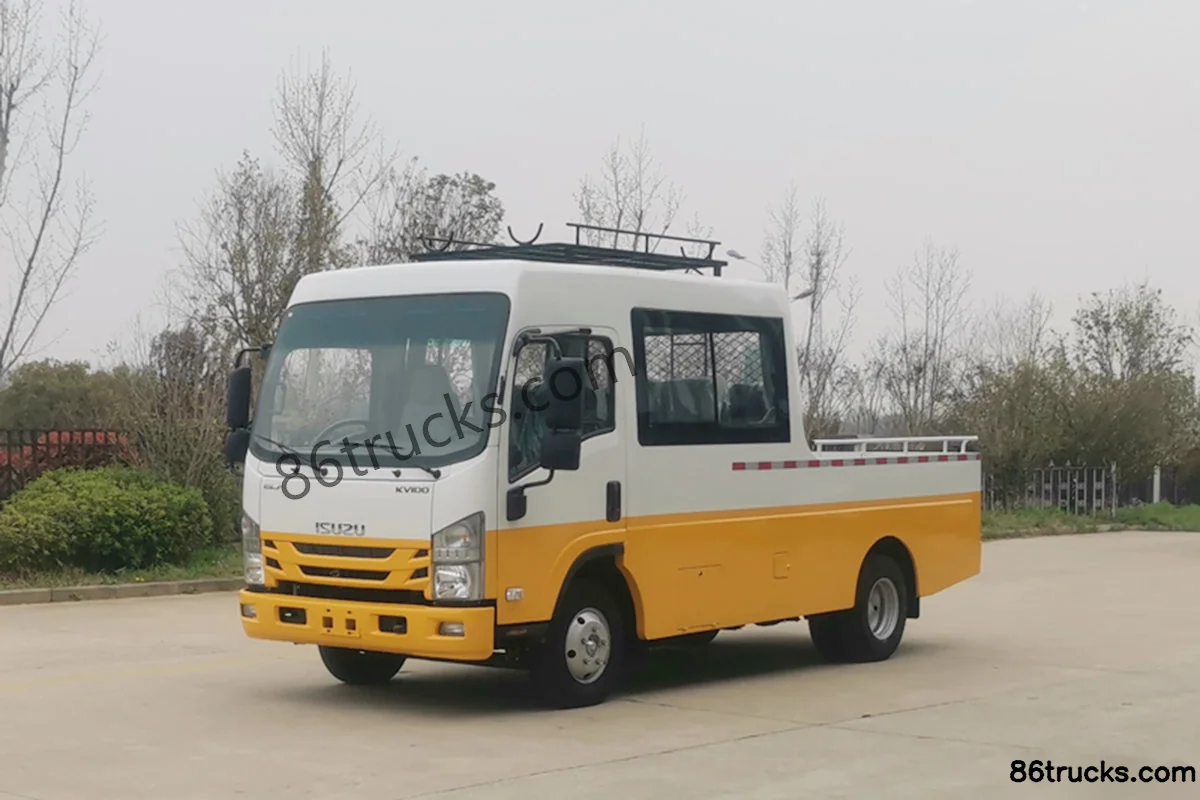

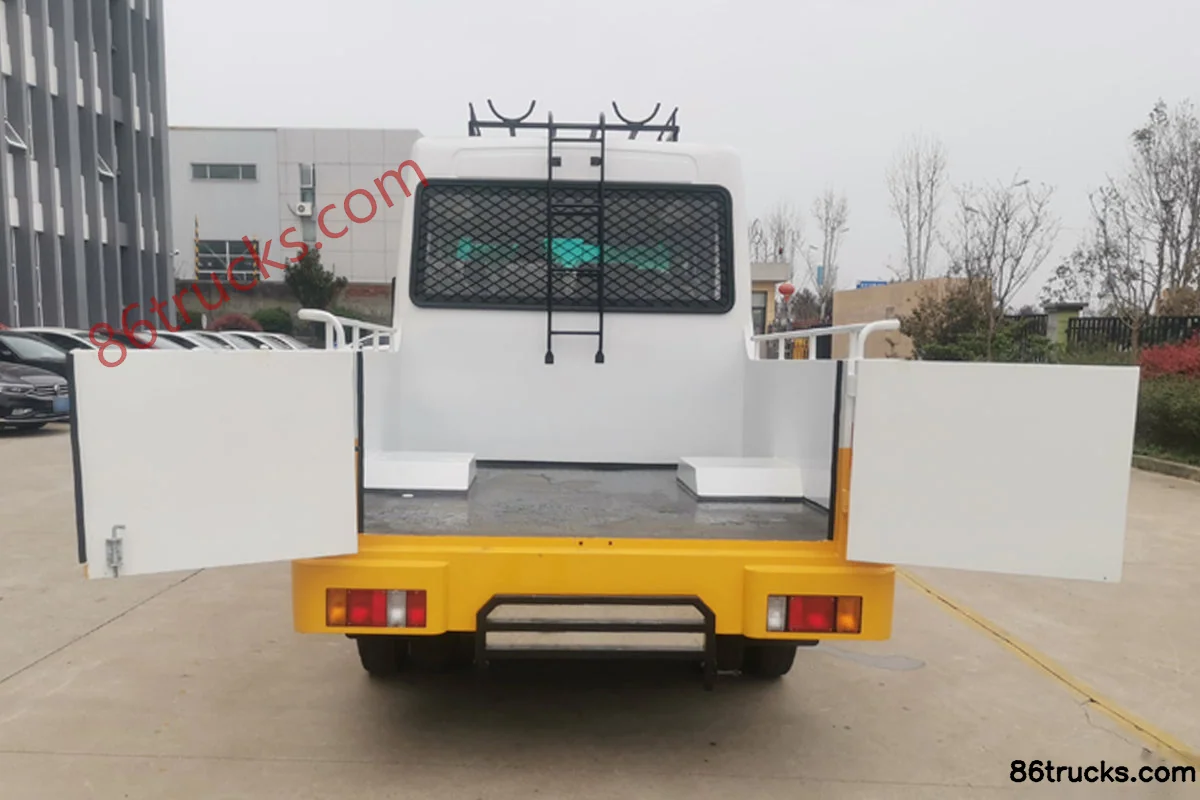

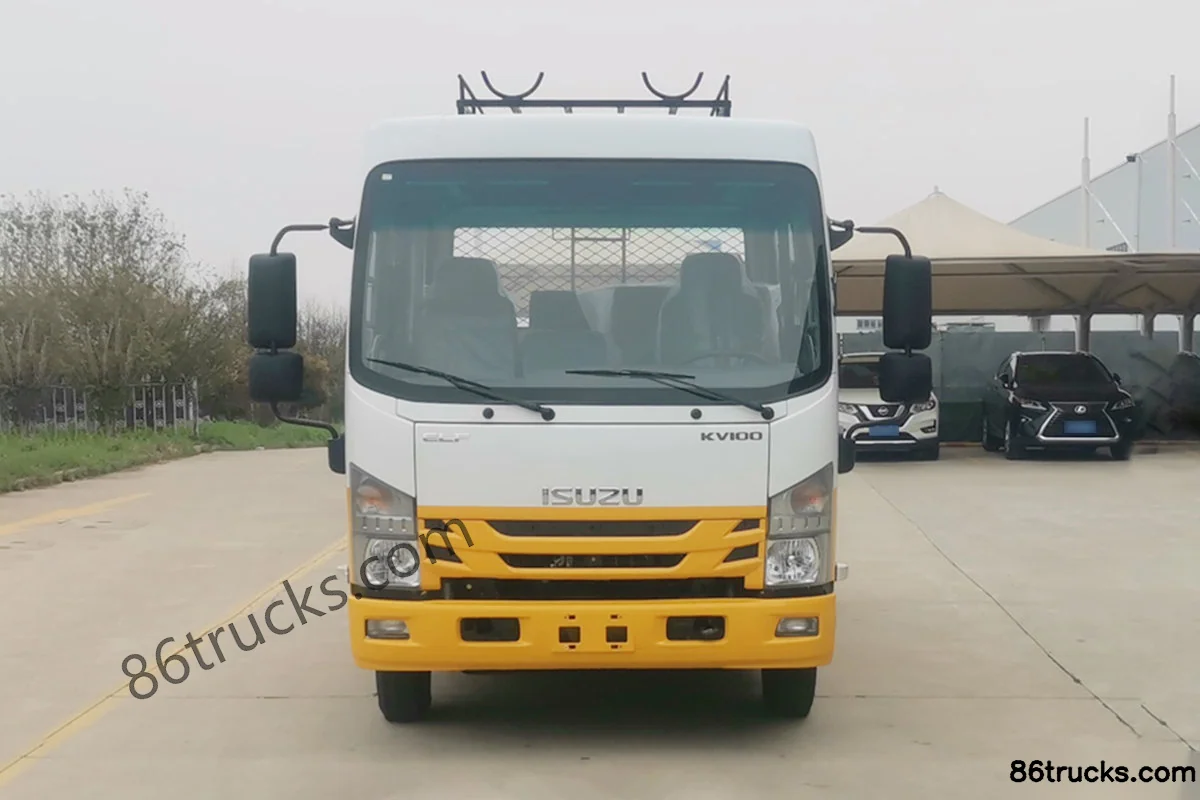

Exterior3

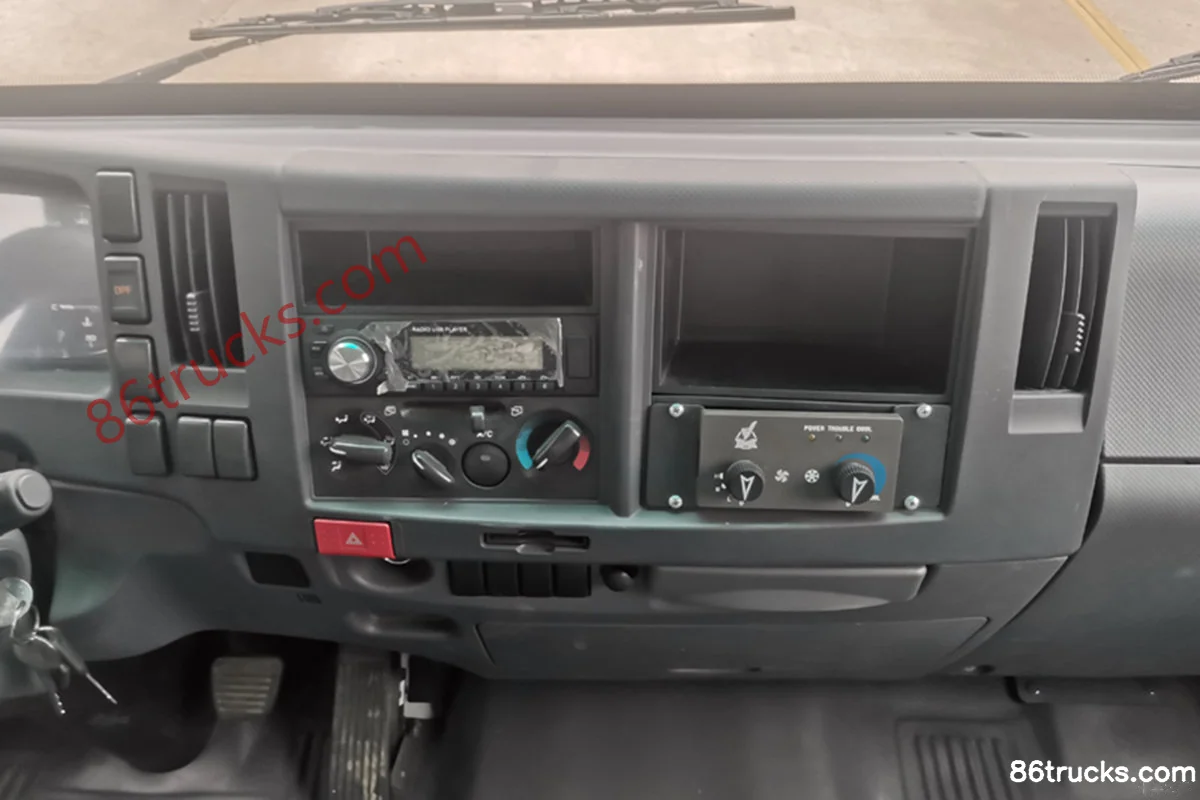

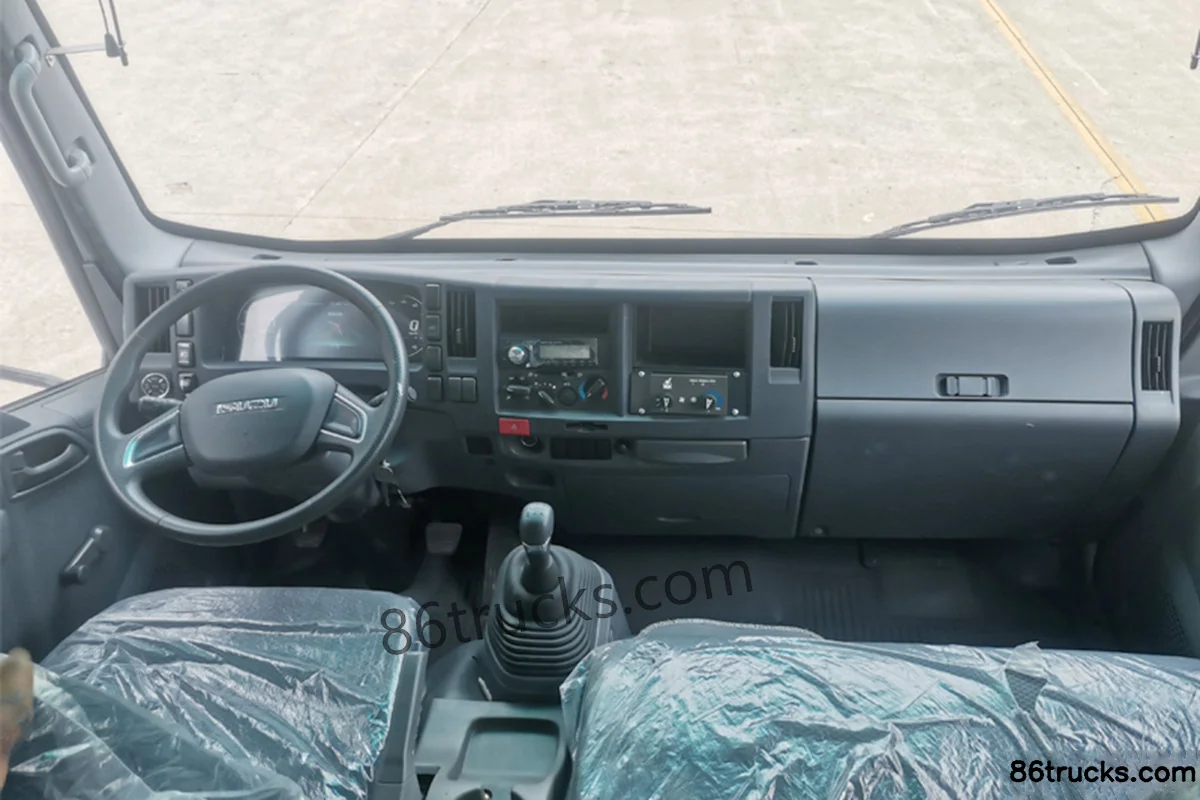

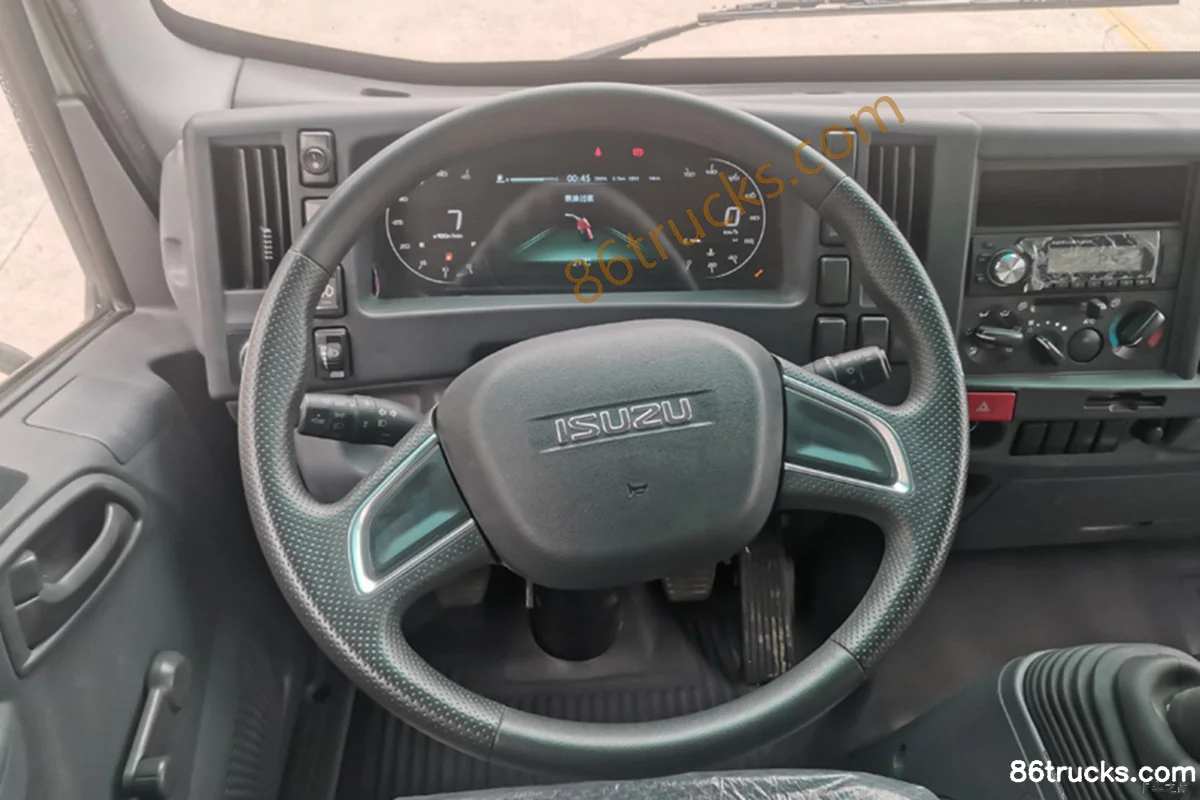

Cab3

Chassis1

7 photos

FAQ

What emission standard does Qingling Isuzu KV100 2023 120 hp 4X2(6 wheels) 2.52m engineering truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Qingling Isuzu KV100 2023 120 hp 4X2(6 wheels) 2.52m engineering truck (China VI)?

Key specs of Qingling Isuzu KV100 2023 120 hp 4X2(6 wheels) 2.52m engineering truck (China VI): Drive: 4x2; Horsepower: 120 hp; Emission: China VI; Fuel: Diesel; Engine: Qingling Isuzu4KH1; Transmission: Isuzu. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling Isuzu KV100 2023 120 hp 4X2(6 wheels) 2.52m engineering truck (China VI) suited for?

Qingling Isuzu KV100 2023 120 hp 4X2(6 wheels) 2.52m engineering truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Qingling Isuzu KV100 2023 120 hp 4X2(6 wheels) 2.52m engineering truck (China VI) differ from other variants in the same series?

Qingling Isuzu KV100 2023 120 hp 4X2(6 wheels) 2.52m engineering truck (China VI) belongs to Qingling IsuzuKV100 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling Isuzu KV100 2023 120 hp 4X2(6 wheels) 2.52m engineering truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling Isuzu KV100 2023 120 hp 4X2(6 wheels) 2.52m engineering truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
