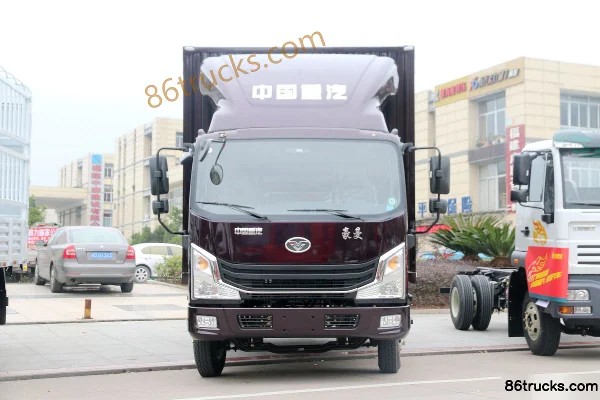

Sinotruk HOWO MANH3 160hp 4X2(6 wheels) 5.2m Semi-row Van Cargo Truck (8-speed)

Export reference
From $21,722
MSRP ¥15.64M CNY
Horsepower: 160
Emission: China V
Fuel: Diesel
Engine: Yuchai4102
Transmission: Fast Gear
Curb Weight:: 4.8ton
seating capacity: 3Personnel
Rated payload: 4.995ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Sinotruk HOWO MANH3 160hp 4X2(6 wheels) 5.2m Semi-row Van Cargo Truck (8-speed) is a Light Truck featuring 5.2m cargo length, Van body cargo body, 3Personnel volume and 4.995t payload. Its segment focus covers Agricultural product transport, logistics distribution and LTL transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai4102 engine, 160 hp, 4X2 (6 wheels) drive and China V emissions.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5108XXYF17EB0
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 4200mm
Box length class: 5.2m
engine: YuchaiYC4S160-50
transmission: Fast Gear8JS85TE
Rear Axle Ratio: 4.875
Cab length: 7.445m
Cab width: 2.498m
Cab height: 3.4m
Front track width: 1825mm
rear track: 1790mm
Curb Weight: 4.8ton
Rated payload: 4.995ton
GVWR: 9.99ton
Max. speed: 90km/h
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 20°
departure angle: 17°
market segment: Agricultural product transport, logistics distribution, LTL transport
Remarks: Optional: A/C; Air horn; Ratio 4.333; Air-suspension seat; Shock-absorbing rear suspension; 200L aluminum fuel tank
Front/rear suspension: 1.175/2.02m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4S160-50
Engine info: Yuchai4102
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.767L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 550N·m
Max torque speed: 1300-1800rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS85TE
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 5.2m
Cargo box width: 2.4m
Cargo box height: 2.3m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Flat roof
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 150L
Chassis Specs
Front axle description: 1090
Front axle allowable load: 3145kg
Frame Dimensions: 216(865)mm
rear axle description: 1118
rear axle allowable load: 6845kg
Axle ratio: 4.875
Leaf spring count: 9/12+9
Tire
Tire Size: 8.25R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Sinotruk HOWO MANH3 160hp 4X2(6 wheels) 5.2m Semi-row Van Cargo Truck (8-speed), and what does it include?

Sinotruk HOWO MANH3 160hp 4X2(6 wheels) 5.2m Semi-row Van Cargo Truck (8-speed) export reference is about From $21,722; MSRP is ¥15.64M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO MANH3 160hp 4X2(6 wheels) 5.2m Semi-row Van Cargo Truck (8-speed) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO MANH3 160hp 4X2(6 wheels) 5.2m Semi-row Van Cargo Truck (8-speed)?

Key specs of Sinotruk HOWO MANH3 160hp 4X2(6 wheels) 5.2m Semi-row Van Cargo Truck (8-speed): Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai4102; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO MANH3 160hp 4X2(6 wheels) 5.2m Semi-row Van Cargo Truck (8-speed) suited for?

Sinotruk HOWO MANH3 160hp 4X2(6 wheels) 5.2m Semi-row Van Cargo Truck (8-speed) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO MANH3 160hp 4X2(6 wheels) 5.2m Semi-row Van Cargo Truck (8-speed) differ from other variants in the same series?

Sinotruk HOWO MANH3 160hp 4X2(6 wheels) 5.2m Semi-row Van Cargo Truck (8-speed) belongs to Sinotruk Pioneer Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO MANH3 160hp 4X2(6 wheels) 5.2m Semi-row Van Cargo Truck (8-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO MANH3 160hp 4X2(6 wheels) 5.2m Semi-row Van Cargo Truck (8-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
